Magicfx SHOT BASE DMX User manual

PRODUCT CODE : MFX0350
VERSION : 1.0
DATE : 26.02.2013

User documentation MAGICFX® Shot Base DMX
Page 1
1. CONGRATULATIONS!
You have bought a great new product from MAGICFX®.
MAGIC FX is a Dutch manufacturer of professional special effects machines and equipment. We have
been experts in special effects since our establishment in 1995. All our products are made under the
brand name MAGICFX® which by now has acquired a great reputation on account of its quality and
reliability. All products are made in accordance with the European Machinery Directive. MAGIC FX
manages the entire production process in-house, from the design stages and prototyping to
production. In short, we cover everything from concept to ready-to-use product.
Moreover, MAGIC FX is Europe's largest supplier of high-quality and fireproof confetti products and
streamers. Thanks to our very large stock levels, we can deliver quickly and at low prices.
MAGICFX® is used by special effects professionals all over the world and our products are distributed
through a dealer network which covers more than 80 countries.
Congratulations and enjoy your purchase!

Version 1.0
Page 2
2. CE MARKING
PLEASE NOTE:
We presume that you, your employees and others who use or come
into contact with the machine are familiar with how the machine must
be dealt with. This includes the correct use, maintenance and repair of
the machine as described in this user manual. This also means that the
employees are familiar with the use of machines through training or
experience.
DANGER WARNING:
Only use the Shot Base DMX in accordance with the regulations and
instructions in this manual. Consult MAGIC FX in case of doubt.
Disclaimers:
MAGIC FX B.V. excludes liability for unsafe situations, accidents and damage that are the result of:
- Disregard for the warnings or regulations as set out on the Shot Base DMX or in this
documentation.
- Use for other purposes or under other circumstances than those set out in this documentation.
- Alterations to the Shot Base DMX. This also includes the use of replacement parts other than the
original ones.
- Insufficient maintenance.
- Unauthorised removal of safety caps and/or safeguards.
- Incompetent operation of the machine.
MAGIC FX B.V. is not liable for any consequential loss in the event of a Shot Base DMX breakdown.
© Copyright 2012
All rights are reserved. Nothing from this manual may be duplicated, or kept in an automated data file,
or made public, or in any form or manner, whether electronically, mechanically, by photocopying, by
incorporation, or in any other manner duplicated without the permission of MAGIC FX B.V.
MAGIC FX at all times retains the right to make alterations without the direct knowledge of the client.
The contents of this user manual can also be changed.
Please contact the technical department of your supplier for extra information with regard to, for
example, maintenance and repair. This user manual has been drawn up with the utmost care. MAGIC
FX cannot be held responsible for any mistakes made in this publication or for any consequences
thereof.

User documentation MAGICFX® Shot Base DMX
Page 3
3. DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
(according to Annex II.1.A of the Machinery Directive)
Concerning the Machinery Directive.
We; MAGIC FX B.V.
Schouwrooij 27
5281 RE Boxtel
The Netherlands
State under personal responsibility:
We are the manufacturer of the product:
MFX0350 - MAGICFX®Shot Base DMX
to which this statement relates and which is in accordance with the provisions of the following
Directive(s):
- Machinery Directive 2006/42/EC
- Low Voltage Directive 2006/95/EC
- EMC Directive 2004/108/EG
The following harmonising standards have been applied:
- NEN-EN-ISO 12100
- NEN-EN-ISO 60204-1
Place : Boxtel
Date : 15-10-2012
Name: MAGIC FX
Director: B. Veroude

Version 1.0
Page 4
4. FOREWORD
This manual describes the MAGICFX® Shot Base DMX. The information in this manual is important
for the proper and safe functioning of the Shot Base DMX. If you are not familiar with the installation,
operation, preventative maintenance etc. of the Shot Base DMX then please read this user manual
carefully from beginning to end. MAGIC FX also insists that all new users (operators, installers,
maintenance workers and cleaners) receive a training course in which this user manual can serve as a
starting point.
MAGIC FX advises that the original of this user manual, including appendices, is kept at a safe and
central place. It is best that another original or copy is kept close to the Shot Base DMX at the
workplace.
If you are familiar with these matters, then you can use this manual as a work of reference.
The following standard markings are used in this manual for drawing attention to certain subjects or
actions.
TIP:
Gives you suggestions and advice regarding easier or more
convenient ways to carry out certain tasks.
PLEASE NOTE:
A comment with additional information: alerts you to certain problems.
CAUTION:
The machine can be damaged if you do not follow the procedures
carefully.
DANGER WARNING:
You can get (seriously) hurt if you do not carefully carry out the
procedures.

User documentation MAGICFX® Shot Base DMX
Page 5
CONTENTS
1. CONGRATULATIONS!.................................................................................... 1
2. CE MARKING................................................................................................... 2
3. DECLARATION OF CONFORMITY................................................................. 3
4. FOREWORD .................................................................................................... 4
5. INTRODUCTION .............................................................................................. 6
5.1 DESCRIPTION AND APPLICATION OF THE SHOT BASE DMX........................................ 6
5.2 NECESSARY ACCESSORIES............................................................................................... 6
5.3 CANNONS............................................................................................................................... 6
6. SAFETY ........................................................................................................... 8
6.1 INTRODUCTION..................................................................................................................... 8
6.2 GENERAL SAFETY RULES................................................................................................... 8
6.3 WARNINGS............................................................................................................................. 9
7. PARTS ........................................................................................................... 10
8. ACCESSORIES.............................................................................................. 11
9. PREPARATIONS ........................................................................................... 11
10. INSTALLATION ............................................................................................. 12
11. USAGE........................................................................................................... 16
12. SWITCHING OFF........................................................................................... 18
13. TROUBLESHOOTING ................................................................................... 19
14. TECHNICAL SPECIFICATIONS.................................................................... 20
15. MAINTENANCE ............................................................................................. 20
16. GUARANTEE................................................................................................. 20

Version 1.0
Page 6
5. INTRODUCTION
5.1 DESCRIPTION AND APPLICATION OF THE SHOT BASE DMX
The Shot Base DMX is a confetti shooting system which has been specially developed to easily shoot
electric cannons from a podium or truss.
The Shot Base DMX can be used with electric confetti cannons as well as with electric streamer
cannons.
The Shot Base DMX runs on 230V~50/60Hz and is controlled by DMX-512.
As the Shot Base DMX can be used in various ways, it is important to read this user manual carefully
from beginning to end before you start operating the machine.
Any use other than that described above excludes your supplier from any liability.
5.2 NECESSARY ACCESSORIES
The following parts belong to the Shot Base DMX:
Table 5.1
5.3 CANNONS
The Shot Base DMX offers the possibility to work with approved electric confetti and streamer
cannons. The Shot Base DMX is not suitable for cannons other than those described below.
Table 5.2
40cm Electric cannons
80cm Electric cannons
Andere confetti cannons
Manual
MFX0308 –Power cable
Electric Cannons

User documentation MAGICFX® Shot Base DMX
Page 7
The following types of electric cannons are possible:
Table 5.3
All pre-filled cannons are for one-off use only.
CAUTION:
Metallic products are heavier and will therefore have a larger output.
CAUTION:
The electric cannons contain pressure containers which fire off the
confetti/streamers under a lot of pressure. Therefore always make sure
there is a free shooting range.
TYPE CANNON
CONTENT
CANNON LENGTH
OUTPUT
CONFETTI (150g)
40CM
5M
STREAMERS (150g)
40CM
12M
CONFETTI (300g)
80CM
12M
STREAMERS (300g)
80CM
20M

Version 1.0
Page 8
6. SAFETY
6.1 INTRODUCTION
The MAGICFX®Shot Base DMX is a device for electronically shooting electric cannons from a
distance. These electric cannons have been pre-filled with confetti or streamers and are available in
two sizes, 40cm and 80cm. The length of the electric cannons not only determines the content but
also the output of the contents to be expelled.
The Shot Base DMX must be placed and used in surroundings that preferably:
- Have a reasonably stable temperature of between 0 and 30ºC.
- Have a relative humidity degree of no more than 75%.
- Are reasonably free of dust, corrosive gases and high concentrations of organic vapours.
The Shot Base DMX has been designed and constructed in such a manner that it can be used safely.
This applies to the use, the circumstances and the regulations as described in this documentation.
Reading this documentation and following the instructions are therefore necessary for everyone who is
authorised to work with the Shot Base DMX.
6.2 GENERAL SAFETY RULES
-Only use the Shot Base DMX if there are no people, animals or other objects in the direction of the
electric cannon within the output distance. The shooting direction is the direction in which the
electric cannon in the Shot Base DMX is pointed. The output distance depends on the content and
length of the electric cannons.
- Make sure that children, unauthorised people and animals do not obtain access to the Shot Base
DMX!
- Do not take hold of the Shot Base DMX while it is working or is switched on. Also, when the Shot
Base DMX is not working, the electric cannon may still be filled.
- Safety devices may not be removed or disabled.
- All required safety devices must be in good condition and function properly.
- Ensure sufficient lighting of the surroundings.
- Keep the workplace clean.
- Only authorised persons may carry out work with the Shot Base DMX.

User documentation MAGICFX® Shot Base DMX
Page 9
6.3 WARNINGS
Warning texts have been attached to the Shot Base DMX. With regard to these the following rules
apply:
- These texts may not be removed or damaged. The operator must regularly check if this is the
case.
- The operator must ensure that the texts are and remain clearly visible and legible.
DANGER WARNING:
One must replace texts or signs if these are absent, damaged or
illegible.
Sign and explanation
PIC 307 Danger: high voltage
A warning must be given about the machine’s
high voltage by using the caution sign PIC 307.
This sign must be attached to the Shot Base
DMX. See also the added photo.
Sign and explanation
PIC 616 Follow the instructions
The operator must be told that he/she may only
operate the Shot Base DMX after reading the
user manual.
A warning is given for this by means of the
command sign of PIC 616. This sign should be
attached to the type sign. See also the photo.

Version 1.0
Page 10
7. PARTS
7
8
9
10
11
12
1. Power switch
2. Power input
3. Power output
4. DMX input
5. DMX output
6. Warning LEDs
7. Display
8. DMX LED
9. MENU button
10. UP button
11. DOWN button
12. RESET button
13. Cannon connection
14. Indicator LED
15. Turning lock
16. Cannon srew nut
17. Right screw nut
1
2
3
4
5
6
13
14
15
16
17

User documentation MAGICFX® Shot Base DMX
Page 11
8. ACCESSORIES
MFX0309 –Power link cable
MFX0308 –Power cable
MFX3103 –Twenty clamp M10
Table 8.1
You can order these parts and accessories from:
9. PREPARATIONS
Unpack the Shot Base DMX. Dispose of the packaging material without harming the environment.
Inspect the machine for any damage. If damage is noticed this must be reported to MAGIC FX.
MAGIC FX B.V.
Schouwrooij 27
NL-5281 RE BOXTEL
The Netherlands
T. [phone]
F. [phone]
W. http://www.magicfx.eu
E. [e-mail]

Version 1.0
Page 12
10. INSTALLATION
CAUTION:
The machine can be damaged if you do not follow the procedures
carefully.
DANGER WARNING:
The MAGICFX® Shot Base DMX may only be installed by adults and
authorised persons.
Prepare the Shot Base DMX for use as follows:
If you want to use the Shot Base DMX
mounted in a truss system, then attach 2
certified truss clamps (MFX3104) to the
underside of the Shot Base DMX.
Then place the Shot Base DMX on the
required place in the truss system and
firmly turn the clamp.
Then continue to step 2.
1b
If you want to use the Shot Base DMX in a
standing position, then place the Shot
Base DMX on an even, solid and stable
surface.
Then continue to step 2.
1a

User documentation MAGICFX® Shot Base DMX
Page 13
To switch on the machine, turn the switch
on the Shot Base DMX to the ‘on’
position.
The display will show the screen on the
left for one 1 second.
5.
Connect the other end of the DMX cable
(male plug) to a professional DMX
controller.
Make sure that you always place the
controller is such a way that the operator has
full sight of all the connected machines.
Consult the manual of your DMX controller
for instructions and safe use.
4.
Connect a 3-pin DMX cable to the Shot
Base DMX.
No more than 1200m distance is permitted
between the controller and the receiver.
Furthermore, no more than 32 DMX
receivers may be connected to 1 DMX
sender.
Maintain these standards for a faultless
operation.
If required you can connect several
machine to each other by using 3-pin
DMX cables
3.
Check if the on/off switch is in the ‘off’
position and then connect the electricity
cable. The Shot Base DMX runs on 230V~
50/60Hz. You will need a powerCON plug
to be able to provide the Shot Base DMX
with electricity. The Shot Base DMX is
also equipped with a powerCON output.
By connecting a powerCON loop cable
(MFX0309) to this you can connect
several machines to the same electricity
source.
2.

Version 1.0
Page 14

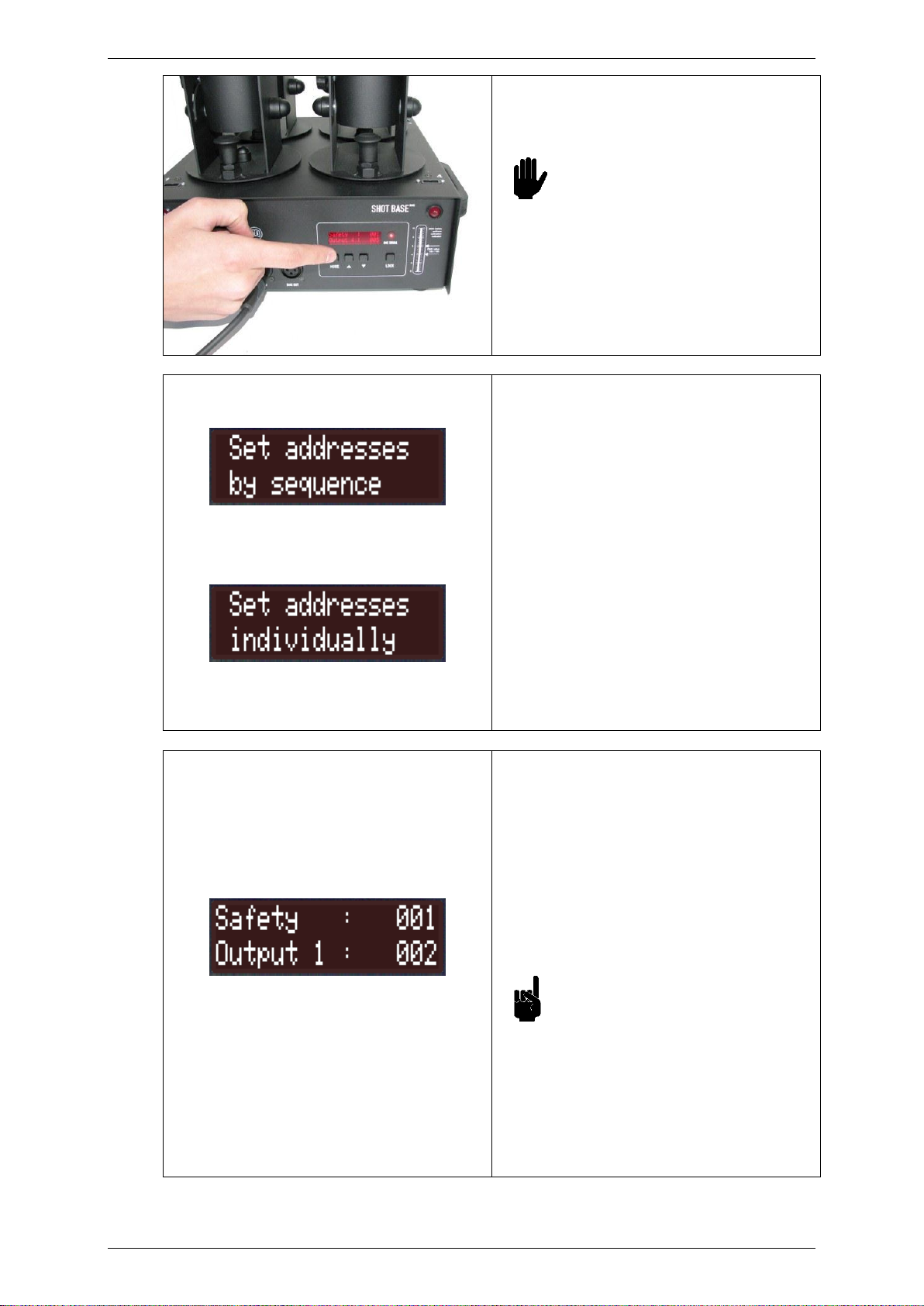

The display will now show the screen
pictured on the left.
You will see the address behind Safety flash
on and off: this is the address for releasing
the machine.
Change to the required address by
pressing on the▲ or ▼ button. Then
press the MODE button to confirm your
choice.
When using several machines it is
recommended to use the same ‘Safety’
channel for each Shot Base DMX.
If you want to restore the addresses to
standard values then press on the LOCK
button for each address. The address will
then return to the standard value.
8.
-Of-
Press the ‘MODE’ button to start the Shot
Base DMX set-up.
The Shot Base DMX now gives you two
set-up choices.
Set addresses by sequence
You only set the Safety address and the first
output address through which the other 3
output addresses are automatically set in
numerical order.
Set addresses individually
You set all 5 addresses separately.
Change to the required mode by pressing
the ▲ or ▼ button. Then press the MODE
button to confirm your choice.
7.
Before you start to load the Shot Base
DMX with the cannons you must install
the Shot Base DMX correctly.
During installation, make sure that you use
free channels on the DMX controller and that
these channels are in the safe mode. The
safe mode means that during the installation
of the Shot Base DMX the 0-values of a
channel are set. Consult the manual of the
DMX controller for the set-up.
6.

User documentation MAGICFX® Shot Base DMX
Page 15
It is possible to switch off the buttons for
safety reasons.
Keep the Lock button pressed down for 5
seconds to switch the buttons on or off.
The machine is locked when an L appears in
the screen as pictured on the left.
Now the address behind Output 1 will
start flashing on and off. You can set this
in the same way as the Safety address.
If at the first setting you have opted for Set
addresses by sequence and you have
completed the stage, then you are finished
with the step-up.
If you have opted for Set addresses
individually then you repeat the action until
all addresses have been set.
It is not possible to set one of the output
addresses at the same address as the
Safety address. If you use the Set
addresses by sequence option make sure
that you always chose an output address
that is 1 higher or 4 lower than the set safety
address.
9.

Version 1.0
Page 16

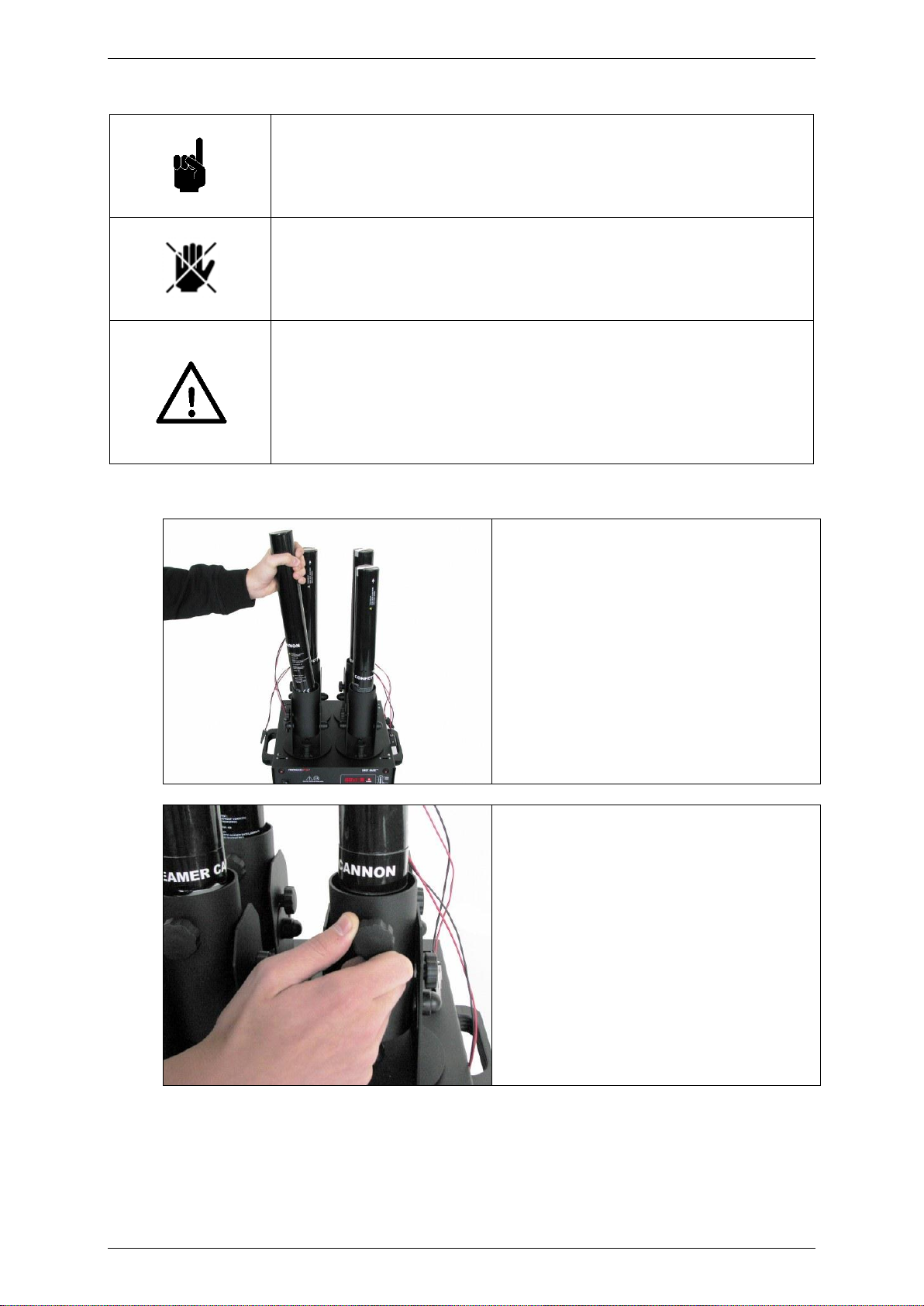

11. USAGE
TIP:
Gives you suggestions and advice regarding easier or more
convenient ways to carry out certain tasks.
CAUTION:
The machine can be damaged, if you do not follow these procedures
carefully.
DANGER WARNING:
The MAGICFX® Shot Base DMX may only be installed by adults and
authorised persons.
The Shot Base DMX may only be operated if all parts are completely
and correctly installed/connected.
For using the Shot Base DMX take the following steps:
Turn the buttons above the holders until
they are pressed tightly against the
cannons.
2.
Load the Shot Base DMX with the
cannons you have selected. Place the
cannons in the holders intended for this.
1.

User documentation MAGICFX® Shot Base DMX
Page 17
After using the Shot Base DMX the
machine must be set in the safe mode
again.
Put the Shot Base DMX in the safe mode
by closing the ‘Safety’ channel or by
giving it a value outside the 40-60%
range.
The Shot Base DMX cannot be used when it
is in the safe mode.
Before you start firing the canons always
check to make sure that nobody is
situated within the output direction of the
Shot Base DMX. Also always make sure
that there is a good view on the Shot
Base DMX during the special effect.
Consult the manual of the DMX controller for
correct use.
To get the Shot Base DMX out of the safe
mode, the ‘safety’ channel on the Shot
Base DMX must be set between 40% and
60%.
The LED light on the back of the Shot
Base DMX now starts to flash on and off.
Press the flash buttons of the set output
channels on the DMX controller.
The cannons connected to the Shot Base
DMX now go off if the right output has
been chosen.
4.
Then connect the connectors of the
cannons to the accompanying output.
If the cable is too short then use the cable
extension provided.
If you cannot insert the connector properly in
the output then squeeze the front piece of
the connector tightly so that it will properly go
into the output.
3.

Version 1.0
Page 18
12. SWITCHING OFF
To switch off the Shot Base DMX, take the following steps:
Remove all cannons from the Shot Base
DMX.
4.
Remove the powerCON cable and DMX
cables.
3.
Switch off the Shot Base DMX by
pressing the electricity switch in the ‘off’
position.
2.
Make sure that the Shot Base DMX is in
the safe mode.
1.
