MegaLite Outshine Q500 User manual

USER MANUAL
Table of Contents
Safety Information…………………………………………………...…3
Specifications……………………………………………………….…..4
Photometrics…………………………………………………………….5
Main Power Connection……………………………………………….6
Signal Connection………….…………………………………………..6
Main Control Menu.........................................................................7
DMX Profile.....................................................................................10
Rigging the Fixture……………………………...……………………...12
Cleaning & Maintenance..................................................................12
Parts List..........................................................................................12

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured
6. Maximum surface operating temperature 140º.
Protection Against Electrical Fire
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 5.
3. This unit must be earthed. (electronically grounded)
4. This fixture must not be left on for long periods of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
Ingress Protection
IP 65
3
Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured
6. Maximum surface operating temperature 140º.
Protection Against Electrical Fire
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 6.
3. This unit must be earthed. (electronically grounded)
4. This fixture must not be left on for long periods of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
Ingress Protection
The IP rating is commonly expressed as IP (Ingress Protection) is followed by 2 numbers (i.e. 65)
where the numbers define the fixture rating. The first number indicates the size of a particle that can
enter the fixture.. The second number indicates the extent of protection against water entering the
fixture. An IP65 rating in this fixture indicates that dust particles can not enter the fixture. And there is
protection against powerful water spray from entering the fixture from any direction.
3

Technical Information
4
7227-Outshine Q500
Mechanical Specifications
Electrical Specifications
DMX 512 Protocol
Wireless: Wireless Solution Receiver built in
DMX Modes:
Mode 3 Channel Red, Green, Blue
Mode 4 Channel Red, Green, Blue, White
Mode 5 Channel Dimmer, Red, Green, Blue, White
Mode 7 Channel Dimmer, Red, Green, Blue, White, Strobe, Macro
Mode 8 Channel Red, Red Fine, Green, Green Fine, Blue, Blue Fine, White, White Fine
Mode 10 Channel Dimmer, Dimmer Fine, Red, Red Fine, Green, Green Fine, Blue, Blue Fine, White, White Fine
Mode 13 Channel Dimmer, R1, G1, B1, W1, R2, G2, B2, W2, Strobe, Macro, Dim Curve, Dim Speed
Control Options: Built in Control via display
Control & Programming
Power Connection: Seetronic IP Connection with Nema 5/15 adapter
IP Rating: IP 65
DMX Connection: Seetronics IP 65 XLR 3 pin in / out
Fastening System: 2 Quick Release clamp mount
2 or 1 position
Thermal: Maximum ambient temperature 104°
Maximum surface temperature 140°
Wireless: Wireless Solutions IP antenna
Lens: 30°
LED Quantity: 48 Power Input Voltage: 110V-240 50/60 Hz
LED Watt: 10 Power Consumption: Watts: 272 Amps: 2.33
Color Type: RGBW Scan Rate: 7000Hz
Dimming: 16Bit Dimming Segment: 2 Segment Control
LED Lifetime: *50 to 80 thousand hours Average
Part Number
12.75”
21”
* Average expected LED life per LED manufacture
Fixture
Size: 21” x 6.25” x 12.75”
Weight: 30.75lb
Size: 22.5” X 8.5” X 17.5”
Weight: 34lb
19”
6.25”
5”
Packaged

5
Photometrics
All LED’s ON CW Only
Red Only Green Only Blue Only
@ 10 Feet with 30 degree lens

6
Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit has Auto switching power supply. It will respond to 110V or 220V automatically
3. This unit must be earthed. (electronically grounded)
4. Replace fuse only with the specified type and rating.

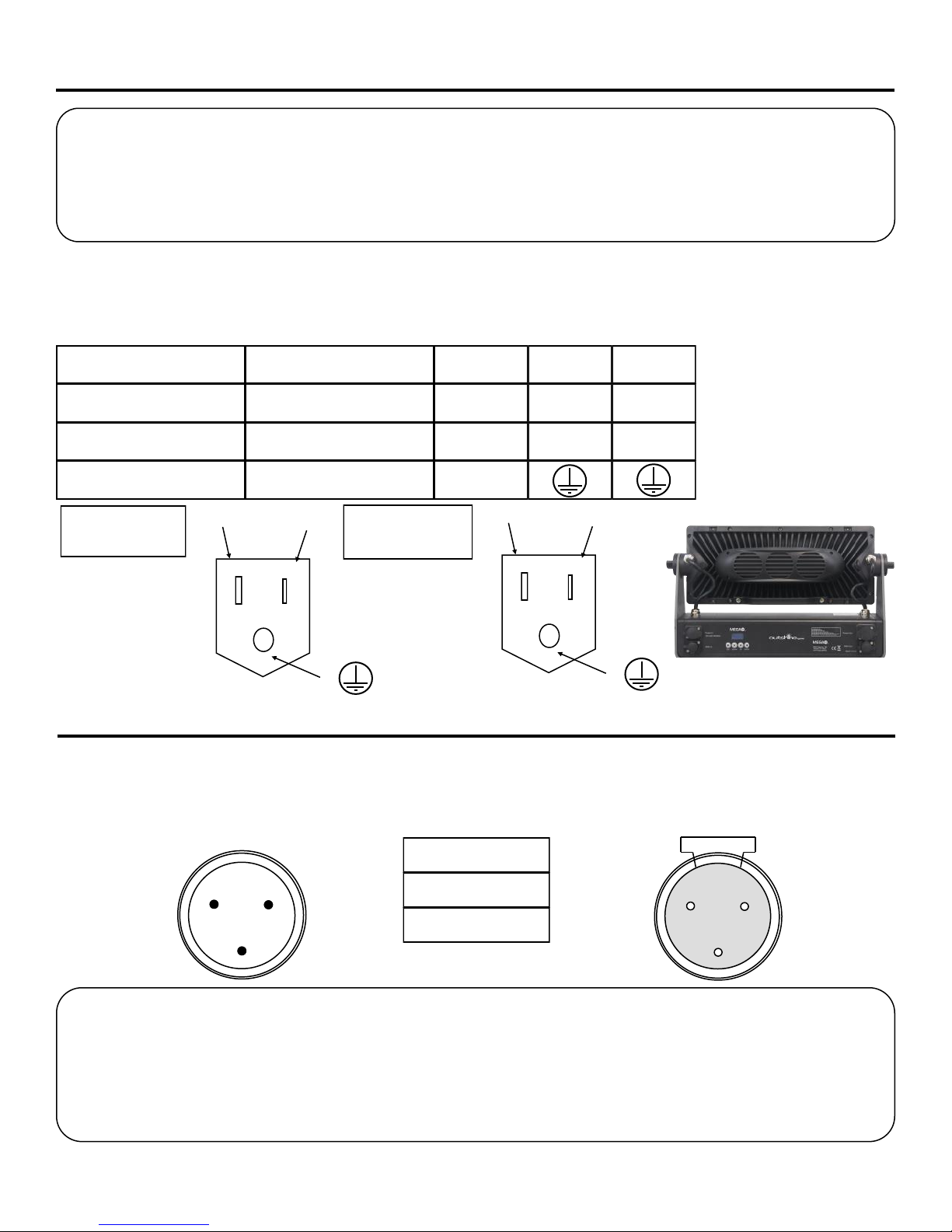

The occupation of the connection-cable is as follows:
This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
220V
L
L
110V
Connection 220V
Connection
LNLL
DMX-512 Connection
The fixture is equipped with 3 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a
shielded twisted pair cable designed for RS-485 and 3 pin outdoor XLR plugs and connectors in order to connect the
controller with the fixture or the fixture with another.
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a
120 Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it
in to the last fixture on the signal run. Pre-manufactured terminator plugs are availa-
ble for purchase from your Mega-Lite dealer (HOS-DMXT).
1
2
3
2
3
1
DMX—input DMX—output
1. Shield
2. Signal (-)
3. Signal (+)
This fixture has power in and out via Seetronics Ip65 UL listed power connections rated at 16Amps. Do not
exceed 5 of this type units connected on a single line.

Display Menu
7
The control board on the fixture is your interface to access and control
all the functions on the unit. Its digital display gives you a code view of
the options and functions. The following will explain each function and
its options.
ESC DOWN UP ENTER
Mega Lite
Outshine Q500
V1.3
DMX Address
Press Enter to select the DMX start channel. Use the up/down keys (001 to 512) , Press
Enter to confirm the setting. Press ESC to return to Main Menu. Number in the comas is the
next available channel
(Notes: Display must be on Main Menu for fixture to operate on DMX Mode)
Address
001
(009)
DMX On
Main Menu
Main Menu
>Config Mode
System Info
Color Menu
White Balance
Static Color
Auto Test
Auto Speed
Load Default
Firmware Versio
Press Up or Down to access Main Menu display settings directory
Configure Menu
Allows you to access fixture set up and operation options.
Main Menu
>Config Menu
Channel Mode
Dimmer Curve
DMX Status
Fan Speed
WDMX Power
WDMX Mode
Display Mode
5 CH Dimmer, Red, Green, Blue, White
4 CH Red, Green, Blue, White
3 CH Red, Green, Blue
7 CH Dimmer, Red, Green, Blue, White, Strobe, Macro
8 CH Red, Red Fine, Green , Green Fine , Blue, Blue Fine, White, White Fine
Press Enter to select the DMX Channel mode of operation. Use the up/down
keys to select Channel mode from
Press Enter to confirm the setting. Press ESC to return to Main Menu.
Channel Mode
Config Menu
>Channel Mode
Dimmer Curve
DMX Status
10 CH Dimmer, Dimmer Fine, Red, Red Fine, Green , Green Fine , Blue, Blue Fine, White, White Fine
13 CH Dimmer, Red 1, Green 1, Blue 1, White 1, Red 2, Green 2, Blue 2, White 2, Strobe, Macro, Dim Curve, Dim Speed

8
Press Enter select from
Mode L
Mode S
Mode I
Mode Q
Dimmer Curve
Press Enter to chose from Disable or Enable.
Disable will turn fixture LED’s off if DMX signal is lost
Enable will leave the last DMX value if DMX signal is lost
DMX Status
Config Menu
Channel Mode
>Dimmer Curve
DMX Status
Config Menu
Channel Mode
Dimmer Curve
>DMX Status
Press Enter to chose from low, standard, high. Fan will automatically engage at the
speed selected once the temperature reaches the need for the fan.
Fan Speed
Config Menu
Dimmer Curve
DMX Status
>Fan Speed
This feature will only work of you have purchased the model that has WDMX built in.
Press Enter select On or Off. On to power on the wireless receiver or off to power off
WDMX Power
Config Menu
DMX Status
Fan Speed
>WDMX Power
Press Enter select Enable to keep screen display on or Disable to turn of the
screen after 30 sec no use.
Display Mode
Config Menu
Fan Speed
WDMX Mode
Display Mode
System Info Menu
From Main Menu scroll down to select System Info. This will allows you to access to fixture
information Menu.
Main Menu
Configure Mode
>System Info
Color Menu
Press Enter to read the fixture current temperature in the Head and the Body.
Temperature
Information
>Temperature
Fixture Time
Press Enter to see how long the fixture has been turned on in hour view.
Fixture Time
Information
Temperature
>Fixture Time
Configure Mode
This feature will only work of you have purchased the model that has WDMX built in.
Press Enter a Wait indicator will turn on. At that time select to transmit linking signal
from your Wireless Solution Transmitter. Once connected Uplink display will turn on.
WDMX Mode
Config Menu
Fan Speed
WDMX Power
>WDMX Mode

Color Menu
Press Enter to turn on the fixture to a selected color via display.
Select from color options
Red 0-255
Green 0-255
Blue 0-255 (note: once completed press Enter if fixture power is turned off
White 0-255 then on in the color adjustment menu The fixture will recall the
last color settings)
Main Menu
Configure Mode
System Info
>Color Menu
White Balance Menu
Main Menu
System Info
Color Menu
>White Balance Press Enter to select the fixture individual max color value.
Red 0-255
Green 0-255
Blue 0-255
White 0-255 (note: once completed press Enter)
Static Color Menu
Main Menu
Color Menu
White Balance
>Static Color Press Enter to select a pre-programed color 0-51 color options.
Auto Test
Main Menu
White Balance
Static Color
>Auto Test Press Enter to select a pre-programed color chases and fades1-4 options. Press Enter
once completed
(note: if fixture is powered off and on in the Auto Test menu it will return to Auto mode)
Auto Speed
Main Menu
Static Color
Auto Test
>Auto Speed Select Enter to adjust the speed of the Auto Test. 00-40
(note: 00 is the fastest)
Main Menu
Auto Test
Auto Speed
>Load Default Press Enter to return fixture to original factory display settings. Select yes to enable
and no to return to original menu.
Load Default
Main Menu
Auto Speed
Load Default
>Firmware Versio Press Enter to view fixtures software version.
Firmware Version
9

10
DMX Profile
Outshine Q500 3Ch Mode
DMX Channel Function Description Value Init
1LED Color Red LED intensity 0-255 255
2LED Color Green LED Intensity 0-255 255
3LED Color Blue LED Intensity 0-255 255
Outshine Q500 4Ch Mode
1LED Color Red LED intensity 0-255 255
2LED Color Green LED Intensity 0-255 255
3LED Color Blue LED Intensity 0-255 255
4LED Color White LED Intensity 0-255 255
Outshine Q500 5Ch Mode
DMX Channel Function Description Value Init
1Dimmer Dimmer Off to Full 0-255 255
2LED Color Red LED intensity 0-255 255
3LED Color Green LED Intensity 0-255 255
4LED Color Blue LED Intensity 0-255 255
5LED Color White LED Intensity 0-255 255
Outshine Q500 7Ch Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer Off to Full 0-255 255
2LED Color Red LED intensity 0-255 255
3LED Color Green LED Intensity 0-255 255
4LED Color Blue LED Intensity 0-255 255
5LED Color White LED Intensity 0-255 255
No Function 0-1
Strobe (slow to fast) 2-127
6Strobe Strobe Pulse (slow to fast) 128-170 0
Random Strobe All (slow to fast) 171-213
Random 1-2 Strobe (slow to fast) 214-255
No Function 0-1
Fade (slow to fast) 2-127
7Macro Chase (slow to fast) 128-170 0
Fade 1-2 (slow to fast) 171-213
Chase 1-2 (slow to fast) 214-255

Outshine Q500 8Ch Mode
DMX Channel Function Description Value Init
1LED Color Red LED Intensity 0-255 255
2LED Color Red Fine LED Intensity 0-255 255
3LED Color Green LED Intensity 0-255 255
4LED Color Green Fine LED Intensity 0-255 255
5LED Color Blue LED intensity 0-255 255
6LED Color Blue Fine LED intensity 0-255 255
7LED Color White LED Intensity 0-255 255
8LED Color White Fine LED Intensity 0-255 255
Outshine Q500 10Ch Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer 0-255 255
2Dimmer Fine Dimmer Fine 0-255 255
3LED Color Red LED Intensity 0-255 255
4LED Color Red Fine LED Intensity 0-255 255
5LED Color Green LED Intensity 0-255 255
6LED Color Green Fine LED Intensity 0-255 255
7LED Color Blue LED intensity 0-255 255
8LED Color Blue Fine LED intensity 0-255 255
9LED Color White LED Intensity 0-255 255
10 LED Color White Fine LED Intensity 0-255 255
Outshine Q500 12Ch Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer Off to Full 0-255 255
2LED Color Red 1 LED intensity 0-255 255
3LED Color Green 1 LED Intensity 0-255 255
4LED Color Blue 1 LED Intensity 0-255 255
5LED Color White 1 LED Intensity 0-255 255
6LED Color Red 2 LED intensity 0-255 255
7LED Color Green 2 LED Intensity 0-255 255
8LED Color Blue 2 LED Intensity 0-255 255
9LED Color White 2 LED Intensity 0-255 255
No Function 0-1
Strobe (slow to fast) 2-127
10 Strobe Strobe Pulse (slow to fast) 128-170 0
Random Strobe All (slow to fast) 171-213
Random 1-2 Strobe (slow to fast) 214-255
No Function 0-1
Fade (slow to fast) 2-127
11 Macro Chase (slow to fast) 128-170 0
Fade 1-2 (slow to fast) 171-213
Chase 1-2 (slow to fast) 214-255
Linear 0-63
12 Dim Square 64-127 0
Curve Invert Square 128-191
S-Curve 192-255
13 Dim Speed Dimmer Speed 0-255 0
11

12
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and
electronics checked by an expert every year.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.

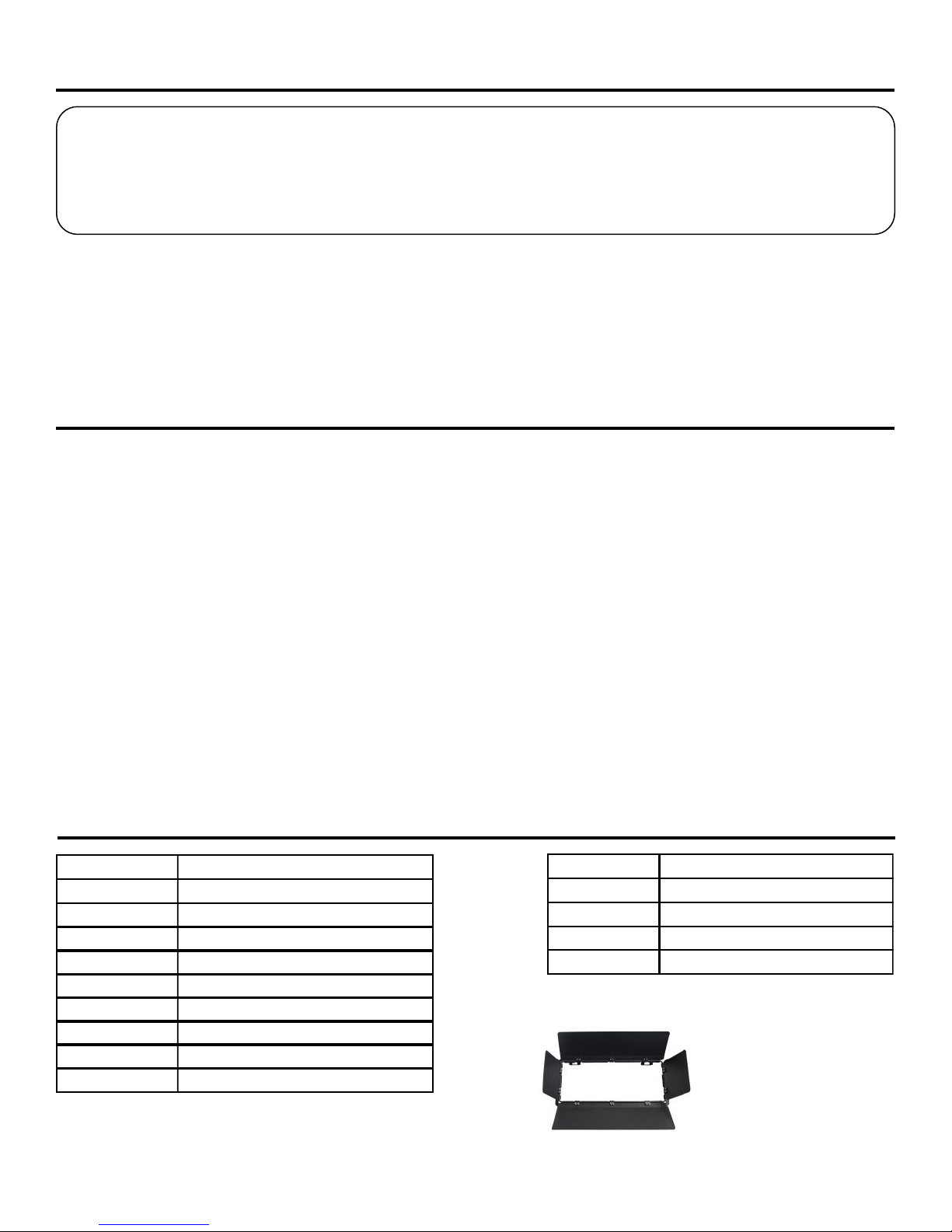

Parts List
7227-POW Power Supply
7227-PCB-DIS-MAI Main PCB and Display
7227-PCB-DRI Driver PCB
7227-FAN Single IP Fan
7227-LED Single LED
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the fixture has
got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
7227-KNO Knob
727-HOU-QUI Quick Clamp Release Mount
Rigging the fixture
Cleaning and Maintenance
Accessories
7227-ACC-BAR Removable Barn Door
7227-ACC-DEF Removable Diffusion Filter
7227-CAB-POW Power Input Cable
MC2043 Wireless Solution Transmitter
CAS-7227-44 Unit Road Case
7227-ACC-DIF
7227-LED-MOD Entire LED Module
7227-GLA Front Glass
7227-CON-3PI 3 Pin XLR Panel Connections in/out
7227-ACC-BAR
Note: There is no serviceable parts inside the device except for the LED’s. Maintenance and service operations are to
be carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized
dealers or trained professional only.
Should you have further questions , please contact your dealer.

Mega-Lite
18668 Highway 16N
Helotes, TX 78023
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LEDs are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci-
dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
- Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Customer Support
Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob-
lem. Please visit our website for any other related technical documents. For service related issue please contact our
service dept.
Monday—Friday 9am to 6pm CST
Voice: 210-684-2600
E-mail: [e-mail]
