SOLARWATT

MYRESERVE MATRIX

NSTALLATION AND OPERATING INSTRUCTIONS

Page 2

Contents

General information ......................................................................... 4

About these instructions.....................................................................................................................4

Scope of application ............................................................................................................................4

Limitation of liability ...........................................................................................................................4

Brief description of MyReserve.........................................................................................................4

Terms and abbreviations.....................................................................................................................5

Safety ............................................................................................... 5

Intended use..........................................................................................................................................5

Improper use..........................................................................................................................................5

Safety notices and general sources of danger...............................................................................6

Requirements for installers................................................................................................................7

Icons.........................................................................................................................................................7

System components ......................................................................... 9

MyReserve Command, MyReserve Pack ..........................................................................................9

MyReserve Pack accessories kit ........................................................................................................9

MyReserve Command accessories kit ........................................................................................... 10

AC Sensor 63....................................................................................................................................... 11

Required tools, resources, and installation materials............................................................... 11

The system ..................................................................................... 12

Overall system conguration.......................................................................................................... 12

MyReserve Command layout .......................................................................................................... 13

MyReserve Pack battery module layout....................................................................................... 14

AC Sensor 63 layout.......................................................................................................................... 14

System conguration........................................................................................................................ 15

Installation .....................................................................................15

Requirements for the installation location ................................................................................. 15

MyReserve installation..................................................................................................................... 16

Installation of the AC Sensor........................................................................................................... 32

Cluster system installation.............................................................................................................. 37

Monitoring......................................................................................40

Power Data Gateway (PDG) installation ....................................................................................... 40

Setting up the Power Data Gateway.............................................................................................. 40

Power Data Gateways in cluster installations............................................................................. 43

Power Data Gateway troubleshooting.......................................................................................... 44

Monitoring via the MyReserve Portal............................................................................................ 44

Page 3

Integrating the MyReserve into the EnergyManager................................................................. 44

Warranty activation ........................................................................45

Cleaning / maintenance & care .......................................................45

Conduct in the event of a malfunction............................................47

AC Sensor technical problems........................................................................................................ 47

MyReserve technical problems ...................................................................................................... 48

MyReserve critical states ................................................................................................................ 48

Fireghting measures....................................................................................................................... 48

Instructions for reghting measures .......................................................................................... 48

Packaging, storage, transport ......................................................... 49

Environment ...................................................................................50

Appendix ........................................................................................51

FAQ .................................................................................................58

Further applicable documents........................................................ 59

Page 4

General information

About these instructions

Read these Installation and Operating Instructions thor-

oughly in order to ensure that the MyReserve functions

smoothly. Installation and service must be carried out by

qualied electrician who has been trained and certied

by SOLARWATT. The installation and operating manual

should be easily accessible at all times to everyone in-

volved in work on the storage system.

With more than 20 years of production experience under

its belt, SOLARWATT is one of the pioneers of the German

solar industry. What started in 1993 as a two-person com-

pany is now a leading manufacturer of solar modules – a

provider of intelligent energy solutions for both private

and commercial uses. The MyReserve battery storage sys-

tem completes the systematic approach of SOLARWATT.

By choosing MyReserve, you will benet from a high-qual-

ity and innovative product from the SOLARWATT family.

The product makes use of safe, highly ecient, produc-

tion-ready battery technology combined with excellent

battery module execution. MyReserve also has a battery

management system that eciently operates and moni-

tors all components.

This installation and operating manual enables you to

safely and correctly integrate the MyReserve into a pho-

tovoltaic system so that this innovative battery storage

system can provide the optimal benet and thus increase

your household’s internal solar consumption.

Scope of application

The installation and operating manual applies to the

MyReserve Matrix product family of SOLARWATT GmbH,

which comprises the following product components:

• MyReserve Command 20.2

• MyReserve Pack

• AC Sensor 63

Limitation of liability

SOLARWATT assumes no liability for personal injury, dam-

age to property or the product itself, or for consequential

damages occurring as a result of disregarding this installa-

tion and operating manual. Furthermore, no liability shall

be assumed for damage to the product that results from or

has been caused by improper use, repairs, opening of the

battery storage system, or from any actions of unqualied

persons who have not been certied by SOLARWATT. This

limitation of liability also applies to the use of unapproved

replacement parts and failure to comply with the specied

maintenance intervals. No unauthorized modications or

technical alterations may be made to the product.

Brief description of MyReserve

MyReserve is a DC-coupled and modularly expandable

battery storage system for increased energy supply. The

system is installed between the PV array and the invert-

er and is suitable for existing system and new systems.

MyReserve can feed power into either single-phase or

three-phase inverters. Its AC Sensor detects household

electrical power drawn from or fed into the public grid.

These variables are evaluated in order to determine the

power output of the battery storage or the amount of

charging of the battery. More or less power is transferred

to the inverter depending on household consumption.

The household energy needs are supplied by the PV sys-

tem during the day. If the energy requirement is great-

er than the electricity that is currently being generated,

MyReserve discharges so that the current drawn from

the public grid is minimized. In pure battery operation

(night), the system only discharges the amount of elec-

tricity that the household requires. MyReserve is charged

Page 5

by the surplus electricity of the connected PV system. In

the process, generation calculations of the PV system and

load proles of the household are evaluated by means

of a self-learning, intelligent charge algorithm and an es-

pecially gentle charging strategy is pursued to maximize

the battery service life. The aim of this charging strate-

gy, among other things, is to use the full charge of the

storage battery as late as possible in the day, ending the

process at dusk, which protects the lithium-ion cell and

extends it’s operating life.

DC generator storage system

Terms and abbreviations

AC Alternating Current

DC Direct Current

ACS ACSensor 63

CAN Controller Area Network

EVU Power supply company

Com. Communication

LED Light-Emitting Diode

PDG Power Data Gateway

PE Protective Earth

PV Photovoltaic

I Inverter

Battery module MyReserve Pack

Safety

Intended use

The MyReserve is designed exclusively for storing elec-

trical energy generated by PV systems, and should be

used for this purpose alone. All technical data must be

observed. Using the MyReserve improperly or for purpos-

es other than the intended one can result in product mal-

functions and/or life-threatening situations. This will also

void any warranty claims.

Improper use

• Do not integrate MyReserve into electrical systems

that have a three-phase building connection higher

than 63 A per phase.

• Do not use MyReserve in vehicles (motor vehicles, air-

craft or ships)

• Do not use MyReserve as an uninterruptible power

supply (UPS)

• Do not connect MyReserve to PV systems in which the

negative pole and/or positive pole of the array or pan-

el is grounded

• Do not use MyReserve for the operation of medical

equipment

• Do not use MyReserve to operate devices for which

functional safety must be guaranteed

• Do not use MyReserve in areas which are prone to ex-

plosion (our dust, saw dust, etc.)

• Do not expose MyReserve to direct sunlight

• Do not install MyReserve in wet or damp rooms

• Do not install MyReserve at locations over 2000m

above sea level

Page 6

• Do not install MyReserve in atmospheres that are cor-

rosive or contain alkali and do not store corrosive or

ammable materials in its vicinity

• Do not install MyReserve in areas at risk of ooding,

in environments with moisture / atmospheres having

a high salt content, near heat sources or in areas at

risk of re

• Do not operate MyReserve on inverters with special

topologies, on module optimizers or battery connec-

tions of hybrid inverters (e.g. Solaredge)

• Do not install MyReserve outdoors without splash-wa-

ter protection

• Do not expose MyReserve to air humidity levels above

85%

• Do not install MyReserve in escape routes or bed-

rooms

Any manipulation/modication of the CAN communica-

tion of the MyReserve will void any warranty claims. Re-

fer to the data sheets of the respective components for

information about the climatic installation, storage and

transport conditions. Disregarding the information pro-

vided in this installation and operating manual will void

any warranty claims.

Safety notices and general sources of danger

DANGER

Damage due to incorrect handling!

Failure to comply with the following instructions regarding device usage and handling can result in danger to

life and limb and/or property damage to the product and other equipment; SOLARWATT assumes no liability for

such hazards.

• The MyReserve battery storage system may only be

commissioned by trained electricians with specic

SOLARWATT training. There is a risk of electric shock.

• Animals, children, persons with reduced physical,

sensory or mental capacities, and persons lacking

sucient experience and knowledge must not be

left unattended in the vicinity of the device.

• Install the product in a dry interior room or in a

splash-water protected outdoor area.

• Do not store corrosive substances in the installation

location.

• Do not place the MyReserve above or below other

equipment.

• Make sure that the device is properly attached to the

wall.

• Keep it away from direct heat emitted by other

equipment, and maintain the minimum safe distanc-

es to other devices specied by the manufacturers of

those devices.

• Do not clean the unit with alcohol or other chemi-

cal agents. In the process, follow the instructions in

chapter “Cleaning / care and maintenance”.

• The maximum current and voltages characteristics

according to the data sheet specications of the re-

spective product must be observed. Otherwise, the

product can be damaged.

• Only use spare parts and accessories that are ap-

proved or recommended by SOLARWATT.

• Always observe all applicable national standards and

directives for connection of battery storage systems.

• Do not expose the product to corrosive substances

like ammonia.

• Repairs or system updates must be carried out by

qualied personnel who are authorized and trained

by SOLARWATT.

• Electrical cables must be protected from improper

use so that no damage can occur due to twisting,

clamping or similar abuse. Do not use cracked or

frayed electrical cables or plug connectors. Inspect

electrical cables from time to time for damage and

immediately decommission them if any defects are

found.

• Never ground the MyReserve with a lightning con-

ductor, telephone wire or gas line.

• MyReserve must never be exposed to dripping or

splashing water. It must be ensured that containers

lled with liquid are not placed on the product.

• The temperature of the MyReserve Command hous-

ing can increase to over 60°C.

• The product must not be disposed of with the house-

hold waste. The applicable disposal regulations in

the respective country must be observed.

• Do not dispose of battery modules by burning them!

• Do not open or damage battery modules. Do not

touch any electrolyte that has leaked from the bat-

tery; it is harmful for the skin and eyes and can be

toxic.

• Remember that charged capacitors pose an electri-

cal hazard. A discharge time of 5 minutes must be

observed after shutting down MyReserve Command

before work on the device can take place.

Requirements for installers

Installation and commissioning of the MyReserve accord-

ing to this installation and operating manual may only be

carried out by trained and quali ed personnel who ful ll

the following criteria:

• Authorized by SOLARWATT

• Trained electronics technicians, electricians or other

specialists with similar quali cations who meet local

licensing requirements to install PV

• Authorized professionals with thorough knowledge

of all applicable standards, directives and laws

• Specialists who have taken part in one of SOLAR-

WATT’s MyReserve certi cation courses

Icons

General information

DANGER

This symbol with the "Danger" notice indicates an imminent danger to life and limb. If this notice is disregarded,

severe or life-threatening personal injury can occur.

IMPORTANT

This symbol indicates situations which are dangerous to people and/or the product. Disregarding this notice may

result in personal injury or equipment damage.

NOTE

This notice provides recommendations for use and helpful tips.

NOTE

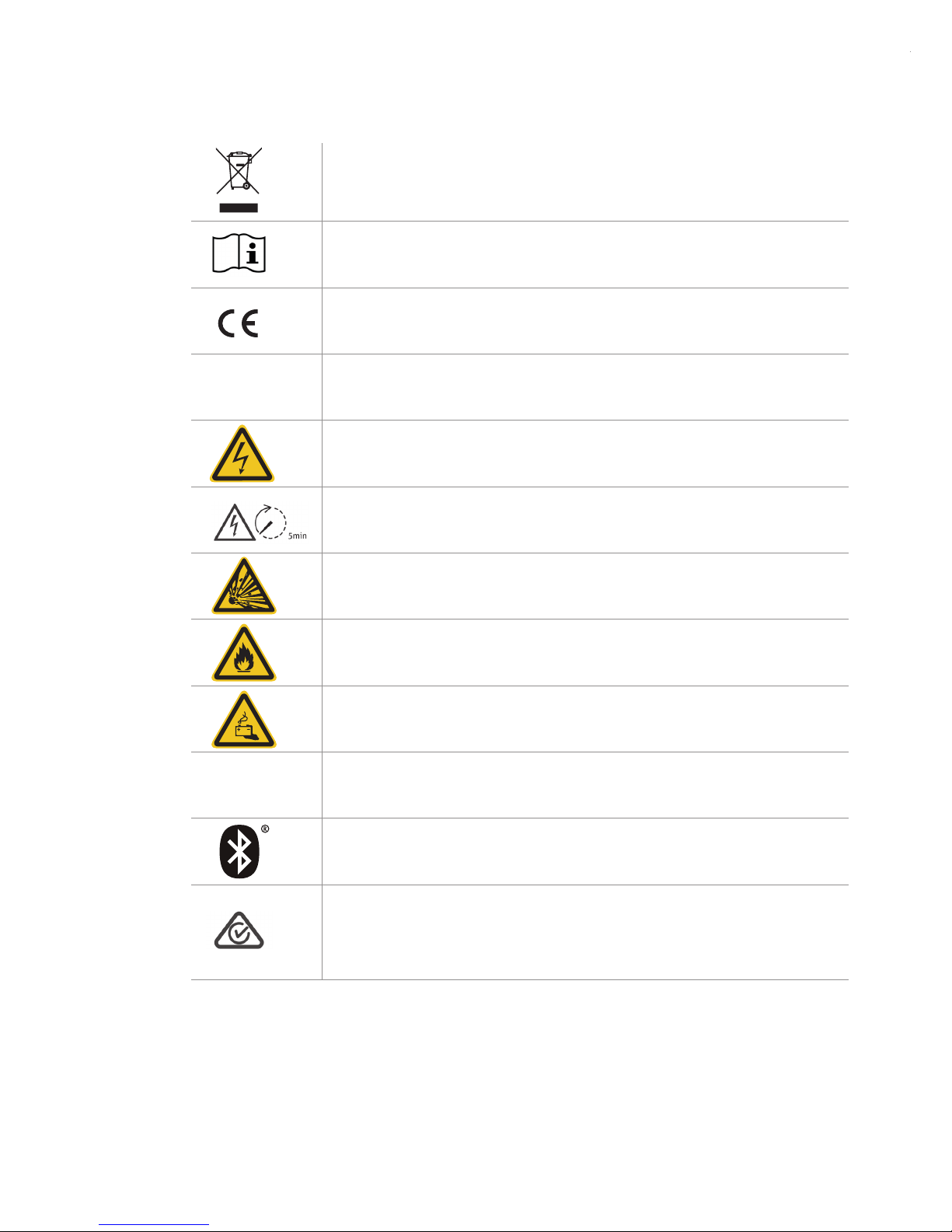

Symbols on type plates and labels

The product must not be disposed of with the household waste. The applicable

disposal regulations in the respective country must be observed. Contact your local

SOLARWATT o ce for assistance.

This operating manual must be read prior to installation or commissioning.

The relevant device equipment conforms to requirements according to EU Directives.

MyReserve is protected from solid foreign objects with a diameter of 2.5mm or

larger, protection from dripping water.

Warning of dangerous electrical voltage.

Charged capacitors pose an electrical hazard. A discharge time of 5 minutes must

be observed

Warning of explosion-prone materials.

Warning of ﬂ ammable materials.

Warning of danger from batteries.

The relevant device equipment conforms to requirements according to UN Trans-

port Test 38.3.

Bluetooth communication

RCM (Regulatory Compliance Mark)

The product does ful ll the requirements of the applicable Australian standard

IP31

UN 38.3

Page 9

System components

MyReserve Command, MyReserve Pack

1 MyReserve Command 20.2

2 RJ45 T-Adapter (only for Master devices)

1 3

3 MyReserve Pack

MyReserve Pack accessories kit

Quantity Description

1 1x Wall bracket A1

2 1x Protective cover

3 1x Battery to battery wiring harness

4 1x MyReserve Matrix screw set*

*MyReserve Matrix screw set

Quantity Description

5x Screw M6 x 20 (iso 7280-2)

3x Screw M6 x 10 (iso 7280-2)

1x Washer M6

1x Large diameter washer M6

MyReserve Command accessories kit

Quantity Description

1 1x Wall bracket A2

2 2x Protective cover

3 1x Terminating plug

4 2x Cable ties

5 2x MyReserve Matrix screw set*

6 2x each PV connectors (pos +and neg -)

7 1x RJ45 plug (user-con gurable)

8 1x Command to battery wiring harness

9 1x Seal rubber plug

10 1x Power Data Gateway (PDG)

11 1x IEC female plug (user-con gurable)

12 1x IEC cable with standard plug (AUS) (2.5 m)

13 1x USB mains adapter PDG

14 1x IEC cable with standard plug (UK) (2.5 m)

15 1x Patch cable (1.5 m)

16 1x Product documentation

10 11

*MyReserve Matrix screw set

Number Description

5x Screw M6 x 20 (iso 7280-2)

3x Screw M6 x 10 (iso 7280-2)

1x Washer M6

1x Large diameter washer M6

AC Sensor 63

1 AC Sensor 63

Required tools, resources, and installation materials

• Spirit level and tape measure

• Crimping tool (for bootlace connectors)

• Small bootlace connectors for data and power conec-

tions to ACS

• Pliers

• Cable cutters

• Cable stripping knife

• Diagonal cutters

• Drill / screwdriver

• Sockets for tightening Matrix mounting plate(s)

• Various screwdrivers

• Torx screwdriver (T30)

• Appropriately rated wall anchors and screws for fas-

tening the wall bracket (suitable for weight bearing

on the fastening surface)

• 3-pole automatic circuit breaker for safeguarding AC

Sensor 63 in three phase installations OR 1-pole cir-

cuit breaker for single phase installations (suggested

10amp)

• 1-pole automatic circuit breaker, (suggested 10amp)

for safeguarding MyReserve Command power supply

• AC cable (suitably rated for 10amp breaker)

• DC cable (min. 4mm² - max. 6mm²)

• Pemanent compliant Ground cable for Matrix

• CAN communication cable (min. Cat5.e) with twist-

ed-pair wires Patch cable

• 1 x cable lug for earth connection to MyControl (M6)

• Laptop for programming

The system

Overall system con guration

1 MyReserve Command (converter)

2 MyReserve Pack (battery module)

3 Wall bracket

4 Wiring harness

5 Protective cover

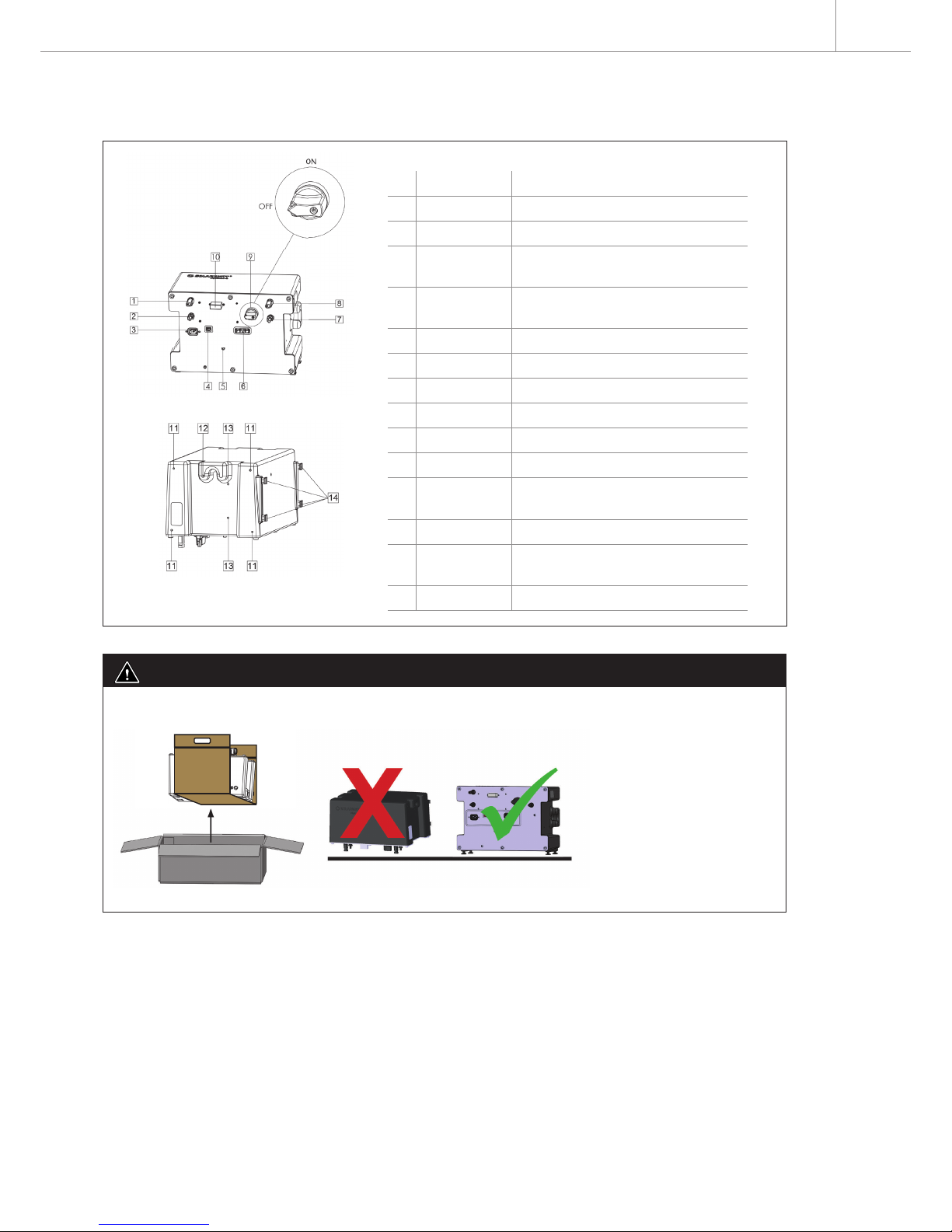

MyReserve Command layout

Label

1 INV (+) Inverter positive terminal

2 INV (-) Inverter negative terminal

3 230V AC AC power supply

(IEC female plug connection)

4 CAN Data communication for AC Sensor

(RJ45)

5 PE Ground connection (M6)

6BAT Battery connection

7 PV (-) PV string negative terminal

8 PV (+) PV string positive terminal

9 ON/OFF DC isolator

10 STATUS Status LED/ Bluetooth antenna

11 Protective cover fastening holes

(suitable for M6x20)

12 Ground connection

13 Battery cable rubber plugs for fasten-

ing hole (suitable for M6x10)

14 Mounting bracket

ATTENTION

Do not sit or position the MyReserve Command so that it rests on the connection plugs.

MyReserve Pack battery module layout

1 Fastening holes protective cover

(M6x25 screws supplied)

2 Battery cable rubber plugs for fastening hole

(M6x10 screws supplied)

3 Ground / Earthing connection

4 Connecting socket for battery cable

(covered when supplied)

5 Mounting bracket

AC Sensor 63 layout

1 Connection area for switched external AC

conductor and neutral conductor

(voltage measurement)

2 MyReserve CAN communication

3 EnergyManager CAN communication

4 Feed ‘pass throughs’ for conductors from

the main switch to the load(s)

(current measurement)

10.8 cm (6RU)

System con guration

IMPORTANT

Before you start!

Always use the MyReserve string con gurator for

system planning to con rm the installation is suit-

able for the best operation of the battery system.

UK: The con gurator is available in the Expert Portal

(Pro) of our website www.solarwatt.com under the menu

item ‘Tools’.

AUS: The con gurator is available in the Professional

area of our website www.solarwatt.com.au under the

menu item ‘Tools’.

Installation

Requirements for the installation location

• Install the product in a dry, cool indoor space.

• Maximum relative air humidity of 85%. Do not expose

MyReserve to an environment that has higher air hu-

midity.

• The optimal environmental temperature is 0°C to 30°C;

max. permissible environmental temperature 45°C.

• Do not expose the product to direct sunlight.

• The wall and fastening material must be able to bear

a static load corresponding to the speci ed product

weight.

• MyReserve must not block access to switching devices

in the installation location.

• For maximum safety, install DC-side lightning and surge

protection between the PV system and MyReserve.

• Install the product so that it is not accessible to chil-

dren, mentally disabled persons or animals.

• The installation location must be chosen so that the

product cannot be exposed to any type of  ooding.

This is assured with a su cient installation height (min-

imum 30 cm from the  oor) and a suitable drain-free or

water-supply-free installation location.

• Do not store any  ammable or explosive materials in

the installation room.

• Installation in heater rooms (de ned as heating sys-

tems for solid fuels with a total rated output of more

than 50kW that may not be used for any other purpos-

es), oil or wood storage facilities, wooden barns and

sheds, etc. is not permitted.

• Do not subject the product to environments containing

ammonia

NOTE

• Operation does not take place below -15°C or above +45°C.

• There are no limitations on performance for the household in the range from 0°C to 30°C.

• Accelerated aging of the cells should be expected at temperatures above +45°C.

-15 0 30 45

°C

NOTE

Page 16

MyReserve installation

IMPORTANT

Conrm the system weight!

Ensure that the wall and the fastening materials can bear a static load corresponding to the specied product weight

PLUS any future additional batteries.

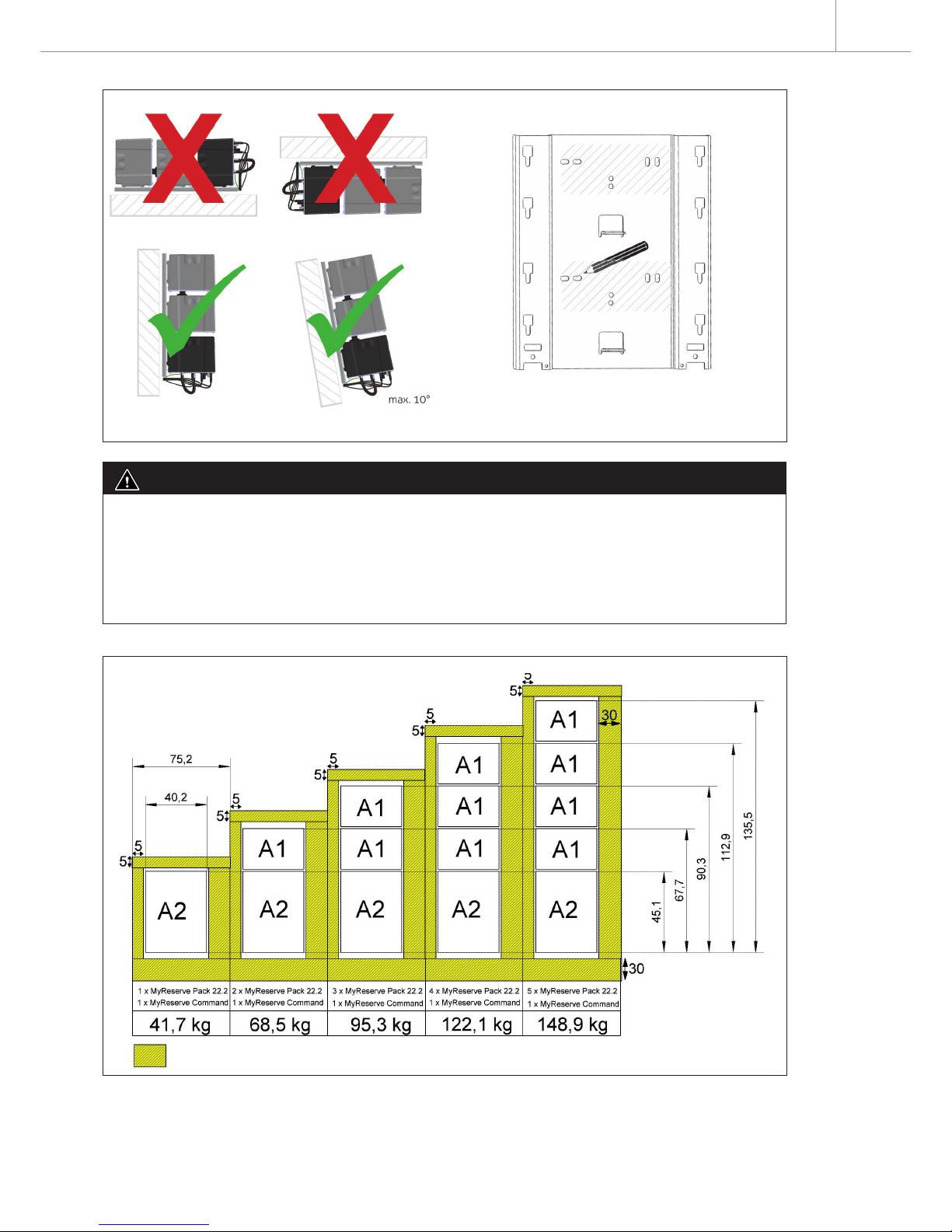

Aligning the wall bracket

Ensure that there is adequate room available for installa-

tion. Choose the installation location to allow additional

battery modules in the future as required. For this pur-

pose, refer to the illustrated overview for arrangement of

the MyReserve wall brackets.

Position wall bracket A2 included in the scope of delivery

on the wall. Align the wall bracket horizontally and mark

the drill holes on the wall.

106

131

128

296

175

402

143

276

226

106

131

143

400

296

353

368

175

402

276

451

128

Wall bracket A1Wall bracket A2

IMPORTANT

Observe the arrangement of the wall brackets.

MyReserve Command must always be hung on the lowest module attachment of the wall bracket.

Maintain a minimum clearance (min. 30 cm at the bottom and to the right) around the MyReserve storage system.

Observe the product weight with respect to the load bearing capacity of the fastening materials and the load

bearing wall.

min. distance wall bracket to ﬂ oor / next device / wall

Page 18

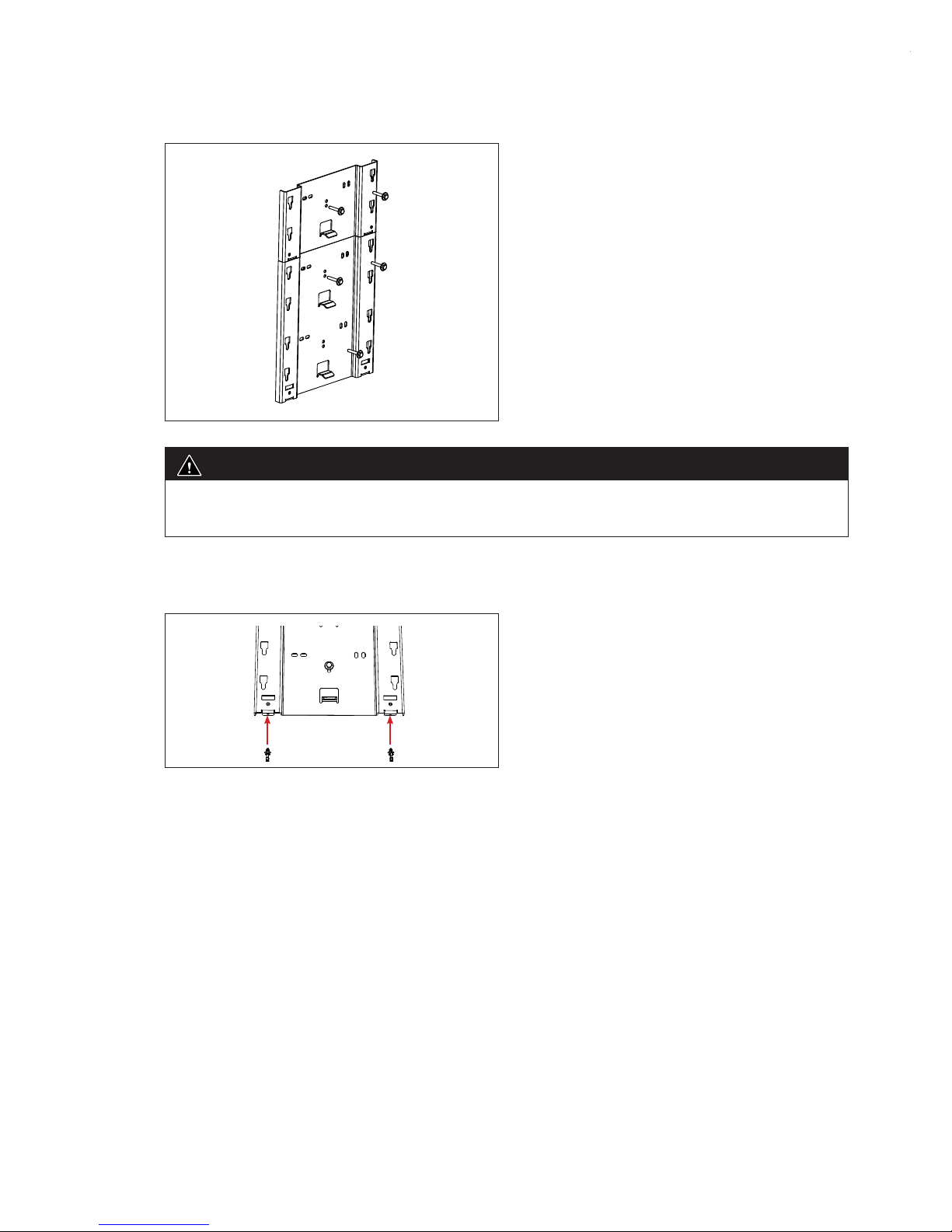

Mounting the wall brackets on the wall

Drill the necessary holes.

Choose fastening materials that are appropriate for the

wall material and the load to be supported.

Wall bracket A1 can be mounted below or above wall

bracket A2.

Align the wall brackets so they are ush with no gap.

IMPORTANT

The fastening material must be able to support the static load corresponding to the product weight (see gure

Arrangement of the wall brackets) and must be suitable for the wall material.

Cable holder installation

Attach two cable holders (included in the scope of

supply) on the lowest wall bracket for later xing of the

connection cables.

Hanging modules

ATTENTION

Do not sit or position the MyReserve Command so that it rests on the connection plugs.

Hang the MyReserve Command on the lowest wall brack-

et in the bottom 4 recesses.

Then hang the MyReserve Pack battery modules on the

wall bracket from bottom to top.

Removing protective plugs

Remove the yellow plugs from the MyReserve Packs and

MyReserve Command.

Remove the adhesive tape from the MyReserve Battery

Pack(s).

NOTE

Keep and reuse the plugs to prevent dirt from enter-

ing the modules during transport.

NOTE

Page 20

Connecting the battery cable

3 Terminating plug

2 Battery to battery wiring harness

(quantity depends on the expansion stage)

1 Command to battery wiring harness

Connect the battery cable for MyReserve Command to

the modules, beginning from bottom to top.

Connect the strapping (terminating) plug at the last

battery slot.

Note the correct alignment of the battery-to-battery

cable:

• cables bundled with cable ties run to the battery

module

• note the correct orientation of the rubber seal

X

1 Top module

2 Bottom module

3 Cable ties

4 Fixing hole rubber seal

Other manuals for MYRESERVE

Table of contents

Other solarwatt Camera Accessories manuals

solarwatt

solarwatt Battery flex AC-1 User manual

Popular Camera Accessories manuals by other brands

LINHOF

LINHOF SUPER ROLLEX Operating instruction

PROAIM

PROAIM CINEMA Series Assembly manual

Sanyo

Sanyo SEB-014 Brochure & specs

Canon

Canon ANTIFOG EYEPIECE parts catalog

Vinten

Vinten Vision 3AS Operator's guide

Hohem

Hohem iSTEADY X user manual

Ikan

Ikan V8PBK-A quick start guide

Olympus

Olympus PT-045 instruction manual

Ozito

Ozito PXBP-200 instruction manual

Sanyo

Sanyo UR18500F Specifications

Sanyo

Sanyo Cadnica CP-1300SCR Specifications

Nikon

Nikon AF-S DX 55-200mm f/4-5.6G IF-ED VR II user manual

Wisenet

Wisenet SHD-3000F2 installation manual

Lithionics Battery

Lithionics Battery GT12V525A-F24 installation manual

Flycam

Flycam Vista-II Stabilizing Arm& Vest instruction manual

Spectronik

Spectronik PROTIUM-375 user guide

Nauticam

Nauticam 17954 instruction manual

Inkee

Inkee IRONBEE-2 quick start guide

solarwatt MYRESERVE User manual

Popular Camera Accessories manuals by other brands
