OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATINGYOUR NEW BIKE!

B74/
R72
FITNESS
BIKE
2
TABLE OF CONTENTS
Important Safety Instructions 3
Important Electrical Information 4
Important Operation Instructions 4
B74 Assembly Instructions 7
72 Assembly Instructions 12

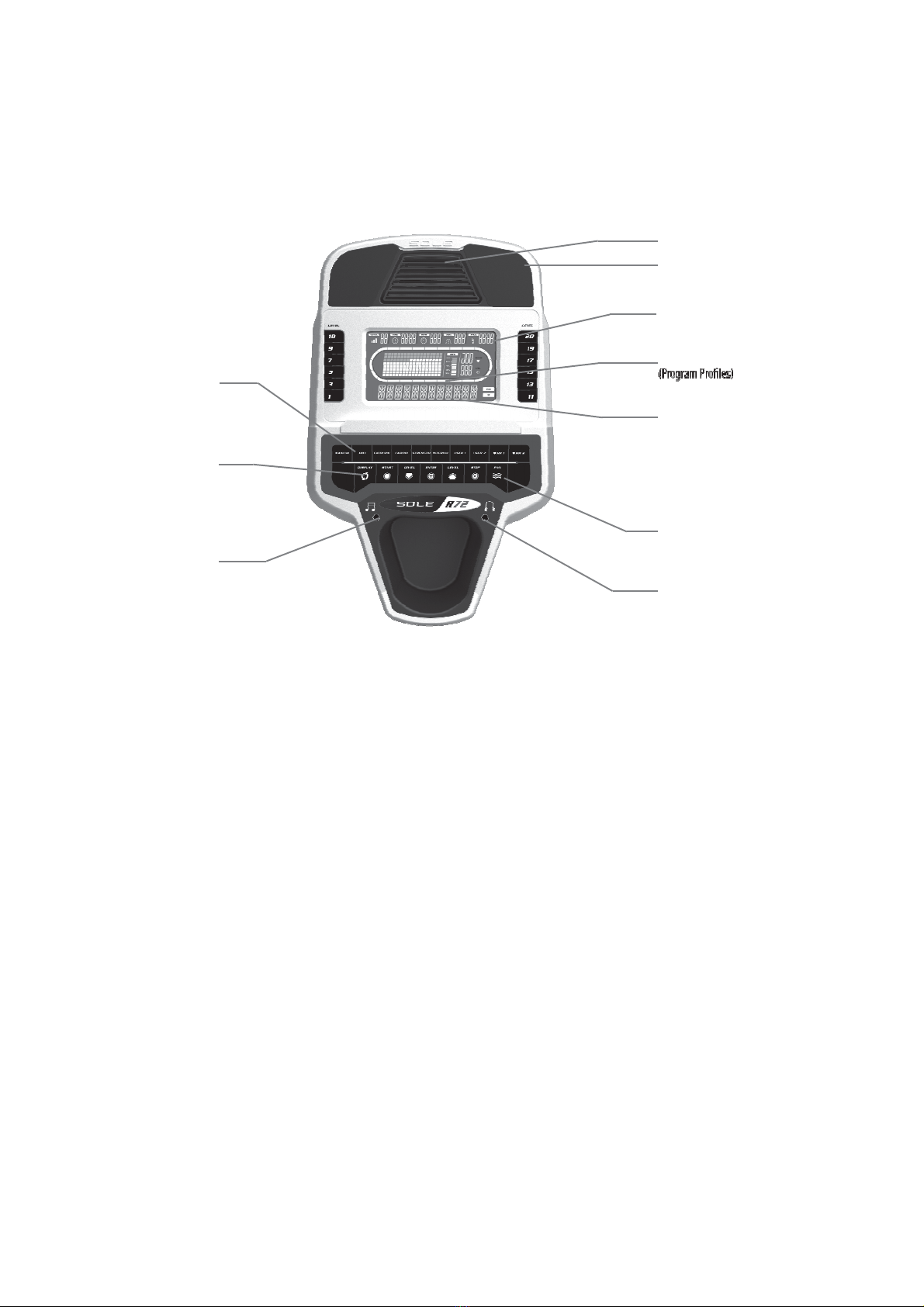

Fitness Bike Features 16
Operation of Your New Fitness Bike 17
Programmable Features 20
Using Heart ate Monitor 25
General Maintenance 27
B74 Exploded View Diagram 28
B74 Parts List 29
72 Exploded View Diagram 32
72 Parts List 33
ATTENTION
THIS FITNESS BIKE IS INTENDED FO RESIDENTIAL USE ONLY AND IS WA ANTED FO THE
APPLICATION. ANY OTHE APPLICATION VOIDS THIS WA ANTY IN ITS ENTI ETY.
SR148 SU140-YB011_1509A

3
B74/
R72
FITNESS
BIKE
IMPO TANT SAFETY INSTRUCTIONS
WARNING - ead all instructions before using this appliance.
Do not operate fitness bike on deeply padded, plush or shag carpet. Damage to both
carpet and fitness bike may result.
Keep children away from the fitness bike. There are obvious pinch points and other caution
areas that can cause harm.
Keep hands away from all moving parts.
Never operate the fitness bike if it has a damaged cord or plug. If the fitness bike is not
work ing properly, call your dealer.
Keep the cord away from heated surfaces.
Never drop or insert any object into any openings.
Do not use outdoors.
To disconnect, turn all controls to the off position, remove tether cord, then remove the
plug from the outlet.
Do not attempt to use your fitness bike for any purpose other than for the purpose it is
intended.
The hand pulse sensors are not medical devices. Various factors, including the user’s move-
ment, may affect the accuracy of heart rate readings. The pulse sensors are intended only
as exercise aids in determining heart rate trends in general.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your fitness bike. Quality athletic shoes are recommended to avoid leg fatigue or injury.
SAVE THESE INSTRUCTIONS - THINK SAFETY

B74/
R72
FITNESS
BIKE
4
IMPO TANT ELECTRICAL INSTRUCTIONS
WARNING!
NEVER remove any cover without first disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your fitness bike may be
affected. Such conditions are not covered under your warranty. If you suspect the voltage is
low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this fitness bike to rain or moisture. This product is NOT designed for use out-
doors, near a pool or spa, or in any other high humidity environment. The operating tempera-
ture specification is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing
(no water drops forming on surfaces).
IMPO TANT OPERATION INSTRUCTIONS
NEVER operate this fitness bike without reading and completely understanding the results
of any operational change you request from the computer.
NEVER use your fitness bike during an electrical storm. Surges may occur in your household
power supply that could damage fitness bike components. Unplug the fitness bike during
an electrical storm as a precaution.
Do not use excessive pressure on console control keys. They are precision set to function
properly with little finger pressure. If you feel the buttons are not functioning properly with
normal pressure contact your dealer.

5
B74/
R72
FITNESS
BIKE

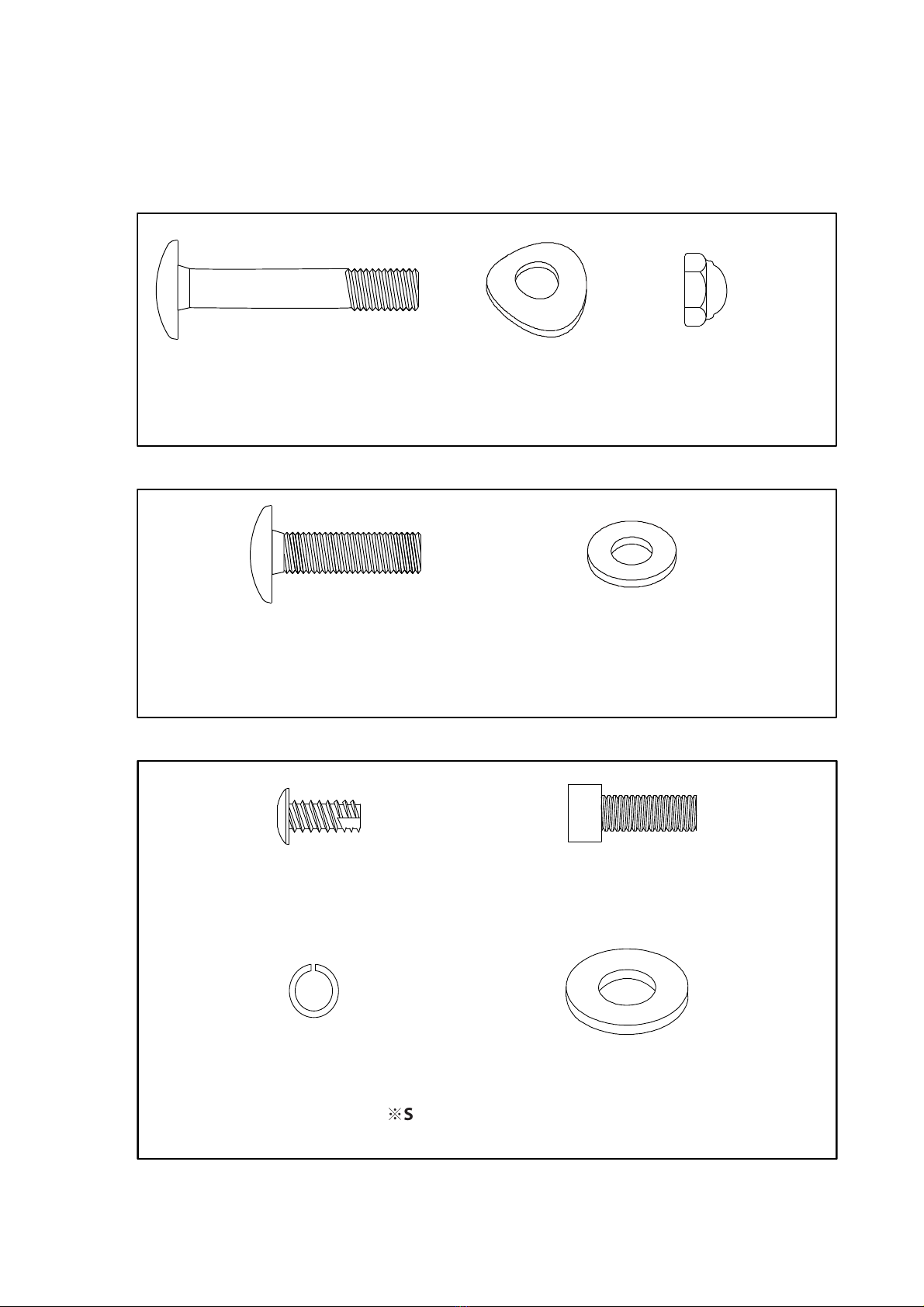

B74 ASSEMBLY PACK CHECKLIST
1
HA DWA E STEP 1
2
HA DWA E STEP 2
3
HA DWA E STEP 3
#23. 3/8" × 3-1/2"
Carriage Bolt (4 pcs)
#24. 3/8" Curved
Washer (4 pcs)
#30. 3/8" Cap Nut
(4 pcs)
#71. 3/8" × 1-1/2"
Carriage Bolt (1 pc)
#72. 3/8" Flat Washer (1 pc)
#36. 4mm × 12mm
Sheet Metal Screw (3 pcs)
#32. 5/16" × 3/4"_
Socket Head Cap Bolt (4 pcs)
#33. 5/16" Flat Washer
(4 pcs)
#35. 5/16 Split Washer
(4 pcs)
※ Screws 32, 33, 35 are
already on the mainframe

B74/
R72
FITNESS
BIKE
6
4 HA DWA E STEP 4 (This screw is already on the mainframe.)
ASSEMBLY TOOLS
#104. 5/16" x 5/8"
Button Head Socket Bolt (2 pcs)
#35. 5/16” Split Washer
(2 pcs)
#33. 5/16" Flat Washer
(2 pcs)
#41. 5mm × 12mm
Phillips Head Screw (4 pcs)
#43. Combination 5mm Allen
Wrench & Phillips Head Screw
Driver
#79. 13/15mm Wrench
#87. L Allen Wrench #106. 14/15mm Wrench

7
B74/
R72
FITNESS
BIKE
B74 ASSEMBLY INST UCTIONS
P E- ASSEMBLY
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along the
dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing parts.
If damaged parts are found, or parts are missing, contact your dealer immediately.
3. Locate the hardware package. emove the tools first. emove the hardware for
each step as needed to avoid confusion. The numbers in the instructions that are
in parenthesis (#) are the item number from the assembly drawing for reference.

B74/
R72
FITNESS
BIKE
8

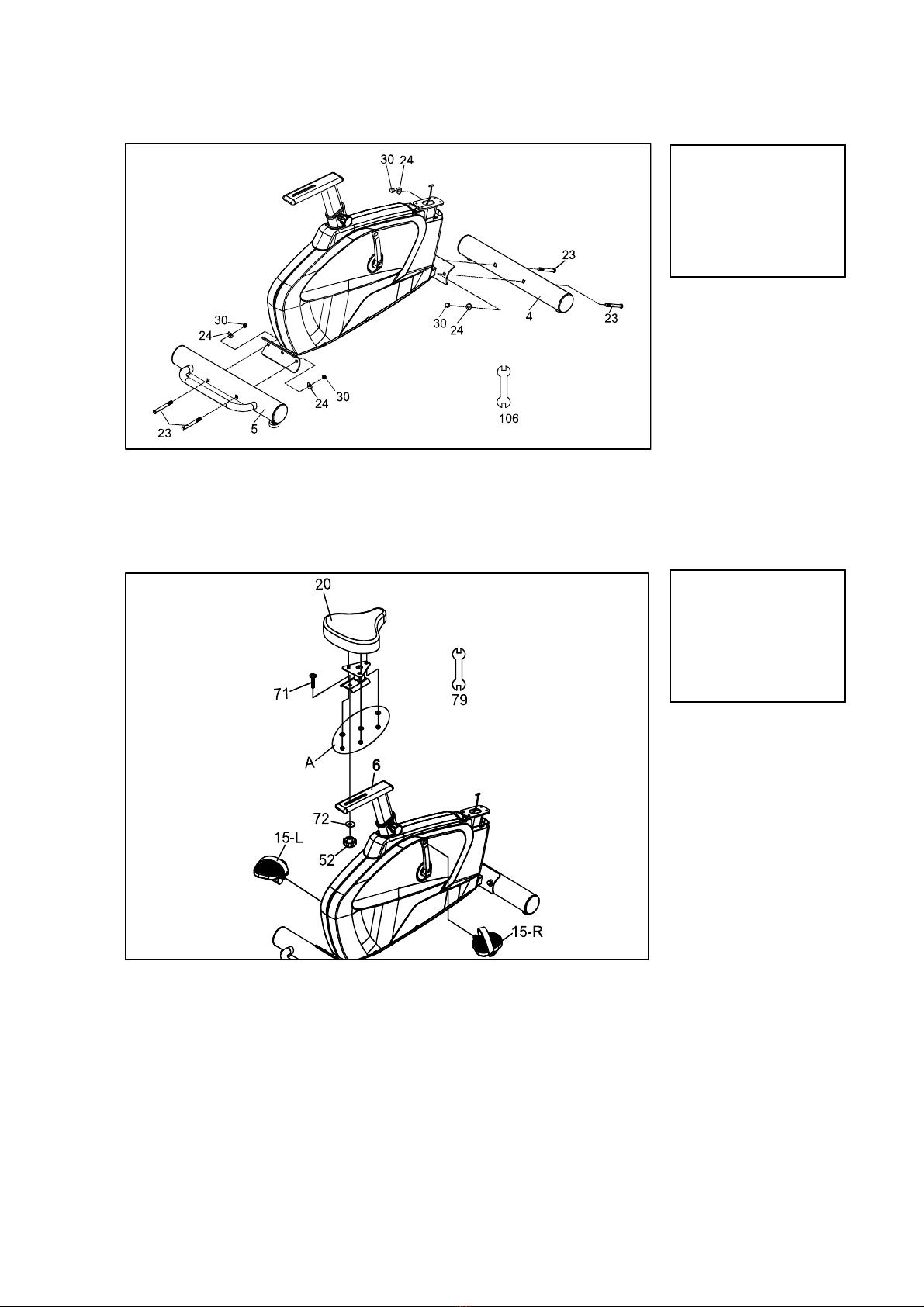

1
EA STABILIZER
1. Secure the front and rear stabilizers (4&5) to the main frame with the four 3/8”
X 3-1/2” carriage bolts (23), four 3/8” curved washers (24) and four 3/8” cap
nuts (30). Using the 14/15mm wrench provided (106) tighten the cap nuts
securely.
2
CONSOLE MAST
1. emove the M8 nuts and 8mm washers (A) from the threaded studs on the
underside of the seat. Assemble the seat to the sliding seat mount and fix it with
the previously removed nuts and washers. Use the wrench provided (106) to
tighten the nuts securely.
2. Install the 3/8” X 1-1/2” carriage bolt (71) through the square hole in the seat
slide and mount the seat assembly on the seat tube (6). Secure in place using
the 3/8” flat washer (72) and the seat adjustment knob (52).
3. Install the left and right pedals. The left pedal is a reverse thread and will screw
into the crank in a counter-clockwise direction. Make sure the pedals are
tightened very securely. The pedals may need to be retightened after a few
hours of use.
HA DWA E STEP 1
#
23
. 3/8" × 3-1/2"
Carriage Bolt (4 pcs)
#24. 3/8" Curved
Washer (4 pcs)
#30. 3/8" Cap Nut
(4 pcs)
HA DWA E STEP2
#71. 3/8" × 1-1/2"_
Carriage Bolt (1 pc)
#72. Ø3/8" _ Flat
Washer (1 pc)

9
B74/
R72
FITNESS
BIKE
3
HANDLE BAR
1. Feed the computer cable (80) through the console mast and out the top.
Secure the console mast (2) to the mating plate of the main frame with the four
5/16” X 3/4” bolts (32), 5/16” split washers (35) and 5/16” flat washers (33). Use
the Allen wrench provided (87) to tighten the bolts securely. Be very careful not
to pinch the computer cable between the two plates of the console mast!
2. Install the two covers (60 & 69) onto the base of the console mast with the
three 4mm screws (36).
4
PLASTIC PARTS
1. Hold the handle bar (3) while feeding the hand pulse wires into the opening in
the handle bar mounting plate and out of the same hole as the computer cable.
Secure the handle bar to the console mast with the two 5/16” X 5/8” bolts
(104), 5/16” split washers (35) and 5/16” flat washers (33). Be very careful not
to pinch the hand pulse wires between the handle bar and console mast!
2. Plug the computer cable and hand pulse cables into the back of the console.
Place the console on the mounting plate while storing any excess wire into the
console mast. Secure the console with four 5mm X 12mm screws (41). Make
sure you do not pinch the wires between the console and the mounting plate!
3. Snap the handle bar cover (101) onto the back of the handle bar.
HA DWA E STEP3
#36. 4mm × 12mm
Sheet Metal Screw
(3 pcs)
#32. 5/16" × 3/4"
Socket Head Cap Bolt
(4 pcs)
#33 5/16" Flat Washer
(4 pcs)
#35. 5/16” Split Washer
(4 pcs)
※ Screws 32, 33, 35
are already on the
mainframe
HA DWA E STEP4
#104. 5/16" × 5/8"
Button Head Socket
Bolt (2 pcs)
#35. 5/16” Split Washer
(2 pcs)
#33. 5/16" Flat Washer
(2 pcs)
#41. 5mm × 12mm
Phillips Head Screw
(4 pcs)
This screw is already
on the mainframe.

B74/
R72
FITNESS
BIKE
10
R72 ASSEMBLY PACK CHECKLIST
1
HARDWARE STEP 1
2
HA DWA E STEP 2
#125. 3/8” x 3-1/2”
Carriage Bolt (4 pcs)
#126. 3/8”
Curved Washer (4 pcs)
#127. 3/8”
Cap Nut (4 pcs)
#129. 3/8” x 1-3/4” Button
Head Socket Bolt (6 pcs)
#130. 3/8” Flat Washer
(6 pcs)
#131
.
3/8”
Nyloc Nut (6 pcs)

11
B74/
R72
FITNESS
BIKE
3

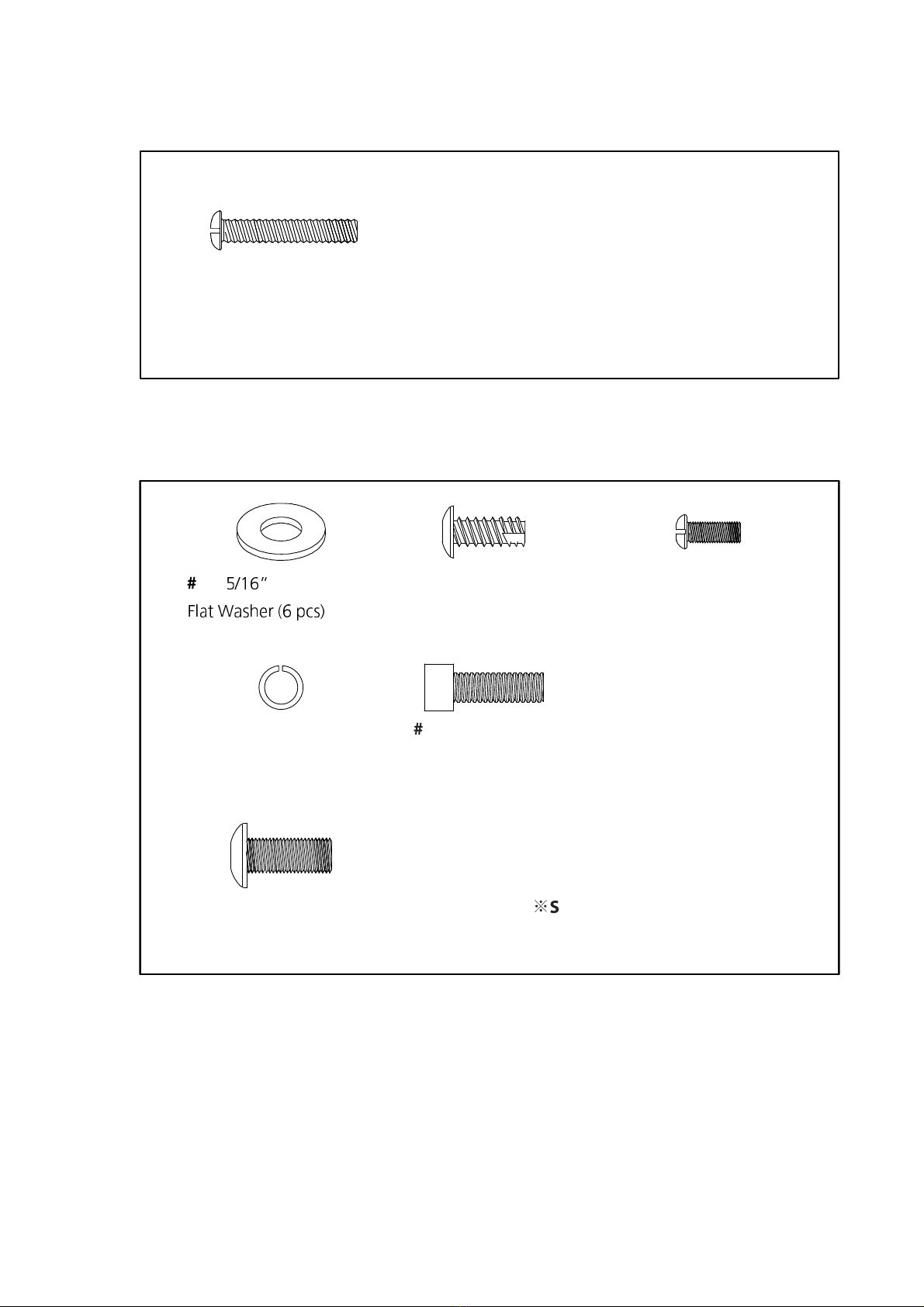

HA DWA E STEP 3
4 HA DWA E STEP 4
※ Screws 87, 89, 104, 123, 124 are
already on the mainframe
#137
. M6 x 35mm
P
hilip
s Head
S
c
r
ew (4 pcs)
#88. 4mm x 12mm
Sheet Metal Screw (3 pcs)
#89. 5mm x 12mm Phillips
Head Screw (4 pcs)
#104. 5/16”
Split Washer (6 pcs)
#123. 5/16” x 5/8” Button Head
Socket Bolt (2 pcs)
#124. 5/16” x 3/4” Socket
Head Cap Bolt (4 pcs)
#87. 5/16”
Flat Washer (6 pcs)

B74/
R72
FITNESS
BIKE
12
ASSEMBLY TOOLS
#140. Combination 5mm Allen Wrench &
Phillips Head Screw Driver
#141. 14/15mm Wrench
#142. L Allen Wrench
R72 ASSEMBLY INST UCTIONS
P E -ASSEMBLY
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along
the dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing
parts. If damaged parts are found, or parts are missing, contact your dealer
immediately.
3. Locate the hardware package. emove the tools first. emove the hardware
for each step as needed to avoid confusion. The numbers in the instructions
that are in parenthesis (#) are the item number from the assembly drawing
for reference.

13
B74/
R72
FITNESS
BIKE
1
F ONT/ EA STABILIZERS
HA DWA E STEP 1
#125. 3/8” x 3-1/2”
Carriage Bolt (4 pcs)
#126. 3/8” Flat Washer
(4 pcs)
#127. 3/8” Cap
Nut (4 pcs)
1. Secure Front Stabilizer (5) and ear Stabilizer (6) with four Carriage Bolts
(125), four Curved Washers (126), four Cap Nuts (127) by using 14/15mm
Wrench (141).
2
SEAT HANDLE BAR
HA DWA E STEP 2
#129. 3/8” x 1-3/4”
Button Head Socket Bolt
(6 pcs)
#130. 3/8” Flat Washer
(6 pcs)
#131. 3/8”
Nyloc Nut (6 pcs)
1. Install Seat Handle Bar (7) on the sliding seat carriage by using Allen
Wrench(142) to tighten four Button Head Socket Bolts (129), going through
Seat Handle Bar (7) and four Flat Washers (130), then use 14/15mm Wrench
(141) to tighten four Nyloc Nuts (131).
2. Install Seat Back Bracket (3) on the Seat Handle Bar (7) by using Allen
Wrench(142) to tighten two Button Head Socket Bolts (129), going through
Bolt Washer (8) and two Flat Washers (130), then use 14/15mm Wrench (141)
to tighten two Nyloc Nuts,(131).
3. Connect Lower and Upper handpulse wires (75,74).

B74/
R72
FITNESS
BIKE
14
3
SEAT/ PEDALS HA DWA E STEP 3
#137. M6 x 35mm
Phillips Head Screw
(4 pcs)
1. Secure Seat (63) on the sliding seat carriage by using Combination M5 Al-
len Wrench & Phillips Head Screw Driver (140) to tighten four Phillips Head
Screws (137).
2. Use 14/15mm Wrench (141) to tighten the two pedals (43) on the crank axle. The
left pedal is a reverse thread so you need to turn the threaded shaft counter
clockwise to tighten.

15
B74/
R72
FITNESS
BIKE
4
CONSOLE MAST HA DWA E STEP 4
#124. 5/16” x 3/4”
Socket Head Cap Bolt
(4 pcs)
#104. Ø8 x 1.5T
Split Washer (6 pcs)
#87. 5/16” x 12 x 1.0 T
Flat Washer (6pcs)
#89. M5 x 12L
Phillips Head Screw
(4 pcs)
#123. 5/16” x 18 x 5/8”
Button Head Socket Bolt
(2 pcs)
#88. 4 x 12L
Sheet Metal Screw
(3 pcs)
※ Screws 87, 89, 104,
123, 124 are already
on the mainframe
1. Pull Upper Handpulse Wire (74) and Computer Cable (73) through the Console
Mast (2) and use Allen wrench (142) to secure with four Socket Head Cap Bolts
(124), Split Washers (104) and Flat Washers (87) each.
2. Cover with both left and right Console Mast Covers (27, 28) and use Phillips
Head Screw Driver (140) to secure with three Sheet Metal Screws(88).
3. Connect Upper Handpulse Wire (74) and Computer Cable (73) with the Con-
sole (71) and use Phillips Head Screw Driver (140) to secure Console Mast (2)
with four Phillips Head Screws (89).
4. Use M5 Allen Wrench (140) tighten Mast Handle bar Assembly (9) and Console
Mast (2) together with two Button Head Socket Bolts (123), Split Washers (104)
and Flat Washers (87) each.
 Be very careful during this step to make sure the cables do not become
pinched between the parts. This could cause the wires to short causing
damage to the electronics.

B74/
R72
FITNESS
BIKE
16
FITNESS BIKE FEATURES
FOOT PEDALS
Through research performed with a leading sports scientist and physical rehabilitation expert,
Sole engineering has developed a breakthrough in pedal design. Typical stationary exercise
bikes are wider than a normal road bike. The reason is to allow for the braking mechanism,
pulleys, drive components and plastic covers. Since the bike is wider, so is the distance between
the pedals; this width between the pedals is called the Q factor.
SEAT ADJUSTMENT B74
To raise the seat position, loosen the knob and pull the knob out. Now lift up from under the
rear of the seat. Once the seat is at the desired setting, tighten the knob to ensure the seat post
won’t accidentally slide downward during use. To lower the seat, loosen the knob then hold
under the rear of the seat and pull the knob out to disengage the pin from the seat post.
SEAT ADJUSTMENT R72
You are able to adjust the seat position while seated. Pull up on the lever located in front of the
seat and slide the carriage forward or backwards. The correct position is when there is a slight
bend in your knee when the pedal is at its farthest position forward (3 o’clock position when
looking from the right side of the bike). elease the lever and you are ready to begin.
PEDAL STRAP ADJUSTMENT
Adjust each pedal strap so that they are snug around your feet. You have the option of adjusting
the strap length on one or both sides of the pedal.

17
B74/
R72
FITNESS
BIKE
OPE ATION OF YOUR FITNESS BIKE
GETTING FAMILIAR WITH THE CONTROL PANEL
B74/R72 CONSOLE
PROGRAM BUTTONS (Manual,
Hill, Fat Burn, Cardio, Strength,
Interval, User, HR)
DISPLAY
AUDIO IN JACK (MP3,
CD, OR SMARTPHONE)
COOLING FAN
SPEAKER
DATA DISPLAY
DOT MATRIX DISPLAY
MESSAGE WINDOW (Laps,
Speed, Lev el, Watts,
Segment Time)
FAN POWER SWITCH
HEADPHONE JACK
POWER UP
When it is first powered on, the console will perform an internal self-test. During this time all the lights will turn on.
When the lights go off, the Message Window will show a software version (i.e.: VE 1.0) and the Distance window
will display an odometer reading. The odometer reading displays how many virtual miles the fitness bike has gone.
The Time window displays how many hours the fitness bike has been used.
The odometer and time will remain displayed for only a few seconds then the console will go to the start-up dis-
play. The dot matrix display will be scrolling through the different workout profiles and the Message Window will
scroll the start-up message. You may now begin to use the console.
ATTENTION
Your new fitness bike console may come configured in an in-store ‘display mode’ of operation, where the console
will remain powered on unless the main power switch is turned off. To exit the display mode, for normal operation,
press and hold the Stop, Enter and Display keys for five seconds; the display will show: Display Mode - ON. Use
the Level Up key to change the setting to OFF then press Enter.

B74/
R72
FITNESS
BIKE
18
CONSOLE OPE ATION
QUICK START
This is the quickest way to start a workout. After the console
powers up you just press the Start key to begin, this will
initiate the Quick Start mode. In Quick Start the time will count
up from zero and the workload/resistance may be adjusted
manually by pressing the Level  /  buttons. The dot matrix
display will be showing a track with a blinking dot
indicating your progress as it travels around the track.
BASIC INFORMATION
The Message Window will initially display Laps completed. Each time the Display button is
pressed the next set of information will appear. The order of information displayed will be:
Speed (in mph), Level, Watts, Segment Time and Data Scan mode. In Data Scan mode, the
displayed information will change every 4 seconds in the Message Window.
The fitness bike has a built in heart rate monitoring system, Simply grasping the Contact Heart
Rate Sensors on the handle bars or wearing the optional chest strap transmitter will start the
heart (see Heart ate Programs) Icon blinking (this may take a few seconds). The Pulse Window
will display your heart rate in beats per minute and the H bar graph will show your current %
in relation to projected heart rate maximum. The optional chest strap is a more accurate and
reliable method of heart rate reading. The hand pulse sensors are subject to false readings
depending on user physiology and workout habits including how one grips the sensors or how
sweaty their hands are.
The Stop button actually has several functions. Pressing the
Stop key once during a program will Pause the program for 5
minutes. If you need to get a drink, answer the phone or any
of the many things that could interrupt your workout, this is
a great feature. To resume your workout during Pause just
press the Start key. If the Stop button is pressed twice during
a workout the program will end and a Workout Summary is
displayed.
If the Stop/Reset key is held down for 3 seconds the console will perform a complete Reset.
During data entry for a program the Stop/Reset key performs a Previous Screen function. This
allows you to go back one step in the programming each time you press the Stop key.
There is an Audio In Jack ( ) on the front of the console and built-in speakers. You may plug
any low-level audio source signal into this port. Audio sources include MP3, iPod, portable radio,
CD player or even a TV or computer audio signal. There is also a Headphone Jack ( )for private
listening.
PROGRAMMING THE CONSOLE
Each of the programs can be customized with your personal information and changed to suit
your needs. Some of the information asked for is necessary to ensure the readouts are correct.

19
B74/
R72
FITNESS
BIKE
You will be asked for your Age and Weight. Entering your Age is necessary during the Heart
ate control program to ensure the correct settings are entered in the program; entering your
Weight aides in calculating a more correct Calorie reading. Although we cannot provide an
exact calorie count we do want to be as close as possible.
A message about Calories: Calorie readings on every piece of exercise equipment, whether it is
in a gym or at home, are not accurate and tend to vary widely. They are meant only as a guide to
monitor your progress from workout to workout. The only way to measure your calorie burn
accurately is in a clinical setting connected to a host of machines. This is because every person is
different and burns calories at a different rate.
ENTERING A PROGRAM AND CHANGING SETTINGS
Press each program button to scroll through the program selections. The profile for each
program will be displayed in the dot matrix window. Press the Enter key to select a program
and begin customizing the settings. If you want to workout without entering new settings, then
just press the Start key. This will bypass the programming of data and take you directly to the
start of your workout. If you want to change the personal settings, then just follow the
instructions in the Message Window. If you start a program without changing the settings,
the default settings will be used.
Note: Age and Weight default settings will change when you enter a new number. So the last
Age and Weight entered will be saved as the new default settings. If you enter Age and Weight
the first time you use the fitness bike you will not have to enter it every time you work out unless
either Age or Weight has changed or someone else enters a different Age and Weight.

B74/
R72
FITNESS
BIKE
20
P OG AMMABLE FEATURES
MANUAL PROGRAM
The Manual program works as the name implies, manually. This means that you control the
workload yourself and not the computer.

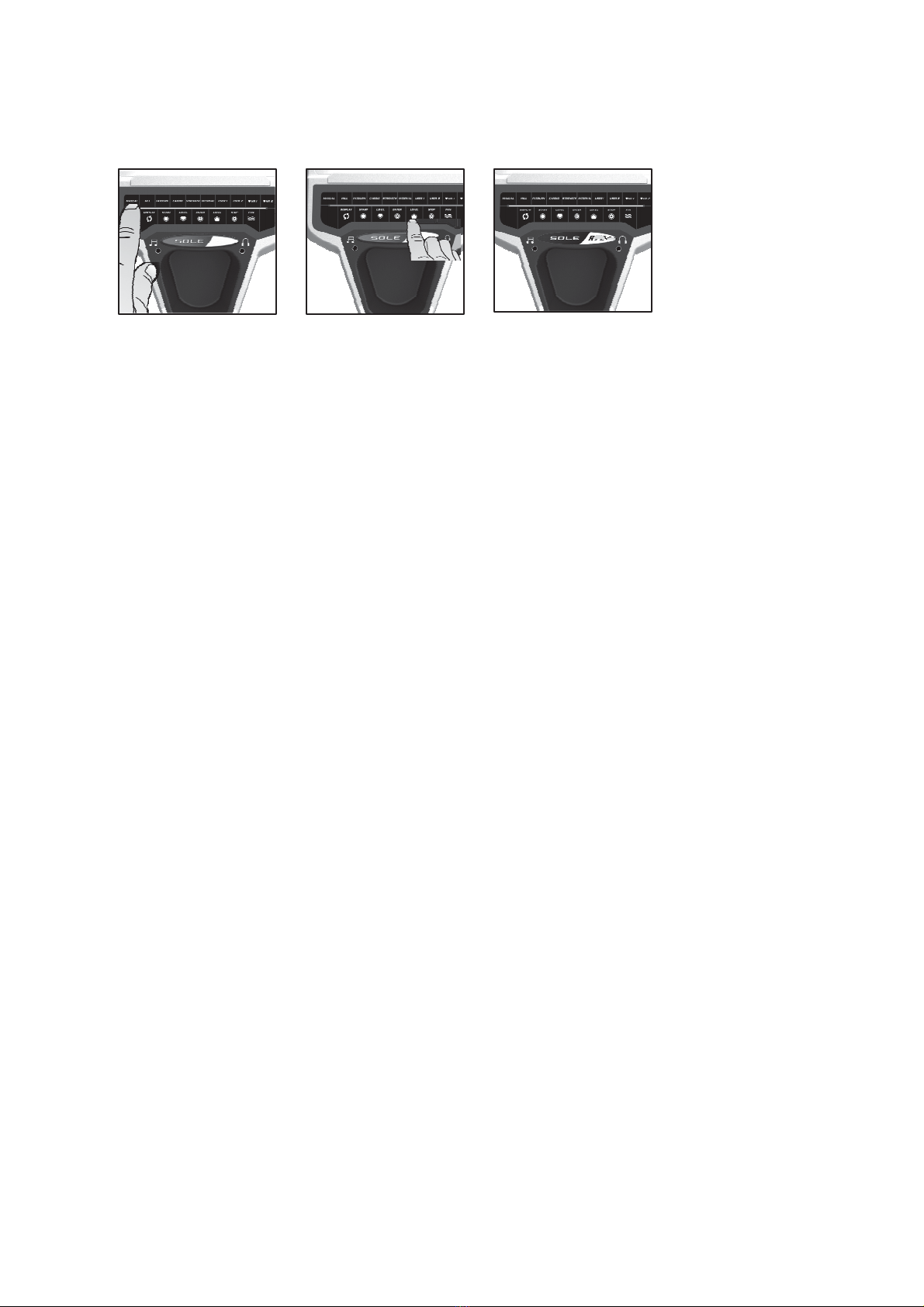

1. Press the Manual program button then press the Enter key.
2. The Message Window will ask you to enter your Age. You may adjust the age
setting using the Level  /  keys, then press the Enter key to accept the new number
and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust your weight setting using the
Level  /  keys, then press Enter to continue.
4. Next is the Time. You may adjust the length of Time by pressing the Level  /  keys,
then press Enter to continue.
5. Now you are finished editing the settings and can begin your workout by pressing the
Start key. You can also go back and modify your settings by pressing the Stop key to go
back one level of the programming screen.
6. Once the program starts the fitness bike will be set to level one. This is the easiest level
and it is a good idea to stay at level one for a while to warm up. If you want to increase the
work load at any time press the Level  key; the Level  key will decrease the workload.
7. During the Manual program you will be able to scroll through the data in the Message
Window by pressing the Display key.
8. When the program ends the Message Window will show a summary of your workout.
The summary will be displayed for a short time then the console will return to the start-
up display.
