Sole Fitness B54 User manual

Customer Service 1-888-707-1880
Email: [e-mail]
1

Customer Service 1-888-707-1880
Email: [email protected]
2
TABLE OFCONTENTS
Product Registration 3
ImportantSafetyInstructions 4
Important ElectricalInstructions 5
Important OperationInstructions 5
AssemblyInstructions 7
Operation ofYour NewFitness Bike 11
ButtonFeatures 12
Using HeartRateMonitor 25
Exploded View Diagram 26
Parts List 27
Manufacturer's limited warranty 30
ATTENTION
THIS FITNESS BIKE IS INTENDED FORRESIDENTIAL USE ONLYAND IS
WARRANTED FOR THE APPLICATION. ANYOTHER APPLICATIONVOIDSTHIS
WARRANTY IN ITS ENTIRETY.

Customer Service 1-888-707-1880
Email: [email protected]
3
CONGRATULATIONS ON YOUR NEW UPRIGHTAND WELCOME TO THE SOLE FAMILY!
Thank you for your purchase of this quality Sole Upright from Dyaco Canada Inc. Your new
Upright has been manufactured by one of the leading fitness manufacturers in the world and is
backed by one of the most comprehensive warranties available. Dyaco Canada Inc. will do all we
can to make your ownership experience as pleasant as possible for many years to come.
If you have any questions about your new Sole product or questions about the warranty contact
Dyaco Canada Inc. at 1-888-707-1880.
Please take a moment at this time to record below the name of the dealer, their telephone
number, and the date of purchase for easy contact in the future. We appreciate your confidence
in SOLE and we will always remember that you are the reason that we are in business. Please
complete and mail your registration card today and enjoy your new Upright.
Yours in Health,
Dyaco Canada Inc.
Name of Dealer
Telephone Number of Dealer
Purchase Date
PRODUCT REGISTRATION
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this fitness product in
the space provided below.
Serial Number

Customer Service 1-888-707-1880
Email: [email protected]
4
IMPORTANTSAFETY INSTRUCTIONS
WARNING - Read all instructions before using this equipment.
Do not operate fitness bike on deeply padded, plush or shag carpet. Damage to
both carpet and fitness bike may result.
Keep children away from the fitness bike.There are obvious pinch points and
other caution areas that can cause harm.
Keep hands away from all moving parts.
Never operate the fitness bike if it has a damaged cord or plug. If the fitness bike
is not working properly, call your dealer.
Keep the cord away from heated surfaces.
Never drop or insert any object into any openings.
Do not use outdoors.
Do not attempt to use your fitness bike for any purpose other than for the purpose
it is intended.
The hand pulse sensors are not medical devices.Various factors, including the
user’s movement, may affect the accuracy of heart rate readings.The pulse
sensors are intended only as exercise aids in determining heart rate trends in
general.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable
for use on your fitness bike. Quality athletic shoes are recommended to avoid leg
fatigue or injury.
This equipment is not intended for use by persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the equipment by a
person responsible for their safety.
SAVETHESE INSTRUCTIONS - THINK SAFETY!

Customer Service 1-888-707-1880
Email: [email protected]
5
IMPORTANTELECTRICAL INSTRUCTIONS
WARNING!
NEVER remove any cover without first disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your fitness bike may
be affected. Such conditions are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a licensed electrician for proper
testing.
NEVER expose this fitness bike to rain or moisture. This product is NOT designed for
use outdoors, near a pool or spa, or in any other high humidity environment. The
operating temperature specification is 40 to 120 degrees Fahrenheit, and humidity is
95% non-condensing (no water drops forming on surfaces).
IMPORTANTOPERATION INSTRUCTIONS
NEVER operate this fitness bike without reading and completely understanding
the results of any operational change you request from the computer.
NEVER use your fitness bike during an electrical storm. Surges may occur in your
household power supply that could damage fitness bike components. Unplug the
fitness bike during an electrical storm as a precaution.
Do not use excessive pressure on console control keys.They are precision set to
function properly with little finger pressure. If you feel the buttons are not
functioning properly with normal pressure contact your SOLE dealer.
TRANSPORT INSTRUCTIONS
To move the exercise bike, grasp the front handlebar and carefully lift the exercise bike until
it can be moved on the front wheels. Carefully move the exercise bike to the desired location
and then lower it.

Customer Service 1-888-707-1880
Email: [email protected]
6

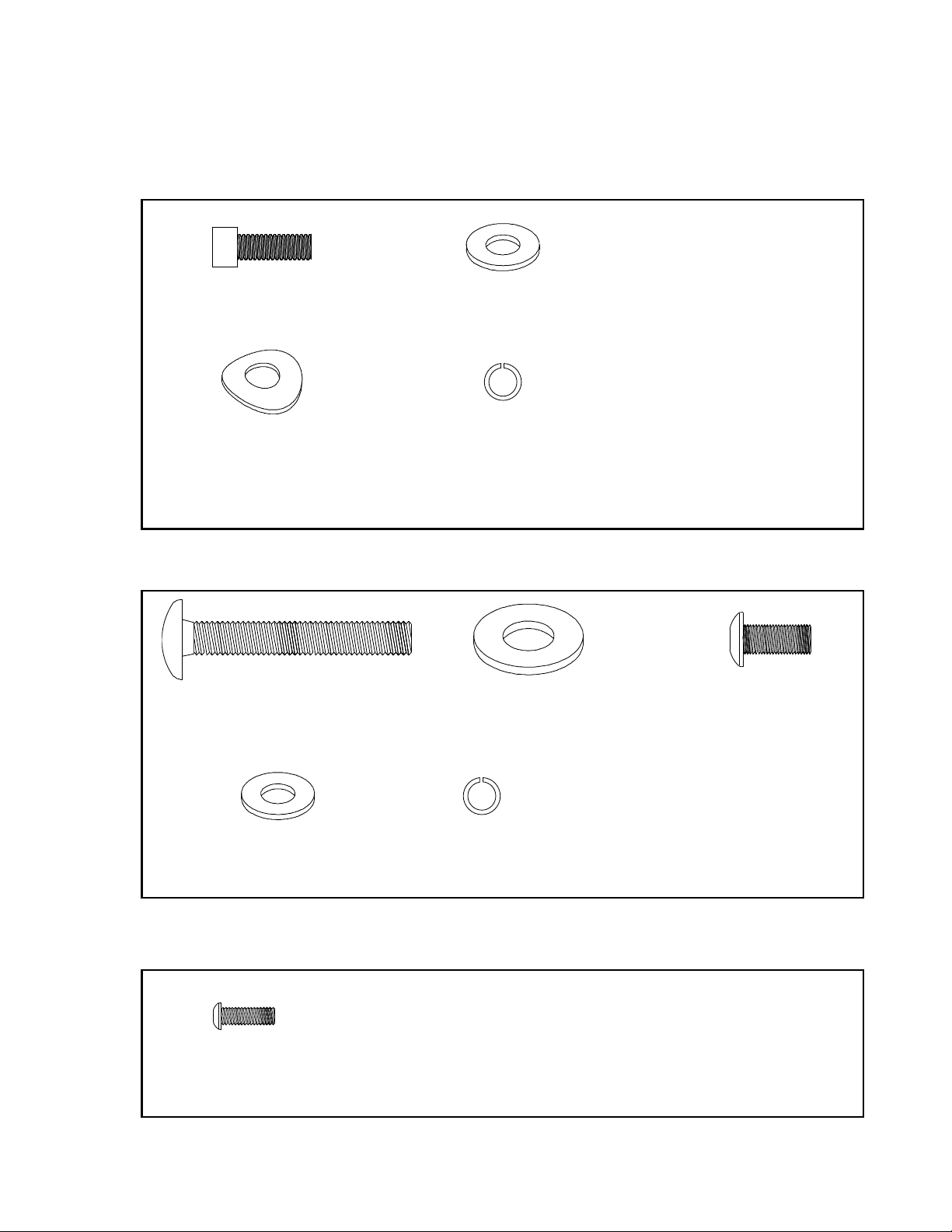

ASSEMBLY PACK CHECKLIST
1HARDWARESTEP1
2HARDWARESTEP2
3HARDWARESTEP3
#32. 5/16" × 3/4"_Socket
Head Cap Bolt (9 pcs)
#33. 5/16" × 18 × 1.5T_
Flat Washer (8 pcs)
#34. 5/16" × 19 ×1.5T_
Curved Washer (1 pc)
#71.3/8" × 1-1/2"_
Carriage Bolt (1 pc)
#72. Ø 3/8" × Ø 30 × 2T_
Flat Washer (1 pc)
#104. 5/16" × 5/8"_
Button Head Socket Bolt
(2 pc)
#41. M5 × 12L_
Phillips Head Screw (4 pcs)
#35. 5/16" × 1.5T_
Split Washer (9 pcs)
#33. Ø 5/16" × Ø 18 × 1.5T_
Flat Washer (2 pcs)
#35. Ø 5/16" × 1.5T_
Spring Washer (2 pcs)

Customer Service 1-888-707-1880
Email: [email protected]
7

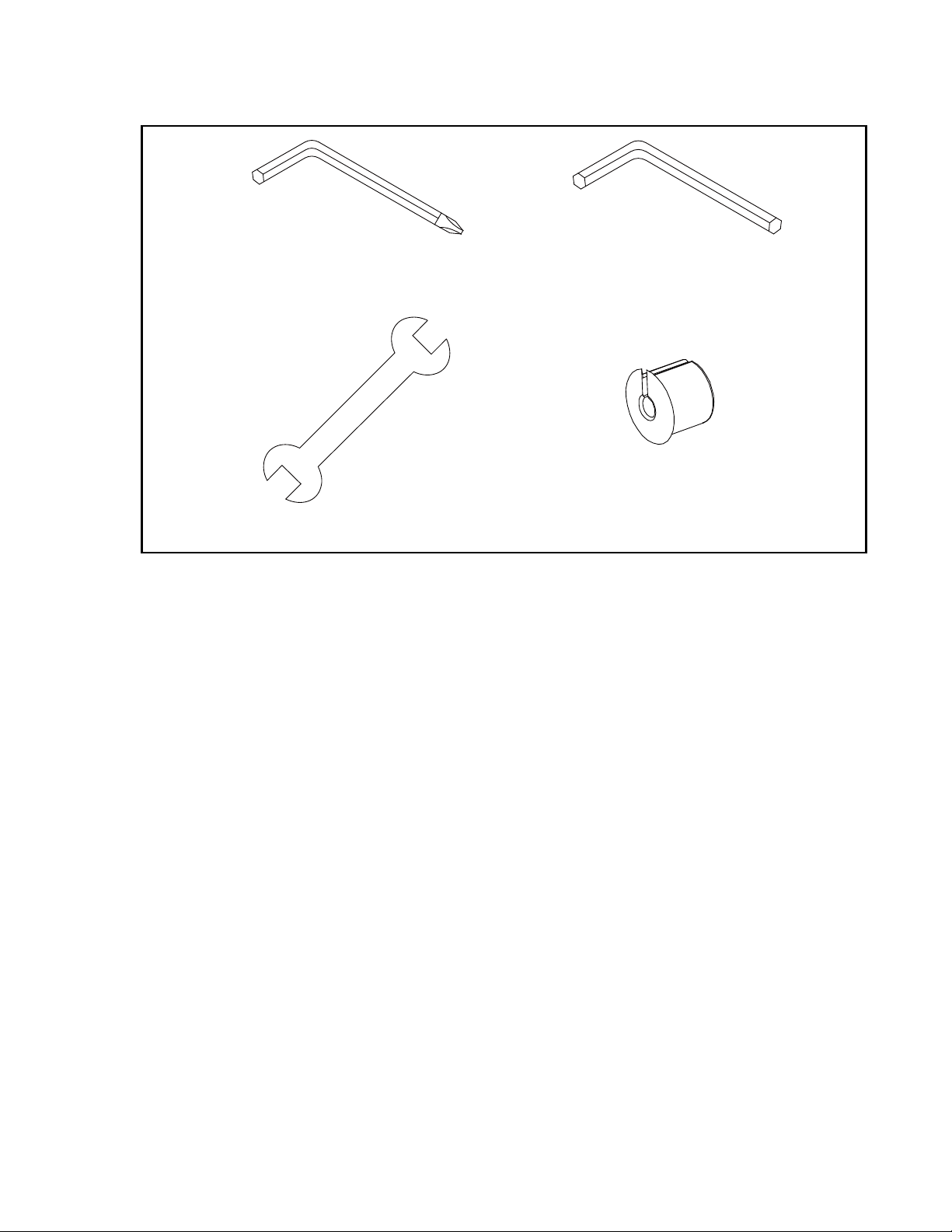

#79. 13/15m/m_Wrench
ASSEMBLY TOOLS
ASSEMBLY INSTRUCTIONS
PRE-ASSEMBLY
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box. Lift Box over
the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing parts.
If damaged parts are found, or parts are missing, contact your dealer immediately.
3. Locate the hardware package. Remove the tools first. Remove the hardware for
each step as needed to avoid confusion.The numbers in the instructions that are in
parenthesis (#) are the item number from the assembly drawing for reference.
#43. Combination M5 Allen
Wrench & Phillips Head
Screwdriver
#87. L Allen Wrench
#107. HGP Wire Grommet

Customer Service 1-888-707-1880
Email: [email protected]
8
#32. 5/16" × 3/4"_Socket
Head Cap Bolt (9 pcs)
#33.5/16" × 18 × 1.5T_
Flat Washer (8 pcs)
#34.5/16" × 19 ×
1.5T_Curved Washer
(1 pc)
#35.5/16" × 1.5T_
Split Washer (9 pcs)
1STEP HARDWARE STEP 1
1. Pull gently on the Computer Cable (80) to go through the
Console Mast (2).
2. Install the console mast (2) through the Console Mast Cover
(60) and attach it on the mast base. Use the L Allen Wrench
(87) to tighten 5pcs of 5/16" × 3/4"_Socket Head Cap Bolt
(32) , 4pcs of 5/16" × 18 × 1.5T Flat Washers (33), 5pcs of
5/16" × 1.5T_Split Washer(35) and 1pcs of 5/16" × 19 × 1.5T
Curved Washer (34) then secure the Console Mast Cover
(60).
3. Attach the Front Stabilizer (4) and Rear Stabilizer (5) with
4pcs of 5/16" × 3/4"_Socket Head Cap Bolt (32), 4pcs of
5/16" × 1.5T Split Washers (35) and 4 pcs of 5/16" × 18 ×
1.5T Flat Washers (33) by using L the Allen Wrench (87).

Customer Service 1-888-707-1880
Email: [email protected]
9
#71. 3/8" ×1-1/2"_
Carriage Bolt (1 pc)
#72. Ø 3/8" × Ø 30 × 2T_
Flat Washer (1 pc)
#104. 5/16" × 5/8"_
Button Head Socket Bolt
(2 pc)
#33. Ø 5/16" × Ø 18 ×
1.5T_Flat Washer (2 pcs)
#35. Ø 5/16" × 1.5T_
Spring Washer (2 pcs)
2STEP HARDWARE STEP 2
1. Install the Handlebar (3) on the Console Mast (2) Gather the
Handpulse Assembly (97) through the Console Mast and
Console mounting plate and use the Combination M5 Allen
Wrench & Phillips Head Screwdriver (43) to tighten 2pcs of
5/16" × 5/8"_Button Head Socket Bolt (104), 2pcs of Ø 5/16" ×
1.5T_Spring Washer (35) and 2pcs of Ø 5/16" × Ø 18 ×
1.5T_Flat Washer (33) to the Console Mast (2).
2. Take apart (three M8 x 7T nuts and three Ø 8 × Ø 20 × 1.5T flat
washers (A) under the Seat (20). Locate the sliding seat
mount (7) under the seat and use the 13mm/15mm open end
wrench (79) to tighten three M8 x 7T nuts and three Ø 8 × Ø 20
×1.5T washers. (A) attached under the seat).
3. Use 1pcs of 3/8" × 1-1/2" Carriage Bolt (71) to go Through the
Seat (20) and the Inner Slide (6) then tighten with 1pcs of
Ø 3/8" × Ø 30 × 2T Flat Washers (72) and the Seat knob (52).

Customer Service 1-888-707-1880
Email: [email protected]
10
#41. M5 × 12L_
Phillips Head Screw (4 pcs)
3STEP
HARDWARE STEP 3
1. Connect the Computer Cable (80) and the Handpulse
Assembly (97) to the Console (48) which is on Console Mast
(2) and use Combination M5 Allen Wrench & Phillips Head
Screwdriver (43) to tighten together with 4pcs of M5 × 12L
Phillips Head Screws (41).
2. Plug in the HGP Wire Grommet (107) to the Console Mast (2).
3. Cover the Handlebar (3) with the Handlebar Cover (101) at
the position as show.
4. Use 13mm/15mm Wrench (79) to install both Pedals (15) on
the crank arms (11-12).
5. Note: the right pedal is inserted to the crank clockwise and the
left pedal is inserted counterclockwise.

Customer Service 1-888-707-1880
Email: [email protected]
11
Operation of Your Console
Console
Power up:
This model requires DC12V transformer power supply. Connect the power cable to
the socket on the left side of the machine near the front.
With the power on, the console will be turned on, and have a long beep sound with
LCD full display for 2 seconds. Then it will display the version for 3 seconds and
enter to the USER mode.
Functions:

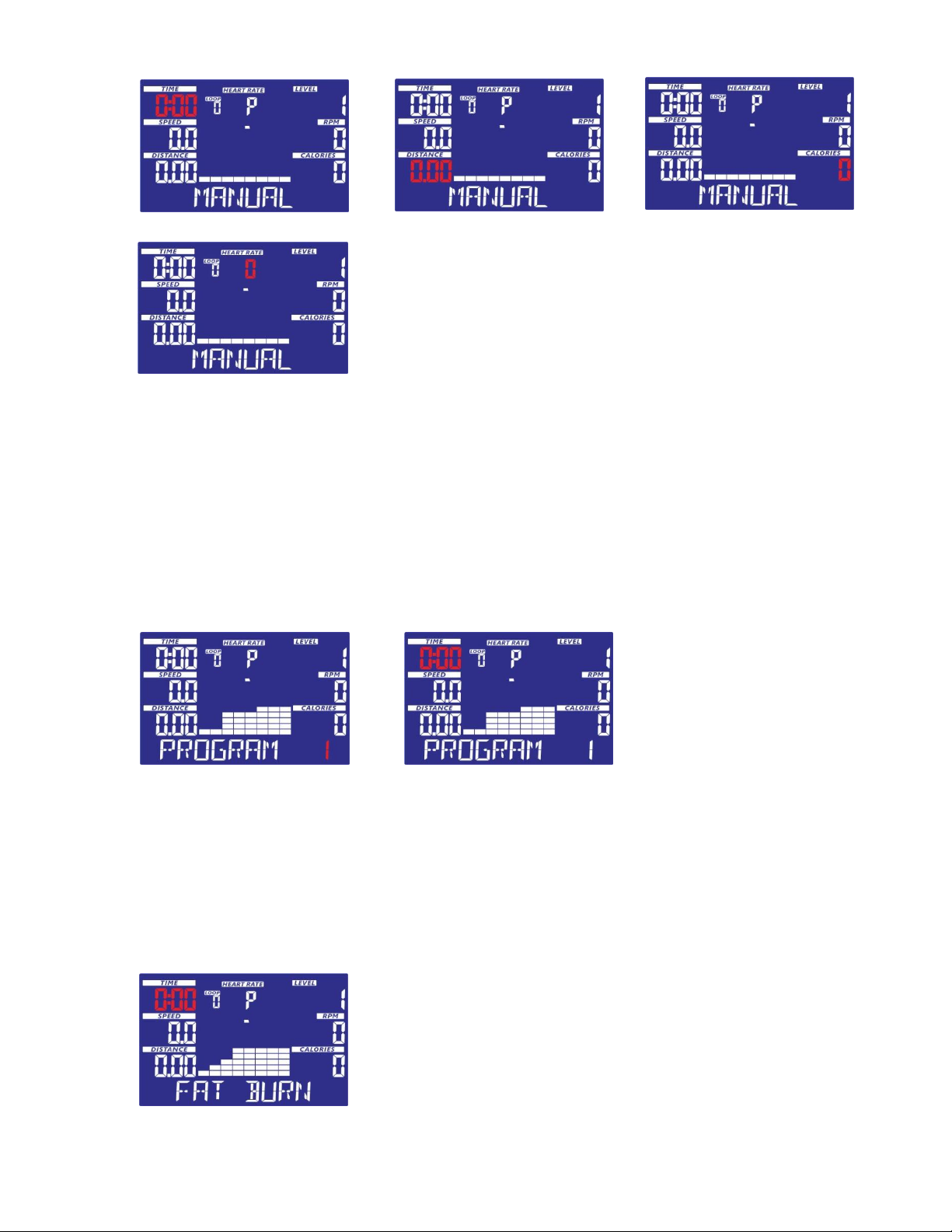

1. MANUAL: Setting workout by manual, include target value setting of TIME, CAL, DIST,
PULSE.
2. PROGRAM: P1~P13, 13 program profiles can be selected.
3. FAT BURN: Preset fat burning workout program

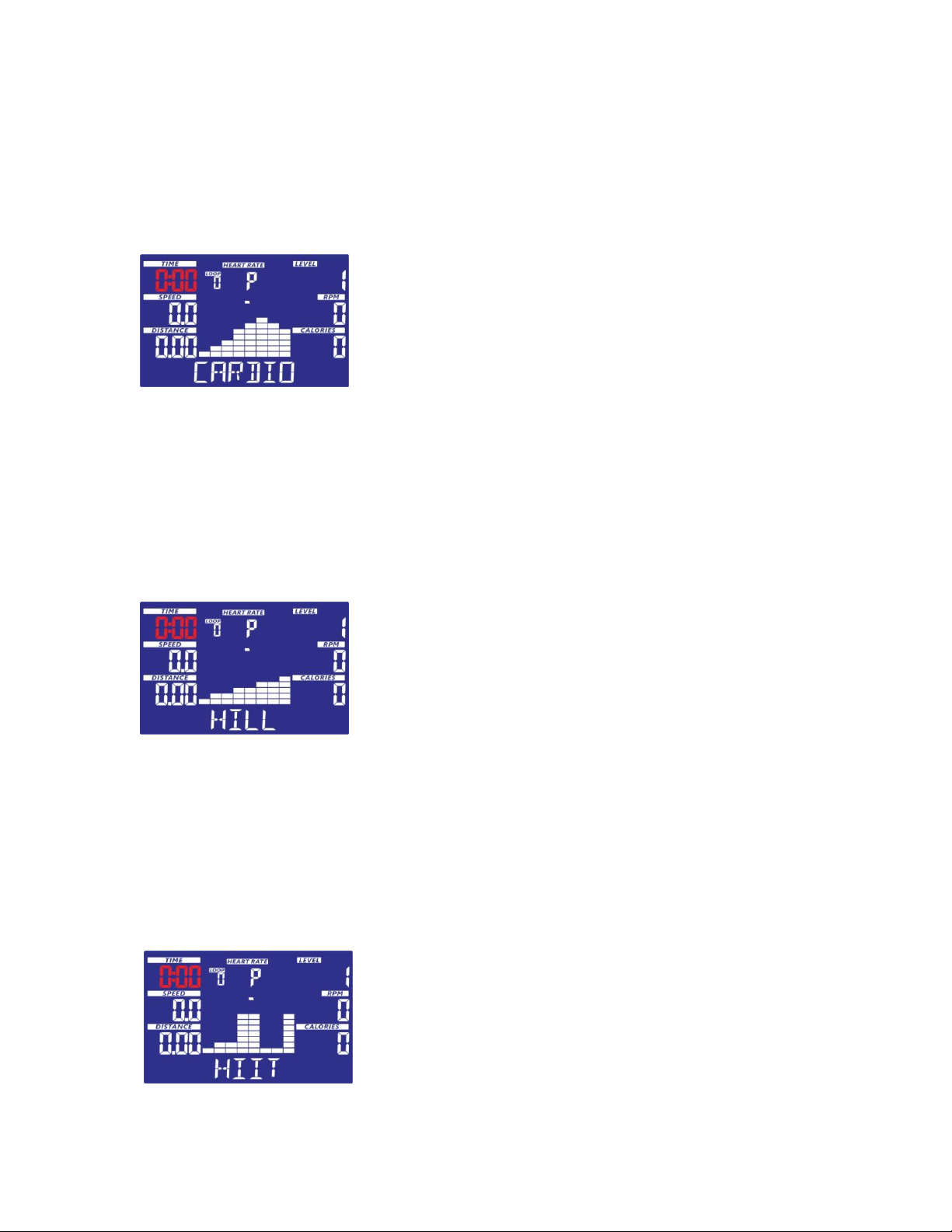

4. CARDIO: Preset oxygen sport workout program
5. HILL: Preset Hill workout program
6. HIIT: Preset Hiit workout program

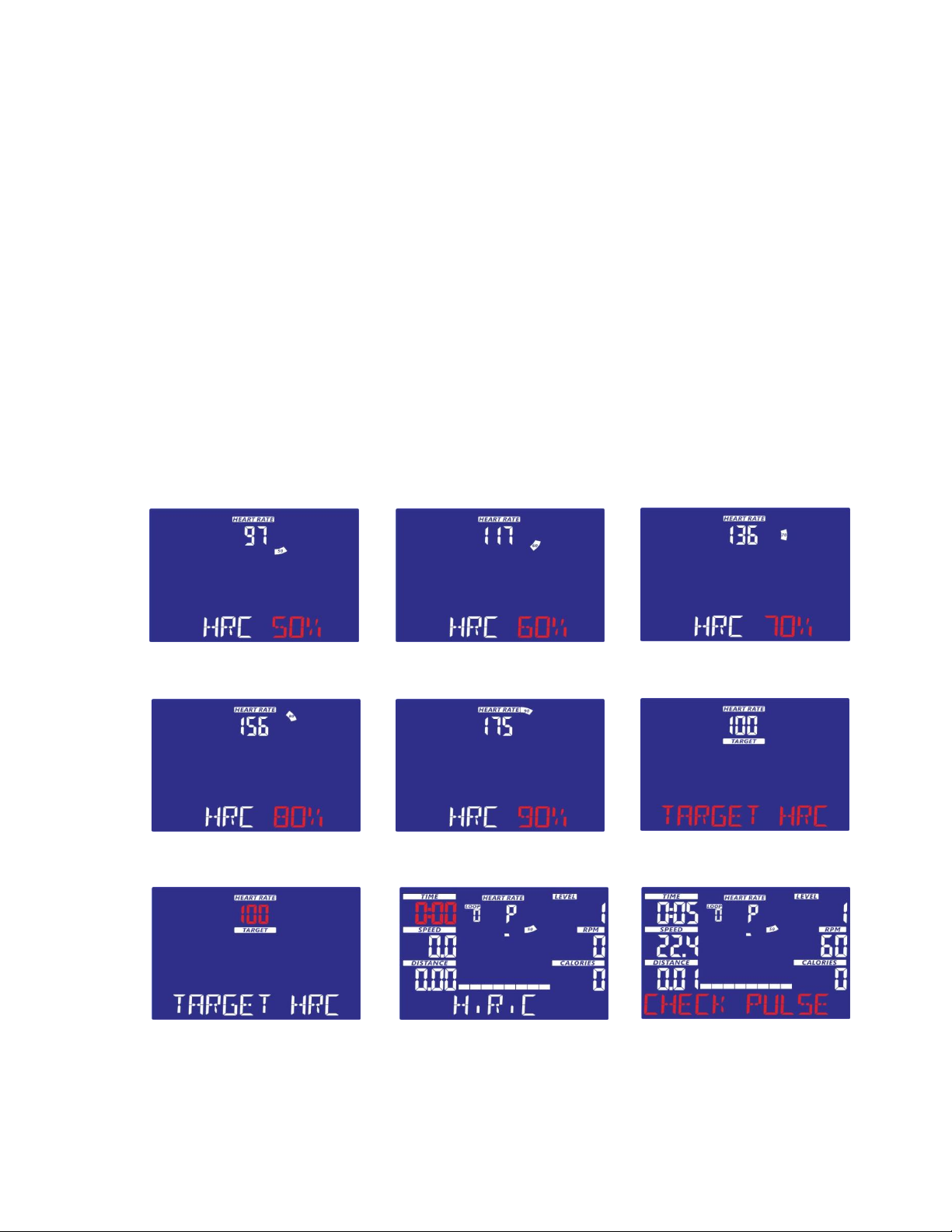

7. HRC: The load is controlled by the heart rate automatic, there are 6 options
50％, 60％, 70％, 80％, 90％, and TARGET.

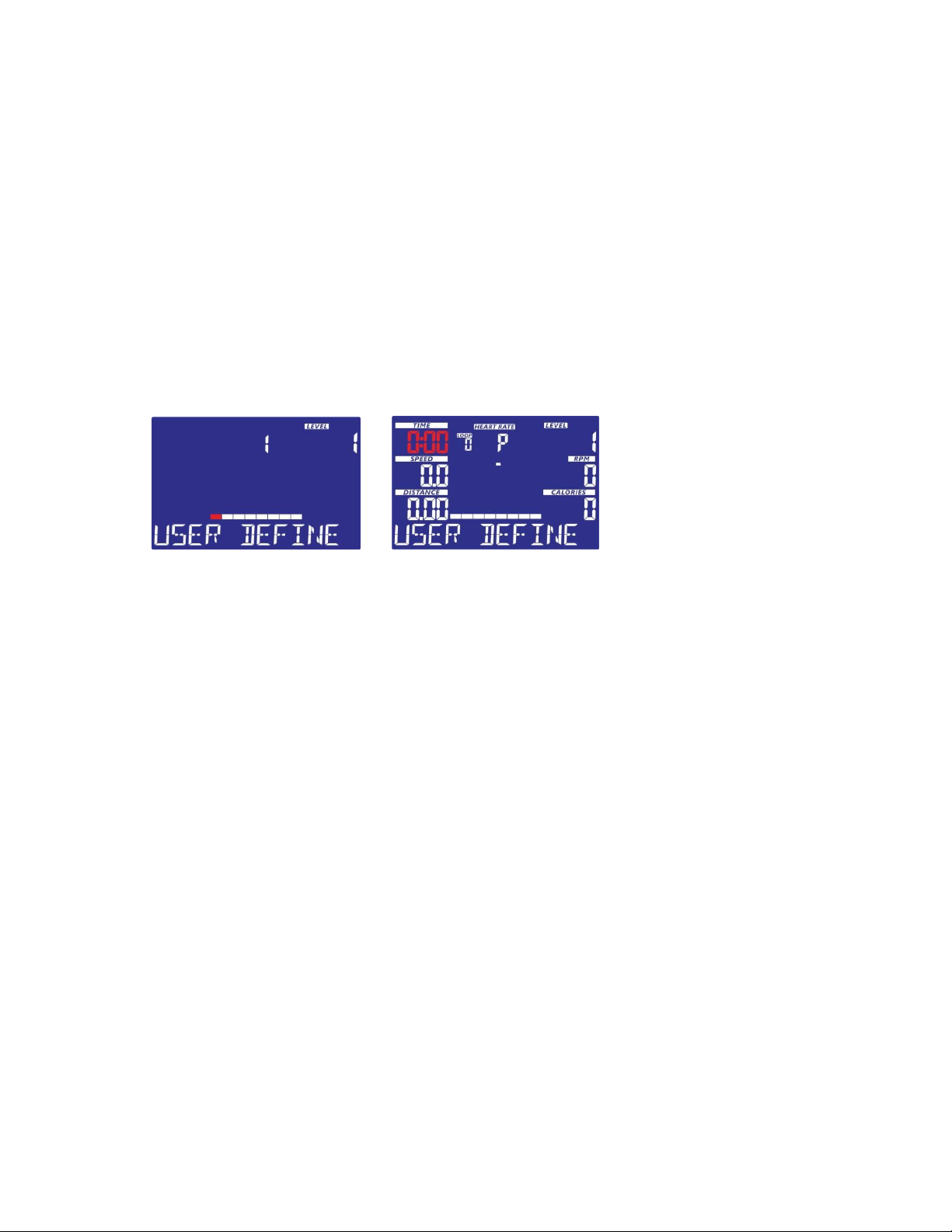

8. USER DEFINE : User can set program profile by self.
COOLING FAN
SPEAKER
FAN POWER
SWITCH
AUDIO IN JACK
(MP3, CD, OR
SMARTPHONE)
PROGRAM BUTTONS

Customer Service 1-888-707-1880
Email: [email protected]
12
Button Functions:
1. START: Start workout
2. STOP: Workout pause and press again back to standby mode. Press and hold the
button, console will restart.
3. ENTER: Confirm the function or setting value.
4. LEVEL + : Increase the load or upward the setting value such as TIME.
5. LEVEL - : Decrease the load of downward the setting value such as TIME.
6. FAN: Fan function ON/OFF.
7. MANUAL: In the standby mode, press MANUAL quick key into MANUAL mode.
8. PROGRAM: In the standby mode, press PROGRAM quick key into PROGRAM mode.
9. FAT BURN: In the standby mode, press FAT BURN quick key into FAT BURN mode.
10.CARDIO: In the standby mode, press CARDIO quick key into CARDIO mode.
11.HILL: In the standby mode, press HILL quick key into HILL mode.
12.HIIT: In the standby mode, press HIIT quick key into HIIT mode.
13.HRC: In the standby mode, press HRC quick key into HRC mode.
14.USER DEFINE: In the standby mode, press USER quick key into USER DEFINE
mode.
Operation:
1. Console power on with beep sound, and LCD full display for 2 seconds (image 1), then showing
the version and model for 3 seconds. After that, enter USER data setting. There are 4 sets of
USER data setting, press【LEVEL＋/LEVEL－】to select, and press【ENTER】to confirm.
Setting process: USER→AGE→WEIGHT (image 2~image 4); After setting, enter to the standby
mode. (image 5).
image 1 image 2 image 3
image 4 image 5

Customer Service 1-888-707-1880
Email: [email protected]
13
2. In the standby mode, press【START】to QUICK START, and enter Manual mode to start workout.
Or, press【LEVEL＋/LEVEL－】to select Manual, Program, Fat burn, Cardio, Hill, hitt, HRC and
User define (image 6~image 13), then press【ENTER】to confirm. Or, directly press function Quick
key to quick enter.
image 6 image 7 image 8
image 9 image 10 image 11
image 12 image 13
3. Manual mode: In standby mode, press【LEVEL＋/LEVEL－】to select MANUAL, and press
【ENTER】. Or, press 【MANUAL】quick key to enter this mode directly. Then, set the target
value in sequence TIME →DISTANCE →CALORIES →HEART RATE (image 14~image 17)
by pressing【LEVEL＋/LEVEL－】to adjust, and press 【ENTER】into next value setting. After
setting, press【START】to start workout, and press【LEVEL＋/LEVEL－】to adjust the load during
workout. Press【STOP】to pause workout, and press【STOP】again back to the standby mode.
With one value of TIME, DISTANCE, and CALORIES preset target value count down to zero, the
workout will be stopped, all the values stop counting. Press【STOP】to leave this mode and
return to standby mode.

Customer Service 1-888-707-1880
Email: [email protected]
14
image 14 image 15 image 16
image 17
4. Program mode: In standby mode, press【LEVEL＋/LEVEL－】to select PROGRAM, and press
【ENTER】. Or, press【PROGRAM】quick key to enter this mode directly. First, select program
profiles (image 18) total 13 sets. Press【ENTER】to confirm the profiles and set target TIME
(image 19) by pressing【LEVEL＋/LEVEL－】to adjust. After setting, press【START】to start
workout, and press【LEVEL＋/LEVEL－】to adjust the load during workout. Press【STOP】to pause
workout, and press【STOP】again back to the standby mode. When preset the target TIME, the
target value will count down to zero, the workout will be stopped, and all the values stop counting.
Press【STOP】to leave this mode and return to standby mode.
image 18 image 19
5. Fat Burn mode: In standby mode, press【LEVEL＋/LEVEL－】to select FAT BURN, and press
【ENTER】. Or, press【FAT BURN】quick key to enter this mode directly. Then, set target TIME
(image 20) by pressing【LEVEL＋/LEVEL－】to adjust. After setting, press【START】to start
workout, and press 【LEVEL＋/LEVEL－】to adjust the load during workout. Press【STOP】to
pause workout, and press【STOP】again back to the standby mode. When preset the target TIME,
the target value will count down to zero, the workout will be stopped, and all the values stop
counting. Press【STOP】to leave this mode and return to standby mode.
image 20

Customer Service 1-888-707-1880
Email: [email protected]
15
6. Cardio mode: In standby mode, press【LEVEL＋/LEVEL－】to select CARDIO, and press
【ENTER】. Or, press【CARDIO】quick key to enter this mode directly. Then, set target TIME
(image 21) by pressing【LEVEL＋/LEVEL－】to adjust. After setting, press【START】to start
workout, and press【LEVEL＋/LEVEL－】to adjust the load during workout. Press【STOP】to
pause workout, and press 【STOP】again back to the standby mode. When preset the target
TIME, the target value will count down to zero, the workout will be stopped, and all the values stop
counting. Press【STOP】to leave this mode and return to standby mode.
image 21
7. Hill mode: In standby mode, press【LEVEL＋/LEVEL－】to select HILL, and press【ENTER】. Or,
press【HILL】quick key to enter this mode directly. Then, set target TIME (image 22) by pressing
【LEVEL＋/LEVEL－】to adjust. After setting, press【START】to start workout, and press
【LEVEL＋/LEVEL－】to adjust the load during workout. Press 【STOP】to pause workout, and
press【STOP】again back to the standby mode. When preset the target TIME, the target value will
count down to zero, the workout will be stopped, and all the values stop counting. Press 【STOP】
to leave this mode and return to standby mode.
image 22
8. Hiit mode: In standby mode, press【LEVEL＋/LEVEL－】to select Hiit, and press【ENTER】. Or,
press【HIIT】quick key to enter this mode directly. Then, set target TIME (image 23) by pressing
【LEVEL＋/LEVEL－】to adjust. After setting, press【START】to start workout, and press【LEVEL
＋/LEVEL－】to adjust the load during workout. Press【STOP】to pause workout, and press
【STOP】again back to the standby mode. When preset the target TIME, the target value will
count down to zero, the workout will be stopped, and all the values stop counting. Press【STOP】
to leave this mode and return to standby mode.
image 23

Customer Service 1-888-707-1880
Email: [email protected]
16
9. HRC mode: In standby mode, press【LEVEL＋/LEVEL－】to select HRC, and press 【ENTER】.
Or, press【HRC】quick key to enter this mode directly. First, select HRC 50%, 60%, 70%, 80%,
90%, or TARGET HRC (image 24~image 29) total 6 sets. TARGET HRC is able to set the target
pulse value. After entering to the TARGET HRC, you need to set the target pulse value (image 30),
and press【ENTER】to confirm, then enter to the target Time setting (image 31). When you select
HRC % and press【ENTER】, it will enter to target TIME setting directly (image 31), except
TARGET HRC. After setting, press【START】to start workout.
The load will automatically change according to the pulse and cannot be adjusted manually.
Therefore, the console needs to keep receiving pulse signal in this mode. Press【STOP】to pause
workout, and press【STOP】again back to the standby mode. When preset the target TIME, the
target value will count down to zero, the workout will be stopped, and all the values stop counting.
Press【STOP】to leave this mode and return to standby mode.
If there is no pulse signal during workout, the console will show “CHECK PULSE” (image 32), and
after 1 minute, it will be back to standby mode. If the current pulse is over target pulse, the console
will have beep sound as warning signal. Keep having warning sound 30 seconds, the workout will
be stopped, and all the values stop counting. Press【STOP】to leave this mode and return to
standby mode.
image 24 image 25 image 26
image 27 image 28 image 29
image 30 image 31 image 32

Customer Service 1-888-707-1880
Email: [email protected]
17
10.User Define mode: In standby mode, press【LEVEL＋/LEVEL－】to select USER DEFINE, and
press【ENTER】. Or, press【USER】quick key to enter this mode directly. User may press【LEVEL
＋/LEVEL－】and then press【ENTER】to create his own profile from column 1 to column 20
(image 33). The heart rate window will display the number of rows, and the load window will
display the load value for the current setting. After load setting, press and hold【ENTER】to enter
TIME setting (image 34). Then, set target TIME by pressing
【LEVEL＋/LEVEL－】to adjust. After that, press【START】to start workout, and press
【LEVEL＋/LEVEL－】to adjust the load during workout. Press【STOP】to pause workout, and
press【STOP】again back to the standby mode. When preset the target TIME, the target value will
count down to zero, the workout will be stopped, and all the values stop counting. Press【STOP】
to leave this mode and return to standby mode.
image 33 image 34

Customer Service 1-888-707-1880
Email: [email protected]
18
PROGRAM MOTION PROFILES 1~13
PROGRAM 1, Muscle Endurance:
Muscle endurance is the ability of a muscle to maintain for a long time under load resistance.
The muscular endurance program utilizes overload resistance training to allow the muscles to
withstand high loads, stimulate physiological disturbances, and enhance muscle tissue
adaptability, which is the most effective way to increase muscle endurance.
PROGRAM 2, Core Muscles:
The core muscles must be continuously trained to maintain muscle strength. The core muscle
program is able to maintain the consistency of exercise, and keep the body stable without
shaking, so that the body can use each muscle more precisely.
PROGRAM 3, Simulation:
Simulation is similar to the mountaineering method. The slopes encountered in the mountains
are different, the resistance is stronger, and the training of the leg muscles is strengthened.
The curve of the lower body and the body can be sculptured to achieve the effect of lifting the
hips and sculpting.
PROGRAM 4, Aerobic Exercise:
The aerobic exercise program allows athletes to maintain a high number of strokes, allowing
the user to achieve a maximum heart rate of 50% to 90% at the exercise center. Do aerobic
metabolism to achieve the effect of fat loss.
PROGRAM 5, Thrill Hill:
The Thrill Hill program combines a few types of workout in one, with variations of cardio and
strength portions to give you a thrill.

Customer Service 1-888-707-1880
Email: [email protected]
19
PROGRAM 6, X-sport:
The X-sport program is designed to increase muscular strength in your lower body with
extreme resistance. This program will steadily increase in resistance to high level and then
keeps you there. This is to enhance the design of your legs and hips.
PROGRAM 7, Cardiopulmonary:
The cardiopulmonary procedure is to strengthen the lungs and heart, allowing users to carry
oxygen from the air and transport oxygen to tissue cells for use.Allows users to achieve a
maximum heart rate of 60-80% during exercise, to reach a little breath but can also speak in a
way to strengthen the heart and lung function.
PROGRAM 8, Off-road:
Off-road program is simulated cross-country simulation. In the process, it will experience the
climbing-like oppression and the downhill sense of pleasure. It will allow you to feel the
smoothness and ease of use.
PROGRAM 9, Wild Ride:
The Wild Ride program is designed to increase your cardiovascular function this is exercise
for your heart and lungs. It will build up your heart muscle and increase blood flow and lung
capacity. This is achieved by incorporating a higher level of exertion with slight fluctuations in
work a real Wild Ride!
PROGRAM 10, Limit mode:
Limit mode program is designed to exercise with continuous resistance to help the body
increase fat consumption. This procedure stabilizes and gradually increases the resistance
and maintains a constant intensity. This design is to strengthen and adapt your physical
condition.

Customer Service 1-888-707-1880
Email: [email protected]
20
PROGRAM 11, Low-intensity Training:
The low intensity training program provides comfortable speed. When you maintain this level
of strength, you do not tire easily and you train without overworking yourself. Such training
does not tax the body and remains safe. Thus, the value of lactic acid does not increase in the
blood and it promotes the training necessary to prepare you in several sports.
PROGRAM 12, Canyons:
The Canyons program takes you through high levels of intensity followed by periods of low
intensity. This program increases your endurance by depleting your oxygen level followed by
periods of recovery to replenish oxygen. Your cardiovascular system gets programmed to use
oxygen more efficiently this way.
PROGRAM 13, Resistance training:
Using external resistance to train, the resistance generated by training equipment can
achieve the effect of muscle contraction, increase muscle strength and endurance, and
promote aerobic fitness.
