Solflex SQV Series User manual

MANUAL
SQV SERIE
ENGLISH
Version: 08/2018
Please read carefully and keep for future reference.

Solflex GmbH
Am Feuerstein 282
2392 Wienerwald
Austria
T: +43223820336
E: office@solflex.eu
www.solflex.eu
ATU 65324348
FN 337206t
Always observe all relevant standards and
statutory regulations
Subject to change without prior notice.
All business transactions based onour Terms and Conditions, available at
www.solflex.eu

Manual SQV Acoustic Housing Page 3
Version: 08/2018
Table of Content
1. General Information......................................................4
2. Technical Description ....................................................4
3. Sound level reduction....................................................6
4. Warranty.....................................................................7
5. Safety.........................................................................7
5.1 Intended use................................................................7
5.2 Safety instructions........................................................7
5.2.1 Risks during unloading and transportation .......................7
5.2.2 Risks from electric power...............................................7
5.2.3 Risk of damage to property and the environment .............7
5.3 Emergency procedures..................................................7
5.3.1 Fire fighting .................................................................7
6. Product delivery ...........................................................8
6.1 Unloading / transport to location of installation.................8
7. Mounting.....................................................................9
7.1 Foundation ................................................................ 16
7.2 Installation of Heat Pump ............................................ 19
8. Maintenance and Service............................................. 19
8.1 General..................................................................... 19
8.2 Silencers ................................................................... 19
8.3 Grounding ................................................................. 19
8.4 Test run .................................................................... 19
8.5 Removal and disposal.................................................. 19

Manual SQV Acoustic Housing Page 4
Version: 08/2018
1. General Information
Solflex produces SonaSafe acoustic housing for a wide range of Heat Pump,
Air Conditioning and Refrigeration systems.
SonaSafe SQV* Serie
2. Technical Description
Professional sound reduction by double-walled enclosure in attractive, straight design.
The housing serves mainly as a problem solution for all noise disturbances and
compliance with all legal regulations (including statutory night rest). Furthermore,
access to the thus protected outdoor unit is prevented for unauthorized persons. A
deliberate destruction of the valuable and difficult to replace outdoor unit is excluded
(Only opening of service doors with tools). The enclosure consists of a stable
aluminium frame construction with inwardly screwed connectors. All panels can be
easily removed by means of 3D closures. The required special tools are provided with.
Access to the enclosed outdoor unit is from all sides possible. The assembly of the
acoustic housing is possible by 2 workers in about 2 hours without further tools such as
expensive lifting cranes. By default, the enclosure comes with a 50mm thick insulation.
The inner plate consists of perforated galvanized steel with a mesh size of
50x50x10mm. The outside plate is standard powder coated in RAL9010 (pure white).
Between the double-walled plates, there is a layer of non-combustible glass fibre
insulation that is protected by a resistant and water-repellent coating on the side of the
perforated plate.

Manual SQV Acoustic Housing Page 5
Version: 08/2018
For units with horizontal air discharge
SonaSafe
Type Principle
Housing
Dimensions
[mm] Weight
[kg]520
Max. Unit
Dimension *
[mm]
Fan
H W D H W d
SQV100NP
Vertical
suction and
discharge
3400 1600 1600 520
On Demand
1
SQV200NP 3400 2375 1600 700
2
SQV210NP 3400 3150 1600 880
3
SQV220NP 3400 3925 1600 1060
4
SQV221NP 3400 4700 1600 1240
5
SQV222NP 3400 5475 1600 1420
6
SQVY100NP 3800 1600 1600 570
On Demand
1
SQVY200NP 3800 2375 1600 760
2
SQVY210NP 3800 3150 1600 950
3
SQVY220NP 3800 3925 1600 1140
4
SQVY221NP 3800 4700 1600 1340
5
SQVY222NP 3800 5475 1600 1530
6
*The dimensions of the device used must be checked individually.
SQV 4 Feet
SonaSafe SQV 4 Feet support system. Material: galvanised steel.
Dimensions (HxWxD): 470x1.550x1.275mm.
Weight: ca. 22,5 kg. Max. Load: 400 kg.
SQV 6 Feet
SonaSafe SQV 6 Feet support system. Material: galvanised steel.
Dimensions (HxWxD): 470x2.800x1.275mm.
Weight: ca. 42,25 kg. Max. Load: 600 kg..
SQV 8 Feet
SonaSafe SQV 8 Feet support system. Material: galvanised steel.
Dimensions (HxWxD): 470x4.050x1.275mm.
Weight: ca. 62 kg. Max. Load: 800 kg..
SQV Drain Pan
Drain pan with oil separator. Incl. fixations to mount onto big foot
system.
SQV Electrical Heater Temperature-controlled electronic condensate tray heating.
SQV Hood Deflection arc for blowing in horizontal direction..
SQV Bottom Plate
Sound attenuated base plate with controlled drain to mount the
acousting housing on e.g. when standing onto metal grid base.
SQV Damping mat
Damping mat made of recycled rubber granules 1000 x 1000 mm
t=10mm
SQV Rubber Spring Strip
Rubber spring stripes according to DIN 4109 to mount the acoustic
housing onto.
SQV RAL Custom Painted in custom RAL colour.
SQV Transport EU DAP delivery at place within EU (main land) without installation

Manual SQV Acoustic Housing Page 6
Version: 08/2018
3. Sound level reduction
The sound insulation performance of our acoustic enclosures was measured by
an independent laboratory, according to DIN EN ISO 3744.
Measurement method
• Sound power measurement (MP1) of the calibrated reference sound
source over a spherical envelope with 12 microphones. Acoustic data:
Class 2 according to DIN EN ISO 3744, as third octave spectrum and
octave spectrum.
• Sound power measurement (MP2) of the Solflex SonaSafe acoustic
enclosure with reference sound source inside the acoustic housing over
a spherical envelope with 12 microphones. Acoustic data: Class 2
according to DIN EN ISO 3744, as third octave spectrum and octave
spectrum.
• The difference between the two measurements is the sound
insulation performance or sound level reduction of the acoustic
housing.
MP1 - MP2 = sound level reduction by acoustic enclosure*
*The measurement tolerance of +/- 1.5 dB(A) or tolerance range of 3 dB(A)
according to DIN EN ISO 3744 was not taken in consideration and we publish
only the minimum sound level reduction values.
Measurement result
The SQV acoustic enclosure has a nominal sound level reduction of 25 dB(A).
Nominal Sound Reduction SQV Acoustic Housing :
f [Hz] 63 125 250 500 1000 2000 4000 8000 16000
De [dB(A)] 5,1 7,8 18,6 24,1 24,4 24,9 27,1 26,5 23,3
The acoustic result depends on the device to be installed and is prone to
deviations due to the particular conditions at the installation site.

Manual SQV Acoustic Housing Page 7
Version: 08/2018
4. Warranty
24 month date of delivery
5. Safety
In the event of improper operation or
operation for a purpose other than the
intended, there is however a risk of
serious or even fatal injury to persons
and a risk of damage to the unit and
other property.
5.1 Intended use
The unit must only be used as acoustic
housing for compatible Heat Pump, Air
Conditioning and Refrigeration
systems. Any other use is strictly
prohibited.
5.2 Safety instructions
All work about the assembly,
installation and commissioning of the
unit must be carried out by specially
trained technicians.
5.2.1 Risks during unloading
and transportation
Risk of serious injury from dislodged
loads.
Do not stand under suspended loads.
5.2.2 Risks from electric power
Risk of electric shock from electrostatic
charge of housing:
Earth the device.
5.2.3 Risk of damage to property
and the environment
Serious damage to property from
dropping loads;
please observe the instructions in
section "Delivery of product".
Serious damage to heat exchanger
connections, panelling and other
mounted components from force
impact during moving of unit
elements; always move the unit
elements by their base frame.
Risk of damage to components from
heavy impact, e.g. when attempting to
dislodge a part with a hammer, etc.:
Components that rest on the
foundation must only be moved by
shifting.
5.3 Emergency procedures
5.3.1 Fire fighting
Strictly adhere to all statutory fire
safety regulations.
The insulation foam has a fire
behaviour according norm.

Manual SQV Acoustic Housing Page 8
Version: 08/2018
6. Product delivery
Upon delivery, inspect the product for
damage caused during transport and
ensure that the delivery is complete.
Record any damage or missing parts
on the transport documents.
Complaints regarding obvious
transport damage or incomplete
deliveries cannot be considered if
made too late.
On the construction site, protect the
unit against dirt, impact and the
elements.
6.1 Unloading / transport to
location of installation
This unit is shipped in parts on a
pallet. For unloading, lift the unit by
the pallet.
Too short forks can damage the
acoustic housing.
Risk of serious injury or damage to
property from dropping loads.
Observe the safety instructions of the
transport equipment and lifting gear.
Do not climb onto the unit.

Manual SQV Acoustic Housing Page 9
Version: 08/2018
7. Mounting
The silencer is placed on the device with at least 3 people or using an assembly lift and
firmly screwed. (Self-adhesive foam tape and sheet metal screws are to be provided by the
customer.)
Please pay attention to a correct installation of the silencer on the outdoor unit,
to ensure the functionality of the acoustic housing.
false right

Manual SQV Acoustic Housing Page 10
Version: 08/2018
The second step is to mount the base frame. After this the aluminium grille is placed
with the white sound insulation panels, thereby guaranteeing the stability of the base
frame for the next steps.

Manual SQV Acoustic Housing Page 11
Version: 08/2018

Manual SQV Acoustic Housing Page 12
Version: 08/2018
The upper frame is manufactured precisely and can be screwed with the base frame with
little effort.

Manual SQV Acoustic Housing Page 13
Version: 08/2018

Manual SQV Acoustic Housing Page 14
Version: 08/2018

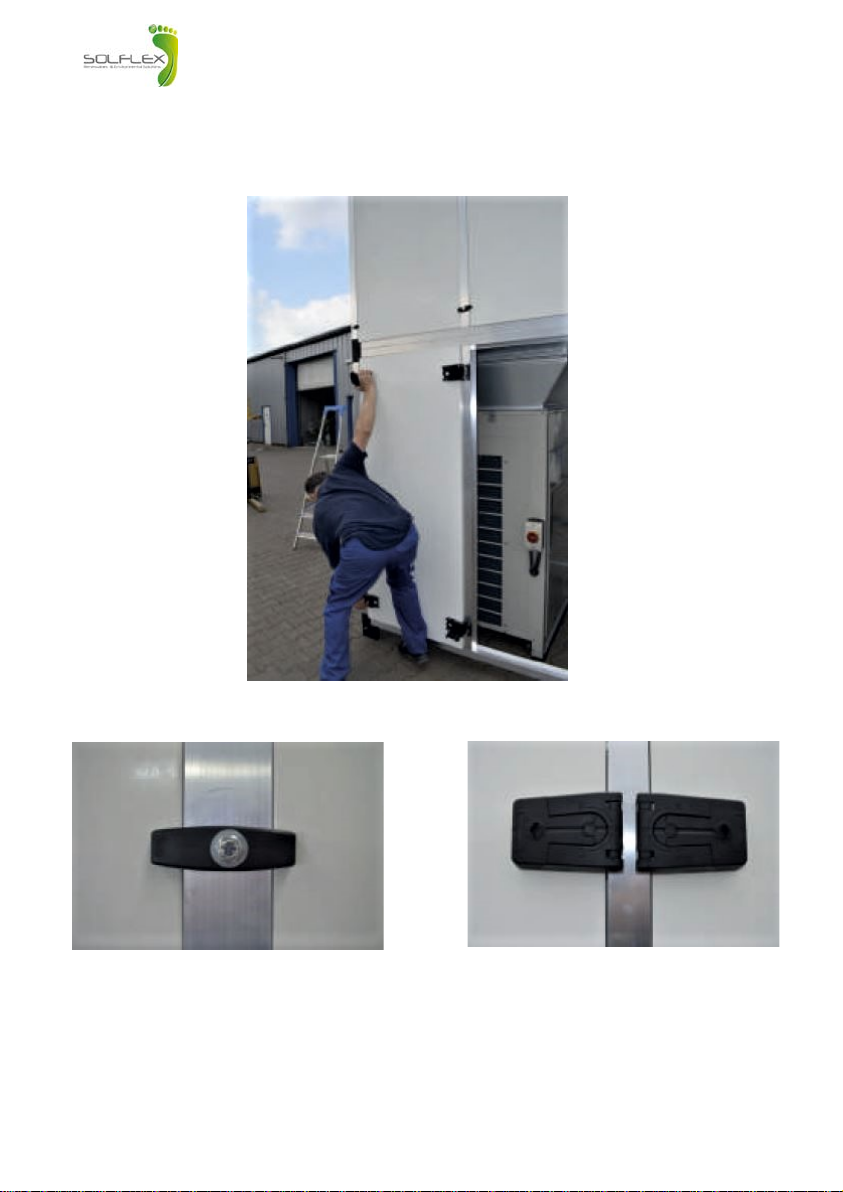

The doors are fitted with a rotary latch closure and are lockable. The panels are fastened
with a rotating latch, which makes the system reversible from all sides.
The build-up time for the sound and vandal protection per built-in device is about 1.5
hours with 2 men.

Manual SQV Acoustic Housing Page 15
Version: 08/2018

Manual SQV Acoustic Housing Page 16
Version: 08/2018
7.1 Foundation
The foundation must meet the relevant static and sound propagation requirements and
must feature a proper drain for water. It must be level and smooth. The resonance
frequency of the support structure must be distinctly different from the excitation
frequency of the rotating machine components (Heat Pump, Air Conditioning and
Refrigeration system).
An uneven foundation might cause malfunction or jammed panels.Liability is excluded for
damage caused by installation on an uneven surface.
Fundamental example:
SonaSafe
Type
Housing
Dimensions
[mm]
Weight
Wall/
Meter
[kg]
Weight
[kg]
Total
Weight
[kg]
Dimensions Fundament
[mm]
H B T A B C D
SQV100NP 3400 1600 1600 68 75 520 1800 1400 1800 1400
SQV200NP 3400 2375 1600 68 150 700 1800 1400 2575 2175
SQV210NP 3400 3150 1600 68 225 880 1800 1400 3350 2950
SQV220NP 3400 3925 1600 68 300 1060 1800 1400 4125 3725
SQV221NP 3400 4700 1600 68 375 1240 1800 1400 4900 4500
SQV222NP 3400 5475 1600 68 450 1420 1800 1400 5675 5275

Manual SQV Acoustic Housing Page 17
Version: 08/2018
Notiz 1:
The bottom side of the outdoor unit and the upper side of the foundation must be at
the same level, whereupon the acoustic housing is placed.
false
The upper edge of the silencer will thus be at the same level as the upper edge of the
sound-absorbing wall, and the connection between the outdoor unit and the silencer
will be less stressed under extreme wind loads

Manual SQV Acoustic Housing Page 18
Version: 08/2018
SonaSafe
Type
Housing
Dimensions
[mm]
Weight
wall /
Meter
[kg]
Weight
[kg]
Total
Weight
[kg]
Dimensions Fundament
[mm]
H B T AC
SQVY100NP 3800 1600 1600 76 75 570 1800 1800
SQVY200NP 3800 2375 1600 76 150 760 1800 2575
SQVY210NP 3800 3150 1600 76 225 950 1800 3350
SQVY220NP 3800 3925 1600 76 300 1140 1800 4125
SQVY221NP 3800 4700 1600 76 375 1340 1800 4900
SQVY222NP 3800 5475 1600 76 450 1530 1800 5675
Notiz 2:
If you use our SQV Feet for mounting the outdoor unit, the height is H: 470mm.
During production, it is taken into account that the upper edge of the silencer does not
extend far above the sound-absorbing wall. If our SQV Feet is not used, please tell us
the height H and the distance E between two outdoor units when ordering.

Manual SQV Acoustic Housing Page 19
Version: 08/2018
7.2 Installation of Heat
Pump, Air Conditioning and
Refrigeration outdoor unit
The correct installation position of the
air conditioning, refrigeration or heat
pump unit is decisive for the fit and
function of the acoustic housing.
Important Notice! For different
manufacturers of the installed
refrigeration, air conditioning and heat
pump outdoor unit, the ESP setting
must be adjusted manually on the PCB
so that the fan runs with a high static
pressure. Please contact the
refrigeration, air conditioning and heat
pump outdoor unit manufacturer for
more detailed information.
8. Maintenance and Service
8.1 General
For maintenance and service work on
the refrigeration, air-conditioning or
heat pump unit, the necessary panels
can be easily removed from the
acoustic housing.
Cleaning and maintenance of the
acoustic housing
•Remove other dirt with a damp
cloth; if necessary, use grease-
or oil-dissolving detergents
(concentrated neutral detergent
with pH between 8 and 9).
•Treat galvanized parts with
preservation spray.
•Regularly lubricate moving parts
such as panel locks with a
lubrication spray.
•Regularly treat seals.
•Repair any damage to the
coating, including areas that
show signs of corrosion, with
repair paint.
•Clean the unit thoroughly to
remove all construction dust and
other dirt.
•Prior to shipping, each unit is
carefully inspected at our factory.
8.2 Silencers
The sound insulation material of the
silencers should be checked for dust
during major maintenance work and, if
necessary, cleaned with a vacuum
cleaner.
If necessary, the silencers must be
checked for free passage, as this is
necessary for perfect air circulation
and the function of the installed
refrigeration, air conditioning or heat
pump unit.
8.3 Grounding
Depending on the local regulations
and position, we recommend to
carry out a grounding or lightning
protection.
8.4 Test run
After working on the acoustic housing,
the person responsible must ensure
that no persons are in the acoustic
housing before it is put into operation
again.
8.5 Removal and disposal
Metal parts and plastic parts are to be
recycled, per applicable regulations.

Acoustic housing for whisper quiet heat pumps
Your acoustic C°mfort
Do you have anymore questions?
Then you can contact us at any time.We endeavor
to process your request quickly and will immediately
contact you.
www.sonasafe.eu www.solflex.eu
Solflex GmbH, Am Feuerstein 282,
2392 Wienerwald, Austria,
Erste Bank AG, IBAN AT702011129323600200,
BIC GIBAATWWXXX
UID ATU65324348, FN 337206t,
Gerichtsstand Wiener Neustadt,
Austria All business transactions based on our Terms
and Conditions, available at www.solflex.eu.
Subject to change without prior notice
This manual suits for next models
25
Table of contents
Other Solflex Heat Pump manuals
Popular Heat Pump manuals by other brands

Nibe
Nibe SPLIT ACVM 27 Installation and maintenance instructions

Viessmann
Viessmann Vitocal 350-G Installation and service instructions

Airwell
Airwell HRW 019 Installation and maintenance manual

HIdRos
HIdRos LSA/HP Series Technical manual

Bosch
Bosch CS5800iAW 180 MCP operating instructions

Rifox
Rifox 1100 operating manual

Garden PAC
Garden PAC InverTech GHD-150-0219 Installation and user manual

Nibe
Nibe F1345 Series operating manual

Carrier
Carrier 50YQ Installation, Start-Up and Service Instructions

Lennox
Lennox LRP14G installation instructions

aquatherm
aquatherm AT800 installation manual

Mitsubishi
Mitsubishi ESA30EH2-25 Technical manual
