Solus Leisure 910 User manual

SM-713.1

1.0 General Guide
Thank you for purchasing this watch. With this watch, you can get
electrocardiogram heart rate without using a chest strap.
Simply put the watch on your wrist, place your finger on the metal
contact located on the face of the watch, and read your heart rate in
the digital window within seconds!
IMPORTANT Notes
1) Do not use this watch for commercial or professional purposes.
2) Make sure that you read this manual thoroughly and fully
understand the functions and limitations of this watch before
using it.
3) This watch is a supplementary device for measuring heart rate; it is
not a substitute for medical devices. You should periodically
compare the heart rate reading acquired by this watch with the
reading from your doctor.
4) Do not use heart rate measurement under water.

2.0 Care and Maintenance
1) This watch contains electronic components. Never attempt to
open the case or remove the back cover.
2) Avoid exposing the watch to extreme temperature, chemicals
which will damage the watch.
3) Keep the watch away from the conditions of strong electric field
and static electricity.
4) Avoid rough usage or severe impact. The watch is designed to
withstand impact under normal use. It is advisable to subject it to
severe impact or rough usage.
5) Clean your watch occasionally with a soft moistened cloth only.
Avoid using chemicals, especially soap as the waterproof gasket will
corrode.
6) For PU straps, please wash them with mild soapy water only and
not to apply perfume or moisturizers around your wrist as the
chemicals can erode them.
7) There may be discoloration for light colors and transparent straps
after normal wear for some time. An original replacement on
straps is possible to be re-ordered through an authorized service
center.
8) Store the watch in a dry place when it is not in use.
9) In case if there is any severe or persistent skin reaction, such as
severe redness, itching, rash or hives, you should stop wearing this
watch, and consult your doctor.

3.0 Precautions for Water Resistance & Battery
Water Resistance
Water damage may occur if the push buttons are pressed under water.
Should water or condensation appear in the watch, please check the
watch immediately, as corrosion of electronic parts can occur inside
the case.
Battery Life
The battery in your SOLUS watch is estimated to last for 2 years,
depending on frequency and use of certain features.
Battery Replacement
If the display dims or the EL backlight is dim, you are recommended to
go to the authorized SOLUS service center for correct battery
replacement in order to retain a valid warranty and avoid any damage
on the water resistance function.
WARNING!
Always keep watch batteries away from children. If swallowed, contact
a doctor immediately. Batteries contain chemical substances. They
should be disposed of properly according to local regulations.

4.0 Specifications
Time Mode
- Hour, minute and second
- 12 / 24 hour format selectable
- Hourly chime on the hours
Daily Alarm Mode
- Daily Alarm: 1 daily alarm
- Alarm duration: about 60 seconds
Heart Rate Mode
- Measuring range: 40 to 240 beats
per minute
- Support finger touch & chest
strap (coded and uncoded) heart
rate measurement
Exercise Mode
- Max. & average heart rate display
- Chronograph
- Heart rate zone timer (below -
zone, in - zone & above - zone)
- Calorie & fat consumption
Chronograph Recall Mode
- Resolution: 1/100 second
- Counting range: 9 hours, 59
minutes, 59.99 seconds
- Lap memory: 25 lap memory
Timer Mode
- Resolution: 1 second
- Setting limit: 9 hours, 59
minutes, 59 seconds
- Alarm sound: 1 beep at the
10,9,8,7,6,5,4,3,2 and 1
second(s)
- Alarm sound: 3 beeps at 0
second for about 15 seconds
Others
- 5 ATM water resistance
* Water-related usage for 5
ATM:
Light spray perspiration, light
rain, bathing, etc.
- Electro-luminescent backlight
* The illumination provided by
the backlight may be hard to
see when viewed under direct
sunlight.

Timer Mode
- Resolution: 1 second
- Setting limit: 9 hours, 59
minutes, 59 seconds
- Alarm sound: 1 beep at the
10,9,8,7,6,5,4,3,2 and 1
second(s)
- Alarm sound: 3 beeps at 0
second for about 15 seconds
Others
- 5 ATM water resistance
* Water-related usage for 5
ATM:
Light spray perspiration, light
rain, bathing, etc.
- Electro-luminescent backlight
* The illumination provided by
the backlight may be hard to
see when viewed under direct
sunlight.
5.0 Design of the Watch
Mode Button [M]
Press to change
modes. Hold [M] to
enter/exit the
setting mode. In the
setting mode, press
to confirm items.
Bezel Touch [HR1]
Finger touch to enter
HR Mode.
Light Button
[EL]
Press to turn ON
the EL backlight.

Sensor 2 [HR2]
When you wear
the watch, the
sensor will be
activated.
Reset button [R]
Activate “ reset”
function under
Exercise and
Timer Mode.
Press to change
values in the setting
display.
Start/Stop button
[S/S]
Press to change values in
the setting display.
Activate “start/stop”
function under Exercise
and Timer Mode.

6.0 Setting the Current Time
[M]
Time Mode SEC
Hold
[M]
[M][M]
[M][M]
Hold
DAY12/24 HOUR
CHIME ON/OFF
UNIT OF WEIGHTWEIGHT
This icon will appear
while the chime is on.

MINUTE HOUR[M] [M]
[M] [M]
[M]
[M] [M]
[M][M]
YEARMONTH
BEEP ON/OFF GENDER
YEAR OF BIRTH
Hold [M] to switch to the setting display, the display will
start flashing. Press [S/S] or [R] to adjust, then press [M] to
confirm. Hold [M] anytime to exit the setting display.

7.0 Functional Modes & Displays
[M]
[M]
[M]
[M]
[HR1]
[S/S]
Time Mode
Daily Alarm Mode
Exercise
Mode
Chronograph
Recall Mode
Heart Rate Mode
Countdown
Timer Mode
release
[S/S]
release
[HR1]

8.0 Power Saving Mode
During Time Mode, hold [R] for 5 seconds to enter,
LCD will be OFF.
Press any buttons except [HR1] to resume normal.
[M] [M]
Press [S/S] or [R]
to turn the alarm
on/off.
Press [S/S] or [R]
to set “hour”.
Press [S/S] or [R]
to set “minute”.
hold
[S/S] hold
[M]
9.0 Setting the Daily Alarm
Hold down [S/S] during Time Mode to enter the setting display,
the “ON” or “OFF” digits will start flashing. Hold [M] anytime to
exit. When the alarm is on, this icon “ ” will appear.

10.0 Heart Rate Measuring - Precautions & Tips
In exercise or sports, your heart naturally speeds up in pumping
blood to the body in accordance with your increased energy level.
This watch can calculate that increase expressed as the number of
beats per minute (bpm) to determine a safe target heart rate for
each individual.
Precautions and tips
1. A heart rate sensor is located on the back of the watch. The back
sensor must firmly contact with the user’s skin during finger touch
heart rate measurement.
2. DO NOT take heart rate measurement when diving or under
water.
3. DO NOT use hand cream; it will insulate the signal between the
skin and the sensors.
4. Clean fingers with soap and water for better signal transmission.
5. DO NOT use the fingertips where the skin is dry and thick.
6. For those with extremely dry skin, moisten the skin with tap water
or apply a conductive gel may help.
7. Hold the watch firmly when taking finger touch heart rate
measurement in motion.
8. Adjust the Chest Strap with the supplied elastic band until it is
surely held on your chest firmly to avoid loosen it when doing
exercise.
9. During the measurement, avoid any awkward motion. Awkward
motion creates undesired muscle noise; hence an incorrect heart
rate reading may be resulted.

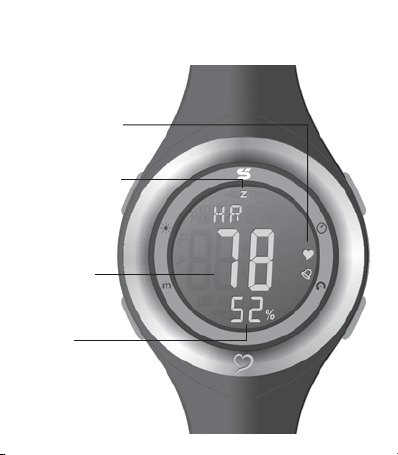

The Heart Rate Mode and Exercise Mode show the
current heart rate in terms of:
Heart Rate (e.g 78) : The number of heart beats per minute
(bpm).
Percentage of Estimated Maximum Heart Rate (e.g 40%):
The percentage of the acquired heart rate with respect to
one’s estimated maximum heart rate.
Percentage of Estimated Maximum Heart Rate
It is a useful figure for analysing the cardio- fitness of a
person.
It can be used to define a heart rate zone for cardio-fitness
training.
Consult your doctor for more information on the
implications of percentage of estimated maximum heart
rate.
10.1 Heart Rate Measuring - EMHR and %EMHR
Percentage of
estimated
maximum heart rate
(%EMHR)
Heart beats
per minute
(Bpm)
Heart Rate Mode

Estimated Maximum Heart Rate (EMHR):
EMHR = 220 - user age.
Example: What is Tom’s EMHR at his age of 27?
EMHR = 220 - 27 = 193.
NOTE: This watch can calculate the EMHR for users
at the age up to 99.
Percentage of Estimated Maximum Heart
Rate (%EMHR):
%EMHR = Acquired heart rate/EMHR X 100%
Example: What is Tom’s %EMHR if he has
acquired a heart rate of 78?
%EMHR = 78/193 X 100% = 40%
NOTE: The user MUST input his/her age and gender into
the watch ahead, otherwise this figure is not correct. Please
refer to chapter 6.0 for the details on age and gender setting.

10.2 Heart Rate Measuring - Heart Rate Zone
What is Heart Rate Zone?
Some particular training/exercise objectives like ‘aerobics’, ‘fat burnt’ or ‘health’ that
require trainees/exercisers maintaining their heart rates (exercise paces) within one
particular heart rate zone during the exercise.
WARNING: Consult a doctor or trainer prior to set the heart rate alert zone for
a serious cardio-fitness training.
How to Select a Zone (for Heart Rate Zone Alert)?
In general, users may get the cardio-fitness training advices from those prestigious
organizations= website, for example:
http://www.heart.org/HEARTORG/Conditions/CongenitalHeartDefects/
CareTreatmentforCongenitalHeartDefects/Congenital-Heart-
Defects-and-PhysicalActivity_UCM_307738_Article.jsp
by American Heart Association.
http://en.wikipedia.org/wiki/Heart_rate#Training_zones
by Wikipedia.
In Exercise Mode, there are three pre-defined heart rate zones (“AROB”,
“FAT” and “HLTH”) and one user-defined heart rate zone (“USER”) for user
selection. (Please refer to chapter 12.6 for details)
Heart Rate Zone
AROB
(Aerobic)
HLTH
(Health)
USER
FAT
(Fat
burnt)
%
EMHR
Upper
Limit
Lower
Limit
User
defined
Above Zone
Below Zone
In Zone
80% 75% 65%
65% 55% 50%

10.3 Heart Rate Measuring - Heart Rate Zone Alert
About the Heart Rate Alert Function
By presetting an objective heart rate zone, you can activate the heart
rate alert function. This function helps to prevent the user from going
over or under an objective heart rate.
In course of doing exercise or sports: When you take a heart rate
measurement that is out of the preset desirable zone, this watch will
beep. Hence, you could render the appropriate actions such as
slow-down or speed up the exercise.
For example, some training sessions may require you to maintain your
heart rate at a predefined zone (the desirable zone) to achieve training
objectives. This watch can remind you whether your heartbeat is out
of the objective zone all the time.
Upper & Lower Limits and Desirable Heart Rate Zone
The desirable heart rate zone is the realm that defined by the upper
and lower limits. Check the adjacent diagram to see the relationship
between zones and the limits. These limits can be obtained by the
following approaches:
1) Get the limits by consulting a doctor or trainer that the above
zone and below zone limits can be set by you.
2) Calculate the limits by using your age and gender in three
pre-defined exercise objectives)
And this watch provides these functions for you to set the limits.
Please check the coming “12.6 in Exercise Mode” section for more
details on setting the limits.

The below heart rate zone
The desirable heart rate zone
‘beep’
‘beep’
no beep sound
The above heart rate zone
Heart rate
(beats per minute)
Audio
indication
Visual
indication
The lower
limit
The upper
limit
Remark: Audio indication will be heard when the
corresponding heart rate alert icon is on.
(Please refer to chapter 12.6 for details)
The different heart rate zones and
the corresponding indications in Exercise Mode.

11.0 Heart Rate Mode - Display
%EMHR
Icon is on when
zone alert is
enabled.
Flashing follows
heart rate pulse.
78 beats
per minute

1. Make sure the
sensor on the
back of the
watch sits
firmly on your
skin.
11.1 Heart Rate Mode - Measuring Heart Rate
flashing
segments
3. Heart rate is sampling 4. Resulted heart rate display
Hold [EL] can turn on the heart rate Key Lock function. When Key
Lock function is enabled, “ ” will be shown and heart rate
measurement will be disabled. Hold [EL] again can disable the Key
Lock function.
2. Place your
index finger on
the metal bezel
(Optional).
getting the
result of
heart rate
beep
3. Place your thumb
(or index finger if
not touching the
metal bezel) on
the bezel touch
sensor [HR] and
keep holding for
about 5 seconds.

12.0 Exercise Mode
Exercise Mode Overview
As your heart rate acts in accordance with your energy level (the
amount of burnt calories), you can know how many calories were
burnt during exercise.
And this watch provides an Exercise Mode to calculate the calories
and fat burnt accumulation according to your heart rate measurement
(percentage of an estimated maximum heart rate, which is estimated
by your age).
Note: In order to achieve the more accurate result for the amount of
burnt calories and fat, please keep checking heart rate measurement
during the exercise frequently.
Time
0 10 20 30 40
hold
[S/S][S/S]
End
exercise
Start
exercise
Take heart rate
measurement
: Counting in exercise timer
Burnt calories and
fat are calculated
based on the heart
rate measured
(Percentage of
estimated maximum
heart rate) and
exercise time spent.
