Sonelco PCP1272 User manual

DESCRIPTION
FM stereo control / tuner, with 1 stereo channel and message receipt.
Infrared receiver, controlled by P4803 or P4804 remote control (optional).
Permits storing up to 30 stations with functions: message receipt, super-
bass, sleep, adjustment of bass, treble, balance and ideal sound.
GENERAL CHARACTERISTICS
CONTROL / FM STEREO TUNER - PCP1272
2 STEREO CHANNELS – MESSAGE RECEIPT – INFRARED CONTROL
DIRECT ACCESS FUNCTIONS ON CONTROL PCP1272
STATION STORING AND DELETING:
1 - AUTOSEARCH AND AUTOMATIC STATIONS STORING M1 TO
M30:
If you wish to store all the available mamories automatically, then
(IN OFF MODE):
Keep Scan key (9) pressed for several seconds
(with max. Sensibility preset)
The number of stored stations will depend on the reception
level of the installation
2 - SEARCH AND STORE OF STATIONS MANUALLY
If you wish to stere stations one by one, then (IN ON MODE):
Keep channel key (8) until the LED ON is switched off, then
press key (1) Vol+ to store in the following free memory.
3 MEMORY ERASING:
(IN ON AND TUNER MODE)
Long press of channel/tuner key (8) until led on (6) turns off,
secondly press key Vol+ (1) to store in the following
free memory.
Electronic ON / OFF switch.
ON /Sleep/ Sb luminous indicator, bicolour LED type.
Key depression luminous indication (Vol+, Vol- and SCAN)
52-step digital volume control with selected position memory.
Integrated audio processor.
Superbass.
SCAN function (change radio station of tuner or external device)
Selection of external music channel or internal tuner, with luminous
indication of selected audio source.
Voltage telecontrol.
External channel input (walkman).
Direct access to stations via control P4804.
Jumper for selection of mono output. For this type of installations
place the jumper M/S (10).
-
-
-
-
-
-
-
-
-
-
-
1 – Volume increase pushbutton. 2 – Volume decrea-
se pushbutton 3 – Infrared receiver 4 - 3.5mm. jack
connector 5 - ON / OFF / SLEEP pushbutton. 6 – ON /
SLEEP luminous indicator. 7 – Tuner/Music channel
luminous indicator. 8 – Tuner/Music channel change
pushbutton. 9 – SCAN pushbutton. 10 - Jumper for
selection of mono output.
Normal operation (control disconnected):
STATION SEARCH - "STORE" key, keep pressed for three seconds to
start the AUTOSEARCH.
ADJUST SENSITIVITY.- Establishes the minimum signal level that the
stations, which we want to automatically tune, must have – between 4
different levels.
Key 1 - Keep pressed for three seconds to select the RF sensitivity used
to search for stations in 15uV (maximum sensitivity)
Key 2 – Keep pressed fro three seconds to select the RF sensitivity used
to search for stations in 35uV (default value)
Key 3 - Keep pressed for three seconds to select the RF sensitivity used
to search for stations in 75uV
Key 4 – Keep pressed for three seconds to select the RF sensitivity used
to search for stations in 300uV (minimum sensitivity, only local stations)
Key 5 – Keep pressed for three seconds to changes the tuner status from
Mono to Stereo and vice-versa. The default value is Stereo.
One flash of the ON Led ON--> Mono
Two flashes of the ON Led --> Stereo
Key 6 – Keep pressed for three seconds to initialise the tuner at the start
of the FM band (87.50 Mhz).
Key 7 – Keep pressed for three seconds to activate / deactivate the mes-
sage function.
One flash of the ON Led --> Messages
Two flashes of the ON Led --> No messages
All the functions of control PCP1272, can be adjusted with a P4803 or
P4804 remote control (optional).
The VOL+ and VOL- keys on both the front piece and the remote
control adjust the volume of what is being listened to at that time
(RADIO, AUX or MESSAGE).
These volume adjustments are different and are stored separately,
which permits setting different volumes for the three audio options.
WORKING IN ON AND TUNER MODE:
1 - MEMORY SCAN:
With a short press on scan key (9), only the memories previously stored
will be selected. The led (6) will flash once.
2 - AUTOMATIC STATION SEARCH BY FREQUENCY SCAN:
With a long press of scan key (9), the tuner will continue on the dial until
a station is detected. The led ON (6) will turn off until the scan is finished.
These characteristics are merely for information purposes. The manufacturer reserves the right to introduce modifications without prior notification in order to improve the product PCP1272 26-07-10
ASSEMBLY RECOMMENDATIONS: All the modules of the “COMPACT” series can be placed on different types of flushmount boxes, for which we have several
types of front frames, which are supplied separately. For further details, see www.sonelco.com
INSTALLATION EXAMPLE
P3262
PC3110
P4715
P5556
PC9405
PCP1272
P4803
Remote control
OPTIONAL
CONNECTION
Before proceeding to make the connection make sure that the power
supply unit is off. Insert the control in the metal frame and make the
connection according to the following instructions:
TERMINALS:
0- SCAN – Only in AUX mode (output)
2- Input +16V power supply
3 - Output +16V after the switch
4- Ground
15 - Left channel audio input and power supply source telecontrol.
16 - Right channel audio input
7 - Message audio input
8 - Zone selection input. Connect with relative zone wire Zx
(in case of messages by zones)
9R - General call input.
L+ - Output for left speaker
R+ - Output for right speaker
- - Common ground for speakers
ANT - FM external antenna input
GND - Antenna ground
NOTE: The system must be wired up separately from the mains, accor-
ding to regulations
TECHNICAL CHARACTERISTICS
Power supply voltage: 16VDC
Maximum consumption: 420 mA - Standby consumption: 30 mA
Rated output power:1+1W RMS - Output impedance: 8 Ohm
Maximum output power: 1.5+1.5W RMS - Distortion < 1%
Maximum output current (Terminal 3): 1 A
Frequency response: 80Hz-21KHz (-3dB) - Signal/noise ratio: >87 dB
Input sensitivity (Terminals 15,16): 1.45 V - Crosstalk noise: 40 dB
Audio message input sensitivity (Terminal 7): 1.2 V
Antenna connector input: 75 Ohm
Reception frequency: 87.50 MHz – 108.00 MHz
Input sensitivity: 2 μV
Programmable search sensitivity: 4 different levels
Por gerardo fecha 9:32 , 26/07/2010

Other Sonelco Tuner manuals

Sonelco PCD1310 User manual

Sonelco

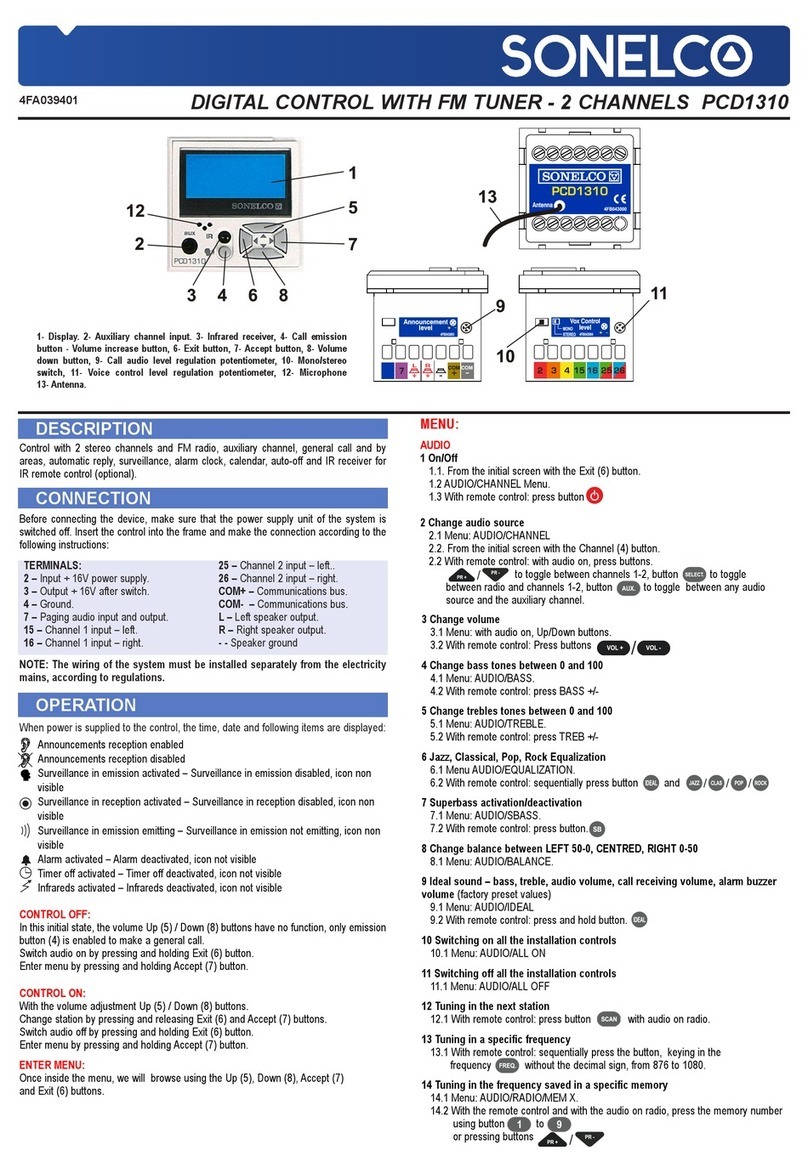

Sonelco PCD1310 User manual

Sonelco PCP1273 User manual

Sonelco

Sonelco PCP1273 User manual

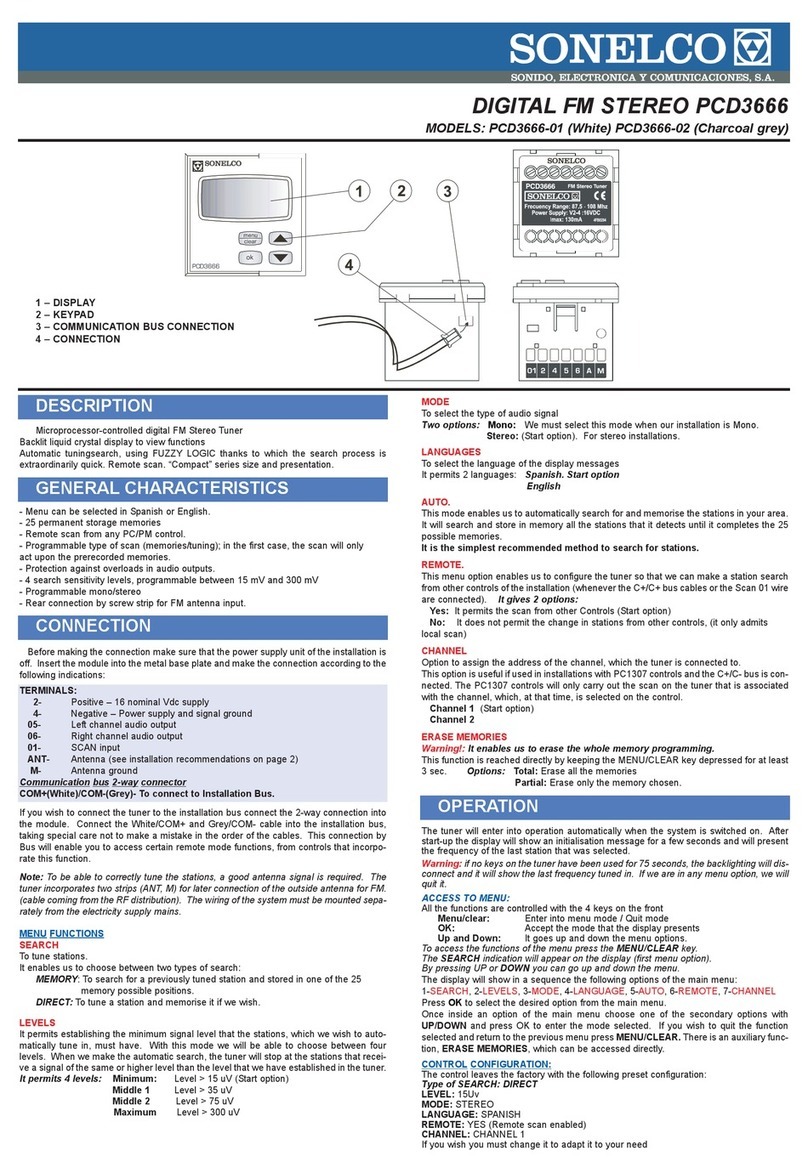

Sonelco PCD3666 User manual

Sonelco

Sonelco PCD3666 User manual

Popular Tuner manuals by other brands

Steren COM-255 quick guide

Steren

Steren COM-255 quick guide

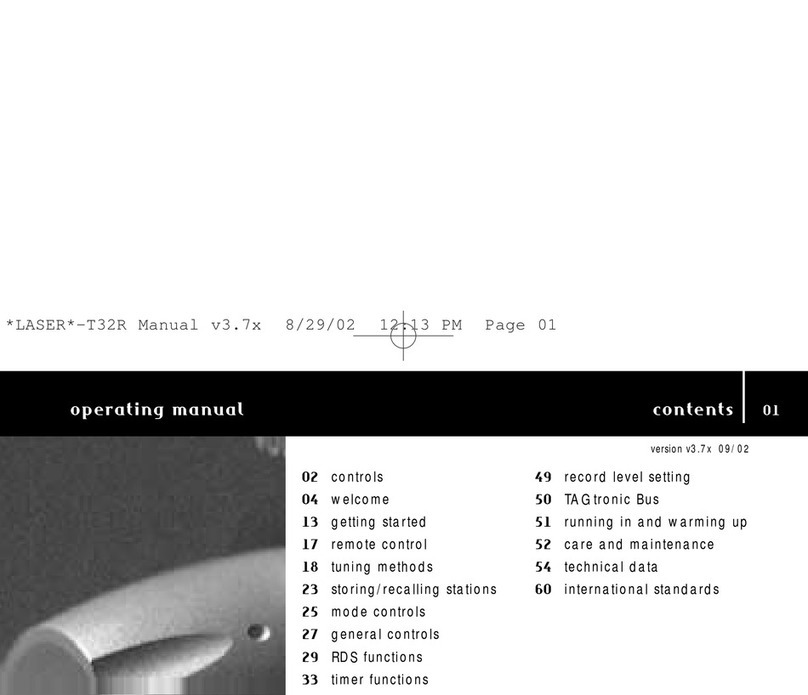

TAG MCLAREN AUDIO AVANTGARDE T32R SL operating manual

TAG MCLAREN AUDIO

TAG MCLAREN AUDIO AVANTGARDE T32R SL operating manual

Luxman T-310 Service manual

Luxman

Luxman T-310 Service manual

Malone 10009755 manual

Malone

Malone 10009755 manual

Pioneer GEX-P10HD - HD Radio Tuner owner's manual

Pioneer

Pioneer GEX-P10HD - HD Radio Tuner owner's manual

Kenwood KTC-WB100 instruction manual

Kenwood

Kenwood KTC-WB100 instruction manual

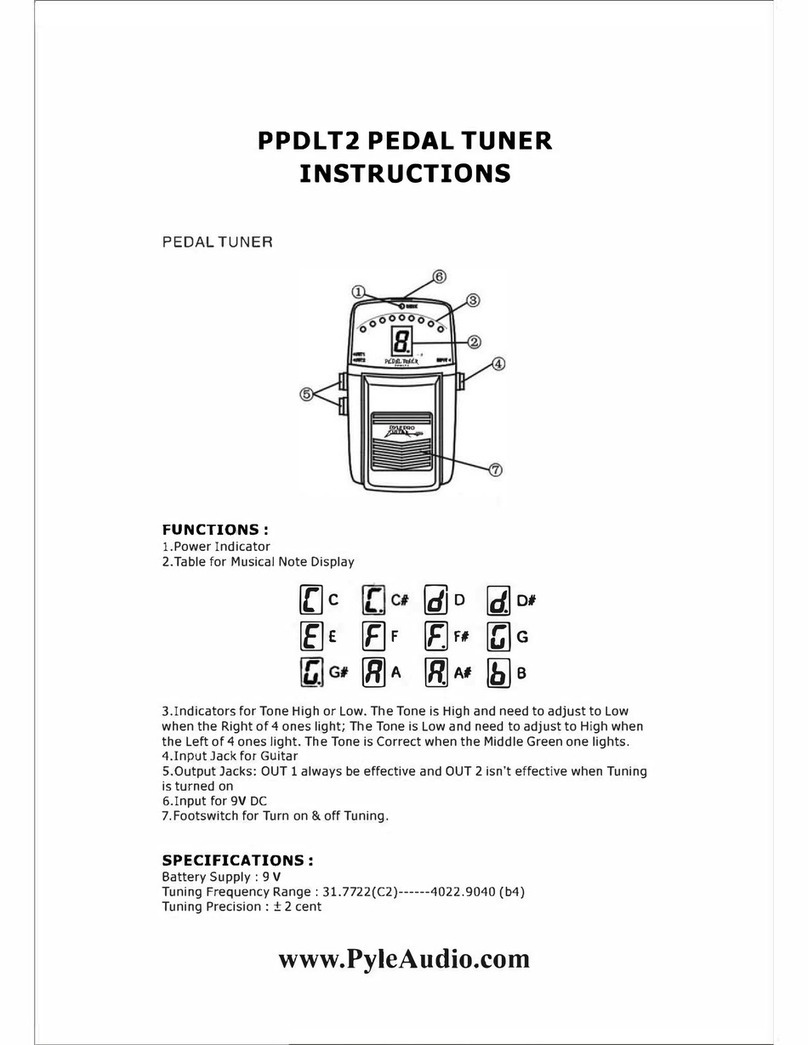

Pyle PPDLT2 instructions

Pyle

Pyle PPDLT2 instructions

Stagg TUM50 user manual

Stagg

Stagg TUM50 user manual

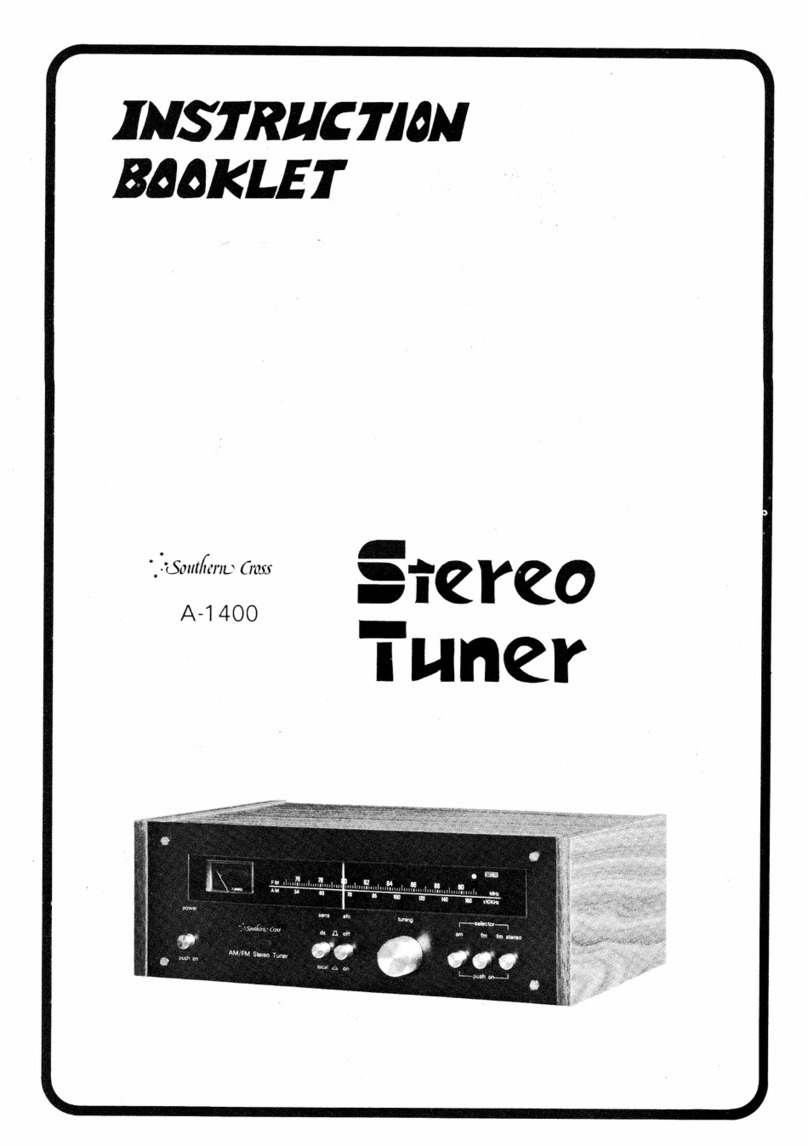

Southern Cross A-1400 Instruction booklet

Southern Cross

Southern Cross A-1400 Instruction booklet

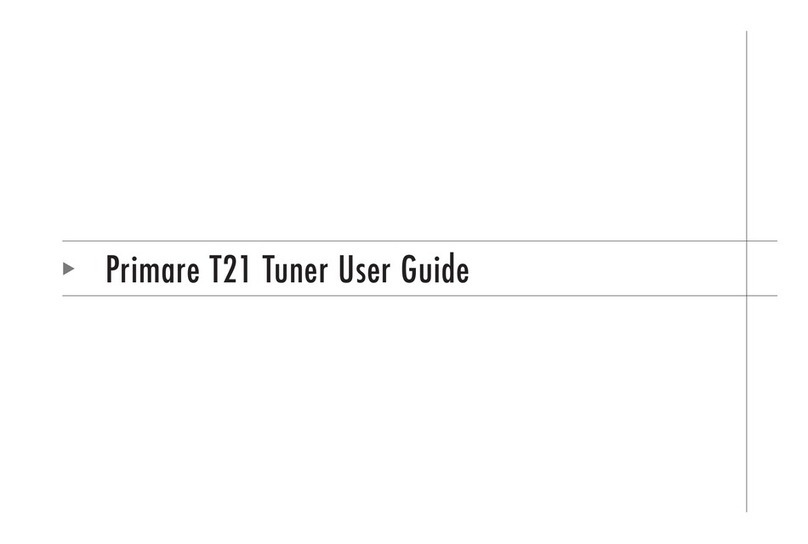

Primare T21 user guide
