Sonero X-AVT105 User manual

HDMI EDID EMULATOR
INSTRUCTION MANUAL
X-AVT105
EN
Version: 2018-06-06

TABLE OF CONTENT
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Delivery Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connection Plan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty and Liability . . . . . . . . . . . . . . . . . . . . . . . . . 11
CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disposel of the Device. . . . . . . . . . . . . . . . . . . . . . . . . 12
Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
- 2 -

INTRODUCTION
The EDID Emulator Adapter pre-set EDID display information for PC or GPU
source.
While the source couldn’t get the EDID display information from monitor
or HDTV, EDID Emulator could provide the commonly used resolutions and
refresh rates for operation.
The EDID Emulator Adapter may also help to eliminate troublesome EDID
issues like:
• Your PC couldn’t get the EDID from video extenders.
• Your PC couldn’t get the EDID from your display when you are using
video splitters.
• Your PC couldn’t get the EDID from your display when you are using
video switchers
• Your PC couldn’t get the EDID from your display when you are using
video matrix.
INTENDED USE
This product is intended for indoor use only. Do not use it outdoors. Contact
with moisture, e.g. in bathrooms, must be avoided under all circumstances.
For safety and approval purposes (CE), you must not rebuild and/or modify
this product. If you use the product for purposes other than those described
above, the product may be damaged. In addition, improper use can cause
hazards such as short circuiting, re, electric shock etc.
Read the instructions carefully and keep them. Make this product available
to third parties only together with its operating instructions.
- 3 -

SAFETY INSTRUCTION
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the
warranty/guarantee.
The device is not a toy. Keep it out of the reach of children and pets.
Do not leave packaging material lying around carelessly. These may
become dangerous playing material for children.
Suffocation Risk! Keep packaging materials away from children!
Protect the product from extreme temperatures, direct sunlight, strong jolts,
high humidity, moisture, ammable gases, vapors and solvents.
Do not place the product under any mechanical stress.
If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can no
longer be guaranteed if the product:
• is visibly damaged,
• is no longer working properly,
• has been stored for an extended period in poor ambient conditions or
• has been subjected to any serious transport-related stresses.
Please handle the product carefully. Jolts, impacts or a fall even from a low
height can damage the product.
Also observe the safety and operating instructions of any other devices
which are connected to the product.
Consult an expert when in doubt about the operation, safety or connection
of the device.
- 4 -

DELIVERY CONTENTS
1x HDMI EDID Emulator
FEATURES
Supports EDID Learning and EDID Emulation
Supports resolutions up to 4096x2160p 60Hz according to HDMI 2.0
Support for 3D, Deep Colour, CEC and HDCP signals (inc. HDCP 2.2)
Powered via HDMI source interface
Hide the sink EDID and provide the general EDID to source
Backup EDID without IC-programming (Back up Mode)
Supports VESA and CEA specications
LED Power Indicator
Resolution up to 4K2K@60Hz
SPECIFICATIONS
Product Size in mm: 43.8x20.5x12.2mm
Product Weight in g: 14g
Connectors: Gold plated
Housing Material: PVC
Environmental Conditions
Operating Humidity: 5~95%
Operating Temperature: 0~85°C
Ambient Temperature: 0~40°C
Storage Temperature: -40~85°C
(Default EDID) resolution: VESA Block
- 5 -

Established Timings I
720 x 400 @ 70Hz (IBM, VGA)
640 x 480 @ 60Hz (IBM, VGA)
640 x 480 @ 67Hz (Apple, Mac II)
640 x 480 @ 72Hz (VESA)
640 x 480 @ 75Hz (VESA)
800 x 600 @ 56Hz (VESA)
800 x 600 @ 60Hz (VESA)
Established Timings II
800 x 600 @ 72Hz (VESA)
800 x 600 @ 75Hz (VESA)
832 x 624 @ 75Hz (Apple, Mac II)
1024 x 768 @ 60Hz (VESA)
1024 x 768 @ 70Hz(VESA)
1024 x 768 @ 75Hz (VESA)
1280 x 1024 @ 75Hz (VESA)
Manufacturer’s Timings
1152 x 870 @ 75Hz (Apple, Mac II)
Standard Timings
1152x864 @ 75 Hz (4:3 Aspect Ratio)
1280x1024 @ 60 Hz (5:4 Aspect Ratio)
1280x960 @ 60 Hz (4:3 Aspect Ratio)
1440x900 @ 60 Hz (16:10 Aspect Ratio)
1600x1200 @ 60 Hz (4:3 Aspect Ratio)
1680x1050 @ 60 Hz (16:10 Aspect Ratio)
1920x1080 @ 60 Hz (16:9 Aspect Ratio)
1920x1200 @ 60 Hz (16:10 Aspect Ratio)
- 6 -

Detailed Timing
1920x1080 @ 60Hz
3840x2160 @ 30Hz
CEA Block
3840x2160p @ 60Hz
3840x2160 @ 24Hz 16:9 Apsect Ratio
1920x1080p @ 59.94/60Hz - HDTV (16:9, 1:1)
1920x1080i @ 59.94/60Hz - HDTV (16:9, 1:1)
1280x720p @ 59.94/60Hz - HDTV (16:9, 1:1)
720x480p @ 59.94/60Hz - EDTV (16:9, 32:27)
720x480p @ 59.94/60Hz - EDTV (4:3, 8:9)
640x480p @ 59.94/60Hz - EDTV (4:3, 1:1)
720x576p @ 50Hz - EDTV (4:3, 16:15)
720x576p @ 50Hz - EDTV (16:9, 64:45)
1280x720p @ 50Hz - HDTV (16:9, 1:1)
1920x1080i @ 50Hz - HDTV (16:9, 1:1)
1920x1080p @ 50Hz - HDTV (16:9, 1:1)
1440x480p @ 59.94/60Hz (4:3, 4:9 or 8:9³ )
1440x480p @ 59.94/60Hz (16:9, 16:27 or 32:27³ )
1440x576p @ 50Hz (4:3, 8:45 or 16:15³ )
1440x576p @ 50Hz (16:9, 32:45 or 64:45³ ))
720(1440)x480i @ 59.94/60Hz - SDTV (4:3, 8:9)
720(1440)x480i @ 59.94/60Hz - SDTV (16:9, 32:27)
720(1440)x576i @ 50Hz - SDTV (4:3, 16:15)
720(1440)x576i @ 50Hz - SDTV (16:9, 64:45)
2560x1440 @ 60Hz 16:9 Apsect Ratio
1920x1200 @ 60Hz 16:9 Apsect Ratio
1920x1080 @ 60Hz 16:9 Apsect Ratio
- 7 -

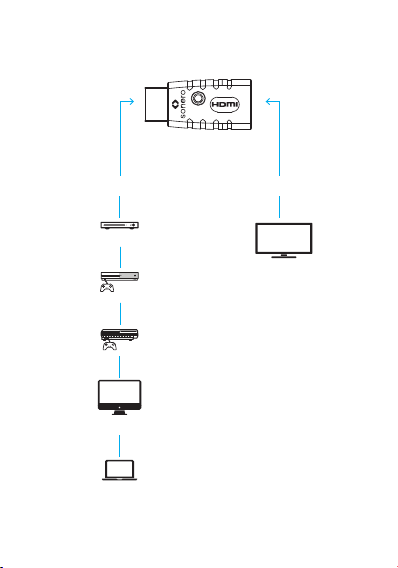

CONNECTION PLAN
HDMI OUT
DVD
X-BOX
HDMI MONITOR
PS4
PC / MAC
LAPTOP / MACBOOK
HDMI IN
- 8 -

INTERFACE
MADE IN CHINA
MODEL NO.:
X-AVT105
CHARGE NO.:
XXXX
LED Power IndicatorHDMI Male HDMI Female
- 9 -

OPERATION
Emulating the Monitor
1. Connect the source with male port of the EDID Emulator and the Female
port of the EDID Emulator with the Monitor/TV.
2. Disconnect the EDID Emulator from the Monitor once and the EDID
Emulator saved the resolution and the power indicator starts to ash.
Reset the EDID Emulator
3. To reset the EDID Emulator settings, keep the source connected with
the male port of the EDID Emulator and disconnect the Female port of
the EDID Emulator with the Monitor/TV.
4. Keep the female port of the EDID Emulator empty for 10 Seconds, and
then the Emulator reset is done.
MAINTENANCE
There are no components located inside the product that require
maintenance. Never open or attempt to dismantle the product.
Maintenance, modications and repairs are to be performed exclusively by
an expert or at a qualied shop.
If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other technical
personnel.
- 10 -

CLEANING
Before cleaning the product, it must be disconnected from all other
connected products.
Only use dry and soft cloth to clean the product housing of the.
Do not use abrasives or solvents.
Do not use any aggressive cleaning agents, rubbing alcohol or other
chemical solutions as they can cause damage to the housing or cause
malfunctions.
To clean the product, use a soft, dry cloth. Do not apply too much pressure
to the housing as this may cause scratch marks.
You can easily remove dust using a soft bristled brush.
WARRANTY AND LIABILITY
The manufacturer guarantees full statutory warranty terms on all new
devices.
As the manufacturer has no inuence on installation, warranty only applies
to the product itself.
If any fault or damage is detected on your product, please contact your
dealer and provide your sales slip or invoice as evidence of the purchase, if
necessary. Your dealer will repair the fault either on site, or send the device
to the manufacturer. You make the work of our technicians considerably
easier, describing possible faults in detail – only then can you be assured
that intermittent faults, will be found and repaired with certainty!
- 11 -

The manufacturer is not liable for damages to persons or property caused
by improper installation, operation or maintenance, not described in this
manual.
Do not alter or modify the product or its accessories.
Any use other than described in this user`s manual is not permitted and
causes loss of warranty, loss of guarantee, and non-liability.
CE CONFORMITY
PureLink GmbH hereby declares that this product X-AVT105
complies with Directive 2014/30/EU.
The full text of the EU Declaration of Conformity is available at
the following Internet address:
www.purelink.de/ce/4251364709788_CE.pdf
DISPOSEL OF THE DEVICE
WEEE-Reg. No.: DE 93 847 290
According to the European WEEE directive, any electrical and
electronic equipment must not be disposed of along with
consumer waste. As a consumer, you are committed by law to
deposit electrical and electronic devices at public collecting points
or to the dealer for free at the end of the device’s lifetime. Details are
regulated in the respective national legislations. The Wheelie Bin symbol on
the product, in the manual or on the packaging refers to these terms. With
the return of your used devices you actively take part in protecting the
environment.
- 12 -

- 13 -
DISCLAIMER
This product complies with the statutory national and European
requirements. All company names and product names are trademarks of
their respective owners.
All rights reserved.
We reserve our right for misprints and changes to the device, packaging
or user manual.
HDMI®is a registered trademark of HDMI Licensing Administrator, Inc.
Sonero®
PureLink GmbH
Von-Liebig-Straße 10
D-48432 Rheine
[email protected]
www.purelink.de
