Sonnen sonnenProtect 2500 Operation and maintenance manual

Operating instructions | for operators
sonnenProtect 2500
for sonnenBatterie hybrid 9.53
KD-541 • Part no. 1000078 • Version X00 [email protected] • sonnen.de

Publisher
sonnen GmbH
Am Riedbach 1
D-87499 Wildpoldsried
Service number [phone]
Email [email protected]
Document
Document number 541
Part number 1000078
Version X00
Valid for UK
Publication date 25/09/2018
IMPORTANT
 Read this documentation carefully before installation / operation.
 Retain this document for reference purposes.
EN
Operating instructions sonnenProtect 2500

Table of contents
KD-541 | 1000078 | EN | X00 iii
Table of contents
1 Information about this document........................................................................................................4
1.1 Target group of this document ...................................................................................................4
1.2 Designations in this document ....................................................................................................4
1.3 Explanation of symbols...................................................................................................................4
2 Safety.............................................................................................................................................................. 5
2.1 Intended use....................................................................................................................................... 5
2.2 Requirements for the electrician................................................................................................ 5
2.3 Operating the product ................................................................................................................... 5
2.4 Product modifications or changes to the product environment.................................... 6
2.5 Voltage inside the sonnenProtect.............................................................................................. 6
3 Product description....................................................................................................................................7
3.1 Technical data.................................................................................................................................... 7
3.2 System components of the sonnenProtect............................................................................8
3.3 Type plate ............................................................................................................................................ 8
3.4 Symbols on the outside of the sonnenProtect......................................................................8
4 Operation.................................................................................................................................................... 10
4.1 Function............................................................................................................................................. 10
4.1.1 Grid operation - no grid outage...................................................................................10
4.1.2 Emergency operation - grid outage............................................................................ 11
4.1.3 Emergency operation - overload behaviour............................................................12
4.2 Setting the backup buffer ............................................................................................................13
5 Switching off the sonnenProtect........................................................................................................15
6 Maintenance and Cleaning ....................................................................................................................16
6.1 Checking function...........................................................................................................................16
6.2 Cleaning ..............................................................................................................................................16
7 Uninstallation and disposal ....................................................................................................................17
7.1 Uninstallation.....................................................................................................................................17

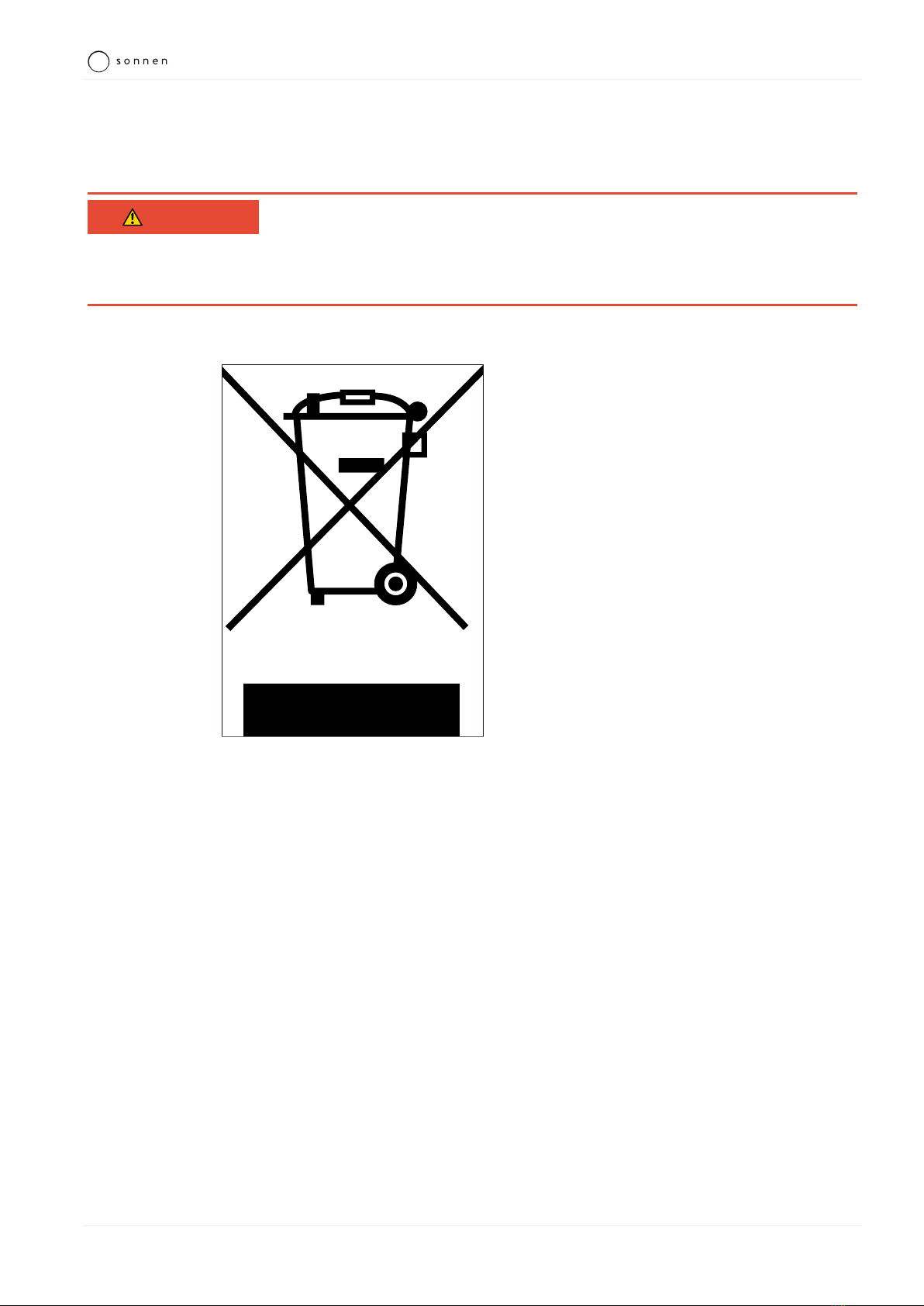

7.2 Disposal ...............................................................................................................................................17
8 Troubleshooting.........................................................................................................................................18

1 | Information about this document
4 / 20 Operating instructions sonnenProtect 2500
1 Information about this document
This document describes the operation of the sonnenProtect 2500 in connection with a
sonnenBatterie hybrid 9.53 storage system.
Read this document in its entirety.
Keep this document in the vicinity of the sonnenBatterie.
1.1 Target group of this document
This document is intended for the operator of the storage system and the sonnenProtect.
1.2 Designations in this document
The following designations are used in this document:
Complete designation Designation in this document
sonnenProtect 2500 sonnenProtect
sonnenBatterie hybrid 9.53 Storage system
1.3 Explanation of symbols
DANGER Extremely dangerous situation leading to certain death or serious injury if the
safety information is not observed.
WARNING Dangerous situation leading to potential death or serious injury if the safety
information is not observed.
CAUTION Dangerous situation leading to potential injury if the safety information is not
observed.
NOTICE Indicates actions that may cause material damage.
Important information not associated with any risks to people or property.
Symbol Meaning
►
Work step
1. 2. 3. … Work steps in a defined order
üCondition
• List
Table1: Additional symbols

Safety | 2
KD-541 | 1000078 | EN | X00 5 / 20
2 Safety
2.1 Intended use
The sonnenProtect 2500 is an emergency power unit designed to supplement the
sonnenBatterie hybrid 9.53. The sonnenProtect- in conjunction with the appropriate stor-
age system of the sonnen GmbH - serves to supply power in the event of a power failure.
Any other use is considered improper use.
Improper use poses a risk of death or injury to the user or third parties as well as damage to
the product and other items of value. The following points must therefore be observed in
order to comply with the intended use of the product:
• Only operate the sonnenProtect together with the right storage system.
• The sonnenProtect must be installed by an authorised electrician.
• The sonnenProtect must only be connected to the storage system as described here.
• Generators (e.g. a PV system) must never be connected after the output of the
sonnenProtect.
• Intended use includes observing this document as well as all accompanying product doc-
umentation of the appropriate storage system.
• The sonnenProtect must only be used at suitable installation location.
• The transport and storage conditions must be observed.
Especially the following uses are not permissible:
• Operation in flammable environments or areas at risk of explosion.
• Operation in locations at risk of flooding.
• Operation outdoors.
Failure to comply with the conditions of the warranty and the information spe-
cified in this document invalidates any warranty claims.
2.2 Requirements for the electrician
Improper installation can result in personal injury and/or damage to components. For this
reason, the sonnenProtect must only be installed and commissioned by authorised electri-
cians. Authorised electricians must meet the following criteria:
• The electrician must be a person with a technical knowledge or sufficient experience to
enable him/her to avoid dangers which electricity may create.
• The company for which the electrician works must be certified by sonnen GmbH.
• The electrician must have successfully complete sonnen GmbH certification training for
the product.
2.3 Operating the product
Incorrect operation can lead to injury to yourself or others and cause damage to property.
• The sonnenProtect must only be operated as described in the product documentation.
• This device can be used by children from the age of eight (8) years old and individuals
with impaired physical, sensory or mental capabilities or individuals with limited know-
ledge and/or experience of working with the device, as long as they are supervised or

2 | Safety
6 / 20 Operating instructions sonnenProtect 2500
have been trained to safely use the device and understand the resulting risks of doing so.
Children must not play with the device. Cleaning and user maintenance must not be car-
ried out by children without supervision.
2.4 Product modifications or changes to the product environment
• The sonnenProtect must only be used in its original state without any user modifications
and only when in perfect working order.
• Safety devices must never be overridden, blocked or tampered with.
• The interfaces of the sonnenProtect and the storage system must be wired in accord-
ance with the product documentation.
• All repairs on the sonnenProtect must be performed by authorised service technicians
only.
2.5 Voltage inside the sonnenProtect
5 min
The sonnenProtect contains live electrical parts, which poses a risk of electrical shock. The
storage system inverter also contains capacitors which carry voltage even after the stor-
age system is switched off. As the sonnenProtect is connected to the inverter of the stor-
age system, this means that the voltage from the inverter also flows into the
sonnenProtect. Therefore:
Do not open the sonnenProtect.
Do not remove any plastic covers.

Product description | 3
KD-541 | 1000078 | EN | X00 7 / 20
3 Product description
3.1 Technical data
sonnenProtect 2500
System data
Nominal power 2,500 W
Maximum power (30 sec.) 3,000 W
Output voltage 230 VAC +/- 10 %
Nominal frequency 50 Hz
Network configuration in emergency operation TN
Mains connection single-phase, L / N / PE
Mains connections fuse Miniature circuit breaker | Type B | 20 A
Operating concept Single-phase power supply via emergency cir-
cuit(s). The switch to emergency operation takes
place automatically through the storage system.
Switchover time max. 15 seconds
Threshold power none (starting from 0 W)
Dimension/Weight
Dimesion (H/W/D) in mm 230/200/122
Weight in kg 4.3
Safety / Protective devices
Protection class I / PE conductor
Degree of Protection IP30
Overvoltage category III
Protective functions Overcurrent protection, fault current protection
Residal current device integrated (Type A | 30 mA)
Ambient conditions
Environment indoor (conditional)
Ambient temperature range -5 °C ... 45 °C
Max. rel. humidity 90 %, non-condensing
Permissible installation altitude 2,000 m above sea level
Additional ambient conditions The ambient conditions prescribed for the stor-
age system apply.
Table2: Technical data

3 | Product description
8 / 20 Operating instructions sonnenProtect 2500
3.2 System components of the sonnenProtect
Test
1
4
3
2
5
6

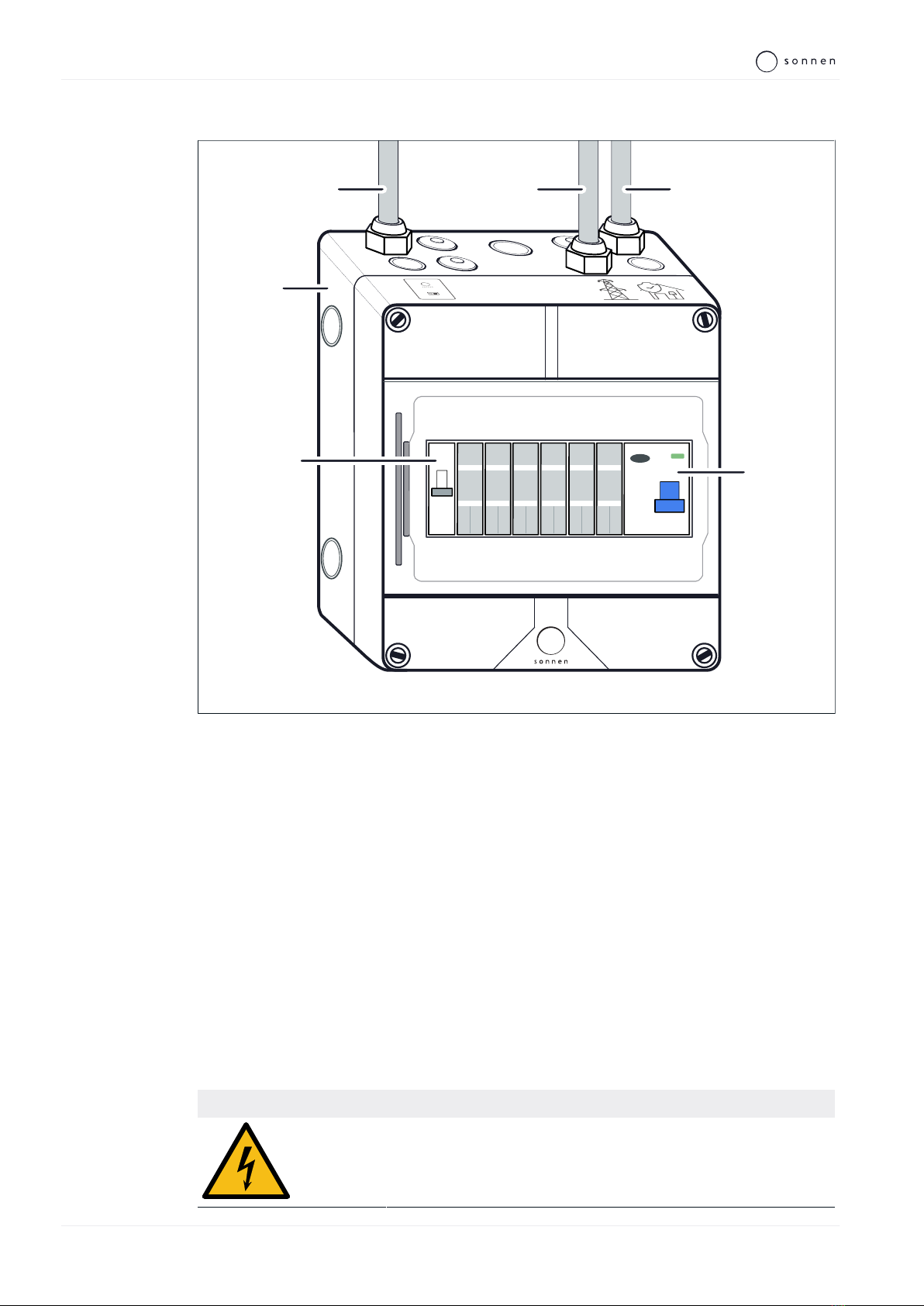

Illustration1: System components of the sonnenProtect
1 sonnenProtect 4 Line to emergency circuit
2 Line from storage system 5 Residual current device (F4.P)
3 Line from electrical distributor 6 Miniature circuit breaker (F3.P)
3.3 Type plate
The type plate is located on the outer surface of the sonnenProtect. The type plate can be
used to uniquely identify the sonnenProtect. The information on the type plate is required
for the safe use of the system and for service matters.
The following information is specified on the type plate:
• Item designation
• Item number
• Technical data

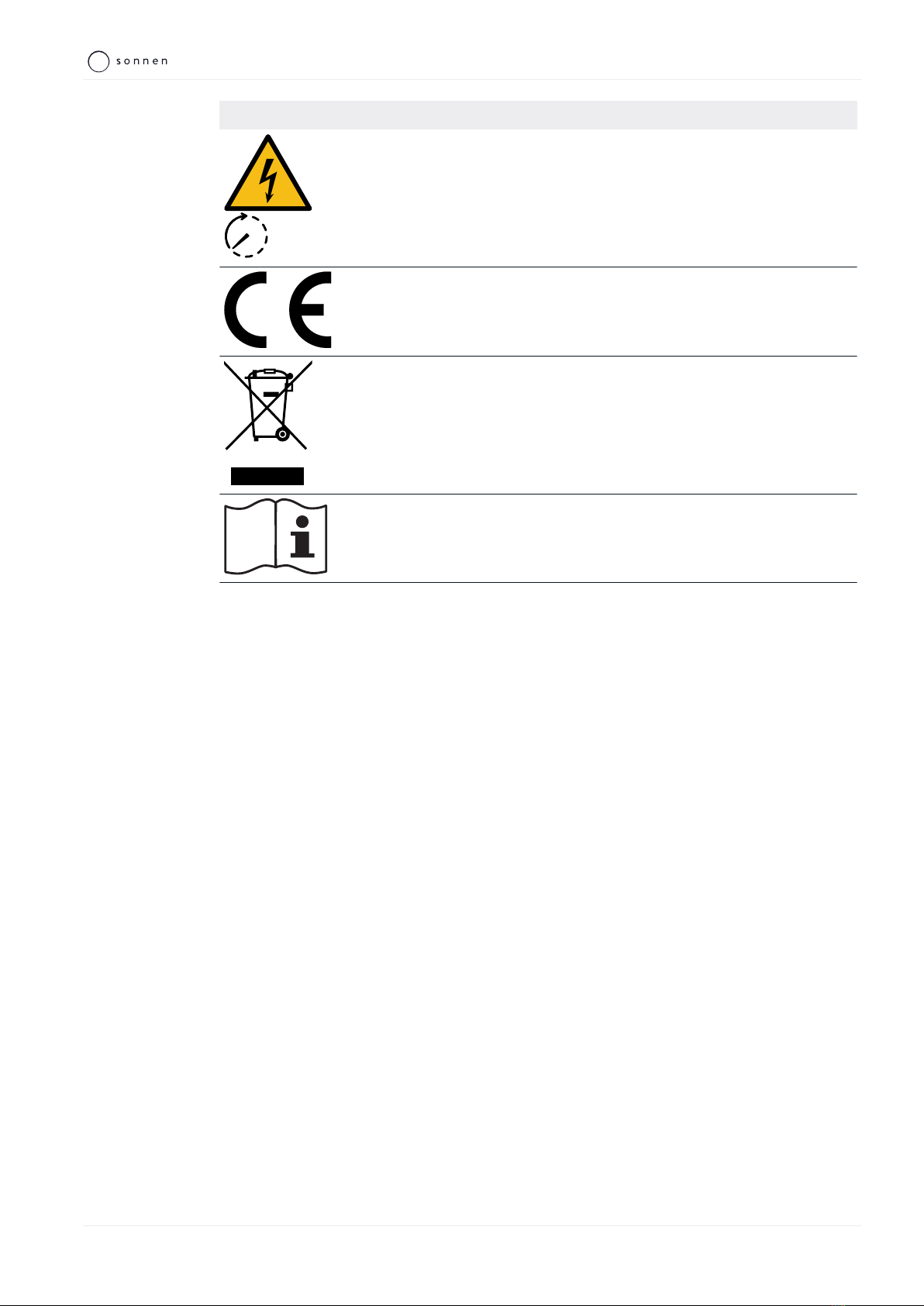

3.4 Symbols on the outside of the sonnenProtect
Symbol Meaning
Warning: electrical voltage.

Product description | 3
KD-541 | 1000078 | EN | X00 9 / 20
Symbol Meaning
5 min
Warning: electrical voltage. Wait five minutes after switching off (ca-
pacitor de-energising time).
CE mark. The product meets the requirements of the applicable EU
Directives.
WEEE mark. The product must not be disposed of in household
waste, dispose of it through environmentally friendly collection
centres.
Observe the documentation. The documentation contains safety in-
formation.

4 | Operation
10 / 20 Operating instructions sonnenProtect 2500
4 Operation
4.1 Function
A storage system with sonnenProtect automatically switches from grid to backup opera-
tion (and vice versa). The two operating modes are described in the following.
4.1.1 Grid operation - no grid outage
520
40
60
80
100
ON AL
Test
Reset
RAL
kΩ
1
2 3
6
5
98
+
F1
SPV
2
6
3
I
0
off off off
4
7
5
L1 L2 L3
1 2 3
23
4
L'
Illustration2: Grid operation - no grid outage
1 Consumer connected to phase L1 6 Storage system
2 Consumer connected to phase L2 7 Battery of the storage system
3 Consumer connected to phase L3 8 PV system
4 Consumer connected to emergency circuit 9 Public electrical mains
5 sonnenProtect
In grid operation the consumers connected to phase L1 to L3 and the consumers connec-
ted to the emergency circuit (1 - 4) are connected to the public electrical mains. All con-
sumers in the house are supplied with electrical power. The storage system controls - as
described in the product documentation of the storage system - the energy flows in the
building.

Operation | 4
KD-541 | 1000078 | EN | X00 11 / 20
4.1.2 Emergency operation - grid outage
520
40
60
80
100
ON AL
Test
Reset
RAL
kΩ
1
2 3
6
5
98
+
F1
SPV
2
6
3
I
0
off off off
4
7
5
L1 L2 L3
1 2 3
23
L'
4
Illustration3: Emergency operation - grid outage
1 Consumer connected to phase L1 6 Storage system
2 Consumer connected to phase L2 7 Battery of the storage system
3 Consumer connected to phase L3 8 PV system
4 Consumer connected to emergency circuit 9 Public electrical mains
5 sonnenProtect
The sonnenProtect (5) automatically detects a grid outage. As soon as the voltage of the
electrical mains drops to approx. 180V, the connection to the public electrical mains (9) is
disconnected.
Emergency power is generated after max. 15 seconds. The consumers connected to emer-
gency circuit in the house (4) are thereby supplied with electrical power. Consumers con-
nected to the phase L1, L2 or or L3 (1 - 3) will not be supplied with electrical power.
The switchover from grid to emergency operation is signaled by the Eclipse (light ring) on
the storage system. The color of the Eclipse changes from white (normal operation) to
green (offgrid operation).
Electrical power generated by the PV system (8) continues to be used by the storage sys-
tem to supply the consumers in the emergency circuit and to charge the battery.
The storage system with sonnenProtect switches from emergency to grid operation as
soon as the public electrical mains (9) start to deliver electrical power again.
Automatic stop and resumption of the emergency operation
The storage system with sonnenProtect generates electrical power until a minimum state
of charge of the battery is reached. Thereafter, no further discharge is allowed.

4 | Operation
12 / 20 Operating instructions sonnenProtect 2500
If the discharge has stopped due to the minimum state of charge, the storage system re-
mains in this state until the PV system starts to produce electrical power again. From then
on, the batteries of the storage system are charged and as soon as the state of charge ex-
ceeds the minimum limit, the surplus power is used to supply the electrical consumers in
the emergency circuit.
4.1.3 Emergency operation - overload behaviour
Case 1: Overload detection by fuse
The integrated fuse (miniature circuit breaker F3.P) of the sonnenProtect protects the en-
tire system against overload.
When the fuse trips, the storage system will still be in emergency operation (Eclipse will
turn green), but the electrical consumers in the emergency circuit will no longer be sup-
plied with power!
In this case, switch off the electrical loads or reduce their power consumption and then
switch on the miniature circuit breaker F3.P in the sonnenProtect.
Case 2: Overload detection by storage system
In special overload cases, the control of the storage system reacts earlier than the integ-
rated fuse of the sonnenProtect. In this case, the miniature circuit breaker inside the
sonnenProtect does not trip, the emergency power is instead stopped by the control of
the storage system. The eclipse of the storage system signals this by turning orange.
When this happens, there are two options:
1. The overload is removed: The storage system restarts the emergency operation after a
few minutes and the eclipse changes from orange to green.
2. The overload remains: The storage system tries to resume emergency operation twice.
If it is switched off a third time, the emergency operation remains disabled until the
grid outage is over. The eclipse will continue to glow orange.

Operation | 4
KD-541 | 1000078 | EN | X00 13 / 20
4.2 Setting the backup buffer
Proceed as follows to set what percentage of the capacity of the storage system should be
available for the sonnenProtect in the event of a grid outage.
Conditions:
ü The storage system is connected to the router of the home network.
ü Your laptop or PC also accesses the home network.
ü The sonnenProtect was set up by the installer using the commissioning assistant 2.0.
Proceed as follows to access the storage system web interface:
Enter the following address into your browser’s address line:
https://find-my.sonnen-batterie.com
The following window appears:
12345
123.456.78.99
Click the ‘Configure Assistant 2.0’ button.
The login page appears.
Log in as user with the following password: sonnenUser3552
The Dashboard appears.

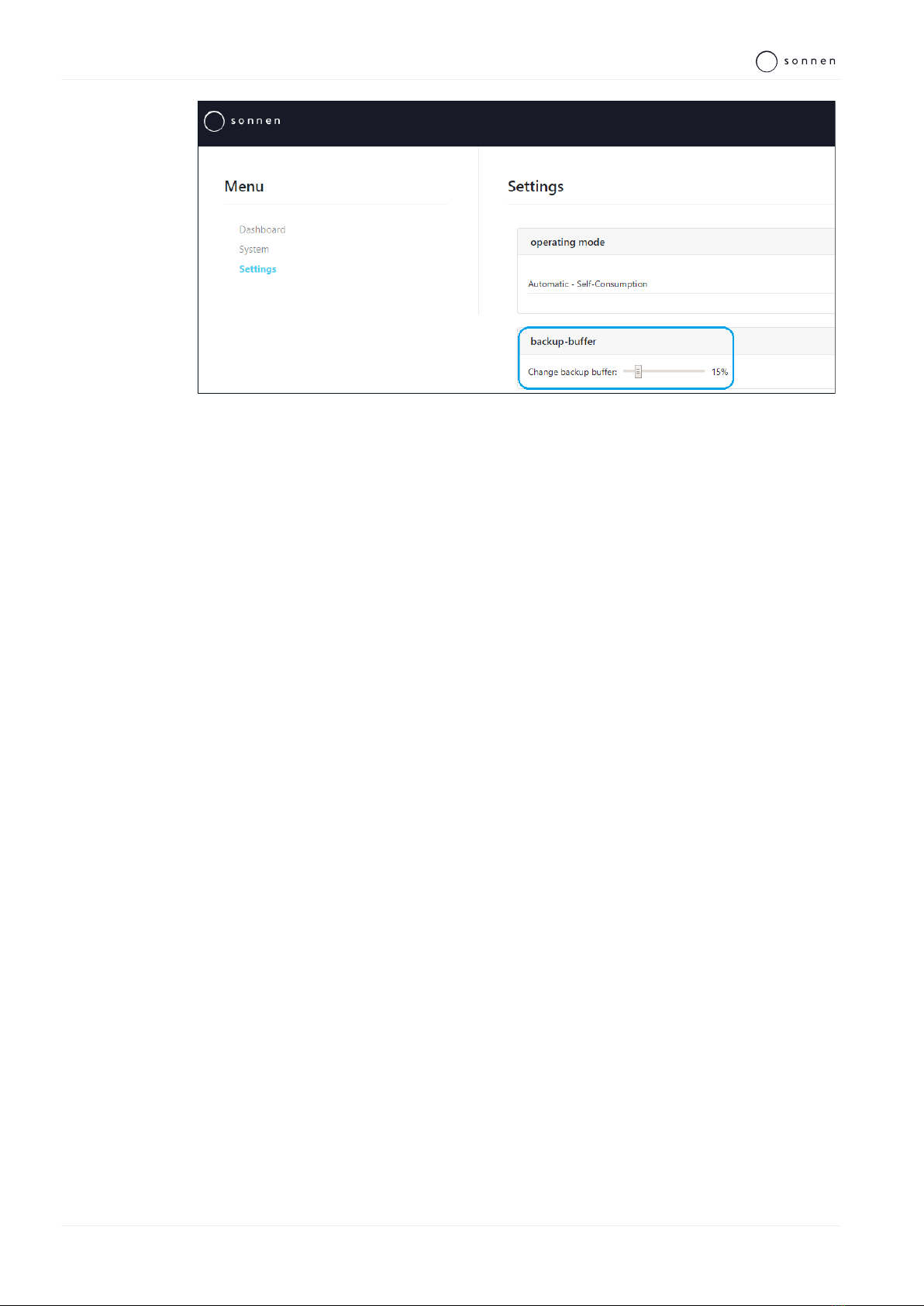

On the web interface of the storage system, navigate to the Settings page.
Change the percentage for backup-buffer to a desired value.

4 | Operation
14 / 20 Operating instructions sonnenProtect 2500

Switching off the sonnenProtect | 5
KD-541 | 1000078 | EN | X00 15 / 20
5 Switching off the sonnenProtect
To switch off the sonnenProtect manually, the following procedure can be carried out.
Disconnect the power supply to the storage system as described in the relevant
product documentation.
After switching off, the consumers connected to the emergency circuit(s) can no longer
be supplied with electrical energy from the battery of the storage system.
NOTICE Deep-discharge of the battery modules
Destruction of the battery modules!
Do not disconnect the storage system from the public grid for long periods
of time.
Never continue to operate battery modules which have been deep-dis-
charged.

6 | Maintenance and Cleaning
16 / 20 Operating instructions sonnenProtect 2500
6 Maintenance and Cleaning
6.1 Checking function
A residual current device (RCD) is installed in the sonnenProtect. The function of the RCD
can be tested by pressing the test key (T). After pressing, the RCD must switch off (the
emergency circuit is interrupted).
Maintenance interval Action to be taken
Every 6 months Check the function of the RCD with help of the Test key.
Table3: Checking function
6.2 Cleaning
NOTICE Use of unsuitable cleaning agent and/or excessive water
Material damage because of scratched surfaces and/or damage caused by
penetration of water!
Do not use scouring cloths, sponges or cleaning agent.
Use only moist cloths, not wet cloths, to clean the system.
Do not use water jets.
Carefully clean the outside of the sonnenProtect with a clean, moist cloth. For tougher
dirt, use a small amount of household dishwashing detergent on a moist cloth.

Uninstallation and disposal | 7
KD-541 | 1000078 | EN | X00 17 / 20
7 Uninstallation and disposal
7.1 Uninstallation
DANGER Improper uninstallation of the sonnenProtect
Danger to life due to electrocution!
The sonnenProtect must only be uninstalled by authorised electricians.
7.2 Disposal
Illustration4: WEEE symbol
The sonnenProtect must not be disposed of as do-
mestic waste!
Dispose of the sonnenProtect in an environ-
mentally friendly way through suitable collec-
tion systems.

8 | Troubleshooting
18 / 20 Operating instructions sonnenProtect 2500
8 Troubleshooting
Fault Possible causes Rectification
Grid operation (no grid outage)
The electrical consumers in the
emergency circuit are not supplied
with energy in grid operation.
The lines of the emergency circuit have
not been connected correctly.
Contact your installer to check the elec-
trical wiring.
The miniature circuit breaker in the
supply line of the sonnenProtect is
switched off.
Switch on the miniature circuit breaker in
the supply line of the sonnenProtect.
The miniature circuit breaker (F3.P) in
the sonnenProtect is switched off.
Switch on the miniature circuit breaker
(F3.P) inside the sonnenProtect.
The RCD (F4.P) in the sonnenProtect is
switched off.
Switch on the RCD (F4.P) inside the
sonnenProtect.
Emergency operation (grid outage) - Emergency operation does not start
Emergency operation doesn’t start.
The eclipse of the storage system
is off.
The batteries of the storage system
have discharged so much that further
discharging would lead to a deep dis-
charge state and therefore damage the
batteries.
If the PV system generates electrical
power, the emergency operation will con-
tinue as soon as excess power is available.
If the PV system does not generate elec-
trical power the only thing to do is wait
until the grid outage passes and the public
electrical grid once again starts supplying
electrical energy. Then the
sonnenProtect automatically switches to
grid operation.
The storage system is switched off. Switch on the storage system.
Emergency operation doesn’t start.
The eclipse of the storage system
is green.
The miniature circuit breaker (F3.P) in
the sonnenProtect is switched off.
Switch on the miniature circuit breaker
(F3.P) inside the sonnenProtect.
The RCD (F4.P) in the sonnenProtect is
switched off.
Switch on the RCD (F4.P) inside the
sonnenProtect.
Emergency operation doesn’t start.
The eclipse of the storage system
is orange.
Electrical consumers with too high
power consumption are connected to
the emergency circuit.
Switch off electrical consumers or reduce
their power consumption.
Only connect electrical consumers to the
emergency circuit when they have a
power consumption that does not exceed
the nominal power or (when switching on)
the maximum power of the
sonnenProtect.

Troubleshooting | 8
KD-541 | 1000078 | EN | X00 19 / 20
Fault Possible causes Rectification
Emergency operation (grid outage) - Emergency operation stops
Emergency operation stops. The
miniature circuit breaker and the
RCD in the sonnenProtect have
not switched off. The eclipse of the
storage system is off.
The batteries of the storage system
have discharged so much that further
discharging would lead to a deep dis-
charge state and therefore damage the
batteries.
If the PV system generates electrical
power, the emergency operation will con-
tinue as soon as excess power is available.
If the PV system does not generate elec-
trical power the only thing to do is wait
until the grid outage passes and the public
electrical grid once again starts supplying
electrical energy. Then the
sonnenProtect automatically switches to
grid operation.
Emergency operation stops. The
miniature circuit breaker (F3.P) in
the sonnenProtect has switched
off. The eclipse of the storage sys-
tem is green.
The miniature circuit breaker detected
an overload, this means electrical con-
sumers with too high power consump-
tion are connected to the emergency
circuit.
Switch off electrical consumers so that
the power consumption does not exceed
the nominal power or (when switching on)
the maximum power of the
sonnenProtect.
Then switch on the miniature circuit
breaker (F3.P) again. The storage system
automatically restarts the emergency op-
eration.
Emergency operation stops. The
RCD (F4.P) in the sonnenProtect
has switched off. The eclipse of the
storage system is green.
The RCD has detected fault currents in
the emergency circuit.
Contact your installer to check the wiring
and the connected electrical consumers
and to correct the error.
Emergency operation stops. The
miniature circuit breaker and the
RCD in the sonnenProtect have
not switched off. The eclipse of the
storage system is orange.
The control of the storage system de-
tected an overload, this means there
are electrical consumers connected to
the emergency circuit with a too high
power consumption.
Switch off electrical consumers so that
the power consumption does not exceed
the nominal power or (when switching on)
the maximum power of the
sonnenProtect.
The storage system automatically restarts
the emergency operation. The eclipse of
the storage system is green.
If the emergency operation does not start
and the eclipse stays orange, the storage
system has already unsuccessfully tried
three times to start the emergency oper-
ation. Then the only thing to do is wait un-
til the connection to the public electrical
grid can restored.

sonnen GmbH
Am Riedbach 1
D-87499 Wildpoldsried
