SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
XM-2200GTX
STEREO POWER AMPLIFIER
Other Specifications
Circuit system OTL (output transformerless) circuit
Pulse power supply
Inputs RCA pin jacks
High level input connector
Outputs Speaker terminals
Through out pin jacks
Suitable speaker impedance
2 – 8 Ω(stereo)
4 – 8 Ω(when used as a bridging amplifier)
Maximum outputs 400 W ×2 (at 4 Ω)
600 W ×2 (at 2 Ω)
1,200 W (monaural) at 4 Ω
Rated outputs (supply voltage at 14.4V)
200 W ×2 (20 Hz – 20 kHz, 0.1% THD,
at 4 Ω)
250 W ×2 (20 Hz – 20 kHz, 0.15% THD,
at 2 Ω)
500 W (monaural) (20 Hz – 20 kHz, 0.15% THD,
at 4 Ω)
Frequency response 5 Hz – 50 kHz ( dB)
Input level adjustment range
0.3 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
Low-pass filter 50 – 300 Hz, –12 dB/oct
Low boost 0 – 10 dB (40 Hz)
Power requirements 12 V DC car battery
(negative ground)
Power supply voltage 10.5 – 16 V
Current drain at rated output : 48 A (at 4 Ω)
Remote input : 1 mA
Dimensions Approx. 400 ×55 ×276 mm
(15 3/4 ×2 1/4 ×10 7/8 in.)
(w/h/d) not incl. projecting parts and controls
Mass Approx. 4.6 kg (10 lb. 6 oz.) not incl. accessories
Supplied accessories Mounting screws (4)
High level input cord (1)
Protection cap (1)
Design and specifications are subject to change without
notice.
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
200 watts per channel minimum continuous average power into
4 ohms, both channels driven from 20 Hz to 20 kHz with no more
than 0.1% total harmonic distortion per Car Audio Ad Hoc
Committee standards.
+0
–3
Ver. 1.3 2005. 05
9-961-370-04
2005E04-1
© 2005. 05
Sony Corporation
e Vehicle Group
Published by Sony Engineering Corporation
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

2
TABLE OF CONTENTS
1. GENERAL
Location and Function of Controls.......................................... 3
Connections ............................................................................. 3
2. DISASSEMBLY
2-1. Bottom Plate........................................................................ 7
2-2. Main Board Section ............................................................ 8
2-3. Main Board ......................................................................... 8
2-4. Led Board ............................................................................ 9

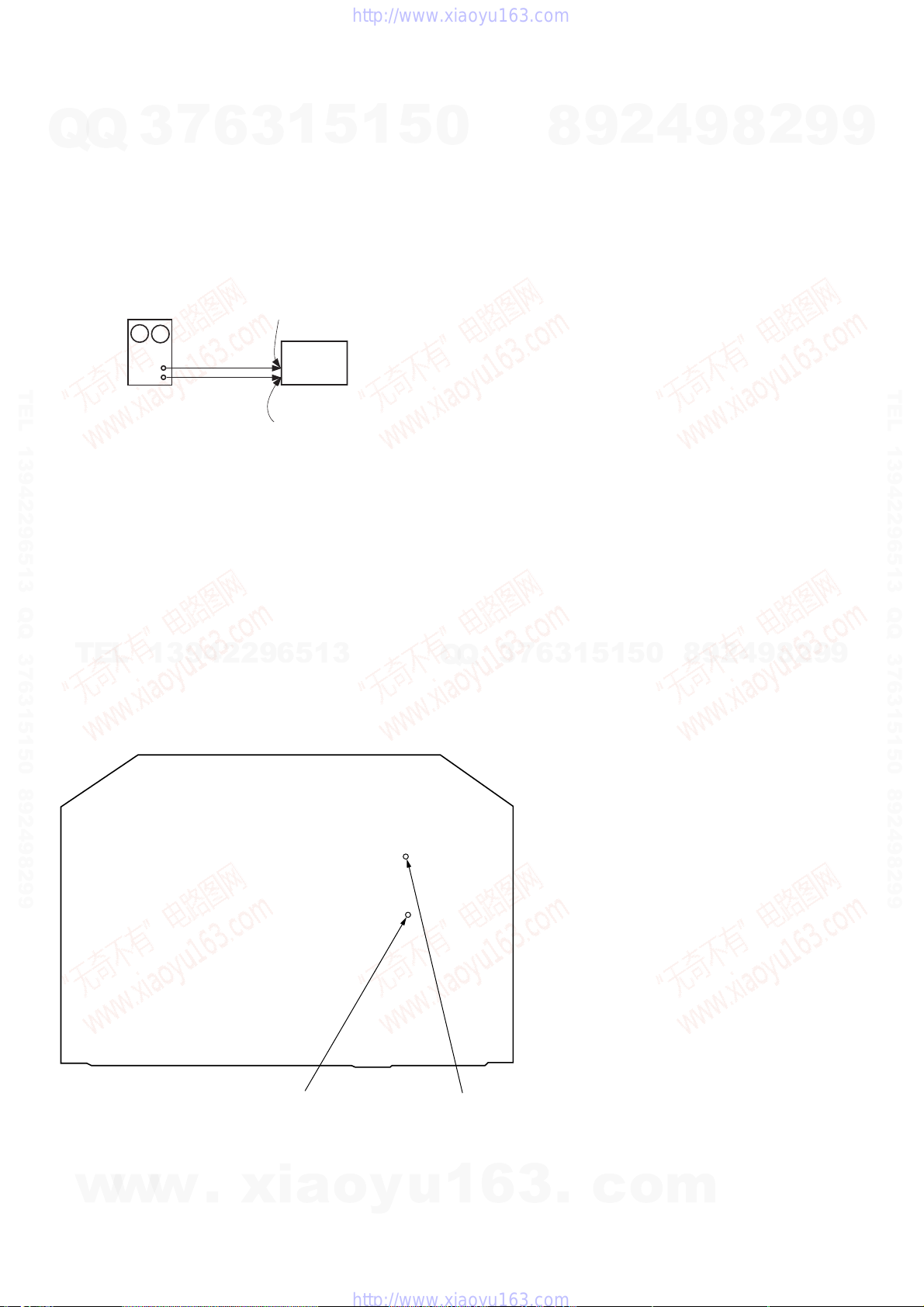

3. ELECTRICAL ADJUSTMENT.................................... 10
4. DIAGRAMS
4-1. Block Diagram .................................................................. 11

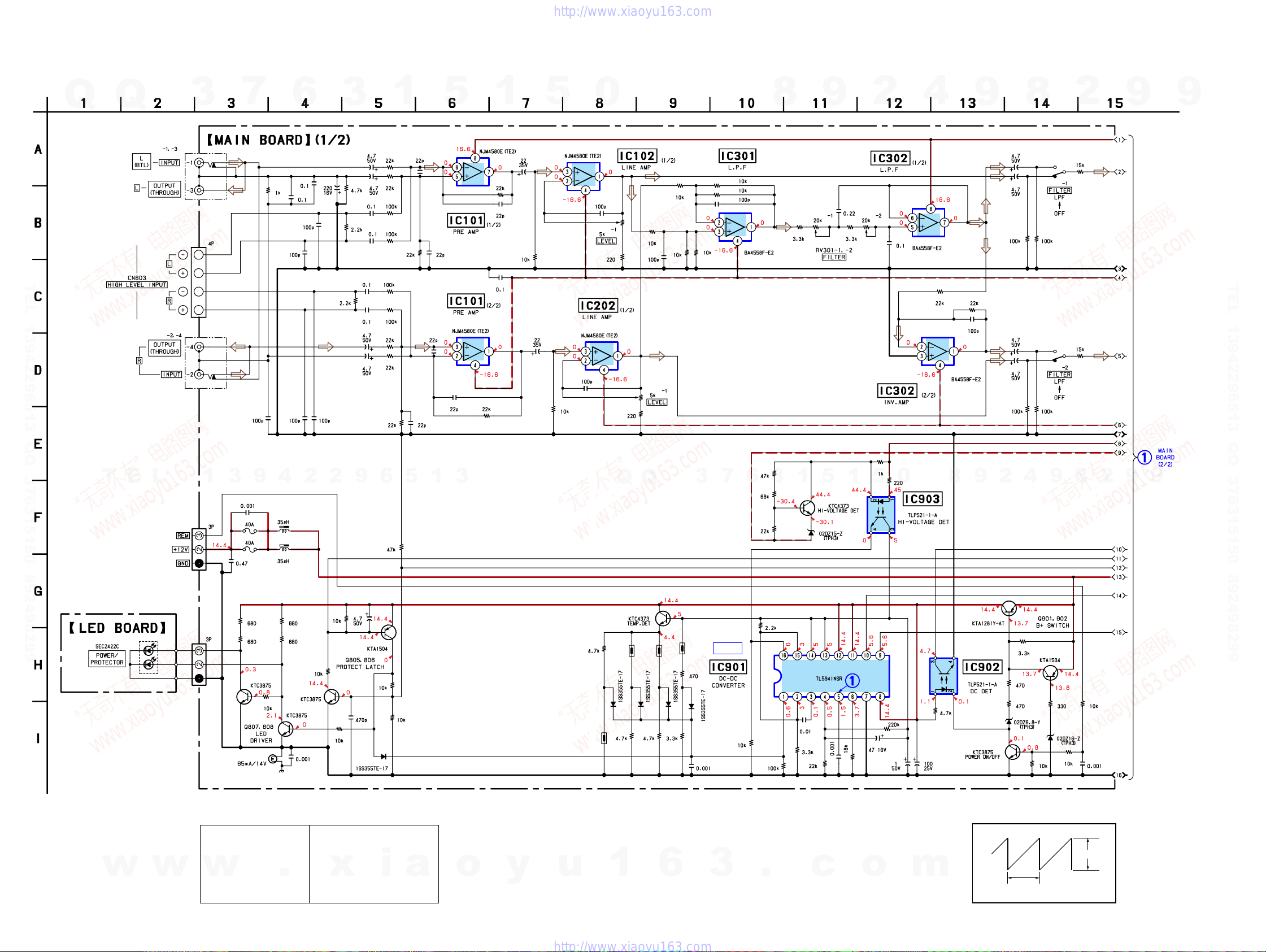

4-2. Schematic Diagram –Main Section (1/2)– ........................ 12

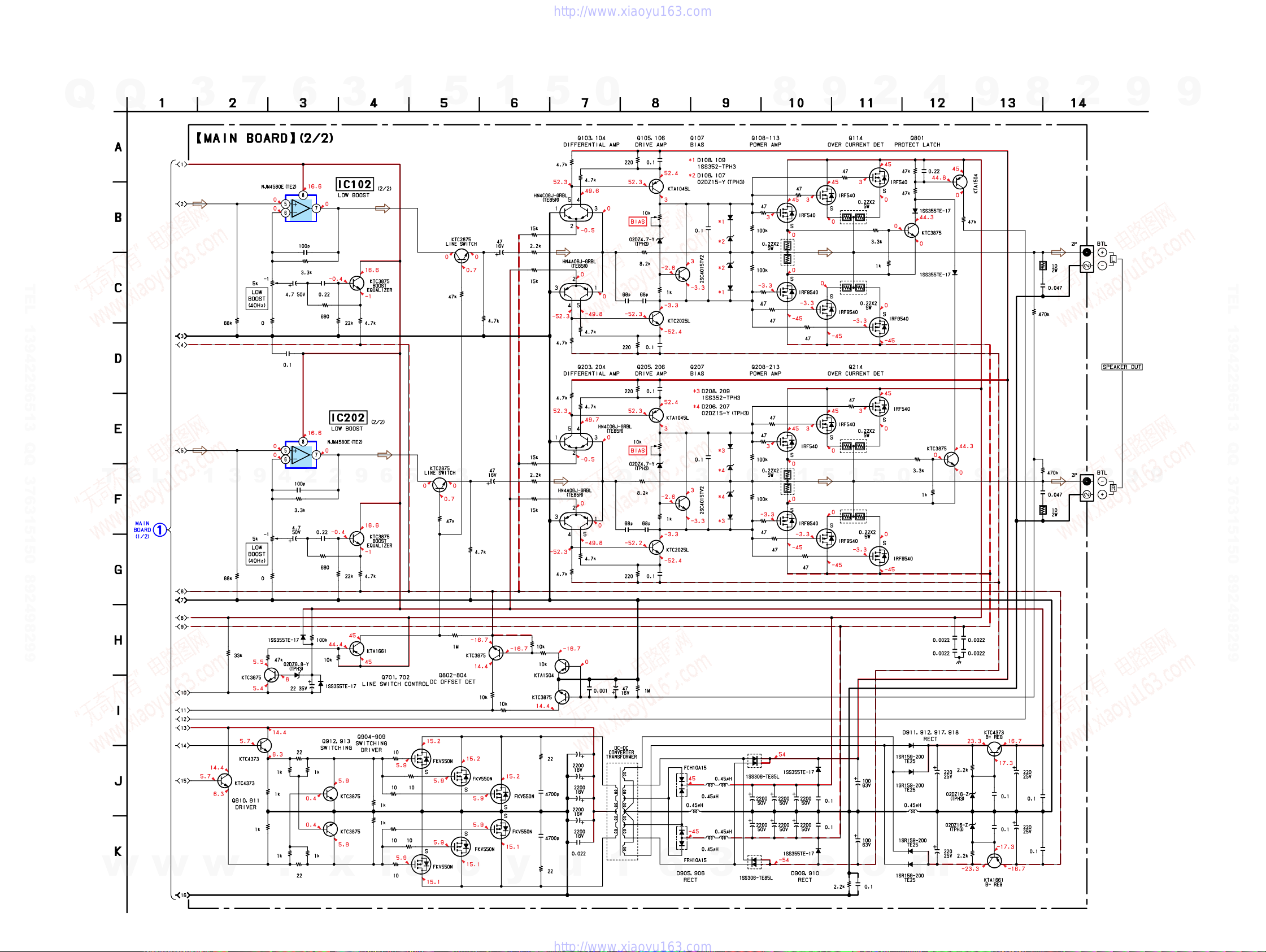

4-3. Schematic Diagram –Main Section (2/2)– ........................ 13
4-4. Printed Wiring Boards –Main Section– ............................ 14
5. EXPLODED VIEWS
5-1. Heat Sink (Main) Section.................................................. 16
5-2. Main Board Section .......................................................... 17
6. ELECTRICAL PARTS LIST......................................... 18
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LASÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
XM-2200GTX
Ver. 1.2
Note for Replacement of FET
Change the both channels of FETs at the output stage.
If one or both parts in the following combination is broken, the
service kit should be ordered.
Service kit part No.
Q108, 110, 112 X-3383-027-1
Q208, 210, 212
Q109, 111, 113 X-3383-028-1
Q209, 211, 213
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

3
XM-2200GTX
SECTION 1
GENERAL This section is extracted
from instruction manual.
Features
•Maximum power output of 400W per channel
(at 4 Ω).
•This unit canbeused asa bridging amplifier
with a maximum output of 1,200 W.
•Direct connection can be made with the speaker
output of your car audio if it is not equipped
with a line output (High level input connection).
•Built-in variable LPF (Low-pass filter) and low
boostcircuit.
•Dual mode connection possible for a multi-
speakersystem.
•Protection circuit.
•Pulsepower supply*for stable,regulated output
power.
* Pulsepower supply
This unit has a built-in power regulator which
converts the power supplied by the DC12 V car
battery into high speed pulses using a
semiconductor switch. These pulses are stepped
up by the built-in pulse transformer and
separated into both positive and negative power
supplies before being converted into direct
current again. This light weight power supply
system provides a highly efficient power supply
with a low impedance output.
Caractéristiques
•Puissancede sortie maximale de 400W par canal
(à4 Ω).
•Cetappareil peut être utilisé comme
amplificateur en pont d’une sortie maximale de
1200W.
•Une connexion directe est possible avec la sortie
haut-parleur de votre autoradio si celle-ci n’est
paséquipée d’une sortie de ligne (connexion
d’entrée haut niveau).
•Filtre passe-bas(LPF) intégré et circuit à faible
amplification.
•Double mode de connexion possible au moyen
d’un systèmeàplusieurs haut-parleurs.
•Circuit de protection.
•Alimentation électrique par impulsions *pour
une puissancede sortie stable,régulée.
* Alimentation électrique par impulsions
Cet appareil est équipé d’un régulateur de
puissance intégré qui convertit la puissance
fournie par une batterie de voiture de 12 V CCen
impulsions ultra-rapides au moyen d’un
commutateur à semi-conducteur. Cesimpulsions
sont amplifiées par le transformateur
d’impulsions intégré et séparéesen alimentation
positive et négative avant d’être reconverties en
courant continu. Ce système d’alimentation de
faible poids assure une alimentation électrique
très efficace pour une sortie d’impédance faible.
Circuit Diagram
Schéma du circuit
Low boost
Amplification de basses fréquences
Frequency/Fréquence
dB
Frequency/Fréquence
dB
Cut-off frequency (LPF)
Fréquence de coupure (LPF)
POWER/PROTECTOR
FILTER
OFF LPF
LEVEL LOW BOOST
(40Hz)
0+10dB
60.3V
2
4
5.5 0.5 60
50 300Hz
170
110 260
10
10
0
40 100 1k
10
0
-10
-20
-30
-40
-50
-60
-70
-80 10 100 1k
50Hz
170Hz
300Hz
LEVEL
LPF
Normal AMP
Power Lch
LEVEL
Inverted AMP
Power Rch
BTL.
Lch
Rch
(BTL.)
LOW BOOST
LOW BOOST
Hz
Hz
Location and Function
of Controls
1POWER/PROTECTOR indicator
Lights up in green during operation.
When the PROTECTORis activated the
indicator will changefrom greento red.
When the PROTECTORis activated refer to
the Troubleshooting Guide.
2LEVEL adjustment control
Theinput level canbeadjusted with this
control. Turn it in the clockwise direction
when the output level of the car audio
seemslow.
3LOW BOOST level control
Turn this control to boostthe frequencies
around 40Hz to a maximum of 10dB.
4Cut-off frequency adjustment control
Setsthe cut-off frequency (50– 300Hz) for
the low-pass filter.
5FILTER selector switch
When the switch is in the LPF position, the
filter is setto low-pass.
Emplacement et fonction
des commandes
1Indicateur POWER/PROTECTOR
S’allume envert en coursde fonctionnement.
Lorsque PROTECTOR estactivé, le voyant
passedu vert au rouge.
Lorsque PROTECTOR estactivé, reportez-
vous au guide de dépannage.
2Commande de réglage LEVEL
Le niveau d’entréepeut serégler aveccette
commande. Tournez cettecommande dans
le sens des aiguilles d’une montre lorsque le
niveau de sortie de l’autoradio semble faible.
3Commande de niveau LOW BOOST
Tournez cettecommande pour amplifier les
fréquencesautour de 40 Hz jusqu’à un
maximum de 10 dB.
4Commandes de réglage de la fréquence
de coupure
Permet de régler la fréquencede coupure
(50– 300Hz) pour le filtre passe-bas.
5Commutateur de sélection FILTER
Lorsque le commutateur de sélectionesten
position LPF, le filtre estréglé sur passe-bas.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

4
XM-2200GTX
BTL BTL
OFF LPF
BTL BTL BTL BTL
Connections
Caution
•Beforemaking any connections,disconnect
the ground terminal of the carbattery to avoid
short circuits.
•Besure to use speakerswith an adequate
power rating. If you usesmall capacity
speakers,they may bedamaged.
•Do not connect the#terminal of the speaker
system to the car chassis, and do not connect
the #terminal of the right speakerwith that
of the left speaker.
•Install the input and output cords away from
the power supply wire asrunning them close
together cangeneratesomeinterference noise.
•This unit is a high powered amplifier.
Therefore, it may not perform to its full
potential if used with the speakercords
supplied with the car.
•If your car is equipped with acomputer
systemfor navigation or someother purpose,
do not to remove the ground wire from the
car battery. If you disconnect the wire, the
computer memory may beerased.To avoid
short circuits when making connections,
disconnect the +12V power supply wire until
all the other wires have beenconnected.
Connexions
2-Speaker System
Système à 2 haut-parleurs
Car audio
Autoradio
LINE OUT
Left speaker
(min. 2 Ω)
Haut-parleur
gauche
(min. 2 Ω)
Right speaker
(min. 2 Ω)
Haut-parleur
droit
(min. 2 Ω)
As a Monaural Amplifier
Comme amplificateur monaural
Car audio
Autoradio
LINE OUT
Right channel
Canal droit
Left channel
Canal gauche
Right speaker
(min. 4 Ω)
Haut-parleur droit
(min. 4 Ω)
Pour plus de détails sur les réglages des
commutateurs et commandes, reportez-vous à
« Emplacement et fonction des commandes ».
Remarque
Vérifiez que la sortie de ligne de l’autoradio est
raccordée à la prise portant l’indication
« L (BTL)» sur l’appareil.
Left speaker (min. 4 Ω)
Haut-parleur gauche
(min. 4 Ω)
As the Monaural Amplifier for a Subwoofer
Comme amplificateur monaural pour un haut-parleur
d’extrêmes graves
Car audio
Autoradio
LINE OUT
For details on the settings of switches and
controls, refer to “Location and Function of
Controls.”
Note
Make sure that the line output from the car
audio is connected to the jack marked “L (BTL)”
on the unit.
For details on the settings of switches and
controls, refer to “Location and Function of
Controls.”
Note
If you wish to use a subwoofer asa monaural
speaker, connect the speaker asillustrated
above. The output signals to the subwoofer
will be the combination of the both right and
left output signals.
Pour plus de détails sur les réglages des
commutateurs et commandes, reportez-vous à
« Emplacement et fonction des commandes ».
Remarque
Sivous désirez utiliser un haut-parleur
d’extrêmes graves comme haut-parleur
monaural, raccordez le haut-parleur comme
illustré ci-dessus.Lessignaux de sortie vers le
haut-parleur d’extrêmes graves seront une
combinaison des signaux de sortie droit et
gauche.
Attention
•Avant d’effectuer lesconnexions,débranchez
la borne de massede la batterie de voiture
pour éviter tout court-circuit.
•Veillez à utiliser deshaut-parleurs de
puissanceadéquate.Si vous utilisez deshaut-
parleurs de faible capacité,ils risquent d’être
endommagés.
•Ne raccordez pasla borne #du systèmede
haut-parleurs à la carrosseriede la voiture ni
la borne #du haut-parleur droit aveccelledu
haut-parleur gauche.
•Eloignez les câblesd’entrée et de sortie du
câbled’alimentation pour éviter les
interférences.
•Cet appareil estun amplificateur de haute
puissance.Il ne peut donc déployer sapleine
puissanceque si les câblesde haut-parleurs de
la voiture lui sont raccordés.
•Sivotre voiture estéquipéed’un systèmede
navigation ou d’un ordinateur de bord, ne
retirez pas le fil de terre de la batterie de la
voiture, sinon les donnéesmémoriséesseront
effacées.Pour éviter un court-circuit lorsque
vous effectuez lesbranchements,branchezle
câbled’alimentation +12V aprèsavoir
branchétous lesautresfils.
Power Connection Wires
Câbles d’alimentation
Car audio
Autoradio Fuse (80 A)
Fusible (80 A) +12 V car battery
Batterie de voiture +12 V
Remote output *
1
Sortie de
télécommande
*
1
(REMOUT)
to a metal point
of the car
vers une partie
métallique de la
carrosserie
*1
If you have the factory original or some other car audio without a remote output on the amplifier,
connect the remote input terminal (REMOTE) to the accessory power supply.
*1
Si vous disposez du modèle d’origine ou d’un autre autoradio dont l’amplificateur ne comporte pas de
sortie de télécommande, raccordez la borne d’entrée de télécommande (REMOTE) à la prise
d’alimentation accessoires.
Notes on the power supply
• Connect the +12 V power supply wire only after
all the other wires have been connected.
• Be sure to connect the ground wire of the unit
securelyto a metal point of the car. A loose
connectionmay causea malfunction of the
amplifier.
• Be sure to connect the remote control wire of the
car audio to the remote terminal.
•When using a car audio without a remote output
on the amplifier, connect the remote input
terminal (REMOTE)to the accessorypower supply.
• Usethe power supply wire with a fuse attached
(80 A).
• All power wires connected to the positive battery
post should be fused within 456 mm (18 in) of the
battery post, and before they passthrough any
metal.
• Make sure that the vehicle’s battery wires
connected to the vehicle (ground to chassis)
*
2
are
of a wire gauge at least equal to that of the main
power wire connected from the battery to the
amplifier.
• Make sure that the wires to be connected to the
+ 12 V and GND terminals of this unit are at least
4-Gauge (AWG-4) or have a sectional area of
more than 22.0 mm
2
(
7
/ 8 in.
2
).
Remarquessur l’alimentation électrique
• Raccordez le câble d’alimentation +12 V
uniquement après avoir réalisé toutes les autres
connexions.
• Raccordezcorrectementle fil de masseà une
partie métallique de la voiture. Une connexion
lâchepeut provoquer un dysfonctionnement de
l’amplificateur.
• Veillez à raccorder le fil de télécommande de
l’autoradio à la borne de télécommande.
• Sivous utilisez un autoradio dont l’amplificateur
ne comporte pas de sortie de télécommande,
raccordez la borne d’entrée de la télécommande
(REMOTE)à la prise d’alimentation accessoires.
• Utilisez un câble d’alimentation muni d’un fusible
(80 A).
• Tous les fils électriques raccordés au support de
batterie positif doivent être protégés par un
fusible à une distance maximum de 456 mm (18
po) du support de batterie et avant de passer
dans une partie métallique quelconque.
• Assurez-vous que les fils de la batterie du véhicule
raccordés à ce dernier (sol au châssis)
*
2
sont d’un
calibre au moins égal à celui du fil électrique
principal reliant la batterie et l’amplificateur.
• Assurez-vous que les câbles à raccorder aux
bornes +12V et GND de cet appareil sont d’un
calibre d’au moins 4 (AWG-4) ou d’une section
supérieure à 22,0 mm
2
(
7
/ 8 po
2
).
Pour plus de détails sur les réglages des
commutateurs et commandes, reportez-
vous à « Emplacement et fonction des
commandes ».
For details on the settings of switches and
controls, refer to “Location and Function of
Controls.”
Subwoofer (min. 4 Ω)
Haut-parleur d’extrêmes
graves (min. 4 Ω)
Make the terminal connections as illustrated below.
Procédez aux connexions des bornes comme illustré ci-dessous.
REM
+
12VGND
REM
+
12V GND
Pass the wires through the cap, connect
the wires, then cover the terminals with
the cap.
Note
When you tighten the screw, be careful not to
apply too much torque
* as doing so may damage
the screw.
* The torque value should be lessthan 1 N•m.
Faites passer les fils par le cache, raccordez
les fils, puis recouvrez les bornes avec le
cache.
Remarque
Lorsque vous vissez la vis, faites attention à ne
pas appliquer une trop grande force
* , car cela
pourrait endommager la vis.
*
Le couple de torsion doit être inférieur à 1 N•m.
3
3
c
less than 456 mm (18 in)
moins de 456 mm (18 po)
*
2
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

5
XM-2200GTX
BTL BTL
OFF LPF
OFF LPF
OFF LPF
OFF LPF
OFF LPF
Four output channels
Quatre canaux de sortie
Full range speakers
(min. 2 Ω)
Haut-parleurs à large
bande (min. 2 Ω)
Subwoofers (min. 2 Ω)
Haut-parleur d’extrêmes
graves (min. 2 Ω)
Pour plus de détails sur les réglages des
commutateurs et commandes, reportez-vous à
« Emplacement et fonction des commandes ».
Remarque
Dans ce système, le volume des haut-parleurs
d’extrêmes graves est contrôlé par la
commande de balance avant/arrière de
l’autoradio.
For details on the settings of switches and
controls, refer to “Location and Function of
Controls.”
Note
In this system, the volume of the subwoofers
will be controlled by the car audio fader
control.
Car audio
Autoradio
LINE OUT
Dual Mode System (With a Bridged Subwoofer)
Double mode de connexion (avec un haut-parleur
d’extrêmes graves en pont)
Notes
•When using passivecrossover networks in a multi-
speaker system, care must be taken as the speaker
system’s impedance should not be lower than that
of the suitable impedance for this unit.
•When you are installing a 12 decibels/octave system
in your car, the following points must be
considered. In a 12 decibels/octave system where
both a choke and capacitor are used in series to
form a circuit, a great care must be taken when
they are connected. In such a circuit, there is going
to be an increase in the current which by-passesthe
speaker with frequencies at around the crossover
frequency. If audio signals are continued to be fed
into the crossover frequency area, it may causethe
amplifier to become abnormally hot or the fuse will
be blown. Also if the speaker is disconnected, a
series-resonant circuit will be formed by the choke
and the capacitor. In this case,the impedance in the
resonance area will decreasedramatically resulting
in a short circuit like situation causing a damage to
the amplifier. Therefore, make sure that a speaker
is connected to such a circuit at all times.
Remarques
•Lorsque vous utilisez des circuits de recoupement de
fréquence passifsdans un système à plusieurs haut-parleurs,
assurez-vousque l’impédance du système n’est pas inférieure
à celle prévue pour cet appareil.
•Lorsque vous installez un système à 12 décibels/octave dans
votre voiture, vous devez respecter les points suivants. Dans
un système à 12 décibels/octave où la bobine d’arrêt et le
condensateur sont utilisés en série pour former un circuit,
vous devez réaliser les branchements avec beaucoup de
précaution. Dans ce type de circuit, une augmentation du
courant contournant le haut-parleur se produit dans les
fréquences sesituant autour de la fréquence de coupure. Si
des signaux audio continuent d’être fournis dans la zone de
la fréquence de recoupement, une surchauffe risque de se
produire dans l’amplificateur et le fusible risque de griller. Si
le haut-parleur n’est pas raccordé, un circuit de résonance
série sera créé par la bobine et le condensateur. Dans cecas,
l’impédance dans la zone de résonance sera
considérablement réduite, et comme dans le casd’un court-
circuit, l’amplificateur peut être endommagé. Par
conséquent, veillez à ce qu’un haut-parleur soit toujours
raccordé au circuit.
C1/C2
(capacitor)*
unit: µF
800
500
400
300
270
200
150
100
68
50
39
Table of crossover values for
6 dB/octave (4 Ω)
*(not supplied)
Crossover
Frequency
unit: Hz
50
80
100
130
150
200
260
400
600
800
1000
L
(coil)*
unit: mH
12.7
8.2
6.2
4.7
4.2
3.3
2.4
1.6
1.0
0.8
0.6
Fréquencede
recoupement
unité : Hz
50
80
100
130
150
200
260
400
600
800
1000
L
(bobine)*
unité : mH
12,7
8,2
6,2
4,7
4,2
3,3
2,4
1,6
1,0
0,8
0,6
C1/C2
(condensateur)
*
unité : µF
800
500
400
300
270
200
150
100
68
50
39
Tableau des valeurs de recoupement
pour 6 dB/octave (4 Ω)
*(non fournis)
2-way System
Système 2 voies
Two output channels
Deux canaux de sortie
Full range speakers
(min. 2 Ω)
Haut-parleurs à large
bande (min. 2 Ω)
Subwoofers (min. 2 Ω)
Haut-parleur d’extrêmes
graves (min. 2 Ω)
Utilisez la borne THROUGH OUT lorsque
vous installez plusieurs amplificateurs. Les
signaux sont sortis comme ils sont entrés.
(LOW BOOST,LPFne fonctionnent pas.)
Remarques
•Vous pouvez raccorder un maximum de 3
amplificateurs à la borne THROUGHOUT. Si
vous raccordez plus de trois amplificateurs,
cela peut provoquer des problèmes comme
des baissesdu son.
•Avec une connexion d’entrée de haut niveau,
vous ne pouvez pas utiliser THROUGHOUT.
Usethe THROUGH OUT terminal when
you install more amplifiers. Thesignals are
output asthey were input. (LOW BOOST,
LPFdo not work.)
Notes
•Amaximum 3 amplifiers can be connected to
the THROUGHOUT terminal. If you connect
more than three amplifiers, it may cause
problems such as sound dropout.
•High level input connection cannot use
THROUGHOUT.
Car audio
Autoradio
LINE OUT
THROUGH OUT
INPUT INPUT
Car audio
Autoradio
Left speaker
Haut-parleur gauche Right speaker Haut-parleur droit
Subwoofer
Haut-parleur d’extrêmes graves
LINE OUT
C2C1
L
High Level Input Connection (As a Monaural Amplifier for a Subwoofer)
Connexion d’entrée à haut niveau
(Comme amplificateur monaural pour un haut-parleur d’extrêmes graves)
Pour plus de détails sur les réglages des
commutateurs et commandes, reportez-vous à
« Emplacement et fonction des commandes ».
Remarque
Sivous désirez utiliser un haut-parleur d’extrêmes
graves comme haut-parleur monaural, raccordez
le haut-parleur comme illustré ci-dessus.Les
signaux de sortie vers le haut-parleur d’extrêmes
graves seront une combinaison des signaux de
sortie droit et gauche.
For details on the settings of switches and
controls, refer to “Location and Function of
Controls.”
Note
If you wish to use a subwoofer asa monaural
speaker, connect the speaker asillustrated
above. The output signals to the subwoofer
will be the combination of both the right and
left output signals.
Car audio
Autoradio
Left speaker
Haut-parleur gauche
Right speaker
Haut-parleur droit
Subwoofer (min. 4 Ω)
Haut-parleur d’extrêmes
graves (min. 4 Ω)
2
*
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

6
XM-2200GTX
BTL BTL BTL BTL
* High Level Input Connector
* Connecteur d’entrée à haut niveau
High Level Input Connection (As a Monaural Amplifier)
Connexion d’entrée à haut niveau
(Comme amplificateur monaural)
Pour plus de détails sur les réglages des
commutateurs et commandes, reportez-vous à
« Emplacement et fonction des commandes ».
For details on the settings of switches and
controls, refer to “Location and Function of
Controls.”
Car audio
Autoradio
Right speaker output
Sortie haut-parleur
droit
Left speaker output
Sortie haut-parleur gauche
Left speaker
(min. 4 Ω)
Haut-parleur gauche
(min. 4 Ω)
Right speaker
(min. 4 Ω)
Haut-parleur droit
(min. 4 Ω)
Black-striped cord
Cordon rayé noir Black-striped cord
Cordon rayé noir
Black-striped cord
Cordon rayé noir
High Level Input Connection (2-Speaker System)
Connexion d’entrée à haut niveau
(Système à 2 haut-parleurs)
Left speaker
(min. 2 Ω)
Haut-parleur gauche
(min. 2 Ω)
Right speaker
(min. 2 Ω)
Haut-parleur droit
(min. 2 Ω)
Gray
Gris
White
Blanc
Black-striped cord
Cordon rayé noir Car audio
Autoradio
Pour plus de détails sur les réglages des
commutateurs et commandes, reportez-vous à
« Emplacement et fonction des commandes ».
For details on the settings of switches and
controls, refer to “Location and Function of
Controls.”
Right speaker output
Sortie haut-parleur droit
Left speaker output
Sortie haut-parleur gauche
Black-striped cord
Cordon rayé noir
Black-striped cord
Cordon rayé noir
Gray
Gris
Gray striped
Rayé gris
White
Blanc
White striped
Rayé blanc
2
*
2
**
2
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

7
XM-2200GTX
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. BOTTOM PLATE
Note : This set can be disassemble according to the following sequence.
2-1. BOTTOM PLATE
(Page 7)
2-2. MAIN BOARD SECTION
(Page 8)
2-4. LED BOARD
(Page 9)
SET
2-3. MAIN BOARD
(Page 8)
3 bottom plate
4 insulating shee
t
1 three screws
(+ BTP 3 x 6)
2 three screws
(+ BTP 3 x 6)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

8
XM-2200GTX
2-3. MAIN BOARD
2-2. MAIN BOARD SECTION
heat sink (main)
6 CN810
5 MAIN board section
1 four screw
s
(+ P 3 x 8)
2 three screws
(+ P 3 x 8)
3 three screws
(+ P 3 x 8)
4 screw
(+ P 3 x 8)
3 front panel
4 MAIN board
1 two screws
(+ P 3 x 8)
2 three screws
(+ P 3 x 8)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

9
XM-2200GTX
2-4. LED BOARD
2 LED board
heat sink (main)
light guide plate
1 screw
(+BT P 3 x 6)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

10
XM-2200GTX
Bias Adjustment
Note :In Bias Adjustment, adjust RV103 if any of Q108 through
Q113 are replaced. Adjust RV203 if any of Q208 through
Q213 are replaced.
Condition :Thisadjustmentshould be performed about oneminute
after the remote mode is turned on at a room tempera-
ture of about 25°C.
Setting :
SECTION 3
ELECTRICAL ADJUSTMENT
Procedure :
1. Turn the variable resistors RV103 (L-CH) and RV203 (R-CH)
full clockwise as seen from the component side to minimize the
bias current.
2. The input signal is to be no signal.
3. Apply the voltage to the B+ and REM terminals from the stabi-
lized power supply and gradually increase it up to 12.0 V while
checking for any unusual current.
4. Adjust each of RV103 (L-CH) and RV203 (R-CH) so that the
power current of the stabilized power supply is increased in steps
of 700 mA (total of 1.4 A).
5. After adjustment, check that the power current is at 1.65 to 2.05A.
Adjustment Location : Main board (component side)
Stabilized
Power supply
B+, REM terminal
set
GND termina
l
— MAIN BOARD (CONDUCTOR SIDE) —
RV103
BIAS ADJUSTMENT
(L-CH)
RV203
BIAS ADJUSTMEN
T
(R-CH)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

11 11
XM-2200GTX
4-1. BLOCK DIAGRAM
SECTION 4
DIAGRAMS
6
573
21
PRE AMP
IC101 (1/2) PRE AMP
IC102 (1/2)
3
2
L.P.F
IC301
5
67
LOW BOOST
IC102 (2/2)
DIFFERENTIAL
AMP
Q103
POWER
AMP
Q108,Q110,Q112
OVER CURRENT
DET
Q114
DRIVE
AMP
Q105
DIFFERENTIAL
AMP
Q104
POWER
AMP
Q109,Q111,Q113
DRIVE
AMP
Q106
BIAS
Q107
BOOST
EQUALIZER
Q101
FILTER
S801-1
OFF
LPF
RV102-1
LOW
BOOST
(40Hz)
+16.7V
(B+)
–16.7V
(B-)
CNJ801-1,-3
INPUT
OUTPUT
(THROUGH)
OUTPUT
(THROUGH)
L
(BTL)
SPEAKER OUT
L
R
LINE
SWITCH
Q102
REM
+12V
GND
3
2
10
13
21
PRE AMP
IC101 (2/2) PRE AMP
IC202 (1/2)
5
67
LOW BOOST
IC202 (2/2)
DIFFERENTIAL
AMP
Q203
POWER
AMP
Q208,Q210,Q212
OVER CURRENT
DET
Q214
DRIVE
AMP
Q205
DIFFERENTIAL
AMP
Q204
POWER
ON/OFF
Q903
LINE SWITCH
CONTROL
Q701,702
POWER
AMP
Q209,Q211,Q213
DRIVE
AMP
Q206
BIAS
Q207
BOOST
EQUALIZER
Q201
RV102-2
LOW
BOOST
(40Hz)
+16.7V
(B+)
–16.7V
(B-)
CNJ801-2,-4
CNJ803
INPUT
R
L
HIGH LEVEL
INPUT
R
LINE
SWITCH
Q202
RV203
BIAS
RV103
BIAS
DC OFFSET
DET
Q802,Q803,Q804
15
16
1
2
14
12
B+
SWITCH
Q901,Q902
TEMP.DET
Q809
TH801,803,808
PTH801
DC DET
IC902
REF.
REG
LED DRIVE
Q807
PROTECT LATCH
Q801,Q805,Q806
HI-VOLTAGE
DET
IC903,Q920
CN801
F902
LED DRIVE
Q808
RECT
D911,917
RECT
D909
RECT
D905
RECT
D910
+16.7V
(B+)
+54V
(B+)
+45V
(B+)
RECT
D906
-45V
(B-)
–54V
(B–)
–16.7V
(B–)
SWITCHING
DRIVER
Q904,Q905,Q906
SWITCHING
DRIVER
Q907,Q908,Q909
DRIVER
Q910
SWITCHING
Q913
SWITCHING
Q912
11
9
8
D808
POWER/
PROTECT
D919
D920
DC-DC
CONVERTER
TRANSFORMER
T901
DC-DC CONVERTER
IC901
D803 D820,822,827,832
+45V
(B+)
-45V
(B-)
• Signal path
: AUDIO
CN804 BTL
BTL
CN805
1
2
1
2
2
3
INV. AMP
IC302 (2/2)
5 7
L.P.F
IC302 (1/2)
RV301-1
FILTER
RV101-1
LEVEL
RV101-2
LEVEL
RV301-2
FILTER
F901
FILTER
S801-2
OFF
LPF
-1
-3
-4
-2
DRIVER
Q911
B-REG
Q915
B+REG
Q914
L
1
RECT
D912,918
1
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

12 12
XM-2200GTX
4-2. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 15 for Common Note on Schematic Diagrams and IC Block Diagram.
•Waveform
IC901 5
11V/DIV, 5µsec/DIV
15µsec
3.0Vp-p
IC B/D
C211
C212
TH803
TH808
PTH801
R817
C806
R211R210
C104
R104
C109
C110
R109
RV101
R108
C103R103
R106C108
R107
C130R101
R102
C101
R154
C131
C231
C221
R254
C106
C105
R105
C107
C102
R206C207
R207C208
R205
C201 R202 C230
R201
C202
C209
R209
R208
C204 R204
C203R203
C205C222 C206
C210
L901
L903
C914
C915
C805
R809
R811
R810
CN810
C861
R816
C804 R812
R818 R903
C908
R902
R901
IC901
R938
R939
R941
R942
R940
R310R309
C305
C304
R308R307
R306
R305
C302
R302
RV301
C303
R120
R110 R111
C112
C111
R220
R909
R907
R913R908
R906
C911 C912 C913 R912
R911
R910
S801
C301
R304
R303
R301
D915
R820
R828 R823 R821
R833
R844
R905
C907
R904
C909
D901
Q901
D902
CNJ801
CN803 IC302(1/2)
IC302(2/2)
IC101(2/2) IC202(1/2)
RV301
S801
RV101
CN801
D808
IC903
IC902
C902
CNJ801
IC301
IC102(1/2)
IC101(1/2)
PL801
TH801
R834
Q920
F902
F901
R813 R815
R814 R835
Q808
Q806
Q807
Q805
Q809
D832
D803
D827
D822
D820
Q903
Q902
(Page 13)
Note:
The components identi-
fied by mark 0or dotted
linewithmark 0are criti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposantsidentifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

13 13
XM-2200GTX
4-3. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) —
C938
C939
C932
C933
D911
D912
D917
D918
Q908
L902 L904
RV102
R918
R928
R929R930
R931 R932
R933
R919
R144
C860
C116
R121
C118
R123
R126R125
R124
R122
C216
R223
C218
R224
C217
R222 R225 R226
R229
R702
R701
R916
R915 Q909
Q907
R917
R921R920
R914
Q904
Q905
Q906
C920
C919
C918
C917
R803
C802
C803
R804
R806
R807R808
R805
C225R236
R256
R232
R234
R233
R242
R241
C223
R230
C227
R240
C224R235
R231
RV203
R132 R136 C125
R156
R134
R129
R130
C124R135
R131
R155
RV103
R142
C127
Q108
Q110
Q112
R801 C801
R802
R160
Q113
Q212
Q111
Q210
Q109
Q208
R247
R245
R243
R261
R260
R248
R246
R244
Q207
Q213
Q211
Q209
C904 C906
C905 C903
R860
R936 C936
R937
C937
C935
C934 C940
C941
R252
C228
R253
R153
C128
R141
C123
Q103
Q203
Q104
Q204
R255
R148
R146
R147
R145
R143
R800
Q107
R239
D104
R133
D204
C117
D701
C701
C927
C928
D913
D914
C901
IC102(2/2)
IC202(2/2)
RV102
R221
CN804
CN805
R149
R249
T901
R238
R138
R140
R139
R161
R924
R927
C916
C921 C922 C923
C924 C925 C926
R251
R250
R151
R150
C232 C226
C132 C126
R152
Q101
Q102
Q105
Q106
D108
D106
D107
D109
D208
D206
D207
D209
Q801
D801
Q114
D802
Q201
Q202
Q205
Q206
Q214
Q702
R704 R703
D702
D703
Q701
Q803
Q802
Q910
Q911
Q912
Q913
R943
C942
C943
R944
D905
D906
L906
L905
L908
L907
Q914
Q915
Q804
D909 D919
D910
D920
(Page 12)
Ver. 1.1
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

14 14
XM-2200GTX
4-4. PRINTEDWIRING BOARDS — MAIN SECTION — • Refer to page 15 for Common Note on PrintedWiring Boards and Semiconductor Location.
1
A
B
C
D
E
F
G
H
I
J
2345678910111213
Q902
Q903
Q910Q911
Q912
Q914
Q915
Q920 Q801
Q802 Q803
Q804
Q805
Q806
Q809
Q701
Q702
IC901
R901
R902
R903
R904
R905
R906
R907
R908
R909
R910
R911
R912
R916
R917
R928
R929
R930
R931
R932
R933
R936
R937
R938
R939
R940
R941
R942
R800 R801
R802
R803
R804
R805
R806 R807
R808
R809
R810
R811
R812
R813
R814
R815
R816
R817
Q807
Q808
R701
R702
R703
R704
C908
C913
C927
C928
C803
C804
C806
R818
R844
D901
D902
D909 D910
D911
D912
D913
D914
D917
D918
D919
D920
D915
D803
D701 D702
C914
R860
C860
C861
D703
D801
D802
R230
R231
R232
R233
R234
R255
R256
C224
C225
C226
C227
Q202
Q203Q204
R253
R153
R130
R131 R132
R133
R134
R138
C124
C125
C126
C127
Q214
R243
R244
R245
R246
R247
R260
R261
Q102
Q103
Q104
R155
R156
R143
R144
R145 R146
R147 R148
R160
R161
Q114
R129
R229
D104
R821
D820
TH803
TH808
R823
R828
D822
D827
FMB1
Q913
R248
C130
C104
C110
C116
C118
C204
C210
C216
C218
C230
C222
C221
C231
C901
C902
C301
C302
C303
C304
C305
R104
R108
R109
R110
R210
R111
R121
R122
R123
R125
R126
R204
R203
R208
R209
R211
R221
R222
R223
R225
R226
R254
IC101
IC102
IC202
IC301
IC302
Q101
Q201
R301
R302
R303
R304
R305
R306
R307
R308
R309
R310
D204
R139
R140
R238
C904 C905
C906 C903
C801
R239
R240
R833
D832
C203
C940
C941
R103
C103
R834
PTH801
R913
R205
R105
C105 C106
C205
C206 C207
C208
C107
C108
R201
R202
R206
R207
R106
R107
R101
R102
JR100
JR103
JR106
JR107
JR204
JR205
JR206
JR207
JR208
JR215
JR216
JR217
R835
C232
C132
TP01
TP02
TP03
TP04
TP05
TP06 TP07
TP08
TP09
TP10
TP11
TP12
TP13 TP14
TP15
TP16
TP17
TP18
TP19
TP20
TP21
TP22
TP23
TP24
TP25
TP26
TP27
TP28
TP29
C942
C943
R943
R944
R135
R136
R236
R235
R124
R224
R927
R915 R914
R919
R918
R921
R920
R924
R154
R120
R220
R820
TH801
D206
D207
D208
D209
D106
D107
D108
D109
Q901
Q904
Q905
Q906
Q907 Q908 Q909
IC902
IC903
C907
C909
C911
C916
C917
C918
C919
C920
C921
C922
C923
C924
C925
C926
C936
C937
C938
C939
C932
C933
C802
C805
C701
D905
D906
C915
L901 L903
PL801
R242
C223
Q205
Q206
Q207
RV203
R141 R142
R241
C123
Q208
Q209
Q210 Q211
Q212
R249
R250 R251
Q105 Q106
Q107
Q108
Q109
Q110 Q111
Q112 Q113
RV103
R149
R150
R151
R152
C128
C228
R252
Q213
C101
C102
C109
C111
C112
C117
C201
C202
C209
C211
C212
C217
C131
CNJ801
RV101RV102
RV301
S801
C934
C935
JW100
JW101
JW102
JW103
JW104
JW105
JW106 JW107
JW108
JW109
JW110
JW111
JW112
JW113
JW114
JW115
JW116
JW117
JW118
JW119
JW120
JW121
JW122
JW123
JW124
JW125
JW126
JW127
JW128
JW129
JW130
JW131
JW132
JW133
JW134
JW135
JW136
JW137 JW138
JW139
JW140
JW141
JW142
JW143
JW144
JW145
JW146
JW147
JW148
JW149
JW150
JW151
JW152
JW153
JW154
JW156
JW157
JW158
JW159
JW160
JW161
JW164
JW165
JW166
JW167
JW168
JW169
JW170
JW174
JW175
JW178
JW179
JW180
JW182
JW183
JW184
JW187
JW188
JW189
JW190
JW191
JW192
JW193
JW194
JW195 JW196
JW197
JW198
JW199
JW200
JW201
JW202 JW203
JW204
JW205
JW206
JW207
JW208
JW209
JW210
JW211
JW212 JW213
JW214
JW215 JW216
JW217 JW218
JW219
JW220
JW221
JW222
JW225
JW226
JW227
JW228
JW229
JW230
JW231
JW232
JW233
JW234
JW235
JW236
JW237
JW238
JW239
JW240
JW241
JW243
JW244
JW245
JW246
JW247
JW248
JW249
JW250
JW251
JW252
JW253
JW254
JW255
JW256
JW257
JW258
JW259
JW260
JW261
JW262
JW263
JW264
JW265
JW266
JW267
JW268
JW269
JW270
JW271
JW272 JW273
JW274
JW275
JW276
JW277
JW278
JW279
JW280
JW281
JW282
JW283
JW284
JW285
JW286
JW287
JW288
JW289
JW290
JW291
JW292
JW293
JW294
JW295
JW296
JW297
JW298
JW299
JW300
JW301
JW302
JW303
JW304
JW305
JW306
JW307
JW308
JW309
JW310
JW311
JW312
JW313
JW314
JW315
JW316
JW317
JW318
JW319
JW320
JW321
JW322
JW323
JW324
JW325
JW326 JW327
JW328
JW329
JW330
JW331
JW332
JW333
JW334
JW335
JW336
JW337
JW338
JW339
JW340
JW341
JW342
JW343
JW344
JW345
JW346
JW347
JW348
JW349
JW350
L904
JW162
JW163
JW181
JW185
JW186
C912
JW177
JW176
JW224
JW223
JW352
L902
JW356
JW353
JW354
JW355
CN801
CN804
CN805
CN803
JW242
JW173
JW172
JW171
L905
L906
L907
L908
F901 F902
D808
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

15
XM-2200GTX
IC901 TL594INSR
16 15 14 13 12 11 10 9
1 2 3 4 5 6 7 8
OSC
REF. REG.
ERROR
ERROR
0.1V
• IC Block Diagram
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS
AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
Note:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•%: indicates tolerance.
•2: nonflammable resistor.
•C: panel designation.
Note:
The components identi-
fied by mark 0or dotted
linewithmark0arecriti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposantsidentifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
•A: B+ Line.
•B: B– Line.
•H: adjustment for repair.
•Powervoltageisdc14.4Vandfedwithregulateddcpower
supply from +12V and REM terminals.
•Voltage and waveform are dc with respect to ground
under no-signal condition.
•Voltagesaretakenwith a VOM (Input impedance10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
•Circled numbers refer to waveforms.
•Signal path.
F:AUDIO
for printed wiring boards:
Note:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
•Semiconductor Location (MAIN BOARD)
Ref. No. Location Ref. No. Location
D104 F-11
D106 E-12
D107 E-12
D108 E-12
D109 E-12
D204 B-9
D206 C-9
D207 B-9
D208 C-9
D209 B-9
D701 F-8
D702 E-8
D703 F-8
D801 D-9
D802 D-8
D803 E-8
D808 J-8
D820 E-5
D822 E-12
D827 B-8
D832 C-12
D901 G-6
D902 G-6
D905 B-2
D906 C-2
D909 D-5
D910 D-5
D911 D-5
D912 E-5
D913 D-6
D914 E-6
D915 D-6
D917 D-5
D918 E-5
D919 D-7
D920 D-6
IC101 G-9
IC102 G-8
IC202 H-8
IC301 G-7
IC302 H-6
IC901 F-6
IC902 F-8
IC903 D-6
Q101 G-8
Q102 F-9
Q103 F-10
Q104 F-10
Q105 F-9
Q106 E-10
Q107 F-11
Q108 F-11
Q109 E-11
Q110 F-11
Q111 D-11
Q112 G-11
Q113 D-11
Q114 D-11
Q201 H-8
Q202 F-9
Q203 D-9
Q204 D-9
Q205 D-10
Q206 D-9
Q207 B-9
Q208 B-8
Q209 B-9
Q210 B-8
Q211 B-10
Q212 B-7
Q213 B-10
Q214 C-9
Q701 E-8
Q702 F-8
Q801 D-8
Q802 B-11
Q803 B-11
Q804 B-11
Q805 D-8
Q806 D-8
Q807 F-7
Q808 F-7
Q809 E-8
Q901 F-6
Q902 F-6
Q903 G-5
Q904 D-2
Q905 D-2
Q906 E-2
Q907 G-2
Q908 F-2
Q909 F-2
Q910 E-4
Q911 E-4
Q912 E-2
Q913 E-2
Q914 E-6
Q915 E-6
Q920 C-6
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

16
XM-2200GTX SECTION 5
EXPLODED VIEWS
NOTE:
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
•Accessories are given in the last of
this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
RR
5-1. HEAT SINK (MAIN) SECTION
13-262-168-01 PLATE, BOTTOM
23-262-165-01 PLATE, ORNAMENTAL
33-262-166-01 SHEET, ADHESIVE, DOUBLE-FACE
43-262-162-01 HEAT SINK (MAIN)
53-262-167-01 PLATE, LIGHT GUIDE
0F901 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
0F902 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
#1 7-685-545-14 SCREW +BTP 3X6 TYPE2 N-S
#2 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1
5
#1
#1
#1
#2
#2
#2
#2
not supplied
not supplied
(LED board)
#2
F902 F901
2
3
4
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

17
XM-2200GTX
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
5-2. MAIN BOARD SECTION
51 3-262-163-01 PANEL, FRONT
52 A-3283-470-A MAIN BOARD, COMPLETE
53 3-249-785-01 HEAT SINK (SUB OUTPUT)
54 3-238-413-01 SHEET (TR), INSULATING
55 3-225-183-21 SCREW (+PSW.TT.3XL)
56 3-912-432-01 SCREW (+–B)
57 3-249-786-01 HEAT SINK (SUB POWER)
58 3-225-183-31 SCREW (+PSW.TT.3XL)
59 3-225-184-11 SCREW (+PS.TT.3XL)
60 3-912-431-01 SCREW (+–P)
61 3-253-537-01 SCREW (M5X11)
Q108 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q109 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q110 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q111 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q112 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q113 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q208 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q209 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q210 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q211 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q212 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q213 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
#2 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
51
52
53
53
58
59
61
60
56
56
59
59
57
54
54
55
55
A
A
#2
#2
not supplied
not supplied
Q109,110,113
Q209,210,213
Q208,211,212
Q108,111,112
Ver. 1.2
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

18
XM-2200GTX SECTION 6
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAINLED
NOTE:
•Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
•RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
•CAPACITORS
uF : µF
•COILS
uH : µH
LED BOARD
**********
< DIODE >
D808 8-719-045-51 LED SEC2422C (POWER/PROTECTOR)
*************************************************************
A-3283-470-A MAIN BOARD, COMPLETE
*********************
3-225-183-21 SCREW (+PSW.TT.3XL)
3-225-183-31 SCREW (+PSW.TT.3XL)
3-225-184-11 SCREW (+PS.TT.3XL)
3-238-413-01 SHEET (TR), INSULATING
3-249-785-01 HEAT SINK (SUB OUTPUT)
3-249-786-01 HEAT SINK (SUB POWER)
3-253-537-01 SCREW (M5X11)
3-912-431-01 SCREW (+–P)
3-912-432-01 SCREW (+–B)
7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
< CAPACITOR >
C101 1-126-794-11 ELECT 4.7uF 20% 50V
C102 1-126-794-11 ELECT 4.7uF 20% 50V
C103 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C104 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C105 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C106 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C107 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C109 1-126-796-11 ELECT 22uF 20% 35V
C110 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C111 1-126-794-11 ELECT 4.7uF 20% 50V
C112 1-126-794-11 ELECT 4.7uF 20% 50V
C116 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C117 1-126-794-11 ELECT 4.7uF 20% 50V
C118 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C123 1-126-786-11 ELECT 47uF 20% 16V
C124 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C126 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
C127 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C128 1-136-161-00 FILM 0.047uF 5% 50V
C130 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C131 1-128-499-11 ELECT 220uF 20% 16V
C132 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
C201 1-126-794-11 ELECT 4.7uF 20% 50V
C202 1-126-794-11 ELECT 4.7uF 20% 50V
C203 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C204 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C205 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C206 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C207 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C208 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C209 1-126-796-11 ELECT 22uF 20% 35V
C210 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C211 1-126-794-11 ELECT 4.7uF 20% 50V
C212 1-126-794-11 ELECT 4.7uF 20% 50V
C216 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C217 1-126-794-11 ELECT 4.7uF 20% 50V
C218 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C221 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C222 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C223 1-126-786-11 ELECT 47uF 20% 16V
C224 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C225 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C226 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
C227 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C228 1-136-161-00 FILM 0.047uF 5% 50V
C230 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C231 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C232 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
C301 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C302 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C303 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C304 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C305 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C701 1-126-796-11 ELECT 22uF 20% 35V
C801 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C802 1-126-786-11 ELECT 47uF 20% 16V
C803 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C804 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C805 1-126-794-11 ELECT 4.7uF 20% 50V
C806 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C860 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C861 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C901 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C902 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C903 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C904 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C905 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

19
XM-2200GTX
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
C906 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C907 1-126-786-11 ELECT 47uF 20% 16V
C908 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C909 1-130-471-00 MYLAR 0.001uF 5% 50V
C911 1-126-960-11 ELECT 1uF 20% 50V
C912 1-128-126-11 ELECT 100uF 20% 25V
C913 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C914 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C915 1-137-194-81 FILM 0.47uF 5% 50V
C916 1-137-372-11 MYLAR 0.022uF 5% 50V
C917 1-128-951-21 ELECT 2200uF 20% 16V
C918 1-128-951-21 ELECT 2200uF 20% 16V
C919 1-128-951-21 ELECT 2200uF 20% 16V
C920 1-128-951-21 ELECT 2200uF 20% 16V
C921 1-100-199-31 ELECT 2200uF 20% 50V
C922 1-100-199-31 ELECT 2200uF 20% 50V
C923 1-100-199-31 ELECT 2200uF 20% 50V
C924 1-100-199-31 ELECT 2200uF 20% 50V
C925 1-100-199-31 ELECT 2200uF 20% 50V
C926 1-100-199-31 ELECT 2200uF 20% 50V
C927 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C928 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C932 1-104-666-11 ELECT 220uF 20% 25V
C933 1-104-666-11 ELECT 220uF 20% 25V
C934 1-136-165-00 FILM 0.1uF 5% 50V
C935 1-136-165-00 FILM 0.1uF 5% 50V
C936 1-104-666-11 ELECT 220uF 20% 25V
C937 1-104-666-11 ELECT 220uF 20% 25V
C938 1-128-576-11 ELECT 100uF 20% 63V
C939 1-128-576-11 ELECT 100uF 20% 63V
C940 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C941 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C942 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C943 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
< TERMINAL BOARD >
CN801 1-694-983-11 TERMINAL BOARD (3P+FUSE)
(REM,+12V,GND,40A)
CN804 1-694-984-11 TERMINAL BOARD (SPEAKER OUT (L))
CN805 1-694-984-11 TERMINAL BOARD (SPEAKER OUT (R))
< CONNECTOR >
*CN803 1-691-785-11 PIN, CONNECTOR (PC BOARD) 4P
(HIGH LEVEL INPUT)
CN810 1-506-468-11 PIN, CONNECTOR 3P
< JACK >
CNJ801 1-779-078-41 JACK, PIN 4P (INPUT,OUTPUT (THROUGH))
< DIODE >
D104 8-719-065-06 DIODE 02DZ4.7-Y(TPH3)
D106 8-719-065-43 DIODE 02DZ15-Z(TPH3)
D107 8-719-065-43 DIODE 02DZ15-Z(TPH3)
D108 8-719-016-74 DIODE 1SS352
D109 8-719-016-74 DIODE 1SS352
D204 8-719-065-06 DIODE 02DZ4.7-Y(TPH3)
D206 8-719-065-43 DIODE 02DZ15-Z(TPH3)
D207 8-719-065-43 DIODE 02DZ15-Z(TPH3)
D208 8-719-016-74 DIODE 1SS352
D209 8-719-016-74 DIODE 1SS352
D701 8-719-065-18 DIODE 02DZ6.8-Y(TPH3)
D702 8-719-988-61 DIODE 1SS355TE-17
D703 8-719-988-61 DIODE 1SS355TE-17
D801 8-719-988-61 DIODE 1SS355TE-17
D802 8-719-988-61 DIODE 1SS355TE-17
D803 8-719-988-61 DIODE 1SS355TE-17
D820 8-719-988-61 DIODE 1SS355TE-17
D822 8-719-988-61 DIODE 1SS355TE-17
D827 8-719-988-61 DIODE 1SS355TE-17
D832 8-719-988-61 DIODE 1SS355TE-17
D901 8-719-065-18 DIODE 02DZ6.8-Y(TPH3)
D902 8-719-065-46 DIODE 02DZ16-Z(TPH3)
D905 8-719-079-00 DIODE FCH10A15
D906 8-719-079-01 DIODE FRH10A15
D909 8-719-054-55 DIODE 1SS306-TE85L
D910 8-719-054-55 DIODE 1SS306-TE85L
D911 8-719-079-92 DIODE 1SR159-200TE25
D912 8-719-079-92 DIODE 1SR159-200TE25
D913 8-719-065-46 DIODE 02DZ16-Z(TPH3)
D914 8-719-065-46 DIODE 02DZ16-Z(TPH3)
D915 8-719-065-42 DIODE 02DZ15-Y(TPH3)
D917 8-719-079-92 DIODE 1SR159-200TE25
D918 8-719-079-92 DIODE 1SR159-200TE25
D919 8-719-988-61 DIODE 1SS355TE-17
D920 8-719-988-61 DIODE 1SS355TE-17
< FUSE >
0F901 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
0F902 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
< IC >
IC101 8-759-385-17 IC NJM4580E(TE2)
IC102 8-759-385-17 IC NJM4580E(TE2)
IC202 8-759-385-17 IC NJM4580E(TE2)
IC301 8-759-909-71 IC BA4558F
IC302 8-759-909-71 IC BA4558F
IC901 6-703-643-01 IC TL594INSR
< PHOTO TRANSISTOR >
IC902 8-719-800-42 PHOTO TRANSISTOR TLP521-1-A
IC903 8-719-800-42 PHOTO TRANSISTOR TLP521-1-A
< JUMPER RESISTOR >
JR100 1-216-296-11 SHORT CHIP 0
JR103 1-216-296-11 SHORT CHIP 0
JR106 1-216-296-11 SHORT CHIP 0
JR107 1-216-296-11 SHORT CHIP 0
JR204 1-216-295-11 SHORT CHIP 0
JR205 1-216-295-11 SHORT CHIP 0
JR206 1-216-295-11 SHORT CHIP 0
JR207 1-216-295-11 SHORT CHIP 0
JR208 1-216-295-11 SHORT CHIP 0
JR215 1-216-295-11 SHORT CHIP 0
JR216 1-216-295-11 SHORT CHIP 0
JR217 1-216-295-11 SHORT CHIP 0
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacerque parune piéce
portant le numéro spécifié.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

20
XM-2200GTX
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
< COIL >
L901 1-456-139-12 COIL, CHOKE 35uH
L902 1-410-396-71 INDUCTOR, FERRITE BEAD
L903 1-456-139-12 COIL, CHOKE 35uH
L904 1-410-396-71 INDUCTOR, FERRITE BEAD
L905 1-410-396-71 INDUCTOR, FERRITE BEAD
L906 1-410-396-71 INDUCTOR, FERRITE BEAD
L907 1-410-396-71 INDUCTOR, FERRITE BEAD
L908 1-410-396-71 INDUCTOR, FERRITE BEAD
< PILOT LAMP >
PL801 1-517-156-11 LAMP, PILOT (65mA/14V)
< THERMISTOR (POSITIVE) >
PTH801 1-805-163-21 THERMISTOR, POSITIVE
< TRANSISTOR >
Q101 8-729-034-51 TRANSISTOR KTC3875
Q102 6-550-686-01 TRANSISTOR KTC2875-B-RTK
Q103 6-550-031-01 TRANSISTOR HN4C06J-GRBL(TE85R)
Q104 6-550-032-01 TRANSISTOR HN4A06J-GRBL(TE85R)
Q105 6-550-691-01 TRANSISTOR KTA1045L-Y
Q106 6-550-692-01 TRANSISTOR KTC2025L-Y
Q107 8-729-041-66 TRANSISTOR 2SC4015TV2
Q108 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q109 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q110 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q111 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q112 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q113 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q114 8-729-034-51 TRANSISTOR KTC3875
Q201 8-729-034-51 TRANSISTOR KTC3875
Q202 6-550-686-01 TRANSISTOR KTC2875-B-RTK
Q203 6-550-031-01 TRANSISTOR HN4C06J-GRBL(TE85R)
Q204 6-550-032-01 TRANSISTOR HN4A06J-GRBL(TE85R)
Q205 6-550-691-01 TRANSISTOR KTA1045L-Y
Q206 6-550-692-01 TRANSISTOR KTC2025L-Y
Q207 8-729-041-66 TRANSISTOR 2SC4015TV2
Q208 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q209 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q210 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q211 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q212 X-3383-027-1 FET PAIR ASSY (N) (IRF540) (set of 3)
Q213 X-3383-028-1 FET PAIR ASSY (P) (IRF9540) (set of 3)
Q214 8-729-034-51 TRANSISTOR KTC3875
Q701 6-550-690-01 TRANSISTOR KTA1661
Q702 8-729-034-51 TRANSISTOR KTC3875
Q801 8-729-034-50 TRANSISTOR KTA1504
Q802 8-729-034-51 TRANSISTOR KTC3875
Q803 8-729-034-50 TRANSISTOR KTA1504
Q804 8-729-034-51 TRANSISTOR KTC3875
Q805 8-729-034-50 TRANSISTOR KTA1504
Q806 8-729-034-51 TRANSISTOR KTC3875
Q807 8-729-034-51 TRANSISTOR KTC3875
Q808 8-729-034-51 TRANSISTOR KTC3875
Q809 6-550-693-01 TRANSISTOR KTC4373
Q901 8-729-052-82 TRANSISTOR KTA1281Y-AT
Q902 8-729-034-50 TRANSISTOR KTA1504
Q903 8-729-034-51 TRANSISTOR KTC3875
Q904 6-550-341-01 FET FKV550N
Q905 6-550-341-01 FET FKV550N
Q906 6-550-341-01 FET FKV550N
Q907 6-550-341-01 FET FKV550N
Q908 6-550-341-01 FET FKV550N
Q909 6-550-341-01 FET FKV550N
Q910 6-550-693-01 TRANSISTOR KTC4373
Q911 6-550-693-01 TRANSISTOR KTC4373
Q912 8-729-034-51 TRANSISTOR KTC3875
Q913 8-729-034-51 TRANSISTOR KTC3875
Q914 6-550-693-01 TRANSISTOR KTC4373
Q915 6-550-690-01 TRANSISTOR KTA1661
Q920 6-550-693-01 TRANSISTOR KTC4373
< RESISTOR >
R101 1-216-837-11 METAL CHIP 22K 5% 1/10W
R102 1-216-837-11 METAL CHIP 22K 5% 1/10W
R103 1-216-837-11 METAL CHIP 22K 5% 1/10W
R104 1-216-837-11 METAL CHIP 22K 5% 1/10W
R105 1-208-494-61 RES-CHIP 2.2K 2% 1/8W
R106 1-216-845-11 METAL CHIP 100K 5% 1/10W
R107 1-216-845-11 METAL CHIP 100K 5% 1/10W
R108 1-216-833-11 METAL CHIP 10K 5% 1/10W
R109 1-216-033-00 METAL CHIP 220 5% 1/10W
R110 1-216-845-11 METAL CHIP 100K 5% 1/10W
R111 1-216-845-11 METAL CHIP 100K 5% 1/10W
R120 1-216-077-11 RES-CHIP 15K 5% 1/10W
R121 1-216-843-11 METAL CHIP 68K 5% 1/10W
R122 1-216-295-11 SHORT CHIP 0
R123 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R124 1-216-045-00 METAL CHIP 680 5% 1/10W
R125 1-216-837-11 METAL CHIP 22K 5% 1/10W
R126 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R129 1-216-841-11 METAL CHIP 47K 5% 1/10W
R130 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R131 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R132 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R133 1-216-077-11 RES-CHIP 15K 5% 1/10W
R134 1-216-077-11 RES-CHIP 15K 5% 1/10W
R135 1-216-033-00 METAL CHIP 220 5% 1/10W
R136 1-216-033-00 METAL CHIP 220 5% 1/10W
R138 1-216-821-11 METAL CHIP 1K 5% 1/10W
R139 1-216-845-11 METAL CHIP 100K 5% 1/10W
R140 1-216-845-11 METAL CHIP 100K 5% 1/10W
R141 1-249-421-11 CARBON 2.2K 5% 1/4W
R142 1-249-428-11 CARBON 8.2K 5% 1/4W
R143 1-216-017-11 RES-CHIP 47 5% 1/10W
R144 1-216-017-11 RES-CHIP 47 5% 1/10W
R145 1-216-017-11 RES-CHIP 47 5% 1/10W
R146 1-216-017-11 RES-CHIP 47 5% 1/10W
R147 1-216-017-11 RES-CHIP 47 5% 1/10W
R148 1-216-017-11 RES-CHIP 47 5% 1/10W
R149 1-234-499-11 ENCAPSULATED COMPONENT 0.22X2 5W
R150 1-234-499-11 ENCAPSULATED COMPONENT 0.22X2 5W
R151 1-234-499-11 ENCAPSULATED COMPONENT 0.22X2 5W
R152 1-215-880-31 METAL OXIDE 10 5% 2W F
Ver. 1.2
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
