SERVICE MANUAL
Published by Sony Techno Create Corporation
Sony Corporation
BLU-RAY DISCTM/DVD HOME THEATRE SYSTEM
9-893-702-01
2013B33-1
© 2013.02
US Model
BDV-N7100W/N8100W
Canadian Model
BDV-N9100W
AEP Model
BDV-N7100W/N7100WL/N8100W/N9100W/N9100WL
UK Model
BDV-N7100W/N7100WL/N9100W
Australian Model
BDV-N9100W/N9100WL
PX Model
BDV-N7100W
Saudi Arabia Model
Middle East Model
BDV-N8100W/N9100W/N9900SH
Singapore Model
BDV-N7100W/N9100W/N9100WL
Indian Model
BDV-N7100W/N9100W
Ver. 1.0 2013.02
BDV-N7100W/N7100WL/N8100W/
N9100W/N9100WL/N9900SH
• BDV-N7100W/N7100WL/N8100W/N9100W/N9100WL/N9900SH
are composed of following models.
As service manuals are issued for each component model, please
refer to them.
COMPONENT MODEL NAME
BDV-N7100W BDV-N7100WL BDV-N8100W
Blu-ray discTM/
DVD receiver HBD-N7100W HBD-N7100WL HBD-N8100W
Front
speaker SS-TSB125 SS-TSB124 SS-TSB126
Center
speaker SS-CTB124 SS-CTB123 SS-CTB124
Surround
speaker SS-TSB129 SS-TSB128 SS-TSB129
Subwoofer SS-WSB125 SS-WSB124 SS-WSB125
Surround
amplifier TA-SA300WR TA-SA400WR TA-SA300WR
Wireless
transceiver EZW-RT50 EZW-RT50 EZW-RT50
BDV-N9100W BDV-N9100WL BDV-N9900SH
Blu-ray discTM/
DVD receiver HBD-N9100W HBD-N9100WL HBD-N9900SH
Front
speaker SS-TSB126 SS-TSB127 SS-TSB127
Center
speaker SS-CTB124 SS-CTB123 SS-CTB123
Surround
speaker SS-TSB131 SS-TSB130 SS-TSB130
Subwoofer SS-WSB125 SS-WSB124 SS-WSB124
Surround
amplifier TA-SA300WR TA-SA400WR TA-SA400WR
Wireless
transceiver EZW-RT50 EZW-RT50 EZW-RT50
Note: As for EZW-RT50, the part number has been described to this service manual.
– Refer to the next page for specifications –

BDV-N7100W/N7100WL/N8100W/N9100W/N9100WL/N9900SH
2
General
SPECIFICATIONS
Power requirements
US, Canadian models: 120 V AC, 60 Hz
PX model: 110 V - 240 V AC, 50/60 Hz
Other models: 220 V - 240 V AC, 50/60 Hz
Power consumption
On: 80 W (US, Canadian models)
On: 100 W (Other models)
Standby: 0.3 W (at the power
saving mode)
Dimensions (w/h/d) (approx.)
480 mm × 79 mm × 212 mm (19 in ×
3 1/8in × 8 3/8in) incl. projecting parts
480 mm × 79 mm × 226 mm (19 in ×
3 1/8in × 9 in) (with the wireless
transceiver inserted)
Mass (approx.)
3.1 kg (6 lb 14 oz)
Wireless transceiver (EZW-RT50)
Communication system
Wireless sound Specification version 1.0
Frequency band
5.736 GHz – 5.814 GHz
Modulation method
DSSS
Power requirements
DC 3.3 V, 300 mA
Dimensions (w/h/d) (approx.)
30 mm × 9 mm × 60 mm
(1 3/16 in × 3/8in × 2 3/8in)
Mass (approx.)
10 g (1/2oz)
Design and specifications are subject to
change without notice.
sStandby power consumption: 0.3W
sOver 85% power efficiency of amplifier
block is achieved with the full digital
amplifier, S-Master.
Unpacking
• Front speakers (2)
• Surround speakers (2)
• Center speaker (1)
• Subwoofer (1)
• Speaker cords (5, red/white/gray/blue/green)
• Speaker-bottom covers (2) (BDV-N8100W), (4) (BDV-N9100W/N9100WL/N9900SH)
• Bases (2) (BDV-N8100W), (4) (BDV-N9100W/N9100WL/N9900SH)
• Lower parts of the front and surround speakers (4) (BDV-N9100W/N9100WL/N9900SH)
• Lower parts of the front speakers (2) (BDV-N8100W)
• Screws (4) (BDV-N7100W/N7100WL), (10) (BDV-N8100W), (16) (BDV-N9100W/N9100WL/N9900SH)
• Stands (for surround speakers) (2) (BDV-N8100W)
• Stands (for front and surround speakers) (4) (BDV-N7100W/N7100WL)
• Screw hole covers (2) (BDV-N8100W), (4) (BDV-N7100W/N7100WL)
• Remote control (1)
• R03 (size AAA) batteries (2)
• AC plug adaptors (2) (PX model only)
• FM wire antenna (aerial) (1)
• Calibration mic (1)
• High Speed HDMI cable (1) (Saudi Arabia, Singapore, Middle East, Indian models only)
• Surround amplifier (1)
• Wireless transceivers (2)
• Operating Instructions (Except AEP, UK models only)
• Quick Setup Guide
• Speaker Installation Guide
• Reference Guide (AEP, UK models only)
– Refer to the next page for accessories list –

BDV-N7100W/N7100WL/N8100W/N9100W/N9100WL/N9900SH
3
ACCESSORIES
4-456-334-11 INSTRUCTION MANUAL (ENGLISH) (US, CND)
4-456-334-21 INSTRUCTION MANUAL (FRENCH) (CND)
4-456-334-31 INSTRUCTION MANUAL (SPANISH) (US)
4-456-334-41 INSTRUCTION MANUAL (ENGLISH) (PX)
4-456-335-11 INSTRUCTION MANUAL (ENGLISH) (UK, AUS)
4-456-335-31 INSTRUCTION MANUAL (FRENCH) (AEP)
4-456-335-41 INSTRUCTION MANUAL (SPANISH) (AEP)
4-456-335-51 INSTRUCTION MANUAL (GERMAN) (AEP)
4-456-335-61 INSTRUCTION MANUAL (DUTCH) (AEP)
4-456-335-71 INSTRUCTION MANUAL (ITALIAN) (AEP)
4-456-335-81 INSTRUCTION MANUAL (POLISH) (AEP)
4-456-336-11 INSTRUCTION MANUAL (PORTUGUESE) (AEP)
4-456-336-21 INSTRUCTION MANUAL (SWEDISH) (AEP)
4-456-336-31 INSTRUCTION MANUAL (DANISH, FINNISH)
(AEP)
4-456-336-41 INSTRUCTION MANUAL (GREEK) (AEP)
4-456-336-51 INSTRUCTION MANUAL (CZECH, HUNGARIAN)
(AEP)
4-456-336-61 INSTRUCTION MANUAL (TURKISH) (AEP)
4-456-336-71 INSTRUCTION MANUAL (SLOVAKIAN) (AEP)
4-456-337-11 INSTRUCTION MANUAL (ENGLISH) (SP)
4-456-337-21 INSTRUCTION MANUAL (FRENCH, PERSIAN)
(N8100W: E3/N9100W: E3)
4-456-337-31 INSTRUCTION MANUAL (ARABIC)
(N8100W: E3, EA/N9100W: E3, EA)
4-456-337-41 INSTRUCTION MANUAL
(TRADITIONAL CHINESE) (SP)
4-456-337-71 INSTRUCTION MANUAL (ENGLISH)
(N7100W: E12/N8100W: E3, EA/
N9100W: E3, E12, EA)
4-456-337-81 INSTRUCTION MANUAL (ENGLISH, ARABIC)
(N9900SH)
4-456-337-91 INSTRUCTION MANUAL (FRENCH, PERSIAN)
(N9900SH: E3)
Ref. No. Part No. Description Remark
– Continued on next page –
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : Middle East model
E12 : Indian model
EA : Saudi Arabia model
SP : Singapore model

BDV-N7100W/N7100WL/N8100W/N9100W/N9100WL/N9900SH
4
501 1-491-967-11 REMOTE COMMANDER (RM-ADP092)
(Remote control) (N7100W: US, PX/
N8100W: US/N9100W: CND)
501 1-491-968-11 REMOTE COMMANDER (RM-ADP093)
(Remote control) (N7100W: AEP, UK/
N8100W: AEP/N9100W: AEP, UK, AUS)
501 1-491-969-11 REMOTE COMMANDER (RM-ADP093W)
(Remote control) (N7100WL/N9100WL: AEP, AUS)
501 1-491-972-11 REMOTE COMMANDER (RM-ADP095)
(Remote control) (N7100W: E12, SP/
N8100W: E3, EA/N9100W: E3, E12, EA, SP)
501 1-491-973-11 REMOTE COMMANDER (RM-ADP095W)
(Remote control) (N9100WL: SP/N9900SH)
502 1-754-060-21 ANTENNA (FM) (FM wire antenna (aerial))
(EXCEPT US, CND, PX)
502 1-793-184-41 CONNECTOR (F TYPE ADAPTOR)
(FM wire antenna (aerial)) (US, CND, PX)
503 1-542-903-11 MEASUREMENT MIC (STEREO) (Calibration mic)
504 1-489-359-11 RF MODULATOR (EZW-RT50 UC)
(Wireless transceiver) (1 piece) (AEP, UK)
504 1-489-360-11 RF MODULATOR (EZW-RT50 UC2)
(Wireless transceiver) (1 piece) (US, CND, PX)
504 1-489-361-11 RF MODULATOR (EZW-RT50 AU)
(Wireless transceiver) (1 piece)
(E3, E12, EA, SP, AUS)
505 1-846-401-11 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N7100W: US, E12, SP, PX)
505 1-846-401-31 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N7100W: AEP, UK)
505 1-846-402-11 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N8100W: US, E3, EA)
505 1-846-402-31 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N8100W: AEP)
505 1-846-403-11 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N9100W: CND, E3, E12, EA, SP, AUS)
505 1-846-403-31 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N9100W: AEP, UK)
505 1-846-410-11 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N7100WL)
505 1-846-412-11 CABLE (WITH CONNECTOR) (SPEAKER)
(Speaker cords (5, red/white/gray/blue/green))
(N9100WL/N9900SH)
506 4-446-105-01 COVER (NJ-TB) (Speaker-bottom cover) (1 piece)
(N8100W)
506 4-446-105-01 COVER (NJ-TB) (Speaker-bottom cover) (1 piece)
(for Black) (N9100W)
506 4-446-105-11 COVER (NJ-TB) (Speaker-bottom cover) (1 piece)
(for White) (N9100WL/N9900SH)

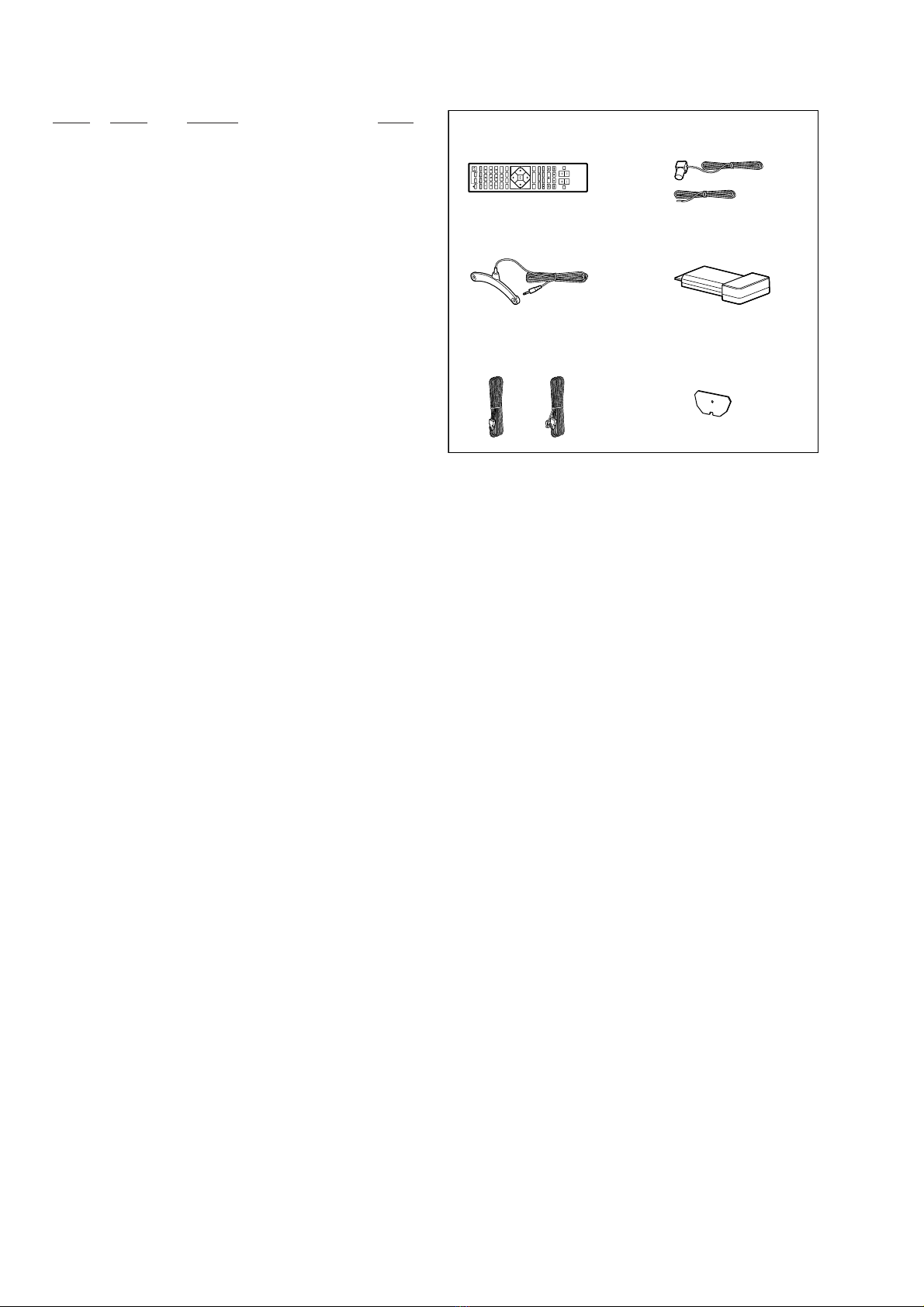

Ref. No. Part No. Description Remark
or
or
501
Remote control (1)
502
FM wire antenna (aerial) (1)
503
Calibration mic (1)
504
Wireless transceivers (2)
505
Speaker cords
(5, red/white/gray/blue/green)
506
Speaker-bottom covers
(2: BDV-N8100W)
(4: BDV-N9100W/N9100WL/N9900SH)
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : Middle East model
E12 : Indian model
EA : Saudi Arabia model
SP : Singapore model
• Color variations
BDV-N7100W/N8100W/N9100W : Black
BDV-N7100WL/N9100WL/N9900SH : White

BDV-N7100W/N7100WL/N8100W/N9100W/N9100WL/N9900SH
5
507 A-1904-567-A BASE ASSY (Base) (1 piece) (N8100W/N9100W)
507 A-1904-568-A BASE ASSY (Base) (1 piece) (N9100WL/N9900SH)
508 4-162-924-11 FOOT (ST) (1 piece)
(N8100W/N9100W/N9100WL/N9900SH)
509 A-1904-565-A STAND ASSY (TB) (Lower parts of the speaker)
(1 piece) (N8100W/N9100W)
509 A-1904-566-A STAND ASSY (TB) (Lower parts of the speaker)
(1 piece) (N9100WL/N9900SH)
510 4-444-970-01 STAND (NJ-MF) (Stand) (1 piece)
(N7100W/N8100W)
510 4-444-970-11 STAND (NJ-MF) (Stand) (1 piece) (N7100WL)
511 2-893-646-01 FOOT (1 piece) (N7100W/N7100WL/N8100W)
512 4-416-140-01 COVER, STAND SCREW (Screw hole cover)
(1 piece) (N7100W/N8100W)
512 4-446-125-01 COVER, STAND SCREW (W) (Screw hole cover)
(1 piece) (N7100WL)
513 7-682-576-09 SCREW +B 5X12 (1 piece)
514 1-835-855-31 CORD WITH CONNECTOR (HDMI CABLE)
(High speed HDMI cable) (E3, E12, EA, SP)
Ref. No. Part No. Description Remark
507
Bases
(2: BDV-N8100W)
(4: BDV-N9100W/N9100WL/N9900SH)
509
Lower parts of the front speakers
(2: BDV-N8100W)
Lower parts of the front and surround
speakers
(4: BDV-N9100W/N9100WL/N9900SH)
508
508 508
508
508
508
510
Stands (for surround speakers)
(2: BDV-N8100W)
Stands (for front and surround speakers)
(4: BDV-N7100W/N7100WL)
512
Screw hole covers
(2: BDV-N8100W)
(4: BDV-N7100W/N7100WL)
513
Screws
(4: BDV-N7100W/N7100WL)
(10: BDV-N8100W)
(16: BDV-N9100W/N9100WL/N9900SH)
514
High Speed HDMI cable (1)
(E3, E12, EA, SP models only)
511
511
511
511
511
511
511
511
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : Middle East model
E12 : Indian model
EA : Saudi Arabia model
SP : Singapore model
• Color variations
BDV-N7100W/N8100W/N9100W : Black
BDV-N7100WL/N9100WL/N9900SH : White

BDV-N7100W/N7100WL/N8100W/N9100W/N9100WL/N9900SH
REVISION HISTORY
Ver. Date Description of Revision
1.0 2013.02 New
