SERVICE MANUAL
LEVEL 3
Link
PRINTED WIRING BOARDS REPAIR PARTS LISTSCHEMATIC DIAGRAMS PRINTED WIRING BOARDS REPAIR PARTS LISTSCHEMATIC DIAGRAMS
Link
Revision History
Revision History
Ver 1.0 2003. 12
The information that is not described in this Service Manual is described
in the LEVEL 2 Service Manual.
When repairing,use this manual together with LEVEL 2 Service Manual.
•For ADJUSTMENTS (SECTION 6), refer to SERVICE MANUAL, ADJ (987629351.pdf).
•For INSTRUCTION MANUAL, refer to SERVICE MANUAL, LEVEL 1 (987629341.pdf).
•Reference No. search on printed wiring boards is available.
• Changing the data is needs when IC4501 is replaced, make sure to follow the items of “CHANGE OF IC4501”
DIGITAL VIDEO CAMERA RECORDER
Contents of LEVEL 2 Service Manual
1. SERVICE NOTE
2. DISASSEMBLY
3. BLOCK DIAGRAMS
4. PRINTED WIRING BOARDS AND
SCHEMATIC DIAGRAMS
5. REPAIR PARTS LIST
OVERALL
POWER
CD-472, PD-205, SI-041 BOARD,
FP-792, FP-228, FP-299, FP-300,
FP-301, FP-302, FP-802
FLEXIBLE BOARD
EXPLODED VIEWS
ELECTRICAL PARTS LIST
How to use
Acrobat Reader
How to use
Acrobat Reader
M2000/M2200 MECHANISM
US Model
DCR-TRV360/TRV460
Canadian Model
DCR-TRV460
AEP Model
UK Model
East European Model
North European Model
Australian Model
DCR-TRV460E
E Model
DCR-TRV361/TRV460/TRV460E/TRV461E
DCR-TRV360/TRV361/TRV460/TRV460E/TRV461E
RMT-831
Photo: DCR-TRV460

— 2 —
DCR-TRV360/TRV361/TRV460/TRV460E/TRV461E
TABLE OF CONTENTS
1. SERVICE NOTE
1-5. Change of IC4501 ···························································1-6
4. PRINTEDWIRING BOARDS AND
SCHEMATIC DIAGRAMS
4-2. Schematic Diagrams························································4-5

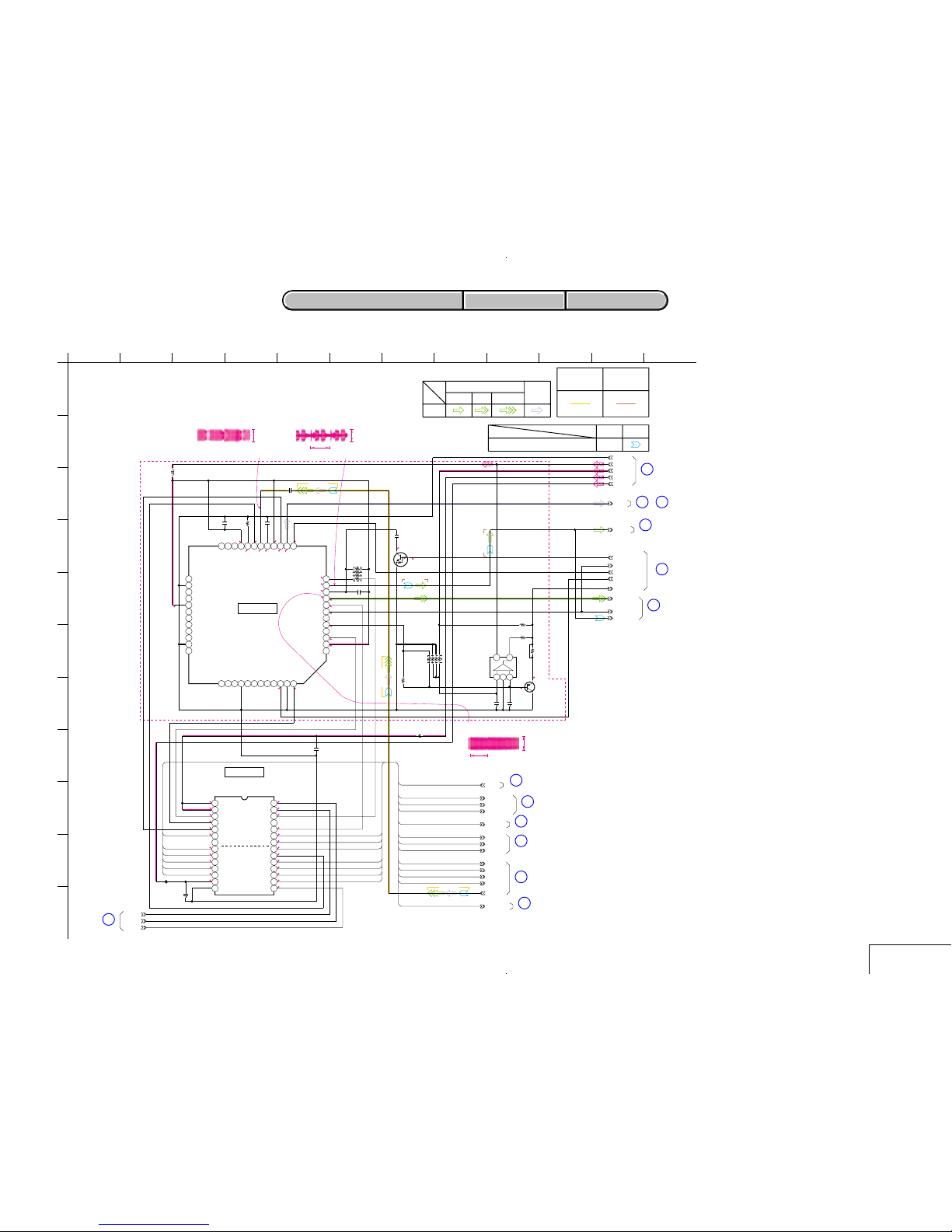

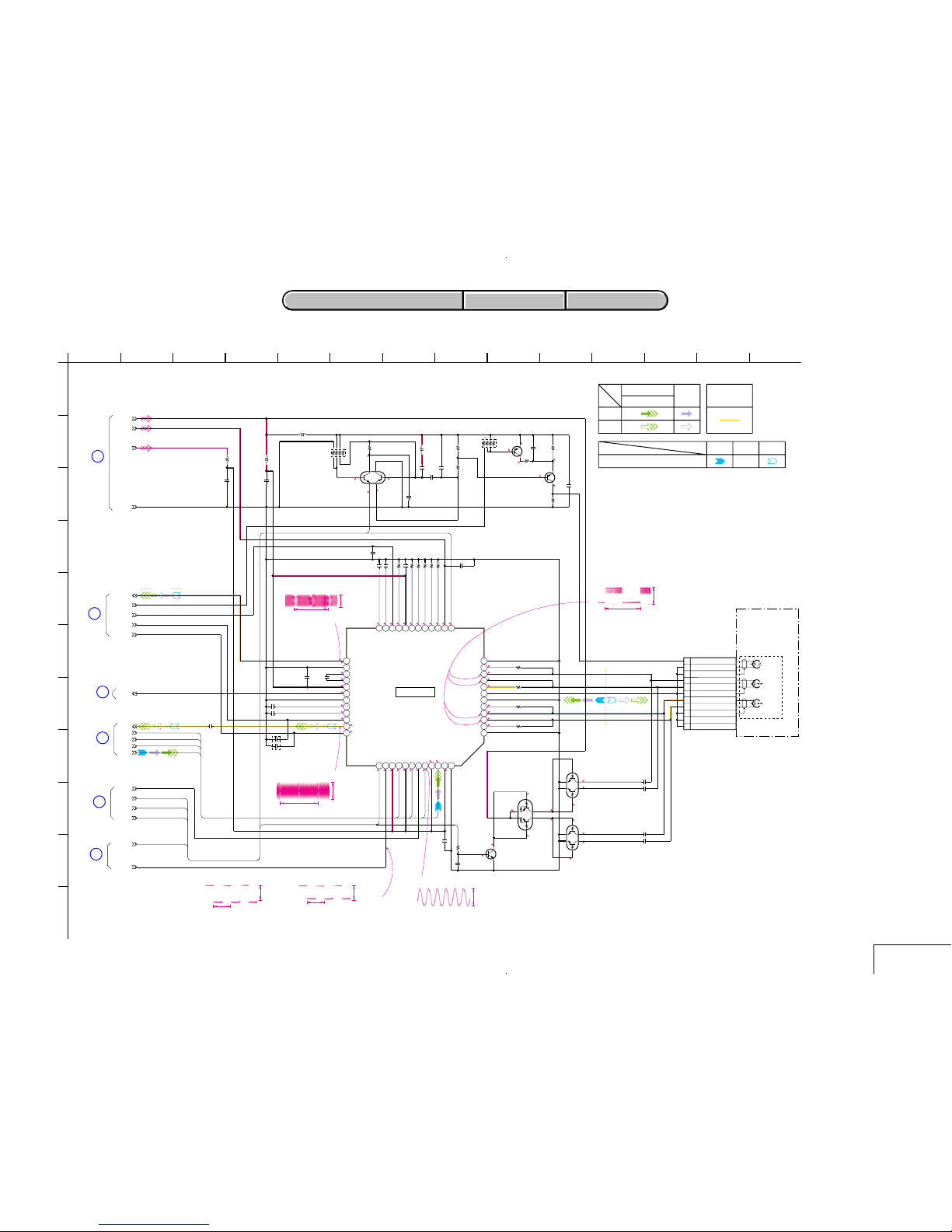

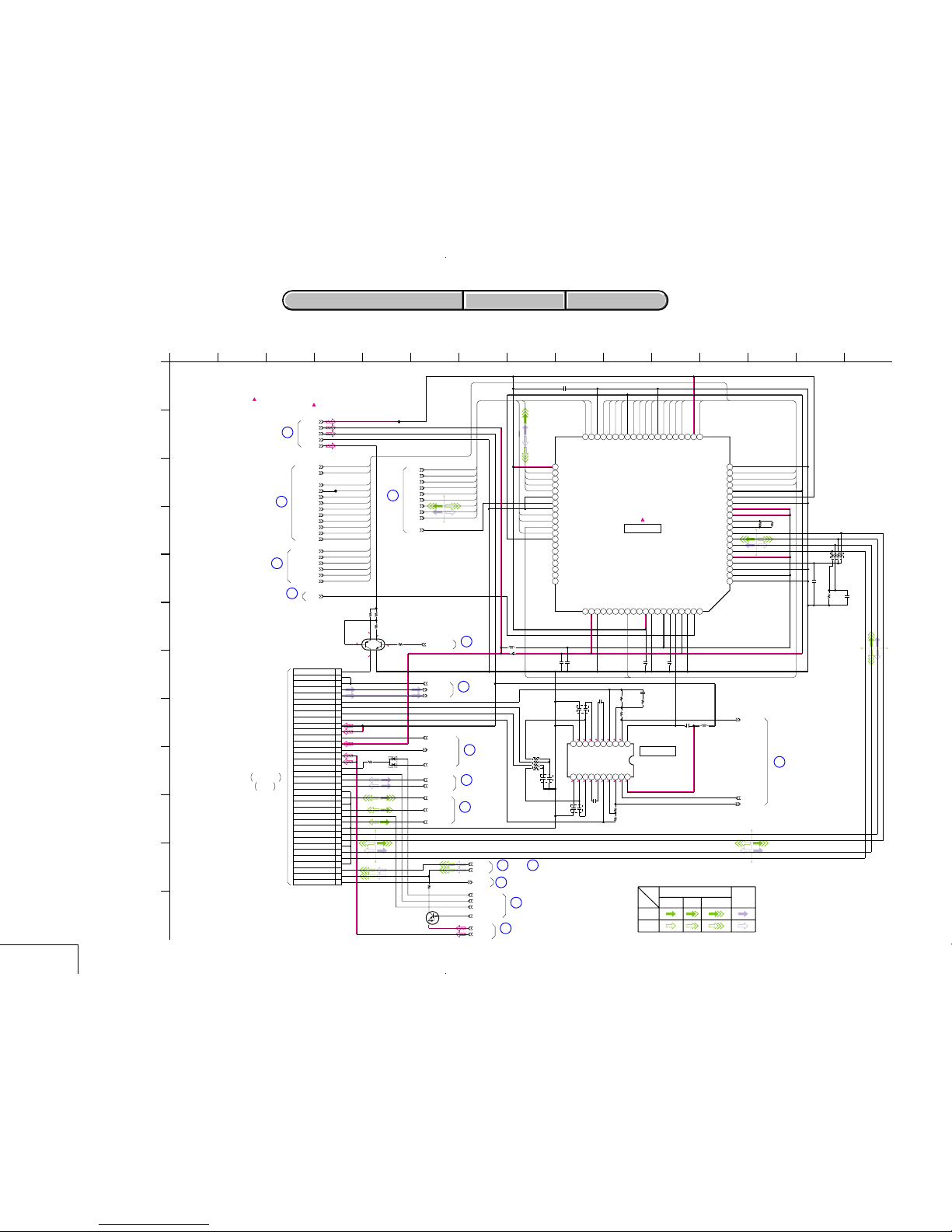

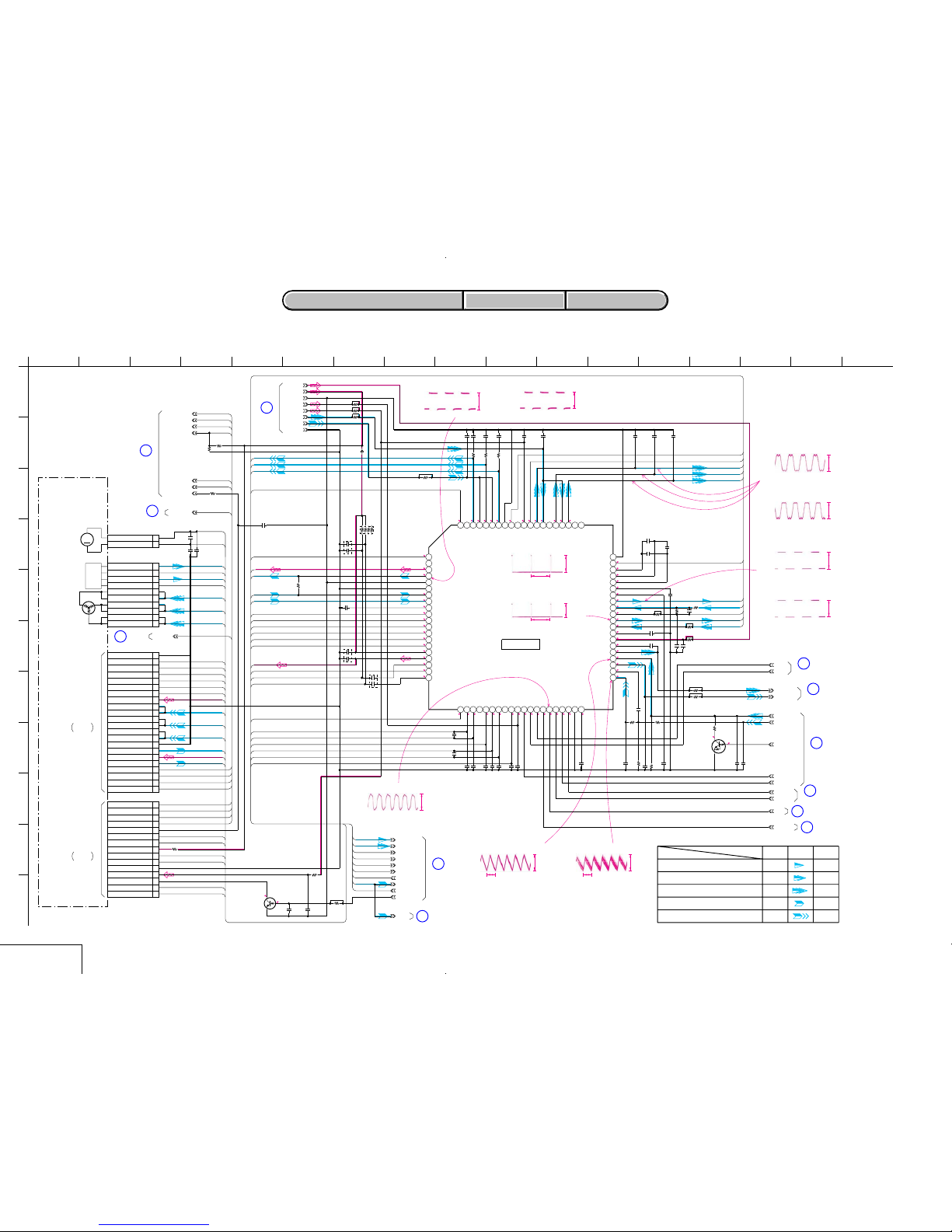

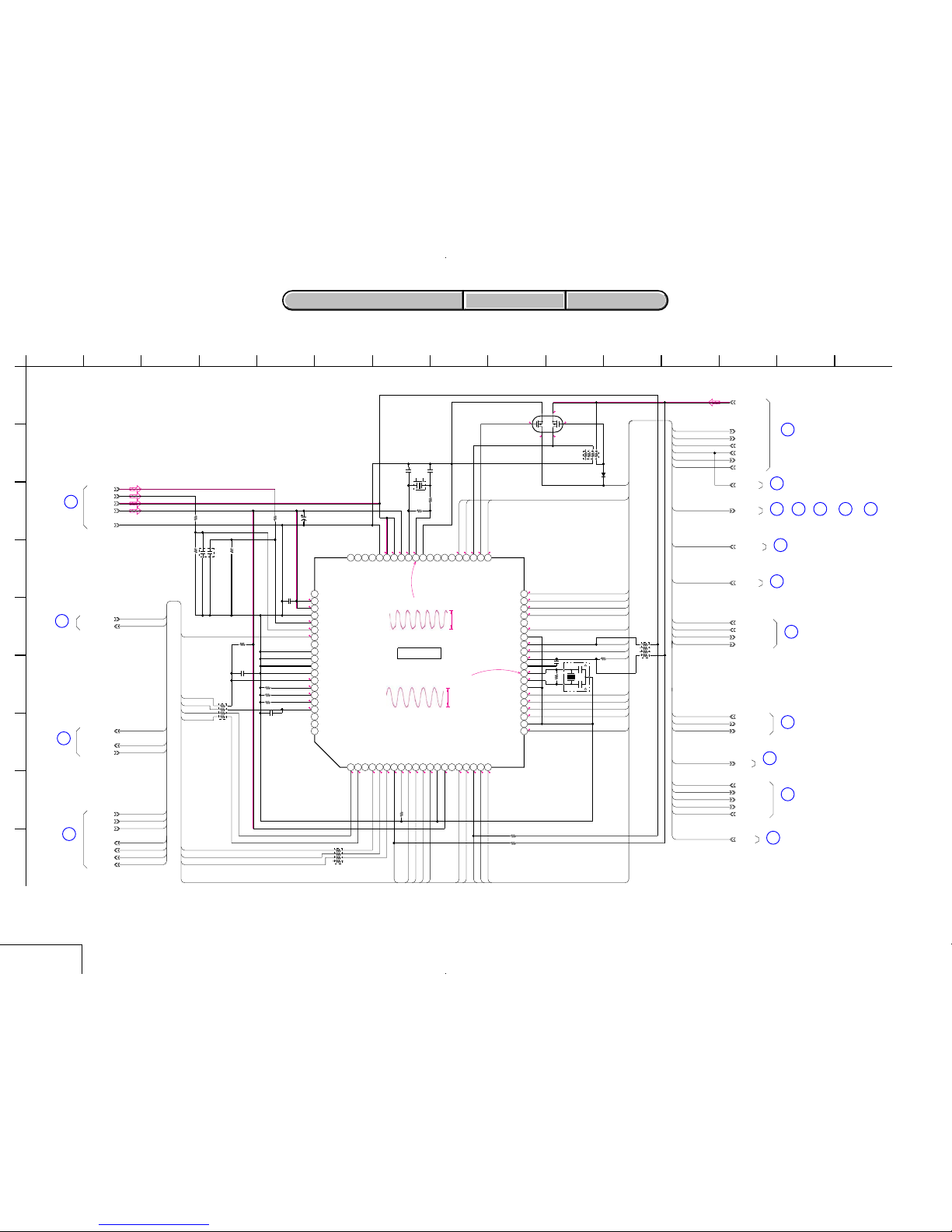

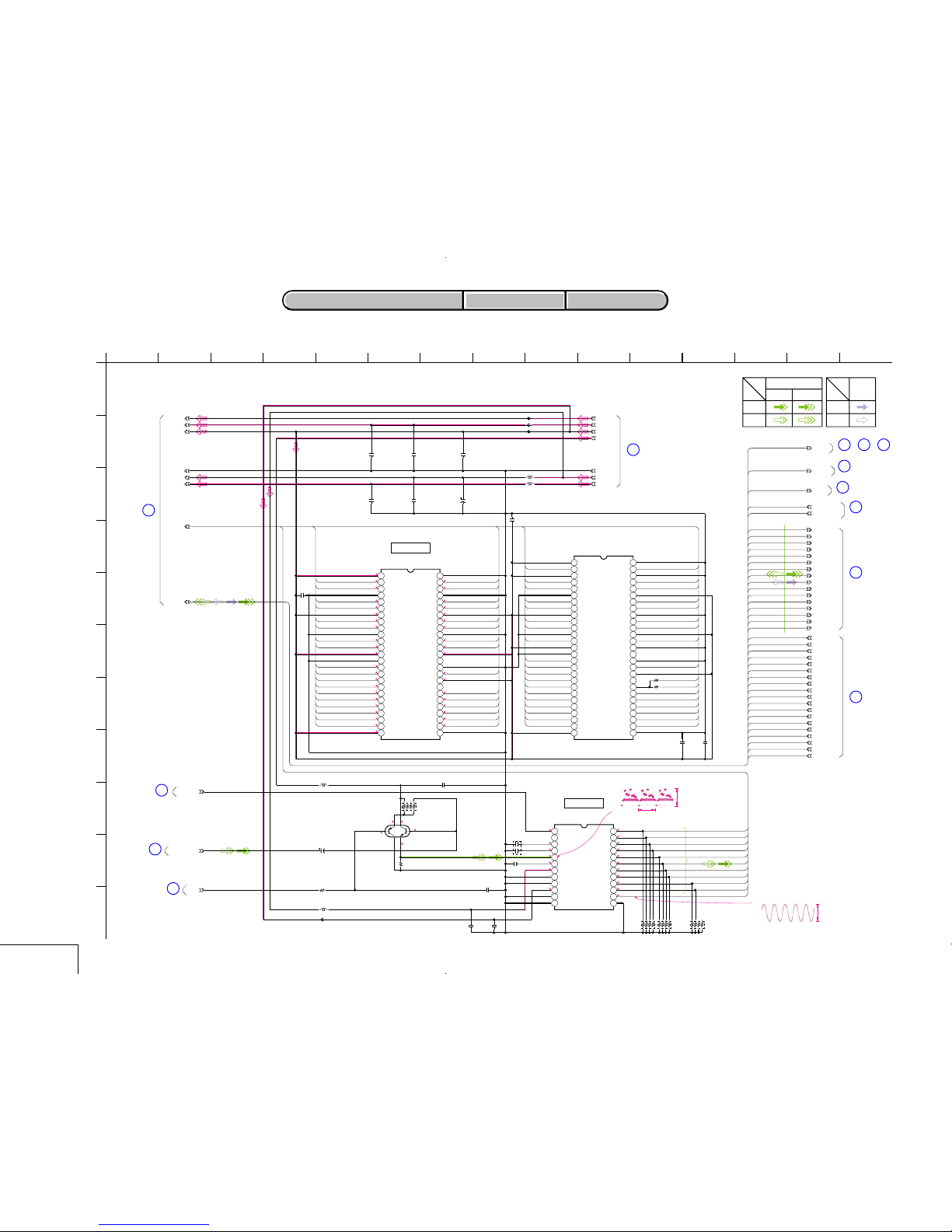

VC-345 (1/18)
(A/D CONVERTER, TIMING GENERATOR)··············4-9
VC-345 (2/18)
(VIDEO/AUDIO DSP, LENS CONTROL) ··················4-11
VC-345 (3/18) (MEMORY, A/D CONVERTER) ·········4-13
VC-345 (4/18) (LENS DRIVE) ····································4-15
VC-345 (5/18) (Hi8/Std8 VTR PROCESS) ··················4-17
VC-345 (6/18) (VIDEO IN/OUT)·································4-19
VC-345 (7/18) (DV SIGNAL PROCESS) ····················4-21
VC-345 (8/18) (REC/PB AMP) ····································4-23
VC-345 (9/18) (DV INTERFACE, STEADYSHOT)····4-25
VC-345 (10/18) (Hi8/Std8 PB AMP) ····························4-27
VC-345 (11/18)
(USB/MODE CONTROL, MS INTERFACE)··············4-29
VC-345 (12/18) (MEMORY) ········································4-31
VC-345 (13/18) (HI CONTROL)··································4-33
VC-345 (14/18) (CAMERA/MECHA CONTROL) ·····4-35
VC-345 (15/18) (SERVO) ·············································4-37
VC-345 (16/18) (AUDIO) ·············································4-39
VC-345 (17/18) (DC CONTROL) ································4-41
VC-345 (18/18) (CONNECTOR) ·································4-43
4-3. Printed Wiring Boards ···················································4-55
VC-345 ··········································································4-59
4-4. Mounted Parts Location ················································4-69
5. REPAIR PARTS LIST
5-2. Electrical Parts List ·······················································5-16
Section Title Page

1-6E
DCR-TRV360/TRV361/TRV460/TRV460E/TRV461E
IC4501
VC-345 BOARD (SIDE B)
156 : A
164 : B
1-5. CHANGE OF IC4501
Due to the change of IC4501 (mechanism control), there are two
types of versions A and B.
The EEPROM data are different according to respective versions.
Also, the IC4501 version can be checked bya discrimination method
by the model name or by the adjusting remote commander.
Note 1: Changing the version does not make any changes in
schematic diagrams and the rest.
Note 2: Makeit sure to confirm the versionafterreplacingIC4501.
1. Discrimination method by the model name of
IC4501 (mechanism control)
2. Discrimination method by adjusting remote
commander
Version check method:
1) Select page: 3, and address: FF.
2) The version of IC4501 can be checked from the displayed data.
Data Version
11 A
12 B
Data change method:
1) Select page: 0, address: 01, and set data: 01.
2) Select page: 1C, and input the data in the following table.
Note: To write in the non-volatile memory (EEPROM), press the
PAUSE button of the adjustment remote commander each
time to set the data.
3) Select page: 0, address: 01, and set data: 00.
Version AB
Address
D0 00 42

DCR-TRV360/TRV361/TRV460/TRV460E/TRV461E
VC-345 BOARD (4/18) (LENS DRIVE)
VC-345 BOARD (11/18)
(USB/MODE CONTROL, MS INTERFACE)
VC-345 BOARD (5/18) ( Hi8/Std8 VTR PROCESS )
VC-345 BOARD (6/18) (VIDEO IN/OUT)
VC-345 BOARD (8/18) (REC/PB AMP)
VC-345 BOARD (9/18)
(DV INTERFACE, STEDYSHOT)
VC-345 BOARD (10/18) (Hi8/Std8 PB AMP)
VC-345 BOARD (15/18) (SERVO)
VC-345 BOARD (16/18) (AUDIO)
VC-345 BOARD (17/18) (DC CONTROL)
VC-345 BOARD (18/18) (CONNECTOR)
VC-345 BOARD (2/18)
(VIDEO/AUDIO DSP, LENS CONTROL)
VC-345 BOARD (1/18)
(A/D CONVERTER, TIMING GENERATOR)
VC-345 BOARD (3/18)
(MEMORY, A/D CONVERTER) VC-345 BOARD (12/18) (MEMORY)
VC-345 BOARD (13/18) (HI CONTROL)
VC-345 BOARD (7/18) (DV SIGNAL PROCESS)
VC-345 BOARD (14/18)
(CAMERA/MECHA CONTROL)
VC-345 BOARD (4/18) (LENS DRIVE)
VC-345 BOARD (11/18)
(USB/MODE CONTROL, MS INTERFACE)
VC-345 BOARD (5/18) ( Hi8/Std8 VTR PROCESS )
VC-345 BOARD (6/18) (VIDEO IN/OUT)
VC-345 BOARD (8/18) (REC/PB AMP)
VC-345 BOARD (9/18)
(DV INTERFACE, STEDYSHOT)
VC-345 BOARD (10/18) (Hi8/Std8 PB AMP)
VC-345 BOARD (15/18) (SERVO)
VC-345 BOARD (16/18) (AUDIO)
VC-345 BOARD (17/18) (DC CONTROL)
VC-345 BOARD (18/18) (CONNECTOR)
VC-345 BOARD (2/18)
(VIDEO/AUDIO DSP, LENS CONTROL)
VC-345 BOARD (1/18)
(A/D CONVERTER, TIMING GENERATOR)
VC-345 BOARD (3/18)
(MEMORY, A/D CONVERTER) VC-345 BOARD (12/18) (MEMORY)
VC-345 BOARD (13/18) (HI CONTROL)
VC-345 BOARD (7/18) (DV SIGNAL PROCESS)
VC-345 BOARD (14/18)
(CAMERA/MECHA CONTROL)
Link
Link
4-2. SCHEMATIC DIAGRAMS
COMMON NOTE FOR SCHEMATIC DIAGRAMS
COMMON NOTE FOR SCHEMATIC DIAGRAMS

4-5
DCR-TRV360/TRV361/TRV460/TRV460E/TRV461E
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
Link
(For schematic diagrams)
•All capacitors are in µF unless otherwise noted. pF : µ
µF. 50Vor lessare notindicated exceptfor electrolytics
and tantalums.
•Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
•Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum
capacitor, Because it is damaged by the heat.
•Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A2520
•Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
•Parts with ★differ according to the model/destination.
Refer to the mount table for each function.
•Allvariableand adjustableresistors havecharacteristic
curve B, unless otherwise noted.
•Signal name
XEDIT→EDIT PB/XREC →PB/REC
•2: non flammable resistor
•5: fusible resistor
•C: panel designation
•A: B+ Line
•B: B– Line
•J: IN/OUT direction of (+,–) B LINE.
•C: adjustment for repair.
•A: VIDEO SIGNAL (ANALOG)
•A: AUDIO SIGNAL (ANALOG)
•A: VIDEO/AUDIO SIGNAL
•A: VIDEO/AUDIO/SERVO SIGNAL
•A: VIDEO/SERVO SIGNAL
•A: SERVO SIGNAL
•Circled numbers refer to waveforms.
(Measuring conditions voltage and waveform)
•Voltages and waveforms are measured between the
measurement points and ground when camera shoots
colorbarchart ofpatternbox. Theyarereferencevalues
and reference waveforms.
(VOM of DC 10 MΩinput impedance is used)
•Voltage values change depending upon input
impedance of VOM used.)
1. Connection
2. Adjust the distance so that the output waveform of
Fig. a and the Fig. b can be obtain.
When indicating parts by reference number, please
include the board name.
Kinds of capacitor
Case size
External dimensions (mm)
Note : The components identified by mark 0or
dotted line with mark 0are critical for safety.
Replace only with part number specified.
Yellow
AABBA=B
Fig. a (Video output terminal output waveform)
H
Cyan
Green
White
Magenta
Red
Blue
Fig.b (Picture on monitor TV)
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in each block)
Note : Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifie.
Front of the lens
1 m
Pattern box

DCR-TRV360/TRV361/TRV460/TRV460E/TRV461E
For Schematic Diagram
•Refer to page 4-59 for printed wiring board.

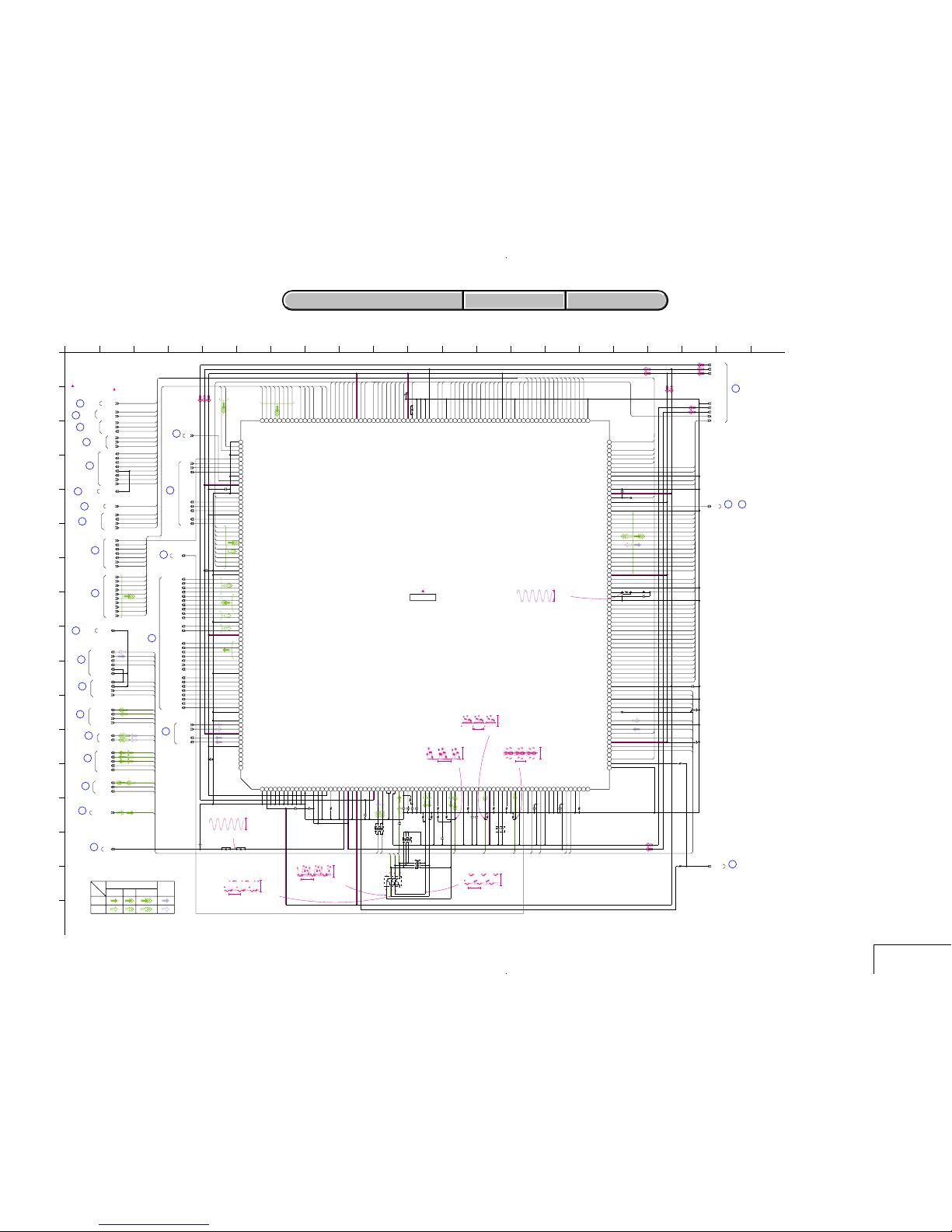

4-2. SCHEMATIC DIAGRAMS VC-345 BOARD SIDE A VC-345 BOARD SIDE B
4-2. SCHEMATIC DIAGRAMS VC-345 BOARD SIDE A VC-345 BOARD SIDE B
4-9 4-10
VC-345 (1/18)
