Sony Handycam Vision CCD-TRV32 User manual

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
RMT-713
US Model
CCD-TRV32/TRV52/TRV53/
TRV312/TRV512(NTSC)
Canadian Model
CCD-TRV53(NTSC)
AEP Model
UK Model
CCD-TRV14E/TRV24E(PAL)
E Model
CCD-TRV34/TRV34PK/TRV44(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
Australian Model
CCD-TRV14E/TRV24E/TRV44E(PAL)
Hong Kong Model
CCD-TRV34/TRV44(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
Tourist Model
CCD-TRV34(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
SERVICE MANUAL
VIDEO CAMERA RECORDER
MICROFILM
B MECHANISM
Photo : CCD-TRV53
SPECIFICATIONS
For MECHANISM ADJUSTMENT, refer to
the “8mm Video MECHANICAL
ADJUSTMENT MANUAL ” (9-973-801-11).
• CCD-TRV34PK is model that carring bag are added
in CCD-TRV34.
• CCD-TRV34PK is different from CCD-TRV34 only
in the accessory and packing materials.
— Continued on next page —
All manuals and user guides at all-guides.com
all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

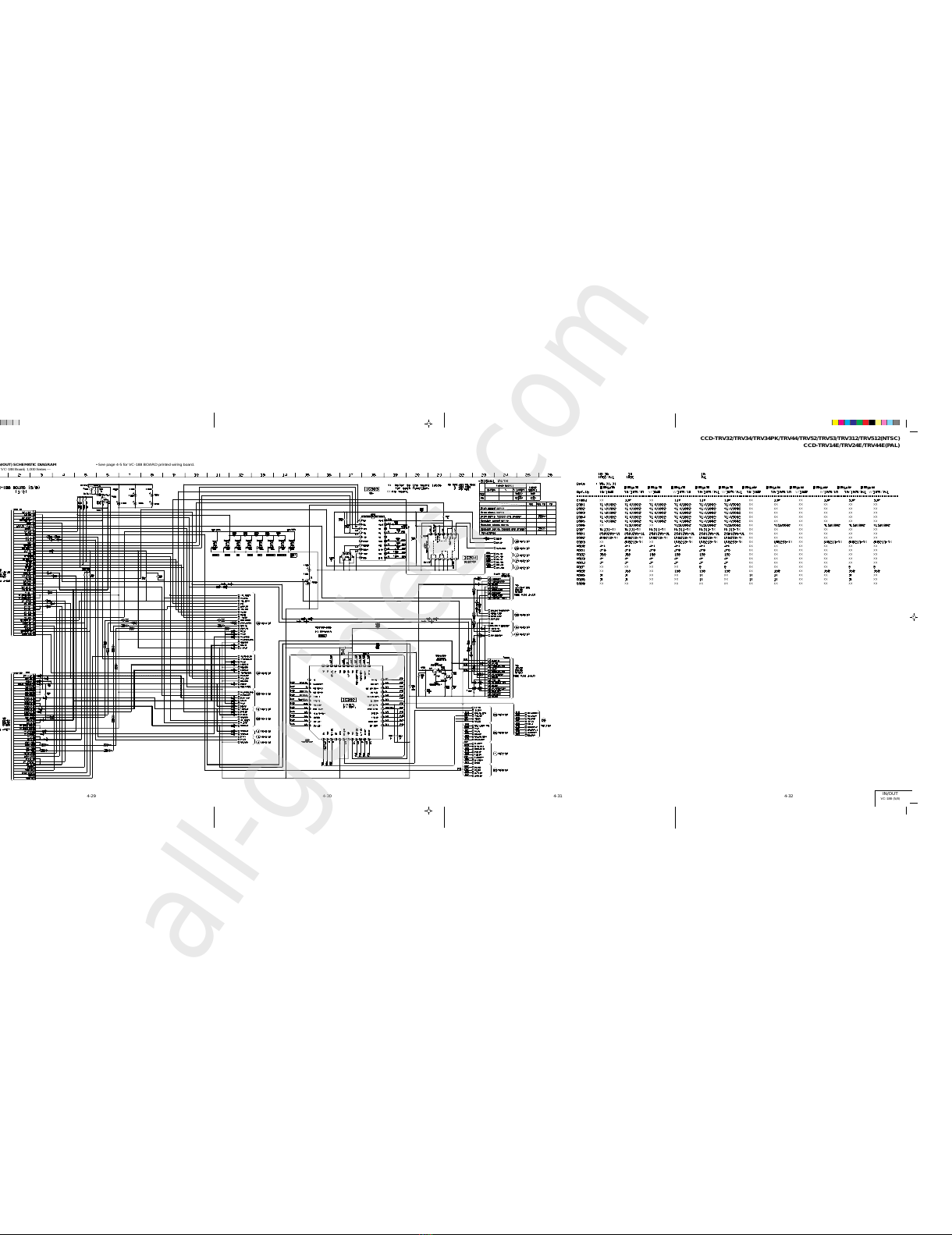

VC-188 (CAMERA 1) SCHEMATIC DIAGRAM
— Ref. No. VC-188 Board; 1,000 Series —
4-13 4-14 4-15 4-16
CAMERA 1
VC-188 (1/8)
• See page 4-5 for VC-188 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

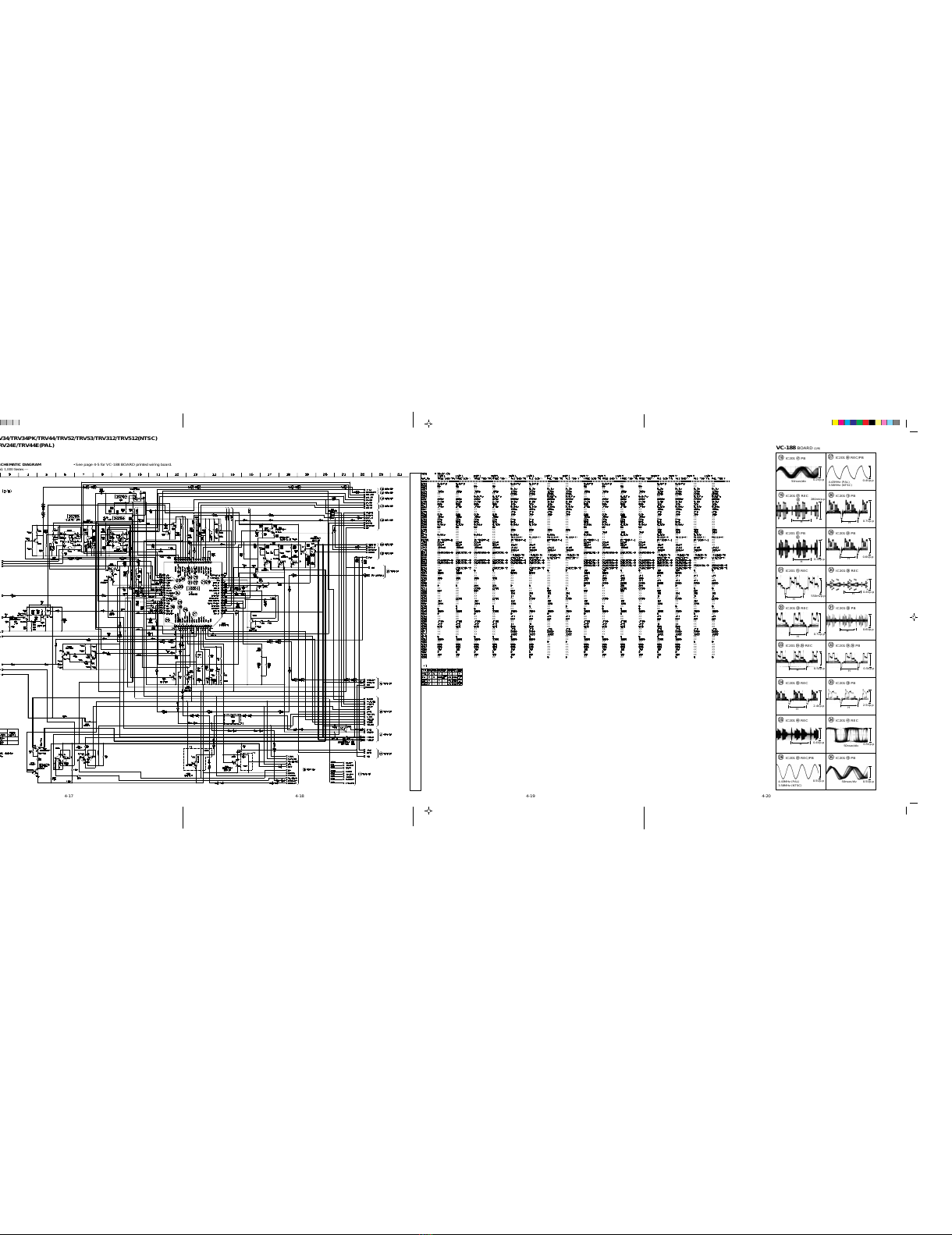

VC-188 (CAMERA 2) SCHEMATIC DIAGRAM
— Ref. No. VC-188 Board; 1,000 Series —
4-17 4-18 4-19 4-20
CAMERA 2
VC-188 (2/8)
VC-188 BOARD (2/8)
!• IC201 $¶ PB

!ª IC201 %¡ REC
%™
@º IC201 %¡ PB
%™
50nsec/div
@¶ IC201 %§ REC/PB
@• IC201 !∞ PB
@ª IC201 @¢ PB
@¡ IC201 !∞ REC
@™ IC201 @¢ REC
@£ IC201 #¢,#§ REC
0.5Vp-p
H
#º IC201 @§ REC
#¡ IC201 @§ PB
#™ IC201 #¢,#§ PB
0.5Vp-p
H
4.43MHz (PAL)
3.58MHz (NTSC)
@¢ IC201 #• REC
#£ IC201 #• PB
@∞ IC201 $ª REC
#¢ IC201 $¡ REC
@§ IC201 %¢ REC/PB
#∞ IC201 $£ PB
0.2Vp-p
280mVp-p
H
0.3Vp-p
H
550mVp-p
H
0.7Vp-p
H
2.4Vp-p
H
0.4Vp-p
H
0.5Vp-p
4.43MHz (PAL)
3.58MHz (NTSC)
0.4Vp-p
0.7Vp-p
H
0.6Vp-p
H
0.4Vp-p
H
0.6Vp-p
H
2.5Vp-p
H
0.5Vp-p
50nsec/div
0.5Vp-p
50nsec/div
• See page 4-5 for VC-188 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

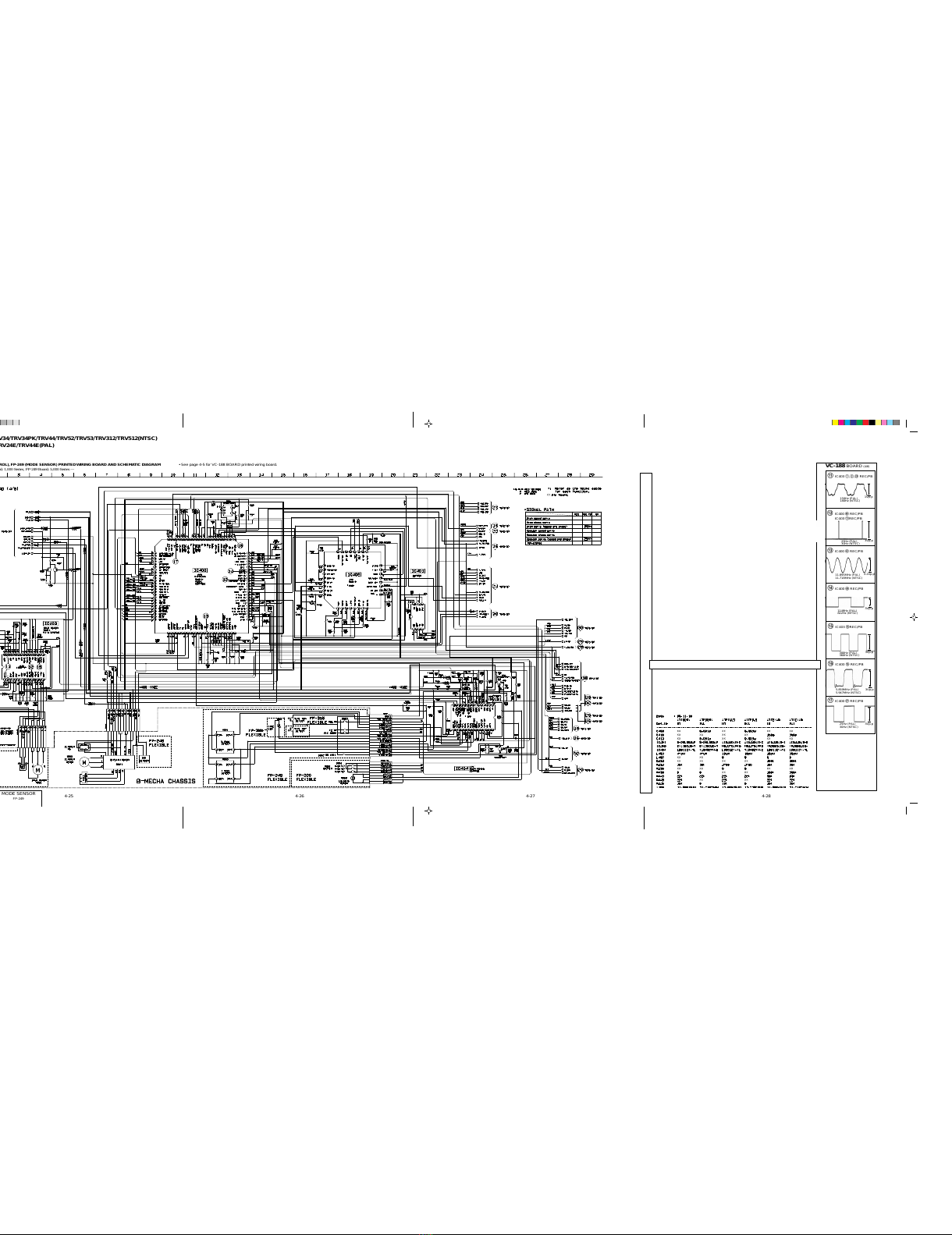

VC-188 (VIDEO) SCHEMATIC DIAGRAM
— Ref. No. VC-188 Board; 1,000 Series —
4-21 4-22 4-23 4-24
VIDEO
VC-188 (3/8)
VC-188 BOARD (3/8)
1 IC101 3REC

2 IC101 5REC
3 IC101 $•,$¢ REC
4 IC101 !¶ PB
240mVp-p
50nsec/div
3.6Vp-p
5 IC101 9PB
6 CN102 8REC/PB
7 CN102 5REC
8 CN102 4REC
9 CN102 2REC
!º CN102 9REC/PB
0.3Vp-p
H
410mVp-p
0.1µsec/div
0.1µsec/div 220mVp-p
50nsec/div
2.7Vp-p
25Hz (PAL)
30HZ (NTSC)
650mVp-p
H
500mVp-p
H
150mVp-p
0.1µsec/div
3Vp-p
1148Hz (PAL)
822Hz (NTSC)
• See page 4-5 for VC-188 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
VC-188 (MODE CONTROL), FP-249 (MODE SENSOR) PRINTEDWIRING BOARD AND SCHEMATIC DIAGRAM
— Ref. No. VC-188 Board; 1,000 Series, FP-249 Board; 5,000 Series —
4-25 4-26 4-27 4-28
MODE CONTROL
VC-188 (4/8)
MODE SENSOR
FP-249
/
VC-188 BOARD (4/8)
!¡ IC403 1,2,@ª REC/PB
!™ IC400 ^§ REC/PB
IC403 !¡REC/PB
!£ IC400 $º REC/PB
11.895MHz (PAL)
11.718MHz (NTSC)
25Hz (PAL)
30Hz (NTSC)
150Hz (PAL)
180Hz (NTSC)
!¢ IC400 ^• REC/PB
1148Hz (PAL)
822Hz (NTSC)
!∞ IC403 !•REC/PB
3Vp-p
!§ IC400 &§ REC/PB
5.859MHz (PAL)
5.947MHz (NTSC)
!¶ IC400 (¶ REC/PB
1Vp-p
3Vp-p
2.2Vp-p
3Vp-p
300Hz (PAL)
360Hz (NTSC)
3Vp-p
3Vp-p
25Hz (PAL)
30Hz (NTSC)
• See page 4-5 for VC-188 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
VC-188 (IN/OUT) SCHEMATIC DIAGRAM
— Ref. No. VC-188 Board; 1,000 Series —
4-29 4-30 4-31 4-32
IN/OUT
VC-188 (5/8)
• See page 4-5 for VC-188 BOARD printed wiring board.
All manuals and user guides at all-guides.com
all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

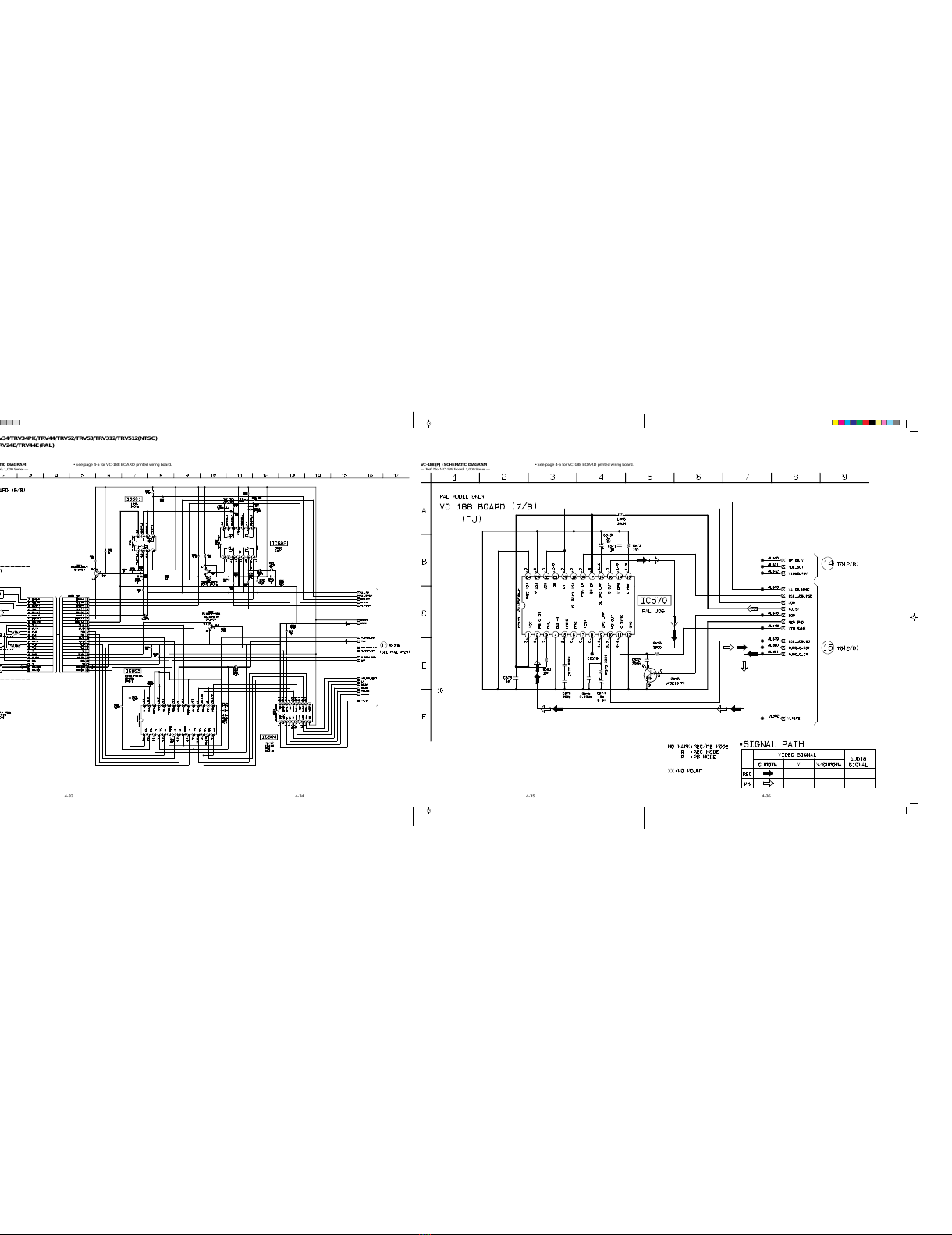

VC-188 (LD) SCHEMATIC DIAGRAM
— Ref. No. VC-188 Board; 1,000 Series — VC-188 (PJ) SCHEMATIC DIAGRAM — Ref. No. VC-188 Board; 1,000 Series —
4-33 4-34 4-35 4-36
LD/PJ
VC-188 (6/8)/(7/8)
• See page 4-5 for VC-188 BOARD printed wiring board. • See page 4-5 for VC-188 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
VC-188 (AUDIO) SCHEMATIC DIAGRAM
— Ref. No. VC-188 Board; 1,000 Series —
4-37 4-38 4-39
AUDIO
VC-188 (8/8)
• See page 4-5 for VC-188 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

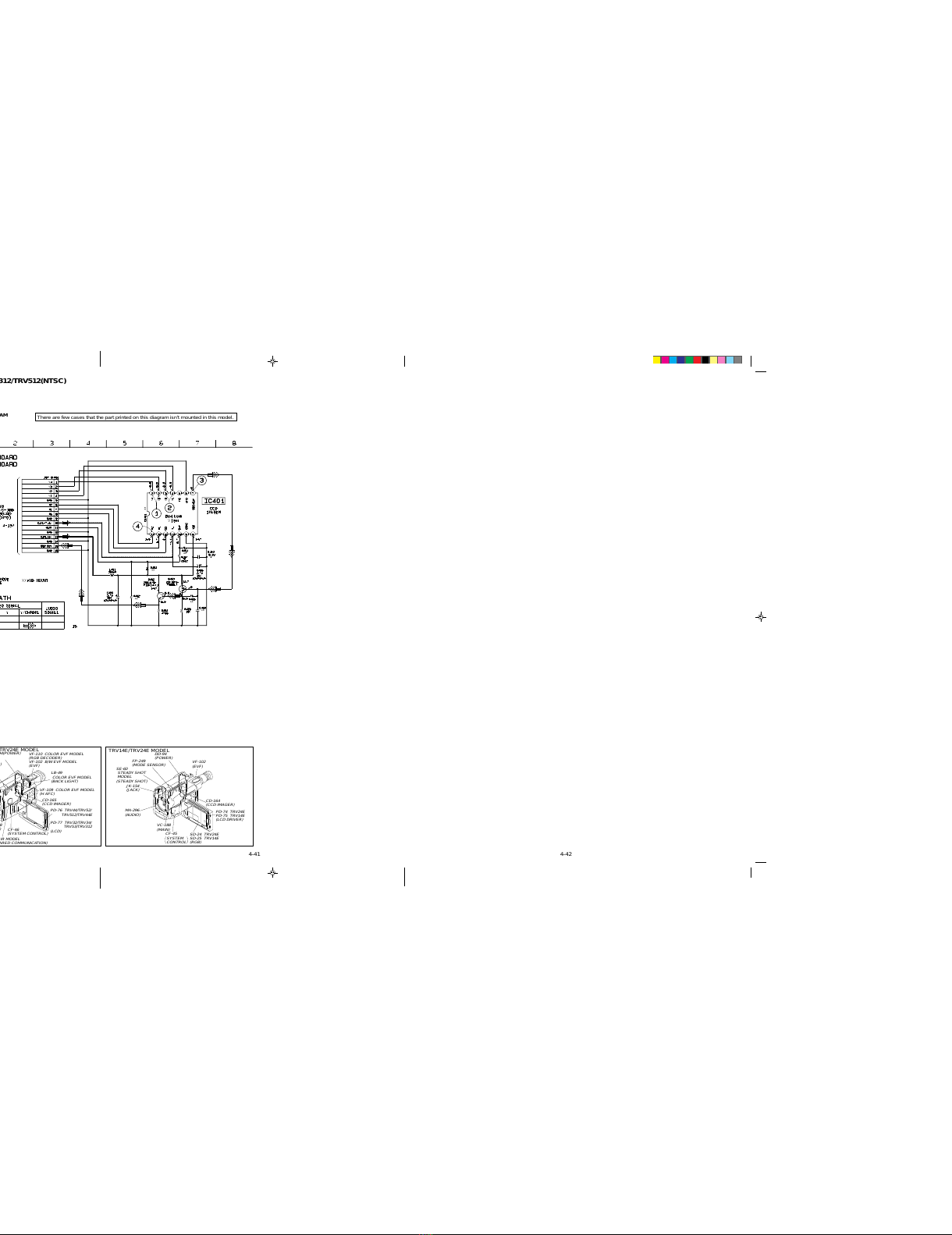

CD-164/165 (CCD IMAGER) PRINTEDWIRING BOARD AND SCHEMATIC DIAGRAM
— Ref. No. CD-164/165 Board; 2,000 Series —
4-40 4-41 4-42
CCD IMAGER
CD-164/165
Precautions Upon Replacing CCD Imager
• TheCD-164/165boardmountedasarepairpartisnotequipped
with a CCD imager.
When replacing this board, remove the CCD imager from the
old one and mount it onto the new one.
• If the CCD imager has been replaced, carry out all the
adjustments for the camera section.
• As the CCD imager may be damaged by static electricity from
its structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with dusts
nor exposed to strong light.
There are few cases that the part printed on this diagram isn’t mounted in this model.
CD-164/165 BOARD
1 IC401 1, 2REC
2 IC401 3, 4REC
3 IC401 7REC
7Vp-p
H
550mVp-p
H
4 IC401 !¢ REC
4Vp-p
7Vp-p
H
8.65MHz
FP-249
(MODE SENSOR)
SE-60 
〈 STEADY SHOT
MODEL 〉
(STEADY SHOT)
JK-155
(JACK)
MA-297
(AUDIO)
VC-188
(MAIN)
IR-28
〈 IR MODEL 〉
(INFRARED COMMUNICATION)
CF-46
(SYSTEM CONTROL)
PD-76
〈 TRV44/TRV52/
TRV512/TRV44E 〉

PD-77 〈 TRV32/TRV34/
TRV53/TRV312 〉 
(LCD)
CD-165
(CCD IMAGER)
VF-109
〈 COLOR EVF MODEL 〉
(H AFC)
LB-49
〈 COLOR EVF MODEL 〉
(BACK LIGHT)
DD-94(POWER) VF-110
〈 COLOR EVF MODEL 〉 
(RGB DECODER)
VF-102 〈 B/W EVF MODEL 〉 
(EVF)
EXCEPT TRV14E/TRV24E MODEL
FP-249
(MODE SENSOR)
SE-60 
〈 STEADY SHOT
MODEL
〉
(STEADY SHOT)
JK-154
(JACK)
MA-296
(AUDIO)
VC-188
(MAIN)
CF-45
SYSTEM
CONTROL
PD-74
〈 TRV24E 〉
PD-75 〈 TRV14E 〉 
(LCD DRIVER)
CD-164
(CCD IMAGER)
DD-94
(POWER) VF-102
(EVF)
SD-24 〈 TRV24E 〉
SD-25 〈 TRV14E 〉 
(RGB)
TRV14E/TRV24E MODEL
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
JK-154/155 (JACK) PRINTEDWIRING BOARD AND SCHEMATIC DIAGRAM
— Ref. No. JK-154/155 Board; 2,000 Series — There are few cases that the part printed on this diagram isn’t mounted in this model.
JACK
JK-154/155
FP-249
(MODE SENSOR)
SE-60 
〈 STEADY SHOT
MODEL
〉
(STEADY SHOT)
JK-155
(JACK)
MA-297
(AUDIO)
VC-188
(MAIN)
IR-28
〈 IR MODEL 〉
(INFRARED COMMUNICATION)
CF-46
(SYSTEM CONTROL)
PD-76
〈 TRV44/TRV52/
TRV512/TRV44E 〉

PD-77 〈 TRV32/TRV34/
TRV53/TRV312 〉 
(LCD)
CD-165
(CCD IMAGER)
VF-109
〈 COLOR EVF MODEL 〉
(H AFC)
LB-49
〈 COLOR EVF MODEL 〉
(BACK LIGHT)
DD-94(POWER) VF-110
〈 COLOR EVF MODEL 〉 
(RGB DECODER)
VF-102 〈 B/W EVF MODEL 〉 
(EVF)
EXCEPT TRV14E/TRV24E MODEL
FP-249
(MODE SENSOR)
SE-60 
〈 STEADY SHOT
MODEL
〉
(STEADY SHOT)
JK-154
(JACK)
MA-296
(AUDIO)
VC-188
(MAIN)
CF-45
SYSTEM
CONTROL
PD-74
〈 TRV24E 〉
PD-75 〈 TRV14E 〉 
(LCD DRIVER)
CD-164
(CCD IMAGER)
DD-94
(POWER) VF-102
(EVF)
SD-24 〈 TRV24E 〉
SD-25 〈 TRV14E 〉 
(RGB)
TRV14E/TRV24E MODEL
4-43 4-44 4-45 4-46
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
MA-296/297 (AUDIO) SCHEMATIC DIAGRAM
— Ref. No. MA-296/297 Board; 2,000 Series —
4-51 4-52 4-53
AUDIO
MA-296/297
All manuals and user guides at all-guides.com
all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

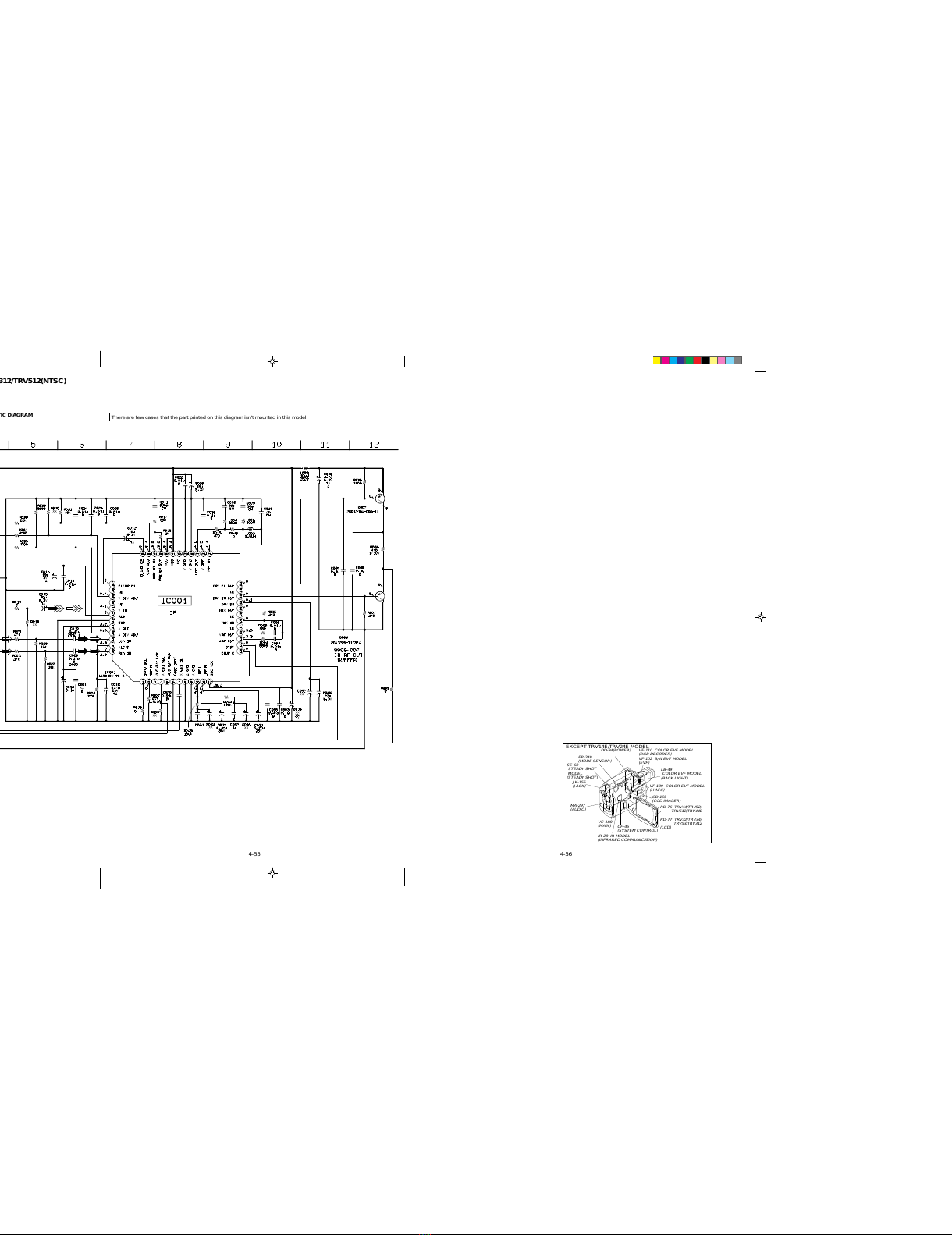

4-54 4-55 4-56
INFRARED COMMNICATION
IR-28
There are few cases that the part printed on this diagram isn’t mounted in this model.
IR MODEL
FP-249
(MODE SENSOR)
SE-60 
〈 STEADY SHOT
MODEL
〉
(STEADY SHOT)
JK-155
(JACK)
MA-297
(AUDIO)
VC-188
(MAIN)
IR-28
〈 IR MODEL 〉
(INFRARED COMMUNICATION)
CF-46
(SYSTEM CONTROL)
PD-76
〈 TRV44/TRV52/
TRV512/TRV44E 〉

PD-77 〈 TRV32/TRV34/
TRV53/TRV312 〉 
(LCD)
CD-165
(CCD IMAGER)
VF-109
〈 COLOR EVF MODEL 〉
(H AFC)
LB-49
〈 COLOR EVF MODEL 〉
(BACK LIGHT)
DD-94(POWER) VF-110
〈 COLOR EVF MODEL 〉 
(RGB DECODER)
VF-102 〈 B/W EVF MODEL 〉 
(EVF)
EXCEPT TRV14E/TRV24E MODEL
IR-28 (INFRARED COMMUNICATION) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM
— Ref. No. IR-28 Board; 1,000 Series —
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

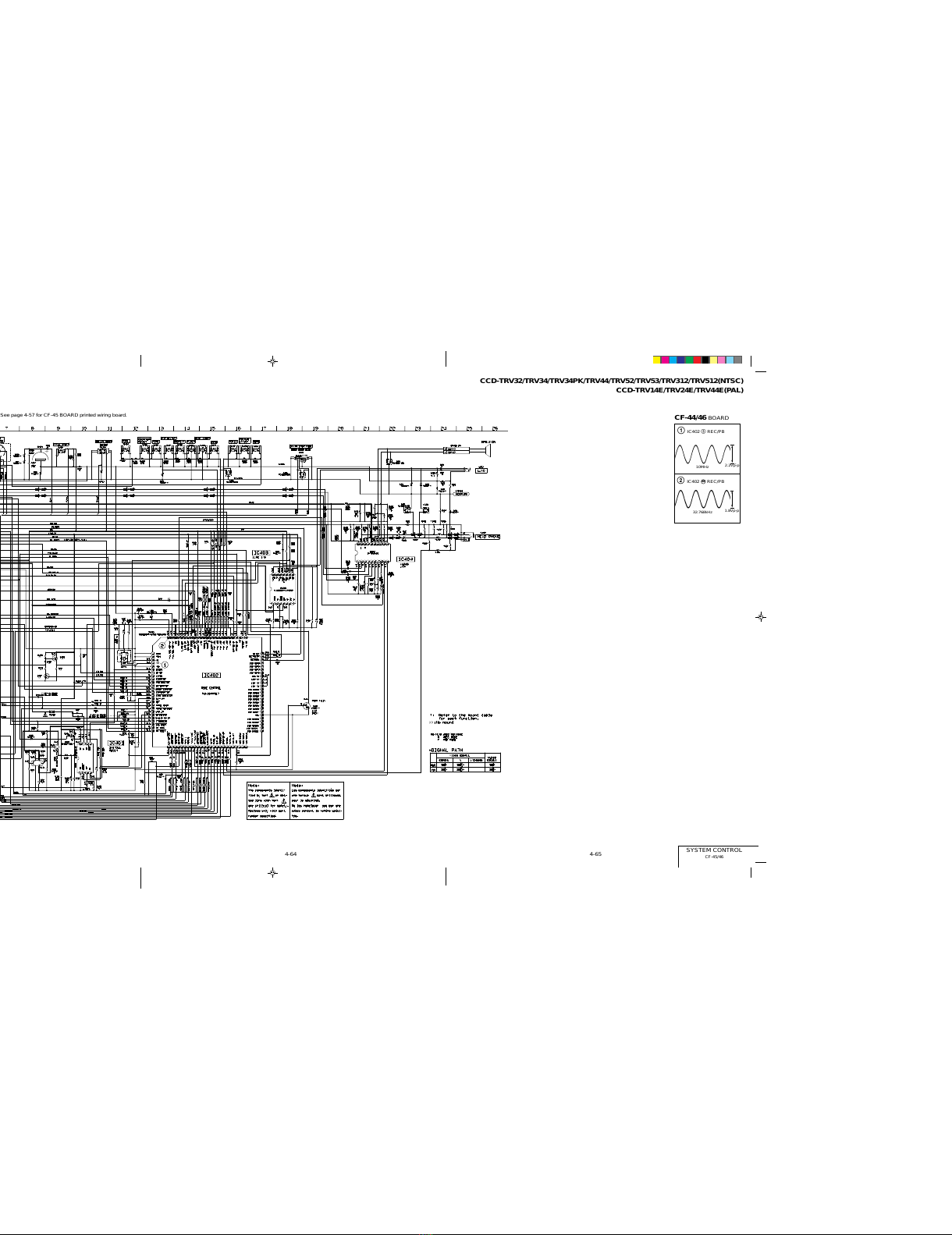

CF-45/46 (SYSTEM CONTROL) SCHEMATIC DIAGRAM
— Ref. No. CF-45/46 Board; 2,000 Series —
4-63 4-64 4-65
SYSTEM CONTROL
CF-45/46
CF-44/46 BOARD 
1 IC402 3REC/PB

2 IC402 REC/PB
1.8Vp-p
32.768kHz
2.2Vp-p
10MHz
100
• See page 4-57 for CF-45 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
VF-110 (RGB DECODER) SCHEMATIC DIAGRAMS
— Ref. No. VF-110 Board; 4,000 Series —
4-69 4-70 4-71
VF-110 BOARD
RGB DECODER
VF-110
COLOR EVF MODEL
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
VF-109 (H AFC), LB-49 (BACK LIGHT) SCHEMATIC DIAGRAMS
— Ref. No. VF-109 Board, LB-49 Board; 4,000 Series —
4-72 4-73 4-74
H AFC
VF-109
BACK LIGHT
LB-49
/
COLOR EVF MODEL
• See page 4-66 for VF-109 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
DD-94 (POWER) SCHEMATIC DIAGRAM
— Ref. No. DD-94 Board; 1,000 Series —
4-80 4-81 4-82
POWER
DD-94
CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
All manuals and user guides at all-guides.com
all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

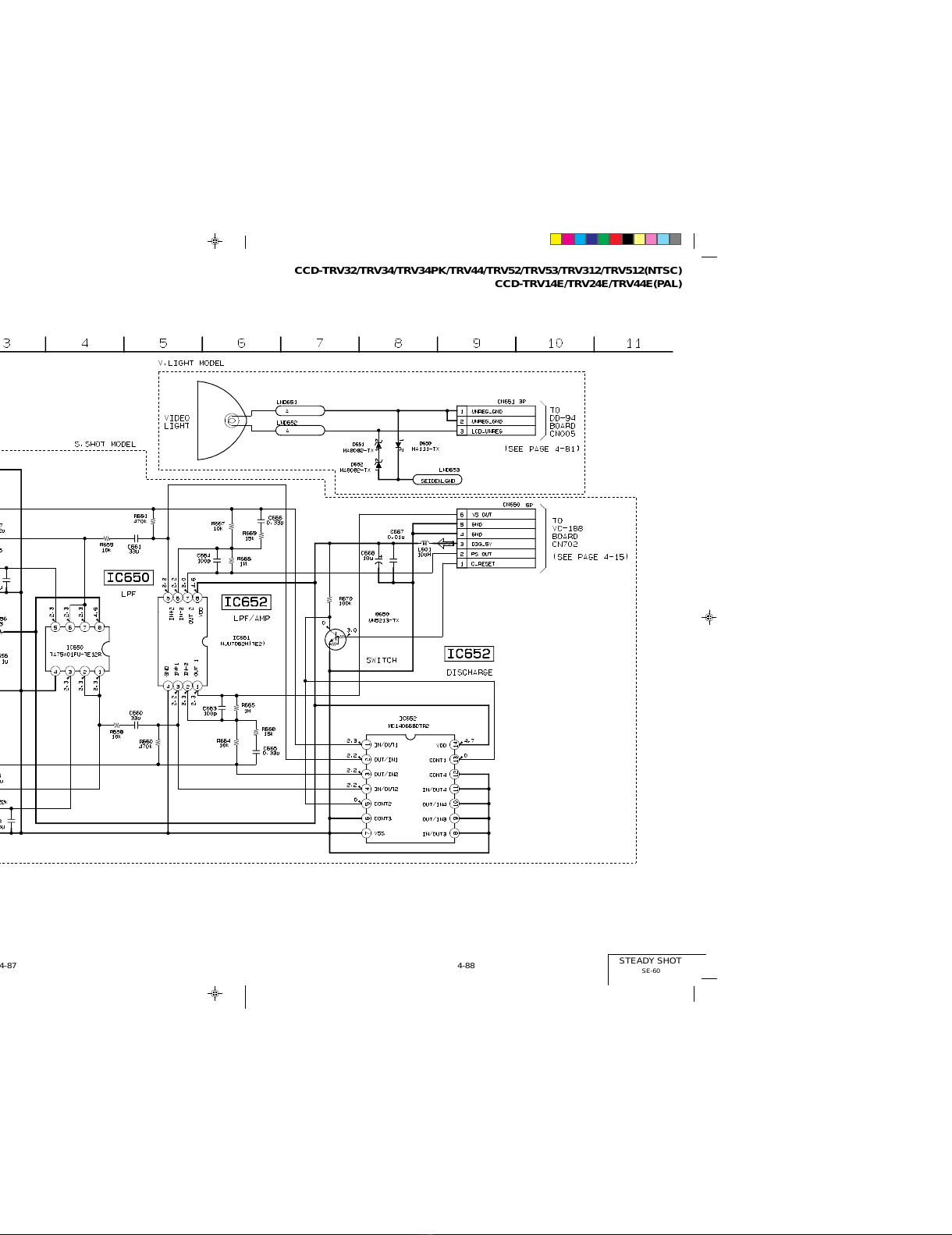

SE-60 (STEADY SHOT) SCHEMATIC DIAGRAM
— Ref. No. SE-60 Board; 5,000 Series —
4-87 4-88
STEADY SHOT
SE-60
STEADY SHOT MODEL
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
PD-76 (LCD) SCHEMATIC DIAGRAM
— Ref. No. PD-76 Board; 8,000 Series —
4-91 4-92 4-93
PD-76 BOARD (1/4)
1 IC801 3REC/PB
2 IC801 !¢ REC/PB
3 IC801 @º REC/PB
4 IC801 @™ REC/PB
5 IC801 @¢ REC/PB
6 IC801 @£ REC/PB
3.5Vp-p
4.77MHz
0.5Vp-p
H
560mVp-p
5.6Vp-p
H
5.6Vp-p
H
5.6Vp-p
H
4.43MHz (PAL)
3.58MHz (NTSC)
LCD
PD-76 (1/4)
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
PD-76 (LCD) SCHEMATIC DIAGRAM
— Ref. No. PD-76 Board; 8,000 Series —
PD-76 BOARD (2/4)

7 IC901 !£ REC/PB
8 IC901 @§ REC/PB
9 IC901 7REC/PB
!¡ IC901 #£ REC/PB
3Vp-p
H
2.4Vp-p
9.53MHz
4.4Vp-p
H
3Vp-p
H
4-94 4-95 4-96
LCD
PD-76 (2/4)
• See page 4-89 for PD-76 BOARD printed wiring board.
All manuals and user guides at all-guides.com

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

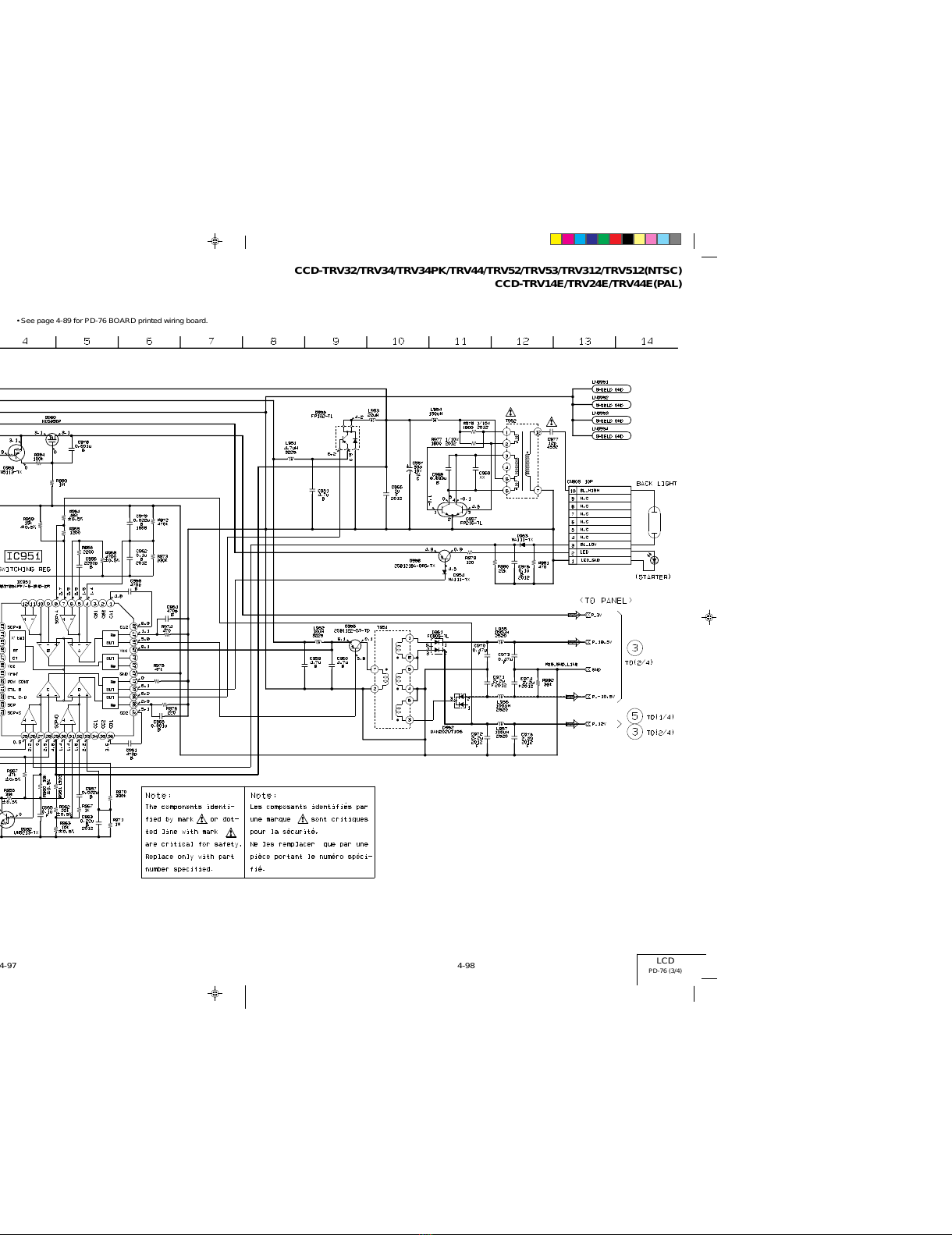

PD-76 (LCD) SCHEMATIC DIAGRAM
— Ref. No. PD-76 Board; 8,000 Series — • See page 4-89 for PD-76 BOARD printed wiring board.
4-97 4-98
LCD
PD-76 (3/4)
All manuals and user guides at all-guides.com
