Sony XC505 User manual

The XC-505 and XC-505P are ultra-compact and
lightweight color video cameras incorporating a high-
sensitivity, high-performance 1/3-type Super HAD II CCD.
Compared to Sony’s popular XC-555 camera, the XC-505
and XC-505P are equipped with several new features
including one-push white balance, noise reduction
(2D/3D), a built-in color bar, DTL function, and RS-232C
support.
These cameras use an NF lens system which can easily
be converted into a flexible C-mount lens. What’s more,
they are easily integrated into space-restricted
environments thanks to their one-piece compact and
robust body.
The combination of first-class picture quality with superb
sensitivity for less-than-ideal lighting conditions makes
these cameras well-suited for a wide range of
applications such as remote monitoring, security, content
creation, machine vision, and sports shooting.
• High-sensitivity Super HAD II CCD
• One-piece body and ultra-compact design
7/8 x 7/8 x 2 5/8 inches, 2 oz
(22 (H) x 22 (W) x 75 (D) mm, 51 g)
• Selectable video outputs and external sync inputs
– Video outputs: VBS and Y/C
– External sync: HD/VD, VS, VBS (no genlock)
• Dip switch or RS-232C serial communication
options for setting camera functions
• Various image acquisition features:
– Selectable Auto Exposure and White Balance
– Defective pixels correction
– 2D/3D Noise Reduction (NR)
– Edge Enhancement/Detail Enhancement
– E-flip
– Built-in color bar
FEATURES
Color Video Camera
XC-505/XC-505P
sony.com/videocameras
click: sony.com/sonysports

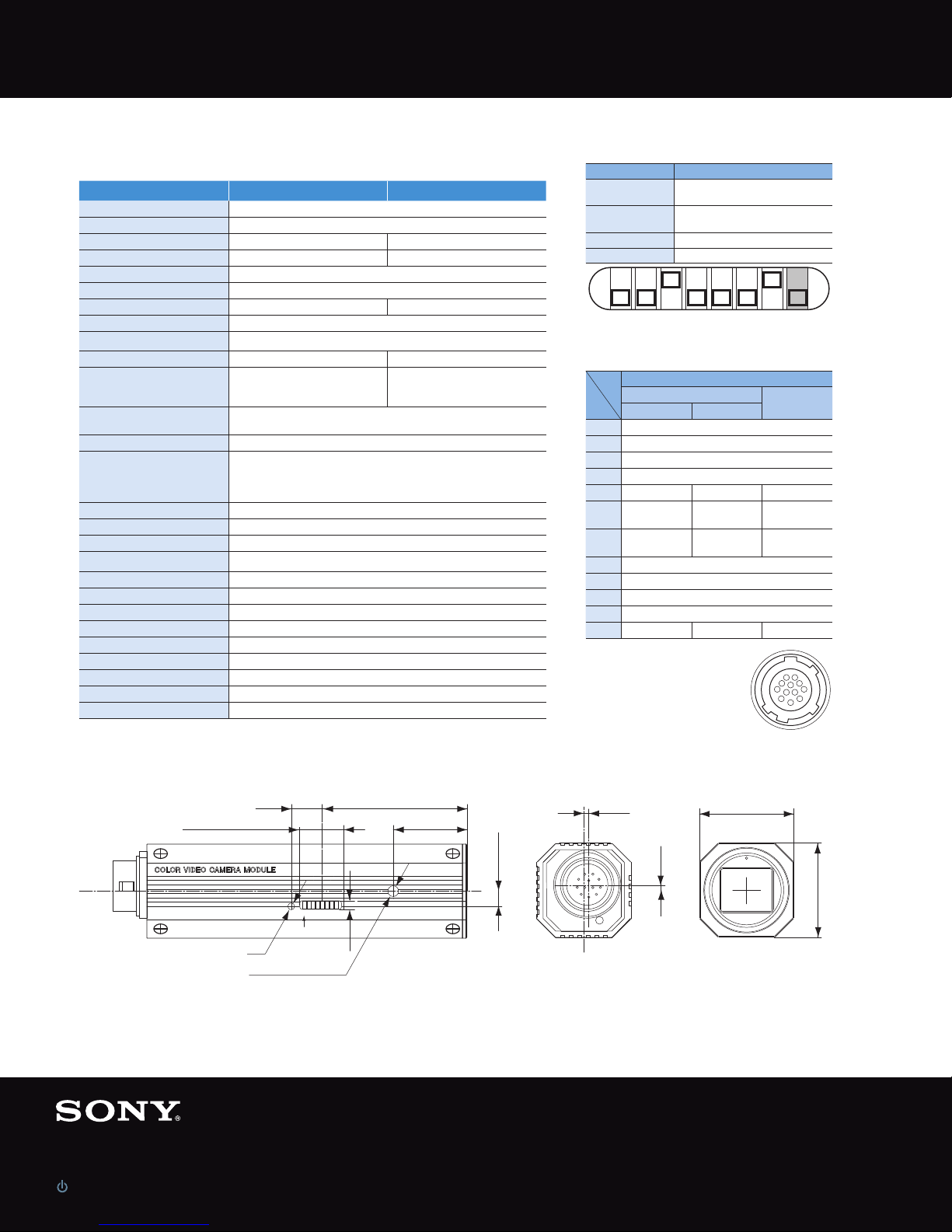

SPECIFICATIONS
DC IN/VIDEO connector (multi 12-pin)
Dip switches for setting functions
DIMENSIONS
XC-505 XC-505P
Image sensor Super HAD II 1/3-type IT CCD
Color filter Complementary color mosaic
Effective picture elements (H) x (V) 768 x 494 752 x 582
Scanning system 525 lines, 2:1 interlace, 30 frames/sec 625 lines, 2:1 interlace, 25 frames/sec
Lens mount NF mount
Sync system Internal/External (automatic switching)
Horizontal resolution 470 TV lines 460 TV lines
Minimum illumination 1.5 lx at F1.4 AGC: max (18 dB)
Sensitivity 2000 lx at F11 AGC: OFF (0 dB)
S/N ratio 48 dB (standard) AGC: OFF (0 dB) 46 dB (standard) 9 AGC: OFF (0 dB)
Shutter speed
1/60 sec (OFF) (NTSC), 1/1000 sec,
CCD IRIS, and FLICKERLESS
(selectable)
1/50 sec (OFF) (PAL), 1/1000 sec,
CCD IRIS, and FLICKERLESS
(selectable)
White balance 3200K, 5600K, One Push WB, ATW (auto tracking white balance),
and MAN (manual) (selectable)
Gain control AGC/Fixed (0 dB)
Video output
VBS/Y/C (selected with the switch)
VBS: 1 Vp-p, 75 ohms, sync negative
Y: 1 Vp-p, 75 ohms
C: C level depends on the composite video out signal
External synchronous input HD/VD, VS, VBS (no genlock)
Output connect DC IN/SYNC/VIDEO: multi 12-pin
Operating temperature 32°F to 104°F (0°C to 40°C)
Storage temperature -22°F to +140°F (-30°C to +60°C)
Operating humidity 20% to 80% (no condensation permissible)
Storage humidity 20% to 90% (no condensation permissible)
Power requirement DC 10.5 V to 15 V
Power consumption 1.5 W
Vibration resistance 10 G (20 Hz to 200 Hz)
Shock resistance 70 G
Dimensions (W x H x D) 7/8 x 7/8 x 2 61/64 inches (22 x 22 x 75 mm)
Weight 2 oz. (51 g)
Supplied Accessories Lens mount cap (1), Tripod adaptor (1 set), Operating instructions (1)
4 - Ø2.5 CBORE DEPTH1
Ø2
5/16 (7.8)
WHT BAL
15/32 (11.25) 11/16 (17.4)
1 7/16 (35.2)
2
5/32 (3.25)
7/8 (22)
7/8 (22)
1/16 (1.2)
1/16 (1.2)
1 8
1
2
3
456
7
8
9
10
11 12
* For details on how to change
this setting, please refer to the
Technical Manual.
Multi 12-pin Connector
* This Dip switch is the default setting at ex-factory.
Signal
Pin No.
Sync signal types
External Sync signal Internal Sync
signal
HD,VD VS Input
1 GND
2 +12 V
3 VBS/Y Output (GND)
4 VBS/Y Output (signal)
5 HD Input (GND) - -
6HD Input
(signal) - -
7VD Input
(signal)
VS Input
(signal) -
8 GND (-/C)
9 -/C Output (signal)
10 RS-232C (TXD) *
11 RS-232C (RXD) *
12 VD Input (GND) VS Input (GND) GND
Dip switch setting Functions (Bold: default setting)
1 to 4 White Balance (3,200K, 5,600K,
One Push W/B, ATW, Manual)
5 and 6 Shutter Speed (OFF, 1/1,000, CCD
IRIS, FLICKERLESS)
7 Auto Gain Control (ON, OFF)
8 Camera Output Signal (VBS, Y/C)
1······8
