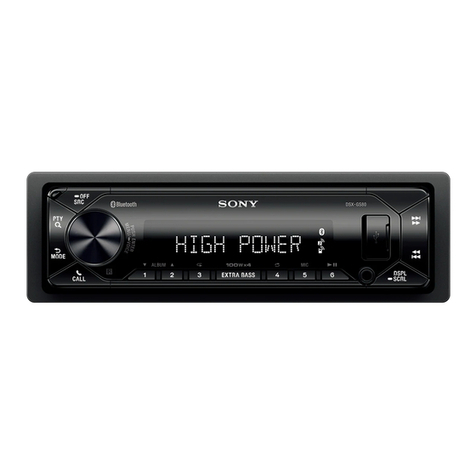

Sony DSX-GS80 User manual

5-006-640-52(1)
DSX-GS80
FM/AM
Bluetooth® Car Audio
Operating Instructions GB
Manual de instrucciones ES
To cancel the demonstration (DEMO) display, see
page 7.
To switch the FM/AM tuning step, see page 6.
For the connection/installation, see page 12.
Para cancelar la pantalla de demostración (DEMO),
consulte la página 8.
Para cambiar el paso de sintonización de FM/AM,
consulte la página 7.
Para la conexión/instalación, consulte la página 13.

2GB
Warning
Information for customers in the UAE
The nameplate indicating operating voltage,
etc., is located on the bottom of the chassis.
The validity of the CE marking is restricted to
only those countries where it is legally
enforced, mainly in the countries EEA
(European Economic Area) and Switzerland.
WARNING: Do not ingest
battery, Chemical Burn Hazard.
The remote commander contains a
coin/button cell battery. If the coin/button
cell battery is swallowed, it can cause severe
internal burns in just 2 hours and can lead to
death.
Keep new and used batteries away from
children. If the battery compartment does
not close securely, stop using the product
and keep it away from children.
If you think batteries might have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
Note on the lithium battery
Do not expose the battery to excessive heat
such as direct sunlight, fire or the like.
Disclaimer regarding services offered
by third parties
Services offered by third parties may be
changed, suspended, or terminated without
prior notice. Sony does not bear any
responsibility in these sorts of situations.
For safety, be sure to install this unit in the
dashboard of the car as the left side of the
unit becomes hot during use.
For details, see “Connection/Installation”
(page 12).
Warning if your car’s ignition has no
ACC position
Be sure to set the AUTO OFF function. The
unit will shut off completely and
automatically in the set time after the unit
is turned off and the clock is displayed
(i.e. press and hold OFF for 1 second),
which prevents battery drain. If you do
not set the AUTO OFF function, press and
hold OFF until the display disappears each
time you turn the ignition off.

3GB
Caution
IN NO EVENT SHALL SONY BE LIABLE FOR
ANY INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES OR OTHER
DAMAGES INCLUDING, WITHOUT
LIMITATION, LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE OF
THE PRODUCT OR ANY ASSOCIATED
EQUIPMENT, DOWNTIME, AND PURCHASER’S
TIME RELATED TO OR ARISING OUT OF THE
USE OF THIS PRODUCT, ITS HARDWARE
AND/OR ITS SOFTWARE.
Dear customer, this product includes a radio
transmitter.
Please check your vehicle operation manual
or contact the manufacturer of your vehicle
or your vehicle dealer, before you install this
product into your vehicle.
Emergency calls
This BLUETOOTH car handsfree and the
electronic device connected to the
handsfree operate using radio signals,
cellular, and landline networks as well as
user-programmed function, which cannot
guarantee connection under all conditions.
Therefore do not rely solely upon any
electronic device for essential
communications (such as medical
emergencies).
On BLUETOOTH communication
Microwaves emitting from a BLUETOOTH
device may affect the operation of
electronic medical devices. Turn off this
unit and other BLUETOOTH devices in the
following locations, as it may cause an
accident.
– where inflammable gas is present, in a
hospital, train, airplane, or petrol station
– near automatic doors or a fire alarm
This unit supports security capabilities that
comply with the BLUETOOTH standard to
provide a secure connection when the
BLUETOOTH wireless technology is used,
but security may not be enough
depending on the setting. Be careful when
communicating using BLUETOOTH wireless
technology.
We do not take any responsibility for the
leakage of information during BLUETOOTH
communication.
If you have any questions or problems
concerning your unit that are not covered in
this manual, consult your nearest Sony
dealer.
Important notice

4GB
Main Unit and Remote Commander
Front panel removed (inner panel)
PTY (program type)
Selects PTY in RDS.
(browse)
Enters the browse mode during playback.
(Not available when a USB device in
Android™ mode or iPod is connected.)
Front panel release button
SRC (source)
Turns on the power.
Changes the source.
OFF
Press and hold for 1 second to turn the
source off and display the clock.
Press and hold for more than 2 seconds
to turn off the power and the display.
If the unit is turned off and the display
disappears, operation by the remote
commander is not available.
Control dial
Adjusts the volume.
PUSH ENTER
Enters the selected item.
Press SRC, rotate then press to change
the source (timeout in 2 seconds).
MENU
Opens the setup menu.
VOICE
Press and hold for more than 2 seconds
to activate voice dial, voice recognition
(Android smartphone only), or the Siri
function (iPhone only).
Display window
USB port
/ (SEEK–/+)
Tunes in radio stations automatically.
Press and hold to tune manually.
/(prev/next)
/(fast-reverse/fast-forward)
Guide to Parts and Controls
Main unit

5GB
(back)
Returns to the previous display.
MODE
Selects the radio bands or function
modes.
CALL
Enters the call menu. Receive/end a call.
Press and hold for more than 2 seconds
to switch the BLUETOOTH signal.
Receptor for the remote commander
Number buttons (1 to 6)
Receives preset radio stations.
Press and hold to store stations.
ALBUM /
Skips an album for audio device.
Press and hold to skip albums
continuously.
(Not available when a USB device in
Android mode or iPod is connected.)
(repeat)
(Not available when a USB device in
Android mode is connected.)
(shuffle)
(Not available when a USB device in
Android mode is connected.)
MIC
Adjusts the microphone settings.
(play/pause)
EXTRA BASS
Reinforces bass sound in synchronization
with the volume level.
Press to change the EXTRA BASS setting:
[1], [2], [OFF].
AUX input jack
DSPL (display)
Changes display items.
SCRL (scroll)
Press and hold to scroll a display item.
RESET (inner panel)
Restarts the unit (press with a ballpoint
pen, etc.).
The VOL (volume) + button has a tactile dot.
SOUND
Opens the SOUND menu directly.
MENU
Press and hold to open the setup menu.
///
Selects a setup item, etc.
ENTER
Enters the selected item.
Press and hold for more than 2 seconds
to establish or terminate the “Sony |
Music Center” function.
/(prev/next)
+/– (album +/–)
VOL (volume) +/–
Remove the insulation film before use.
RM-X231 Remote commander

6GB
Detaching the Front Panel
You can detach the front panel of this unit to
prevent theft.
1Press and hold OFF until the unit
turns off, press the front panel
release button , then pull the panel
towards you to remove.
Switching the FM/AM
Tuning Step
Set the FM/AM tuning step of your country.
This setting appears only while the source
is off and the clock is displayed.
1Press MENU, rotate the control dial to
select [GENERAL], then press it.
2Rotate the control dial to select
[TUNING STEP], then press it.
3Rotate the control dial to select from
[FM50K/AM9K], [FM100K/AM10K] or
[FM200K/AM10K], then press it.
Pairing with a BLUETOOTH
Device
When connecting a BLUETOOTH device for
the first time, mutual registration (called
“pairing”) is required. Pairing enables this
unit and other devices to recognize each
other. This unit can connect two BLUETOOTH
devices (two mobile phones, or a mobile
phone and an audio device).
1Press MENU, then rotate and press
the control dial to select [BLUETOOTH]
[PAIRING] [DEVICE 1]/[DEVICE 2]*.
flashes while the unit is in pairing
standby mode.
* [DEVICE 1] or [DEVICE 2] will be changed to the
paired device name after pairing is complete.
2Perform pairing on the BLUETOOTH
device so it detects this unit.
3Select your model name shown in the
display of the BLUETOOTH device*.
When pairing is made, stays lit.
* If passkey input is required on the BLUETOOTH
device, input [0000].
Basic Operations
Attaching the front panel

7GB
Canceling the
Demonstration Mode
You can cancel the demonstration display
which appears when the source is off and
the clock is displayed.
1Press MENU, rotate the control dial to
select [GENERAL], then press it.
2Rotate the control dial to select
[DEMO], then press it.
3Rotate the control dial to select
[DEMO-OFF], then press it.
The setting is complete.
4Press (back) twice.
The display returns to normal reception/
play mode.
Updating the Firmware
To update the firmware, visit the support site
on the back cover, then follow the online
instructions.
Note
During the update, do not remove the USB device.
Initializing the Unit
Initializing the unit will erase the clock
settings and all your settings stored in the
backup memory.
[INITIALIZE] appears only while the source
is off and the clock is displayed.
1Press MENU, rotate the control dial to
select [GENERAL], then press it.
2Rotate the control dial to select
[INITIALIZE], then press it.
3Rotate the control dial to select
[INIT-YES], then press it.
Note
Initialize the unit before discarding the unit to
prevent the leakage of phone information.
Setting the display language
After initializing the unit, the display
language setting display appears.
1Press ENTER while [LANGUAGE] is
displayed.
The display language currently set
appears.
2Rotate the control dial to select
[ENGLISH] or [SPANISH], then press it.
The setting is complete and the clock is
displayed.
This setting can be configured in the general
setup menu.

8GB
Precautions
• Do not leave the front panel or audio
devices on the dashboard.
• When the unit is turned on, the power
antenna (aerial) extends automatically.
• Do not splash liquid onto the unit.
• You can connect to the following iPod
models. Update your iPod devices to the
latest software before use.
Compatible iPhone/iPod models
•Use of the Made for Apple badge means
that an accessory has been designed to
connect specifically to the Apple product(s)
identified in the badge, and has been
certified by the developer to meet Apple
performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and
regulatory standards.
Please note that the use of this accessory
with an Apple product may affect wireless
performance.
If you have any questions or problems
concerning your unit that are not covered in
this manual, consult your nearest Sony
dealer.
Additional Information
Playback order of audio files
About iPod
Compatible
Model Bluetooth® USB
iPhone XR 
iPhone Xs max 
iPhone Xs 
iPhone X 
iPhone 8 
iPhone 8 Plus 
iPhone 7 
iPhone 7 Plus 
iPhone SE 
iPhone 6s 
Folder (album)
Audio file (track)
iPhone 6s Plus 
iPhone 6 
iPhone 6 Plus 
iPhone 5s 
iPhone 5c 
iPhone 5 
iPhone 4s 
iPod touch
(6th generation) 
iPod touch
(5th generation) 
iPod nano
(7th generation) 
Compatible
Model Bluetooth® USB

9GB
Maintenance
Replacing the lithium battery (CR2025)
of the remote commander
When the battery becomes weak, the range
of the remote commander becomes shorter.
CAUTION
Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
Note on the lithium battery
Keep the lithium battery out of the reach of
children. Should the battery be swallowed,
immediately consult a doctor.
Cleaning the connectors
Avoid touching the connectors directly. The
unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
detach the front panel (page 6) and clean
the connectors with a cotton swab. Do not
apply too much force. Otherwise, the
connectors may be damaged.
Note
For safety, do not remove the front panel while
driving.
Specifications
Radio section
FM
Tuning range:
87.5 MHz – 108.0 MHz (at 50 kHz step)
87.5 MHz – 108.0 MHz (at 100 kHz step)
87.5 MHz – 107.9 MHz (at 200 kHz step)
FM tuning step:
50 kHz/100 kHz/200 kHz switchable
Usable sensitivity: 8 dBf
Signal-to-noise ratio: 73 dB
Separation: 50 dB at 1 kHz
AM
Tuning range:
531 kHz – 1,602 kHz (at 9 kHz step)
530 kHz – 1,710 kHz (at 10 kHz step)
AM tuning step:
9 kHz/10 kHz switchable
Sensitivity: 26 μV
USB Player section
Interface:
USB1 port (front): USB (Hi-speed)
USB2 port (rear): USB (Hi-speed)
Maximum current:
USB1 port (front): 1 A
USB2 port (rear): 1.5 A
The maximum number of recognizable files
(tracks): 10,000
Compatible Android Open Accessory
protocol (AOA): 2.0
Corresponding codec:
MP3 (.mp3)
Bit rate: 8 kbps – 320 kbps (Supports VBR
(Variable Bit Rate))
Sampling rate: 16 kHz – 48 kHz
WMA (.wma)
Bit rate: 32 kbps – 192 kbps (Supports VBR
(Variable Bit Rate))
Sampling rate: 32 kHz, 44.1 kHz,
48 kHz
+ side up
Lithium battery (CR2025)

10GB
AAC (.m4a, .mp4)
Bit rate: 8 kbps – 320 kbps
Sampling rate: 11.025 kHz – 48 kHz
WAV (.wav)
Bit depth: 16 bit
Sampling rate: 44.1 kHz, 48 kHz
FLAC (.flac)
Bit depth: 16 bit, 24 bit
Sampling rate: 44.1 kHz, 48 kHz
Supported file system: FAT16, FAT32
Wireless Communication
Communication System:
BLUETOOTH Standard version 3.0
Output:
BLUETOOTH Standard Power Class 2
(Max. Conducted +1 dBm)
Maximum communication range*1:
Line of sight approx. 10 m (33 ft)
Frequency band:
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Modulation method: FHSS
Compatible BLUETOOTH Profiles*2:
A2DP (Advanced Audio Distribution Profile)
1.3
AVRCP (Audio Video Remote Control
Profile) 1.5
HFP (Handsfree Profile) 1.6
PBAP (Phone Book Access Profile)
SPP (Serial Port Profile)
Corresponding codec:
SBC (.sbc), AAC (.m4a)
*1 The actual range will vary depending on factors
such as obstacles between devices, magnetic
fields around a microwave oven, static electricity,
reception sensitivity, antenna (aerial)’s
performance, operating system, software
application, etc.
*2 BLUETOOTH standard profiles indicate the
purpose of BLUETOOTH communication between
devices.
Power amplifier section
Output: Speaker outputs
Speaker impedance: 2 Ω/4 Ω – 8 Ω
Maximum power output: 100 W × 4 (at 2 Ω/
4Ω)
General
Power requirements: 12 V DC car battery
(negative ground (earth))
Rated current consumption: 10 A
Dimensions:
Approx. 178 mm × 50 mm × 177 mm
(7 1/8in × 2 in × 7 in) (w/h/d)
Mounting dimensions:
Approx. 182 mm × 53 mm × 160 mm
(7 1/4in × 2 1/8in × 6 3/8in) (w/h/d)
Mass: Approx. 1.0 kg (2 lb 4 oz)
Package contents:
Main unit (1)
Remote commander (1): RM-X231
Parts for installation and connections
(1 set)
Optional accessories/equipment:
Cable for steering wheel remote input:
RC-SR1
Ask the dealer for detailed information.
Design and specifications are subject to
change without notice.
