Sony CDX-G1080UM User manual

CDX-G1080UM/CDX-G1071U/CDX-G1070U/CDX-G1051U/CDX-G1050U
CXS-G1069U/CXS-G1016U/CXS-G104SU
4-466-656-51(1)
FM/AM
Compact Disc
Player
Operating Instructions GB
Manual de instrucciones ES
To switch the FM/AM tuning step, see page 6.
To cancel the demonstration (DEMO) display, see page 10.
Para cambiar el paso de sintonización de FM/AM, consulta
la página 6.
Para cancelar la pantalla de demostración (DEMO), consulte
la página 11.

2GB
Laser Diode Properties
Emission Duration: Continuous
Laser Output: Less than 53.3 W
(This output is the value measurement at a
distance of 200 mm from the objective lens
surface on the Optical Pick-up Block with 7 mm
aperture.)
Note on the lithium battery
Do not expose the battery to excessive heat
such as direct sunlight, fire or the like.
Be sure to install this unit in the dashboard of
the car for safety.
For installation and connections, see the
supplied installation/connections manual.
Warning if your car’s ignition has no ACC
position
Be sure to set the AUTO OFF function
(page 10). The unit will shut off completely
and automatically in the set time after the
unit is turned off, which prevents battery
drain. If you do not set the AUTO OFF
function, press and hold OFF until the display
disappears each time you turn the ignition
off.

3GB
Table of Contents
Guide to Parts and Controls. . . . . . . . . . . . . . 4
Getting Started
Detaching the Front Panel . . . . . . . . . . . . . . . 5
Switching the FM/AM Tuning Step
(for non-Argentine models) . . . . . . . . . . . 6
Setting the Clock. . . . . . . . . . . . . . . . . . . . . . . 6
Connecting a USB Device. . . . . . . . . . . . . . . . 6
Connecting Other Portable Audio
Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Listening to the Radio
Listening to the Radio . . . . . . . . . . . . . . . . . . 7
Using Radio Data System (RDS). . . . . . . . . . . 7
Playback
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . 8
Playing a USB Device . . . . . . . . . . . . . . . . . . . 8
Searching and Playing Tracks . . . . . . . . . . . . 9
Settings
Canceling the DEMO Mode . . . . . . . . . . . . . 10
Basic Setting Operation . . . . . . . . . . . . . . . . 10
GENERAL Setup. . . . . . . . . . . . . . . . . . . . . . . 10
SOUND Setup . . . . . . . . . . . . . . . . . . . . . . . . .11
EQ3 PRESET . . . . . . . . . . . . . . . . . . . . . . . .11
EQ3 SETTING . . . . . . . . . . . . . . . . . . . . . . .11
DISPLAY Setup . . . . . . . . . . . . . . . . . . . . . . . .11
Additional Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 14

4GB

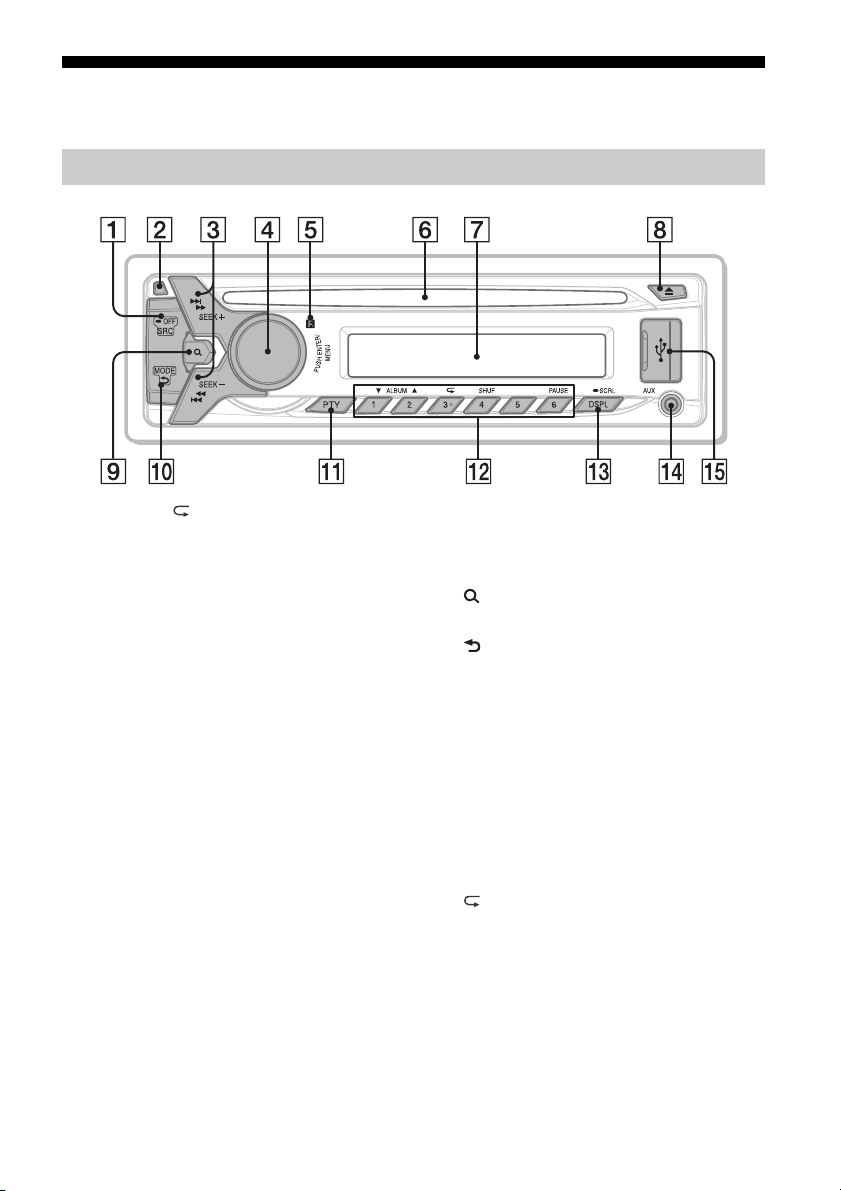

Guide to Parts and Controls
The number 3/ (repeat) button has a tactile dot.
SRC (source)
Turn on the power.
Change the source.
-OFF
Press and hold for 1 second to turn off
the power.
Press and hold for more than 2 seconds
to turn off the power and the display.
If the unit is turned off and the display
disappears, it is unable you to operate
with the remote.
Front panel release button
SEEK +/–
Tune in radio stations automatically.
Press and hold to tune manually.
/(prev/next) /(reverse/
fast-forward)
Control dial
Rotate to adjust the volume.
ENTER
Enter the selected item.
MENU
Open the setup menu.
Receptor for the remote commander
Disc slot
Display window
(disc eject)
(browse) (page 9)
Enter the browse mode during playback.
(back)
Return to the previous display.
MODE (page 7)
PTY (program type)
Select PTY in RDS.
Number buttons (1 to 6)
Receive stored radio stations. Press and
hold to store stations.
ALBUM /
Skip an album for audio device. Press and
hold to skip albums continuously.
(repeat)
SHUF (shuffle)
PAUSE
DSPL (display)
Change display items.
-SCRL (scroll)
Press and hold to scroll a display item.
AUX input jack
USB port
Main unit

5GB
The VOL (volume) + button has a tactile dot.
Remove the insulation film before use.
ATT (attenuate)
Attenuate the sound. Press again to
cancel the attenuated sound.
SOUND
Open the SOUND menu directly.
-MENU
Press and hold to open the setup menu.
()/(+)/(–)/()/ENTER
Setup items, etc. can be operated by /
//.
VOL (volume) +/–

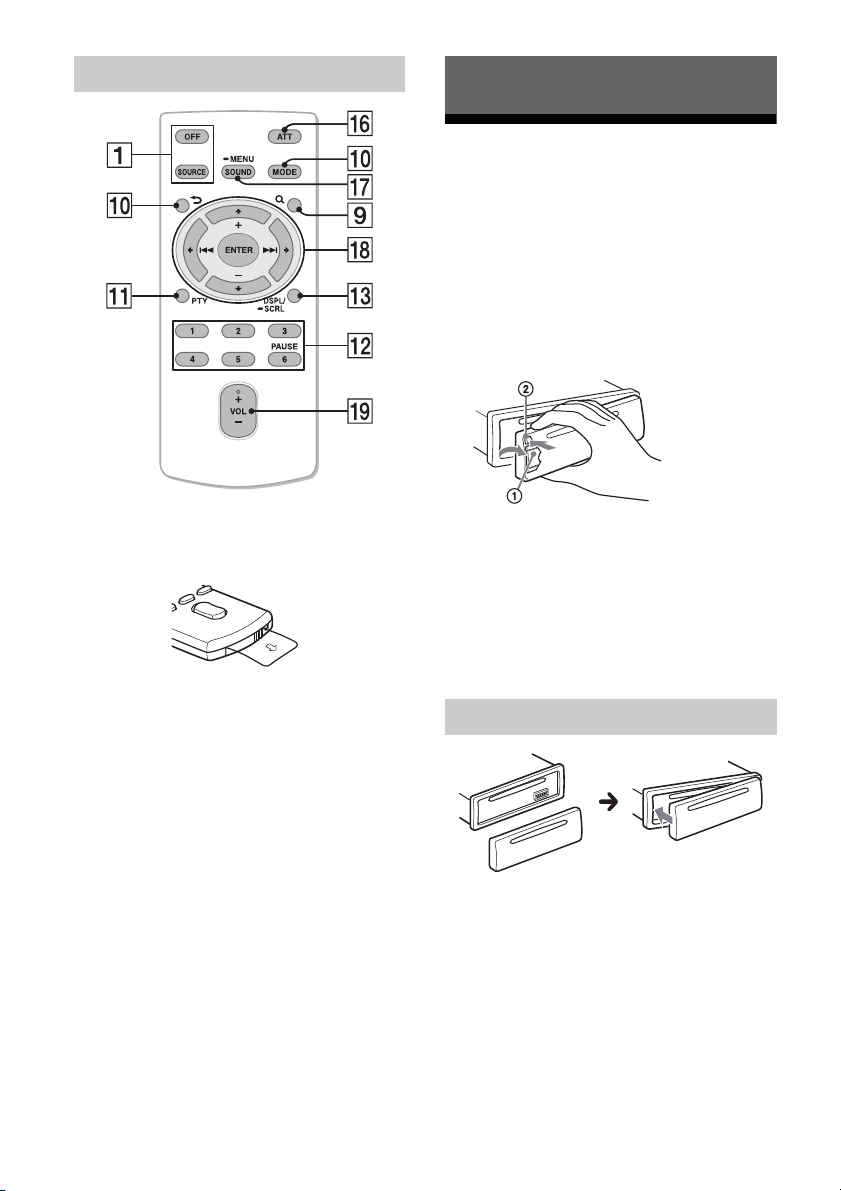

Detaching the Front Panel
You can detach the front panel of this unit to
prevent theft.
1Press and hold OFF .
The unit is turned off.
2Press the front panel release button
, then remove the panel by
pulling it towards you.
Caution alarm
If you turn the ignition switch to the OFF
position without detaching the front panel,
the caution alarm will sound for a few
seconds. The alarm will only sound if the
built-in amplifier is used.
RM-X211 Remote Getting Started
Attaching the front panel

6GB
Switching the FM/AM
Tuning Step (for non-
Argentine models)
Set the FM/AM tuning step of your country.
This setting appears when this unit is turned
off.
1Press MENU, rotate the control dial
to select [GENERAL], then press it.
2Rotate the control dial to select
[TUNER-STP], then press it.
3Rotate the control dial to select
from [50K/9K], [100K/10K] or
[200K/10K], then press it.
Setting the Clock
1Press MENU, rotate the control dial
to select [GENERAL], then press it.
2Rotate the control dial to select
[CLOCK-ADJ], then press it.
The hour indication flashes.
3Rotate the control dial to set the
hour and minute.
To move the digital indication, press SEEK
+/–.
4After setting the minute, press
MENU.
The setup is complete and the clock
starts.
To display the clock, press DSPL.

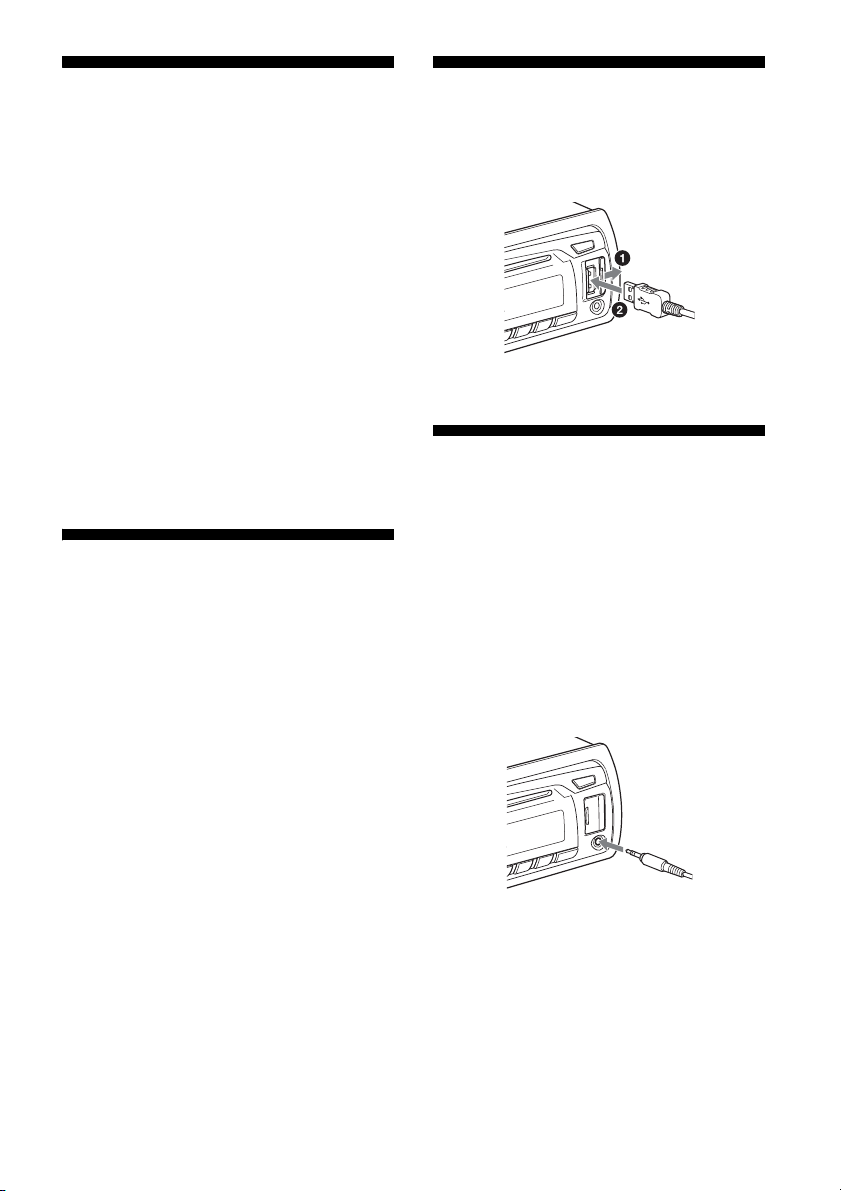

Connecting a USB Device
1Turn down the volume on the unit.
2Connect the USB device to the unit.
Connecting Other Portable
Audio Device
1Turn off the portable audio device.
2Turn down the volume on the unit.
3Connect the portable audio device
to the AUX input jack (stereo mini
jack) on the unit with a connecting
cord*(not supplied).
* Be sure to use a straight type plug.
4Press SRC to select [AUX].
To match the volume level of the
connected device to other sources
Start playback of the portable audio device
at a moderate volume, and set your usual
listening volume on the unit.
Press MENU and rotate the control dial.
Select [SOUND] [AUX VOL] (page 11).

7GB
Listening to the Radio
Tuning step setting is required (for non-
Argentine models) (page 6).
To listen to the radio, press SRC to select
[TUNER].
1Press MODE to change the band
(FM1, FM2, FM3, AM1 or AM2).
2Press MENU, rotate the control dial
to select [GENERAL], then press it.
3Rotate the control dial to select
[BTM], then press it.
The unit stores stations in order of
frequency on the number buttons.
1Press MODE to change the band
(FM1, FM2, FM3, AM1 or AM2).
2Perform tuning.
To tune manually
Press and hold SEEK +/– to locate the
approximate frequency, then press SEEK
+/– repeatedly to fine adjust to the
desired frequency.
To tune automatically
Press SEEK +/–.
Scanning stops when the unit receives a
station. Repeat this procedure until the
desired station is received.
1While receiving the station that you
want to store, press and hold a
number button (1 to 6) to display
[MEM].
1Select the band, then press a
number button (1 to 6).
Using Radio Data System
(RDS)
Use PTY to display or search for a desired
program type.
1Press PTY during FM reception.
2Rotate the control dial until the
desired program type appears,
then press it.
The unit starts to search for a station
broadcasting the selected program type.
Type of programs
Listening to the Radio
Storing automatically (BTM)
Tuning
Storing manually
Receiving the stored stations
Selecting program types (PTY)
NEWS (News), AFFAIRS (Current Affairs),
INFO (Information), SPORT (Sports),
EDUCATE (Education), DRAMA (Drama),
CULTURE (Culture), SCIENCE (Science),
VARIED (Varied), POP M(Pop Music), ROCK
M(Rock Music), EASY M(M.O.R. Music),
LIGHT M(Light classical), CLASSICS (Serious
classical), OTHER M(Other Music), WEATHER
(Weather), FINANCE (Finance), CHILDREN
(Children’s program), SOCIAL A (Social
Affairs), RELIGION (Religion), PHONE IN
(Phone In), TRAVEL (Travel), LEISURE
(Leisure), JAZZ (Jazz Music), COUNTRY
(Country Music), NATION M(National Music),
OLDIES (Oldies Music), FOLK M(Folk Music),
DOCUMENT (Documentary)

8GB
The CT data from the RDS transmission sets
the clock.
1Set [CT-ON] in GENERAL setup
(page 10).

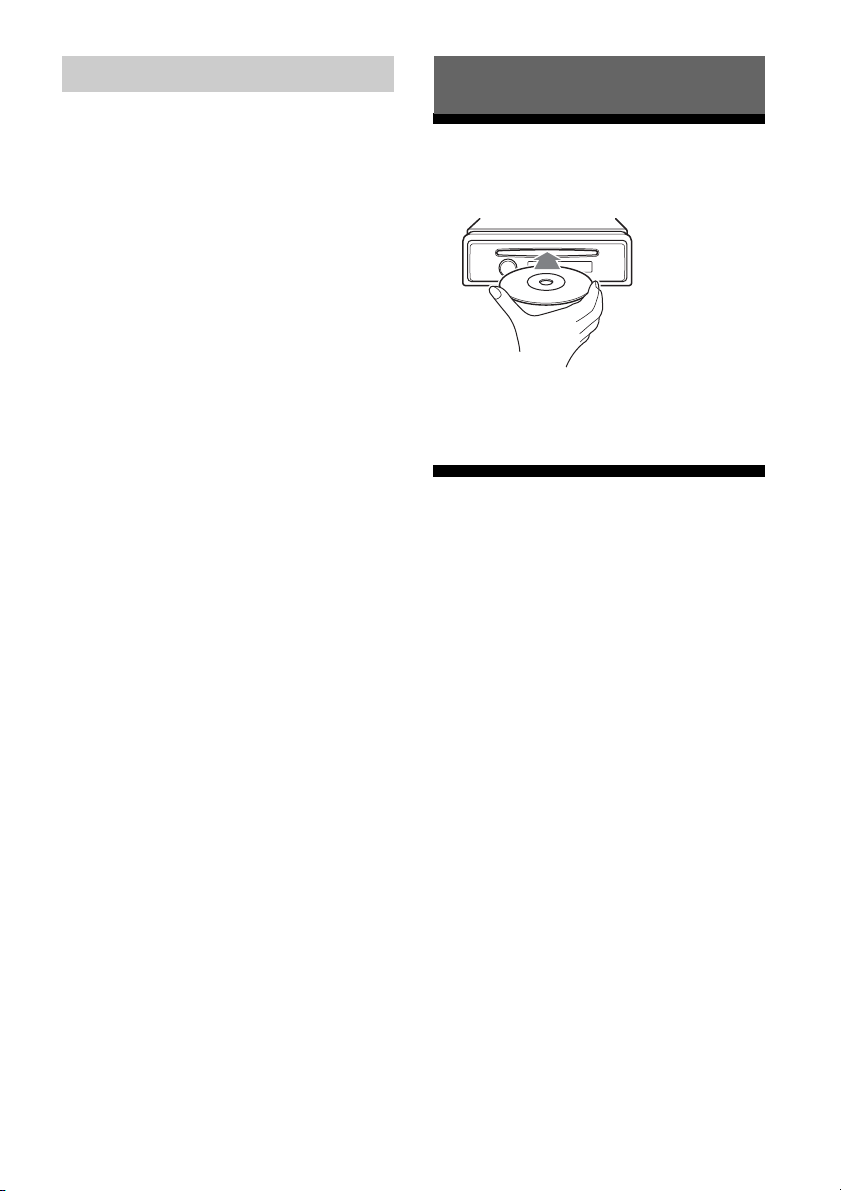

Playing a Disc
1Insert the disc (label side up).
Playback starts automatically.
Playing a USB Device
MSC (Mass Storage Class)-type USB devices
(such as a USB flash drive, digital media
player, Android™ phone) compliant with the
USB standard can be used.
Depending on the digital media player or
Android phone, setting the USB connection
mode to MSC is required.
Notes
For details on the compatibility of your USB
device, visit the support site on the back cover.
Playback of the following MP3/WMA files is not
supported.
lossless compression files
copyright-protected files
DRM (Digital Rights Management) files
Multi-channel audio files
1Connect a USB device to the USB
port (page 6).
Playback starts.
If a device is already connected, to start
playback, press SRC to select [USB].
2Adjust the volume on this unit.
Setting clock time (CT) Playback

9GB
To stop playback
Press and hold OFF for 1 second.
To remove the device
Stop playback, then remove the device.
Searching and Playing
Tracks
1During playback, press (repeat)
for repeat play, or SHUF for shuffle
play.
2Press (repeat) or SHUF repeatedly
to select the desired repeat or
shuffle play mode.
Playback in selected play mode may take
time to start.
Available play modes differ depending on
the selected sound source.
1During CD or USB playback, press
(browse)*to display the list of
search categories.
When the track list appears, press
(back) repeatedly.
* During playback, press (browse) for more
than 2 seconds to directly return to the
beginning of the category list.
2Rotate the control dial to select the
desired search category, then press
it to confirm.
3Repeat step 2 to search the desired
track.
Playback starts.
To exit the Quick-BrowZer mode
Press (browse).
1Press (browse)
2Press SEEK +.
3Rotate the control dial to select the
item.
The list is jumped in steps of 10% of the
total number of items.
4Press ENTER to return to the Quick-
BrowZer mode.
The selected item appears.
5Rotate the control dial to select the
desired item, then press it.
Playback starts.
Repeat play and shuffle play
Searching a track by name (Quick-
BrowZer™)
Searching by skip items
(Jump mode)

10GB
Canceling the DEMO Mode
You can cancel the demonstration display
which appears while this unit is turned off.
1Press MENU, rotate the control dial
to select [DISPLAY], then press it.
2Rotate the control dial to select
[DEMO], then press it.
3Rotate the control dial to select
[DEMO-OFF], then press it.
The setting is complete.
4Press (back) twice.
The display returns to normal reception/
play mode.
Basic Setting Operation
You can set items in the menu to the
following procedure.
The following items can be set depending on
the source and setting.
1Press MENU.
2Rotate the control dial to select the
setup category, then press it.
Setup categories are follows:
GENERAL setup (page 10)
SOUND setup (page 11)
DISPLAY setup (page 11)
3Rotate the control dial to select the
options, then press it.
To return to the previous display
Press (back).
GENERAL SetupSettings
CLOCK-ADJ (Clock Adjust) (page 6)
TUNER-STP (Tuner Step) (page 6)
(Available only for non-Argentine models
and when the unit is turned off.)
CAUT ALM (Caution Alarm)
Activates the caution alarm: [ON], [OFF]
(page 5). (Available only when the unit is
turned off.)
BEEP
Activates the beep sound: [ON], [OFF].
AUTO OFF
Shuts off automatically after a desired
time when the unit is turned off: [NO],
[30S] (30 seconds), [30M] (30 minutes),
[60M] (60 minutes).
AUX-A (AUX Audio)
Activates the AUX source display: [ON],
[OFF]. (Available only when the unit is
turned off.)
CT (Clock Time)
Activates the CT function: [ON], [OFF].
BTM (page 7)

11GB
SOUND Setup DISPLAY Setup
EQ3 PRESET
Selects an equalizer curve from the
following equalizer curves or off: [XPLOD],
[VOCAL], [EDGE], [CRUISE], [SPACE],
[GRAVITY] (except India model),
[BOLLYWD] (India model only), [CUSTOM],
[OFF].
The equalizer curve setting can be
memorized for each source.
EQ3 SETTING
Sets [CUSTOM] of EQ3.
Selects the equalizer settings: [LOW],
[MID], [HIGH].
To restore the factory-set equalizer curve,
press and hold ENTER before the setting is
complete.
BALANCE
Adjusts the sound balance: [RIGHT-15] –
[CENTER] – [LEFT-15].
FADER
Adjusts the relative level: [FRONT-15] –
[CENTER] – [REAR-15].
LOUDNESS (Dynamic Loudness)
Reinforces bass and treble for clear sound
at low volume levels: [ON], [OFF].
SW LEVEL (Subwoofer Level)
Adjusts the subwoofer volume level: [+2
dB] - [0 dB] - [-2 dB].
AUX VOL (AUX Volume Level)
Adjusts the volume level for each
connected auxiliary device:
[+18 dB] - [0 dB] - [-8 dB].
This setting negates the need to adjust
the volume level between sources.
DEMO (Demonstration)
Activates the demonstration: [ON], [OFF].
BLK OUT (Black Out)
Turns off the illumination automatically for
any source (e.g., during radio reception/
CD playback, etc.) if no operation is
performed for 5 seconds: [ON], [OFF].
To turn the light back on, press any button
on the unit or the remote commander.
DIMMER
Changes the display brightness: [ON],
[OFF].
ILLUM (Illumination)
Changes the illumination color: [1], [2].
(Available only for Argentine models.)
AUTO SCR (Auto Scroll)
Scrolls long items automatically: [ON],
[OFF].
M.DISPLAY (Motion Display)
Shows moving patterns: [ON], [OFF].

12GB
Precautions
Cool off the unit beforehand if your car has
been parked in direct sunlight.
Do not leave the front panel or audio
devices brought in inside the car, or it may
cause malfunction due to high
temperature in direct sunlight.
Power antenna (aerial) extends
automatically.
Moisture condensation
Should moisture condensation occur inside
the unit, remove the disc and wait for about
an hour for it to dry out; otherwise the unit
will not operate properly.
To maintain high sound quality
Do not splash liquid onto the unit or discs.
Do not expose discs to direct sunlight or
heat sources such as hot air ducts, nor
leave it in a car parked in direct sunlight.
Before playing, wipe the
discs with a cleaning
cloth from the center out.
Do not use solvents such
as benzine, thinner,
commercially available
cleaners.
This unit is designed to
play back discs that conform to the
Compact Disc (CD) standard. DualDiscs and
some of the music discs encoded with
copyright protection technologies do not
conform to the Compact Disc (CD)
standard, therefore, these discs may not be
playable by this unit.
Discs that this unit CANNOT play
Discs with labels, stickers, or sticky tape
or paper attached. Doing so may cause a
malfunction, or may ruin the disc.
Discs with non-standard shapes (e.g.,
heart, square, star). Attempting to do so
may damage the unit.
8 cm (3 1/4in) discs.
Notes on CD-R/CD-RW discs
The maximum number of: (CD-R/CD-RW
only)
folders (albums): 150 (including root
folder)
files (tracks) and folders: 300 (may less
than 300 if folder/file names contain
many characters)
displayable characters for a folder/file
name: 32 (Joliet)/64 (Romeo)
If the multi-session disc begins with a CD-
DA session, it is recognized as a CD-DA
disc, and other sessions are not played
back.
Discs that this unit CANNOT play
CD-R/CD-RW of poor recording quality.
CD-R/CD-RW recorded with an
incompatible recording device.
CD-R/CD-RW which is finalized
incorrectly.
CD-R/CD-RW other than those recorded
in music CD format or MP3 format
conforming to ISO9660 Level 1/Level 2,
Joliet/Romeo or multi-session.
If you have any questions or problems
concerning your unit that are not covered in
this manual, consult your nearest Sony
dealer.
Additional Information
Notes on discs
Playback order of MP3/WMA files
MP3/WMA Folder (album)
MP3/WMA file
(track)

13GB
Maintenance
Replacing the lithium battery of the
remote commander
When the battery becomes weak, the range
of the remote commander becomes shorter.
Replace the battery with a new CR2025
lithium battery. Use of any other battery may
present a risk of fire or explosion.
Notes on the lithium battery
Keep the lithium battery out of the reach of
children. Should the battery be swallowed,
immediately consult a doctor.
Wipe the battery with a dry cloth to assure a good
contact.
Be sure to observe the correct polarity when
installing the battery.
Do not hold the battery with metallic tweezers,
otherwise a short-circuit may occur.
Cleaning the connectors
The unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
detach the front panel (page 5) and clean the
connectors with a cotton swab. Do not apply
too much force. Otherwise, the connectors
may be damaged.
Notes
For safety, turn off the ignition before cleaning
the connectors, and remove the key from the
ignition switch.
Never touch the connectors directly with your
fingers or with any metal device.
Specifications
Tuner section
FM
Tuning range:
For non-Argentine models:
87.5 - 108.0 MHz (at 50 kHz step)
87.5 - 108.0 MHz (at 100 kHz step)
87.5 - 107.9 MHz (at 200 kHz step)
For Argentine models:
87.5 - 107.9 MHz
FM tuning step (for non-Argentine models):
50 kHz/100 kHz/200 kHz switchable
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz
Usable sensitivity: 8 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 80 dB (stereo)
Separation: 50 dB at 1 kHz
Frequency response: 20 – 15,000 Hz
AM
Tuning range:
For non-Argentine models:
531 - 1,602 kHz (at 9 kHz step)
530 - 1,710 kHz (at 10 kHz step)
For Argentine models:
530 - 1,710 kHz
AM tuning step (for non-Argentine models):
9 kHz/10 kHz switchable
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
For non-Argentine models:
9,124.5 kHz or 9,115.5 kHz/4.5 kHz (at 9 kHz
step)
9,115 kHz or 9,125 kHz/5 kHz (at 10 kHz step)
For Argentine models:
9,115 kHz or 9,125 kHz/5 kHz
Sensitivity: 26 µV
WARNING
Battery may explode if mistreated.
Do not recharge, disassemble, or dispose
of in fire.
+ side up

14GB
CD Player section
Signal-to-noise ratio: 95 dB
Frequency response: 10 – 20,000 Hz
Wow and flutter: Below measurable limit
Corresponding codec:
MP3 (.mp3), and WMA (.wma)
USB Player section
Interface: USB (Full-speed)
Maximum current: 500 mA
The maximum number of recognizable data:
folders (albums): 128
files (tracks) per folder: 512
Corresponding codec:
MP3 (.mp3), and WMA (.wma)
Power amplifier section
Output: Speaker outputs
Speaker impedance: 4 – 8 ohms
Maximum power output: 55 W × 4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (rear, sub)
Power antenna (aerial)/Power amplifier
control terminal (REM OUT)
Inputs:
Remote controller input terminal
Antenna (aerial) input terminal
AUX input jack (stereo mini jack)
USB port
Power requirements: 12 V DC car battery
(negative ground (earth))
Dimensions:
Approx. 178 mm × 50 mm × 177 mm
(7 1/8in × 2 in × 7 in) (w/h/d)
Mounting dimensions:
Approx. 182 mm × 53 mm × 160 mm
(7 1/4in × 2 1/8in × 6 5/16 in) (w/h/d)
Mass: Approx. 1.2 kg (2 lb 11 oz)
Package contents:
Main unit (1)
Remote commander (1) : RM-X211
Parts for installation and connections (1 set)
Your dealer may not handle some of the
above listed accessories. Please ask the
dealer for detailed information.
Design and specifications are subject to
change without notice.
Quick-BrowZer is a trademark of Sony
Corporation.
Windows Media is either a registered trademark
or trademark of Microsoft Corporation in the
United States and/or other countries.
This product is protected by certain intellectual
property rights of Microsoft Corporation. Use or
distribution of such technology outside of this
product is prohibited without a license from
Microsoft or an authorized Microsoft subsidiary.
MPEG Layer-3 audio coding technology and
patents licensed from Fraunhofer IIS and
Thomson.
Android is a trademark of Google Inc. Use of this
trademark is subject to Google Permissions.
Troubleshooting
The following checklist will help you remedy
problems you may encounter with your unit.
Before going through the checklist below,
check the connection and operating
procedures.
For details on using the fuse and removing
the unit from the dashboard, refer to the
installation/connections manual supplied
with this unit.
If the problem is not solved, visit the support
site on the back cover.
General
No power is being supplied to the unit.
If the unit is turned off and the display
disappears, the unit cannot be operated with
the remote commander.
Turn on the unit.
No sound.
The position of the fader control [FADER] is
not set for a 2-speaker system.
Copyrights

15GB
No beep sound.
An optional power amplifier is connected and
you are not using the built-in amplifier.
The contents of the memory have been
erased.
The power supply lead or battery has been
disconnected or not connected properly.
Stored stations and correct time are erased.
The fuse has blown.
Makes a noise when the position of the
ignition is switched.
The leads are not matched correctly with the
car’s accessory power connector.
During playback or reception, the
demonstration mode starts.
If no operation is performed for 5 minutes
with [DEMO-ON] set, the demonstration
mode starts.
Set [DEMO-OFF] (page 11).
The display disappears from/does not appear
in the display window.
The dimmer is set to [DIM-ON] (page 11).
The display disappears if you press and hold
OFF.
Press OFF on the unit until the display
appears.
The connectors are dirty (page 13).
The display disappears while the unit is
operating.
The Black Out function is set to on (page 11).
The operation buttons do not function.
The disc will not eject.
Press DSPL and (back)/MODE for more
than 2 seconds to reset the unit.
The contents stored in memory are erased.
For your safety, do not reset the unit while
you are driving.
Radio reception
Stations cannot be received.
The sound is hampered by noises.
The connection is not correct.
If your car has built-in radio antenna
(aerial) in the rear/side glass, connect an
REM OUT lead (blue/white striped) or
accessory power supply lead (red) to the
power supply lead of a car’s antenna
(aerial) booster.
Check the connection of the car antenna
(aerial).
If the auto antenna (aerial) will not extend,
check the connection of the power
antenna (aerial) control lead.
The tuning step setting has been erased.
Set the tuning step again (page 6).
Preset tuning is not possible.
The broadcast signal is too weak.
RDS
PTY displays [- - - - - - - -].
The current station is not an RDS station.
RDS data has not been received.
The station does not specify the program
type.
CD playback
The disc does not play back.
Defective or dirty disc.
The CD-R/CD-RW is not for audio use
(page 12).
MP3/WMA files cannot be played back.
The disc is incompatible with the MP3/WMA
format and version. For details on playable
discs and formats, visit the support site.
MP3/WMA files take longer to play back than
others.
The following discs take a longer time to start
playback.
A disc recorded with a complicated tree
structure.
A disc recorded in Multi Session.
A disc to which data can be added.
The sound skips.
Defective or dirty disc.

16GB
USB playback
You cannot play back items via a USB hub.
This unit cannot recognize USB devices via a
USB hub.
A USB device takes longer to play back.
The USB device contains files with a
complicated tree structure.
The sound is intermittent.
The sound may be intermittent at a high-bit-
rate of more than 320 kbps.
Error displays/Messages
ERROR
The disc is dirty or inserted upside down.
Clean or insert the disc correctly.
A blank disc has been inserted.
The disc cannot play due to a problem.
Insert another disc.
USB device was not automatically recognized.
Connect it again.
Press to remove the disc.
HUB NO SUPRT (hubs not supported)
USB hub is not supported on this unit.
NO DEV (no device)
[USB] is selected as source without a USB
device connected. A USB device or a USB
cable has been disconnected during
playback.
Be sure to connect a USB device and USB
cable.
NO MUSIC
The disc or USB device does not contain a
music file.
Insert a music CD.
Connect a USB device with a music file in it.
OVERLOAD
USB device is overloaded.
Disconnect the USB device, then change
the source by pressing SRC.
The USB device has a fault, or an
unsupported device is connected.
PUSH EJT (push eject)
The disc cannot be ejected.
Press (eject).
READ
The unit is reading all track and album
information on the disc.
Wait until reading is complete and
playback starts automatically. Depending
on the disc structure, it may take more than
a minute.
USB NO SUPRT (USB not supported)
The connected USB device is not supported.
For details on the compatibility of your USB
device, visit the support site.
[]or[]
During reverse or fast-forward, you have
reached the beginning or the end of the disc
and you cannot go any further.
[]
The character cannot be displayed.
If these solutions do not help improve the
situation, consult your nearest Sony dealer.
If you take the unit to be repaired because of
CD playback trouble, bring the disc that was
used at the time the problem began.

2ES
AUTOESTEREO DIGITAL AM/FM CON
REPRODUCTOR DE DISCO COMPACTO
Propiedades del diodo láser
Duración de la emisión: continua
Potencia del láser: menos de 53,3 W
(esta potencia es la medición del valor a una
distancia de 200 mm de la superficie de la lente
del objetivo en el Bloque óptico con una
abertura de 7 mm)
Nota sobre la pila de litio
No exponga la pila a fuentes de calor
excesivo como luz solar directa, fuego o
similar.
POR FAVOR LEA DETALLADAMENTE ESTE
MANUAL DE INSTRUCCIONES ANTES DE
CONECTAR Y OPERAR ESTE EQUIPO.
RECUERDE QUE UN MAL USO DE SU APARATO
PODRÍA ANULAR LA GARANTÍA.
Asegúrese de instalar esta unidad en el
tablero del automóvil por razones de
seguridad. Para realizar la instalación y las
conexiones, consulte el manual de instalación
y conexiones suministrado.
Advertencia: si el encendido del
automóvil no dispone de una posición
ACC
Asegúrese de ajustar la función AUTO OFF
(página 11). La unidad se apagará completa y
automáticamente en el tiempo establecido
después de apagarla, lo cual evita que se
agote la batería. Si no ajusta la función AUTO
OFF, mantenga presionado OFF hasta que se
apague la pantalla cada vez que apague el
motor.

3ES
Tabla de contenidos
Guía para las partes y los controles . . . . . . . 4
Procedimientos iniciales
Extracción del panel frontal. . . . . . . . . . . . . . 6
Cambio del paso de sintonización de
FM/AM (para modelos que no son de
Argentina) . . . . . . . . . . . . . . . . . . . . . . . . . 6
Ajuste del reloj . . . . . . . . . . . . . . . . . . . . . . . . 6
Conexión de un dispositivo USB . . . . . . . . . . 7
Conexión de otro dispositivo de audio
portátil . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Escuchar la radio
Escuchar la radio. . . . . . . . . . . . . . . . . . . . . . . 8
Usar el RDS (Sistema de datos de radio) . . . 8
Reproducción
Reproducción de un disco . . . . . . . . . . . . . . . 9
Reproducción de un dispositivo USB . . . . . . 9
Búsqueda y reproducción de pistas . . . . . . 10
Ajustes
Cancelación del modo DEMO . . . . . . . . . . . .11
Operación básica de ajustes . . . . . . . . . . . . .11
Configuración GENERAL. . . . . . . . . . . . . . . . .11
Configuración SOUND . . . . . . . . . . . . . . . . . 12
EQ3 PRESET . . . . . . . . . . . . . . . . . . . . . . . 12
EQ3 SETTING . . . . . . . . . . . . . . . . . . . . . . 12
Configuración DISPLAY. . . . . . . . . . . . . . . . . 12
Información complementaria
Precauciones. . . . . . . . . . . . . . . . . . . . . . . . . 13
Mantenimiento. . . . . . . . . . . . . . . . . . . . . . . 14
Especificaciones . . . . . . . . . . . . . . . . . . . . . . 14
Solución de problemas . . . . . . . . . . . . . . . . 16

4ES
Guía para las partes y los controles
El botón con el número 3/ (repetir) tiene un punto sensible al tacto.
SRC (fuente)
Para encender la unidad.
Para cambiar la fuente.
-OFF
Manténgalo presionado durante 1
segundo para apagar la unidad.
Manténgalo presionado durante más de
2 segundos para apagar la unidad y la
pantalla.
Si la unidad está apagada y la pantalla
desaparece, no se puede operar con el
control remoto.
Botón de liberación del panel frontal
SEEK +/–
Para sintonizar emisoras de radio en
forma automática. Manténgalo
presionado para sintonizarlas en forma
manual.
/(anterior / siguiente)
/(retroceso / avance rápido)
Selector de control
Gírelo para ajustar el volumen.
ENTER
Para ingresar el elemento seleccionado.
MENU
Para abrir el menú de configuración.
Receptor del control remoto
Ranura del disco
Visualizador
(expulsar disco)
(navegar) (página 10)
Para entrar al modo de navegación
durante la reproducción.
(volver)
Para volver a la pantalla anterior.
MODE (página 8)
PTY (Tipos de programa)
Para seleccionar los PTY en RDS.
Botones numéricos (de 1 a 6)
Para recibir las emisoras almacenadas.
Manténgalo presionado para
almacenarlas en forma manual.
ALBUM /
Para saltearse un álbum en el dispositivo
de audio. Manténgalo apretado para
saltear álbumes en forma continua.
(repetir)
SHUF (aleatorio)
PAUSE
Unidad principal
