Sony CFD-RG880CP User manual

SERVICE MANUAL
Sony Corporation
Audio&Video Business Group
Published by Sony Techno Create Corporation
CFD-RG880CP
SPECIFICATIONS
CD RADIO CASSETTE-CORDER
9-889-387-01
2009A04-1
© 2009.01
E Model
East European Model
Russian Model
Ver. 1.0 2009.01
CD
Section
Model Name Using Similar Mechanism CFD-G700CP/G770CP/G770CPK
CD Mechanism Type KSM-213CDP/C2NP
Optical Pick-up Name KSS-213C
TAPE
Section
Model Name Using Similar Mechanism CFD-G505
Tape Transport Mechanism Type MF-G505V
CD player section
System
Compact disc digital audio system
Laser diode properties
Emission duration: Continuous
Laser output: Less than 44.6 μW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on the
optical pick-up block with 7 mm aperture.)
Number of channels
2
Frequency response
20 - 20 000 Hz +1/–2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
MX model:
FM: 87.5 - 108 MHz
AM: 530 - 1 710 kHz
BR, CET, E41, E92 model:
FM: 87.5 - 108 MHz
AM: 531 - 1 611 kHz (9 kHz step)
530 - 1 610 kHz (10 kHz step)
Antennas
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Cassette-corder section
Recording system
4-track 2 channel stereo
Fast winding time
Approx. 150 s (sec.) with Sony cassette C-60
Frequency response
TYPE I (normal): 70 - 13 000 Hz
USB section
Supported bit rate
MP3 (MPEG 1 Audio Layer-3):
32 - 320 kbps, VBR
WMA:
16 - 320 kbps, VBR
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
WMA:
32/44.1/48kHz
(USB) port
USB-A (Full Speed)
– Continued on next page –
J O M I

CFD-RG880CP
CFD-RG880CP
2525
SECTION 7
DIAGRAMS
7-1. BLOCK DIAGRAM – CD Section –
A IN
RF OUT
A
C
B
D
E
F
A
C
B
D
E
F
5
2 1
C IN
6
B IN
7
D IN
8
E IN
RF SIGNAL PROCESSOR EFMIN
RF OUT
13
F IN
14
LDLD
MD
VR
VC
TD+
TD–
SL+
SL–
FD+
+
FD–
–
PD
LDO
APC
18
LDS
19
VREF
VREF
D DO
D DI
D CL
D CE
D RESB
USB-TXD USB-RXD SLEEP
VC
VBUS
+5V
MUTE
VC
VC
11
LD POWER
CONTROLLER
Q701
TRACKING
COIL
DRIVE
SERVO
CONTROL
8FS
DIGITAL
FILTER
&
1-bit DAC
SYNCHRONIZATION
DETECTION
EFM DEMODULATION
OPTICAL PICK-UP
BLOCK
(KSM-213CDP)
SLED/SPINDLE
MOTOR DRIVER,
TRACKING/FOCUS
COIL DRIVER
IC703
SYSTEM SERVO PROCESSOR,
DIGITAL SIGNAL PROCESSOR
IC701
SYSTEM CONTROL
IC801 (1/4)
TRACKING
COIL
FOCUS
COIL
M702
(SLED)
24 25
23
19
20
FOCUS
COIL
DRIVE
SLED
MOTOR
DRIVE
5
6
10
9
SPINDLE
MOTOR
DRIVE
MM
SP+
I-CD LID
SP–
+
–
M701
(SPINDLE)
S701
(LIMIT)
MM
18
4
11
2
27
TDO
23
FDO
22
SLDO
24
SPDO
25
CONT3
32
D RESB
47
D CE
43
D CL
44
D DI
45
D DO
46
93 94 867
M-MUTE
O-CD RES
O-CD CE
O-CD CLK
O-CD DO
I-CD DI
92
USB-RXD
10091
USB-TXD
99
O-SW EN
98
I-SW FLG
40
87
SW2
PUSH
OPEN/
CLOSE
;
VBUS +5V
CONTROL
IC704
XOUT XIN
73 72
X701
16.9344MHz
CLOCK
GENERATOR
MCU I/F
LCHO 76
RCHO 78
STREQ 54
UHD+ D+
38
UHD– D–
37
STCK 55
STDATA 56
PCMREQ 65
PCMLRSY 62
PCMBCK 63
PCMDATA 64
P70/INT0/TOLCP/AN8
46
P24/INT5/INT7/SCK4
33
P22/INT4/SO4/RD
31
P23/INT4/SI4/WR
32
P07/AN7/T70
28
P06/AN6/T60
27
P05/AN5/CK0/SDAT
CD L-CH
RCH
26
RES
2
P16/T1PWML/DE
15
P12/SCK
11
P71/INT1/TOHCP/AN9
47
P30/UTX1
45
P31/URX1
44
P10/SO
9
P11/SI
10
7
6
X702
12MHz
USB I/F
IC702
J1001
(USB)
CF2
CF1
AMAIN
SECTION
: USB
: CD
• Signal Path
• R-CH is omitted due to same as L-CH.
(Page 27)
J O M I

CFD-RG880CP
CFD-RG880CP
2626

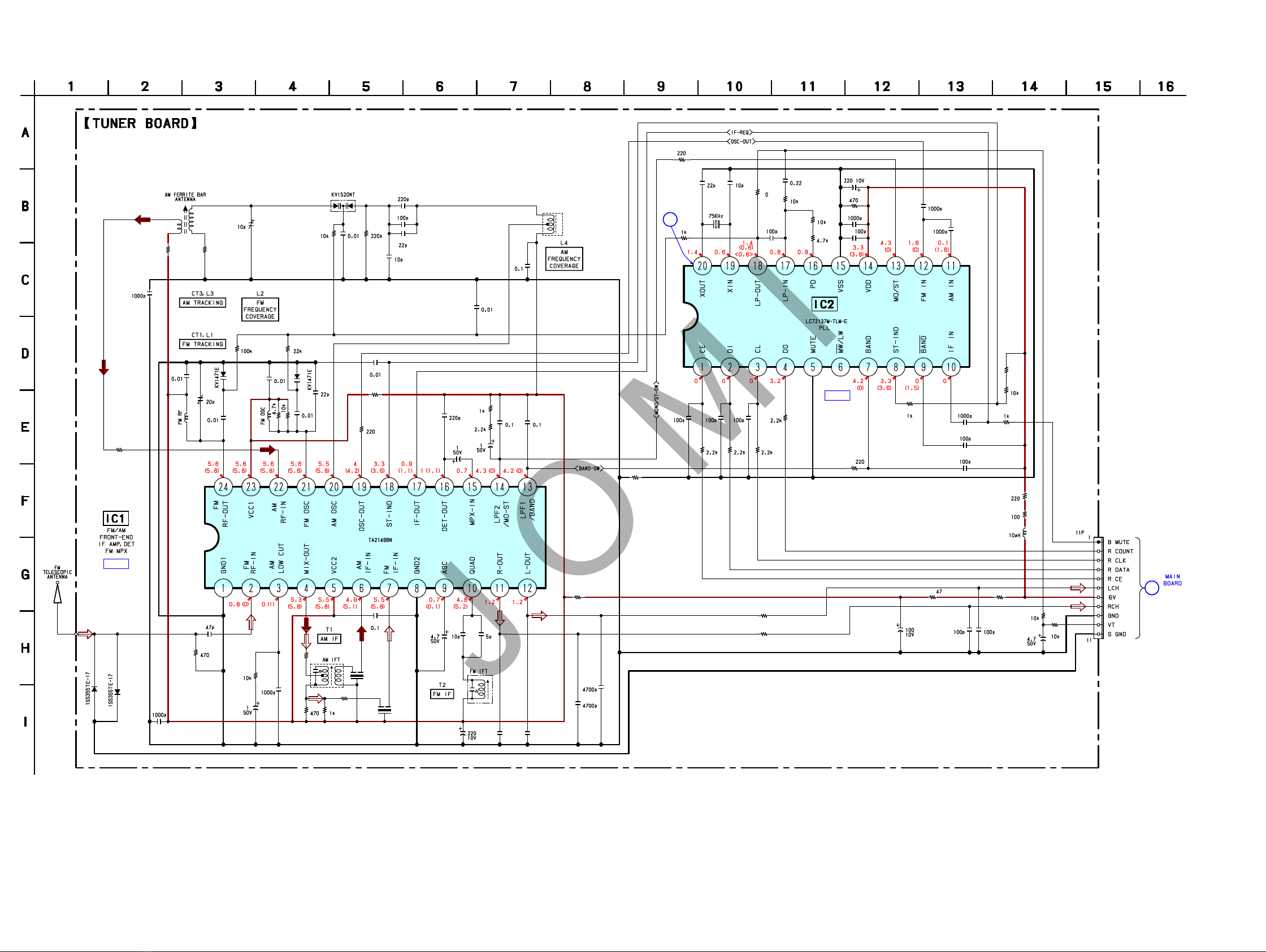

7-2. BLOCK DIAGRAM – TUNER Section –
O-TU-CE
37
O-TU-CLK
35
O-TU-DATA
36
I-TU-COUNT
33
SYSTEM CONTROL
IC801(2/4)
19
L1
L3
FERRITE-ROD
ANTENNA
D1
D11 D10
2
24
21
22
20
FM
MIX
FM RF IN
FM RF OUT
FM OSC
AM RF IN
AM OSC
FM
OSC
AM
MIX
AM
OSC
OSC
OUT
4
MIX OUT
16
IF
BUFFER
CF2
CF4
7
6
FM IF-IN
AM IF-IN
FM
MPX
FM/AM
BUFFER
FM
DET
AM
DET
15 B
DET OUT
17
MUTE 12
11 R-CH
10
FM/AM FRONT-END
IF AMP,DET,FM MPX
23 5
RADIO 6V
QUAD VCC1 VCC2
MAIN
SECTION
T2
CE
12
11
14
13
14 13
MO/ST
BAND
10
4
2
3
1
20
19
FM/AM PLL
IC2
FM IN
AM IN
VDD
XOUT
XIN
CL
DI
DO
IF IN
MO/ST
6V
X1
75kHz
D909
U-COM(VDD)
TU LCH
RADIO 6V
CT1
L2
D2
RADIO 6V
CT3
RADIO 6V
D3
L4
ANTENNA
FM
TELESCOPIC
IC1
T1
18 LP OUT
16 PD
18
ST IND
8
ST IND
7
BAND
IFOUT
MPX-IN
O-TU-MUTE
34
RADIO 6V
ANT1
17 LP IN
CT1,L1
FM
TRACKING
L2
FM
FREQUENCY
COVERAGE
CT3,L3
AM
TRACKING
L4
AM
FREQUENCY
COVERAGE
T1
AM IF
T2
FM IF
MUTE
SWITCH
Q833
: FM
: AM
• Signal Path
• R-CH is omitted due to same as L-CH.
(Page 27)
J O M I

CFD-RG880CP
CFD-RG880CP
2727

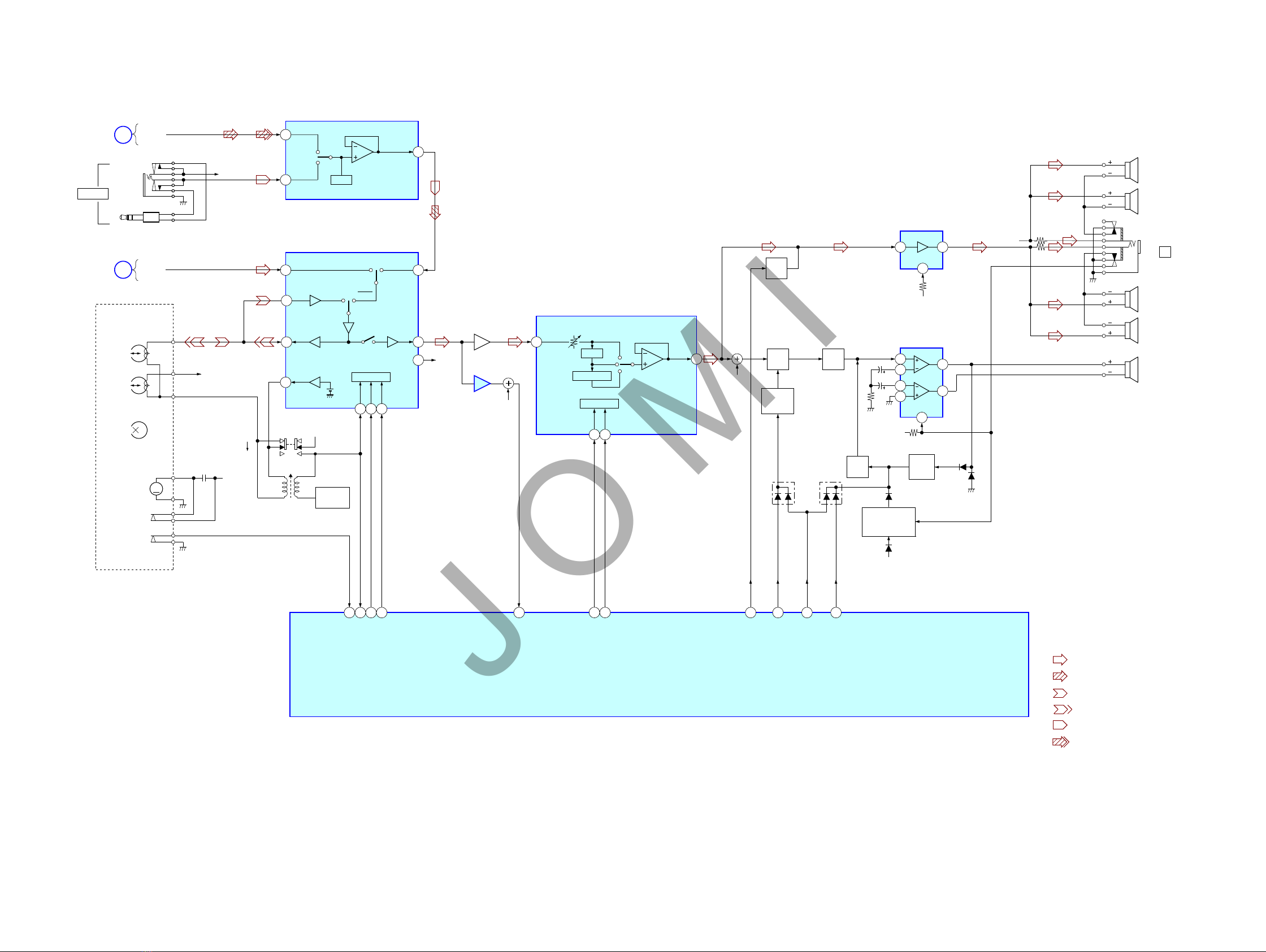

7-3. BLOCK DIAGRAM – MAIN Section –
20
A
B
TUNER
SECTION
CD L-CH
R-CH
R-CH
RECORD/PLAYBACK
HEAD
HRP301
HE301
ERASE HEAD
R-CH
L-CH
REC BIAS
OSC
Q301
REC/PB PRE AMP
IC301
5
4
1521
REC
TAPE
L.LINL.RAD
PB AMP
26dB
2422
L.LO
TAPETAPE
T301
12
MUTE
Q101
AMP
Q301
AGC
DRIVE
Q304
3
8
STBY
POWER AMP
IC303
R-CH J391
J
SPEAKER (L-CH)
SPEAKER (R-CH)
O-VOL-DATA
78
O-A-MUTE
63
O-TAPE
65
TAPE REC
SYSTEM CONTROL
IC801(3/4)
S301
REC/PB
REC AMP
AMP
BUFFER 7dB
64
I-TAPE PLAY
M
M971
CAPSTAN/REEL
MOTOR
S972
MOTOR
S971
PLAY
CD
SECTION
17
LINE
62
O-CD-SW
82
I-SPOUT-VOLTAGE
18
R.LO
6REF
IN L1
IN L2
SEL1 L
OUT1 L
3MUTE
23
26
66
10
VOL1 L
R-CH
R-CH
Q160
IC351
SDA SCL
1
SOUND/VOLUME
IC301 (2/2)
INPUT SELECT
IC301 (1/2)
11
O-VOL-CLK
25
68
AGC
Q306
D303 D304
D307
D308
VDD(SW)
VDD(SW)
12
13 3
10
11 5
8
STBY
WOOFER AMP
IC302
73
WOOFER ON/OFF
72
WOOFER 1/2
SP191
SP291
SP393
WOOFER
AU 6V
BUZZER (R-CH)
SP292
BUZZER (L-CH)
SP192
PB
REC
LPF
Q303
HEADPHONE
DETECT SWITCH
Q305
GAIN
CONTROL
Q302
D305
D306
AUDIO +6V
TC+9V
J372
CNP2
AUDIO IN
L.IN
L.RO
TAPE MECHANISM DECK
TONE
SURROUND
MCU I/F
LOGIC
79
O-P-MUTE
R-CH
TU L-CH
: FM
: CD
• Signal Path
• R-CH is omitted due to same as L-CH.
: TAPE PLAY
: TAPE REC
: LINE IN
: USB
(Page 25)
(Page 26)
J O M I

CFD-RG880CP
CFD-RG880CP
2828

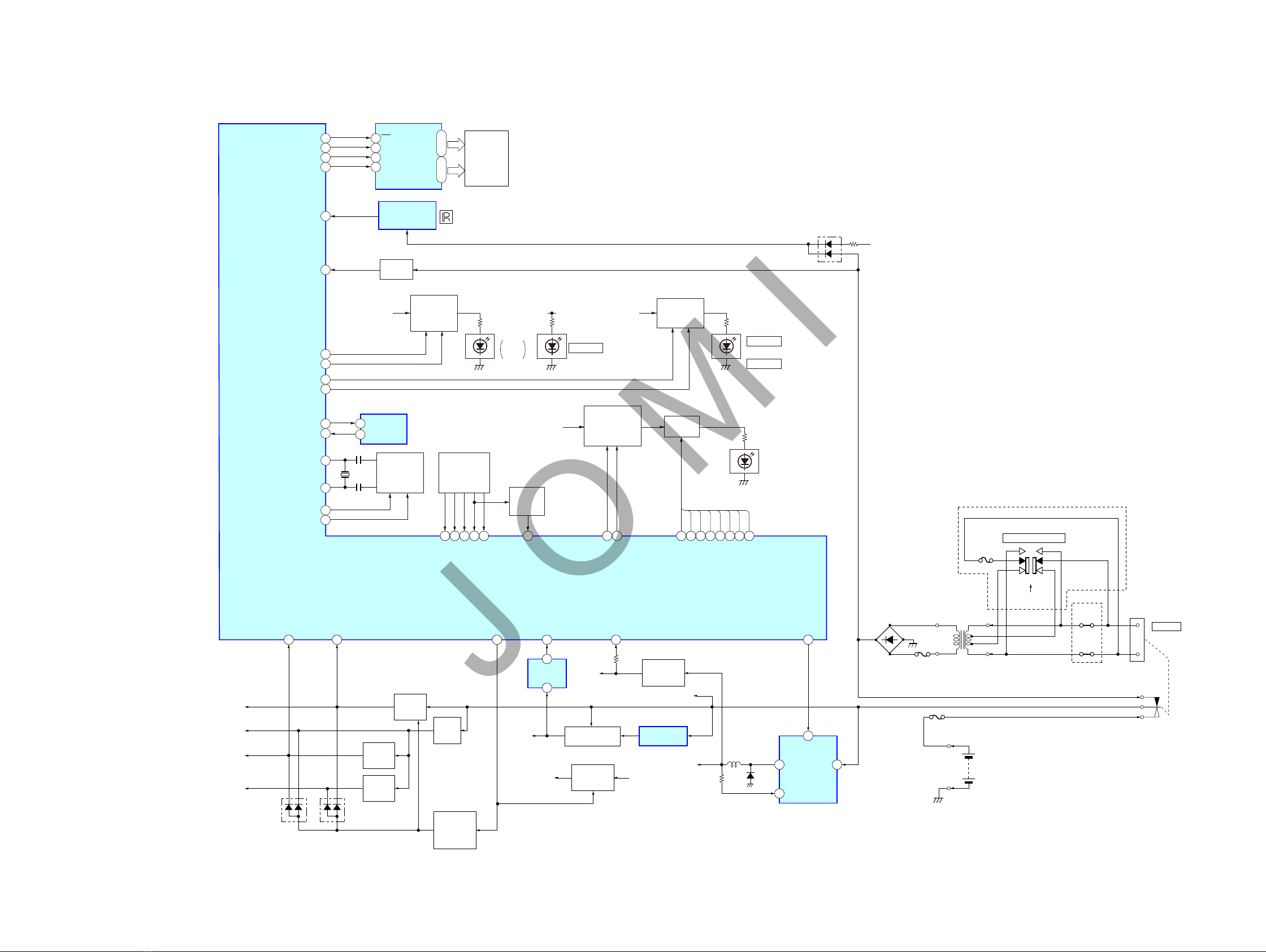

7-4. BLOCK DIAGRAM – POWER Section –
VDD+3.3VLCD+3.3V
U-COM(VDD)
VDD(SW)
VDD+3.3V
VBUS
+5V
L901
VBUS+5V
REG
IC901
F982
BATT
F981
120-127V
F983
BR MODEL
EXCEPT
BR MODEL
220-230V
D981—984
RECT
T981
POWER
TRANSFORMER
DRY BATTERY
SIZE "D"
(IEC DESIGNATION R20)
8PCS, 12V
D906
+3.3V
(CD)
5
CONT
O-POWER
74
I-KEY0
23
I-RES
11
CD3.3V CHK
21
O-5V-ON
76
1
2
I-REG 6.2V-CHK
81
CD+3.3V
REG
Q912
RESET
IC803
VDD+3.3V SWITCH
Q804,805
POWER
PROTECT
SWITCH
Q901
TC+9V
CD/RADIO
/LED+6.2V
AUDIO+6V
VDD+3.3V REG
IC804
FB
4
VOUT
2VIN 1
J981
AC IN
S981
VOLTAGE SELECTOR
D903D902
I-VH-CHK
80
SYSTEM CONTROL
IC801 (4/4)
O-LCD INH
O-LCD CE
O-LCD SCL
O-LCD DATA
EPROM SCL
EPROM SDA
2
CD/RADIO
/LED+6.2V
56
BACK LIGHT H
57
BACK LIGHT L
AC CHECK
Q808
D601,602
LCD
BACK
LIGHT
EEPROM
IC802
CLOCK
SHIFT
SWITCH
Q802,803
FUNCTION
SWITCH
S401-426
X802
10MHz
WAKE UP
SWITCH
Q801
LED DRIVE
Q817-832
BACK LIGHT
LED CONTROL
SWITCH
Q809-812
DISPLAY CONTROL
IC601
1
I
34
54
I
51
29
I-RMC
INH
CE
CL
SEG1
I
SEG34
COM1
I
COM14
DI
41
USB LED
42
USB REC LED
61
462
563
364
9
CF1
SCL
SDA
15
CF2 16
18
O-CLOCK SHFT2
O-CLOCK SHFT1
19
6
5
10
I-AC CHECK 88
REMOTE CONTROL
SIGNAL RECEIVER
IC602
LCD601
LIQUID
CRYSTAL
ELEMENT
I-KEY1
24
WOOFER LED1
43
WOOFER LED
POWER CONTROL
SWITCH
Q813-816
WOOFER LED2
44
I-KEY2
25
I-KEY3
26
I-KEY4
27
I-WAKE UP
28
LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8
46 47 48 49 50 51 52 53
POWER
SWITCH
Q903,904
CD+6V
REG
Q906
TC+9V
REG
Q905
VDD+3.3V
SWITCH
Q806,807
AU+6V
REG
Q907
D604
VDD(SW)
D603
VDD(SW)
OPR/BATT
CD/RADIO
/LED+6.2V
CD/RADIO
/LED+6.2V
USB LED
DRIVE
Q401-404
D409
USB REC
D410
D401-408
(ILLUMINATION)
USB PLAY
JW987,
988
JW985,
986
• Abbreviation
BR: Brazilian model
J O M I

CFD-RG880CP
CFD-RG880CP
3232
7-6. SCHEMATIC DIAGRAM – CD Section – • See page 30 for waveforms. • See page 48 for IC Block Diagrams. • See page 53 for IC Pin Function Description of IC702.
IC B/D
IC B/D
IC B/D
C701
R702
R701
C702
C703
R706
R707
R709
R710
C704
C706
R705
R712
R713
R703
R704
R715
C527
C707
C708
R717
R719
R721
C710
C709
R716
R718
C716
R722
R724
C528
R533
R723
C713 C712
C714
R759
C764
R760
CN701
R534
M701
M702
C505
C504
C507
C506
R503
R504
R505
R506
R501 C503 R502
R507
R508
R509
R510
C718
C717 C723
C722
R726
R727
R728
C721R732
C719
C724
R735
C725
C727
C728
R736
S701
R731
R734
R733
C726
C738
C736
C737
C739
C735
R746
R745
R749
R741
R737
C529
C732
C731
C730
R738
R743
C729
C759
C757
C758
C755
C756
C747
C749
C748
FB702
C746
FB701
C742
R757
C754
C740
C741
R750
TP742
TP741
TP740
TP739
TP738
TP743
TP728
TP729
TP730
TP731
TP732
TP733
TP734
TP735
TP736
TP737
R784
R788
R789
R790
R785
R786
R791
C794
C501
C799
C798
C797
R797
R794
R795
IC704
R511
C510
R781 C787
C786
C784
C783
C782
C779 C781
TP723
TP724
TP725
TP726
TP727
R773
R772
R771 R774 R775 R776
R768
R767
C776
C777
C778
FB703
FB704 C773
R763
R765
C765
C766
R761
TP701
TP702
TP703
TP704
TP705
TP706
TP707
TP708
TP709
TP710
TP711
TP712
TP713
TP714
TP715
TP716
TP717
TP718
TP719
TP720
R521
R517
C519
C514
R518
R514
R522
R523
R524
R525
R526
R528
R529
R530
R531
R532
FB706
C523
C524
R513
R798
R799
C715
C711
C744
C743
C745
R754
X701
R769
R770
R764
X702
Q701
C791
C790
IC703
C792
R751
R752
R753
R755
IC701
R748
R747
R744
R742
R740
C733
C768
IC702
R777
R778
R779
C785
R780
R782
C789C788
R796
C530
C502
FB705
C734
CN704
TP721
TP722
CN705
R783
R787
(Page 41)
(Page 47)
J O M I

CFD-RG880CP
CFD-RG880CP
3434
7-8. SCHEMATIC DIAGRAM – TUNER Section – • See page 30 for waveform. • See page 49 for IC Block Diagrams.
IC B/D
IC B/D
1
C
CN2
(3/3)
no mark : FM
( ) : AM
C10
C12
C18
C21
C29
C54
CF4
JC1
JC2
JC3
JC4
JC5
JC6
L4
R2
R3
R4
R10
R24
R32
R41
R51
R58
R59
R60R61
CF2
R92
R30
R14
R11
JC24
0
CT3
CT1
X1
C32
C35 C33
C34
C31
C30
C1
C8
C4
C11
C9
C24
C80
C37
C39
C20
C22
C7
C51 C52
C95
C61 C62 C63
C57
C56
L1
D1
L2
D2
R53
R50
C55
R91
C41
C42
IC1
R1
D11
D10
C68
C66
C60
R94 R13
L21 CNP1
ANT1
R54
IC2
T2
C49 R40
C43
D3
C23
R5
C53
R55
R52
C59
R63
L3
JC12 JC11 C47
JC13 T1
C65
R65
C27
C26
C15
C14
R31
R33
R56
R57
JC33
JC34
C77
C78
0.010.01
US,CND,
MX,E92
0
0
0
0
0
0
0
0
0
00
(Page 41)
J O M I

CFD-RG880CP
CFD-RG880CP
3636
7-10. SCHEMATIC DIAGRAM – TC Section – • See page 30 for waveforms. • See page 50 for IC Block Diagram.
MAIN
BOARD
(3/3)
CN1
D
IC B/D
1.9
1.9
1.9
<<2>>
<<3.1>>
<<0>>
<<0>>
<<0>>
<<0>>
<<5.9>>
<<0>>
R301
C301
R101
C302
C205
R201R210
R106
R206
R302
R303
R304
R309
C303
C304
R306
R111
R211
R203
R202
R103
R102
R308
C105
C103
C203
C207
T301
C102
R104
R112
R212
R204
C202
C201
C204
IC301
JC308
JC305
JC307
JC301
JC303
JC304
R314 R315
C310 C308
R311
R310
Q301
R307
R305
Q303Q302
JC309
R105
R205
CN303
C307
C306
C305
R110
HRP301
TAPE MECHANISM DECK
(1/2)
S301
C107
C104
C101
JC302
JC306
TA2068NG
(Page 41)
J O M I

CFD-RG880CP
CFD-RG880CP
3939
7-13. SCHEMATIC DIAGRAM – MAIN Section (1/3) – • See page 30 for waveform. • See page 50 for IC Block Diagram. • See page 54 for IC Pin Function Description of IC801.
IC B/D
CN805
R564
JC808
C501
CN804
R529
R530
R556
R558
R531
R532
R559R560
R563
CN803
CN802
R871
R870
R869
R868
R866
R865
R864
R863
R862
R861
R860
R859
R858
R854
R836
R852
C848
C847
C846
C845
C844
R856
R826
R825
R824
R823
R822
R821
R820
R819
R857
R834
R827
C821
R812
R811
R810
R809
R808
R807
R806
R805
R804
R803
R802
R801
C806
R828
R815
R816
R817
R818
R814
R829
JC802
R830
R831
R832
R833
CN808
CN809
CN810
R872
R503
R504
R508
R509
R511
R510
R512
L812
R514
R515
R516
R517
C881
C882
C884
R523
R524
R525
R526
R527
R528
C889
R507
JC806 R521
TP801
TP802
TP803
TP804
TP805
CN806
R505R506
R513
R897
R896
R895
R894
R893
R892
R891
R890
R533
R884
R883
R882
R881
R880
R879
R878
R877
R876
R875
R874
R873
R502
C870
R889
C869
R887
R885
R886
L810
L811
R838
R837
R840
C828
C829
C827
C826
R841
R843 R845
R844
L804
R846
R847
R848
R849
R850
R567
R566
R565
R568
R552
R554
R522
R518
R501
R899
R898
C801
C802
C803
C804
C805
C807
C816
C817
C818
C819
C820
C814
C815
R540
R813
C849
C502
SW2
C886
C880
C878
C883
C887
C888
C861 C862
L814
C812
C813
C808
D804
C822
C823
C824 C825
X802
C830 C831
C832
L802 C833
IC803
IC804
L803
C835
C836
C837
C839
C838
C841
C842
R562
JC811
JC812
Q806
Q807
Q808
IC801
IC802
Q802 Q803
JC805
C834
Q804
C840
Q805
R835
R853
R855
Q801
Q815
Q813
Q816
Q814
Q809
Q810
Q811
Q812
Q823
Q821
Q817
Q824
Q822
Q820
Q818
Q819
Q831
Q829
Q827
Q825
Q832
Q830
Q828
Q826
(Page 43)
(Page 43)
(Page 45)
(Page 45)
(Page 45)
(Page 41)
(Page 45)
(Page 45)
(Page 45)
(Page 45)
(Page 41)
(Page 40)
J O M I

CFD-RG880CP
CFD-RG880CP
4040
7-14. SCHEMATIC DIAGRAM – MAIN Section (2/3) – • See page 51 for IC Block Diagram.
IC B/D
R208
R108
R123
R223
R209R109
R104
R105
R204
R205
C207
C106
R110 R210
TP302 R304
TP301 R303
R302
C113
C213
R161
R163
R162
R160
R263 R262
R260
R112
R212
R344
R343
R114
R214
R305
R311 R312
R313 R314 R315
R316
C311
R309
R308
R307R306
R310
R317
R319
R320
R334R333
R331R326
R325JC303
R327
D305
R323
C318
R321
R322
R318
D306
R328
R340
R220
R119
R219
R120
R125
R121
C119
C120
C219
C220
R225
R221
TP203
TP103
R118
R218
R117
R217
R115
R215
R341
R342
JC302
TP101
R122
TP102
TP202
R222
CNP391
CNP393
CNP392
R337R336
D307
D308
R338
R339
R345
R335
TP303
TP304
R174
R274
R124
R224
CNP371
L171
L371
L271
CNP372
JC171
R271
R171
FB301
FB201
FB101
J371
CNP374
CNP373
J391
R175
R275
R180
R280
R276
R279
R176
R177
C206
C107
C204
C104
C201 C101
C102 C202
IC301
C306
C302
C301
C305
C111
C109
C211
C209
C160 C260
C307
C308
Q302
C309 C310
C315
C114
C214
C312
C313
C314
C316
C317
R324
C116
C216
C118
IC302
C319
C320 C321 C322 C323 C326 C327
C324
C325
C328
C329
C331
C335
C222
C122
C224
C223
C124
C123
C330
CNP2
SP393
SP191
SP291
SP192
SP292
L372
IC303
C332
C334 C221 C121
D311
D312
Q260Q160
R261
Q301
Q303
Q304
Q305
D304
D303
Q101
Q201
C218
VR102
VR202
D309
D310
Q306
(Page 39)
(Page 41)
J O M I

CFD-RG880CP
CFD-RG880CP
4141
7-15. SCHEMATIC DIAGRAM – MAIN Section (3/3) – • See page 51 for IC Block Diagrams.
IC B/D IC B/D
R211R111
R151
R152
R156
R251
R252
R153
R253
R154
R254
R255
R155
R352
R157
R351
R257
R256
D906
R924
D907
R947
R901
R907
R906
R905
R904
R903
R909
R910
R911
R912
D904
TP902
TP903
R913
TP904
R914
TP905
R916
R917
R918
R919
R915
D905
R920
R921
CN811
W801W802
CNP901
R922
R923
D909 C922
C552
R588
R587
R586
R585
R584
R583
C548
C549
C550
C551
R159
R259
R578
R579
R580
R581
R582
CNP303
R258
L808
L809
R569
R570
R571
R572
R573
R574
R589
R590
R575
R576
R577
R946
R945
C108 C208
C154
C353
C254
C153
C351
C253
C152
C252
R353
C355
C151
C251
R158
C525
C527
FB802
FB803
FB804
FB805
C539
FB806 FB807
C555
C540
CN801
L813
C952
C953
S971 S972 M971
C156
C256
C257
C157
CN1 CN2
C910 C909
TP906
C908 C907 C906
C905
Q912
C919 C918 R930
R928 R927 C915 C914
L901
L902
FB901
C913
C912
C904
C901 C902
C903
C911
IC351
C352
D151
D251
C920
IC901
FB902
Q907 Q906 Q905
Q904
D902 D903
Q903
D809
D808
D811
D810
D815
D814
JC809
D806
D807
VR501
Q833
Q901
(Page 39)
(Page 39)
(Page 32) (Page 36) (Page 34)
(Page 47)
(Page 47)
(Page 40)
J O M I

CFD-RG880CP
CFD-RG880CP
4343
7-17. SCHEMATIC DIAGRAM – LCD Section –
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R611
R612
R613
R614
R615
R616
R617
R618
R619
R620
R621
R622
R623
R624
R625
R626
R627
R628
R629
R630
R631
R632
R633
R634
R635 R666
R667
R668
R669
R636
R637
R638
TP601
TP602
TP603
TP604
R646
R648
R649
R650
R639
BP601 BP602
CN602
CN601
R661 R662
R663 R664
R660
R665
D603
R672
R658 R657 R656
R653
R655
IC602
R671
R652
R670
R651
IC601
D605
R659
LCD601
C613
D601
D602
D604 C612
R654
C610
TP605
R640 C602C601
C614
C605 R645 R644
L601
(Page 39)
(Page 39)
J O M I

CFD-RG880CP
CFD-RG880CP
4545
7-19. SCHEMATIC DIAGRAM – KEY Section –
KH405
R425
S411
R426 R427
S412
R428
S404
R429 R430 R431 R432
S418 S420 S407
KH407
R421
S408
R422 R423 R424
S410 S403
CNJ403
R402 R401
CNJ404
R404 R403
CNJ405
R406 R405
CNJ406
R408 R407
S422
R443
R444 R445
S423
R446
S424
R447
S425
R448
S426
CNP404
CNP402
CNP403
KH406
R409
S401
R410 R411 R412
S402 S413
R413
S414
R414
S405
R415 R416
S406
TP402
CNP401
S409
R433
R434 R435
S415
R436
S416 S421
R437 R438
S417
R439 R440
S419
R442
R441
D404 D403 D406 D405 D408 D407
Q401
Q402
Q403
Q404
D409
D410
D402 D401
(Page 39)
(Page 39)
(Page 39)
(Page 39) (Page 39) (Page 39) (Page 39)
J O M I

CFD-RG880CP
CFD-RG880CP
4747
7-21. SCHEMATIC DIAGRAM – POWER Section –
J981
JW986
JW985
JW988
JW987
JW983
JW984
JW981
JW982
CN982
FH903
FH901 FH902
FH904
TP951
TP952
CN981
TP953
TP954
TP955
VR981
JW944
JW943
JW941
JW942
FH906
FH905
S981
CN1001 TP1001
TP1002
CN1003
L1001
CN941
CN942
CN983
CN991
CN984
CN992
CN985
CN993
C985
C988
F982
T981 C981
C982
D982
D981
C987
C983
C984
D984
D983
F983
FB1001
FB1004
FB1007
FB1006
D1004
D1005
C986
F981
(Page 41)
(Page 41)
(Page 32)
J O M I
