2-Line Cordless
Telephone
E
EN
C

2EN
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
To avoid electrical shock, do not open
the cabinet. Refer servicing to
qualified personnel only.

3EN
Table of contents
Table of contents
Getting Started
4 Read this first
5Step 1: Checking the package
contents
6Step 2: Setting up the base unit
10 Step 3: Preparing the battery
pack
Basics
13 Making calls
14 Making another call while talking
on the other line
15 Redialing
16 Receiving calls
17 Receiving another call while
talking on the other line
Advanced Features
18 Speed dialing
20 Paging
21 Resetting the digital security code
Additional Information
22 Mounting the base unit on a wall
23 Notes on power sources
23 Maintenance
24 Troubleshooting
26 Specifications
27 Index
EN

Getting Started
4EN
Read this first
Getting Started

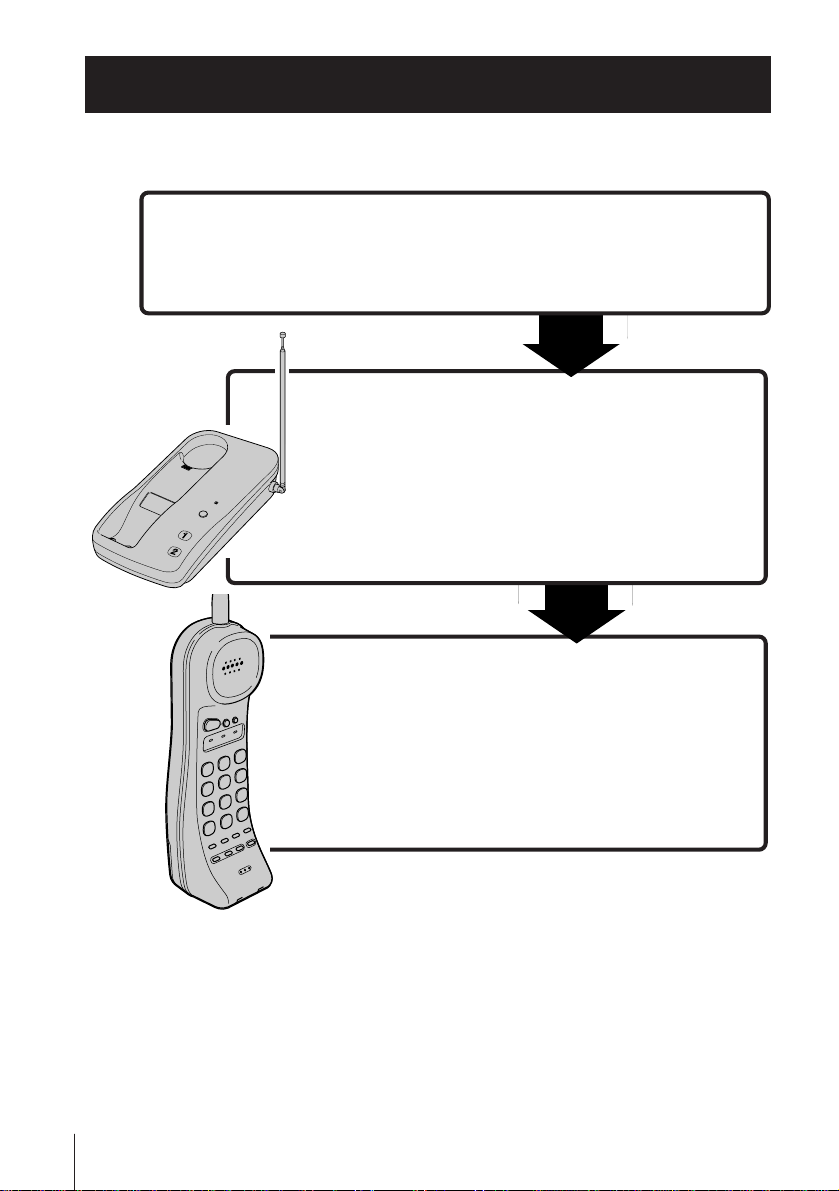

Before you use your phone, you must set it up. Here’s a quick way to
set up your phone: Steps 1, 2, and 3.
Base unit
Step 3 (pages 10 to 12)
Finally, you need to insert the battery
pack into the handset and place it on
the base unit for charging it.
Step 2 (pages 6 to 9)
Next, you need to do three things to set
up the base unit, including finding the
best location for the base unit.
That’s it!
Handset
Step 1 (page 5)
First, unpack the phone and the supplied
accessories.
About the cordless telephone
The first time you charge the battery pack, a random security code is
automatically assigned between the base unit and the handset.
Only a handset having this unique security code can make calls
through the base unit. This system prevents the possibility of other
cordless telephone handsets making calls through your base unit. You
can also reset the security code (see page 21).

Getting Started
5EN
Getting Started
Step 1
Wall bracket for base unit
Rechargeable battery
pack (BP-T40)
Base unitAC power adaptor (AC-T47)
Checking the package contents

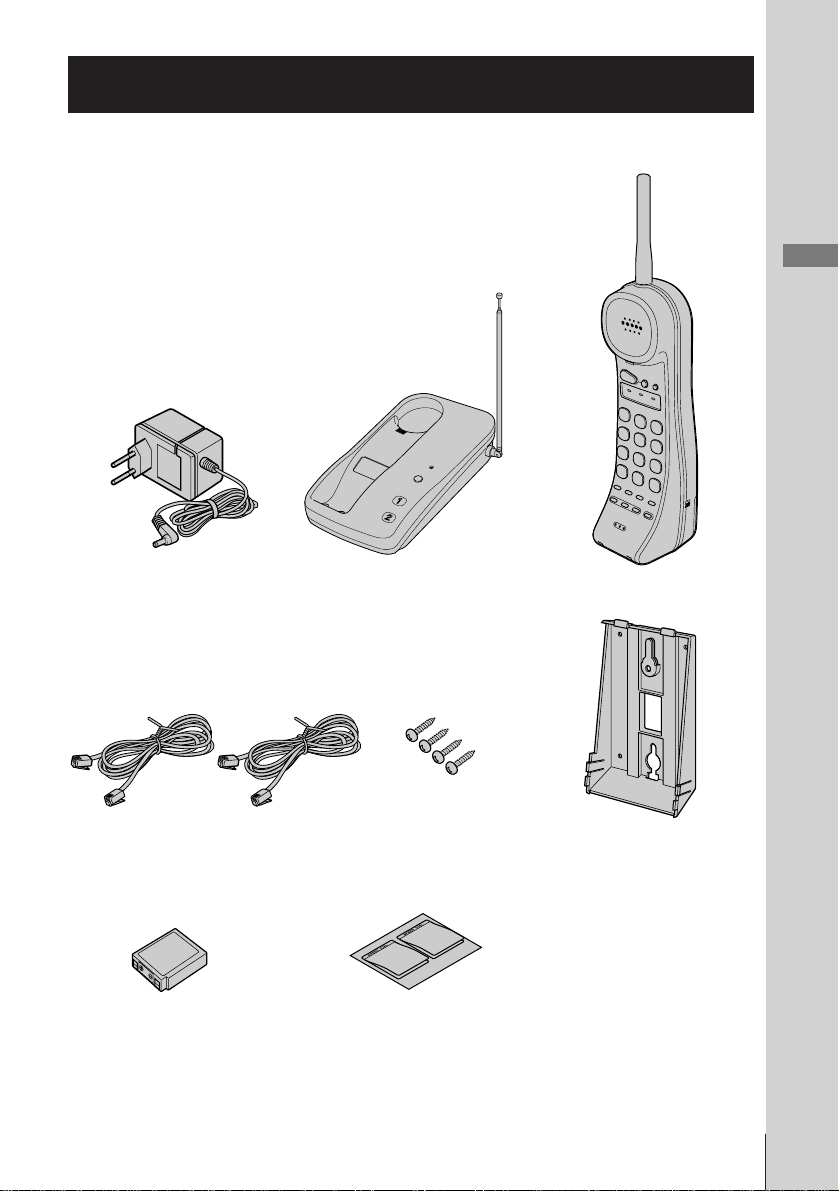

Make sure you have received the following items in the package. If
anything is missing, contact your local Sony dealer.
Directories (2)
Handset
Screws (4)
Telephone line cords (2)

Getting Started
6EN
Setting up the base unit
Do the following steps:
• Choose the best location
• Connect the base unit
• Choose the dialing mode
Choose the best location
Step 2
Where you place the base unit affects the reception quality of the
handset.
CAUTION: The cordless telephone operates at a frequency that may cause
interference to nearby TVs and VCRs; the base unit should not be
placed near or on the top of a TV or VCR; and, if interference is
experienced, moving the cordless telephone farther away from the
TV or VCR will often reduce or eliminate the interference.
Away from television
sets and other electronic
equipment
Away from noise sources such as
a window by a street with heavy
traffic
Away from heat sources, such as
radiators, airducts, and sunlight
Away from excessive
moisture, extremely
low temperatures,
dust, mechanical
vibration, or shock
Away from
a microwave oven
Away from a personal
computer
Away from another
cordless telephone
Near a central location
and on a level surface

Getting Started
7EN
Getting Started
Connect the base unit
If you want to hang the base unit on the wall, mount the unit first (see
page 22).
To connect the base unit to a single outlet having two lines
To DC
IN 9V
AC power adaptor
(supplied)
Telephone line cord
(supplied)
To telephone
outlet
To AC outlet
3
2
11Connect the telephone line cord
to the “L1 or L1/L2” jack and to
a telephone outlet.
2Connect the AC power adaptor
to the DC IN 9V jack and to an
AC outlet.
3Fully extend the antenna. Make
sure it points toward the ceiling.
Hook the cable
To “L1 or L1/L2”
continued

Getting Started
8EN
Step 2: Setting up the base unit (continued)
To AC outlet
Line 2
To telephone
outlets
Line 1
To DC
IN 9V
Telephone line cord
(supplied)
Telephone line cord
(supplied)
3
2
1
To “L1 or L1/L2”
Hook the cable
1Connect the telephone line
cords to the “L1 or L1/L2” and
“L2” jacks and to the telephone
outlets.
2Connect the AC power adaptor
to the DC IN 9V jack and to an
AC outlet.
3Fully extend the antenna. Make
sure it points toward the ceiling.

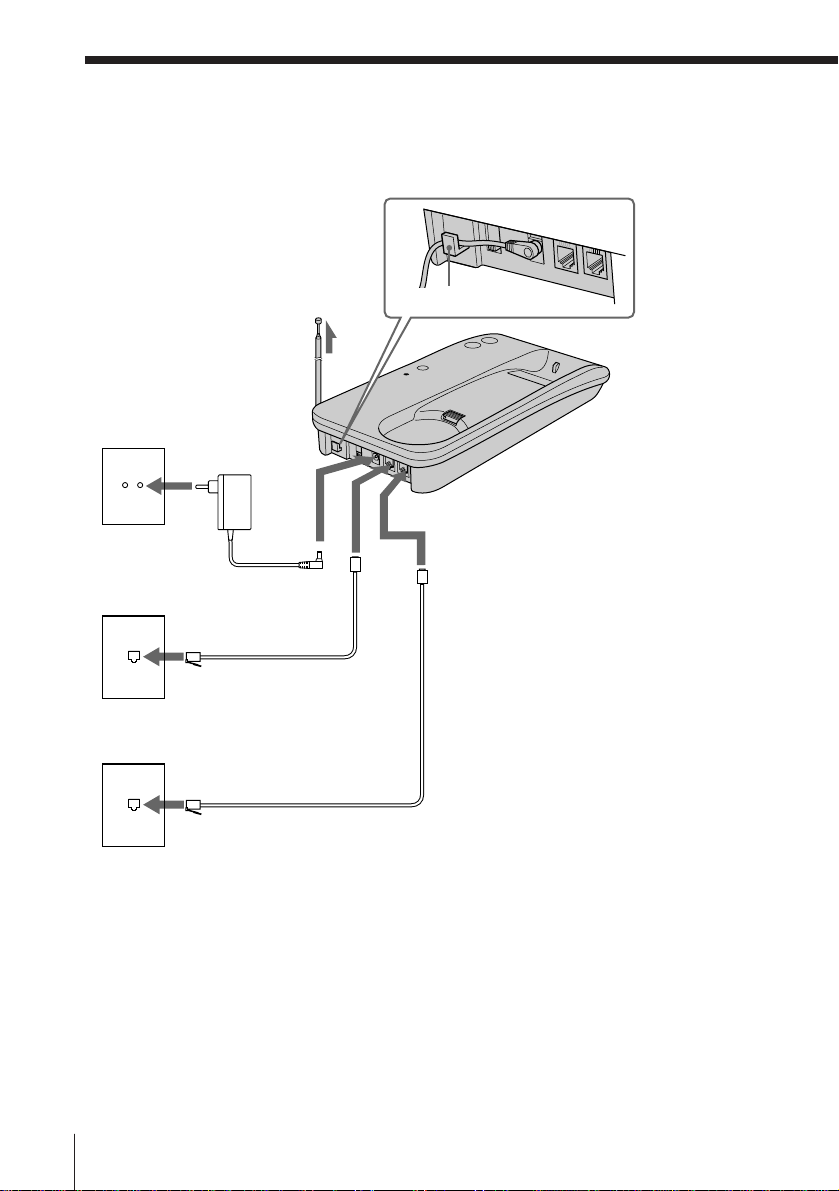

To connect the base unit to two separate outlets
To “L2”
AC power adaptor
(supplied)

Getting Started
9EN
Getting Started

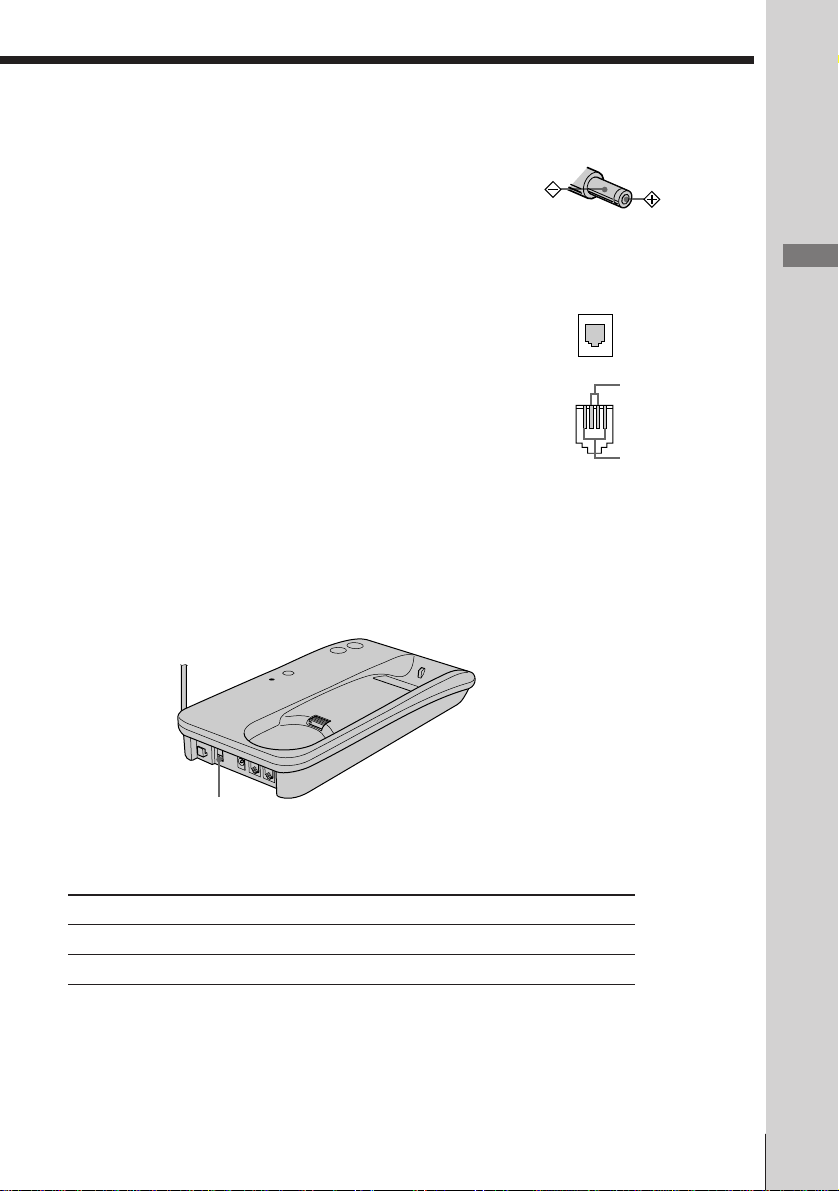

Choose the dialing mode
For the telephone to work properly, select an appropriate dialing mode
(tone or pulse).
Depending on your dialing system, set the DIAL MODE switch as
follows:
If you aren’t sure of your dialing system
Make a trial call with the DIAL MODE switch set to T.
If the call connects, leave the switch as is; otherwise, set to P.
If your dialing system is
Tone
Pulse
Set the switch to
T
P
DIAL MODE switch
Notes
• Use only the supplied AC-T47 AC power adaptor. Do
not use any other AC power adaptor.
• Connect the AC power adaptor to a continuous power
supply.
• Place the base unit close to the AC outlet so that you
can unplug the AC power adaptor easily.
Tips
• If your telephone outlet is not modular, contact your
telephone service company for assistance.
• L1 is the first phone line connected to center pair of
wires. L2 is the second phone line connected to outer
pair of wires.
Polarity of the plug
L1
L2
Modular

Getting Started
10EN
Step 3
Preparing the battery pack
Insert the battery into the handset and charge first before you start
using your phone.
4Place the handset on the base
unit.
The CHARGE lamp lights up
when the handset is properly
seated on the charge terminals
of the base unit. Charge the
battery pack for more than 10
hours so that the battery is fully
charged.

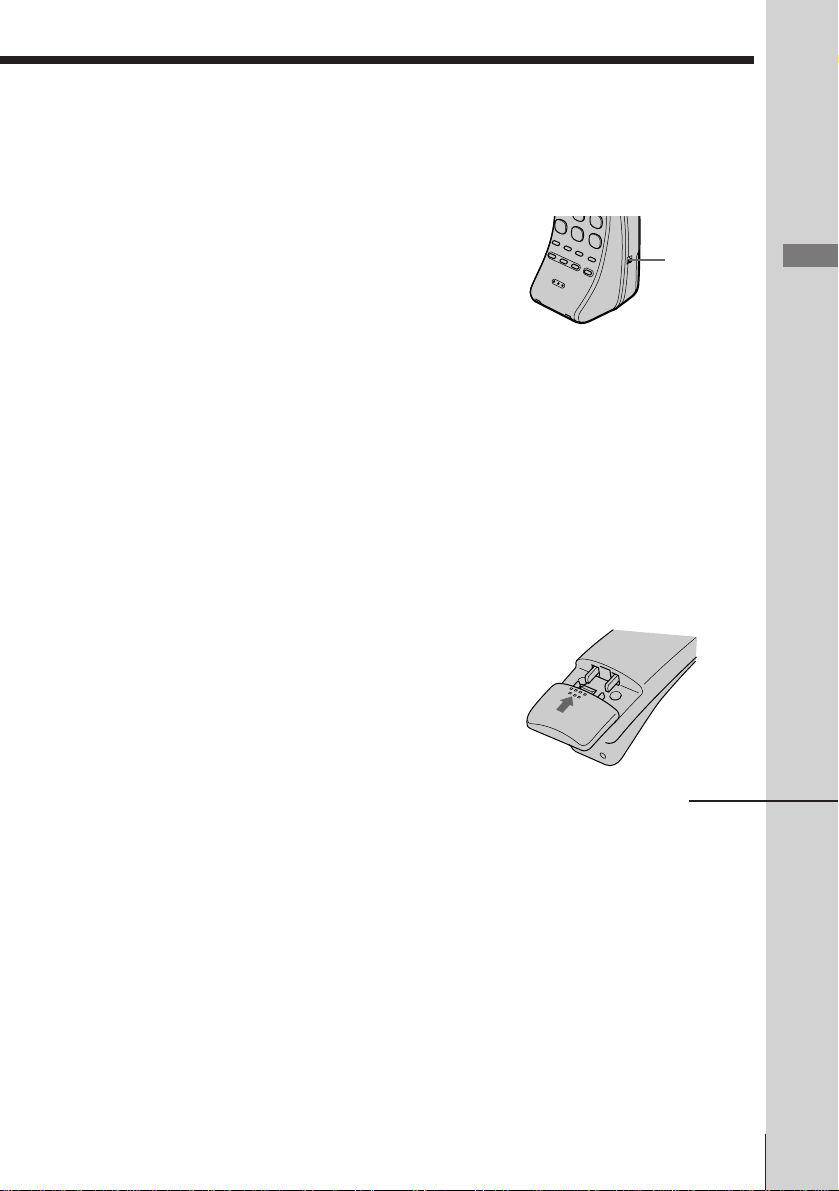

1Slide open the battery
compartment lid of the handset.
2Insert the battery pack into the
battery compartment.
3Close the battery compartment
lid.

Getting Started
11EN
Getting Started
Battery duration
A fully charged battery pack lasts for about:
• 10 hours when you use the handset continuously
• one month when the handset is standing by in RING
ON mode (the RING ON/BATT SAVE switch is set to
RING ON).
You can save the handset battery power by setting the
RING ON/BATT SAVE switch to BATT SAVE. The
handset won’t ring (see page 17).
Notes
• The battery pack will gradually discharge over a long period of time, even if
not in use.
• Avoid leaving the handset without charging the battery for an extended
period of time so that the battery runs out completely. This can shorten the
battery’s life, as well as erase the speed dial numbers (see page 18) and the
digital security code (see page 21). If this happens, charge it on the base unit
for over 10 hours. Then reprogram the speed dial numbers. You may need to
charge the battery several times before it is recharged to its full capacity.
• When you place the handset onto the base unit and charge the battery pack, a
new security code will be assigned.
Tip
If the lid comes off, slide and snap it into the place as shown:
RING ON/
BATT SAVE
continued

Getting Started
12EN
Step 3: Preparing the battery pack (continued)
To check the battery power
When you press (BATTCHECK), the lamps light up momentarily.
The battery lamps show the battery power: three lamps lit mean full
power and no lamp lit means no power (see below).
If only one lamp lights, the battery has little power, replace the handset
onto the base unit to charge it as soon as possible. However, it isn’t
necessary to wait until the battery becomes weak. You can charge the
battery at any time at your convenience. This is because the battery
pack is a unique lead acid type, which doesn’t suffer from the
“memory effect” common with nickel-cadmium batteries.
When to purchase a new battery pack
If the battery lasts only a few minutes even after 10 hours of charging,
the usable life of the battery has expired and needs replacement.
Contact your local Sony authorized dealer or service center, and ask
for Sony BP-T40 rechargeable battery pack.
(BATTCHECK)
Battery lamps
Little power
Some power
Full power
No power

Basics
13EN
Basics

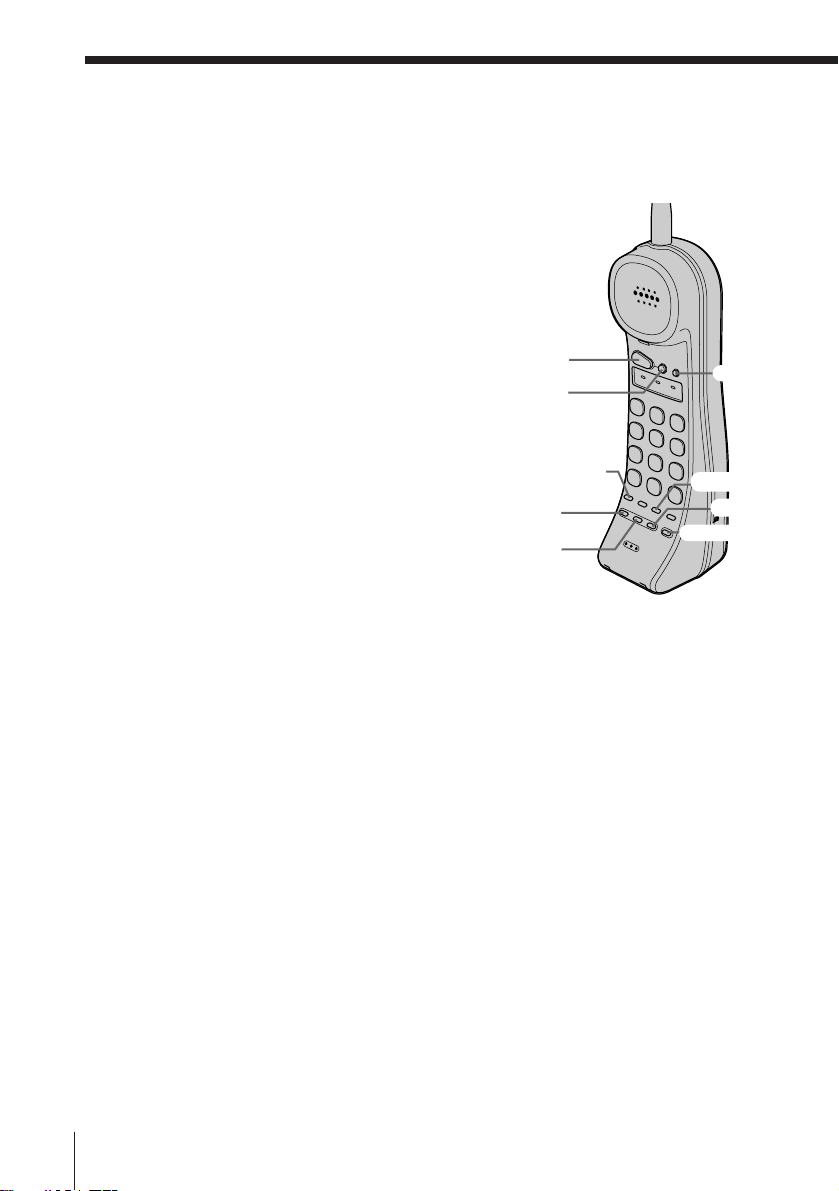

1Pick up the handset from the
base unit.
2Press (LINE1) or (LINE2) to
select the line, and wait until the
corresponding line lamp lights
up.
You then hear a dial tone. If you
hear beeps, move closer to the
base unit.
3Dial the phone number.
4When you're done talking, press
(TALK).
The line lamp goes off.

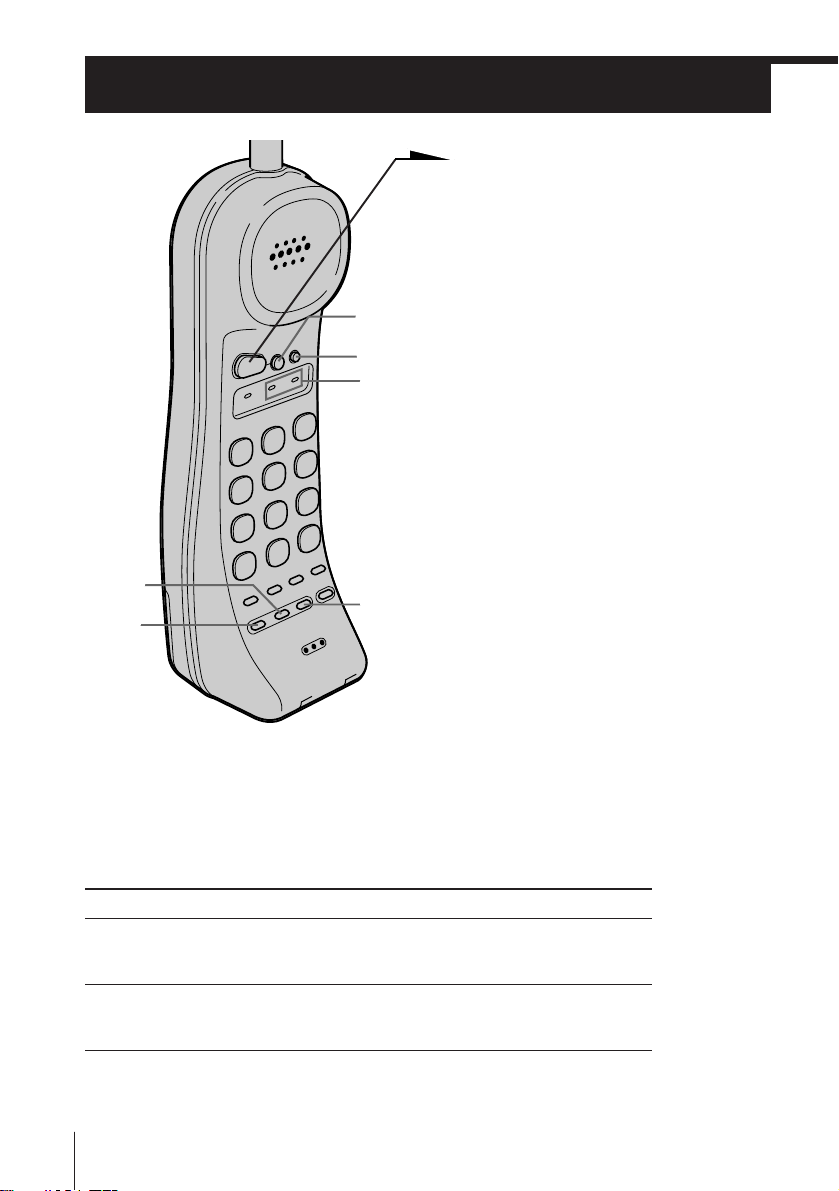

Making calls
Basics
(HOLD)
Line
lamps
TONE(*)
To Do this
Put a call on hold Press (HOLD).
Press (LINE1) or (LINE2) (or (TALK) ) to
resume the conversation.
Switch to tone dialing Press TONE (*) after you’re connected.
temporarily The line will remain in tone dialing until
disconnected.
Notes
• If you hear beeps during the conversation, move closer to the base unit;
otherwise, the call will be disconnected after 15 seconds. Note that, however,
you may not hear beeps if it’s noisy on the handset.
• If you hear ringer tones during the conversation, another call is coming in on
the other line (see page 17).
Tip
You can also press (TALK) to make a call on line 1.
Additional tasks
continued

Basics
14EN
Making calls (continued)
Making another call while talking on the
other line
You can talk with two parties at the same time using both line 1 and
line 2. (Three-way conference)
1Press (HOLD) while talking on one line.
The line in use is put on hold.
2Press (LINE1) or (LINE2), whichever is not
used.
3Dial a phone number for the second party.
4Press (CONF) (conference) after you’re
connected to the second party.
Now you can talk to both parties.
To disconnect the lines during a three-
way conference
To disconnect both lines at the same time, replace
the handset on the base unit or press (TALK).
To disconnect line 1 and talk on line 2 only, press
(LINE2).
To disconnect line 2 and talk on line 1 only, press
(LINE1).
To put the lines on hold during a three-way conference
Press (HOLD) once so that both lines are put on hold.
To resume the conversations on both lines, press (CONF).
To resume the conversation only on one line, press (LINE1) or
(LINE2), for the line you want. (The other line is kept on hold.)
Tip
During a three-way conference, you can’t use “call waiting” service even if you
press (FLASH).
(LINE2)
(LINE1)
(TALK)
(HOLD)
(REDIAL/PAUSE)
(CONF)
(CHANNEL)
(FLASH)
(BATTCHECK)

Basics
15EN
Basics
If interference occurs on the handset
When you press (LINE1) or (LINE2), the handset automatically
searches for the channel with the best reception. However, if you
notice interference during a conversation, move closer to the base unit.
If interference persists, press (CHANNEL) to switch to another channel
to improve the sound quality of your telephone conversation.
Note
If you hear five short beeps when you press (CHANNEL), move closer to the
base unit.
If the handset battery becomes weak during a call
The handset will beep every three seconds. Finish your call and charge
the battery pack.
Even during a call, you can check the battery condition by pressing
(BATTCHECK).
Redialing
1Press (LINE1) or (LINE2) to select the line, and wait until
the corresponding line lamp lights up.
2Press (REDIAL/PAUSE) to redial the number last dialed.
Notes
• The number last dialed cannot be stored separately for each line. It is the very
last one you have dialed using either line.
• If the number exceeds 32 digits, the beeps will alert you that the number can’t
be dialed.
To erase the last phone number dialed
Press (REDIAL/PAUSE) twice.
The number will be erased from the memory, and you’ll hear a long
confirmation beep.

Basics
16EN
Receiving calls
* You need to subscribe to this service for each line from your telephone
company.
(LINE1)
(LINE2)
Line
lamps
(HOLD)
(FLASH)
(CONF) When calls come to line 1 and line
2 at the same time
To receive a call on line 1;
• Press (TALK) or (LINE1).
or
• Pick up the handset from the
base unit when the handset is
placed on the base unit.
To receive a call on line 2;
• Press (LINE2).
Additional tasks
Do this
Press (HOLD).
Press (LINE1) or (LINE2) (or (TALK) ) to resume
the conversation.
Press (FLASH).
Press the button again to get back to the first caller.
To
Put a call on hold
Switch to another call on
the same line*
("call waiting" service)
1When you hear the phone ring;
• Press (TALK).
or
• Pick up the handset from the
base unit when the handset
is placed on the base unit.
The corresponding line lamp
lights up, so you can know
which line is used.
2When you’re done talking,
replace the handset on the base
unit or press (TALK).
The line lamp goes off.

Basics
17EN
Basics
Tip
If you don’t want to hear the handset ring, set the RING ON/
BATT SAVE switch to BATT SAVE. In this case, though you
can still make or receive calls by pressing (TALK), only the line
lamps on the base unit will inform you of incoming calls.
Receiving another call while talking on the
other line
If another call comes while talking on the other line,
you will hear a ringer tone through the speaker of the
handset.
1Press (HOLD).
The engaged line is put on hold.
2Press (LINE1) or (LINE2), to which another call is coming.
If you want to talk to both parties at the same time
Press (CONF) (conference) after pressing (LINE1) or (LINE2).
Now you can talk to both parties. (Three-way conference)
3When you’re done talking to the second party, press
(LINE1) or (LINE2), on which you have talked before.
You can resume the conversation with the first party again.
To disconnect the lines during a three-way conference
To disconnect both lines at the same time, replace the handset on the
base unit or press (TALK).
To disconnect line 1 and talk on line 2 only, press (LINE2).
To disconnect line 2 and talk on line 1 only, press (LINE1).
To put the lines on hold during a three-way conference
Press (HOLD) once so that both lines are put on hold.
To resume the conversations on both lines, press (CONF).
To resume the conversation only on one line, press (LINE1) or
(LINE2), for the line you want. (The other line is kept on hold.)
Tip
During a three-way conference, you can’t use “call waiting” service even if you
press (FLASH).
RING ON/
BATT SAVE

18EN Advanced Features
Speed dialing
Advanced Features
You can dial with a touch of a few keys by storing a phone number on
a dialing key.
Storing phone numbers
1Press (PGM).
The left lamp flashes.
2Press (SPEEDDIAL).
3Press one of the dialing keys
((0) to (9)) to store a phone
number on.
You hear a confirmation beep.
4Enter the phone number you
want to store.
You can enter up to 16 digits,
including a tone and a pause,
each of which is counted as one
digit.
5Press (PGM).
You hear a long confirmation
beep, and the number is stored.
The lamp goes off.
Note
Do not allow more than 20 seconds to elapse between each
step of the procedure.
Tips
• If you enter a wrong number, press (PGM), then start
from the beginning.
• You can attach the supplied directory on the
handset. Do not cover the ringer hole.
• You can’t receive calls while you’re storing numbers.
(REDIAL/PAUSE)
Lamp
(LINE2)
(LINE1)
(TALK)
Do not cover the
ringer hole.

Advanced Features
19EN
Advanced Features
To store a number to be dialed via Private Branch Exchange (PBX)
Before entering a phone number in Step 4, do as follows:
1Enter the outside line access digit (e.g., 9).
2Press (REDIAL/PAUSE).
To change a stored number
Store a new number, as described on the previous page.
Making calls with speed dialing
1Press (LINE1) or (LINE2) to select the line and wait until
the corresponding line lamp lights up.
2Press (SPEEDDIAL).
3Enter the desired speed dialing number ((0) to (9)).
The phone number stored in the speed dialing number will
be dialed.

20EN Advanced Features
Paging
You can page the handset from the base unit. Note that you can’t page
if the handset is in use.

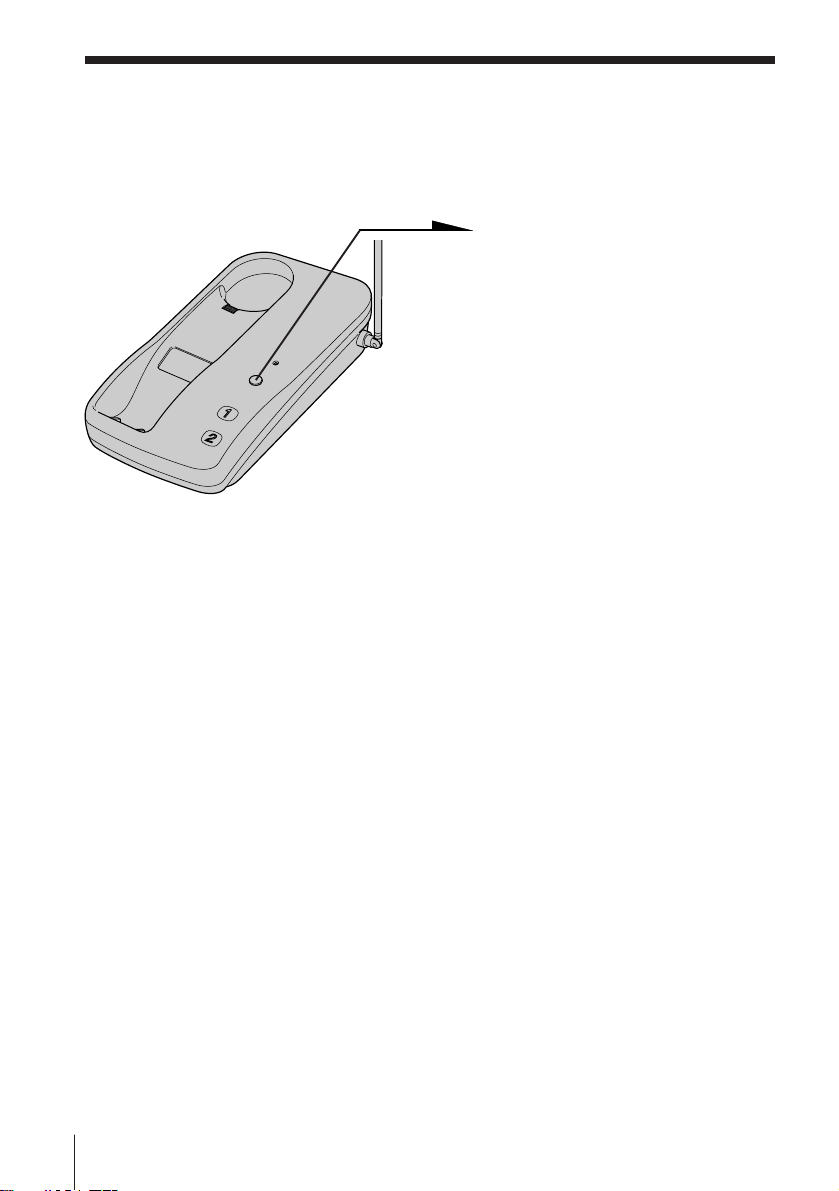

To page
Press (PAGE).
The handset rings.
When you keep pressing
(PAGE), the handset rings
continuously.
Note
You can’t page the handset when the RING ON/BATT SAVE switch is set to
BATT SAVE.
