Sony VAIO Slimtop PCV-LX900 User manual

VAIO LOGO GOES HERE
VAIO Slimtop™LCD
Computer QuickStart
PCV-LX900

VAIO Slimtop™ LCD Computer QuickStart
2

3
Welcome
Congratulations on your purchase of the Sony VAIO®computer! Your
new, high-performance, multimedia computer combines state-of-the-art
computer functionality with the latest audio/video and information
technology convergence features.
Features
❑i.LINK®(IEEE1394) interface — Two built-in i.LINK ports, located on
the front and rear panels, provide you with digital connection capability. The
i.LINK name and logo identify a high-speed communication interface,
which allows you to easily connect compatible digital camcorders.
❑Exceptional performance — Your computer includes an Intel®processor, a
10Base-T/100Base-TX Fast Ethernet interface, and a high-speed
V.90-compatible data/fax modem.*
❑Sony Pen Tablet display (TA-15A) — This 15" LCD pen tablet display
creates a superb interface with your software applications. You can use the
supplied VAIO pen to draw, sketch, or write directly onto the tablet screen.
The Sony Pen Tablet combines the best features of an active matrix screen
with the control of a graphics tablet. Your graphics tablet display has built-in
Harman/Kardon® stereo speakers.
✍i.LINK is a trademark of Sony used only to designate that a product contains an
IEEE1394 connection. The i.LINK connection may vary, depending on the software
applications, operating system and i.LINK-compatible devices. All products with an
i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your i.LINK-compatible device for
information on operating conditions and proper connection. Before connecting
i.LINK-compatible PC peripherals to your system, such as a CD-RW or Hard Disk
Drive, confirm their operating system compatibility and required operating conditions.
* Actual upload and download speeds may vary due to line conditions, ISP support, and gov-
ernment regulations.

VAIO Slimtop™LCD Computer QuickStart
4
❑CD-RW drive —This drive is the ideal solution for making backups and
archiving data, with the ability to store up to 650 MB*of removable,
rewritable storage on a single rewritable CD. Save your movies to CD-R or
CD-RW media and share videos and images with family and friends.
❑AutoAlert™E-mail Notification System —Custom software automatically
downloads e-mail on a pre-set schedule via Microsoft®Outlook®Express.
An LED light on the pen tablet display instantly lets you know when new
mail has arrived.
❑VAIO Convertible keyboard —The innovative palm rest converts to a
keyboard cover for a sleek look when not in use. Four Programmable Power
Keys (PPKs) let you launch applications with the push of a button.
❑Sony Memory Stick®media slot —The next generation of digital storage
media is smaller than a stick of gum. Easily deliver information from one
Memory Stick-equipped electronic device to another, so you can transfer
images, sounds, data and text between cameras, computers, and more.
❑Compact components —Enjoy the system’s small footprint by positioning
the components in an arrangement of your choice.
❑Sony audio and video quality —Take advantage of today’s advanced
multimedia applications, games, and entertainment software with Sony’s
high-fidelity audio system and high-powered 3D graphics.
❑Preinstalled software titles —All the software on your computer is
preinstalled, configured, and ready for you to use right out of the box.
❑Microsoft®Windows®Millennium Edition operating system —Yo u r
system includes this latest consumer operating system from Microsoft.
❑Communications —Access popular online services, browse the Internet,
send faxes, and more.
* 530 MB after formatting with Direct CD.™

Unpacking Your Computer
5
Unpacking Your Computer
To set up your VAIO Slimtop™LCD Computer, unpack the components
illustrated below.
Manuals
❑VAIO Slimtop™ LCD QuickStart — Contains information on unpacking
and setting up your computer, supplementary updates, and software
information.
❑VAIO Slimtop™ LCD Computer User Guide — Describes the features and
specifications of your computer. It also includes information about the
applications included with your system, how to contact software vendors,
and solve common problems.
❑Microsoft® Windows® Millennium Edition Getting Started — Explains
how to use the basic features of this Windows®operating system.
❑Packet —Containing special product offers
Slimtop Computer and Supplied Accessories
Power Cord
System
Unit
VAIO Convertible Keyboard
Palmrest
Stand
Modem Cable
Sony Pen Tablet Display
VAIO Pen
Pen Tip Replacements Pen Tip
Removing Tool
Pen Stand
Mouse

VAIO Slimtop™LCD Computer QuickStart
6
Recovery CDs
❑System Recovery CD(s) —Allows you to restore the software titles that
shipped with your computer if they become corrupted or are erased. SRCDs
can only be used to restore the hard disk of the Sony computer you
purchased.
❑Application Recovery CD(s) —Allows you to reinstall individual
applications if they become corrupted or are erased.
❑Driver Recovery CD —Allows you to restore device drivers if they
become corrupted or are erased.
Software Library
Software Library contains the Microsoft software license agreement, Sony end-
user license agreement, and the following CD(s):
❑Microsoft®Word 2000
❑Adobe®Applications

Setting Up Your Computer
7
Setting Up Your Computer
This section illustrates how to set up and install your computer and peripheral
devices.
Attach the stand to the system unit
1Place the system unit upside down, with the front of the system facing
towards you.
2Insert the stand pegs into the ventilation holes of the system. Place the wider
end of the stand at the rear of the unit as shown below.
3Lock the stand onto the system unit by pressing down gently and pulling
forward slightly. The stand clicks into place.
Attaching the Slimtop stand
✍The stand keeps the system cool by allowing air to flow under it. It is important to
place the system unit in an an upright position using the stand correctly, to avoid
overheating of the system unit.

VAIO Slimtop™LCD Computer QuickStart
8
Connecting the Sony Pen Tablet display
1Press the lock buttons on both sides of the LCD connector and plug the LCD
cable into the LCD port on the system.
2Release the plug when it clicks into place.
Connecting the Sony Pen Tablet display
✍There are two holes in the base of the LCD display (on the right side, and left side) for
routing the LCD cable to the system. Install your equipment so that you can easily
reach the power outlet in the event of an emergency.

Setting Up Your Computer
9
Connecting the keyboard and mouse
1Plug the keyboard cable into the KEYBOARD port on the Sony Pen Tablet
display.
2Plug the mouse cable into the MOUSE port on the Sony Pen Tablet display.

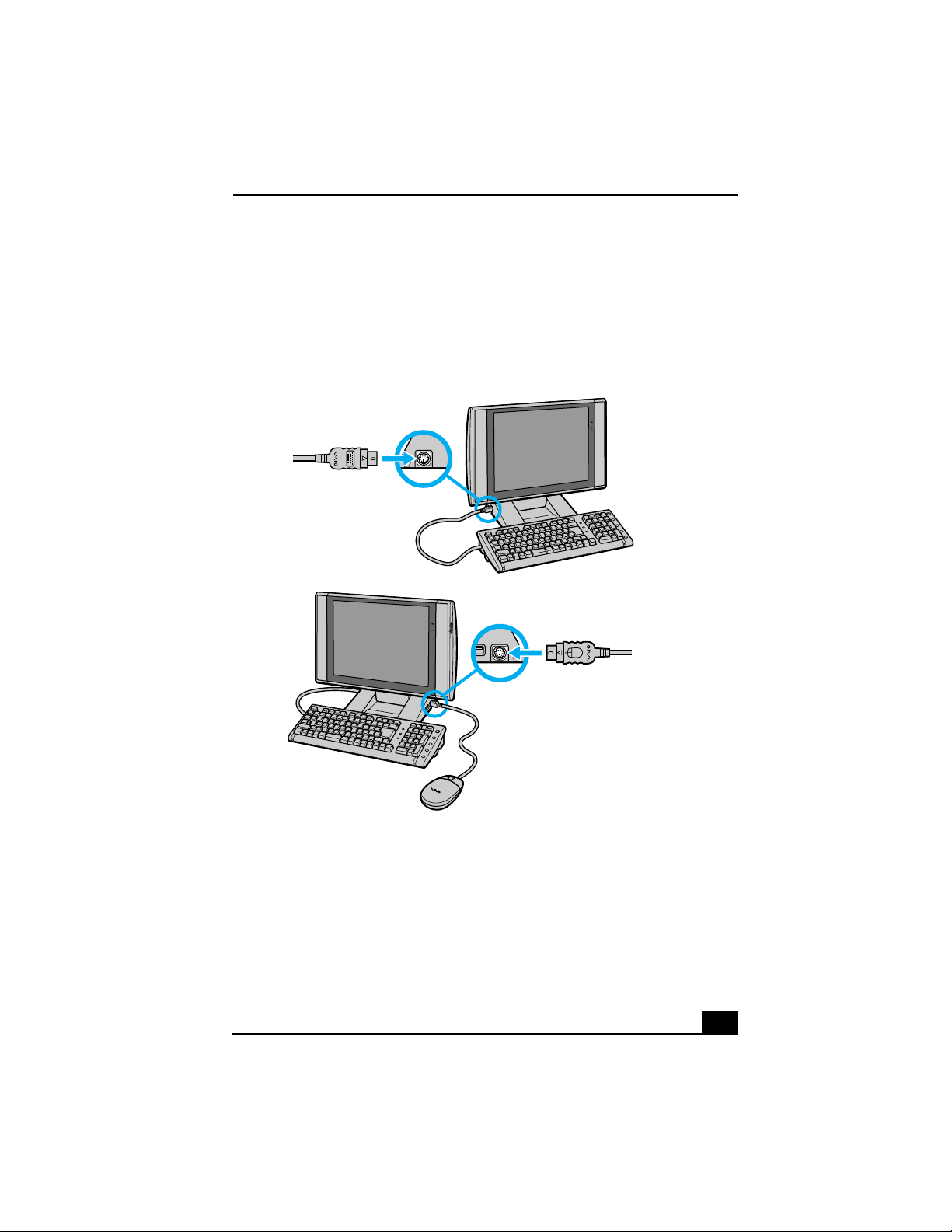

Connecting the keyboard and the mouse
KEYBOARD
USB MOUSE

VAIO Slimtop™LCD Computer QuickStart
10
Connecting the modem cable
1Unplug your phone from the wall jack and plug it into the TELEPHONE
jack on the computer.
2Plug the modem cable (supplied) into the LINE jack on the computer, and
then plug the other end into the wall jack.
Warning: Your computer has a protective sticker next to the Ethernet port located
on the rear panel. Connect only 10Base-T and 100Base-TX cables to the Ethernet port.
Using other cables or a telephone cable may result in an electric current overload and
can cause a malfunction, excessive heat or fire in the port. For help on connecting to a
network, see your network administrator.
Connecting the modem cable

Setting Up Your Computer
11
Connecting the power cord
1Plug one end of the power cord into the AC INPUT port on the back of the
system.
2Plug the other end into a grounded AC wall outlet or power strip.
Connecting the power cord
✍When you plug the power cable into the wall outlet, the power indicators on the
system and LCD light up momentarily, and the fan turns on briefly. This is not a
malfunction.

VAIO Slimtop™LCD Computer QuickStart
12
Turning on your VAIO Slimtop™ LCD Computer
1Press the Standby key on the keyboard to turn on the system and the Sony
Pen Tablet display, or press the power switch on the system.
✍When you start your system for the first time, your computer may redetect new
equipment and display a dialog box that asks you to restart your computer. Please
respond to this request immediately.
✍Pressing any of the keys numbered P1 through P4 starts the computer and launches a
preset application.
Turning on your computer
✍You may sign up for Internet access with a Sony preferred Internet service provider.

Setting up the Wheel Mouse
13
Setting up the Wheel Mouse
To set up the mouse for left-handed use
1Click My Computer on your desktop.
2Click Control Panel, and then Click Mouse.
The Mouse Properties dialog box appears.
3In the Buttons tab, select Left-Handed under the Button Configuration
options.
4Click Apply, then OK.
Registering Your Computer
Take advantage of Sony’s commitment to quality customer support and receive
these benefits by registering your computer:
❑Sony Customer Support —Talk to a Support Representative to
troubleshoot problems you may be having with your computer.
❑Limited warranty —Protect your investment. See the Warranty Card for
more details.
If you did not register when you first turned on your computer, follow these
steps to use the online computer registration service.
1Make sure your computer is connected to a phone line.
2Click the registration icon on the VAIO®desktop.
3Enter the information as requested in the first online registration form.
4Click the Next button to advance to the next form.
✍Press the tab key to move from box to box.

VAIO Slimtop™LCD Computer QuickStart
14
5Complete the remaining forms by clicking the Next button each time you
complete a form.
6The computer automatically transfers your registration information using
your built-in modem and a toll-free or local telephone number.
Shutting Down Your Computer
When you are ready to turn off your computer for an extended period of time, use
this procedure.
To turn off your computer
1From the Start menu, select Shut Down to display the Shut Down Windows
dialog box.
2Select the Shut Down option.
3Click OK to complete the shut down process.
4Wait for your computer to turn off automatically—the power indicator light
turns off.
5Turn off any peripheral devices connected to your computer.
About the Power Switch
If your system stops responding, press and hold the power switch for more than
four seconds to force your system to shut down. You may need to repeat this
procedure.
✍You may sign up for Internet access with a Sony-preferred Internet Service Provider.
To avoid loss of data, do not use the power switch to turn off the computer.
✍If you plan to turn off your computer for a short period of time, you may want to use
standby mode instead.
✍Respond to any prompts about saving documents

Using the Standby Function
15
Using the Standby Function
When you plan to stop using your computer for a short period of time, you can
put it in standby mode instead of turning it off completely. Putting the computer
in standby mode saves energy and allows a quick return to normal computer use.
You can use any of the following methods for activating the standby mode.
To set the computer to standby mode using the Standby key
1Save your work, close all applications, and close your dial-up Internet
connection, if applicable.
2Press the (Standby) key on the top of the keyboard.
The computer goes into standby mode.
To set the computer to standby mode using the Windows taskbar
1Save your work, close all applications, and close your dial-up Internet
connection, if applicable.
2From the Start menu on the Windows taskbar, select Shut Down.
3Select Standby.
4Click OK.
The computer goes into standby mode.
To set the computer to standby mode using the power switch
1Save your work, close all applications, and close your dial-up Internet
connection, if applicable.
2Briefly press the power switch on the front panel.
The computer goes into standby mode.
✍You can leave the Windows® operating system running.
✍You can leave the Windows operating system running.

VAIO Slimtop™LCD Computer QuickStart
16
To let the computer go into standby mode automatically
3Save your work, close all applications, and close your dial-up Internet
connection, if applicable.
4Click My Computer on your desktop.
5Click Control Panel.
6Click Power Options.
7On the Power Schemes tab, select an option in the Power schemes
drop-down list.
8Choose settings for the power scheme you have selected.
9Type in a name.
10 Click OK.
11 Click Apply to finalize your power settings.
The computer will go into standby mode according to your settings.
To resume from standby mode
To bring your computer back from the standby mode:
❑Press the space bar on your keyboard.
❑Momentarily press the power button on your computer.
❑Press Alt+Tab.
✍You can leave the Windows operating system running
✍To save the settings under a name that is not offered in the Power schemes
drop-down list, choose your settings and then click Save As.

Using the Standby Function
17
Standby Mode Indicators
You can tell which mode the computer is in by the color of the power indicator
light.
Color Mode
Amber Computer is in standby mode.
Green Computer is in normal mode, ready to use.
No color Computer is turned off, or in hibernate mode.

VAIO Slimtop™LCD Computer QuickStart
18

About the Software on Your Computer
19
1
About the Software on
Yo u r C o m p u t e r
Your VAIO Slimtop™LCD computer is ready to help you work, play, learn,
and communicate as soon as you turn it on. This section provides an
overview of the software titles included with your computer.
Adobe®Acrobat®Reader
Adobe Systems, Incorporated
Acrobat Reader software allows you to view, navigate, and print electronic documents in
Adobe’s Portable Document Format (PDF), an open file format that is intended to preserve
the fidelity of documents created on all major computer platforms.
Adobe®GoLive™
Adobe Systems, Incorporated
Adobe GoLive gives you robust design, production, and management features to create
dynamic, database-controlled Web sites.
Adobe®LiveMotion™
Adobe Systems, Incorporated
Adobe LiveMotion launches your creativity to new levels when you produce your personal
Web designs that are complete with interactivity, sound, and animation.
Adobe®Photoshop®
Adobe Systems, Incorporated
Adobe Photoshop delivers powerful image editing tools with features that deliver
professional quality across all media. From a variety of sources you can create, import,
and capture images, before transforming them with the software’s rich collection of
special effects.
Adobe®Premiere®LE
Adobe Systems Incorporated
Adobe Premiere LE offers an interface and editing tool for producing movies for video,
multimedia, or the Web. View source clips and edited footage simultaneously in the
monitor window. Create video clips up to three hours long with complete audio-video
synchronization.

VAIO Slimtop™LCD Computer QuickStart
20
America Online®
America Online
America Online is the world's most popular Internet online service. Stay in touch with
family and friends with easy-to-use e-mail. Manage your personal finances, get the latest
news and sports scores, and chat with thousands of others who share your interests.
CompuServe®2000
CompuServe Interactive Services
The all-new CompuServe 2000 delivers a powerful tool for Internet users who want
serious and timely information, in-depth research, and professional communities backed
by state-of-the-art technologies, including high-speed access and powerful e-mail
messaging.
Direct CD™
Adaptec, Inc.
DirectCD allows you to drag and drop files directly to your CD-RW drive. You can save,
rename, move or delete files right on your CD-RW.
DVgate™
Sony Electronics, Inc.
Connect a digital video camera recorder to the i.LINK®connector and capture your own
video clips and still images. You can edit clips from your video, add others, and combine
clips into new movie segments. You can also save your images in a variety of popular file
formats.
EarthLink TotalAccess™
EarthLink Network, Inc.
An Internet Service Provider that supplies access, information, and assistance to its
customers, introducing them to the Internet. Member benefits include e-mail, newsgroups,
a Personal Start Page, a free 6 MB Web site, a member magazine, and 24-hour technical
support.
Easy CD Creator™
Adaptec, Inc.
Easy CD Creator lets you make your own data, audio and multimedia CDs. You can back
up your important files to CD, and read them back on standard CD-ROM drives. Create
your own audio CDs right on your desktop, and play them back on your home or car stereo
CD player. You can make your own personalized color jewel case inserts with custom text
and graphics. You can even make backup copies of your existing CDs. The easy CD
Creator Wizard makes creating your own custom CDs a simple process.
