Sony VGC-RA718G User manual

Welcome
Thank you for purchasing a Sony VAIO®computer! Your new computer is a superb blend of high technology and easy-to-use
functionality. The information provided here is designed to help you to become familiar with the hardware and software
programs included with your system.
View the Electronic Flyer, which provides updates and supplemental information about your computer.
Go to the Sony Online Support Web site, to view the VAIO®Computer Specifications, which lists your computer's
hardware specifications and preinstalled software information.
For information about the Sony software preinstalled on your computer, click Start in the Windows®taskbar, and
then click Welcome to VAIO life.
Page 1

Getting Started
Congratulations on your purchase of the Sony VAIO®computer! Your new, high-performance, multimedia computer combines
state-of-the-art computer functionality with the latest audio, video and information technology features.
Unpacking your Computer
Planning an Ergonomic Work Space
Page 2

Unpacking your Computer
Your computer may not be supplied with all of the accessories shown, depending on the computer configuration purchased.
For details on the accessories supplied with your computer, see the online Specifications sheet.
Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery Wizard utility to
recover your computer's operating system and preinstalled software.

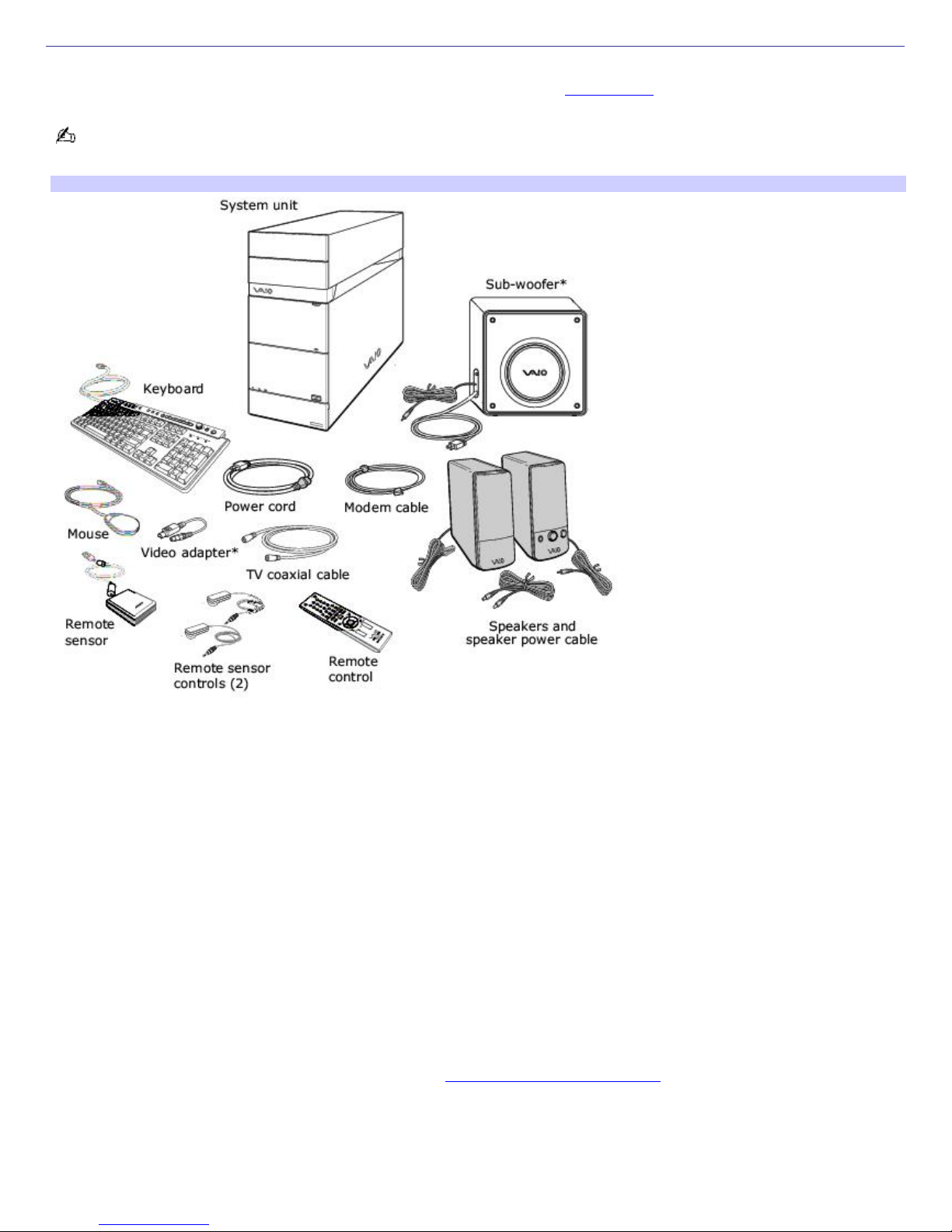

Computer and supplied accessories
*The accessory is available with certain computer models. See your computer's s pecifications s heet for details about supplied accessories.
Manuals
VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick
Start also provides resources for technical support, safety guidelines and owner information.
Online Documentation
VAIO®Computer User Guide —Contains features and specifications of your computer. It also includes information
on the Microsoft®Windows®XP Media Center Edition operating system, the software programs included with your
system, and solving common problems.
To access the online User Guide:
1. Click Start in the Windows taskbar, then click Help and Support.
2. From the VAIO Help and Support Center menu, click VAIO User Guide.
Specifications —This online specifications sheet describes the hardware and software configuration of your VAIO
computer. Go to the Sony Online Support Web site at http://www.sony.com/pcsupport to view the specifications
sheet.
VAIO Software —Provides specific information on certain preinstalled software on your computer.
To access this online software information:
1. Click Start in the Windows®taskbar. Page 3

2. Click Welcome to VAIO life.
Hard Disk Drive Recovery
Your computer is equipped with the VAIO Recovery Wizard utility program that recovers your computer's operating system
and preinstalled software. For more information about hard disk drive recovery:
1. Click Start in the Windows®taskbar, then click Help and Support.
2. From the VAIO Help And Support Center, click VAIO Recovery Options.
Other
A software library, containing the Microsoft®software and Sony®end-user license agreements.
Page 4

Planning an Ergonomic Work Space
Before you set up your new computer, find the best location for your new computer and plan your work space. There are
several ergonomic factors to consider when you arrange your work space:
Stable work surface —Use a stable work surface large enough to support the computer and other peripheral
equipment.
Ventilation —Leave at least eight inches of space on the left and back sides of your computer to enable proper
ventilation.
Placement of the keyboard, mouse, and other input devices —Place your keyboard, mouse, and other input
devices so that your arms and hands are in a relaxed, comfortable position. The keyboard should be directly in front
of you. Adjust the level of the keyboard so that your lower arms are parallel to the floor. Keep your wrists in a
relaxed position when you are using the keyboard —not angled up or down. Use the palmrest briefly, for resting.
While typing, never use the palmrest or rest your hands on the table. Position the mouse at the same level as the
keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it. Take breaks during sessions
with your computer. Excessive use of the mouse or a joystick may strain muscles or tendons.
Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture —avoid
slouching forward or leaning far backward.
Viewing angle of the display —Position the display 18 to 26 inches directly in front of you, with the top of the
screen at, or a little below, eye level. Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by placing the display in the proper position.
Lighting —Choose a location where windows and lights do not create glare and reflection on the display. Use
indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help
reduce glare. Proper lighting adds to your comfort and work effectiveness.
Page 5

Locating Controls And Ports
This section is intended to familiarize you with the controls, ports and jacks on your computer and supplied accessories.
Your computer may not be equipped with all of these hardware features or accessories. The location of the controls, ports,
and jacks may vary from the illustrations shown in this section. To view the specific connection capabilities for your system,
see the online Specifications sheet.
About the Front Panel
About the Back Panel
About the Sub-woofer
About the Keyboard
About the Remote Control
Page 6

About the Front Panel
The front panel of your VAIO®Computer enables access to drives, media slots, ports and jacks that enable you to connect
compatible peripheral devices.
Page 7

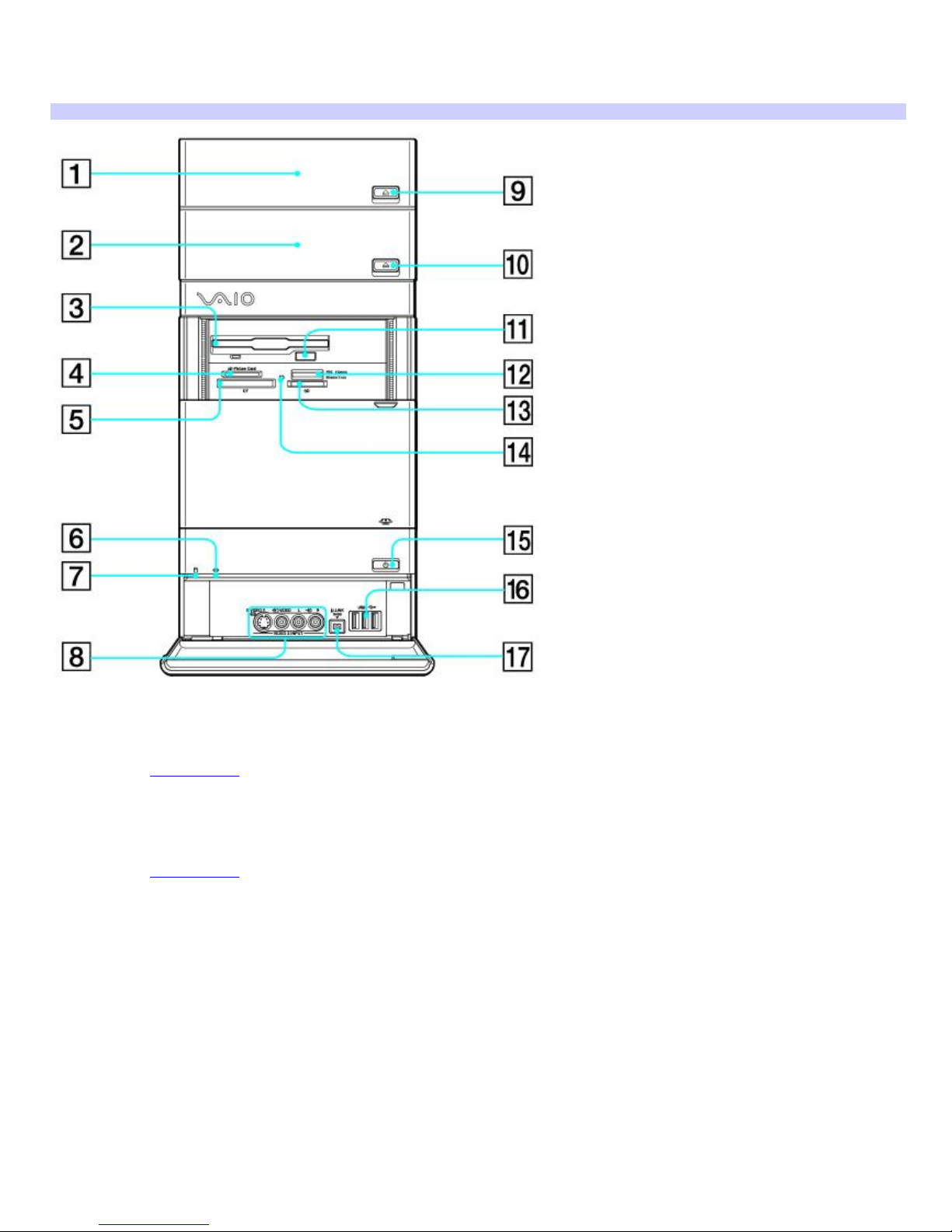

Front panel
Your computer may not be equipped with all of these hardware features or accessories. The location of the controls, ports,
and jacks may vary from the illustrations shown in this section.
Front panel
1Optical drive 1
See the online Specifications sheet for optical drive information.
2Optical drive 2
See the online Specifications sheet for optical drive information.
3Floppy disk drive
Reads and writes data from and to a 3.5-inch floppy disk.
4xD-Picture Card media slot
Reads and writes data from and to xD-Picture Card media.
5CompactFlash®and Microdrive media slot
Reads and writes data from and to CompactFlash and Microdrive media.
Page 8

6Optical drive access indicator
Light is amber while reading and writing data from and to the optical drives.
7Hard disk drive access indicator
Light is amber while reading and writing data from and to the hard disk.
8S-video In jack
Connection for an S-video cable (optional).
Composite video In jack
Connection for a video cable (optional).
Composite audio L In jack
Connection for an audio cable (optional).
Composite audio R In jack
Connection for an audio cable (optional).
9Optical drive 1 eject button
Ejects a disc from Optical drive 1.
10 Optical drive 2 eject button
Ejects a disc from Optical drive 2.
11 Floppy disk eject button
Ejects a floppy disk from the floppy disk drive.
12 Memory Stick®media slot
Reads and writes data from and to Memory Stick®, Memory Stick Pro , and Memory Stick Duo media.
13 Secure Digital (SD)/MultiMediaCard (MMC) slot
Reads and writes data from and to a Secure Digital (SD) or MultiMediaCard (MMC).
14 Media access indicator1
Light is amber when reading or writing data.
Page 9

15 Power button and power indicator
Press the button to turn the computer on and off. The power indicator light is green when the computer is on, and is amber
when the computer is in Stand by mode. The power indicator is off when the computer is turned off.
16 i.LINK (4-pin) S400 port (IEEE 1394)
Connection for a compatible digital device.
17 Universal Serial Bus (USB 2.0) ports (3)
Connections for compatible high/full/low-speed USB devices.
1T he media access indicator lights when reading or writing data with the Secure Digital (SD), Memory Stick®, xD-Picture C ard , or C ompactFlash®
/Microdrive s lots.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK
connection may vary, depending on the software programs, operating system, and compatible i.LINK devices. All products
with an i.LINK connection may not communicate with each other.
Refer to the documentation that came with your compatible i.LINK device for information on operating conditions and
proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
To open and close the optical disc drive doors
Your computer is equipped with one or more optical disc drives that have a drive eject button located on the drive door.
After pressing the eject button, wait for the drive to stop reading the CD. It may take a few moments for the drive
tray to eject.
Gently push the drive tray in, when closing the optical drive door. Do not force the door or handle roughly.
After closing the drive door, wait a few moments for the drive to begin reading the CD.

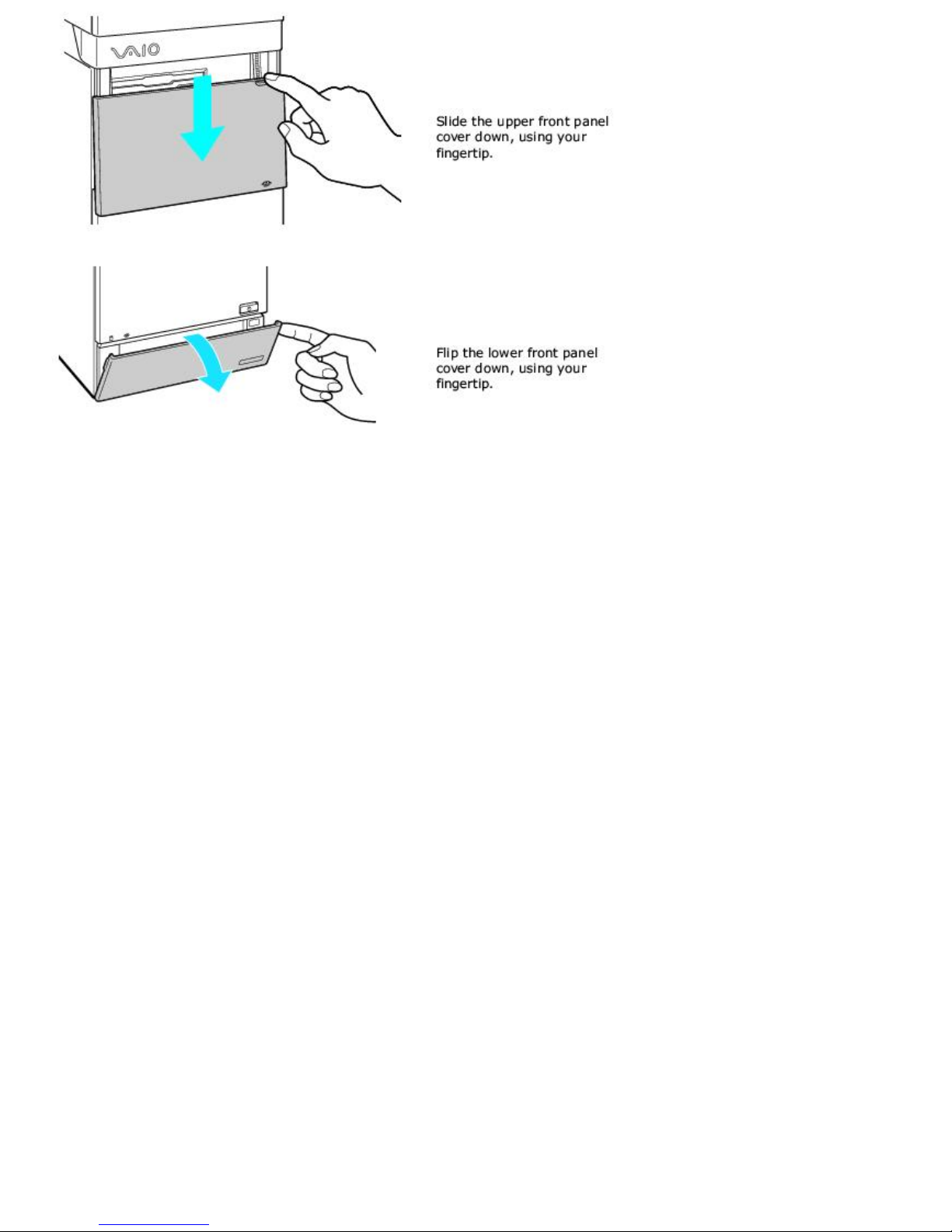

To open the upper and lower front panel covers
The front of your computer is equipped with panels that cover drives, media card slots, jacks and ports. Do not force the
panel covers or handle roughly.
Opening the front panel covers
Page 10

Page 11

About the Back Panel
The back panel of your computer contains the ports for supplied and optional accessories. The icons on the back panel
locate and identify the ports on your computer.
Page 12

Back panel
The location of certain ports and jacks may vary from the illustration, based on the computer model purchased.
Back panel
1Mouse port
Connection for a PS/2®mouse.
2Keyboard port
Connection for a PS/2 keyboard.
3Printer port
Connection for a parallel device, such as a printer or scanner.
4i.LINK 6-pin S400 port (IEEE 1394)
Connection and power for a compatible digital device, such as a Sony Digital Handycam®camcorder.
5Universal Serial Bus (USB 2.0) ports (4)
Connections for compatible high/full/low-speed USB devices.
6Microphone jack Page 13

Connection for a microphone (optional).
Headphones jack
Connection for the supplied speakers or headphones (optional).
Line In jack
Connection for an audio device.
7Monitor port
Connection for standard (VGA) monitor.
TV Out (S-video/video) jack
Connection for an S-video cable.
DVI monitor port
Connection for a DVI monitor.
8Modem line jack1
Connection for the modem (supplied) cable to the wall jack.
9AC Input port
Connection for the supplied power cord.
10 S/PDIF Optical Out port
Connection for a digital audio or optical device.
11 Ethernet port
Connection for a 10BASE-T/100BASE-TX/1000BASE-TX2Ethernet.
(The port marked with (Network) is for LAN connections only.)
12 Speaker DC Out jack
Connection for the speaker power cable (supplied).
13 Composite audio R In jack
Connection for an audio cable (optional). Page 14

Composite audio L In jack
Connection for an audio cable (optional).
Composite video In jack
Connection for a video cable (optional).
S-video In jack
Connection for an S-video cable (optional).
14 VHF/UHF port
Connection for a TV coaxial cable (supplied).
1A n optional "1-to-2" jack adapter device (s plitter) is required to connect both a telephone and modem line to your computer.
21000BASE-TX Ethernet capability is available on certain computer models. See your computer's s pecifications s heet for details on its hardware
configuration.
Page 15

About the Sub-woofer
Certain VAIO®computers are supplied with a sub-woofer unit to enhance your system's sound capability. See your
computer's online specifications sheet for information about supplied accessories. Go to the Sony Online Support Web site
at http://www.sony.com/pcsupport.
Page 16

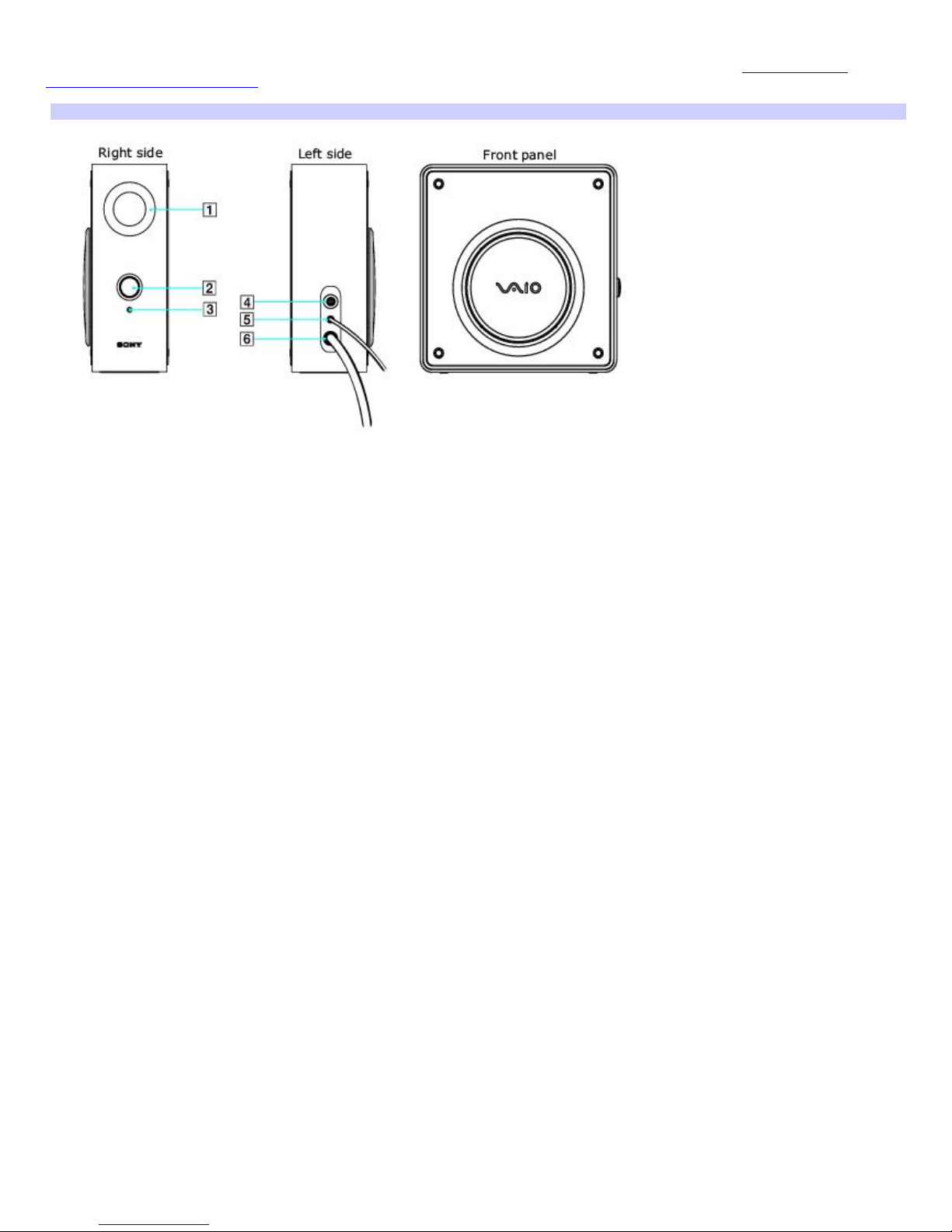

Sub-woofer unit
The sub-woofer is compatible with the speakers supplied with your VAIO computer. See the section, Connecting the
Speakers and Sub-woofer Unit for connecting instructions.
Sub-woofer unit
1Port
The port extends the low frequency response to extend the volume output of the sub-woofer unit.
2Power knob/volume control
Rotate the knob clockwise to turn on the sub-woofer unit. Control the volume by rotating the knob until the desired volume
is reached. Rotate the knob counter-clockwise to turn off the sub-woofer unit.
3Power indicator
Light is green while the power is on.
4Speaker jack
Connection for the speaker cable.
5Sub-woofer unit cable
Connects the sub-woofer unit to the computer's Headphones jack.
6AC power cord
Connects the sub-woofer unit to a grounded AC wall outlet or power strip.
Page 17

About the Keyboard
This section describes the special and standard functions available for your keyboard.
Page 18

VAIO keyboard with Media Center features
The VAIO®keyboard supplied with your computer has a standard key arrangement with additional keys and controls that
support Microsoft®Windows®XP Media Center Edition features.
VAIO keyboard
BUTTON DESCRIPTION
EJECT 1 Opens the optical drive 1 tray.
EJECT 2 Opens the optical drive 2 tray.
MY TV Opens the My TV window of Windows®Media Center.
GUIDE Opens the TV program guide of Media Center.
MY MUSIC Opens the My Music window of Media Center.
MY PICTURES Opens the My Pictures window of Media Center.
MY VIDEOS Opens the My Videos window of Media Center.
INTERNET Starts the Internet browser.
MAIL Starts the e-mail software program.
HELP Starts the Media Center Help, if Media Center software is running. (If Media Center software is not running,
the Help and Support Center is started.)
REC Records TV programs.
PREV Press once to return to the beginning of the DVD chapter, video track, or audio track.
Page 19

Press twice to return to the previous DVD chapter, video track, or audio track.
STOP Stops media recording or playback.
PLAY/PAUSE Pauses the movie, video, slide show, or audio track. Press again to resume playback.
NEXT Advances to the next DVD chapter, video track, or audio track.
VOLUME knob Increases (+) and decreases (-) the volume as you turn the knob.
MUTE Turns the sound off. Press again to restore sound.
STANDBY Places the computer in Stand by mode to reduce power consumption. Press any key briefly to resume normal
operation.
KEY DESCRIPTION
Function The 12 function keys along the top of the keyboard are used to perform certain tasks. The task associated
with each function key may vary between software programs.
Numeric keypad Use the numeric keypad area to type numbers or to perform basic math calculations. Press the Num
Lock key to activate the numeric keypad. (The Num Lock indicator lights.) Press the Num Lock key again to deactivate the
numeric keypad.
Directional Arrows The Up, Down, Left, and Right arrow keys move the pointer on the screen.
Applications
The Applications key displays a shortcut menu in certain software programs. Pressing this key is equivalent to
clicking the right mouse button.
Windows
The key with the Microsoft®Windows®logo, displays the Start menu. Pressing this key is equivalent to clicking Start on
the taskbar.
INDICATORS FUNCTION
Num Lock The Num Lock indicator lights when the numeric keypad is activated. When the indicator is off, the directional
arrow and correction keys on the numeric keypad area are active.
Caps Lock The Caps Lock indicator lights to advise you that the keyboard is set to type letters in uppercase. When the
indicator is off, the letters appear in lower case as you type.
Scroll Lock The Scroll Lock indicator lights to advise you that your screen's scrolling pattern has changed. When the
indicator is off, the screen scrolls normally. This function is not available with all software programs.
Page 20
