Sony VPCL13 Series User manual

N
User Guide
Personal Computer
VPCL13 Series

2
nN
Contents
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations .......................................... 10
Getting Started.................................................................. 12
Locating Controls and Ports........................................ 13
About the Indicator Lights ........................................... 17
Setting Up Your Computer .......................................... 18
Shutting Down Your Computer Safely ........................ 26
Using the Power Saving Mode .................................... 27
Keeping Your Computer in Optimum Condition .......... 29
Using Your VAIO Computer.............................................. 31
Using the Keyboard..................................................... 32
Using the Mouse ......................................................... 37
Using the Touch Screen.............................................. 41
Using the Built-in Camera ........................................... 45
Using the Optical Disc Drive ....................................... 46
Using the TV Function................................................. 53
Using the HDMI/VIDEO Input Function....................... 60
Using the Remote Commander................................... 65
Using "Memory Stick".................................................. 69
Using Other Modules / Memory Cards........................ 76
Using the Internet........................................................ 80
Using the Network (LAN).............................................81
Using the Wireless LAN...............................................82
Using the Bluetooth Function ......................................86
Using Peripheral Devices ..................................................91
Connecting External Speakers or Headphones ..........92
Connecting an External Microphone ...........................93
Connecting a USB Device ...........................................94
Connecting an i.LINK Device.......................................96
Customizing Your VAIO Computer....................................98
Setting the Password...................................................99
Using Intel(R) VT .......................................................106
Using the VAIO Control Center .................................107
Upgrading Your VAIO Computer.....................................108
Adding and Removing Memory .................................109

3
nN
Precautions..................................................................... 115
Safety Information ..................................................... 116
Care and Maintenance Information........................... 119
Handling Your Computer........................................... 120
Handling the LCD Screen/Touch Screen .................. 122
Using the Power Source ........................................... 123
Handling the Built-in Camera .................................... 124
Handling Discs .......................................................... 125
Handling "Memory Stick"........................................... 126
Handling the Built-in Storage Device ........................ 127
Troubleshooting .............................................................. 128
Computer Operations................................................ 130
System Update / Security.......................................... 135
Recovery ................................................................... 137
Built-in Camera ......................................................... 138
Networking (LAN/Wireless LAN) ............................... 139
Bluetooth Technology ............................................... 142
Optical Discs ............................................................. 146
Display ...................................................................... 151
Printing ...................................................................... 153
Microphone ............................................................... 154
Mouse ....................................................................... 155
Speakers ................................................................... 156
Touch Screen............................................................ 158
Keyboard ...................................................................159
Floppy Disks ..............................................................160
Audio/Video ...............................................................161
HDMI/VIDEO Input Function .....................................164
"Memory Stick" ..........................................................166
Peripherals ................................................................167
Trademarks .....................................................................168
Notice ..............................................................................170

4
nN
Before Use >
Before Use
Congratulations on your purchase of this Sony VAIO®computer and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the Sony online support web site at the following URLs:
❑For customers in USA
http://esupport.sony.com/EN/VAIO/
❑For customers in Canada
http://www.sony.ca/support/
❑For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
❑For customers in Brazil
http://esupport.sony.com/PT/VAIO/BR/

5
nN
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑Quick Start Guide — An overview of components connection, set-up information, etc.
❑Safety Information — Safety guidelines and owner information.
✍
Before activating the wireless functions such as the wireless LAN and Bluetooth technology, read the Safety Information carefully.

6
nN
Before Use >
Finding More about Your VAIO Computer
2. On-screen Documentation
❑Help and Support — General information and technical assistance for your VAIO computer.
To access Help and Support:
1Click Start and Help and Support.
2Choose from the following categories to find the answers you need.
Get started with my VAIO Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, creating
recovery media, and more.
Use my VAIO Get assistance with your VAIO computer by accessing interactive VAIO tutorials, how-to articles, the VAIO
technology page, specifications, and system and software information.
You can find useful documentation such as general and model specific user guide on your VAIO computer.
Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with the VAIO Care, system restore, backup and recovery,
and contact Sony support.

7
nN
Before Use >
Finding More about Your VAIO Computer
❑Program help files — May be included with the preinstalled software programs on your computer. You may be able to
access the help files from the help menu on a specific program.
❑SmartWi™Connection Utility Help — Information about setting up Bluetooth®, wireless LAN, GPS, and wireless WAN
functions.
Some features and options may not be available on your computer.
See the specifications to find out about the configuration of your computer.
To access this on-screen guide:
1Click Start, All Programs, and SmartWi Connection Utility.
2Click SmartWi Connection Utility Help.

8
nN
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
❑Sony online support web site
The Sony online support web site provides instant access to information on commonly encountered problems. Type a
description of the problem and the Knowledge Database searches for the corresponding solutions online.
❑For customers in USA
http://esupport.sony.com/EN/VAIO/
❑For customers in Canada
http://www.sony.ca/support/
❑For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
❑For customers in Brazil
http://esupport.sony.com/PT/VAIO/BR/
❑Operating system online support web site
Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can
visit Microsoft customer support at http://support.microsoft.com/directory/.

9
nN
Before Use >
Finding More about Your VAIO Computer
4. Customer Information Center
If you do not find the information you are looking for at our site, you may call Sony directly. You can find the contact numbers
on the Sony online support web site. In order to receive the fastest and most efficient services, have the following information
readily available:
1Your VAIO computer model
You can find it at the lower right corner of the display on the computer.
2Your computer's serial number
You can find it on the bottom, the back panel, or inside the battery compartment of your Sony VAIO computer. The serial
number is the last 7 digits of the number below the barcode.
3The operating system on your computer
4The hardware component or the software program that is causing the problem
5A brief description of the problem
5. In Store Service & Support (available in USA only)
Make an appointment with a Sony certified technician at a U.S. Sony Style store and get personalized service and support
for your VAIO PC. Sony Style Backstage Technicians can assist with the setup of your new VAIO PC, system optimization,
data rescue, and any repair service you might need.
Visit the web site at www.sonystyle.com/backstage to find the nearest location.

10
nN
Before Use >
Ergonomic Considerations
Ergonomic Considerations
Whenever possible, you should attempt to take account of the following ergonomic considerations:
❑Position of your computer – Place the display directly in front of you. Keep your forearms horizontal, with your wrists in
a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your
sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

11
nN
Before Use >
Ergonomic Considerations
❑Viewing angle of the display – Use the display tilting feature to find the best position. You can reduce eye strain and
muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.
!
While adjusting the viewing angle, do not exert excessive pressure on your computer to eliminate a risk of mechanical damage.
❑Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑Ventilation – Make sure you leave at least 4 inches / 10 cm of space behind and at least 8 inches / 20 cm of space on
each side of the main unit.

12
nN
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion,
connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
❑Locating Controls and Ports (page 13)
❑About the Indicator Lights (page 17)
❑Setting Up Your Computer (page 18)
❑Shutting Down Your Computer Safely (page 26)
❑Using the Power Saving Mode (page 27)
❑Keeping Your Computer in Optimum Condition (page 29)

13
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.
Front
ABuilt-in microphone (monaural)
BBuilt-in MOTION EYE camera indicator (page 17)
CBuilt-in MOTION EYE camera (page 45)
DHDMI/VIDEO input indicator*(page 17)
EWIRELESS indicator (page 17)
FDisc drive indicator (page 17)
GPower indicator (page 17)
HBuilt-in speakers (stereo)
ILCD screen/touch screen (page 41)
!
Due to the mechanical design of the touch screen of your computer, some areas
of the screen surface may become warm while you are using the computer for
an extended period of time. This is normal and does not indicate a malfunction.
JBottom chassis frame (page 116)
KRemote sensor*
Point the supplied remote commander to this sensor for
operations.
* On selected models only.

14
nN
Getting Started >
Locating Controls and Ports
Back
!
The area around the air exhaust vent (3) becomes extremely hot while your computer
is on. Be sure to wait until the computer cools down before you touch it.
APower button
BDISPLAY OFF button/DISPLAY OFF indicator (page 17)
Press this button to turn off the LCD backlight. While the HDMI
input or the video input is selected as the audio/video input
source by the INPUT SELECT button (page 15), pressing this
button also turns off the volume.
CAir exhaust vent
DMemory module compartment cover (page 109)
EVIDEO INPUT jacks*1 (page 60)
FHDMI INPUT port*1 (page 60)
GAC input port (page 18)
HProp-up stand (page 116)
ICABLE/ANT (DIGITAL/ANALOG) input port*1 (page 53)
JNetwork (LAN) port (page 81)
KOPTICAL OUT port (page 92)
(Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)
LUSB ports*2 (page 94)
*1 On selected models only.
*2 Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

15
nN
Getting Started >
Locating Controls and Ports
Right

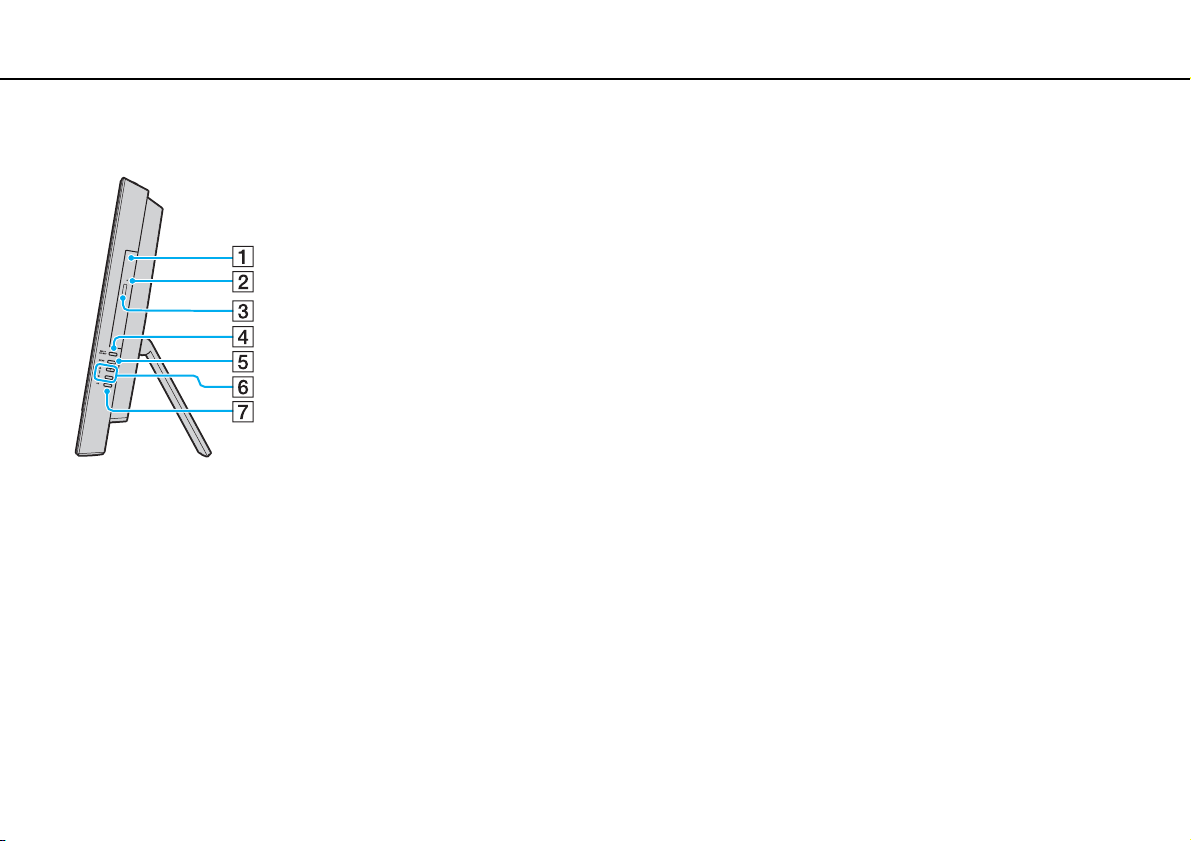

AOptical disc drive (page 46)
BManual eject hole (page 146)
CDrive eject button (page 46)
DINPUT SELECT button*(page 62)/
INPUT SELECT indicator*(page 17)
EMENU button*(page 62)
FV/v(Up/Down) buttons*(page 62)
GOK button*(page 62)
* On selected models only.

16
nN
Getting Started >
Locating Controls and Ports
Left

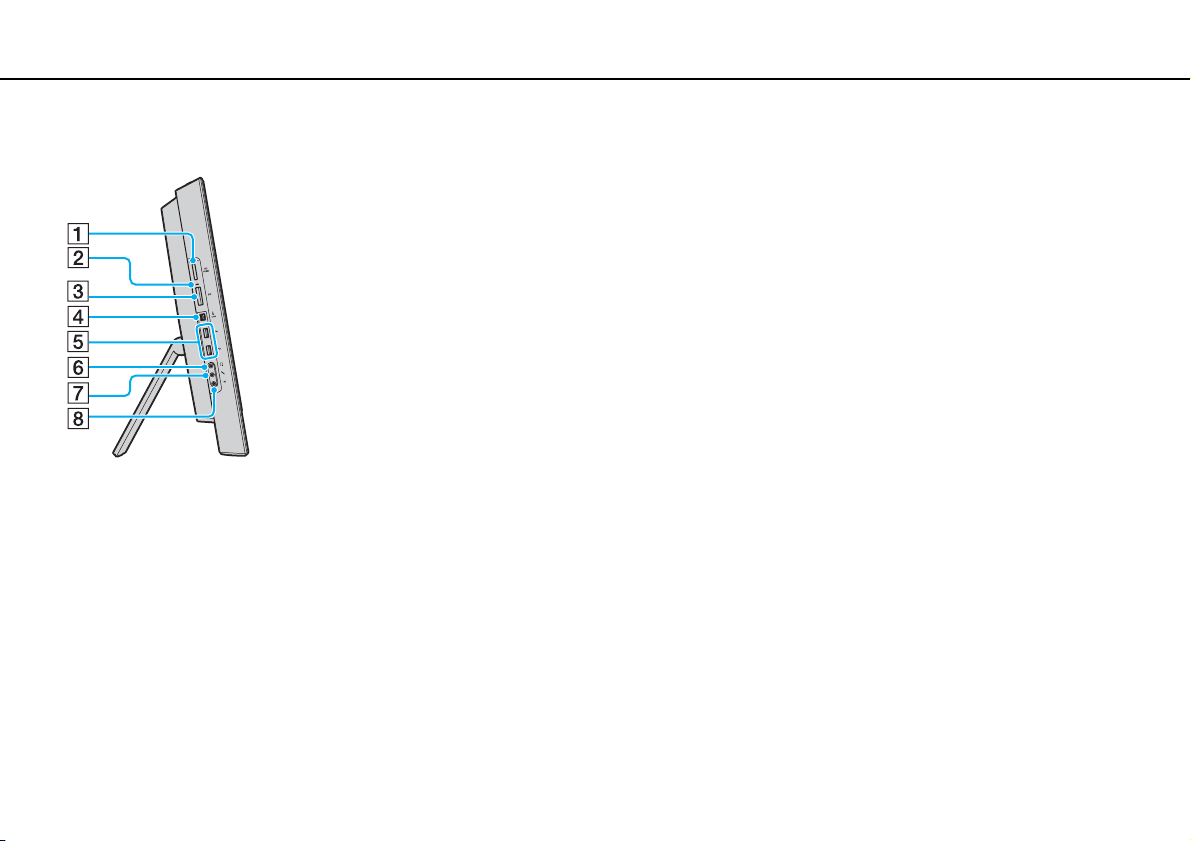

A"Memory Stick Duo" slot*1(page 69)
BMedia Access indicator (page 17)
CSD memory card slot (page 76)
Di.LINK 4-pin (S400) port (page 96)
EUSB ports*2 (page 94)
FHeadphones jack (page 92)
GMicrophone jack (page 93)
HLine In jack
Connect an external audio device to receive audio signals.
*1 Your computer supports only Duo-size "Memory Stick".
*2 Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

17
nN
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1Illuminates in green while the computer is on, illuminates in orange while the computer is in Sleep mode, and
turns off when the computer is turned off.
HDMI/VIDEO input*Illuminates in green while the HDMI input or the video input is selected as the audio/video input source.
Built-in MOTION EYE camera Illuminates while the built-in camera is in use.
Media Access Illuminates while data access to a memory card, such as "Memory Stick" and an SD memory card, is in
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
INPUT SELECT*Illuminates in green while the HDMI input or the video input is selected as the audio/video input source.
DISPLAY OFF Illuminates in orange while the LCD backlight is off.
Disc drive Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place
the computer into Sleep mode or turn it off while this indicator light is lit.
WIRELESS Illuminates while one or more wireless options are enabled.
* On selected models only.

18
nN
Getting Started >
Setting Up Your Computer
Setting Up Your Computer
Connecting a Power Source
You need a power cord to connect your computer to an AC power source.
✍
Use only the supplied power cord for your computer.

19
nN
Getting Started >
Setting Up Your Computer
To connect the power cord
1Plug one end of the power cord (1) into an AC outlet (2).
2Route the power cord through the hole (3) of the prop-up stand and plug the other end into the AC input port (4) on the
computer.
✍
To disconnect your computer completely from AC power, turn off the computer and unplug the power cord.
Make sure that an AC outlet is easily accessible.
!
If you unplug the power cord from your computer while the computer is on or in Sleep mode, you may lose all unsaved data.

20
nN
Getting Started >
Setting Up Your Computer
Preparing for Wall Mounting
Four mounting studs and six screws, which are compliant with the Video Electronics Standards Association (VESA) mounting
standard, are supplied with your computer for connecting the computer to your mounting system.
!
Before connecting your computer to your mounting system or changing your computer setup from the desktop type to the wall-mount type, make sure
that:
The weight of your computer is within the range of supported weight of your mounting system. See the manual that came with your mounting
system for the weight information.
You shut down the computer, turn off all peripheral devices, disconnect the power cord and the peripheral devices from the power source, and
then wait about an hour until the computer cools down before proceeding.
While your computer is wall mounted, do not place any objects on top of your computer so as not to break the frame and cause the main unit to fall
from the wall, resulting in damage to the computer or personal injuries.
