FCB-IX Series
Colour Block Cameras
IMAGE SENSING SOLUTIONS
FCB-IX47C/FCB-IX47CP FCB-IX45C/FCB-IX45CP FCB-IX11A/FCB-IX11AP

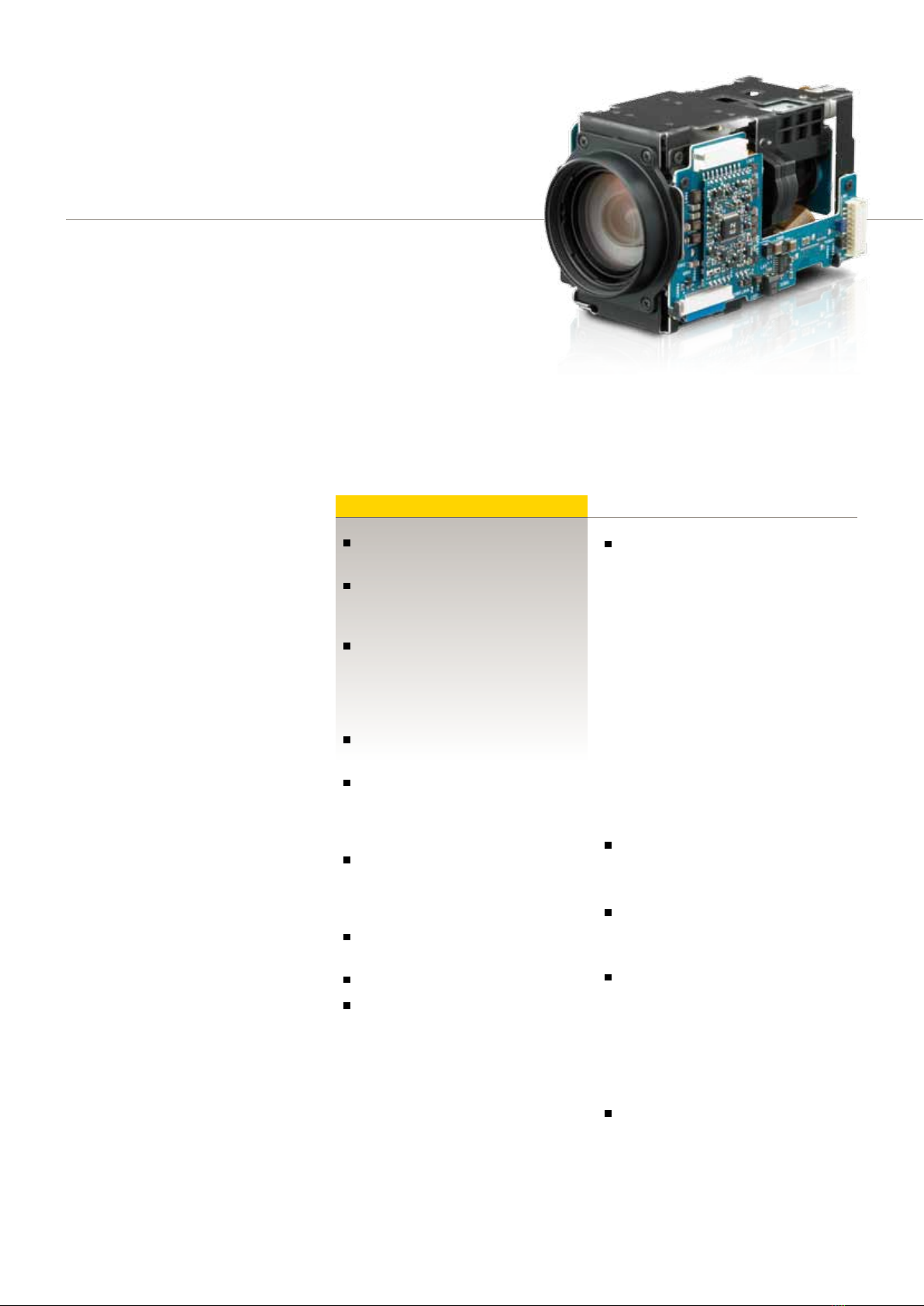

The High-Performance Sony FCB-IX
Colour Block Camera Series, Providing
High-Quality Images and Excellent
Sensitivity – These Block Cameras Are
Suitable for Integration Into a Variety of
Systems for Almost Any Application
www.pro.sony.eu/vision

FCB-IX47C
FCB-IX47CP
FCB-IX45C
FCB-IX45CP
FCB-IX11A
FCB-IX11AP
Inheriting the outstanding features of
previous generations of Sony block
cameras, Sony FCB-IX Series is ideal for
numerous general purpose applications.
For example, they can be integrated
into low vision systems, police cars, photo
booths, and document stands.
The FCB-IX47C/IX47CP and FCB-IX45C/
IX45CP colour cameras incorporate a
1/4-type Super HAD™ CCD and feature
a 72x zoom ratio (18x optical, 4x digital)
and a minimum illumination of 1.0
lx – expanding their vast application
appeal. The FCB-IX11A/IX11AP colour
cameras incorporate a 1/4-type EXview
HAD™ CCD and feature a 40x zoom
ratio (10x optical, 4x digital) into their
ultra-compact and lightweight body,
making them ideal for space restricted
applications.
Offering high picture quality and a
variety of functions, the FCB-IX Series is
ideal for your demanding applications.
Features
Unique Algorithms for Lens-Life
Extension
• Autofocus (AF) Algorithm.
This unique algorithm makes the block
camera ideal for security applications,
in which 24/7 continuous usage is
common. This technology controls the
unit’s autofocus function to provide
extended lens life and steady image
quality.
• SMART (Sony Modular Automatic lens
Reset Technology) Lens Control*
Automatically compensates for
mechanical misalignment of the lens,
which may occur over a long period of
continuous usage.
Low Power Consumption
(1.5/1.6 W when motors are inactive)
EEPROM Backup System without
Battery
16-Bytes of Memory is Available for
Recording Data such as Product
Serial Numbers and Camera/
System ID Numbers
(FCB-IX47C/IX47CP, FCB-IX45C/IX45CP
only)
Environmentally-friendly
(Lead-free solder and Halogen-free
Printed-circuit boards)
The Sony FCB-IX colour block camera
series incorporates high-performance
Digital Signal Processing (DSP) and
firmware that greatly enhance
their operation and picture quality
compared to conventional block
cameras.
High-performance Digital Signal
Processing (DSP)
High-speed Serial Interface
(max. 38.4 Kb/s) with TTL Signal-
Level Control (VISCA™ protocol)
High-quality Image in both
Digital-zoom and Slow-shutter
Modes
(FCB-IX47C/IX47CP, FCB-IX11A/
IX11AP only)
Various AF Modes including
Zoom Trigger and Interval Modes
Various AE Modes including
Spot AE Mode to Optimize the
Brightness within the Specific
Area
Electronic-Flip (E-Flip) for
capturing images in the proper
orientation
(FCB-IX47C/IX47CP only)
Expanded Mode Parameter for
Shutter Speed and Gain Level
Superb Sensitivity
Various Customizable Settings

FCB-IX Series line-up
FCB-IX47C/IX47CP
1/4-type Super HAD™ CCD
72x Zoom Ratio (18x optical, 4x digital)
Minimum Illumination of 1.0 lx (typical)
Key Switch Control Compatibility
Spot AE
E-Flip
Field Memory/Freeze Mode
High-speed Serial Interface (maximum
38.4 Kb/s) with TTL Signal-Level Control
(VISCA protocol)
Electronic Shutter/Slow Shutter
On-screen Display (date/time/title)
FCB-IX45C/IX45CP
1/4-type Super HAD™ CCD
72x Zoom Ratio (18x optical, 4x digital)
Minimum Illumination of 1.0 lx (typical)
Key Switch Control Compatibility
Spot AE
High-speed Serial Interface (maximum
38.4 Kb/s) with TTL Signal-Level Control
(VISCA protocol)
On-screen Display (date/time/title)
FCB-IX11A/IX11AP
1/4-type Exview HAD™ CCD
Compact and Lightweight
40x Zoom Ratio (10x optical, 4x digital)
Minimum Illumination of 1.5 lx (typical)
Key Switch Control Compatibility
Spot AE
Field Memory/Freeze Mode
High-speed Serial Interface (maximum
38.4 Kb/s) with TTL Signal-Level Control
(VISCA protocol)
Electronic Shutter/Slow Shutter
On-screen Display (date/time/title)
DD901
CN903
CN051
CN902
CN904
CN901
CN001
CN301
CN601
CN401
CN702
CN701
CN101
CN703
Depth 3mm or less
7-M2
5
19.1 20 0.1
20 0.1
20 0.1
56.6
29.1 (27.5)
48.2
24 (24.2)
M37 P0.75
31.49.6
3.6
Ø40
9.6
4.1
39.3
92.3
(1/4-20UNC)
Depth 7mm or less
Tripod Screw,
4-M2
Depth 3mm or less
14 0.1 14.1
Depth-7mm or less
Ø5 0.2
20 0.1
8
18.1 18 0.1
VC
IF
CN151
CN101
CD
2B
2A
1A
1B
MC
CN702
CN751
CN701
CN703
CN401
DD
WIDE
TELE
SB-L9097
SB-J2835
SB-J2835
SB-J2835
SB-L9097
7.411.4
0.5
23.8 21
44.8
39.3
20.8 18.5
or less
Depth 3mm
M30 P0.75
19.3
65
40.3
Tripod sheet metal nothing
4-M2
Depth 4mm or less
Tripod Screw, Depth 5.5 or less
(1/4-20UNC)
18 0.1 Label, model number
14 0.115.8
8 5
20 0.1
15.3
Ø4
*The dimensions and appearance of the FCB-IX47C/IX47CP and FCB-IX45C/IX45CP are the same.
Unit: mm
Unit: mm

Specifications
FCB-IX47C FCB-IX47CP FCB-IX45C FCB-IX45CP FCB-IX11A FCB-IX11AP
Image device
1/4-type Super HAD CCD 1/4-type Exview HAD CCD
Effective picture elements
Approx.
380,000 pixels
Approx.
440,000 pixels
Approx.
380,000 pixels
Approx.
440,000 pixels
Approx.
380,000 pixels
Approx.
440,000 pixels
Lens
18x zoom,
f=4.1 mm (wide) to 73.8 mm (tele), F1.4 to F3.0
10x zoom,
f=4.2 mm (wide) to 42 mm (tele), F1.8 to F2.9
Digital zoom
4x (72x with optical zoom) 4x (40x with optical zoom)
Viewing angle (H)
48° (wide end) to 2.8° (tele end) 46° (wide end) to 5.0° (tele end)
Minimum working distance
10 mm (wide end), 800 mm (tele end) 10 mm (wide end), 1000 mm (tele end)
Sync system
Internal
Minimum illumination
1.0 lx (50 IRE) 1.5 lx (50 IRE)
S/N ratio
More than 50 dB
Electronic shutter
1/1 to 1/10,000 s 1/60 to 1/10,000 s 1/50 to 1/10,000 s 1/1 to 1/10,000 s
22 steps 16 steps 16 steps 22 steps
White balance
Auto, ATW, Indoor, Outdoor, One-Push, Manual
Gain
Auto/Manual (-3 to 28 dB, 2 dB steps)
AE control
Auto, Manual, Priority mode, Bright, EV compensation, Backlight compensation
EV compensation
-10.5 to +10.5 dB (1.5 dB steps)
Backlight compensation
On/Off
Flicker cancel
Auto – Auto – Auto –
Focusing system
Auto (Sensitivity: normal, low), One-Push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture effect
Neg. Ar t, Black & White, Mirror Image, E-Flip Neg. Ar t, Black & White, Mirror Image
Camera operation switch
Zoom tele, Zoom wide
Video output
VBS: 1.0 Vp-p (sync negative), Y/C Output
Camera control interface
VISCA (TTL/RS-232C signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, Stop bit: 1/2 selectable
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Operating temperature
0 to 50 °C (32 to 122 °F)
Power consumption
6 to 12 V DC/1.5 W (motors inactive)
2.0 W (motors active)
6 to 12 V DC/1.6 W (motors inactive)
2.1 W (motors active)
Mass
170 g (6.0 oz) 95 g (3.4 oz)
Dimensions (W x H x D)
48.2 x 56.6 x 92.3 mm
(1 15/16 x 2 1/4 x 3 3/4 inches)
39.3 x 44.8 x 65 mm
(1 9/16 x 1 13/16 x 2 5/8 inches)
* The initial factory setting for the SMART Lens Control function is "OFF". When the function is turned OFF and the unit is used continuously for more than 24 hours, lens system initialization is
recommended every 24 hours to extend the life of the lens. The "Initialize Lens" command takes a little less than 3 seconds to initialize the focus and zoom. When the Smart Lens Control function is
turned ON, lens initialization is not required.
Pin Assignment & Connectors
CN901 IF Board
DC and video connector
(FCB-IX11A/IX11AP)
CN751/901 MC-Board
Communication connector
(CN751: FCB-IX11A/IX11AP
(CN901: FCB-IX47C/IX47CP/IX45C/
IX45CP)
CN601/701
Key switch connector
(CN601: FCB-IX47C/IX47CP/
IX45C/IX45CP
(CN701: FCB-IX11A/IX11AP)
CN903
DC and video connector
(FCB-IX47C/IX47CP and FCB-IX45C/IX45CP)
Pin No. Name Level
1Power In 6 V – 12 V
2GND (power) –
3NC –
4Video Out Composite video signal
5GND (for video) –
6Y_Out 1.0 ± 0.2 V
7GND (for Y signal) –
8C_Out –
9GND (for C signal) –
Connector: JST S9B-ZR-SM3A-TF
Pin No. Name Level
1Power In 6 V – 12 V
2GND (power) –
3NC –
4Video Out Composite video signal
5GND (for video) –
6Y_Out –
7GND (for Y signal) –
8C_Out –
9GND (for C signal) –
Connector: JST S9B-ZR-SM3A-TF
Pin No. Name Level
1T x D IN RS-232C Level
2NC –
3NC –
4R x D IN RS-232C Level
5TD TTL Level
6NC –
7NC –
8RD TTL Level
9GND –
10 AF_LED –
Connector type: JST S10B-ZR-SM3A-TF
Pin No. Name
1GND
2GND
3KEY_AD0
4KEY_AD1
5KEY_AD2
6KEY_AD3
7KEY_AD4
8KEY_AD5
9KEY_AD6
10 KEY_AD7
11 NC
12 Strobe
Connector type:
Molex 52689-1297 FFC (0.5 mm
Distributed by
© 2010 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and
specifications are subject to change without notice. The values for mass and dimension are approximate. Sony is a registered
trademark of Sony Corporation. Super HAD CCD II is a trademark of Sony Corporation. All other properties are the property of their
respective owners.
