VISCA over IP

Overview of VISCA over IP

With VISCA over IP function, you can control the

camera using VISCA* on a controller equipped

with IP communication capabilities via LAN. You

can connect up to five controllers simultaneously

on the network.

* VISCA is a camera control protocol developed by Sony.

The communication specifications of VISCA over

IP are as follows:

•Interface

RJ-45 10BASE-T/100BASE-TX/1000BASE-T

(auto sensing)

• Internet protocol

IPv4

• Transport protocol

UDP

• IP address

Set by the setup software (page 23)

•Portaddress

52381

• Delivery confirmation/Retransmission

control

Depends on the application

In these instructions, the device outputting

commands, such as a computer, is called the

controller, and the device receiving the

command, such as a camera, is called a

peripheral device.

IP communication connection

Due to the nature of the IP communication, the

use of some VISCA functions are limited. For

details, see “Limitations” (page 11).

For how to set an IP address of the camera, see

“Camera IP Setup Command” (page 23).

Enabling VISCA over IP

Communication

To use VISCA over IP communication with this

unit, set SETUP switch 3 of the unit to the ON

position to enable VISCA over IP communication.

The switch setting is applied when the unit is

next turned on.

Communication Method of VISCA

over IP

Communication method

VISCA over IP can process the VISCA

communication between the controllers and

peripheral devices using the messages that can

Network

be identified on the LAN, and sends/receives

them. Messages are classified and handled as

follows according to the operation sequence of

VISCA communication.

VISCA command

This is a command from the controller to the

peripheral device.

When the peripheral device receives this

command, ACK is returned. After completing

command processing, a completion notice is

returned. This command uses the socket of

VISCA. The order of completion notices may be

changed if the multiple commands are sent to

the same peripheral device.

VISCA inquiry

This is an inquiry from the controller to the

peripheral device.

When the peripheral device receives this type of

command, the reply for the inquiry is returned.

This command does not use the socket of VISCA.

The order of the replies is not changed if a

multiple commands are sent simultaneously.

VISCA reply

This is an ACK, completion notice, reply, or error

reply from the peripheral device to the controller.

VISCA device setting command

This is the device setting command from the

controller to the peripheral device as follows.

When the peripheral device receives this type of

command, the command is activated.

•IF_Clear

Clears the command buffer in the unit. When

cleared, the operation currently being

executed is not guaranteed. Sends the reply

message to the controller after clearing,

without using VISCA socket.

•CAM_VersionInq

Returns information on the VISCA interface

within the unit. Sends the reply message to the

controller, without using a VISCA socket.

Socket

When command messages are sent to the unit, it

is normal to send the next command message

after receiving the completion message or error

message. However, to deal with advanced uses,

the unit has two sets of buffers (memories) for

commands, so that up to two commands

including the commands currently being

executed can be received. These buffers are

called sockets. (There is a wait longer than a 1V

cycle between commands.) However, depending

on the command, it may be necessary to wait

until the first command is completed due to

system reasons. When the unit receives

commands, it notifies which command buffer

was used using the socket number of ACK

message. As the completion message or error

message also has a socket number, it indicates

which command has ended. Even when two

command buffers are being used, the unit

management command and inquiry messages

can be executed.

The ACK message is not returned for these

commands and inquiries, and only the

completion message of socket number 0 is

returned.

Format

These are the specifications of the message

header (8 bytes) and payload (1 to 16 bytes).

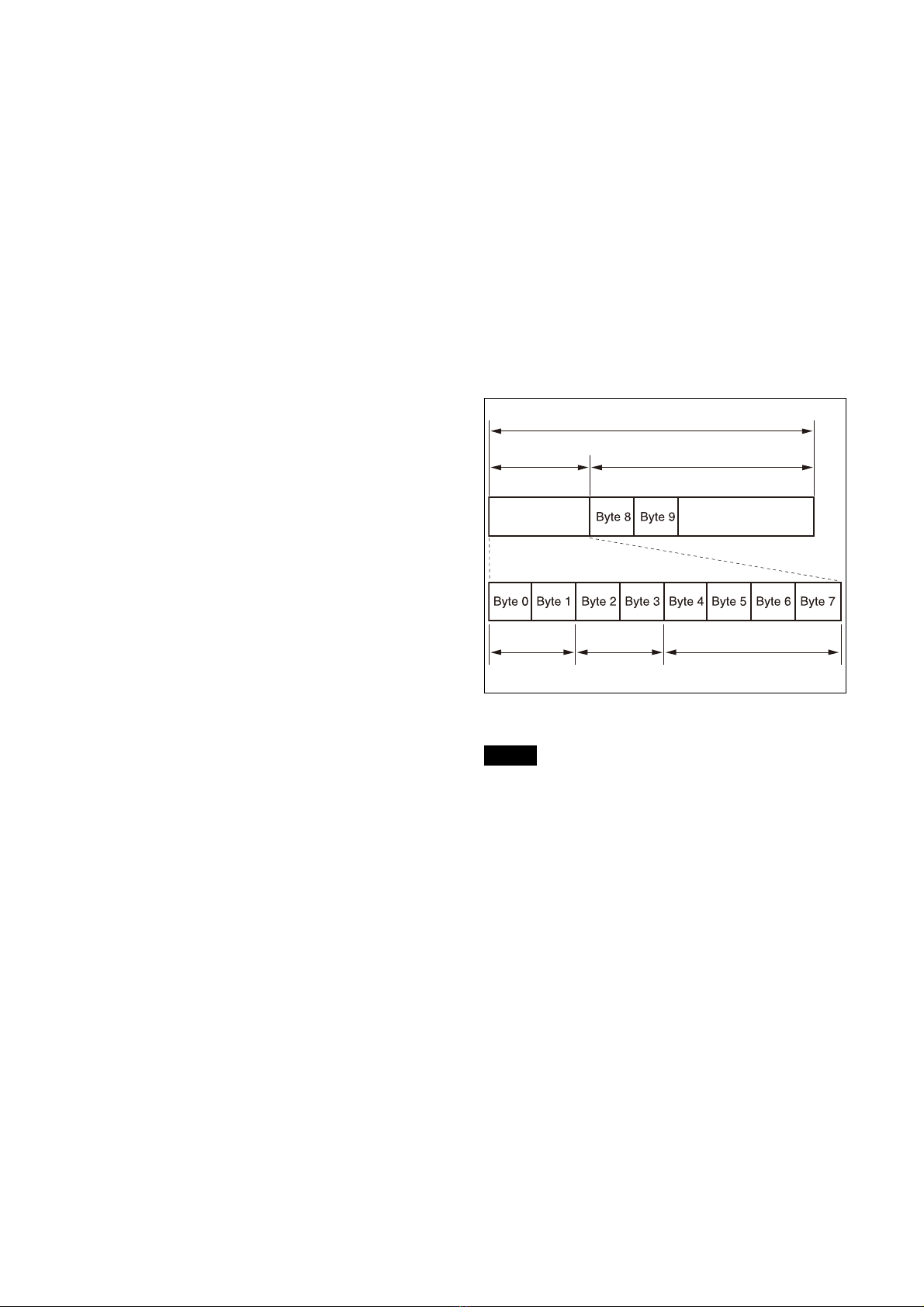

Message structure

Note

The actual LAN out method is big-endian, LSB

first.

Message (9 to 24 bytes)

Message

header Payload (1 to 16 bytes)

Payload type Payload length Sequence number

Payload type (Byte 0, Byte 1)

Stores the type of the data stored in the payload. The payload types are given below.

Payload length (Bytes 2 to 3)

Stores the number of bytes (1 to 16) of data that is stored in the payload.

Example: When the payload length is 16 bytes.

Byte 2: 0x00

Byte 3: 0x10

Sequence number (Bytes 4 to 7)

The controller stores the sequence number that is added every time a message is sent. If the sequence

number reaches the limit, next value will be 0. The peripheral device saves the sequence number in the

message from the controller, and stores the sequence number of the received message corresponding

to the message sent to the controller.

Payload (Bytes 8 and higher)

The content of a VISCA communication or the communication control command/replay is stored as the

payload.

Depending on the payload type, the following are stored.

• VISCA command

Sends operational commands to the unit. Stores the packet of the VISCA command.

Command Packet

8X 01 RR ...FF

RR: Category Code (00=Interface, 04=camera, 06=Pan/Tilter)

X = 1 (fixed) for VISCA over IP

For actual values to be sent, see Command Lists (page 12) or Inquiry Command Lists (page 18).

To cancel a command which has already been sent

To cancel execution of a command in the command buffer that was sent previously but which has not

yet been executed, use the cancel command.

Cancel Packet

Cancel 8X 2Z FF

X = 1 (fixed) for VISCA over IP

Z = socket number

Error message “Command Canceled” will be returned for this command, but this is not a fault. It

indicates that the command has been canceled.

Note

To cancel a command when VISCA PAN-TILT Drive (page 15) is being executed, wait at least 200 msec

after executing. Then send a cancel command to ensure that PAN-TILT Drive stops effectively. To

execute a PAN-TILT Drive command again, wait at least 200 msec after the cancel command has been

issued and the message “Command Canceled” has appeared.

Name Value (Byte 0) Value (Byte 1) Description

VISCA command 0x01 0x00 Stores the VISCA command in the payload.

VISCA inquiry 0x01 0x10 Stores the VISCA inquiry in the payload.

VISCA reply 0x01 0x11 Stores the reply to the VISCA command and inquiry,

or a device setting command in the payload.

VISCA device

setting command

0x01 0x20 Stores the VISCA device setting command in the

payload.

Control

command

0x02 0x00 Stores the control command in the payload.

Control reply 0x02 0x01 Stores the reply for the control command in the

payload.

• VISCA inquiry

Used for inquiring about the current state of the unit. Stores the packet of VISCA message.

Inquiry Packet

8X 09 RR ...FF

RR: Category Code (00=Interface, 04=camera, 06=Pan/Tilter)

X = 1 (fixed) for VISCA over IP

For actual values to be sent, see Command Lists (page 12) or Inquiry Command Lists (page 18).

•VISCAreply

Stores the reply for the command or inquiry (ACK message, completion message, or error message).

−ACK message

Returned by the unit when it receives a command. No ACK message is returned for an inquiry.

−Completion message

Returned by the unit when execution of commands or inquiries is completed. In the case of inquiry

commands, reply data for the inquiry is contained after the 3rd byte of the packet. In the case of

commands or inquiries that do not use sockets, the socket number will contain 0.

−Error message

When a command or inquiry command could not be executed or failed, an error message is returned

instead of a completion message.

• VISCA device setting command

Stores the packet of the VISCA device setting command.

−IF_Clear

Clears the command buffer in the unit. When cleared, the operation currently being executed is not

guaranteed.

Reply Packet

ACK Y0 4Z FF

Completion (commands) Y0 5Z FF

Completion (Inquiries) Y0 5Z ...FF

Y = 9 (fixed) for VISCA over IP

Z = socket number

Error Packet

Message length error Y0 6Z 01 FF

Syntax Error Y0 6Z 02 FF

Command buffer full Y0 6Z 03 FF

Command canceled Y0 6Z 04 FF

No socket (to be canceled) Y0 6Z 05 FF

Command not executable Y0 6Z 41 FF

Y = 9 (fixed) for VISCA over IP

Z = socket number

Command Packet Reply Packet

IF_Clear 8X 01 00 01 FF Y0 50 FF

X = 1 (fixed) for VISCA over IP

Y = 9 (fixed) for VISCA over IP

−CAM_VersionInq

Returns information on the VISCA interface.

• Control command

The following are stored on the payloaddivision of the control command.

•Controlreply

The following are stored on the payload division of the reply for the control command.

Inquiry Packet Reply Packet

CAM_VersionInq 8X 09 00 02 FF Y0 50 GG GG HH HH JJ JJ KK FF

X = 1 (fixed) for VISCA over IP

Y = 9 (fixed) for VISCA over IP

GGGG = Vendor ID

0001: Sony

HHHH = Model ID

051E: ILME-FR7/FR7K

JJJJ = ROM revision

KK = Maximum socket # (02)

Name Value Description

RESET 0x01 Resets the sequence number to 0.

The value that was set as the sequence number is ignored.

ERROR 0x0Fpp pp=01: Abnormality in the sequence number.

pp=02: Abnormality in the message (message type).

Message Value Description

ACK 0x01 Reply for RESET.

VISCA Command/ACK Protocol

Command Command Message Reply Message Comments

General

commands

81 01 04 38 02 FF

(Example)

90 4z FF (ACK), 90 5z FF

(Completion)

(z: Socket No.)

Returns ACK when a command has been accepted,

or Completion when a command has been

executed.

81 01 04 38 FF

(Example)

90 60 02 FF (Syntax

Error)

Accepted a command which is not supported or a

command lacking parameters.

81 01 04 38 02 FF

(Example)

90 60 03 FF

(Command Buffer Full)

Could not accept the command as there are two

commands currently being executed.

81 01 04 08 02 FF

(Example)

90 6z 41 FF

(Command Not

Executable)

(z: Socket No.)

Could not execute the command in the current

mode.

Inquiry Command 81 09 04 38 FF

(Example)

90 50 02 FF

(Completion)

Does not return ACK for the Inquiry Command.

81 09 05 38 FF

(Example)

90 60 02 FF (Syntax

Error)

Accepted an incompatible command.

IF_Clear 81 01 00 01 FF 90 50 FF (Completion) ACK is not returned for this command.

Command Cancel 81 2z FF (z: Socket

No.)

90 6z 04 FF (Command

Canceled)

Returned when the command of the specified

socket is canceled. Completion for the command

canceled is not returned.

90 6z 05 FF (No Socket) Returned when the command of the specified

socket has already been completed or when the

specified socket number is wrong.

VISCA Camera-Issued Messages

ACK/Completion Messages

y = 9 (fixed) for VISCA over IP

Error Messages

y = 9 (fixed) for VISCA over IP

Delivery confirmation

VISCA over IP uses UDP as a communications protocol of the transport layer. Delivery of messages is not

guaranteed for the UDP communication. Delivery confirmation and retransmission should be performed

on the application.

Normally, when the controller sends a message to the peripheral device, the controller sends the new

message after receiving the reply for the last message. You can confirm delivery of messages by

managing the time-out waiting for a reply message sent.

If time out occurs on the controller, loss of one of the following messages is considered:

•Command

• ACK message

• Completion message for the command

• Inquiry

• Reply message for the inquiry

• Error message

• Inquiry of the VISCA device setting command

• Reply message of the VISCA device setting command

If time out occurs on the controller, you can infer the lost message and state of the peripheral device by

retransmitting the message using the same sequence number. The following table shows the received

message and status by retransmission of the lost message, and the reference of correspondence after

retransmission for each case.

(Except for the case that a time out occurs for reasons other than loss of message.)

Command Command Message Comments

ACK y0 4z FF

(z: Socket No.)

Returned when the command is accepted.

Completion y0 5z FF

(z: Socket No.)

Returned when the command has been executed.

Command Command Message Comments

Syntax Error y0 60 02 FF Returned when the command format is different or when a

command with illegal command parameters is received.

Command Buffer Full y0 60 03 FF Could not accept a command that is received while two

commands are currently being executed (two sockets have been

used).

Command Canceled y0 6z 04 FF

(z: Socket No.)

Returned when a command which is being executed in a socket

specified by the cancel command is canceled. The completion

message for the command is not returned.

No Socket y0 6z 05 FF

(z: Socket No.)

Returned when no command is executed in a socket specified by

the cancel command, or when an invalid socket number is

specified.

Command Not

Executable

y0 6z 41 FF

(z: Socket No.)

Returned when a command cannot be executed due to current

conditions. For example, when a command for controlling the

manual focus is received during the auto focus mode.

Timing chart (loss of command)

Timing chart (loss of ACK or completion

message)

Sony cameras that support VISCA over IP have 2 buffers (memories) for the command to deal with

advanced uses. Depending on the message from the controller to the peripheral device, there are some

messages that do not need to guarantee delivery. However, the peripheral device receives commands

from multiple controllers while connected to VISCA over IP. If the multiple commands are send without

waiting for the reply, the possibility of non-execution of the command and errors due to buffer overflow

become high, because of limitations of order to receive commands or execution interval of command. It

may cause efficiency to be reduced substantially.

Lost message Received message for

retransmission

Status after

retransmission

Correspondence after retransmission

(Reference)

Command ACK message Command is performed

by retransmission.

Continue processing.

ACK message ERROR (Abnormality in

the sequence number)

Command has been

performed.

If only the ACK message is

lost, the completion

message returns.

If the result by the completion message is

needed, retransmit by updating the

sequence number.

Completion

message for the

command

ERROR (Abnormality in

the sequence number)

Command has been

performed.

If the result by the completion message is

needed, retransmit by updating the

sequence number.

Inquiry Reply message Inquiry is performed by

retransmission.

Continue processing.

Reply message for

the inquiry

ERROR (Abnormality in

the sequence number)

Inquiry has been

performed.

If the result by the reply message is needed,

retransmit by updating the sequence

number.

Error message Error message Command is not

performed.

If the error cause

eliminates, normal reply

returns (ACK, reply

message).

Eliminate the error cause. If normal reply

returns, continue processing.

Inquiry of the VISCA

device setting

command

Reply message of the

VISCA device setting

command

Inquiry is performed by

retransmission.

Continue processing.

Reply message of

the VISCA device

setting command

ERROR (Abnormality in

the sequence number)

Inquiry has been

performed.

If the result by the reply message is needed,

retransmit by updating the sequence

number.

Controller Peripheral device

Time out

Controller Peripheral device

Time out

Limitations

The following are limitations for VISCA over IP as compared with the VISCA specifications.

Locking the peripheral device’s address of the VISCA message to 1

VISCA over IP cannot reflect each address to the address of the VISCA message because up to 112

peripheral devices and 5 controllers are connected. Because of this, the peripheral device’s address of

VISCA command is locked to 1 when using VISCA over IP. If the peripheral device’s address is set to other

than 1 for the VISCA command, the peripheral device works without hindrance since the peripheral

device recognizes that its address is set to 1.

Locking the controller’s address of the VISCA message to 0.

For the same reason as the peripheral device’s address, the controller’s address is locked to 0. If the

controller’s address is set to other than 0, the peripheral device works without hindrance, and the reply

address from the peripheral device is always set to 0.

Prohibition of specifying the broadcast address for the VISCA message

Do not use the broadcast address because it requires the serial communication. Operations under the

broadcast address is set to the command are not guaranteed.

Prohibition of the Address Set for VISCA device setting command

Do not use this command because it requires the serial communication. Operations under the Address

Set command is sent are not guaranteed.

VISCA Network Change command is not supported

This cannot be issued because it requires the serial communication.

Expiration time for an on status of the tally lamp

The tally lamp is turned off if not receiving an On command from any controller for 15 seconds after

receiving an On command of TALLY ON/OFF. If the tally lamp is lit by an input other than VISCA over IP,

such as a tally input from the OPTION connector or a CGI command, the tally lamp will not turn off.

Commands

The numeric values in parentheses in the “Comments” column indicate the display value in the Web App

or camera menu.

Command List (1/6)

Command Set Command Command Packet Comments

ND FILTER MODE PRESET/

VARIABLE

8x 01 7E 04 52 0p FF p: 0=Preset, 1=Variable

ND VARIABLE UP 8x 01 7E 04 12 02 FF

DOWN 8x 01 7E 04 12 03 FF

VARIABLE 8x 01 7E 04 42 00 00 0p 0p FF pp: 00 (1/4) to 14 (1/128)

For details, see “VISCA Command Setting

Values”.

AUTO ND FILTER –8x 01 7E 04 53 0p FF p: 2=On, 3=Off

ND CLEAR –8x 01 7E 04 54 0p FF p: 2=Filtered, 3=Clear

ND PRESET –8X 01 7E 01 53 0p FF p: 0=Clear, 1=Preset 1, 2=Preset 2,

3=Preset 3

IRIS IRIS UP 8x 01 7E 04 4B 02 0p 0p FF pp: Step 01 to FF

Approximately 1/256EV brighter per

step.

DOWN 8x 01 7E 04 4B 03 0p 0p FF pp: Step 01 to FF

Approximately 1/256EV darker per step.

AUTO IRIS –8x 01 05 34 0p FF p: 2=On, 3=Off

GAIN AGC –8x 01 7E 01 75 0p FF p: 2=On, 3=Off

SHUTTER AUTO SHUTTER –8x 01 05 35 0p FF p: 2=On, 3=Off

AUTO

EXPOSURE

AE LEVEL UP 8x 01 04 0E 02 FF

DOWN 8x 01 04 0E 03 FF

BACKLIGHT

COMPENSATION

–8x 01 04 33 0p FF p: 2=On, 3=Off

SPOTLIGHT

COMPENSATION

–8x 01 04 3A 0p FF p: 2=On, 3=Off

WHITE

BALANCE

MODE –8x 01 04 35 0p FF p: 4=ATW, 5=Memory A, A=Preset

WB SET –8x 01 04 10 05 FF WB SET

PRESET WHITE UP 8x 01 05 03 02 0p 0q 0q FF p: 1=Preset

qq: Step 01 to FF

DOWN 8x 01 05 03 03 0p 0q 0q FF p: 1=Preset

qq: Step 01 to FF

DIRECT 8x 01 05 43 0p 0r 0r 0r 0r FF p: 1=Preset

rrrr: Preset White 07D0 (2000 K) to 3A98

(15000 K)

R GAIN UP 8x 01 7E 01 63 02 0p 0q 0q FF p: 2=Memory A

qq: Step 01 to FF

DOWN 8x 01 7E 01 63 03 0p 0q 0q FF p: 2=Memory A

qq: Step 01 to FF

DIRECT 8x 01 7E 04 46 0p 0r 0r 0r 0r

p: 2=Memory A

rrrr: R Gain 0000 (–99.0) to 03DE (0.0) to

07BC (+99.0)

B GAIN UP 8x 01 7E 01 64 02 0p 0q 0q FF p: 2=Memory A

qq: Step 01 to FF

DOWN 8x 01 7E 01 64 03 0p 0q 0q FF p: 2=Memory A

qq: Step 01 to FF

DIRECT 8x 01 7E 04 56 0p 0r 0r 0r 0r

p: 2=Memory A

rrrr: B Gain 0000 (–99.0) to 03DE (0.0) to

07BC (+99.0)

COLOR TEMP UP 8x 01 05 03 02 0p 0q 0q FF p: 2=Memory A

qq: Step 01 to 1E

DOWN 8x 01 05 03 03 0p 0q 0q FF p: 2=Memory A

qq: Step 01 to 1E

DIRECT 8x 01 05 43 0p 0r 0r 0r 0r FF p: 2=Memory A

rrrr: Color Temp 07D0 (2000 K) to 3A98

(15000 K)

TINT UP 8x 01 05 04 02 0p 0q 0q FF p: 2=Memory A

qq: Step 01 to FF

DOWN 8x 01 05 04 03 0p 0q 0q FF p: 2=Memory A

qq: Step 01 to FF

DIRECT 8x 01 05 44 0p 00 00 0r 0r FF p: 2=Memory A

rr: Tint 00 (–99) to 63 (0) to C6 (+99)

OFFSET COLOR

TEMP

UP 8x 01 05 05 02 0p 0q 0q FF p: 0=ATW

qq: Step 1 to FF

DOWN 8x 01 05 05 03 0p 0q 0q FF p: 0=ATW

qq: Step 1 to FF

DIRECT 8x 01 05 45 0p 00 00 0r 0r FF p: 0=ATW

rr: Offset Color Temp 00 (–99) to 63 (0) to

C6 (+99)

OFFSET TINT UP 8x 01 05 06 02 0p 0q 0q FF p: 0=ATW

qq: Step 1 to FF

DOWN 8x 01 05 06 03 0p 0q 0q FF p: 0=ATW

qq: Step 1 to FF

DIRECT 8x 01 05 46 0p 00 00 0r 0r FF p: 0=ATW

rr: Offset Tint 00 (–99) to 63 (0) to C6

(+99)

Command List (2/6)

Command Set Command Command Packet Comments

BLACK MASTER BLACK UP 8x 01 05 18 02 0p 0p FF pp: Step 01 to FF

DOWN 8x 01 05 18 03 0p 0p FF pp: Step 01 to FF

DIRECT 8x 01 05 48 0q 0q 0q 0q FF qqqq: Master Black 0000 (–99.0) to 03DE

(0.0) to 07BC (+99.0)

R BLACK UP 8x 01 7E 01 65 02 0p 0p FF pp: Step 01 to FF

DOWN 8x 01 7E 01 65 03 0p 0p FF pp: Step 01 to FF

DIRECT 8x 01 7E 04 43 0q 0q 0q 0q FF qqqq: R Black 0000 (–99.0) to 03DE (0.0)

to 07BC (+99.0)

B BLACK UP 8x 01 7E 01 66 02 0p 0p FF pp: Step 01 to FF

DOWN 8x 01 7E 01 66 03 0p 0p FF pp: Step 01 to FF

DIRECT 81 01 7E 04 44 0q 0q 0q 0q FF qqqq: B Black 0000 (–99.0) to 03DE (0.0)

to 07BC (+99.0)

DETAIL SETTING –8x 01 7E 01 60 0p FF p: 2=On, 3=Off

LEVEL UP 8x 01 04 02 02 FF

DOWN 8x 01 04 02 03 FF

DIRECT 8x 01 04 42 00 00 0p 0p FF pp: Detail Level 00 (–7) to 07 (0) to 0E (+7)

KNEE SETTING –8x 01 7E 01 6D 0p FF p: 2=On, 3=Off

MODE –8x 01 7E 01 54 0p FF p: 0=Auto, 4=Manual

SLOPE –8x 01 7E 01 6F 0p 0p FF pp: Knee Slope 00 (–99) to 63 (0) to C6

(+99)

POINT –8x 01 7E 01 6E 0p 0p FF pp: Knee Point 00 (75 %) to 22 (109 %)

ZOOM STANDARD

SPEED

TELE 8x 01 04 07 02 FF

WIDE 8x 01 04 07 03 FF

VARIABLE SPEED TELE 8x 01 04 07 2p FF p: Speed 0 (Slow) to 7 (Fast)

WIDE 8x 01 04 07 3p FF p: Speed 0 (Slow) to 7 (Fast)

STOP STOP 8x 01 04 07 00 FF

HIGH

RESOLUTION

SPEED

TELE 8x 01 7E 04 17 02 0p 0p 0p 0p

p: Speed 0000 (Slow) to 7FFE (Fast)

WIDE 8x 01 7E 04 17 03 0p 0p 0p 0p

p: Speed 0000 (Slow) to 7FFE (Fast)

STOP 8x 01 7E 04 17 00 00 00 00 00

DIRECT –8x 01 04 47 0z 0z 0z 0z FF zzzz: Zoom Position (see “VISCA

Command Setting Values”)

Disabled when [Technical] > [Zoom] >

[Zoom Type] is set to [On(Clear Image

Zoom)] in the camera menu

FOCUS MODE –8x 01 04 38 pp FF pp: 02=Auto, 03=Manual, 10=Toggle

STANDARD

SPEED

FAR 8x 01 04 08 02 FF

NEAR 8x 01 04 08 03 FF

VARIABLE SPEED FAR 8x 01 04 08 2p FF p: Speed 0 (Slow) to 7 (Fast)

NEAR 8x 01 04 08 3p FF p: Speed 0 (Slow) to 7 (Fast)

STOP STOP 8x 01 04 08 00 FF

DIRECT –8x 01 04 48 0p 0p 0p 0p FF pppp: Focus Position 0000 (Far) to FFFF

(Near)

For details, see “VISCA Command Setting

Values”.

PUSH AF/PUSH

–8x 01 7E 04 58 0p FF p: 0=Release, 1=Press

For details, see “Press/Release

Commands”.

Command List (3/6)

Command Set Command Command Packet Comments

RECORDING – – 8x 01 7E 04 1D 0p FF p: 0=Release, 1=Press

For details, see “Press/Release

Commands”.

AUDIO LEVEL CONTROL CH1, CH2 8x 01 7E 04 60 0p 0q FF p: 1=CH1, 2=CH2

q: 0= Manual, 1=Auto

INPUT LEVEL Up 8x 01 7E 04 62 02 0p 0q 0q FF p: 0=Master, 1=CH1, 2=CH2

qq: Step 01 to 0A

Down 8x 01 7E 04 62 03 0p 0q 0q FF p: 0=Master, 1=CH1, 2=CH2

qq: Step 01 to 0A

Direct 8x 01 7E 04 61 0p 00 00 0q 0q

p: 0=Master, 1=CH1, 2=CH2

qq: Level 00 (0) to 63 (99)

PAN-TILT PAN TILT drive Up 8x 01 06 01 vv ww 03 01 FF vv: Pan speed 01 to 18/32 (Speed Step

Normal/Extended)
