Sony MPK-THGB User manual

MPK-THGB
SERVICE MANUAL
Sony EMCS Co.
MPK-THGB
MARINE PACK
2009C0500-1
© 2009.3
Published by Kohda TEC9-852-689-11
Ver. 1.0 2009.03
US Model
Canadian Model
AEP Model
Chinese Model
SPECIFICATIONS MAIN FEATURE
A loose or nipped O-ring, sand or dirt on the O-ring may cause
water leaks under water.
Be sure to check the O-ring before use.
For details, read the O-ring Maintenance Manual.
Material
Plastic (PC, ABS), Glass
Water-resistance
O-ring, Buckle
Pressure-resistance
o a depth of up to 40 m (132 feet) underwater
Switches that can be externally operated
ON/OFF (Power), Shutter, Playback, Zoom (W/ ), Shooting mode, Underwater
white balance, Flash, Macro, Image size
Dimensions
Approx. 134 × 94 × 38 mm (5 3/8 × 3 3/4 × 1 1/2 in.) (w/h/d)
(excluding the projecting parts)
Mass
Approx. 280 g (9.9 oz.) (marine pack only)
Included items
Waterproof Case (1)
Hand strap (1)
LCD hood (1)
Front attachment C (for DSC- 90/ 77) (1)*
Rear attachment C (for DSC- 90/ 77) (1)*
*Attached to the waterproof case at purchase.
Front attachment B (for DSC- 700) (1)
Rear attachment B (for DSC- 700) (1)
Grease (1)
O-ring (1)
Desiccant (two-pack) (1)
Spacer (1)
Set of printed documentation
ptional accessories
Arm kit VC -MP1K
Underwater video light HVL-ML20M (must be used together with arm kit
VC -MP1K and “InfoLI HIUM” (M series) battery pack, (M series battery
charger))
O-ring kit ACC-MP101
(Check this icon on the package.)
Design and specications are subject to change without notice.
Useable at a depth of up to 40 m (132 feet) underwater.
Marine Pack MPK- HGB (referred to below as “this unit”) is exclusively for use
with the Sony Digital Still Camera (referred to below as “camera”) DSC- 700/
90/ 77. (Not all cameras are available in all countries or regions.)
is unit is waterproof so the camera can be used in the rain, snow, at the beach,
or underwater.
Using this unit with the camera setting to (Underwater) or (Underwater)
will enable you to record beautiful underwater images. (Not all camera models
support (Underwater).)




MPK-THGB
2
3
4
5
6
78
9
10
10
10
11
12
13
14
15
16
17
18
18
19
19
20
(Note)
20
(Note)
1
(Note)
21 22
23
24
25
26
26
27
28
29
Front Case Block
(See page 3)

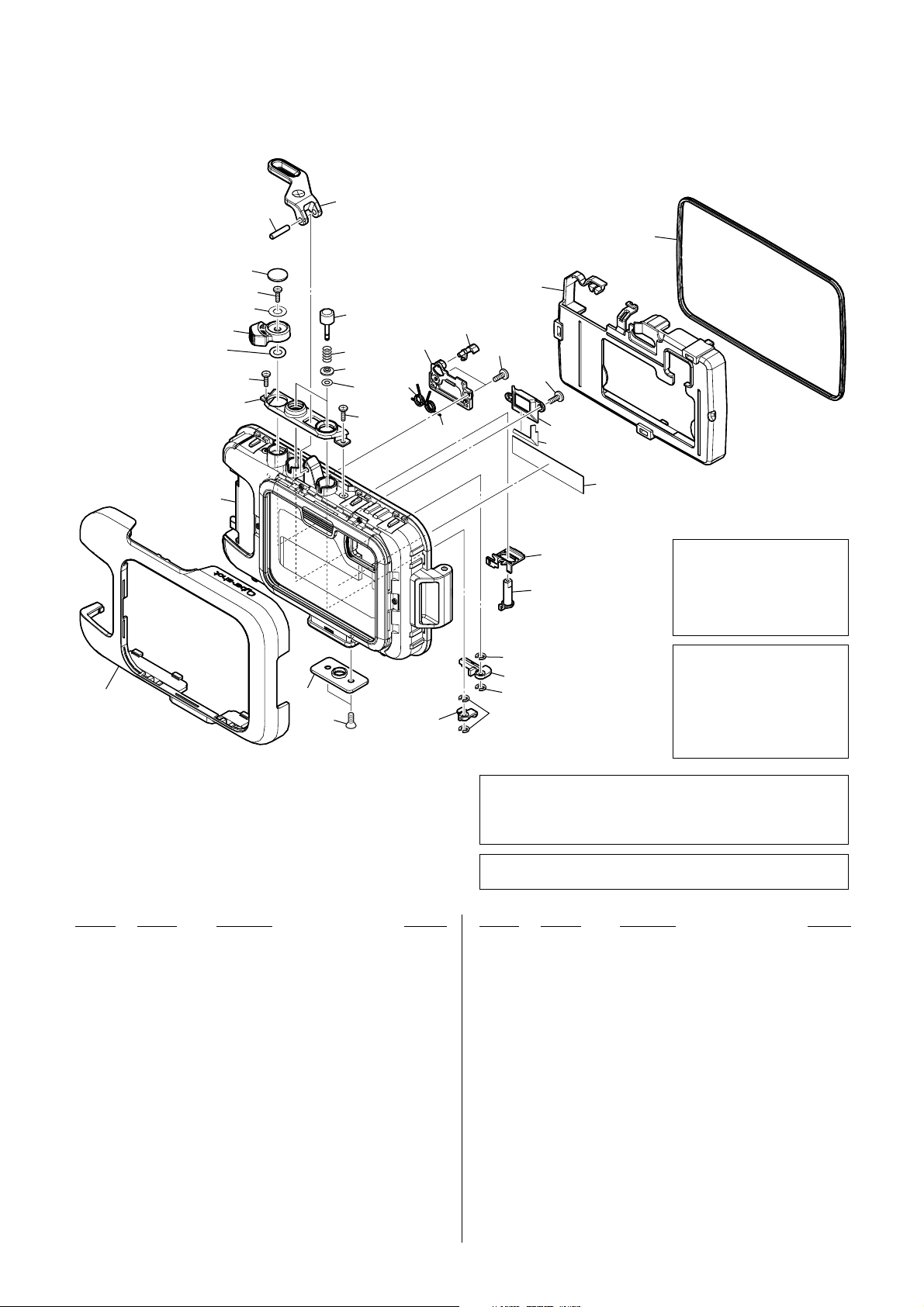

1-1. REAR CASE BLOCK
SECTION 1
EXPLODED VIEWS
- 2 -
NOTE:
•-XX and -X mean standardized parts, so they may
have some difference from the original one.
•Items marked “∗” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
•The mechanical parts with no reference number in
the exploded views are not supplied.
• Abbreviation
CH: Chinese model
CND: Canadian model
La 0marquée sont des pièces par
rapport à imperméable à l’eau.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Soyez sûr de vérifier vers le haut
d’imperméable à l’eau après la
réparation.
The marked “0” are parts in relation
to waterproof.
Replace these components with Sony
parts.
Be sure to check up waterproof after
repair.
Note: When putting grease the O-ring (Ref. No. 1, 20), always use the
grease of the blue tube of the accessory. When using the grease of
the yellow tube and the grease of the other Inc., it hurts the O-ring
and it causes the water leakage.
Ref. No. Part No. Description Remarks
01 4-115-566-01 O RING, MAIN (Note)
2 4-115-547-02 ATTACHMENT (R-C)
3 4-115-560-01 BUCKLE
4 4-119-159-01 SCREW (1.7X4 #0-3), TP
5 4-119-160-02 SLIDER (C), BUCKLE
6 4-115-562-02 COVER, BUCKLE
7 4-115-564-01 SLIDER (B), BUCKLE
8 4-115-565-01 SPRING, BUCKLE
9 4-115-563-01 SLIDER (A), BUCKLE
10 2-589-173-01 RING (DIA. 1.5), E
11 4-115-555-01 LEVER (A), BUTTON
12 4-115-556-01 LEVER (B), BUTTON
13 4-115-557-01 LEVER (C), BUTTON
14 4-115-558-01 LEVER (D), BUTTON
15 4-115-559-01 LEVER (E), BUTTON
16 4-119-161-01 SHAFT (DIA. 2.5X55), BUCKLE
17 4-115-553-01 PUSH BUTTON ( )
18 4-147-497-01 SPRING, PUSH BUTTON
19 4-115-536-01 RETAINER, O RING
020 3-099-234-01 O RING (P2-A) (Note)
21 4-115-551-01 PUSH BUTTON A ( • )
22 4-115-552-01 PUSH BUTTON B ( )
23 4-115-552-11 PUSH BUTTON B ( )
24 4-115-552-21 PUSH BUTTON B ( )
25 4-115-552-31 PUSH BUTTON B ( )
26 3-099-285-01 SHAFT, HINGE
27 4-115-550-01 CASE, REAR
*28 3-209-949-01 LABEL, O RING CAUTION (US, CND, AEP)
*28 3-209-950-01 LABEL, O RING CAUTION (CN) (CH)
29 4-115-554-01 LEVER (PLAY), BUTTON
Ref. No. Part No. Description Remarks

MPK-THGB
1-2. FRONT CASE BLOCK
- 3 -
La 0marquée sont des pièces par
rapport àimperméable àl’eau.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Soyez sûr de vérifier vers le haut
d’imperméable àl’eau après la
réparation.
The marked “0”are parts in relation
to waterproof.
Replace these components with Sony
parts.
Be sure to check up waterproof after
repair.
Note 1: When putting grease the O-ring (Ref. No. 57, 66), always use
the grease of the blue tube of the accessory. When using the
grease of the yellow tube and the grease of the other Inc., it hurts
the O-ring and it causes the water leakage.
51
52
53
54
55
56
56
56
57
(Note 1)
66
(Note 1)
58
59
60
61 62
63
64
65 67
68
69
70
71
72
(Note 2)
73
76
74
75
77
78
79
79
79
82 (Note 2)
80
81
51 4-115-518-01 PROTECTOR, FRONT CASE
52 3-099-238-01 TP2.6X8 (PLATE)
53 3-099-221-01 PLATE, TRIPOD SCREW
54 X-2342-708-3 FRONT CASE ASSY (SERVICE)
55 4-115-545-01 COVER, BUTTON
56 4-119-159-01 SCREW (1.7X4 #0-3), TP
057 2-591-447-01 O RING (P4) (Note 1)
58 4-115-531-01 KNOB, ZOOM (WT)
59 4-115-533-01 SHEET, ZOOM ADHESIVE
60 4-115-532-01 COVER, ZOOM KNOB
61 4-115-544-01 SHAFT, SHUTTER LEVER
62 4-115-543-01 LEVER, SHUTTER
63 4-115-534-01 PUCH BUTTON D (POWER)
64 4-147-497-01 SPRING, PUCH BUTTON
65 4-115-536-01 RETAINER, O RING
066 3-099-234-01 O RING (P2-A) (Note 1)
67 4-115-530-01 SPRING (R), ZOOM
Ref. No. Part No. Description Remarks
68 4-115-529-01 SPRING (L), ZOOM
69 4-115-528-01 COVER, ZOOM
70 4-115-526-01 SHAFT (B), ZOOM
71 4-118-571-01 SCREW (1.7X3 #0-1), TP
72 4-115-524-01 REFLECTOR (Note 2)
73 2-593-524-01 SCREW, TIP1.7X3 SPECIAL
74 4-115-546-02 ATTACHMENT (F-C)
75 4-141-293-01 PACKING, DROP PROTECTION
76 2-055-632-01 LABEL (CN), CAUTION (CH)
76 3-087-452-02 LABEL, CAUTION (US, CND, AEP)
77 4-115-527-01 SLIDER, ZOOM
78 4-115-525-01 SHAFT (A), ZOOM
79 2-589-173-01 RING (DIA. 1.5), E
80 4-115-541-01 LEVER (SHUTTER), BUTTON
81 4-115-542-01 LEVER (PW), BUTTON
82 4-128-054-01 SHEET, LIGHT INTERCEPTION (Note 2)
Ref. No. Part No. Description Remarks
Note 2: When the reflector (Ref. No.72) is replaced, the light intercep-
tion sheet (Ref. No.82) is needed at the same time.

MPK-THGB
1-3. ACCESSORIES
Hand Strap
2-591-542-31
LCD Hood
3-273-528-01
LCD Hood Strap
3-099-290-01
Front Attachment C
(for DSC-T90/T77)
4-115-546-02
Rear Attachment C
(for DSC-T90/T77)
4-115-547-02
Front Attachment B
(for DSC-T700)
4-115-548-01
Rear Attachment B
(for DSC-T700)
4-115-549-01
Spacer
(Note 1)
Grease
02-582-620-01
(Note 2)
O-ring
04-115-566-01
(Note 2)
Desiccant (Two-pack)
3-876-901-01
Operating Instructions
4-140-001-11 (ENGLISH, FRENCH, SPANISH)
4-140-001-21 (DUTCH, GERMAN, ITALIAN)
4-140-001-31 (PORTUGUESE, SWEDISH, RUSSIAN)
4-140-001-41 (TRADITIONAL CHINESE, SIMPLIFIED CHINESE,
KOREAN, ARABIC)
O-ring Maintenance Manual
2-674-692-01 (JAPANESE, ENGLISH, FRENCH,
GERMAN, ITALIAN, DUTCH,
SPANISH, PORTUGUESE, SWEDISH,
RUSSIAN, TRADITIONAL CHINESE,
SIMPLIFIED CHINESE, KOREAN,
ARABIC)
The marked “0” are parts
in relation to waterproof.
Replace these compo-
nents with Sony parts.
Be sure to check up wa-
terproof after repair.
La 0marquée sont des pièces par rap-
port à imperméable à l’eau.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Soyez sûr de vérifier vers le haut
d’imperméable à l’eau après la réparation.
Note 1: This item is supplied with the unit as an accessory, but is
not prepared as a service part.
Note 2: When putting grease the O-ring (4-115-566-01), always use
the grease of the blue tube of the accessory. When using the
grease of the yellow tube and the grease of the other Inc., it
hurts a O-ring and it causes the water leakage.

Revision History
Reverse
MPK-THGB
Ver.
1.0
Date
2009.03
History
Official Release
Contents
—
S.M. Rev.
issued
—
