Sony DVP-NS305 User manual

DVP-NS305/NS310/NS315/
NS405/NS410/NS415
RMT-D141A/D142A/D142O/D142P
SUPPLEMENT-1
File this supplement-1 with the Service Manual.
US Model
Canadian Model
DVP-NS315/NS415
AEP Model
DVP-NS305/NS310/NS405/NS410
UK Model
DVP-NS305/NS405
Russian Model
Hong Kong Model
Korea Model
Taiwan Model
Saudi Arabia Model
Singapore Model
DVP-NS305
Middle East Model
Australian Model
DVP-NS305/NS415
PX Model
Mexico Model
E Model
Argentina Model
Brazilian Model
DVP-NS315
SERVICE MANUAL
Subject:
• Addition of the service parts.
(02-006)

—2 —

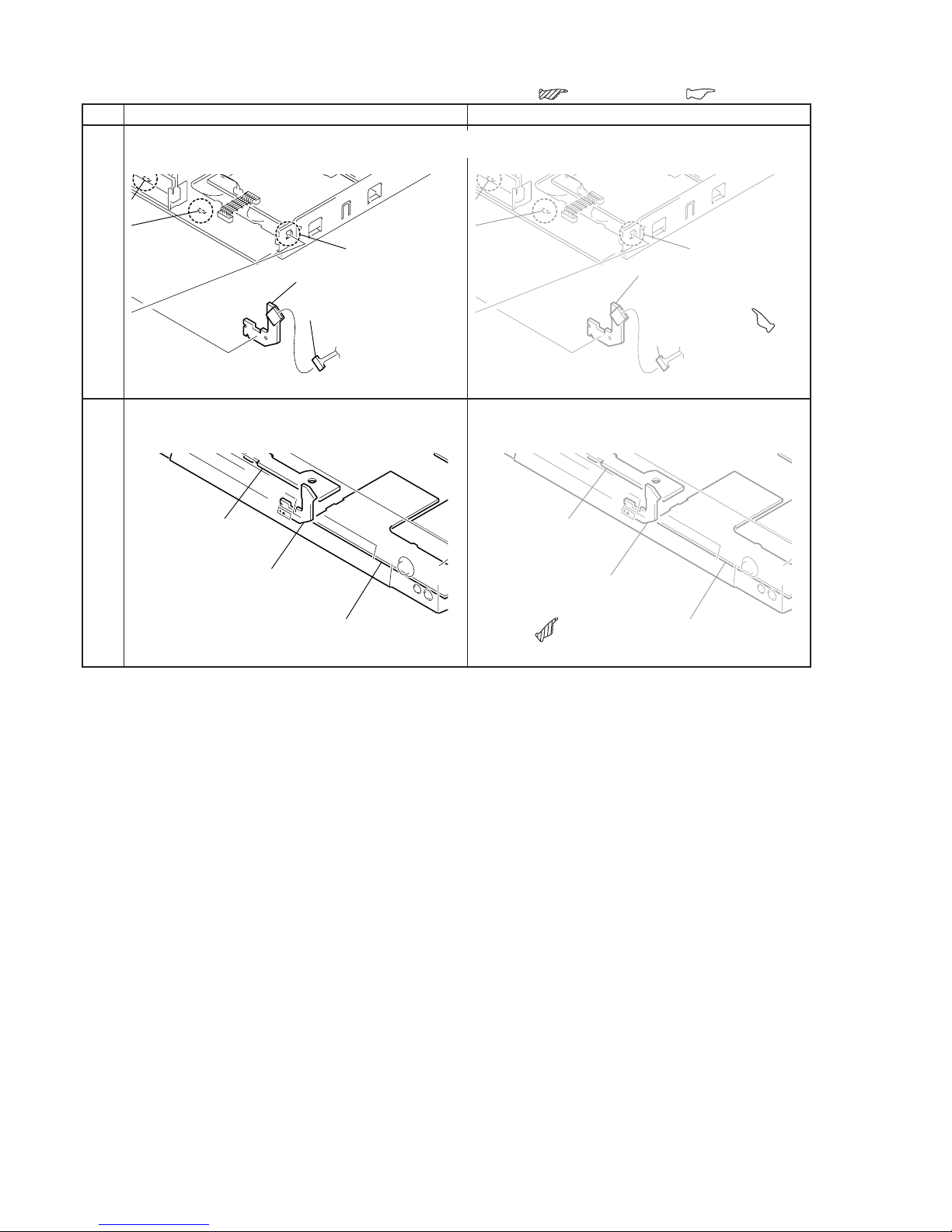

SECTION 2. DISASSEMBLY : Changed portion. : Added portion.
Page Before change After change
2-1
2-7
2-2. FRONT PANEL ASSEMBLY and FR SUPPORT
l
aws
1 Claw
8 FL-126 board
7 Connector
(FF-206, CN301, 3P)
l
aws
1 Claw
8 FL-126 board
(NS305: AEP, UK, RUS/
NS310/NS405/NS410)
7 Connector
(FF-206, CN301, 3P)
2-12.CIRCUIT BOARDS LOCATION
IF-89 board
(IF COM)
FL-126 board
(LED) (NS415 only)
MS-81 board
(LOADING MOTOR)
IF-89 board
(IF COM)
FL-126 board
(LED) (NS305: AEP, UK, RUS/
NS310/NS405/NS410 only)
MS-81 board
(LOADING MOTOR)

— 3 —

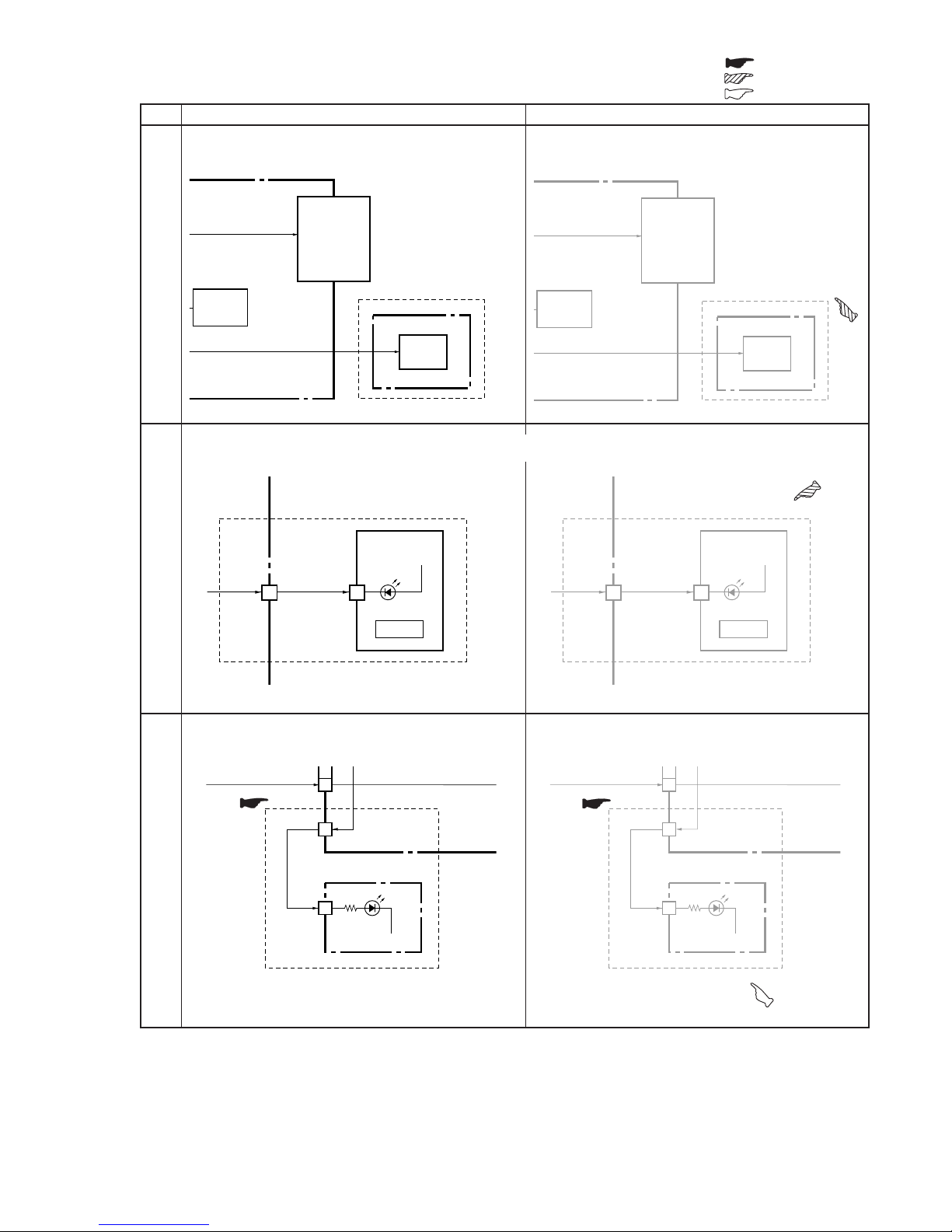

SECTION 3. BLOCK DIAGRAMS
: Deleted portion.
: Changed portion.
: Added portion.
Page Before change After change
3-2
3-14
3-1. OVERALL BLOCK DIAGRAM
3-7. INTERFACE CONTROL BLOCK DIAGRAM
3-16
3-8. POWER BLOCK DIAGRAM (1/3)
IF-89 BOARD
(SEE PAGE 4-9)
FUNCTION
KEY
ND401
FLUORESCENT
INDICATOR TUBE
NS415
FL-126 BOARD
DVD
LED
IF-89 BOARD
(SEE PAGE 4-9)
FUNCTION
KEY
ND401
FLUORESCENT
INDICATOR TUBE
(NS305: AEP, UK, RUS/NS310/NS405/NS410)
FL-126 BOARD
DVD
LED
3 3
FL-126 BOARD
CN406 CN301
D301
DVD LED
NS415
3 3
FL-126 BOARD
CN406 CN301
D301
DVD LED
(NS305: AEP, UK, RUS/NS310/NS405/NS410)
NS415
1
POWER
+5V CN301
CN406
FL-126 BOARD
1
1
1
POWER
+5V CN301
CN406
FL-126 BOARD
1
1
(NS305: AEP, UK, RUS/NS310/NS405/NS410)

—4 —

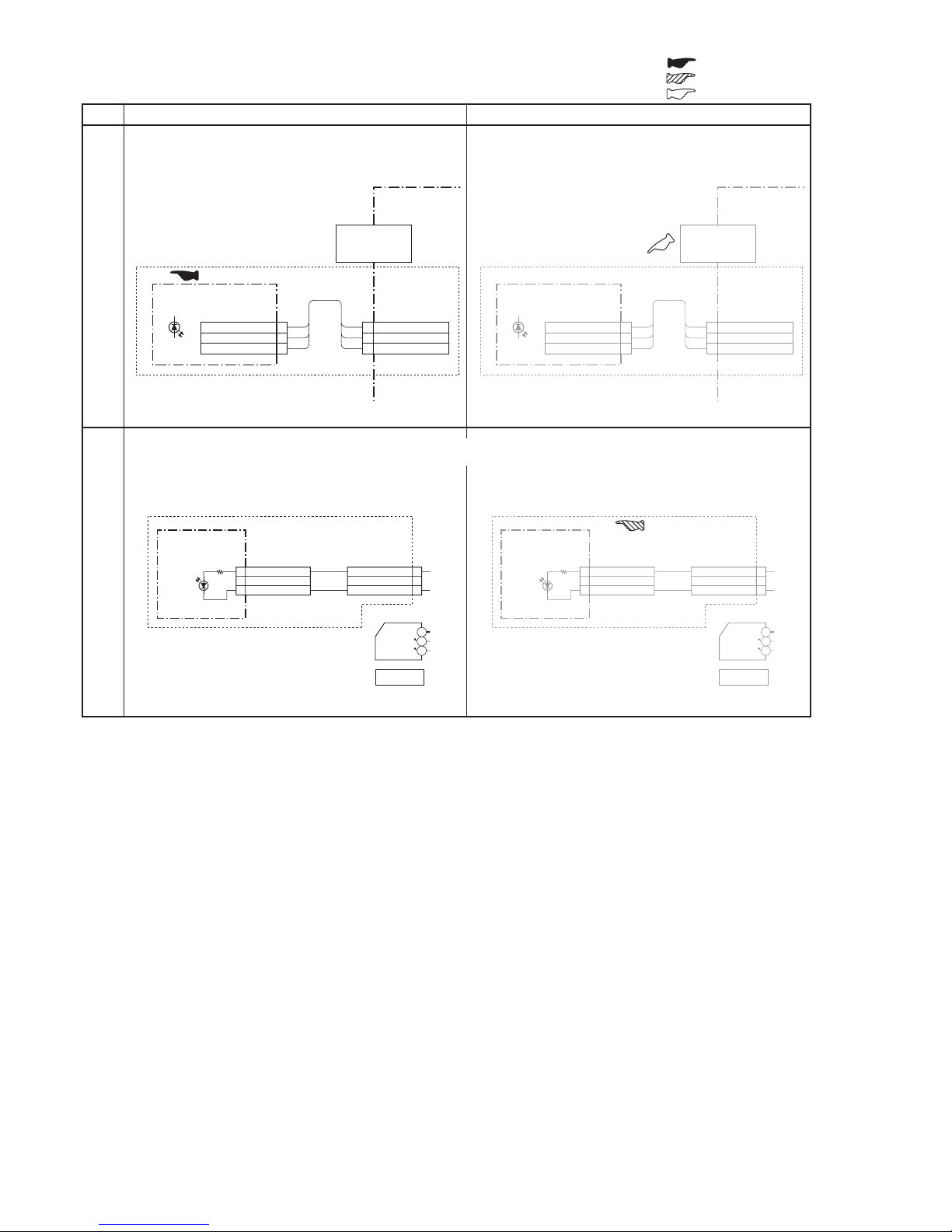

SECTION 4. PRINTED WIRING BOARDS
AND SCHEMATIC DIAGRAMS
Page Before change After change
4-1
4-9
4-1. FRAME SCHEMATIC DIAGRAM
4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
IF-89 BOARD (Location D-1)
3PCN406
1 +5V
2 N.C.
3 LED PORT
3PCN301
1+5V
2N.C.
3LED PORT
D301
ND401
FLUORESCENT
INDICATOR TUBE
FL-126 BOARD
(DVD LED)
FF-206
HARNESS
NS415
3PCN406
1 +5V
2 N.C.
3 LED PORT
3PCN301
1+5V
2N.C.
3LED PORT
D301
ND401
FLUORESCENT
INDICATOR TUBE
FL-126 BOARD
(DVD LED)
FF-206
HARNESS
NS305: AEP, UK, RUS/NS310/NS405/NS410 only
: Deleted portion.
: Changed portion.
: Added portion.
LMS8117ADTX-1.8/NOPB
IC403
1
GND
2
Vout
3
Vin
3P
CN406
1+5V
2N.C
3LED PORT
3PCN301
1 +5V
2 N.C
3 LED PORT
D301
EB3804X-TP
220
R301
FL-126
BOARD
LED
FF-206
HARNESS
IC403
+1.8V REG
1.8
3.5
(NS305: AEP, UK, RUS/NS310/NS405/NS410 only)
LMS8117ADTX-1.8/NOPB
IC403
1
GND
2
Vout
3
Vin
3P
CN406
1+5V
2N.C
3LED PORT
3PCN301
1+5V
2N.C
3 LED PORT
D301
EB3804X-TP
220
R301
FL-126
BOARD
LED
FF-206
HARNESS
IC403
+1.8V REG
1.8
3.5
(NS415 ONLY)

—5 —
: Changed portion.
Page Before change After change
Ref. No. Part No. Description Remarks
*6 A-6060-569-A FL-126(E) BOARD, COMPLETE
(NS305:AEP,UK,RUS/NS310/NS405/NS410)
*7 A-6060-435-A IF-89BM(U) BOARD, COMPLETE
(NS315:US,CND,PX,AR,BR/NS305:ME,EA,AUS,HK,SP,TW,KR)
*7 A-6060-594-A IF-89BX(U) BOARD, COMPLETE
(NS315:MX,E)
*7 A-6060-458-A IF-89SM(U) BOARD, COMPLETE(NS415)
*7 A-6060-567-A IF-89BR(E) BOARD, COMPLETE
(NS305:AEP,UK,RUS/NS310)
*7 A-6060-582-A IF-89SR(E) BOARD, COMPLETE
(NS405/NS410)
*8 A-6060-431-A MB-103BM(UC) BOARD, COMPLETE
(NS315:US,CND,PX)
*8 A-6060-590-A MB-103BX(LA) BOARD, COMPLETE
(NS315:MX,E,AR,BR)
*8 A-6060-563-A MB-103BR(E1) BOARD, COMPLETE
(NS305:AE1,UK/NS310:AE1)
*8 A-6060-638-A MB-103BR(E2) BOARD, COMPLETE
(NS305:AE2/NS310:AE2)
*8 A-6060-622-A MB-103BR(RU) BOARD, COMPLETE
(NS305:RUS)
*8 A-6060-447-A MB-103BM(IN) BOARD, COMPLETE
(NS305:ME5)
*8 A-6060-513-A MB-103BM(ME) BOARD, COMPLETE
(NS305:EA,ME2)
*8 A-6060-530-A MB-103BM(OC) BOARD, COMPLETE
(NS305:AUS)
*8 A-6060-482-A MB-103BM(GA) BOARD, COMPLETE
(NS305:HK,SP,TW,KR)
8-2
ns
mechanism
deck section
a
b
c
e
5
5
5
15
16
6
19
7
8
9
21
f
f
5
17
ns
ns
ns
mechanism
deck section
a
b
c
e
5
5
5
ns
15
16
21
f
f
5
ns
ns
17
Added contents
8-3
Ref. No. Part No. Description Remarks
*8 A-6060-454-A MB-103SM(UC) BOARD, COMPLETE
(NS415:US,CND)
*8 A-6060-578-A MB-103SR(E1) BOARD, COMPLETE
(NS405:AE1,UK/NS410:AE1)
*8 A-6060-611-A MB-103SR(E2) BOARD, COMPLETE
(NS405:AE2/NS410:AE2)
*8 A-6060-466-A MB-103SM(ME) BOARD, COMPLETE
(NS415:ME)
*8 A-6060-495-A MB-103SM(OC) BOARD, COMPLETE
(NS415:AUS)
*9 A-6060-449-A AV-61BM(G) BOARD, COMPLETE
(NS305:ME,EA,AUS,HK,SP,TW,KR)
*9 A-6060-433-A AV-61BM(U) BOARD, COMPLETE
(NS315:US,CND,PX,AR,BR)
*9 A-6060-565-A AV-61BR(E) BOARD, COMPLETE
(NS305:AEP,UK,RUS/NS310)
*9 A-6060-592-A AV-61BX(U) BOARD, COMPLETE
(NS315:MX,E)
*9 A-6060-468-A AV-61SM(ME) BOARD, COMPLETE
(NS415:ME,AUS)
*9 A-6060-456-A AV-61SM(U) BOARD, COMPLETE
(NS415:US,CND)
*9 A-6060-580-A AV-61SR(E) BOARD, COMPLETE
(N405/NS410)
*19 A-6060-571-A ER-14R BOARD, COMPLETE
(NS305:AEP,UK,RUS/NS310/NS405/NS410)

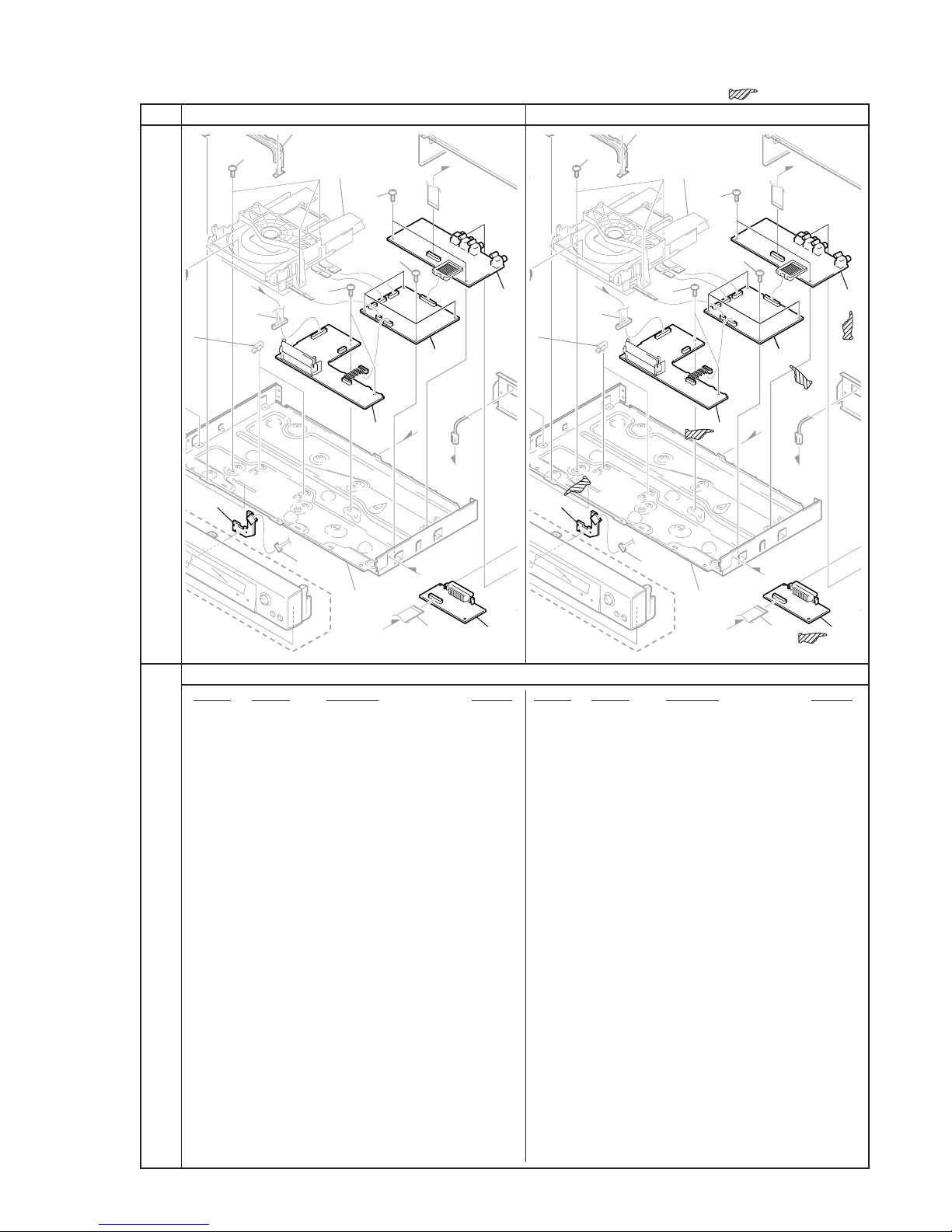

SECTION 8. REPAIR PARTS LIST
8-1. EXPLODED VIEWS
8-1-1. MAIN SECTION

—6 —
: Changed portion. : Added portion.
Page Before change After change
Ref. No. Part No. Description Remarks
AV-61BM (G) BOARD, COMPLETE
(NS305:ME,EA,AUS,HK,SP,TW,KR)
********************************
AV-61BM (U) BOARD, COMPLETE
(NS315:US,CND,PX,AR,BR)
********************************
AV-61BR (E) BOARD, COMPLETE
(NS305:AEP,UK,RUS/NS310)
********************************
AV-61BX (U) BOARD, COMPLETE
(NS315:MX,E)
********************************
AV-61SM (ME) BOARD, COMPLETE
(NS415:ME,AUS)
********************************
AV-61SM (U) BOARD, COMPLETE
(NS415:US,CND)
********************************
AV-61SR (E) BOARD, COMPLETE
(NS405/NS410)
********************************
8-5
8-7
Ref. No. Part No. Description Remarks
8-2. ELECTRICAL PARTS LIST
*A-6060-449-A AV-61BM (G) BOARD, COMPLETE
(NS305:ME,EA,AUS,HK,SP,TW,KR)
********************************
*A-6060-433-A AV-61BM (U) BOARD, COMPLETE
(NS315:US,CND,PX,AR,BR)
********************************
*A-6060-565-A AV-61BR (E) BOARD, COMPLETE
(NS305:AEP,UK,RUS/NS310)
********************************
*A-6060-592-A AV-61BX (U) BOARD, COMPLETE
(NS315:MX,E)
********************************
*A-6060-468-A AV-61SM (ME) BOARD, COMPLETE
(NS415:ME,AUS)
********************************
*A-6060-456-A AV-61SM (U) BOARD, COMPLETE
(NS415:US,CND)
********************************
*A-6060-580-A AV-61SR (E) BOARD, COMPLETE
(NS405/NS410)
********************************
Ref. No. Part No. Description Remarks
ER-14R BOARD, COMPLETE
(NS305:AEP, UK, RUS/NS310/NS405/NS410)
********************************
Ref. No. Part No. Description Remarks
*A-6060-571-A ER-14R BOARD, COMPLETE
(NS305:AEP, UK, RUS/NS310/NS405/NS410)
********************************
8-8
Ref. No. Part No. Description Remarks
FL-126 (E) BOARD, COMPLETE (NS415)
********************************
IF-89BM (U) BOARD, COMPLETE
(NS305:ME,EA,AUS,HK,SP,TW,KR/
NS315:US,CND,PX,AR,BR)
********************************
IF-89BX (U) BOARD, COMPLETE
(NS315:MX,E)
********************************
IF-89SM (U) BOARD, COMPLETE (NS415)
*******************************
IF-89BR (E) BOARD, COMPLETE
(NS305:AEP,UK,RUS/NS310)
********************************
IF-89SR (E) BOARD, COMPLETE
(NS405/NS410)
********************************
Ref. No. Part No. Description Remarks
*A-6060-569-A FL-126 (E) BOARD, COMPLETE
(NS305:AEP, UK, RUS/NS310/NS405/NS410)
********************************
*A-6060-435-A IF-89BM (U) BOARD, COMPLETE
(NS305:ME,EA,AUS,HK,SP,TW,KR/
NS315:US,CND,PX,AR,BR)
********************************
*A-6060-594-A IF-89BX (U) BOARD, COMPLETE
(NS315:MX,E)
********************************
*A-6060-458-A IF-89SM (U) BOARD, COMPLETE (NS415)
*******************************
*A-6060-567-A IF-89BR (E) BOARD, COMPLETE
(NS305:AEP,UK,RUS/NS310)
********************************
*A-6060-582-A IF-89SR (E) BOARD, COMPLETE
(NS405/NS410)
********************************

—7 —
: Added portion.
Page Before change After change
Ref. No. Part No. Description Remarks
MB-103BM (GA) BOARD, COMPLETE
(NS305:HK,SP,TW,KR)
********************************
MB-103BM (IN) BOARD, COMPLETE
(NS305:ME5)
********************************
MB-103BM (ME) BOARD, COMPLETE
(NS305:EA,ME2)
********************************
MB-103BM (OC) BOARD, COMPLETE
(NS305:AUS)
********************************
MB-103BM (UC) BOARD, COMPLETE
(NS315:US,CND,PX)
********************************
MB-103BR (E1) BOARD, COMPLETE
(NS305:AE1,UK/NS310:AE1)
********************************
MB-103BR (E2) BOARD, COMPLETE
(NS305:AE2/NS310:AE2)
********************************
MB-103BR (RU) BOARD, COMPLETE
(NS305:RUS)
********************************
MB-103BX (LA) BOARD, COMPLETE
(NS315:MX,E,AR,BR)
********************************
MB-103SM (ME) BOARD, COMPLETE
(NS415:ME)
********************************
MB-103SM (OC) BOARD, COMPLETE
(NS415:AUS)
********************************
MB-103SM (UC) BOARD, COMPLETE
(NS415:US,CND)
********************************
MB-103SR (E1) BOARD, COMPLETE
(NS405:AE1,UK/NS410:AE1)
********************************
MB-103SR (E2) BOARD, COMPLETE
(NS405:AE2/NS410:AE2)
********************************
8-9
Ref. No. Part No. Description Remarks
*A-6060-482-A MB-103BM (GA) BOARD, COMPLETE
(NS305:HK,SP,TW,KR)
********************************
*A-6060-447-A MB-103BM (IN) BOARD, COMPLETE
(NS305:ME5)
********************************
*A-6060-513-A MB-103BM (ME) BOARD, COMPLETE
(NS305:EA,ME2)
********************************
*A-6060-530-A MB-103BM (OC) BOARD, COMPLETE
(NS305:AUS)
********************************
*A-6060-431-A MB-103BM (UC) BOARD, COMPLETE
(NS315:US,CND,PX)
********************************
*A-6060-563-A MB-103BR (E1) BOARD, COMPLETE
(NS305:AE1,UK/NS310:AE1)
********************************
*A-6060-638-A MB-103BR (E2) BOARD, COMPLETE
(NS305:AE2/NS310:AE2)
********************************
*A-6060-622-A MB-103BR (RU) BOARD, COMPLETE
(NS305:RUS)
********************************
*A-6060-590-A MB-103BX (LA) BOARD, COMPLETE
(NS315:MX,E,AR,BR)
********************************
*A-6060-466-A MB-103SM (ME) BOARD, COMPLETE
(NS415:ME)
********************************
*A-6060-495-A MB-103SM (OC) BOARD, COMPLETE
(NS415:AUS)
********************************
*A-6060-454-A MB-103SM (UC) BOARD, COMPLETE
(NS415:US,CND)
********************************
*A-6060-578-A MB-103SR (E1) BOARD, COMPLETE
(NS405:AE1,UK/NS410:AE1)
********************************
*A-6060-611-A MB-103SR (E2) BOARD, COMPLETE
(NS405:AE2/NS410:AE2)
********************************

DVP-NS305/NS310/NS315/NS405/NS410/NS415
— 8 —
Sony Corporation
Home Video Company
9-929-717-81 2002J1600-1
©2002.10
Published by Quality Assurance Dept.
