Sony RDR-VX560 User manual

SONY RDR-VX560 QSG US 3-296-718-11(1) AK68-01525A
©2008 Sony Corporation
Printed in China
3-296-718-11(1)
AK68-01525A
Connecting a component video cord or
an HDMI cord
L
R
VIDEO
AUDIO
LINEOUT
VIDEO
Y
L
PB
R
PR
AUDIO
SVIDEO
LINE1IN
AUDIOOUT
COMPONENT
VIDEOOUT
DIGITAL
AUDIOOUT
COAXIAL
HDMIOUT
SETTOP
BOX
CONTROL
Y
INPUT
SVIDEO
P
B
P
R
COMPONENTVIDEOIN
HDMIIN
VCR-DVD
Recorder
a
b
to COMPONENT
VIDEO IN
Television
to COMPONENT
VIDEO OUT
to HDMI IN
to HDMI OUT
Connect one of the following cords (not supplied) instead of the video cord. (One
audio/video cord is supplied.) You will enjoy high quality images.
a Component video cords or b HDMI cord
For further explanations, see the Operating Instructions.
Connecting an AV amplifier (receiver)
LINEIN
DIGIT
ALIN
L
R
VIDEO
AUDIO
LINEOUT
VIDEO
Y
L
PB
R
PR
AUDIO
SVIDEO
LINE1IN
AUDIOOUT
COMPONENT
VIDEOOUT
DIGITAL
AUDIOOUT
COAXIAL
HDMIOUT
SETTOP
BOX
CONTROL
a
b
to DIGITAL IN
(COAXIAL) to LINE IN
(AUDIO)
to DIGITAL AUDIO OUT
(COAXIAL) AUDIO OUT
L/R
AV Amplifier
VCR-DVD
Recorder
Connect one of the following cords (not supplied).
a audio cords or b coaxial digital cord
Connecting to an AV amplifier (receiver) with digital cords will enable you to listen
to Dolby Digital or DTS surround effects. For further explanations, see “Connecting
to Your AV Amplifier (Receiver)” in the Operating Instructions.
Connecting the Set Top Box controller
L
R
VIDEO
AUDIO
LINEOUT
VIDEO
Y
L
PB
R
PR
AUDIO
SVIDEO
LINE1IN
AUDIO OUT
COMPONENT
VIDEOOUT
DIGITAL
AUDIOOUT
COAXIAL
HDMIOUT
SETTOP
BOX
CONTROL
CAVLEIN
OUTTO
TV
ANTIN
OPTICALSVIDEO
VIDEOOUT
COMPONENTOUT
DIGITAL
AUDIO
OUT
 for
Place it so that the tip of the
controller is near the remote
control reception window on
your set top box.
Cable Box/
Satellite Receiver
VCR-DVD
Recorder
to SET TOP
BOX CONTROL
You can have the recorder control channels on the cable box or satellite receiver
for timer recording. Connect the Set Top Box controller (supplied), and select “Yes”
in step 6 of Setup on the next page.
Follow the three steps below to connect, setup and make
recordings on your VCR-DVD recorder.
RDR-VX560
Before hookup
This DVD-VCR does not include a tuner.
To record TV programs on the DVD-VCR from a connected device, you need
to connect the DVD-VCR to a tuner that has audio/video output jacks.
You have:
Cable Box With Video/Audio Output
– or –
Satellite Receiver With Video/Audio Output
hint
If you have been using your VCR connected to an antenna, connect this DVD-VCR to
the VCR using an audio/video cord. This way, you can record TV programs.
If you have neither of the above tuners:
You have:
Cable Box/Satellite Receiver Without Video/Audio
Output
 Please contact your cable service or satellite service company
to ask cable box or satellite receiver with video/audio output.
Cable With No Cable Box
 Please contact your cable service to ask cable box with video/
audio output.
Antenna Only (No Cable TV/No Satellite Receiver)
 You need to subscribe to a cable TV or satellite TV service
and to get a cable box or satellite receiver with video/audio
output.
hint
For any inquiry, please visit the Sony web site : http://esupport.sony.com/
See right
: Hookup for Playback and
Recording
LINEIN
L
R
VIDEO
AUDIO
LINEOUT
VIDEO
Y
L
P
B
R
P
R
AUDIO
SVIDEO
LINE1IN
AUDIOOUT
COMPONENT
VIDEOOUT
DIGITAL
AUDIO OUT
COAXIAL
HDMIOUT
SETTOP
BOX
CONTROL
Connect power
cords last!
VCR-DVD Recorder
to LINE OUT
to LINE IN
Television
to an
AC outlet
VHF/UHFIN
LINE IN
L
R
VIDEO
AUDIO
LINEOUT
VIDEO
Y
L
P
B
R
P
R
AUDIO
SVIDEO
LINE1IN
AUDIOOUT
COMPONENT
VIDEOOUT
DIGITAL
AUDIOOUT
COAXIAL
HDMIOUT
SETTOP
BOX
CONTROL
DIGITAL
AUDIO
OUT
COMPONENTOUT
ANT IN
OPTICAL
CAVLEINOUTTO
TV
VIDEOOUT
SVIDEO
OUT
to VIDEO OUT/
AUDIO OUT
Connect all
power cords last!
VCR-DVD Recorder
Cable Box /
Satellite Receiver
to an
AC outlet
to LINE OUT
to VHF/UHF IN to LINE IN
Television
to an
AC outlet
to OUT TO
TV to LINE 1 IN
to your antenna
wall jack
to CABLE IN
4
2
1
4
3
Select a connection
To enjoy DVD/VCR playback, select connection A. In addition, if you want to record TV programs from a connected tuner,
make additional connections by referring to connection B.
: Hookup for Playback
X1
You will need:
(one audio/video cord is supplied)
X2
You will need:
(one audio/video cord is supplied)
X2
(antenna cable: not supplied)
2
1

SONY RDR-VX560 QSG US 3-296-718-11(1) AK68-01525A
11 22 33
44 55 66
77 88
00
99
DISPLAY
OPTIONS
NEXT
PLAY
PAUSE
REC
VOL CH
TV
SYNCHRO REC REC MODE
ADVANCE
RETURN
PREV
STOPCLEAR
REPLAY
AUDIOMENU
TOP
MENU
INPUT
ORIGINAL/
PLAYLIST
CH/
TRACKING
DIGITAL/
ANALOG
OPEN/
CLOSE
INPUT
SUBTITLE
SET
SYSTEM
MENU
TITLE
LIST TIMER
VIDEO DVD
ENTER
TIME/TEXT ANGLE
11
22 33
44
55 66
77 88
00
99
ENTER
 RETURN
/ (on/standby)
Label side facing up
SYSTEM MENU
Initial settingsnecessary to operate the
DVD recorder willbe made.
You canchangethemlater using setup.

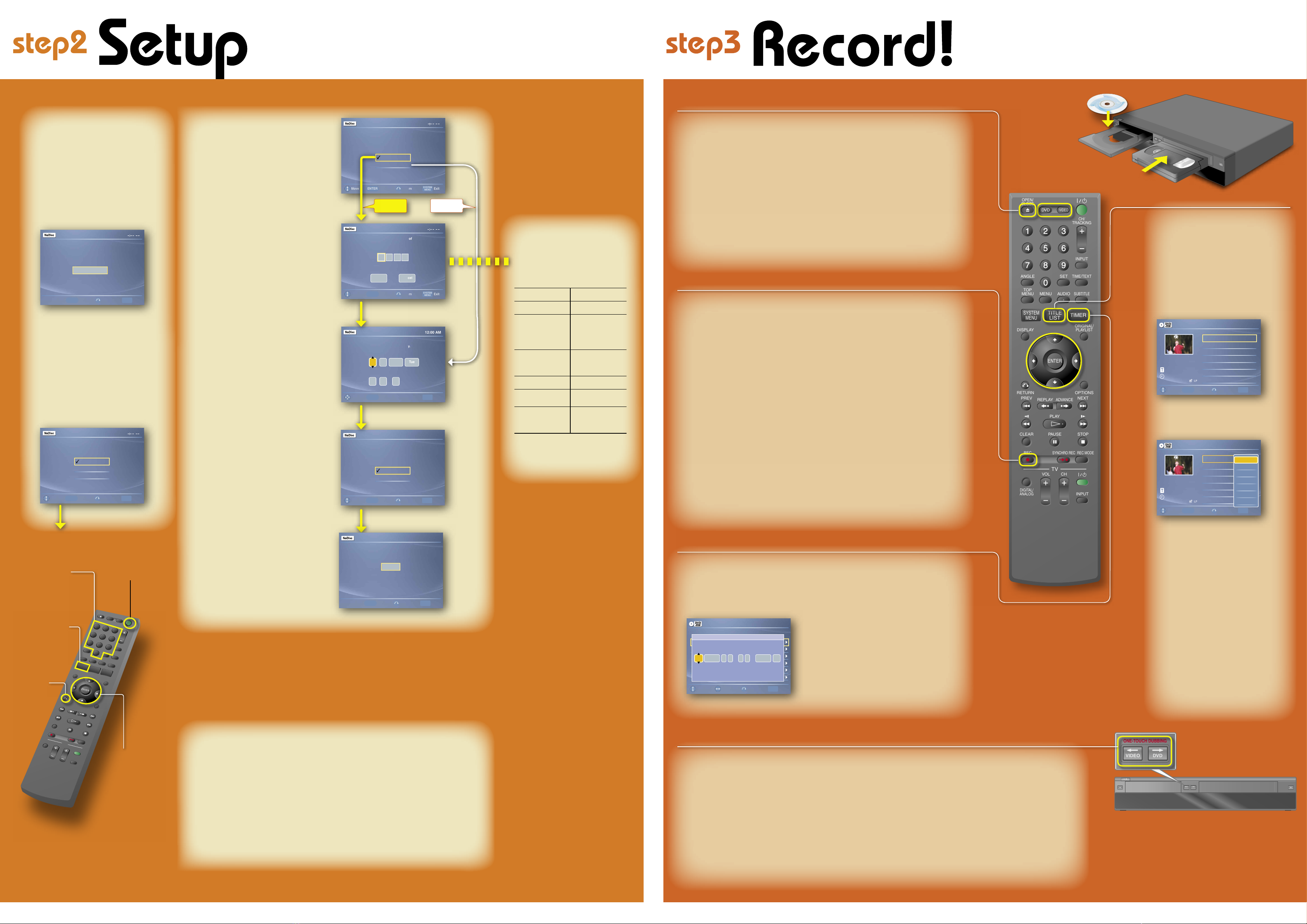

EasySetup
ENTER
SYSTEM
MENU
Enter Return Exit
Start
6 Press M/m to select whether or
not you want to use the Set Top
Box control function, then press
ENTER.
7 Press the number buttons to enter
the brand code of your cable box
or satellite receiver. Then select
“OK” and press ENTER.
Some examples of brand codes are shown
on the right.
8 Press M/m to set the month and
press ,.
Set the day, year, hour, minutes,
and AM/PM in the same way. Then
press ENTER.
9 Press M/m to select the type
of TV you have, then press ENTER.
If you have a wide-screen TV, select “16:9.” If
you have a 4:3 screen TV, select either “4:3
Letter Box”(shrink to fit) or “4:3 Pan Scan”
(stretch to fit). This will determine how "wide-
screen" images are displayed on your TV.
10 When “Finish” appears, press
ENTER to complete Easy
Setup.
1 Turn on your TV and any other
connected equipment such as
your cable box or satellite receiver.
2 Press I/1 on the VCR-DVD
recorder.
3 Switch the input selector on
your TV so that the signal from
the recorder appears on your TV
screen.
If “Initial settings necessary to operate the
DVD recorder will be made. You can change
them later using setup.” does not appear on
your TV screen, select “Easy Setup” from
“Setup” in the System Menu.
4 Press ENTER.
5 Press M/m to select a language for
the on-screen display, then press
ENTER.
Yes
No
Easy Setup
Do you want to control
your set top box with this recorder?
(Changes to the current setting will
erase all timer settings.)
ENTER
SYSTEM
MENU
Move Enter Return Exit
Easy Setup
Cancel
Enter the brand code of
your set top box.
ENTER
SYSTEM
MENU
Move Enter Return Exit
OK
Easy Setup
ENTER
SYSTEM
MENU
Move Enter Exit
Hour Min AM/PM
Month
Set the time and date manually.
Day Year
:00 AM12
01 01 2008 Tue
12:00 AM
Select your TV screen type.
Easy Setup 10:10 AM
16 : 9
4 : 3 Letter Box
4 : 3 Pan Scan
ENTER
SYSTEM
MENU
Move Enter Return Exit
YES NO
Select the screen language.
English
Français
Español
Easy Setup
ENTER SYSTEM
MENU
Move Enter Return Exit
Easy Setup is finished.
Finish
Easy Setup 10:10 AM
ENTER
SYSTEM
MENU
Enter Return Exit
///ENTER
Press ENTER to
make a selection
Number buttons
Dub
From VHS Tape
to DVD
1 Insert a recordable disc.
2 Insert a source tape.
3 Cue the tape at the start
point, and press < VIDEO.
From DVD to
VHS Tape
1 Insert a recordable tape.
2 Insert a source disc.
3 Select a title on the disc,
and press DVD ,.
Before dubbing, select the
recording mode and make the
necessary audio settings. For
details, see the dubbing section
in the Operating Instructions.
ONE-TOUCH DUBBING
VIDEO DVD
Test your Set Top Box controller
If you connected a Set Top Box controller, do
the following:
1 Turn on the recorder and the cable
box/satellite receiver.
2 Point the remote at the recorder
(not at the cable box/satellite
receiver).
3 Press CH+/- and confirm that the
channel changes on the cable box/
satellite receiver window.
If the recorder does not control your cable
box or satellite receiver, see “If you cannot
get the recorder to control your cable box/
satellite receiver” at the end of “Step 7: Easy
Setup” in the Operating Instructions.
Playback the
Recorded DVD Disc
1 Press DVD to operate the DVD
recorder.
2 Press TITLE LIST.
The Title List menu appears.
3 Press / to select the title you
want to play and press ENTER.
The sub-menu appears.
4 Press / to select “Play” and
press ENTER.
Playback starts from the beginning of the
title.
Playback the
Recorded VHS Tape
1 Press VIDEO to operate the VCR.
2 Press / to find the point
you want to start playback.
For further explanations, see “VCR
Playback” in the Operating Instructions.
3 Press  PLAY.
Playback starts.
The Easy Setup display automatically appears on your TV screen when you turn
on your recorder for the first time. Follow the steps below to make the minimum
number of basic adjustments to use the recorder.
If you make a mistake, press  RETURN.
1/4
Title List(Original)
LINE 1
May/02/2008
08:00 PM
10:10 AM
No. Title Length Edit
01 >
02 >
03 >
04 >
LINE 1 01:29:03
LINE 1 00:31:23
LINE 1 01:59:00
LINE 1 00:58:56
ENTER
SYSTEM
MENU
Move Enter Return Exit
1/4
Title List (Original)
May/02/2008
08:00 PM
10:10 AM
No. Title Length Edit
01 >
02 >
03 >
04 >
01:29:03
00:31:23
01:59:00
00:58:56
ENTER
SYSTEM
MENU
Move Enter Return Exit
LINE 1
LINE 1
LINE 1
LINE 1
LINE 1
Play
Title Erase
Chapter Erase
Protect
Title Name
A-B Erase
Divide Title
Insert a DVD Disc
1 Press DVD to operate the DVD
recorder.
2 Press  OPEN/CLOSE and
place a recordable DVD on the
disc tray.
3 Press  OPEN/CLOSE again
to close the disc tray.
Wait until “LOAD” disappears from the
front panel display.
See “Quick Guide to Disc Types” in the
Operating Instructions for more details
about the differences between disc types.
Insert a VHS Tape
1 Press VIDEO to operate the
VCR.
2 Insert a tape with its safety tab
in place.
1 Press DVD to record to a DVD
disc.
Or, press VIDEO to record to a
VHS tape.
2 Select a channel.
• When using a Set Top Box controller
Press CH+/- buttons to select the cable
box or satellite receiver’s channel.
• When not using a Set Top Box
controller.
Press INPUT to select input source
until “LINE 1” appears in the front
panel display. Then select a channel
on the connected cable box or satellite
receiver.
3 Press REC MODE repeatedly
to select the recording mode.
When recording to a DVD disc:
HQ, HSP, SP, LSP, ESP, LP, EP, or SLP
HQ offers the best quality picture,
but with the shortest recording time.
Recording time increases with each
successive mode, but the picture quality
gradually deteriorates.
When recording to a VHS tape:
SP or EP
EP (Extended Play) provides recording
time three times as long as SP (Standard
Play). However, SP produces better
picture and audio quality.
4 Press  REC.
The recorder starts recording. To stop
recording, press  STOP.
Record a TV Program
1 Press TIMER.
The Timer menu appears.
2 Press M/m to set Media, Date,
Start and End time, Channel or
Input source and Rec Mode.
As for selecting “Ch(channel)”, see above
“Record a TV program.” The way to select
“Ch(channel)” may differ in the case of a
Set Top Box controller.
3 Press ENTER.
Leave the cable box/satellite receiver
turned on and do not change its selected
channel until the recorder finishes the
timer recording.
Record a TV Program using Timer
Timer - Standard 10:10 AM
No. Rec To Mode Edit
01
02
03
04
DVD
---
DVD
---
---
---
---
05 ---
06 ---
Data
04/15
04/30
--/--
--/--
--/--
--/--
Start
09:00PM
09:15PM
--:--
--:--
--:--
--:--
End
10:00PM
09:45PM
--:--
--:--
--:--
--:--
Source
CH8
CH11
---
---
---
--- ---
SYSTEM
MENU
Adjust Move Return Exit
No.01
:PM PM
:
Media Date Start End Ch Mode
SPLine 1001009 00Today
DVD
Examples
of Brand
Codes
Cable box brand Code number
Sony 1006
Scientific Atlanta 0008,0277,0017,00
06,0237,0025,0477,
0207,0877,0003,00
12,0000,0021,1877
Motorola 0476,0276,1476,08
10,1376,1254,0400,
1106
Pace 0237
Samsung 0040,0144,0023,00
03,0070,0000
General
Instruments
0476,0011,0014,00
98,0810,0024,0003,
0015,0276
For brand codes other than the above,
see the “Cable Box/Satellite Receiver
Brand Code” list of the Operating
Instructions.
