Sony Notebook User Guide
Read this first
1
nN
Read this first
Notice
© 2002 Sony Corporation. All rights reserved.
This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-
readable form without prior written approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby
expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this manual, the
software or such other information. In no event shall Sony Corporation be liable for any incidental, consequential, or special damages,
whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information
contained herein or the use thereof.
Macrovision: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without
notice. The software described herein is governed by the terms of a separate user licence agreement.
Trademarks
Sony, DVgate, DigitalPrint, Smart Capture, SonicStage, MovieShaker, VAIO System Information, UI Design Selector, i.LINK and the i.LINK
logo, VAIO Edit Components, Memory Stick and the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation.
EverQuest is a registered trademark of Sony Computer Entertainment America, Inc.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE1394 connection.
Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation.
Adobe, Adobe Acrobat Reader and Adobe PhotoShop Elements are trademarks of Adobe Systems Incorporated.

Sony Notebook User Guide
Read this first
2
nN
QuickTime and the QuickTime logo are trademarks used under licence. QuickTime is registered in the U.S. and other countries.
RealPlayer is a trademark or registeredtrademark of RealNetworks, Inc. in the U.S. and other countries.
Symantec Norton AntiVirus is a trademark of Symantec Corporation.
WinDVD is a trademark or registered trademark of InterVideo Inc.
All other names of systems, products and services are trademarks of their respective owners. In the manual, the ™ or ®marks are not
specified.
Specifications are subject to change without notice.
ENERGY STAR®
As an ENERGY STAR® Partner, Sony has determined that this product meets the ENERGY STAR®guidelines for energy efficiency.
The International ENERGY STAR®Office Equipment Program is an international program that promotes energy saving through the use
of computers and their office equipment. The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted
products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform
among participating nations.
ENERGY STAR is a U.S. registered mark.
.

Sony Notebook User Guide
Read this first
3
nN
Safety information
Owner's record
The model number and serial number are located on the bottom of your Sony notebook. Record the serial number in the space provided
here. Refer to the model and serial number if you contact VAIO-Link.
Serial number: ________________________
Model number (model name in brackets):
PCG-9G6M (PCG-FX902P) / PCG-9G1M (PCG-FX905P)
Warnings
General
❑Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
❑To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
❑To prevent fire or shock hazard, do not expose your VAIO notebook to rain or moisture.
❑Avoid using the modem during a severe electrical storm.
❑Do not use the modem or a telephone to report a gas leak in the vicinity of the leak.
❑To change the backup battery, please contact your nearest Sony Service Center.
❑Before you connect peripherals, turn off the computer and all peripherals.
❑Connect the power cord only after connecting all cables.
❑Turn on the computer only after turning off all peripherals.
❑The magnetic properties of some objects can have serious consequences for your hard disk drive. They
can erase the data on the hard disk drive and cause the computer to malfunction. Do not place your
computer near or on any objects which emit magnetic fields, mainly:
❑TV sets

Sony Notebook User Guide
Read this first
4
nN
❑Speakers
❑Magnets
❑Magnetic bracelets.
Audio/video
❑Audio and picture distortion may occur if this equipment is positioned in close proximity to any
equipment emitting electromagnetic radiation.
Connectivity
❑Never install modem or telephone wiring during a severe lightning storm.
❑Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
❑Be cautious when installing or modifying telephone lines.
❑Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from
mains voltage, unplug the AC adapter.
❑Please make sure that the socket outlet is easily accessible.
❑Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected
at the network interface.
Optical disc drive
❑Misuse of the optical instruments supplied with your notebook can cause eye hazard. As the laser beam
used in this product is harmful to eyes, do not attempt any disassembling process. For servicing, refer to
qualified personnel only.
❑There are visible and invisible radiations when the optical disc drive is open: avoid direct exposure to the
laser beam.

Sony Notebook User Guide
Read this first
5
nN
Regulatory information
Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of European
Directive 1999/5/EC (radio equipment and telecommunications terminal equipment Directive).
Declaration of Conformity
The European Union is targeting the free movement of goods for the internal market and to prevent technical barriers to trade. This
effort has resulted in several EU Directives asking that manufacturers make their products comply with essential standards.
Manufacturers are required to affix the "CE" mark on the products they sell and to draw up a "Declaration of Conformity" (DoC).
Primarily, the Declarations of Conformity are intended for the market surveillance authorities as proof that products satisfy the required
standards. Additionally, Sony provides these EU DoC's on the website http://www.compliance.sony.de as a service to our customers.
You can search for all Declarations of Conformity available for a specific product by typing in the model name in the search box above.
A list of matching documents will be displayed and can be downloaded. Please note that the availability of declarations depends on
the scope of the EU Directives and the individual product specifications.
This product complies with EN 55022 Class B and EN 55024 for use in following areas: residential, commercial and light-industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables not longer
than 3 metres (9.8 feet).
Before activating the built-in modem, please read the Modem Regulations guide.
The optical disc drive is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety Standard EN 60825-1. Repair
and maintenance only by authorized Sony technicians. Improper repairs and use can create safety hazards.
CLASS 1
LASER PRODUCT
TO EN 60825-1

Sony Notebook User Guide
Read this first
6
nN
Disposing of lithium ion batteries
❑Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly.
❑Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
❑The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not
disassemble, heat above 60°C (140°F) or incinerate.
❑Dispose of used batteries promptly and properly.
❑Keep away from children.
❑In some areas the disposal of lithium ion batteries in household or business waste may be prohibited.
❑Use the public collection system.
Disposing of the internal memory backup battery
❑Your VAIO notebook is equipped with an internal memory backup battery that should not have to be
replaced during the lifetime of the product. For information on changing this battery, please contact
VAIO-Link at http://www.vaio-link.com.
❑Danger of explosion if the battery is incorrectly replaced.
❑Dispose of properly at its end-of-life.
❑In some areas the disposal of lithium ion and other non-hazardous batteries in household or business
waste may be prohibited.
❑Please use the public collection system.

Sony Notebook User Guide
Welcome
7
nN
Welcome
Congratulations on purchasing a Sony VAIO notebook. Sony has combined leading-edge technology in
audio, video, computing and communications to provide you with state-of-the-art personal computing.
Here are just some of the features your VAIO notebook has to offer.
❑Exceptional performance - Your PC includes a fast processor, a fast CD-RW/DVD-ROM drive and an
internal modem.
❑Portability - The rechargeable battery pack provides hours of use without AC power.
❑Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s
advanced multimedia applications, games, and entertainment software.
❑Multimedia features – Enjoy audio and video CDs as well as DVD movies.
❑Interconnectivity – Your computer has Ethernet and i.LINK™ functionalities. i.LINK™ is a bidirectional
digital interface for exchanging data.
❑Windows®- Your system includes Microsoft’s Windows®XP Professional operating system.
❑Communications - Access popular online services, send and receive e-mails, browse the Internet.
❑Excellent customer support - If you are experiencing any problems with your computer, please check
the VAIO-Link website for a possible solution:
http://www.vaio-link.com
Before contacting VAIO-Link, you may try to solve the problem by reading this user guide or the manuals
and help files for the peripherals or software.

Sony Notebook User Guide
Welcome
8
nN
Documentation pack
Your documentation pack contains printed information as well as online user guides on the supplied
documentation CD-ROM and/or on the application CD-ROM.
Printed documentation
❑A Getting Started brochure, where you can find a brief description of the items in your box, some
specifications of your notebook, and how to set up your notebook;
❑A Troubleshooting Guide, where you can find all the basic information you need to start using your
notebook as well as troubleshooting and VAIO-Link information;
❑Your Sony Guarantee conditions;
❑A Safety Regulations guide;
❑A Modem Regulations guide applying to the modem.
Online documentation
1The Hardware Guide:
❑Using your notebook shows you how to use the standard components of your system. In this part
of the manual you will also find out what you can do with a Memory Stick™.
❑Connecting Peripheral Devices explains how you can add functionality by connecting various
peripherals.
❑Getting Help explains the support options available to you, and offers basic troubleshooting tips.
❑Precautions provides facts and advice about using your notebook.
❑Glossary refers to terms used in this manual.

Sony Notebook User Guide
Welcome
9
nN
2Refer to your Software Guide for information on the bundled software and the Sony applications.
❑About the Software is a short description of the features of the software delivered with your
system.
❑Using Video software explains how to use Sony video software: DVgate, MovieShaker and Smart
Capture.
❑Managing audio files with SonicStage explains how to convert your existing MP3, WMA and
WAV format audio files into ATRAC3 format.
❑Using DigitalPrint explains how you get the most enjoyment out of your photographs taken with
a digital camera.
❑Customizing your notebook explains how to set your system and power management.
❑Installing and updating applications explains how to install, run or uninstall a software
application.
❑Managing drivers explains how to install, update or uninstall a driver.
❑Using the Product Recovery CD-ROMs explains how to perform a system and application recovery.
❑Using partitioned drives tells you what you can do with partitioned drives.
3Refer to the Specifications online document for details on your computer, drivers and accessories.
4In the VAIO-Link Customer Service Guide you will find all the VAIO-Link information you need,
including specific contact numbers for each country.
5Consult the Online Help files of the software you are using for detailed information on features and
troubleshooting.
6Refer to the Microsoft Quick Start manual for more information on Windows®.
7Go to http://www.club-vaio.sony-europe.com to find online tutorials about your favourite VAIO
software.

Sony Notebook User Guide
Welcome
10
nN
Your notebook and its accessories
The following hardware items are in the box:
✍If you find an extra phone plug in the box, see Using the correct phone plug (page 57).
1 main unit 6 weight saver
2 product recovery CD-ROMs 7 video cable
3 documentation pack 8 phone cable
4 AC adapter 9 power cord
5 rechargeable battery pack 10 phone plug

Sony Notebook User Guide
Welcome
11
nN
Ergonomic considerations
You will be using your notebook as a portable device in a variety of environments. Whenever possible, you
should attempt to take account of the following ergonomic considerations to both stationary and portable
environments:

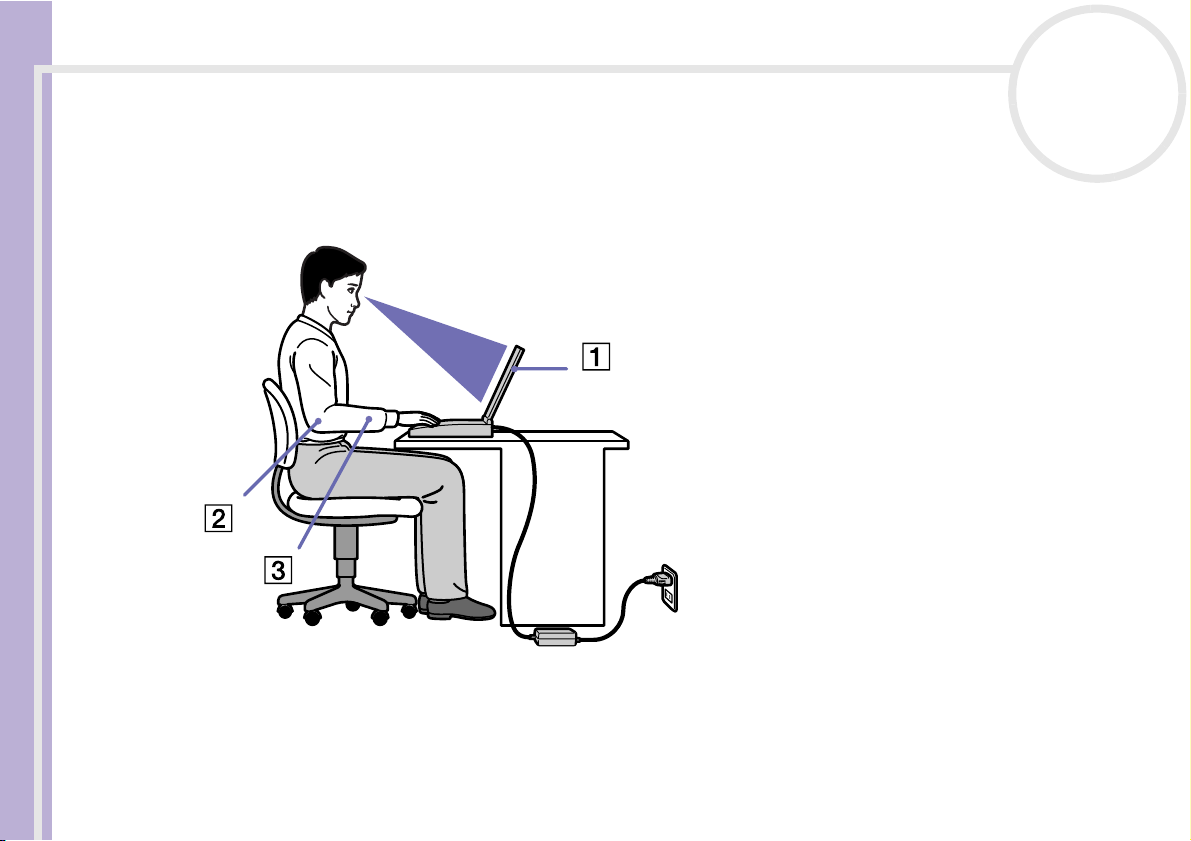

❑Positioning your computer – Place the computer directly in front of you (1). Keep your forearms
horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard,
touchpad, or external mouse. Let your upper arms hang naturally at your sides. Have breaks during
sessions with your computer. Excessive use of the computer may strain muscles or tendons.

Sony Notebook User Guide
Welcome
12
nN
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet
are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and
avoid slouching forward or leaning far backwards.
❑Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position.
You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position.
Adjust the brightness setting of the display as well.
❑Lighting – Choose a location where windows and lights do not create glare and reflection on the
display. Use indirect lighting to avoid bright spots on the display. You can also purchase accessories for
your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.
❑Positioning an external display – When using an external display, set the display at a comfortable
viewing distance. Make sure the display screen is at eye level or slightly lower when you are sitting in
front of the monitor.
❑Tilt stands – You use the tilt stands to place the computer at an angle that allows comfortable typing.

Sony Notebook User Guide
Using your notebook
13
nN
Using your notebook
This section describes how to start using your computer and how to use your computer’s internal and
external devices.
❑Locating controls and connectors (page 14)
❑Connecting a power source (page 19)
❑Starting your notebook (page 26)
❑Shutting down your notebook (page 27)
❑Using the keyboard (page 28)
❑Using the touchpad (page 33)
❑Using the CD-RW/DVD-ROM (page 34)
❑Using the weight saver (page 38)
❑Using the floppy disk drive (page 40)
❑Using PC Cards (page 44)
❑Using the Memory Stick™ (page 47)
❑Using the modem (page 56)
❑Using power saving modes (page 58)

Sony Notebook User Guide
Using your notebook
14
nN
Locating controls and connectors
Right
1 power button (page 26)
2 CD-RW/DVD-ROM drive (page 34)
3 multi-purpose bay (page 20) / (page 40)

Sony Notebook User Guide
Using your notebook
15
nN
Left
1 TV Out connector (page 68) 4 i.LINK™ connector (page 75)
2 microphone connector (page 71) 5 PC Card slots (page 44)
3 headphone connector (page 70) 6 battery bay (page 20)

Sony Notebook User Guide
Using your notebook
16
nN
Front
1 LCD screen (page 32)
2 speakers (page 70)
3 keyboard (page 28)
4 touchpad (page 33)
5 left/right buttons (page 33)
6 power indicators (page 31)
7 battery 1 and 2 indicators (page 31)
8 hard disk drive indicators (page 31)
9 Num Lock indicators (page 31)
10 Caps Lock indicators (page 31)
11 Scroll Lock indicators (page 31)

Sony Notebook User Guide
Using your notebook
17
nN
Back
✍There is a ventilation slot located near the second USB connector. Do not cover the ventilation slot when the computer is on.
1 phone line jack (page 56) 5 monitor(VGA) connector (page 65)
2USBport (page 72) 6 Ethernet connector (page 77)
3 serial connector / 7 USB port (page 72)
4 printer connector (page 73) 8 DC In connector (page 19)

Sony Notebook User Guide
Using your notebook
18
nN
Bottom
1 release lever (page 40)
2 tilt stands (page 11)

Sony Notebook User Guide
Using your notebook
19
nN
Connecting a power source
You can use either an AC adapter or a rechargeable battery pack as a power source.
Using the AC adapter
To use the AC adapter, proceed as follows:
1Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer.
2Plug one end of the power cord (3) into the AC adapter.
3Plug the other end of the power cord into an AC outlet.
✍Use your notebook only with the supplied AC adapter.
To disconnect your notebook completely from mains voltage, unplug the AC adapter.
Make sure that the socket outlet is easily accessible.
