Sony VAIO PCG-FXA32 User manual

VAIO®Notebook
Quick Start
PCG-FXA36/PCG-FXA33/PCG-FXA32

VAIO® Notebook Quick Start
2

3
Contents
Welcome.......................................................5
Unpacking Your Notebook .........................................7
Registering Your Notebook ........................................9
Setting up your dial-up connection ...........................10
Setting Up Your VAIO Notebook..............13
Locating Controls and Connectors............................14
Connecting a Power Source ......................................19
Starting Your Notebook ............................................25
Shutting Down Your Notebook.................................26
Power Saving Modes.................................................27
About the Software on Your Notebook ...29
Software Overview....................................................30
Application, Driver, and System Recovery CDs.......35
Using Your Recovery CDs........................................36
Adding Memory .........................................41
Precautions and Procedures.......................................42
Typical expansion memory configuration.................43
Removing a memory module ....................................44
Installing a memory module......................................46
Viewing the amount of memory................................47

VAIO® Notebook Quick Start
4
Troubleshooting........................................49
Troubleshooting Your Notebook .............................. 50
Troubleshooting the LCD Screen ............................. 54
Troubleshooting the Mouse and Touchpad .............. 55
Troubleshooting Drives, PC Cards and
Peripheral Devices .................................................... 57
Troubleshooting Software......................................... 59
Troubleshooting the Modem..................................... 60
Troubleshooting Audio ............................................. 61
Troubleshooting the Printer ...................................... 62
Getting Help...............................................63
Software Support Information .................................. 65
Index...........................................................67

5
Welcome
Congratulations on your purchase of the Sony VAIO® all-in-one
notebook. Sony has combined leading-edge technology in audio, video,
computing, and communications to provide you with state-of-the-art
personal computing.
Features
❑Exceptional performance*— Your notebook includes a mobile AMD
processor featuring PowerNow!™ technology†and a V.90/K56flex-
compatible modem.‡
❑Portability — Rechargeable battery pack provides hours of use without AC
power.
❑Sony audio and video quality — High-quality MPEG1/MPEG2 video,
which supports full-screen display and enables you to take advantage of
today’s advanced multimedia applications, games, and entertainment
software.
❑Multimedia features — Enjoy the stereo speakers or use headphones (not
supplied) to listen to audio and video CDs.
❑Microsoft® Windows® operating system — Your system includes the
latest Microsoft® Windows® operating system.
✍For a complete description of the specifications of your VAIO®notebook, refer to the
Specifications flyer supplied with your notebook.
* To combine performance and portability, Sony had implemented speed-controlling technol-
ogy designed to maximize battery life during mobile computer use. Windows® reported
actual CPU speed may not reflect the maximum CPU speed.
† Processor speed may be reduced under certain conditions.
‡ Actual upload and download speeds may vary due to line conditions, Internet Service Pro-
vider (ISP) support, and government regulations.

VAIO® Notebook Quick Start
6
❑Communications — Access popular online services, send e-mail, browse
the Internet, and use fax features.
❑Optical disc drive (CD-RW/DVD or DVD-ROM) — The CD-RW/DVD
Combo Drive utilizes a new optical storage technology that combines the
features of both a CD-RW drive and DVD-ROM drive, providing increased
storage capacity and a rich multimedia computing experience. Optical drives
play DVD-ROM, CD-ROM, CD-RW, and CD-R discs. (The CD-RW/DVD
Combo Drive is available on selected models only.)
✍Your notebook’s optical disc drive and other parts may differ depending on the model
you purchased.

Unpacking Your Notebook
7
Unpacking Your Notebook
Remove the following hardware items from the box:
* Removable floppy disk drive is in the multipurpose bay.
Documents
❑VAIO® Notebook Quick Start — Contains information on unpacking and
setting up your notebook, the features of your notebook, the applications
included with your system, and how to solve common problems.
❑VAIO® Notebook User Guide — A searchable online help file that contains
detailed information on how to use your new notebook. Go to Start, select
VAIO Help and Support, and click VAIO User Guide to open this file.
❑Microsoft® Windows® manual — Explains how to use the basic features
of the Windows operating system.
❑VAIO® Notebook Notes on Use — Explains notes on use and offers safety
tips.
❑VAIO® Notebook Specifications Flyer — Details the hardware
specifications for your notebook.

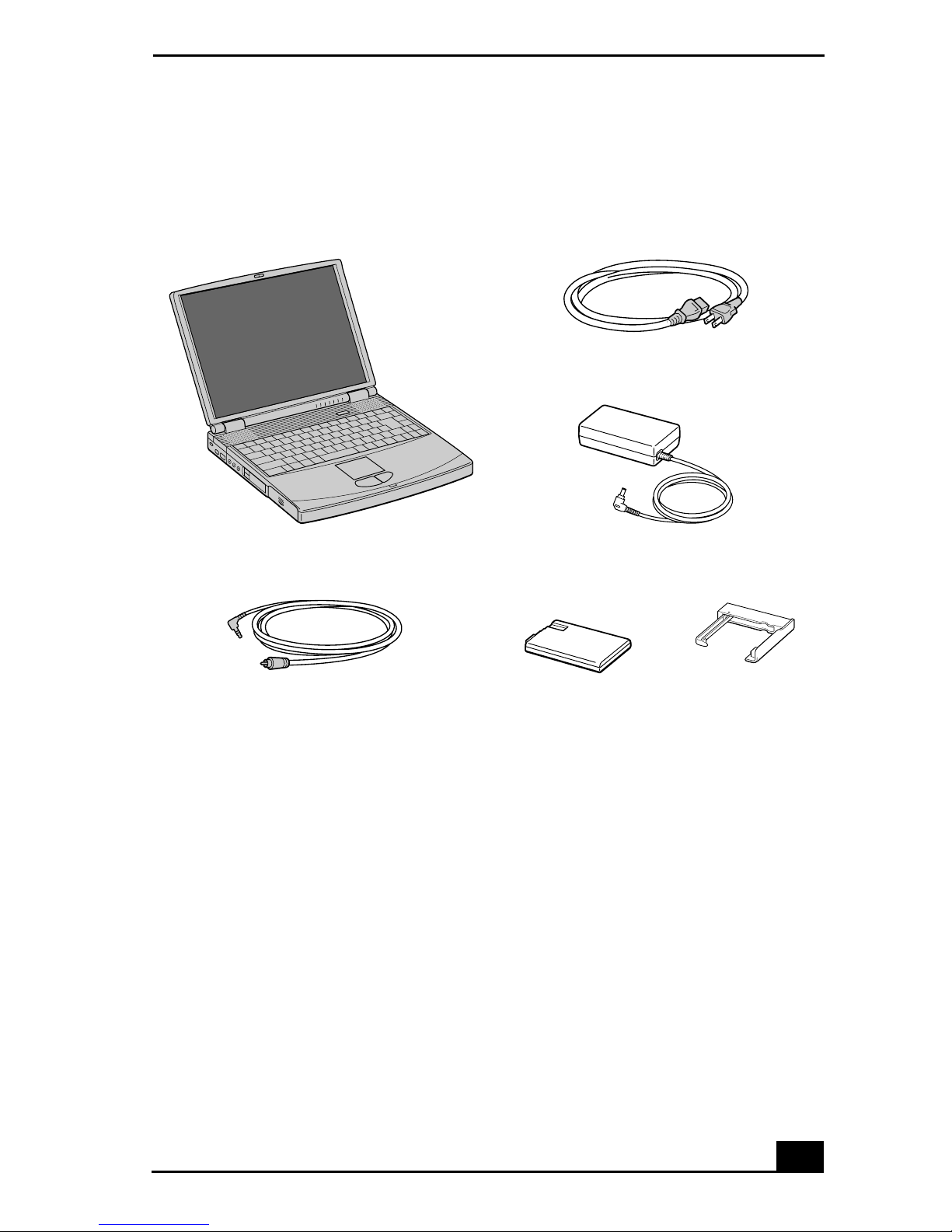

Main unit*Power cord
AC adapter
Video cable Rechargeable
battery pack
Weight saver

VAIO® Notebook Quick Start
8
Software CDs
❑Microsoft®Word — Enables you to reinstall Microsoft Word to the VAIO
computer you purchased, if the application becomes corrupted or is erased.
Recovery CDs
❑Application Recovery CD(s) — Enables you to reinstall individual
applications if they become corrupted or are erased.
❑Driver Recovery CD(s) — Enables you to reinstall individual device
drivers if they become corrupted or are erased.
❑System Recovery CD(s) — Enables you to format the C:\ partition of the
hard disk drive, then reinstall the operating system and software titles that
shipped with your notebook if they become corrupted or are erased.
Other
❑Packet containing special product offers
❑Limited Warranty card

Registering Your Notebook
9
Registering Your Notebook
Take advantage of Sony’s commitment to quality customer support and receive
these benefits by registering your notebook:
❑Sony Customer Support — Talk to a Support Representative to
troubleshoot problems you may be having with your notebook.
❑Limited Warranty — Protect your investment. See the Warranty Card for
more details.
✍You are prompted to register your computer the first time you turn on the unit. Follow
the on-screen instructions to complete the registration process. If you are not able to
register your computer during the first session, you are provided with additional
registration opportunities later.

VAIO® Notebook Quick Start
10
Setting up your dial-up connection
This section describes the basic steps for setting up your dial-up connection. The
Connection Wizard guides you through the process of connecting to the Internet
and then choosing an Internet Service Provider (ISP) or setting up an existing
account.
Setting up your dial-up connection
1Click Start, point to All Programs, Accessories, Communications, and then
click New Connection Wizard. The Location Information screen appears.
Location Information screen
2Follow the instructions onscreen and then click OK to continue. The Phone
and Modem Options screen appears.

Setting up your dial-up connection
11

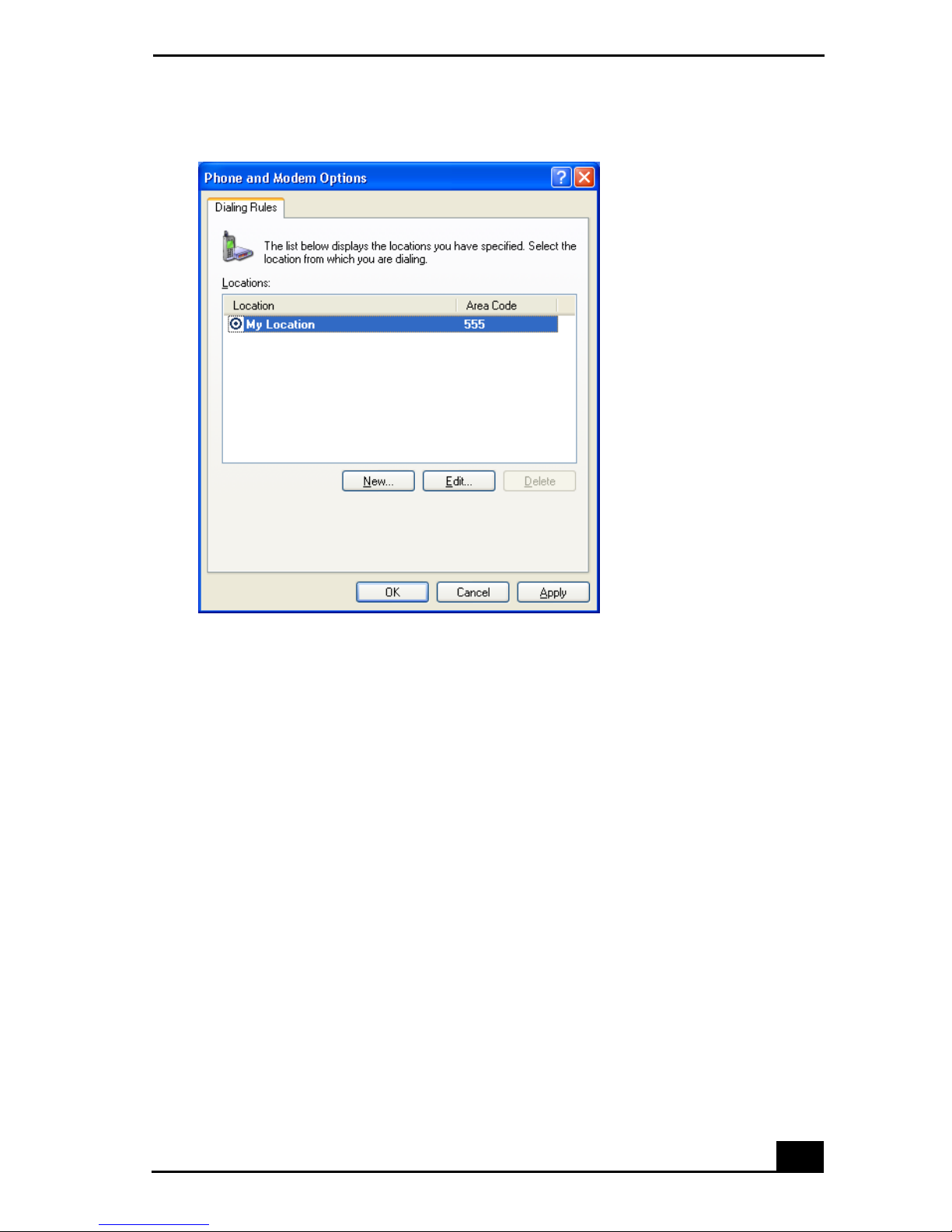

Phone and Modem Options screen
3Select the location from where you are dialing and then click OK. The New
Connection Wizard appears.

VAIO® Notebook Quick Start
12
New Connection Wizard
4Follow the onscreen instructions to finish setting up your dial-up connection.

13
Setting Up Your VAIO Notebook
This section describes the following:
❑Locating Controls and Connectors
❑Connecting a Power Source
❑Starting Your Notebook
❑Shutting Down Your Notebook
❑Power Saving Modes

VAIO® Notebook Quick Start
14
Locating Controls and Connectors
Front
1LCD (Liquid Crystal Display)
screen
7Battery 1 and 2 indicators
2Speakers 8Hard disk drive indicator
3Keyboard 9Num Lock indicator
4Touchpad 10 Caps Lock indicator
5Left and right buttons 11 Scroll Lock indicator
6Power indicator
+

Locating Controls and Connectors
15
Left
1TV out jack 4i.LINK® (IEEE1394) S400
port*
* i.LINK is a Sony trademark used only to designate that a product contains an IEEE 1394
connection. The i.LINK connection may vary, depending on the software applications, oper-
ating system, and compatible i.LINK devices. All products with an i.LINK connection may
not communicate with each other. Refer to the documentation that came with your compati-
ble i.LINK device for information on operating conditions and proper connection. Before
connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk
drive, confirm their operating system compatibility and required operating conditions.
2Microphone jack 5PC Card slots
3Headphone jack 6Battery bay

VAIO® Notebook Quick Start
16
Right
1Power button
2Optical drive (CD-RW/DVD Combo Drive or DVD-ROM drive*)
* The type of optical drive differs depending on the model you purchased.
3Multipurpose bay

Locating Controls and Connectors
17
Back
1Modem jack 5Monitor port
2USB port 6Ethernet port
3Serial port 7DC In port
4Printer port
Only connect 10Base-T and 100Base-TX cables to the Ethernet port. Do not
connect any other type of network cable or any telephone line. Connecting
cables other than those listed above may result in an electric current
overload and could cause a malfunction, excessive heat, or fire in the port.
To connect the unit to the network, contact your network administrator.
✍There is a ventilation slot located between the Ethernet port and the USB port. Do not
cover the ventilation slot when your notebook is on.

VAIO® Notebook Quick Start
18

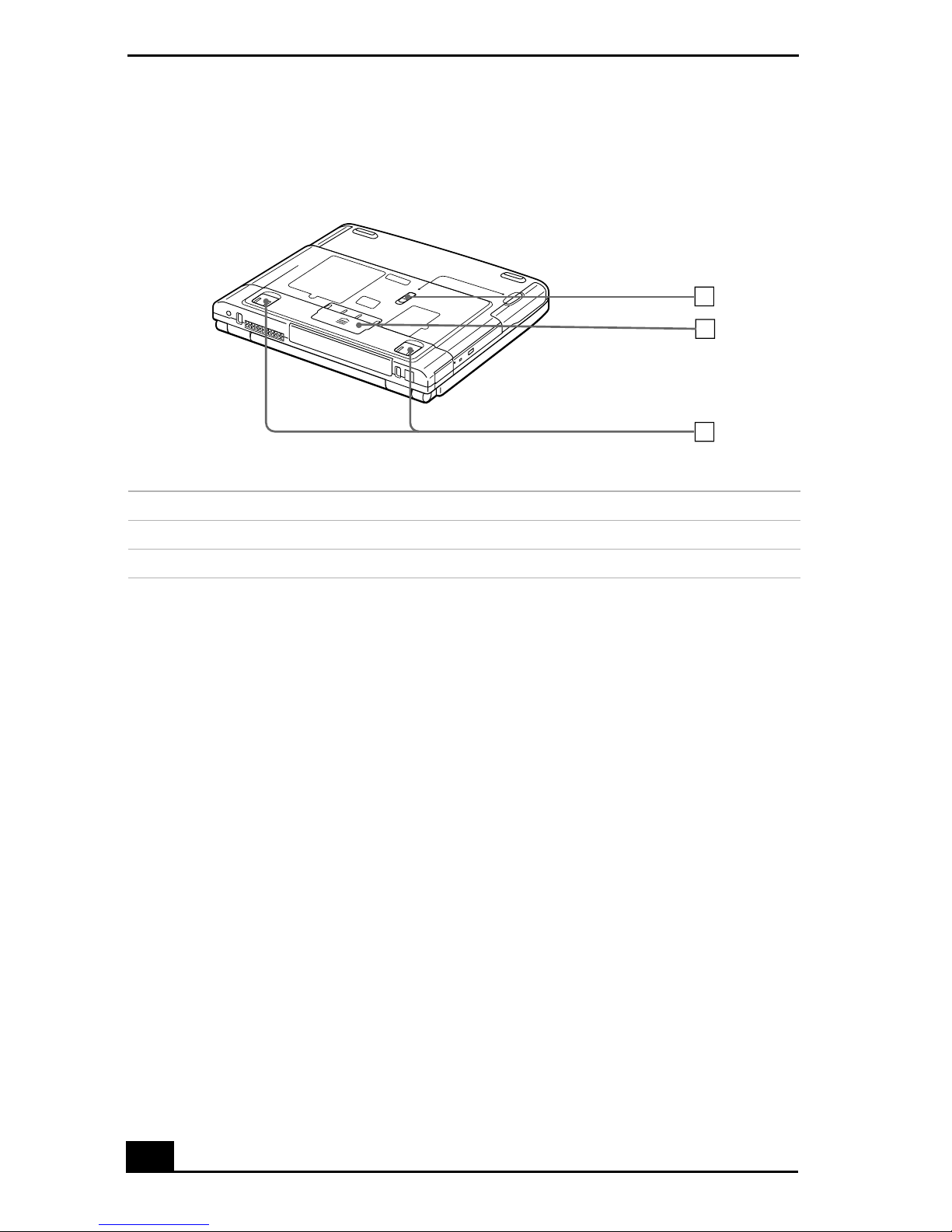

Bottom
1Multipurpose bay release lever
2Port replicator cover
3Tilt stands
2
1
3

Connecting a Power Source
19
Connecting a Power Source
You can use either AC power or a rechargeable battery pack as a power source.
Using the AC Adapter
1Plug the cable attached to the AC adapter into the DC In port on the
notebook.
2Plug one end of the power cord into the AC adapter.
3Plug the other end of the power cord into an AC outlet.
Notes on the AC Adapter
❑Your notebook operates on 100V-240V AC 50/60 Hz.
❑Do not share the AC outlet with other power-consuming equipment, such as
a copy machine or shredder.
❑You can purchase a power strip with a surge protector. This device prevents
damage to your notebook caused by sudden power surges such as those that
may occur during an electrical storm.
❑Do not place heavy objects on the power cord.
❑To disconnect the cord, pull it out by the plug. Never pull the cord itself.
❑Unplug your notebook from the wall outlet if you will not be using the
notebook for a long time.
❑The LED indicator on the AC adapter may be turned on until the AC adapter
is unplugged from your notebook.

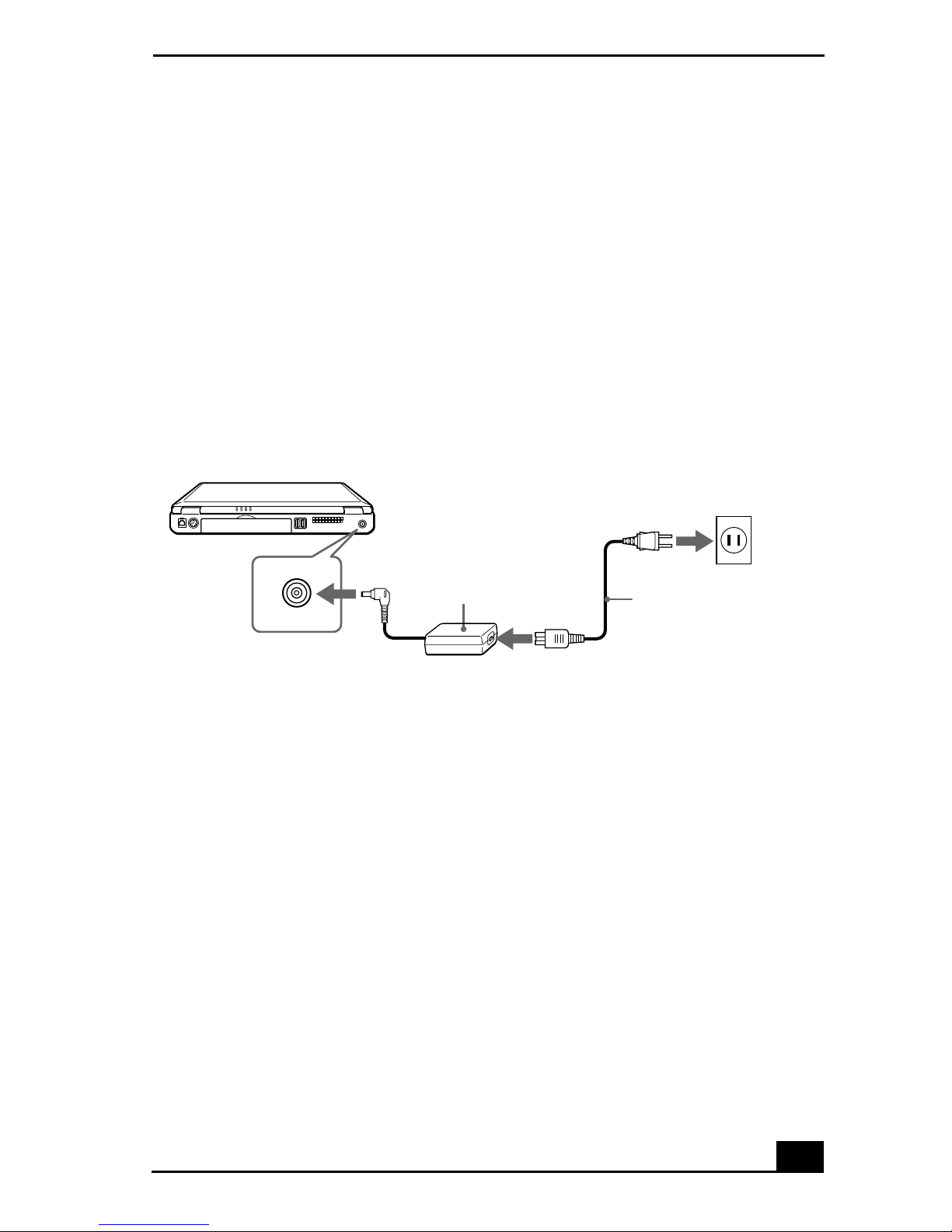

Connecting the AC adapter
Notebook
DC In
Power cord
(supplied)
AC adapter
(supplied)

VAIO® Notebook Quick Start
20
❑When the AC adapter is not used, unplug it from the AC outlet.
❑Use only the AC adapter supplied. Do not use any other AC adapter.
Using Battery Power
You can use one or two battery packs as a source of power. The second battery
pack inserts into the multipurpose bay on the right side of the notebook. (See
“Using a Second Battery Pack” in your online User Guide for more information.)
Additional battery packs are available as a separate option.
The battery pack that comes with your notebook is not fully charged at the time
of purchase. Follow the steps below to insert and charge the battery pack.
To insert the battery pack
1Locate the battery bay on the left side of the notebook and push the cover
down to open it.
✍The cover swings out but does not detach.
Battery bay
