Sony VAIO PCG-FXA53 User manual

VAIO® Notebook
Quick Start
PCG-FXA50 Series

3
Contents
Welcome.......................................................5
Features .......................................................................5
Unpacking Your Notebook .........................................7
Registering Your Computer ........................................9
Accessing the User Guide ...........................................9
About Adding Memory ...............................................9
Setting Up Your Dial-Up Connection .......................10
Setting Up Your VAIO Notebook..............13
Locating Controls and Connectors............................14
Connecting a Power Source ......................................19
Starting Your Notebook ............................................25
Shutting Down Your Notebook.................................26
Using Power Saving Modes ......................................27
Software and Support Information ..........29
Software Overview....................................................30
Software Support Information...................................31
Using the Recovery CDs...........................35
Application, Driver, and System Recovery CDs.......36
Using Your Recovery CDs........................................37

VAIO® Computer Quick Start
4
Troubleshooting........................................43
Troubleshooting Your Notebook .............................. 44
Troubleshooting the LCD Screen ............................. 47
Troubleshooting the Mouse and Touchpad .............. 47
Getting Help...............................................49
Support Options ........................................................ 49
Index...........................................................51

5
Welcome
Congratulations on your purchase of the Sony VAIO® all-in-one
notebook. Sony has combined leading-edge technology in audio, video,
computing, and communications to provide you with state-of-the-art
personal computing.
Features
❑Exceptional performance*—Your notebook includes a mobile AMD
processor featuring PowerNow!™ technology†and a V.90-compatible
modem.‡
❑Portability — Rechargeable battery pack provides hours of use without
AC power.
❑Sony audio and video quality — High-quality MPEG1/MPEG2 video,
which supports full-screen display and enables you to take advantage of
today’s advanced multimedia applications, games, and entertainment
software.
❑Multimedia features — Enjoy the stereo speakers or use headphones (not
supplied) to listen to audio and video CDs.
❑Microsoft® Windows® operating system — Your system includes the
latest Microsoft® Windows® operating system.
❑Communications — Access popular online services, send e-mail, browse
the Internet, and use fax features.
✍For a complete description of the specifications of your VAIO®notebook, refer to the
Specifications flyer supplied with your notebook.
* To combine performance and portability, Sony implemented speed-controlling technology
designed to maximize battery life during mobile computer use. Windows® reported actual
CPU speed may not reflect the maximum CPU speed.
† Processor speed may be reduced under certain conditions.
‡ Actual upload and download speeds may vary due to line conditions, Internet Service Pro-
vider (ISP) support, and government regulations.

VAIO® Computer Quick Start
6
❑Optical disc drive (CD-RW/DVD or DVD-ROM) — The CD-RW/DVD
Combo Drive utilizes a new optical storage technology that combines the
features of both a CD-RW drive and DVD-ROM drive, providing increased
storage capacity and a rich multimedia computing experience. Optical drives
play DVD-ROM, CD-ROM, CD-RW, and CD-R discs. (The CD-RW/DVD
Combo Drive is available on selected models only.)
✍Your notebook’s optical disc drive and other parts may differ depending on the model
you purchased.

Unpacking Your Notebook
7
Unpacking Your Notebook
Remove the following hardware items from the box:
* Removable floppy disk drive is in the multipurpose bay.
Documents
❑VAIO® Notebook Quick Start — Contains information on unpacking and
setting up your notebook, the features of your notebook, the applications
included with your system, and how to solve common problems.
❑Microsoft® Windows® manual — Explains how to use the basic features
of the Windows operating system.
❑VAIO® Notebook Safety Information — Explains notes on use and offers
safety tips.
❑VAIO® Notebook Specifications flyer — Details the hardware
specifications for your notebook.
Main unit*Power cord
AC adapter
Video cable Rechargeable
battery pack
Weight saver

VAIO® Computer Quick Start
8
Software CDs
❑Word processing software — Enables you to reinstall the software
application to the VAIO computer you purchased, if the application becomes
corrupted or is erased.
Recovery CDs
❑Application Recovery CD(s) — Enables you to reinstall individual
applications if they become corrupted or are erased.
❑Driver Recovery CD(s) — Enables you to reinstall individual device
drivers if they become corrupted or are erased.
❑System Recovery CD(s) — Enables you to restore the operating system and
software that shipped with your computer, to its original factory settings, if
they become corrupted or are erased.
Other
❑Packet containing special product offers
❑LimitedWarrantyCard

Registering Your Computer
9
Registering Your Computer
Take advantage of Sony’s commitment to quality customer support and receive
these benefits by registering your notebook:
❑Sony Customer Support — Talk to a Support Representative to
troubleshoot problems you may have with your notebook.
❑Limited Warranty — Protect your investment. See the Warranty Card for
more details.
Accessing the User Guide
The online VAIO® Computer User Guide is a searchable online help file that
contains detailed information on how to use your new computer. To open this
file, click Start on the Windows® taskbar, select Help and Support, and click
VAIO User Guide.
About Adding Memory
Depending on the configuration you purchased, your computer may accept
additional memory modules. For information about installation procedures, refer
to the online User Guide and print those relevant steps. The supplied
Specifications flyer lists the amount of memory installed, and required memory
modules for upgrades.
✍You are prompted to register your computer the first time you turn on the unit. Follow
the on-screen instructions to complete the registration process. If you are not able to
register your computer during the first session, you are provided with additional
registration opportunities later.

VAIO® Computer Quick Start
10
Setting Up Your Dial-Up Connection
This section describes the basic steps for setting up your dial-up connection. The
Connection Wizard guides you through the process of connecting to the Internet
and choosing an Internet Service Provider (ISP) or setting up an existing account.
Setting up your Internet connection
1Click Start, point to All Programs, Accessories, Communications, and click
New Connection Wizard. The Location Information screen appears.
2Follow the onscreen instructions, and click OK. The Phone and Modem
Options screen appears.
Location Information screen

Setting Up Your Dial-Up Connection
11
3Select the location from where you are dialing, and
4click OK. The New Connection Wizard appears.
5Follow the onscreen instructions.

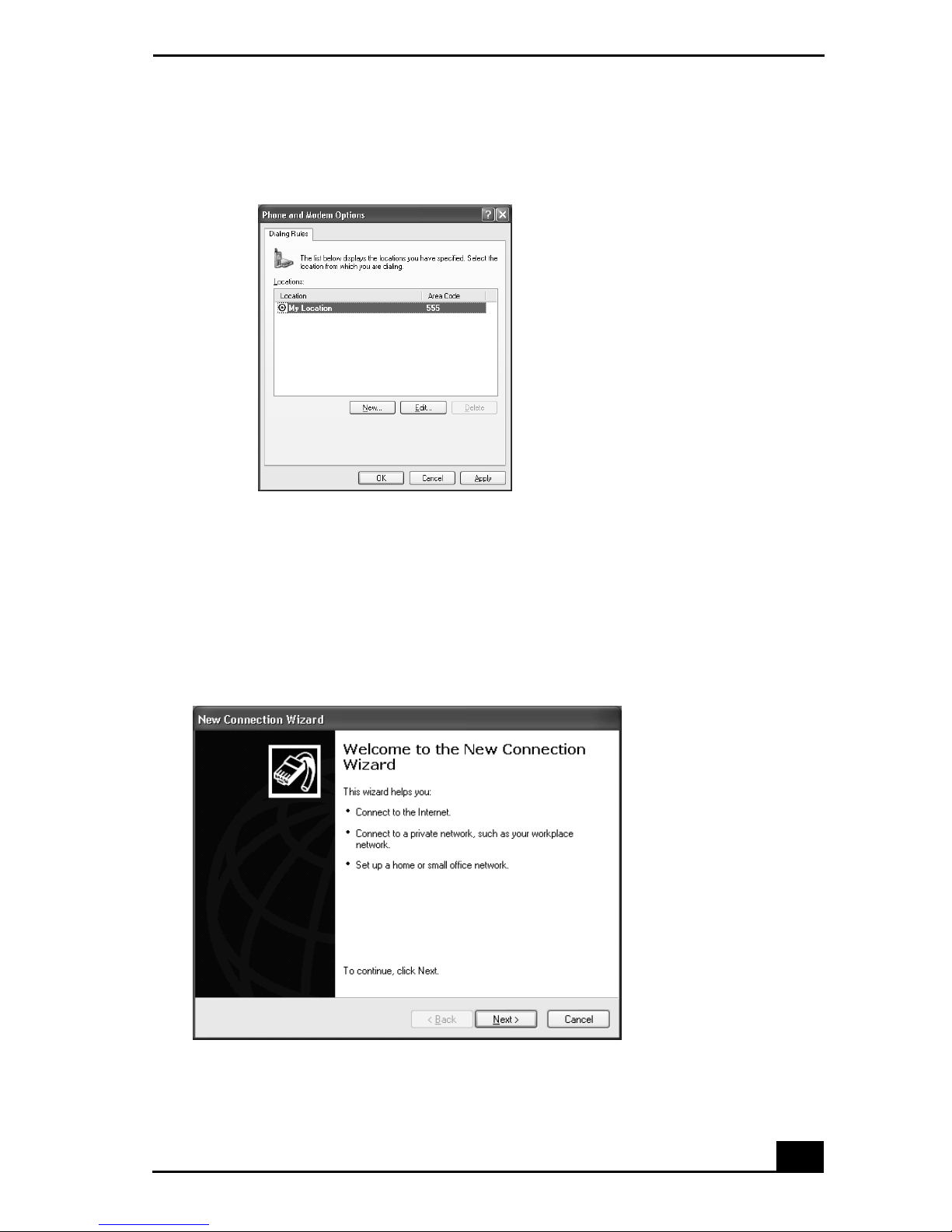

Phone and Modem Options screen
New Connection Wizard

VAIO® Computer Quick Start
12

13
Setting Up Your VAIO Notebook
This section provides you with some essential information to familiarize
you with your VAIO computer and assist you with some of its fundamental
functions.
❑Locating Controls and Connectors
❑Connecting a Power Source
❑Starting Your Notebook
❑Shutting Down Your Notebook
❑Using Power Saving Modes

VAIO® Computer Quick Start
14
Locating Controls and Connectors
Front
1LCD (Liquid Crystal Display)
screen
7Battery1and2indicators
2Speakers 8Hard disk drive indicator
3Keyboard 9Num Lock indicator
4Touchpad 10 Caps Lock indicator
5Left and right buttons 11 Scroll Lock indicator
6Power indicator
+

Locating Controls and Connectors
15
Left
1TV out jack 4i.LINK® (IEEE 1394) S400
port*
* i.LINK is a Sony trademark used only to designate that a product contains an IEEE 1394
connection. The i.LINK connection may vary, depending on the software applications, oper-
ating system, and compatible i.LINK devices. All products with an i.LINK connection may
not communicate with each other. Refer to the documentation that came with your compati-
ble i.LINK device for information on operating conditions and proper connection. Before
connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk
drive, confirm their operating system compatibility and required operating conditions.
2Microphone jack 5PC Card slots
3Headphone jack 6Battery bay

VAIO® Computer Quick Start
16
Right
1Power button
2Optical drive (CD-RW/DVD Combo Drive or DVD-ROM drive*)
* The type of optical drive differs depending on the model you purchased.
3Multipurpose bay

Locating Controls and Connectors
17
Back
1Modem jack 5Monitor port
2USB port 6Ethernet port
3Serial port 7DC In port
4Printer port
Only connect 10BASE-T and 100BASE-TX cables to the Ethernet port. Do not
connect any other type of network cable or any telephone line. Connecting
cables other than those listed above may result in an electric current
overload and could cause a malfunction, excessive heat, or fire in the port.
To connect the unit to the network, contact your network administrator.
✍There is a ventilation slot located between the Ethernet port and the USB port. Do not
cover the ventilation slot when your notebook is on.

VAIO® Computer Quick Start
18
Bottom
1Multipurpose bay release lever
2Port replicator cover
3Tilt stands
2
1
3

Connecting a Power Source
19
Connecting a Power Source
You can use either AC power or a rechargeable battery pack as a power source.
Using the AC Adapter
1Plug the cable attached to the AC adapter into the DC In port on the
notebook.
2Plug one end of the power cord into the AC adapter.
3Plug the other end of the power cord into an AC outlet.
Notes on the AC Adapter
❑Your notebook operates on 100V-240V AC 50/60 Hz.
❑Do not share the AC outlet with other power-consuming equipment, such as
a copy machine or shredder.
❑You can purchase a power strip with a surge protector. This device prevents
damage to your notebook caused by sudden power surges such as those that
may occur during an electrical storm.
❑Do not place heavy objects on the power cord.
❑To disconnect the cord, pull it out by the plug. Never pull the cord itself.
❑Unplug your notebook from the wall outlet if you will not be using the
notebook for a long time.
❑The LED indicator on the AC adapter may be turned on until the AC adapter
is unplugged from your notebook.
Connecting the AC adapter
Notebook
DC In
Power cord
(supplied)
AC adapter
(supplied)

VAIO® Computer Quick Start
20
❑When the AC adapter is not used, unplug it from the AC outlet.
❑Use only the AC adapter supplied. Do not use any other AC adapter.
Using Battery Power
You can use one or two battery packs as a source of power. The second battery
pack inserts into the multipurpose bay on the right side of the notebook. See
“Using a Second Battery Pack” in your online User Guide for more information.
The battery pack that comes with your notebook is not fully charged at the time
of purchase. Follow the steps below to insert and charge the battery pack.
To insert the battery pack
1Locate the battery bay on the left side of the notebook and push the cover
down to open it.
2Insert the battery pack into the battery bay.
✍Additional battery pack are available as a separate option.
✍The cover swings out but does not detach.
Battery bay
