Welcome
Sony Notebook Computer User Guide
6
nN
Welcome
Congratulations on purchasing a Sony VAIO notebook computer. Sony has combined
leading-edge technology in audio, video, computing and communications to provide
you with state-of-the-art personal computing.
Here are just some of the features your VAIO notebook computer has to offer (read the
details in the Specifications chapter of this guide).
❑Exceptional performance - Your PC includes a fast Intel®processor, a fast CD-
ROM drive and a PC card modem (depending on the model).
❑Portability - The rechargeable battery pack provides hours of use without AC
power.
❑Sony audio and video quality - A high-resolution LCD screen enables you to
take advantage of today’s advanced multimedia applications, games, and
entertainment software.
❑Windows®- Your system includes the latest operating system from Microsoft.
❑Communications - Access popular online services, send and receive e-mails,
browse the Internet...
❑Excellent customer support- If you have any problem with your computer, you
can contact VAIO-Link by Internet and e-mail (see your Customer Service Guide
for addresses). Before contacting VAIO-Link, you may try to solve the problem
by reading your User Guide (troubleshooting chapter) or the manuals and Help
files for the peripherals or software.

Welcome
About the User Guides
Sony Notebook Computer User Guide
7
nN
About the User Guides
Your Documentation Pack contains paper and on-line user guides on a
Documentation CD-ROM:
Printed Documentation:
❑A Setting Up poster in colour and a Getting Started brochure; a Customer
Guide, where you will find all the basic information to start using your notebook
computer;
❑A complete Regulatory and safety information poster;
❑Your Sony Guarantee conditions.
On-line Documentation:
1This User Guide:
❑Using Your Sony Notebook Computer shows you how to use the standard
components of your system.
❑Connecting Peripheral Devices explains how you can add functionality by
connecting various peripherals.
❑Getting Help explains the support options available to you, and offers basic
troubleshooting tips.
❑Notes on Use provides facts and advice about using your notebook computer.
❑Specifications provides details on your computer, drivers and accessories.
2Refer to your Software Guide for information on the bundled software and the
Sony applications.

Welcome
About the User Guides
Sony Notebook Computer User Guide
8
nN
❑About the Software is a short description of the features of the software pre-
installed on your system.
❑Customizing your notebook explains how to set your system and power
management with Sony Notebook Setup, VAIO Action Setup, PowerPanel,
BatteryScope, etc.
Learn how to set your display with NeoMagic®and enjoy the Dual Screen
Display option (Windows®98 only).
3Consult the On-line Help files of the software you're using for detailed
information on features and troubleshooting.

Welcome
Unpacking Your Notebook Computer
Sony Notebook Computer User Guide
9
nN
Unpacking Your Notebook Computer
Remove the following hardware items from the box:
Rechargeable
battery pack
Product Recovery
CD-ROMs
AC adapter Power cord
Phone plug (country
specific) Phone cable
Main unit
CD-ROM drive
Documentation Pack
Display Adapter

Welcome
Ergonomic Considerations
Sony Notebook Computer User Guide
10
nN
Ergonomic Considerations
You will be using your notebook computer as a portable device in a variety of
environments. Whenever possible, you should attempt to take account of the
following ergonomic considerations to both stationary and portable environments:

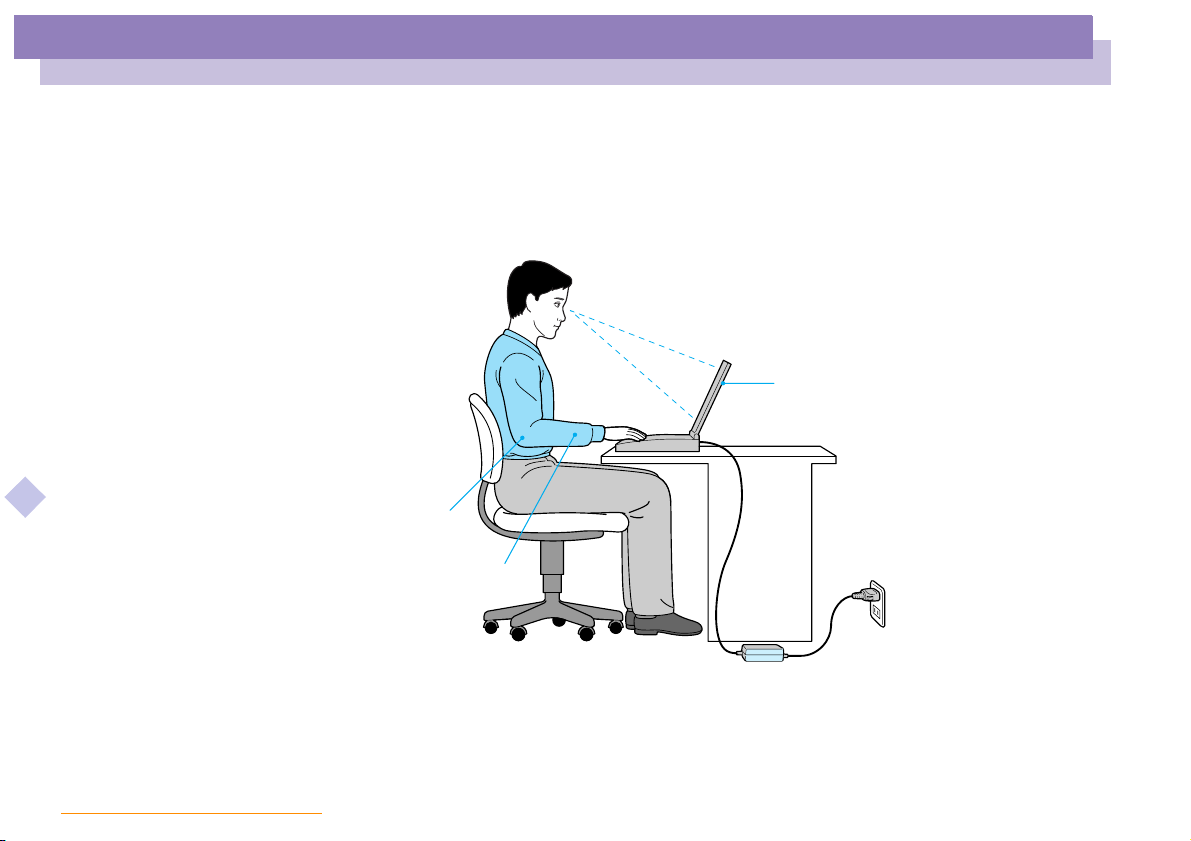

❑Position of your computer – Place the computer directly in front of you as you
work. Keep your forearms horizontal, with your wrists in a neutral, comfortable
position while using the keyboard, touchpad, or external mouse. Let your upper
arms hang naturally at your sides. Take breaks during sessions with your
computer. Excessive use of the computer may strain muscles or tendons.
Computer positioned directly
in front of you
Arms at desk
level
Wrists relaxed and flat

Welcome
Ergonomic Considerations
Sony Notebook Computer User Guide
11
nN
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of
the chair so your feet are flat on the floor. A footrest may make you more
comfortable. Sit in a relaxed, upright posture and avoid slouching forward or
leaning far backwards.
❑Viewing angle of the computer’s display – Use the display’s tilting feature to
find the best position. You can reduce eye strain and muscle fatigue by adjusting
the tilt of the display to the proper position. Adjust the brightness setting of the
display as well.
❑Lighting – Choose a location where windows and lights do not create glare and
reflection on the display. Use indirect lighting to avoid bright spots on the
display. You can also purchase accessories for your display that help reduce
glare. Proper lighting adds to your comfort and work effectiveness.
❑Placement of an external display – When using an external display, set the
display at a comfortable viewing distance. Make sure the display screen is at eye
level or slightly lower when you are sitting in front of the monitor.

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
12
nN
Using Your Notebook Computer
This section describes how to start using your computer and how to use your
computer’s internal devices, such as the touchpad, the disk drives and the battery...
Locating the Controls and Connectors

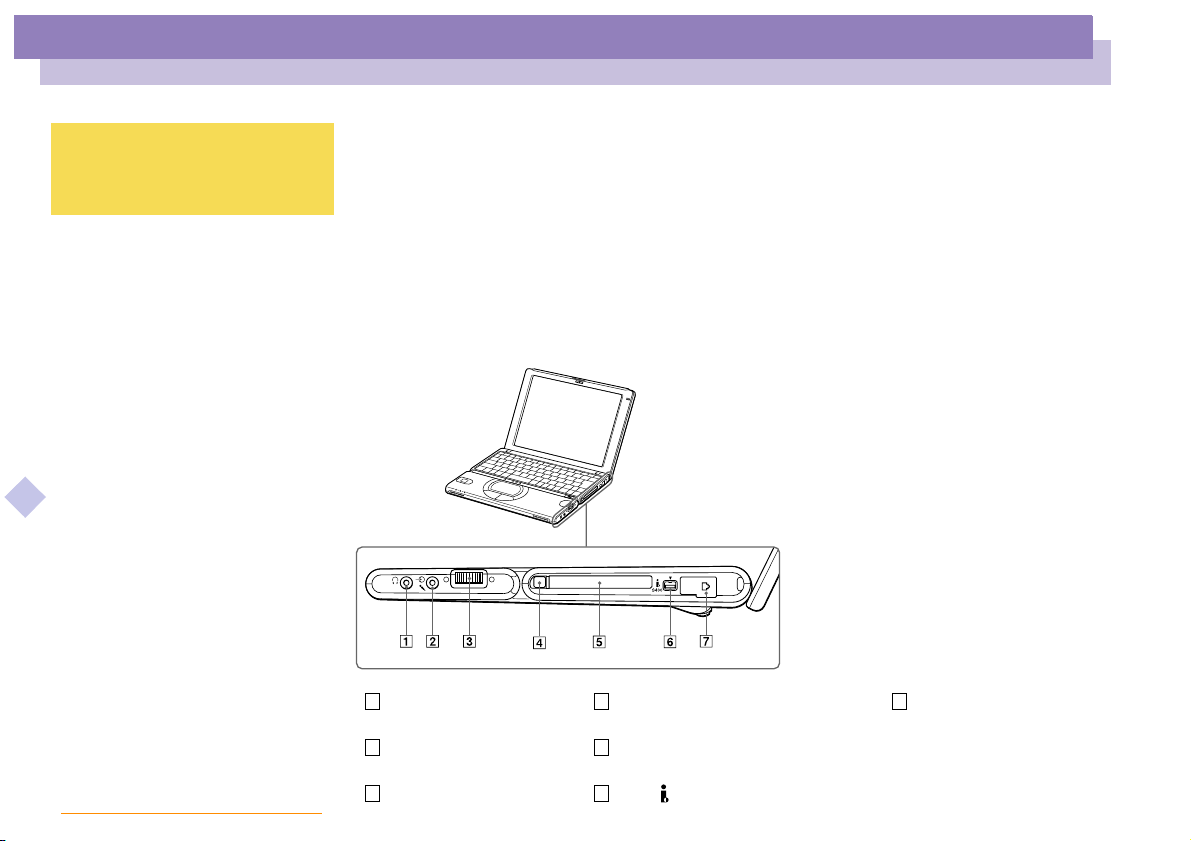

Right
iHeadphone
connector (page 59) PC Card eject button (page 42) Phone Line jack (page 48)
Line in/mic
connector (page 60) PC card slot (page 42)
Jog Dial (page 31) S400 i.LINKTM connector (page 57)
✍Phone cable and connectors are
TNV (Telecommunication Network
Voltage), according to EN60950.
1 4 7
2 5
3 6

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
13
nN

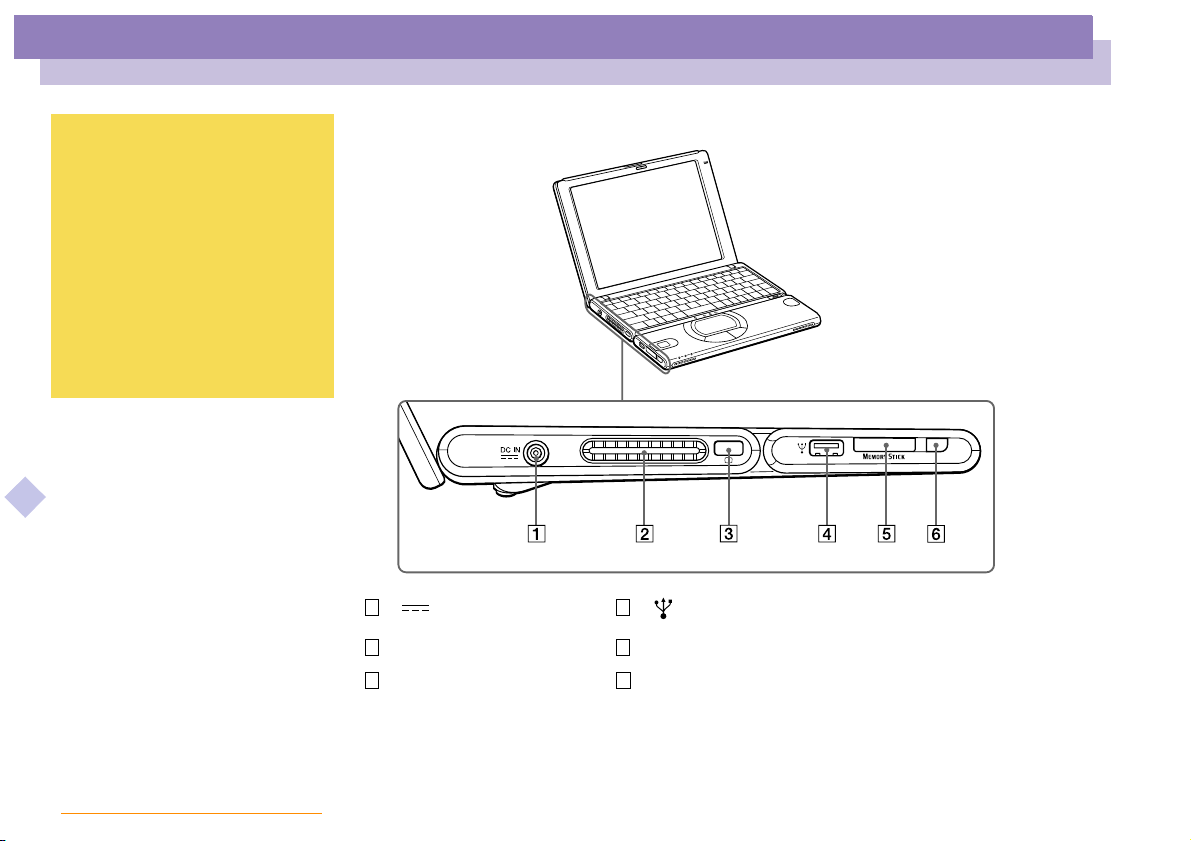

Left
DC In (page 16) USB connector (page 49)
Ventilation slot Memory Stick™ slot (page 38)
Monitor connector (page 54) Memory Stick™ eject button (page 39)
✍AC adapter mains connector and
power cord: hazardous voltage,
according to EN 60950.
All other connectors for this
notebook are SELV (Safety Extra
Low Voltage), according to
EN 60950.
✍There is a ventilation slot located
near the DC In connector. Do not
cover the ventilation slot when your
computer is on.
1 4
2 5
36

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
14
nN

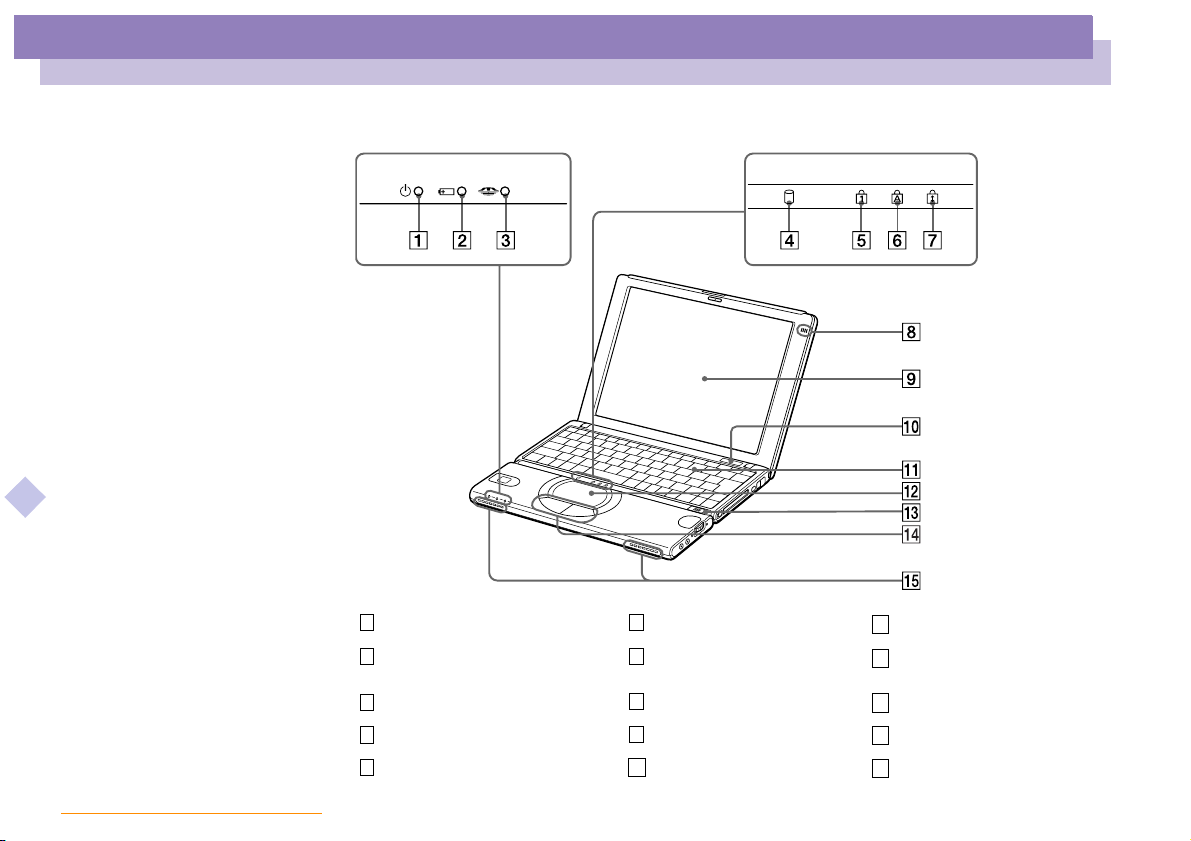

Front
Power indicator (page 27) Caps Lock indicator (page 27) Keyboard (page 24)
Battery indicator (page 27) Scroll Lock indicator (page 27) Touchpad (page 36)
Memory Stick™ indicator (page 38) Internal microphone 1Power switch (page 21)
Hard disk drive indicator (page 27) LCD screen (page 29) Left/right buttons (page 36)
Num Lock indicator (page 27) ID Label Speakers
1 6 11
2 7 12
3813
4914
510 15

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
15
nN
Back
Bottom

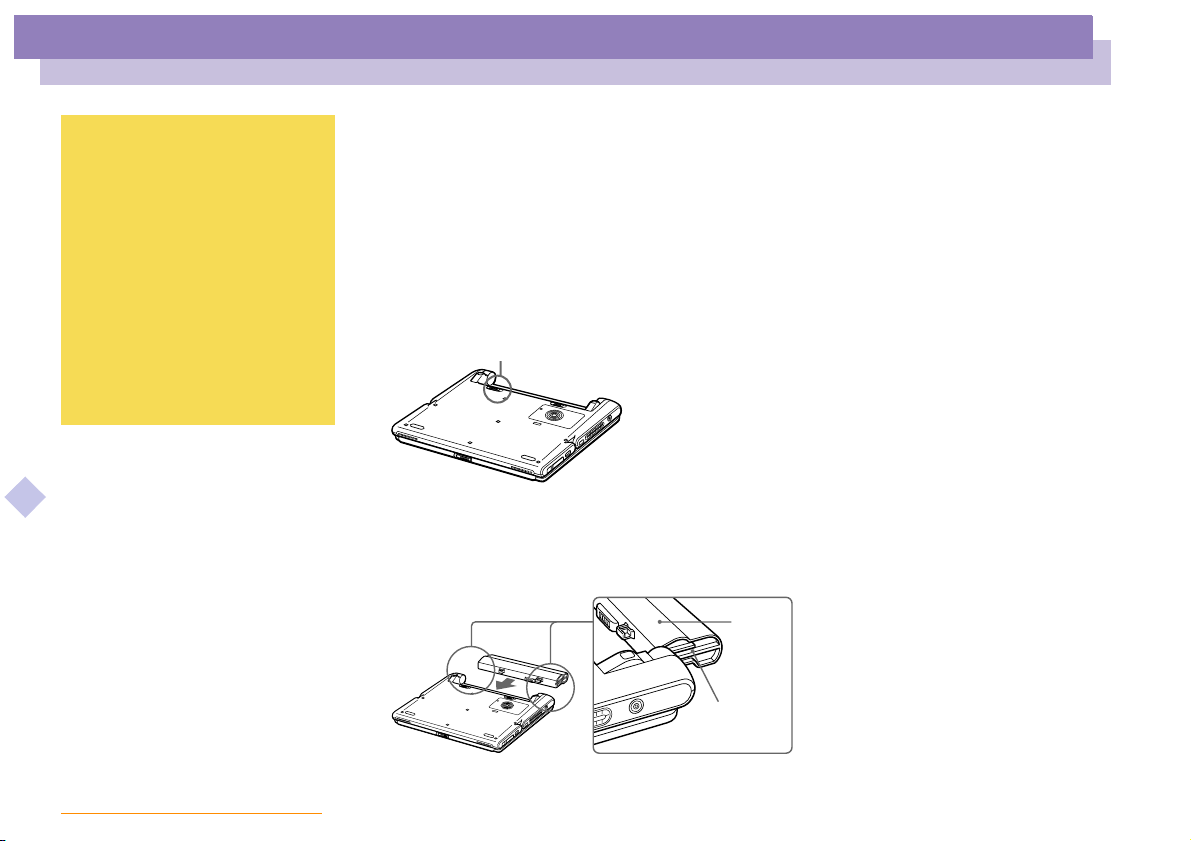

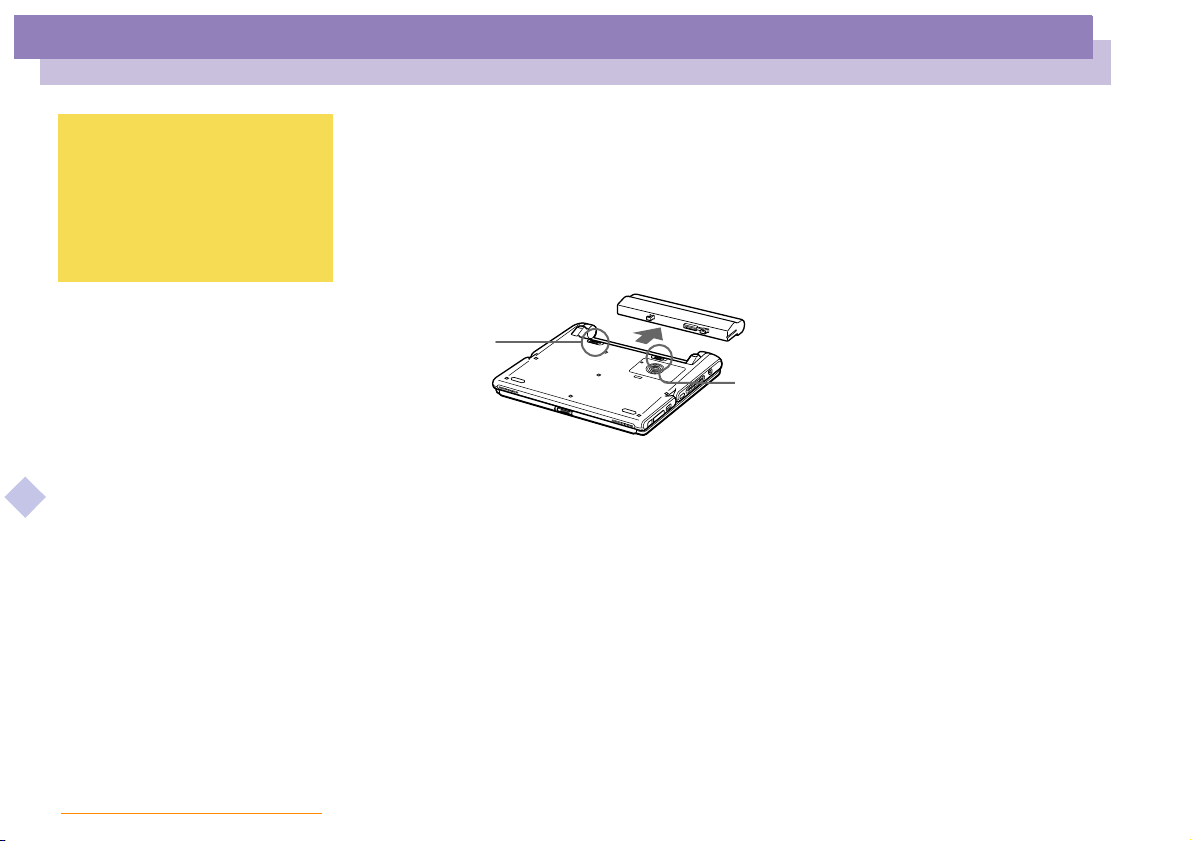

Battery connector (page 17)
Battery lock lever (page 17) Battery release lever (page 17) Ventilation slot
1
1 2 3

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
16
nN
Connecting a Power Source
You can use either AC power or a rechargeable battery pack as a power source.
Using the AC Adapter
1Plug the cable attached to the AC adapter into the DC In connector on the
computer.
2Plug one end of the power cord into the AC adapter.
3Plug the other end of the power cord into an AC outlet.
✍Use your notebook only with the
supplied AC adapter.
To disconnect your notebook
completely from mains voltage,
unplug the AC adapter.
Please make sure that the socket
outlet is easily accessible.
1
3
2
SELV according to EN 60950
Notebook computer
AC adapter
(supplied)
DC in
Power cord (hazardous voltage accordin
g
EN 60950)
(supplied)

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
17
nN
Using Battery Power
You can use a battery pack as a source of power.
The battery pack supplied with your computer is not fully charged at the time of
purchase. Follow the steps below to insert and charge the battery pack.
To insert the battery pack
1Move the lock lever on the bottom of the computer to the UNLOCK position.
2Align the grooves and tabs on the battery with the tabs and notches on the back of
the computer, and then slide the battery towards the computer until it clicks into
place.
3Slide the lock lever into the LOCK position to secure the battery on the computer.
!You may lose data if you remove
the battery pack while the
computer is on and not connected
to the AC adapter or if you remove
the battery while the computer is
in system suspend mode.
✍You can remove the battery pack
without turning off the computer
when it is connected to the mains
voltage (AC adapter).
Before you remove/insert the
battery pack, close the cover.
Battery lock lever
Battery pack
Grooves

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
18
nN
To charge the battery pack
1Connect the AC adapter to the computer.
2Insert the battery pack.
The computer automatically charges the battery (the battery indicator light flashes in
a double blink pattern as the battery charges). When the battery is 85% full, the
battery indicator light turns off This process takes about 2 hours when power is off. It
takes 5.5 hours when power is on. To charge the battery completely, continue charging
for additional 3 hours.

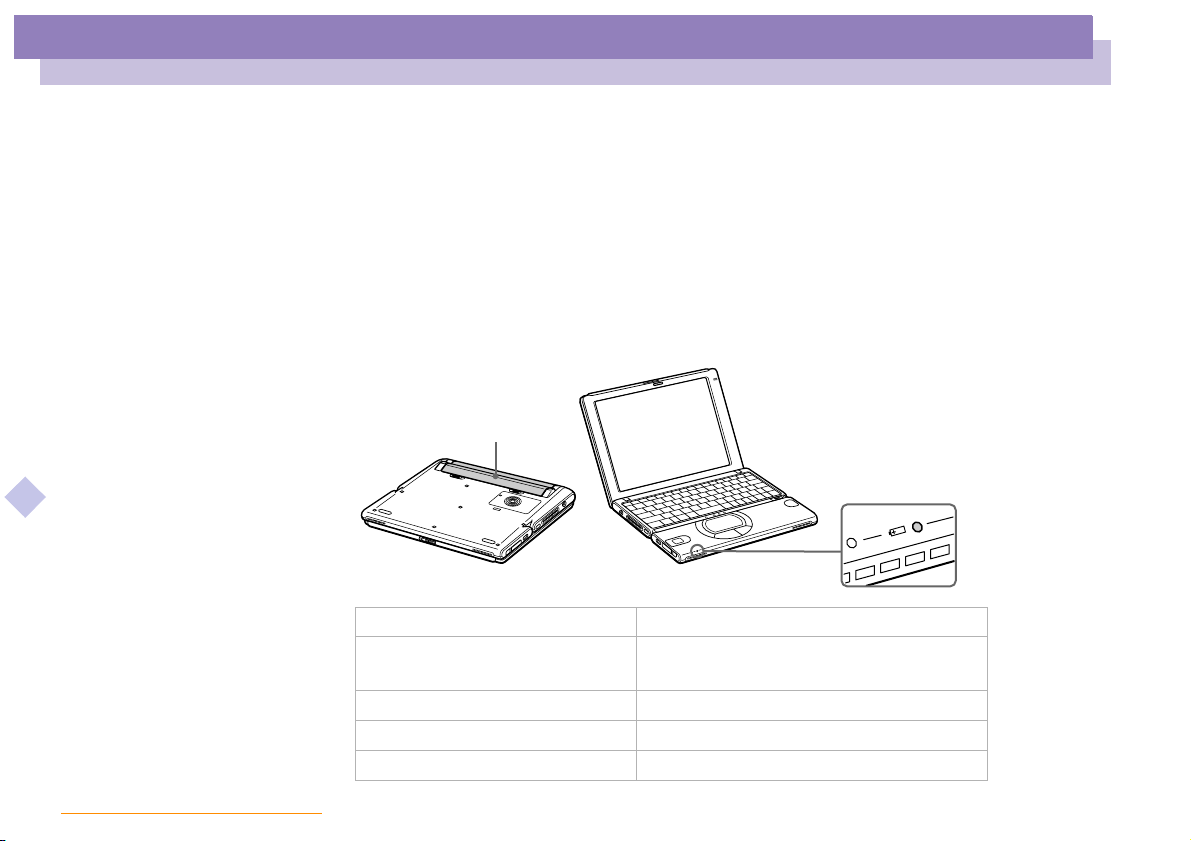

Battery Indicator Light Status Meaning
On The computer is using battery
power.
Single blink The battery is running out of power.
Double blink The battery is charging.
Off The computer is using AC power.
Battery pack
(supplied)
Battery indicator

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
19
nN
✍For some software applications and some peripheral devices, your computer may not enter system
hibernation mode when battery life is low. To avoid loss of data when using battery power, you should save
your data frequently and manually activate a power management mode, such as system suspend or system
hibernation.
When the battery is running out of power, both the battery and power indicators blink.
To determine the time the battery lasts, please refer to "Displaying Battery information" in your Software
Guide.
Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues
to charge while you are using the computer.
If the battery level falls to below 10%, you should either attach the AC adapter to recharge the battery or
shut down your computer and insert a fully charged battery.
You can extend battery life by changing the power management modes in the PowerPanel utility. See your
Software guide, in “Controlling Power Management".
The battery pack supplied with your computer is a lithium ion battery and can be recharged at any time.
Charging a partially discharged battery does not affect battery life.
The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly
depleted, the battery indicator starts flashing.
When the computer is directly connected to AC power and has a battery pack inserted in the battery bay, it
uses power from the AC outlet.

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
20
nN
To remove the battery pack
1Turn off the computer and close the cover.
2Slide the lock lever to the UNLOCK position.
3Slide the release lever to the UNLOCK position and slide the battery away from
the computer.
✍You can remove the battery pack
without turning off the computer
when it is connected to the mains
voltage (AC adapter).
Before you remove/insert the
battery pack, close the cover.
Battery lock lever
Battery release lever
