Sony Network Walkman NW-E403 User manual

SERVICE MANUAL
Sony Corporation
Connect Bussiness Division
Published by SonyTechno Create Corporation
US Model
NW-E405/E407
Canadian Model
AEP Model
Korean Model
NW-E403/E405/E407
Australian Model
Tourist Model
NW-E405/E407
PORTABLE IC AUDIO PLAYER
9-879-600-08
2006D16-1
© 2006.04
Ver. 1.7 2006.04
SPECIFICATIONS
NW-E403/E405/E407
US and foreign patents licensed from
Dolby Laboratories.
Sampling frequency
ATRAC3, ATRAC3plus, MP3: 44.1 kHz
Audio compression technology
Adaptive Transform Acoustic Coding3 (ATRAC3)
Adaptive Transform Acoustic Coding3plus
(ATRAC3plus)
MPEG1 Audio Layer-3 (MP3): 32 to 320 kbps,
variable bit rate-compliant
Frequency response
20 to 20,000 Hz (single signal measurement)
Interface
Headphone: Stereo mini
USB
Signal-to-noise ratio (S/N)
80 dB or more (excluding ATRAC3 66 kbps)
Dynamic range
85 dB or more (excluding ATRAC3 66 kbps)
Operating temperature
5˚C to 35˚C (67˚F to 95˚F)
Power source
• Built-in rechargeable lithium-ion battery
• USB power (from a computer through supplied
USB cable)
Battery life (continuous
playback)*
ATRAC3 format: Approximately 50 hours
(Playback at 105 kbps)
ATRAC3plus format: Approximately 45 hours
(Playback at 48 kbps)
MP3 format: Approximately 40 hours
(Playback at 128 kbps)
* This is when the power save setting is normal.
The battery duration will vary depending on
temperature and usage.
Maximum recording time (Approx.)
ATRAC3plus
2 hr. 10 min. (256 kbps)
8 hr. 40 min. (64 kbps)
11 hr. 40 min. (48 kbps)
ATRAC3
4 hr. 10 min. (132 kbps)
5 hr. 20 min. (105 kbps)
8 hr. 30 min. (66 kbps)
NW-E403
ATRAC3plus
4 hr. 20 min. (256 kbps)
17 hr. 30 min. (64 kbps)
23 hr. 30 min. (48 kbps)
ATRAC3
8 hr. 30 min. (132 kbps)
10 hr. 40 min. (105 kbps)
17 hr. 00 min. (66 kbps)
NW-E405
MP3
2 hr. 10 min. (256 kbps)
4 hr. 20 min. (128 kbps)
MP3
4 hr. 20 min. (256 kbps)
8 hr. 50 min. (128 kbps)
ATRAC3plus
8 hr. 50 min. (256 kbps)
35 hr. 00 min. (64 kbps)
47 hr. 00 min. (48 kbps)
ATRAC3
17 hr. 00 min. (132 kbps)
21 hr. 40 min. (105 kbps)
34 hr. 10 min. (66 kbps)
NW-E407
MP3
8 hr. 50 min. (256 kbps)
17 hr. 40 min. (128 kbps)
Dimension
84.9 × 28.8 × 13.9 mm ( 3 3/8 × 1 3/16 ×
9/16
inches)
(w/h/d, projecting parts not included)
Mass
Approx. 47 g ( 1.7 oz)
Supplied accessories
Headphones (1)
Dedicated USB cable (1)
Extension headphone cord (NW-E407 only) (1)
Carrying pouch (NW-E407 only) (1)
Clip (1)
CD-ROM for the SonicStage software, PDF file
Operating Instructions, and PDF file SonicStage
Operating Instructions (1)
Quick Start Guide
Design and specifications are subject to
change without notice.
Microsoft, Windows and Windows Media are
trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.

2
NW-E403/E405/E407
TABLE OF CONTENTS
1. GENERAL ................................................................... 3
2. DISASSEMBLY
2-1. Disassembly Flow ........................................................... 5
2-2. Lid (Connector) ............................................................... 6
2-3. Cabinet (Inner) ................................................................ 6
2-4. Arm (Shuttle)................................................................... 7
2-5. Knob (Shuttle) ................................................................. 8
2-6. MAIN Board.................................................................... 9
2-7. Organic EL Indicator Module ......................................... 10
3. TEST MODE ............................................................... 11
4. DIAGRAMS

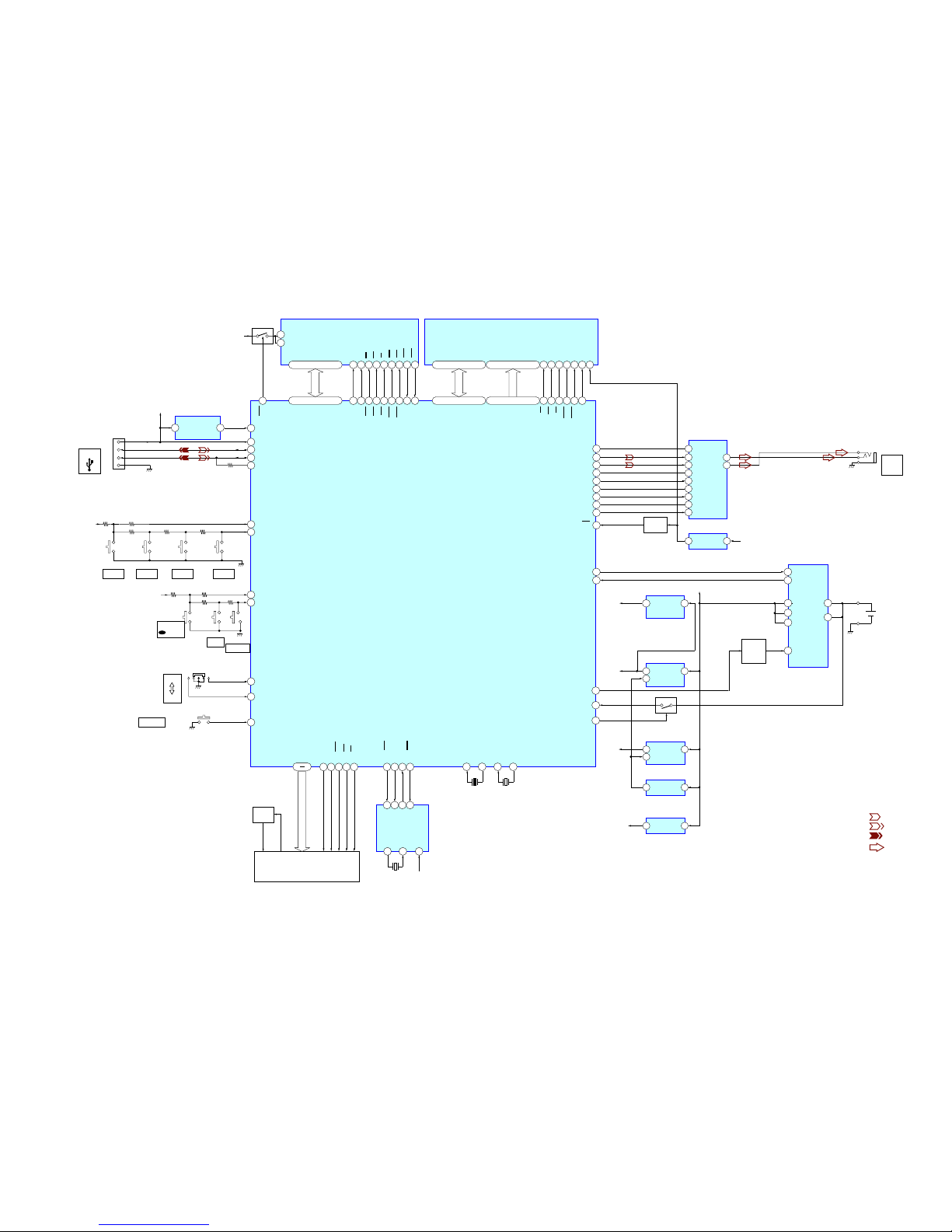

4-1. Block Diagram ................................................................ 13

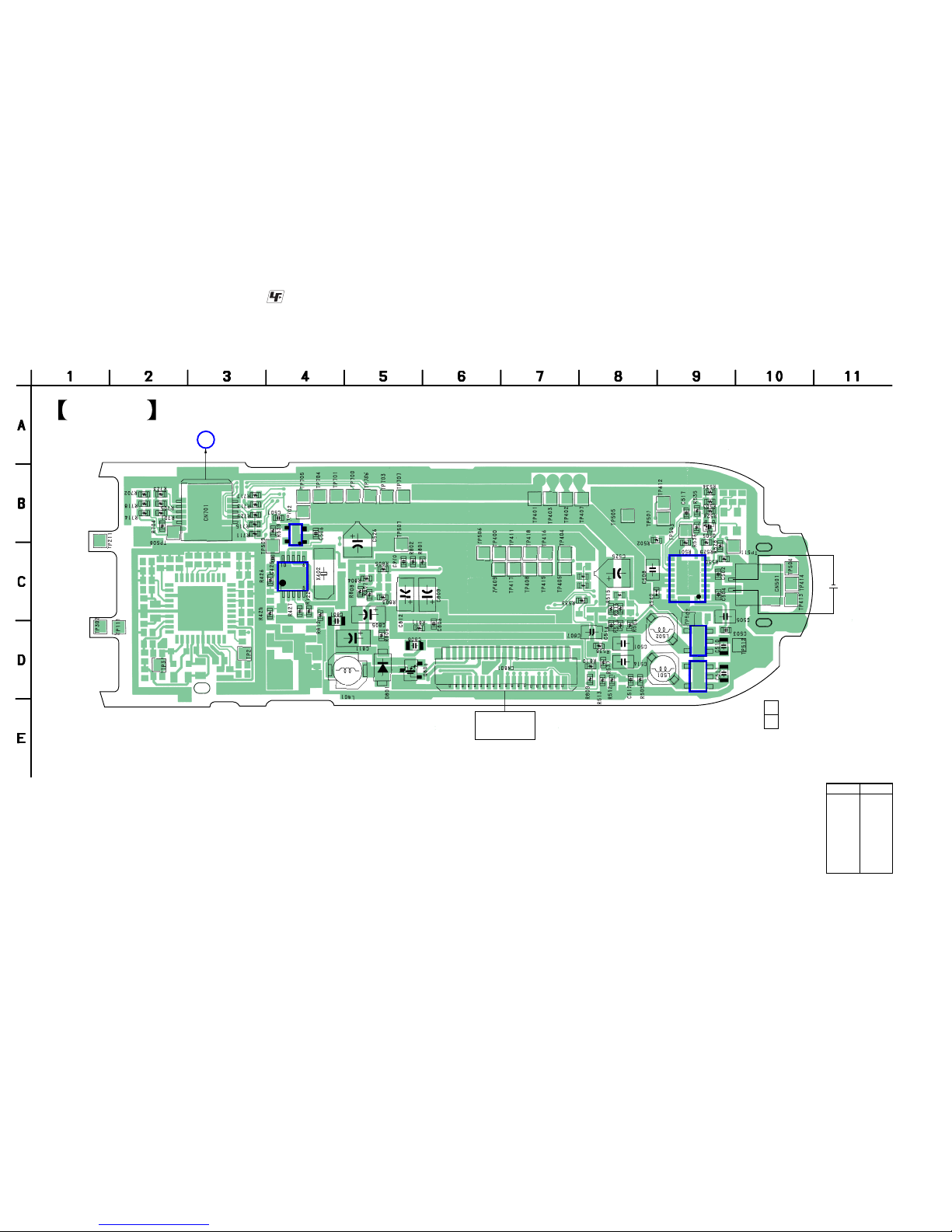

4-2. Printed Wiring Board – MAIN Board (Side A) –........... 14
4-3. Printed Wiring Board – MAIN Board (Side B) – ........... 15
4-4. Schematic Diagram – SW Board, MAIN Board (1/5) – 16
4-5. Schematic Diagram – MAIN Board (2/5) – ................... 17
4-6. Schematic Diagram – MAIN Board (3/5) – ................... 18
4-7. Schematic Diagram – MAIN Board (4/5) – ................... 19
4-8. Schematic Diagram – MAIN Board (5/5) – ................... 20
4-9. Printed Wiring Board – SW Board – .............................. 21
5. EXPLODEDVIEWS
5-1. Overall-1.......................................................................... 24
5-2. Overall-2.......................................................................... 25
6. ELECTRICAL PARTS LIST .................................. 26
Microsoft, Windows and Windows Media are trademarks or
registered trademarks of Microsoft Corporation in the United States
and/or other countries.
US and foreign patents licensed from Dolby Laboratories.
All other trademarks and registered trademarks are trademarks or
registered trademarks of their respective holders.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 °C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
\

3
NW-E403/E405/E407
SECTION 1
GENERAL This section is extracted
from instruction manual.
Locating controls
For details about each part, refer to the pages in parentheses.
Rear sideFront side
1
2
3
5
6
4
7
8
9
0
qa
1Shuttle switch
(pages 17 to 22, 25, 27 to 39)
2Nx button
(pages 14 to 25, 27 to 29, 31 to 39)
3SEARCH/MENU button
(pages 15, 17 to 25, 27 to 29, 31 to 39)
4Display (pages 10, 15, 22, 26)
For details on the display and icons,
refer to page 10.
5VOL (Volume) +/– button (pages 14,
33)
6DISPLAY button (pages 26 to 27)
7REPEAT/SOUND button
(pages 22 to 24, 28)
8Strap hole
9Headphone jack (page 14)
q; Reset button (page 42)
qa USB jack (page 12)
1 Text/graphic information display (pages
15, 22)
Displays album title, artist name, track
number, track name, current date and
time (pages 26 to 28, 31), MESSAGE
(page 46) and menu.
Press the DISPLAY button to switch the
display mode (pages 26 to 28). Switch
the display to Power Save or Display
OFF mode when you do not operate the
unit for a while (page 35).
2Current track number/total track number
of the Play Range
The track number currently selected or
being played back and the total track
number of the current Play Range is
displayed.
3Playing status indicator
Display current playback mode (N:
playback, x: stop) and elapsed time.
4Repeat mode indication (page 22)
The current repeat mode icon is
displayed.
5Digital sound preset indication
(pages 28 to 29)
The current digital sound preset is
displayed if set.
6Remaining battery indication (pages 12
to 13)
The remaining battery power is
displayed.
Display
Artist
01:23
2 SHUF
Track 1
1/32
12
3546

4
NW-E403/E405/E407
Adjusting the
current time
setting
(Date-Time)

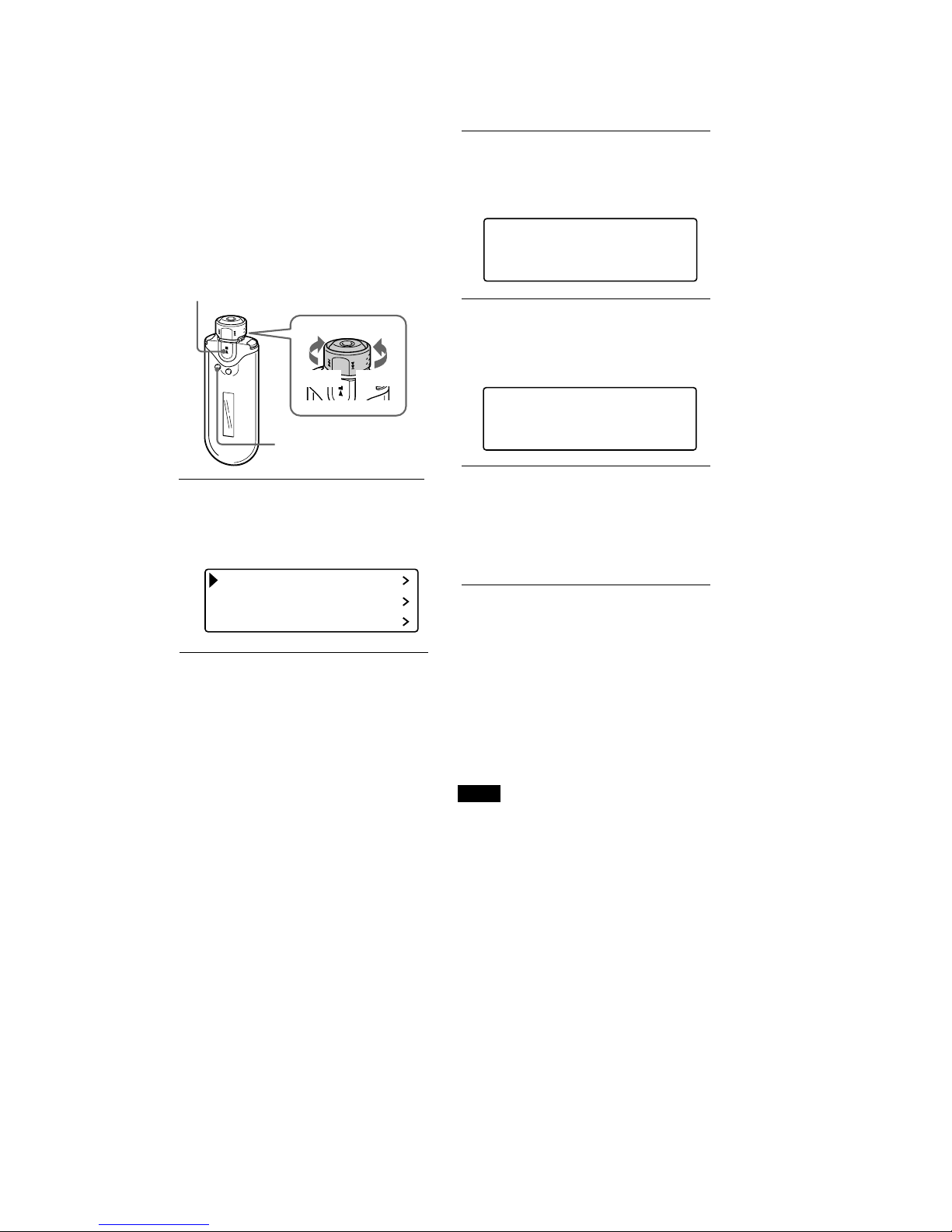

You can set and display the current time.
1Press and hold the SEARCH/
MENU button for half a second in
stop mode.
The menu screen is displayed.
Repeat Mode
Sound
Volume Mode
2Rotate the Shuttle switch to select
“Date-Time>” and press the Nx
button to confirm.
The year digit is displayed in [ ].
Y
[2005] 01 / 01 15 : 00
MDhm
3Rotate the Shuttle switch to adjust
the “year” setting and press the
Nx button to confirm.
The month digit is displayed in [ ].
Y
2005 [01]/ 01 15 : 00
MDhm
4As you did in step 3, adjust the
settings for “month”, “date”,
“hour”, and “minute”.
After rotating the Shuttle switch to
adjust the time and date setting, pressing
the Nx button to confirm.
Nx button
SEARCH/
MENU button
Shuttle switch
to >to .
To cancel the Menu mode
Press the SEARCH/MENU button to return the
screen to the previous stage. Press repeatedly to exit
menu mode.
To display the current time
Press the DISPLAY button repeatedly until the
“Clock” is displayed (page 26).
Note, however, when the “Clock” is set to off in the
Display Screen menu (page 27), you cannot display
the current time by the procedure above.
Notes
• If the unit is not used for a long time, your
settings for date and time may need to be reset.
• If the current time is not set, the display for the
date and time will show “--”.

5
NW-E403/E405/E407
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2-2. LID (CONNECTOR)
(Page 6)
2-3. CABINET (INNER)
(Page 6)
2-6. MAIN BOARD
(Page 9)
2-7. ORGANIC EL INDICATOR MODULE
(Page 10)
2-4. ARM (SHUTTLE)
(Page 7)
2-5. KNOB (SHUTTLE)
(Page 8)
SET
2-1. DISASSEMBLY FLOW

6
NW-E403/E405/E407
2 Open the lid (connector) in the
direction of the arrow.
4 Lid (Connector)
3 two tapping screws 1.4
1 two claws
2 cabinet (top)
3 cabinet (inner)
1 two adhesive sheets (cabinet)
Note: Follow the disassembly procedure in the numerical order given.
2-2. LID (CONNECTOR)
2-3. CABINET (INNER)

7
NW-E403/E405/E407
3 two springs (slide)
4 knob (shuttle), arm (shuttle),
spring (shuttle)
two springs (slide)
5 knob (shuttle),
spring (shuttle)
6 arm (shuttle)
Printed side
2 cover (jack)
1 two claws

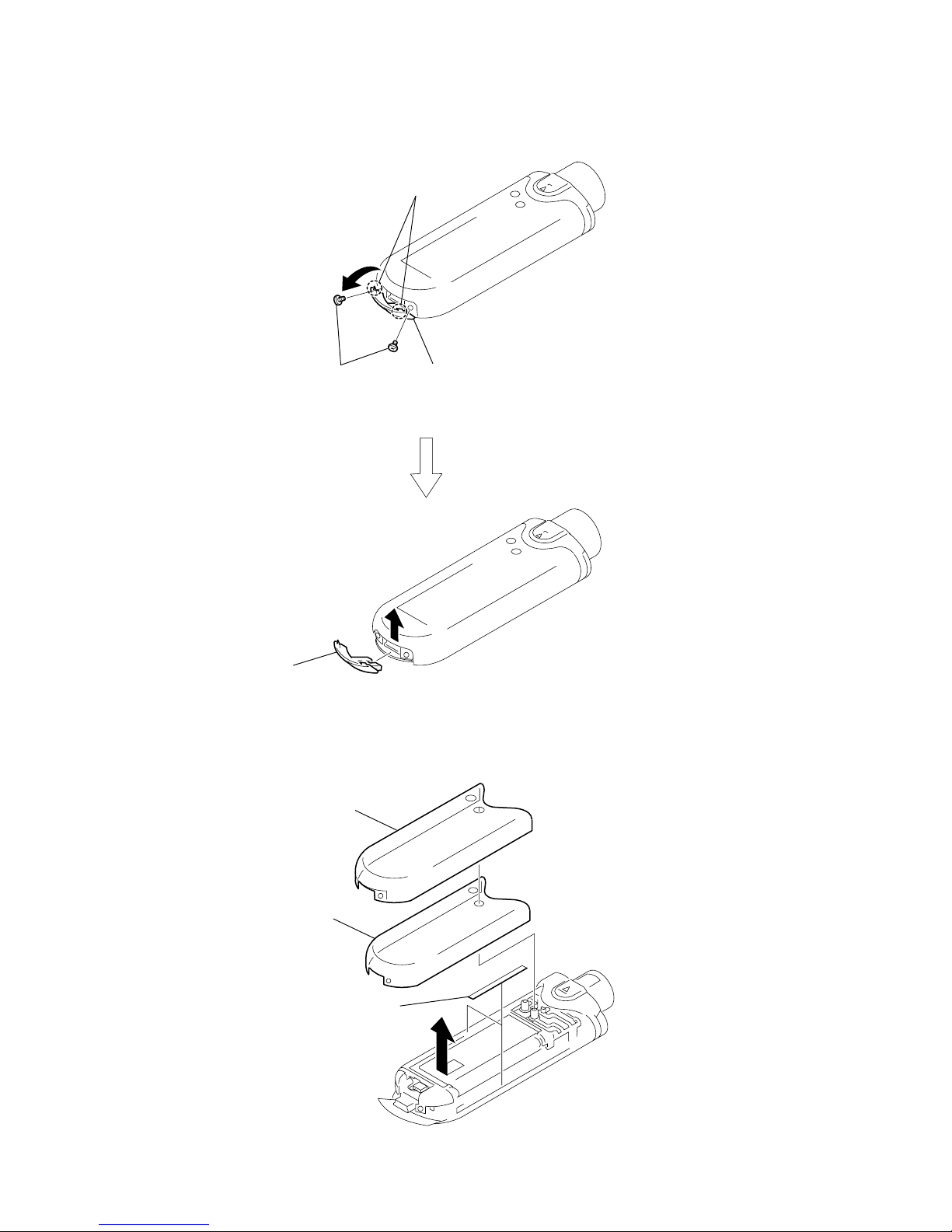

2-4. ARM (SHUTTLE)

8
NW-E403/E405/E407
2-5. KNOB (SHUTTLE)
2 knob (shuttle)
1 spring (shuttle)
2 spring (shuttle)
1 Tentatively install the
spring (shuttle), and
move in the direction
of the arrow.
Printed side
Printed side
Printed side
How to install the spring

9
NW-E403/E405/E407
2-6. MAIN BOARD
2 connector
1 sheet (connector)
3 five claws
4 connecto
r
8 spacer
(VOL)
9 sheet
(shield)
6 spacer
(PWB)
0 MAIN board
5 organic EL indicator
module connector

10
NW-E403/E405/E407

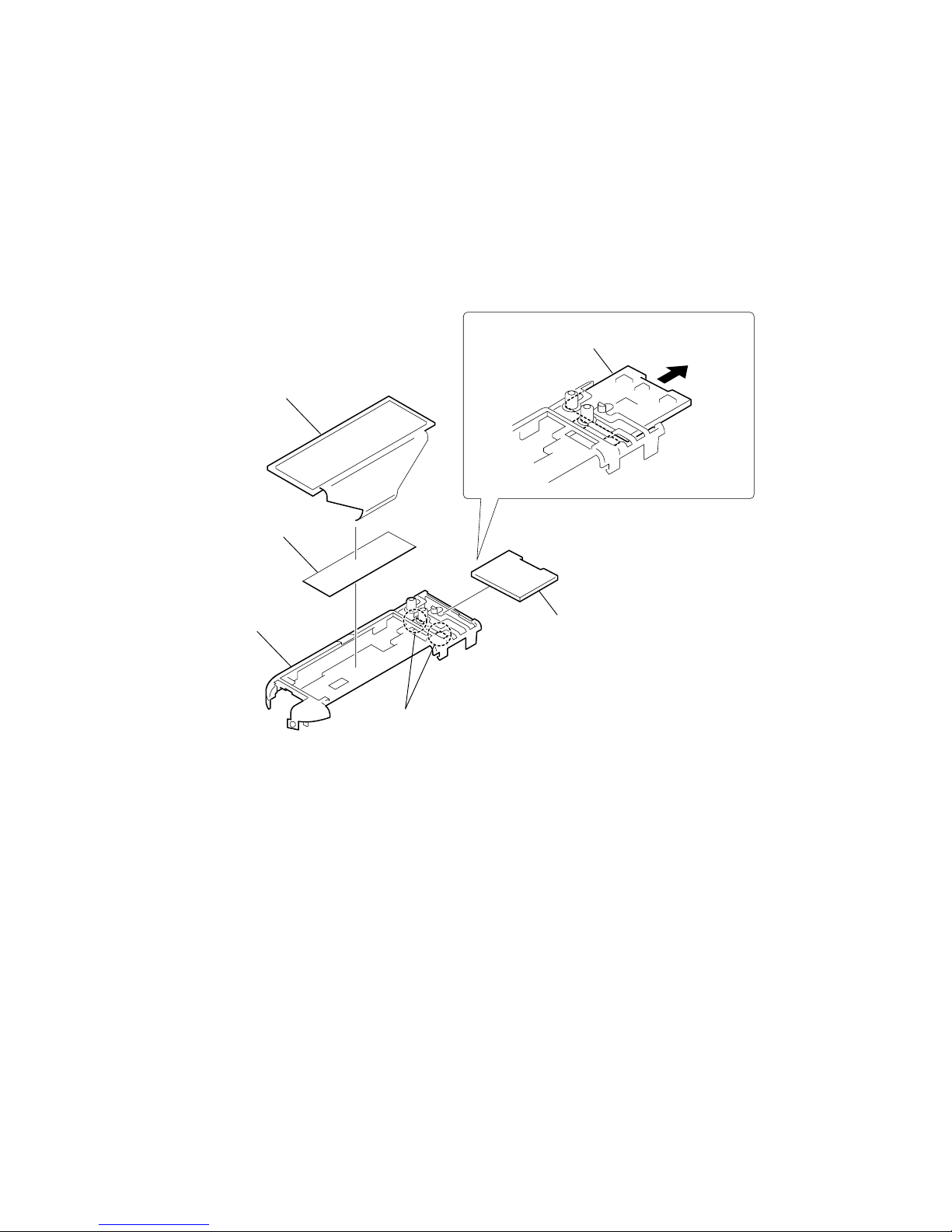

2-7. ORGANIC EL INDICATOR MODULE
2 Remove the SW board
in the direction of the arrow.
3 SW board
1 two claws
6 organic EL indicator
module
4 adhesive sheet (panel)
5 two buttons (top),
chassis

11
NW-E403/E405/E407
SECTION 3
TEST MODE
STANDING PROCEDURE
Procedure 1: In HOLD state, while pushing Nx button, push
[REST].
When the test mode is set, the LCD display appears
as shown below.
Procedure 2: After starting up test mode, the following contents
can be checked.
TEST MODE
• Nx button
The KEY test mode is activated. All key inputs are completed,
then Nx button is pressed, restart. (Be aware that the
initialization is included on all key input.)
• [MENU] button
“MENU KEY” appear.
• [DISP] button
“DISP KEY” appear.
• + > knob
Change charge mode (100 mA/500 mA).
• . – knob
Charge on/off.
• [GROUP] on state
LCD checked pattern.
• [GROUP] off state
“GROUP KEY OFF” appears.
• [GROUP ] knob
All LCD lights on.
• [GROUP ] knob
All LCD lights off.
• [VOL +] button
BEEP turns on.
• [VOL --] button
BEEP turns off.
• [ REPEAT SOUND] button
Initialized. (Turns to the factory preset state, time, volume setting
and so on.)
The music data, files and so on in the memory are not changed.
•
256M 1.00.04 G10
<
,

12
NW-E403/E405/E407 SECTION 4
DIAGRAMS
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted. (p: pF) 50 WV
or less are not indicated except for electrolytics and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise speci-
fied.
•%: indicates tolerance.
•C: panel designation.
•: B+ Line.
•Voltages and waveforms are dc with respect to ground under
no-signal (detuned) conditions.
no mark : PLAY
*: Impossible to measure
•Voltages are taken with aVOM (Input impedance 10 MΩ).
Voltage variationsmaybe noted due tonormal production toler-
ances.
•Waveforms are taken with a oscilloscope.
Voltage variationsmaybe noted due tonormal production toler-
ances.
•Circled numbers refer to waveforms.
•Signal path.
E: PLAY BACK
a: DIGITAL OUT
k: DIGITAL IN
F: AUDIO
Note on Printed Wiring Board
• X: parts extracted from the component side.
• Y: parts extracted from the conductor side.
• : Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from
(Side A) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side B) the parts face are indicated.
• MAIN board is multi-layer printed board.
However, the patterns of intermediate-layer have not been in-
cluded in the diagram.
*Replacement of IC400 on MAIN board requires a special
tool.
• Lead Layouts
surface
CSP (Chip Size Package)Lead layout of conventional IC

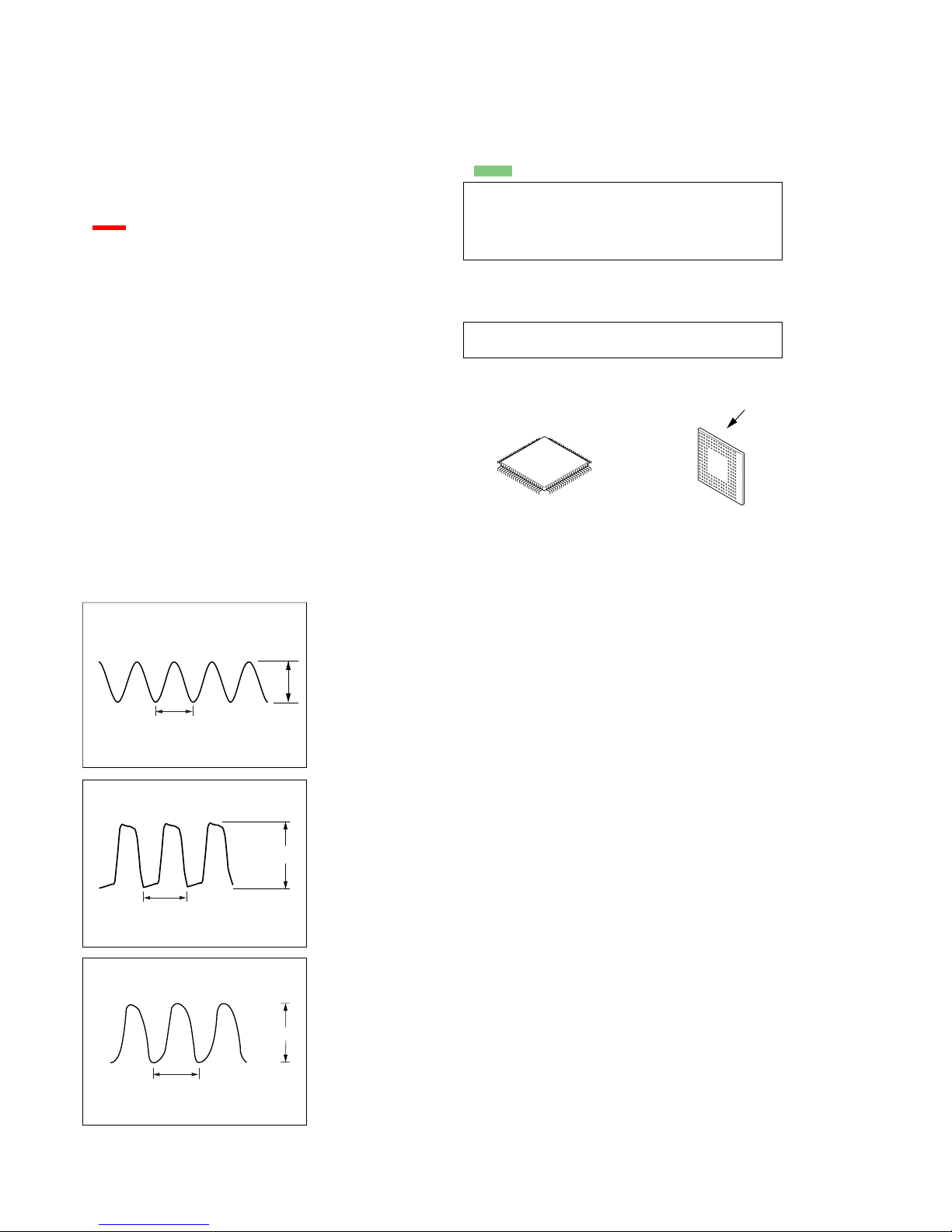

•Waveforms
1 IC400 <zcm (XTAL)
44.3 ns
2.2 Vp-p
500 mV/DIV, 20 ns/DIV
2 IC400 <zvz (TX)
62.5 ns
1 V/DIV, 20 ns/DIV
3.4 Vp-p
3 IC401 8(OSCOUT)
16.3 µ s
500 mV/DIV, 20
µ s/DIV
1.5 Vp-p
Ver. 1.5

1313
NW-E403/E405/E407
NW-E403/E405/E407
4-1. BLOCK DIAGRAM
REG USB
IC501(1/2)
NOR FLASH / SRAM
IC450
NAND FLASH RAM
IC1461
USB
CN400
CONNECTOR
USB LD 1
12
1
20
2
3
5
126
38 - 53
185
197 - 207, 2 - 10
187 184 183186 182
15 - 22
29 - 32, 41 - 44 29 - 36, 38 - 45 11 1 - 9, 16 - 25, 48 13 14 1526 28
16 17 18 19 8 9
128
129
130
102
104
83
176 191 185 182
76 74 75 73
8910
52
133
151
134
127
DATA -
DATA +
GND
VBUS
VDIOUS
UDM
UDP
TRON
VBUS
VBUS
AN4
AN6/INT8
S708
>
S701
.
PF2/EC2/INT4
VDDOUT
VOUT
VOUT
EN
VDD
VDD
VOUT VIN
VOUT
EN
VIN
INA
MUTETC
+2.8V
Q501,502
OUTA
INB
STB
OUTB
OSCOUT XRES XCS XWR XRD OSCIN VDD
CE
SI
SO
SCLK
+2.3V
PI5/MUTFGL
177
DC RESE GDR
PI6/MUTFGR PO0/D0 PO7/D7 PK5/CS5 PJ4/WE PJ1/RE PE7/SCS1 PE5/SO1 PE6/SI1 PE4/SCK1
PQ5
150
PQ4
149
PQ3/PGMTR3
148
PQ2/PGMTR2
147
PQ1/PGMTR1
106
RST
AOUTR
146 PQ8/PGWTR8
AOUTL
PI3/BCK
VCC
37 VCC
FCE0 FCLE
FAD0 - 7 A1 - 20D0 - 15
FRE
FWP
FWE
FALE
PK1/CSI
PJ4/WE
PJ1/
PK0/CS0
PJ2/LWR/
PJ3/UWR/
CE0 CLE
I/O1 - 8 A1 - 20DQ0 - 15
RE WP WE ALE BES WE OE
10
XRST BEF LBS UBS
LCD901
LIQUID
CRYSTAL
DISPLAY
LCD
DRIVE RTC
IC401
SYSTEM CONTROLLER
IC400
X402
32.768KHZ
R+2.8V
137 138
XTAL EXTAL
X400
22.579MHz
141 142
TE TEX
X401
16MHz
+1.2V REG.
IC505
CORE SW
IC507
+2.8V REG.
IC506
+VIO
+1.2V
+2.8V
+2.3V
+2.8V
Q503,504
J301
HP AMP
IC301
+2.3V REG.
IC509
+2.8V REG
IC508
RESET
Q506,507
Q505
CHG
CONTROL
S703
VOL –
S702
VOL +
103
105
AN5
AN7/INT9
+2.3V BT901
RECHARGEABLE
BATTERY
Li-ion Mn
1PC,4.0V
S707
PF0/EC0/INT3
S705
REPEAT
SOUND S704
DISP S709
SEARCH
S706
Nx
NAND FLASH INTERFACE
USB INTERFACE
A/D, D/A CONVERTER
SERIAL INTERFACE
84PF3/T3
IC501(2/2)
POWER CONTROL
23 24 26 28 27
7 6
FRB0 FRB1
R/B0 R/B1
30 3229
10
FCE1 CE1
31
174
7432
USB
87 PG1/DREQ0/INT5
81
i
5 1
4 4
86
7
2
515
16
17
12
6
PG0/DACK0
ISET2
STAT1
OUT
OUT
TS
OUT
BAT
BAT
171PI0/DADT
99AN1
33PP0/RP
OUT VDD
IC503
+2.8V REG
R+2.8V 4 2
24
39
DATA
38
CLK
37
MUTE
34
RESET
36
PWRSW
35
24
25
85 PF4/BEEP 28
5
2
3
5 2
3
Q801
38 45
D0-D7
• SIGNAL PATH
: PLAY BACK
: DIGITAL OUT
: DIGITAL IN
: AUDIO
G
G
GROUP
HOLD

1414
NW-E403/E405/E407
NW-E403/E405/E407
4-2. PRINTEDWIRING BOARD – MAIN BOARD (SIDE A) – :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D801 D-5
IC401 C-4
IC501 C-9
IC503 B-4
IC505 D-9
IC506 D-9
Q505 B-9
Q801 D-6
IC401
IC503
IC501
IC506IC505
A
SW BOARD
CN702
(Page 21)
1
2
BT901
RECHARGEABLE
BATTERY
Li-ion Mn
1PC, 4.0V
LCD901
LIQUID CRYSTAL
DISPLAY
MAIN BOARD (SIDE A)
1-866-679- (11)
11
R3019
R3020
R3011
1
2
39
38
1
21
3
5
4
1
1
10
20
11
3
5
4
1
1
23
4
3
5
4

1515
NW-E403/E405/E407
NW-E403/E405/E407
4-3. PRINTEDWIRING BOARD – MAIN BOARD (SIDE B) – :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D301 B-3
IC301 C-4
IC400 C-8
IC450 B-6
IC507 B-10
IC508 D-10
IC509 B-4
IC1461 C-5
Q501 D-6
Q502 D-7
Q503 C-10
Q504 D-10
Q506 D-9
Q507 D-9
✩IC450 on MAIN board cannot be replaced individually.
Replace it with “MAIN BOARD,COMPLETE” for service.
IC400
IC450
IC1461
IC301
IC509
*
*
IC508
IC507
J301
MAIN BOARD (SIDE B)
1-866-679- (11)
11
S710
RESET
S703
S702
S705
REPEAT
SOUND
CSP
(Chip Size Package)
CSP
(Chip Size Package)
i
E407
E403/E405 E407
R3729
1
1
3
5
4
11
12
22 23 33
34
44
1
5
Ver. 1.5
*Replacement of IC400 on MAIN board requires a special
tool.

1616
NW-E403/E405/E407
NW-E403/E405/E407
4-4. SCHEMATIC DIAGRAM – SW BOARD, MAIN BOARD (1/5) – •See page 22 for IC Block Diagram. • See page 12 for Waveform.
19
19
20
17
VDR702
VDR703
VDR704
VDR705
R700
R703
R701
R702
R704
R711
R714
R715
R717
R718
R721 R724
TP701
TP700
TP703
TP401
TP402
TP403
TP407
IC401
R426
R427
R461
R1465
TP400
S702
S703
S705
CN702
CN701
S706
S707
S701
S708
S709
S704
X402 R1466
IC1461
R1464
C462
R415
R705
R725
R723
R429
TP702 TP705TP704
R709
TP706
R716
R416
C425
47k
22k
22k
10k
10k
10k
22k
10k
10k
22k
10k 10k
ADK2
ADK
WAKE2
DGND TXD0
RXD0
PD4
RV5C348A-E2
10k
220
100k
0
GND
10P
10P
32.768KHz 0
0
0.1
100k
470k
470k
470k
47k
XPLAY GROUPXHOLD
10k
WAKE1
10k
10k
0.1
*1
E403/E405
K05SONY03
E403

1717
NW-E403/E405/E407
NW-E403/E405/E407
4-5. SCHEMATIC DIAGRAM – MAIN BOARD (2/5) – • See page 12 for Waveforms.
16 18
TP416
TP417
TP415
TP409
TP418
TP406
TP404
TP405
TP412
TP504
TP414
TP413
TP408
X401
TP411
X400
R401 R414
R409
VDR401 VDR406
R732
R733
R735
R421
C419
VDR402
R423 R453
C405
C404
VDR405
VDR403
R430
R431
R722
R713
R720
R422
R424
R419
C417
C701
C703
C705
C401
VDR400
C402
C403
C407
R405
R406
R407
R411
R412
R410
R404
R418
C422
C414
CN400
IC400
C421
R420
C415
C416
C418
C411
C409
C408
C410
C420
R707
R408
C406
C400
C423
R402
R467
R533
R3729
R3011
R3019
R3020
MSSCLK
MSBS
MSPWR
XBOOT
XMS
RS1
TXD1
RXD1
DEBUG
VBUS
D-
D+
MSINS
16MHz
MSDI0
22.579MHz
010k
22
0
0
0
100k
0.1
470k 470k
0.1
0.1
220
220
470k
470
0
10k
10k
10k
0.1 C
0.01 B
0.01 B
0.01 B
0.001
4.7 6.3V
4.7 6.3V
0.1 B
0
22
22
1M
220
100
220
220
0.1
0.1
5P
CXR704060
-202GA
0.1
10k
10p
10p
0.1
1
0.1 B
1
4.7 6.3V
1000p
4.7k
2.2k
0.1
0.1
1000p
2.2M
2.2M
470k
0
470k
470k
470k
*Replacement of IC400 on MAIN board requires a special
tool.

1818
NW-E403/E405/E407
NW-E403/E405/E407
4-6. SCHEMATIC DIAGRAM – MAIN BOARD (3/5) –
17
19
19
20
20
19
IC450
CN801
D801
R810 R809
R804 R808
R807 R803
R805 R806
R812
C810
C801
C808
C809
C812
C807
C451
C450
R452
R454
Q801
R455
R450
R451C806
R801
R802
C811
C805
R811
L801
S99-50082
39P
RSX101M-30-TR
470k 100k
10k 47k
220k 470k
0
0
0
100p
10
1
1
35V
1
35V
4.7
0.001
0.1
100k
0
MCH3443-TL-E
LCD DRIVE
0
0
100k1
2.2
2.2
135V
1
35V
0
Ver. 1.5
✩IC450 on MAIN board cannot be replaced individually.
Replace it with “MAIN BOARD,COMPLETE” for service.

1919
NW-E403/E405/E407
NW-E403/E405/E407
4-7. SCHEMATIC DIAGRAM – MAIN BOARD (4/5) – •See page 22, 23 for IC Block Diagrams.
18
18
18
16
20
16
IC507
IC503
IC506
IC505
IC508
IC509
TP503
TP505
TP507
TP506
TP508
TP509
R508
R518
Q502
R507
R520
R511
R517
R525
TP707
R526
L502
R510
R504
R531
TP502R540
R502
R503
R534
R524
R528
R530
Q507
R519
R529
TP501
TP512
R509
R523
TP511
R539
CN501
C502
C503
Q503
R521
R522
R501
R535
R536
TH501
C517
Q505
IC501
C505
C506 C507
C519
C511
R506 R514 C514
R515 R516
C501
C510
R505
R512
C512
R513
C516
L501
C518
Q501
C520
R537
R538
C521
S710
Q506
C504
Q504
TP510
C522
C526
C525
C508
BT901
PST3629UL
MM3032JULE
TPS62200DBVR
TPS62200DBVR
PST3624UL
XC6219B232MR
VDD_USB3.3
VDD_CORE1.2
VDD_NAND2.8
VDD_IO2.8
VDD_AD2.3
VDD_RTC2.8
0
470k
NDS356AP
470k
0
100
10k
100k
RESET
10k
0
470k
10k
UNREG0
100k
100k
47k
470k
10k
470k
3LP01S-K-TL-E
470k
10k
BATT+
GND
470k
470k
CHG_XING
0
2P
0.1
1
2SK3541
T2L
10k
10k
2.2k
47k
2.2k
0.01
2SK3541
T2L
SN412005RHLR
10
0.1 1
1000p
4.7
1M 470k 100p
100k 220k
10
4.7
220k
220k
100p
470k
10
1
2SK3541
T2L
1
0
0
0.022
2SK3541
T2L
1
3LP01S-K
-TL-E
MEM_XRST
0.1
47 10V
47 10V
10
Ver. 1.1

2020
NW-E403/E405/E407
NW-E403/E405/E407
4-8. SCHEMATIC DIAGRAM – MAIN BOARD (5/5) – •See page 22 for IC Block Diagram.
16
19
18
18
D301
R301
R310 R312
R105
R205
R314 R106 R101 R102 R202 R201 R206
R319
R308
R103
R203
C318
C319
C302
VDR101
VDR201
FB211
FB111
TP211
TP111
J301
C321
C211
C111
C309
C312
C313
C314
C201
C101
TP301
C315C316
C103
C203
FB301
IC301
C202C102
C310
C311
C317
TP302
MA3J14700LSO
0
100k 100k
2.2k
2.2k
047k 2 2 k 10k 10k 22k 47k
100k
0
470
470
2.2
2.2
1
0H
0H
HP-R
HP-L
0.01
220 4V
220 4V
10
1
0.22
0.47
100p100p
0.470.47
1
1
0H
TB2173FTG
11
1
0.47
1
HP-COM
