Cypher PUMA User manual

PUMA
Portable Universal Media Archive
User Manual V 2.8
Including PUMABDand Dual Drive
March 2020
Cypher Technology Ltd
Leatherhead, UK
cyphertechnology.com

Table of Contents
1 Description............................................................................................................................4
2 Quick Start Guide..................................................................................................................6
2.1 Turning On......................................................................................................................6
2.2 Making Master and Working Copies of a F ash Card......................................................6
2.3 Turning Off......................................................................................................................6
3 Detai ed Operation................................................................................................................7
3.1 Setting up and Powering PUMA.....................................................................................7
3.2 Making Evidentia backup of F ash Card or USB stick....................................................7
3.3 Turning Off......................................................................................................................8
3.4 Checking for Externa Drive and PUMA Status Information............................................8
3.5 Menu System..................................................................................................................8
3.5.1 To Se ect a Menu Item...............................................................................................8
3.5.2 Main Menu List..........................................................................................................8
3.5.3 Disk to Disk Sub-menu List (Dua Drive On y)............................................................9
3.5.4 Settings Sub-menu List..............................................................................................9
3.5.5 Uti ities Sub-menu List...............................................................................................9
3.6 Main Menu Items............................................................................................................9
3.6.1 Make Working Copy (make simp e fi e copy).............................................................9
3.6.2 Make Encrypted Copy...............................................................................................9
3.6.3 Make Master Copy...................................................................................................10
3.6.4 Hard Disk Master.....................................................................................................10
3.6.5 Disk to Disk..............................................................................................................10
3.6.6 Wipe F ash Card......................................................................................................10
3.6.7 Format F ash card....................................................................................................11
3.6.8 Adjust the Interna Time and Date............................................................................11
3.7 Disk to Disk Sub-menu.................................................................................................11
3.7.1 Disk Copy................................................................................................................11
3.7.2 Encrypted Disk Copy...............................................................................................11
3.7.3 Working from Master...............................................................................................11
3.8 Settings Sub-menu.......................................................................................................12
3.8.1 Navigation and Settings...........................................................................................12
3.8.2 Set Master Disk Type..............................................................................................12
3.8.3 Set Working Disk Type............................................................................................12
3.8.4 Enab e JPEG creation on Working Copies...............................................................12
Cypher Technology Ltd V2.8(14) March 2020 2

3.8.5 Adjust the Internal Time and Date............................................................................12
3.9 Utilities Sub-menu.........................................................................................................12
3.9.1 Make ideo D D.....................................................................................................12
3.9.2 erify Master Copy against Flash Card...................................................................12
3.9.3 erify Multi-Disk Master Set.....................................................................................13
3.9.4 Restore the Master Copy to a Flash Card................................................................13
3.9.5 Restore Multi-Disk Master Set.................................................................................13
3.9.6 Calculate the Checksum of the Flash Card..............................................................13
3.9.7 Calculate the Checksum of the Master Disk Image..................................................13
3.9.8 Software Installation Procedure...............................................................................13
4 Technical Background.........................................................................................................15
4.1 PUMA Master Copy (bit for bit copy).............................................................................15
4.1.1 Full Image Master....................................................................................................15
4.1.2 Compact Master......................................................................................................15
4.1.3 Quick Master...........................................................................................................15
4.1.4 The Compact Master process..................................................................................16
4.1.5 Why archive the file system?...................................................................................16
4.1.6 Partition Table..........................................................................................................16
4.1.7 File allocation information........................................................................................17
4.1.8 File un-deletion........................................................................................................17
4.1.9 Historical file data....................................................................................................17
4.1.10 Media history and fragmentation............................................................................17
4.2 PUMA ancillary functions..............................................................................................17
4.2.1 Disk erify Read......................................................................................................17
4.2.2 Working Copy (file copy)..........................................................................................18
4.2.3 Card and Disk Checksum........................................................................................18
4.2.4 Flash Card Wipe (Erasing).......................................................................................18
4.2.5 AES 256 Encryption.................................................................................................18
4.3 System Architecture......................................................................................................19
4.4 Transfer Times..............................................................................................................19
4.5 RAW File handling........................................................................................................19
5 Technical Support...............................................................................................................20
5.1 System re-starting in the event of failure.......................................................................20
5.2 Contact.........................................................................................................................20
5.3 Software Updates.........................................................................................................20
6 Specifications......................................................................................................................21
7 Disclaimer...........................................................................................................................21
Cypher Technology Ltd V2.8(14) March 2020 3

1 Description
PUMA is a rugged and evidentially secure system for archiving USB and flash card data
to CDROM, DVD or BD(1) media Its automated backup procedure make it simple to
use It is aimed primarily at backing up flash based audio and video recorders and
digital cameras and includes a RAW to JPEG image converter PUMA will back up any
type of file data and can be used to archive USB pen drives and other USB disk drives
The main features are as follows:
•Simple operation Single, dedicated “Transfer” button initiates entire archive
sequence
•Rugged construction and no hard drive increases reliability and evidential
security
•Unique bit for bit copy of flash card provides ultimate evidential audit trail and
reduces possibility of legal challenges without increasing back-up size
•Three automated steps in transfer procedure: Transfer, data verify, and flash
media overwrite/erase/format
•Flash card, forensic wipe process ensures that deleted data cannot be recovered
and removes any viruses
•Fast transfer rates reduces back-up time Up to four times faster than laptop for
transferring files 20Mbyte /sec transfer rate
•Self contained unit with premium quality, full height DVD/CDROM R/W drive
•Re-mounts and verifies disk after writing to ensure maximum reliability of backup
•Supports wide range of BD-R(1), BD-R DL, DVD +/- R, +R/-R DL and CD -R
media
•Proprietary software tailored precisely to the needs of law enforcement and
evidence gathering Closed nature of operating system increases evidential
security
•JPEG versions of RAW files generated on Working Copy A list of supported
RAW camera formats is given in APPENDIX 1
•Can be powered from mains, vehicle power(2) or external batteries(2)
•Supports all common flash media (see Specification), USB hard drive
New in Version 2.8
•Dual Drive Option (external DVD or Blu-ray Writer) with disk to disk functions
such as disk copying and AES 256 encryption (Option) and Working Copy from
Master Disk production
(1) Blu-ray support is an option.
(2) Requires optional adapter
Cypher Technology Ltd V2.8(14) March 2020 4

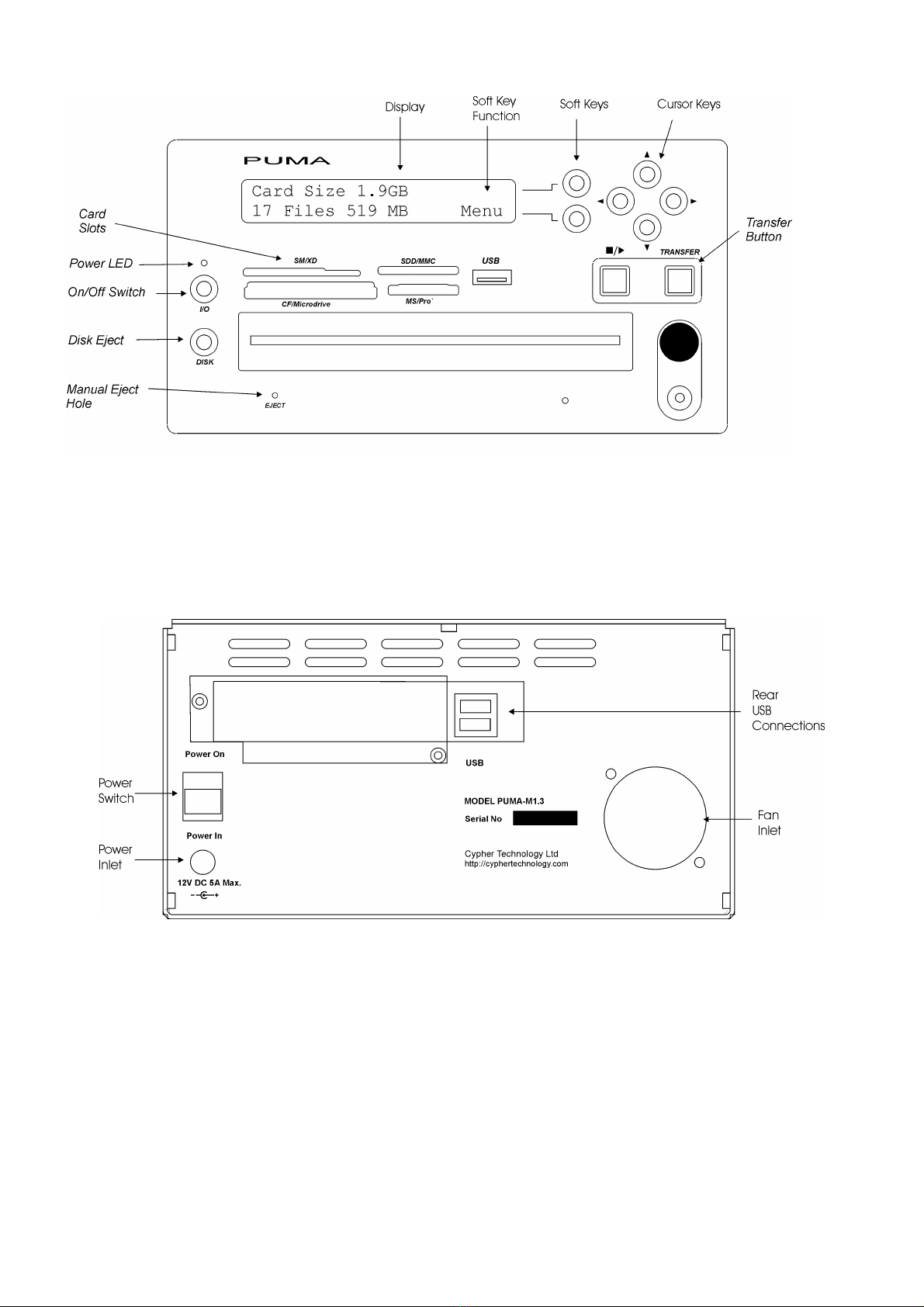

Fig 1. Front Panel
Fig 2. Rear Panel
Cypher Technology Ltd V2.8(14) March 2020 5

2 Quick Start Guide
2.1 Turning On
1. Connect the supplied 12V 5A power supply (PSU) lead.
2. Remo e any flash card and switch on (rear panel switch up).
3. A line of dots will appear on the display and PUMA will start in about 25 seconds.
2.2 Making Master and Working Copies of a Flash Card
1. Check that the displayed time and date are correct.
2. Insert the flash card into the appropriate front panel slot. The display will show the
card’s size and number of files. A USB stick may be plugged into one of the USB
sockets on the rear panel or front panel.
3. Press the eject button on the DVD/Blu-ray dri e to eject the disk tray. Place a BD(1),
DVD or CD in the tray. For the Dual Dri e ersion, press the eject button on the
external dri e and place a blank disk of the same size on the tray and close the
drawer.
4. Press the TRANSFER button to start the transfer.
a) A Master copy is produced first. This consists of the transfer of the data from the
card to the disk and a erification read pass. On successful completion the
Master disk will be ejected and the checksum of the flash card and disk will be
shown. This can be noted down for future reference. Where multiple disks are
needed, follow the on-screen instructions and note down the separate disk
checksums as well as the final checksum for the card and whole backup.
Single Dri e:
b) Remo e the Master Copy disk and place a new disk on the tray. Press the lower
soft key marked “Continue” to proceed. The Working copy is now produced. On
successful completion the disk(s) will be automatically ejected.
Dual Dri e:
b) The Working copy will be ejected at the same time as the Master. Remo e the
Master and Working Copy disks.
c) The flash card may now be wiped and re-formatted. Press “N” when prompted if
this is NOT required.
The Transfer is now complete.
Note: If further copies are required, do not wipe the card and use the appropriate
functions a ailable in the “Menu”. Press “Menu” soft key and the Up/Down cursor keys.
2.3 Turning Off
Press the I/O button below the green LED to shutdown. When “Switch Off” is displayed,
turn off the rear panel Power Switch.
Cypher Technology Ltd V2.8(14) March 2020 6

3 Detailed Operation
3.1 Setting up and Powering PUMA
Using in a vehicle. PUMA requires a regulated 12V power supply. If PUMA is to be
used in a vehicle please use the 12V stabiliser available from your supplier or
Cypher Technology Ltd NOT the vehicle power direct.
1. Remove any flash card.
2. Switch on the Power Switch on the rear panel (switch up).
3. After about 25 seconds the PUMA program will start and the system is ready for use.
4. PUMA has various settings that control the format of the Master and working disks.
These are saved after any changes are made and will normally not require and
further attention. Normally a “Compact Master” is used and a “File Copy” working
disks. These settings can be inspected and changed in the Settings sub-menu.
5. Check that the displayed time and date are correct. If not use the “Adjust Time”
menu function to adjust the time and date (Section 3.8.5).
3.2 Making Evidential backup of Flash ard or USB stick
PUMA has an automated process for making an evidential archive of a flash storage
device. This process is initiated by pressing the [Transfer] key. The Transfer consists of
the sequence: Make Master Verify Master Make Working Copy and then Wipe and
format the flash card.
1. Place the flash card in the appropriate slot. If a USB drive is to be archived plug this
into either of the USB slots in the rear panel or the slot in the front panel (M1.3 only).
An extension lead may be required for bulky USB flash drives
2. Place a blank CD-R or DVD +/- R or BD-R(1) in the drive. The Master is generated
first. The size of the flash card is shown on the display when it is inserted. A CD will
hold 730MB a standard DVD 4 700 MB and a Blu-ray 25GB - 100GB. Where the
data size is larger than the disk size multiple disks will be produced. These disks will
be automatically numbered as Master Disk #1 Master Disk #2 etc. The Master Copy
has a log file which contains the time and date stamp of the backup as shown on the
display on the front of the machine as well as other meta data. For a Dual Drive
PUMA place a blank disk of the same size as the Master in the external writer and
close the tray.
3. Press the Transfer button. The automated transfer and verify process begins.
During the transfer the whole of the card is scanned not just the file data. The
display shows the % done and an estimate of time to go. (The “Cancel” soft key
allows the transfer to be aborted)
4. When complete PUMA ejects the verified Master Disk and displays the 8 digit
Checksum. This Checksum should be noted down.
(Multiple disk transfer - If the data size is bigger than the disk size, further disks will be
requested. Each disk has its own checksum, which is displayed at the end of each disk
transfer. hen all the data has been transferred, no new disks will be requested. Press
Cypher Technology Ltd V2.8(14) March 2020 7

{Continue} and the checksum of the whole Master Image will be shown. This should also
be noted down. This final checksum is the same as the checksum produced for the card.)
If the process was not successful, the disk(s) will not be ejected and an error
message will be displayed and the user will be prompted to re-burn that disk.
5. P MA then prompts for another blank disk to be inserted for the Working Copy. If
the size of the files on the flash card is bigger than the disk size, further disks will be
requested.
6. Where an external drive is connected and the Dual Drive option is enabled, the
Working copy will be made on the external writer, when a blank disk is inserted at
the same time as the blank Master disk.
7. If the whole Transfer process completed successfully the user will be prompted to
wipe the Flash card:
Press {Y} to wipe flash card or {N} to proceed without wiping card. After the card is
wiped it is automatically partitioned and re-formatted with a FAT32 file system.
The Transfer process is now complete. A new flash card may be inserted.
3.3 Turning Off
It is good practice to remove any flash cards or SB sticks from P MA before powering
down.
Press the I/O button below the green LED to shutdown. Press {Y} to confirm. When
“Switch Off” is displayed, turn off the rear panel Power Switch.
If {N} is pressed the Software Revision and Serial Number (where appropriate) will be
displayed and P MA will resume operation.
3.4 Checking for External Drive and PUMA Statu Information
Press the I/O button below the green LED to shutdown. If {N} is then pressed the
Screen will show if an external drive is connected and also then show the Software
Revision and Serial Number (where appropriate) and P MA will resume operation.
3.5 Menu Sy tem
3.5.1 To Select a Menu Item
Press the {Menu} soft key to enter the Menu system. The p/down arrow keys are used
to select the desired function. Press the [Go] soft key to execute the function.
Pressing the {Exit} soft key returns to the top level.
The Menu is arranged as follows:
3.5.2 Main Menu List
Menu Item Description
1 Working File Copy Creates Working Copy disk from inserted card or drive
2 Encrypted Copy Creates password protected copy to DVD/CD
Cypher Technology Ltd V2.8(14) March 2020 8

3 Make Master Copy Creates Master of Flash card or USB drive to DVD/CD
4 Hard Disk Master Makes a File Master of a Flash card or USB drive to
another USB hard drive
5 Disk to Disk Sub menu for disk to disk copying
6 Wipe Card verwrites flash card with “0”s and formats card
7 Format Card Formats card as FAT32
8 Adjust Time Adjusts PUMA internal time and date
9 Setti gs Enters Settings sub menu
10 Utilities Enters Utilities menu
3.5.3 Disk to Disk Sub-menu List (Dual Drive Only)
Disk Copy External drive disk copied to internal drive disk
E crypted Disk Copy External disk copied to encrypted copy on internal drive
Worki g from Master Makes Working Copy on internal drive from Master disk
3.5.4 Settings Sub-menu List
Set Master Type Sets the format of the main Evidential Master
Set Worki g Type Sets the format of the Working Copy
E able JPEGs Allows Jpeg creation on the Working Copy
Adjust Time Adjusts PUMA internal time and date
3.5.5 Utilities Sub-menu List
Make Video DVD Makes DVD or Blu-ray disk of video files
Verify Master Verifies flash card against Master Copy
Restore Master Creates clone flash card from Master Copy disk
Checksum Card Calculates checksum of card
Checksum Master Calculates checksum of data on Master Copy
I stall Software Install new software from DVD/CD
3.6 Main Menu Items
3.6.1 ake Working Copy (make simple file copy)
This is function will create a Working Copy from the flash card or USB stick. Normally all
files are copied, including hidden and system files. ther Working Copy formats can be
selected in the Settings sub-menu.
3.6.2 ake Encrypted Copy
This is an optional feature. It is used to make an AES 256 encrypted and password
protected copy of the files on the flash card. PUMA will automatically generate a
Cypher Technology Ltd V2.8(14) March 2020 9

pseudo-random high security 14 character password. It is highly recommended that
this be used for security reasons. Alternatively a password may be entered using the
cursor keys. The [ ],[>] keys select the character position and the [up],[down] keys
select the character value. Press the {Use} softkey when the correct password is shown
AND it has been noted down.
To Decrypt Files on the Encrypted Disk
A Decrypter program is copied automatically to the encrypted disk. To access the
encrypted files, insert the disk into a Windows XP or later PC. The encrypted files can
be seen in the “Files” folder. These files can be copied in the normal way but cannot be
accessed until decrypted.
To decrypt, double click on the Decrypter icon in the top-level of the CD or DVD. Select
the file or files to be decrypted using the Decrypter browser. When the selection is
complete, click the Decrypt button. You will be prompted for the password and then to
select a destination folder into which to copy the decrypted files. If the password is
correct the files will be decrypted.
3.6.3 Make Master Copy
This function will create a Master Disk fro the flash card or USB stick. The PUMA
Master contains all the data from the flash card on a write-once optical disk.
3.6.4 Hard Disk Master
This function creates a File Master copy of a large hard disk (or flash card or USB drive)
on a second, empty hard drive.
All files are copied along with a log file that contains the MD5 hash codes of all the files
so that the transferred material can be verified for added protection. It does not scan
unused areas of the drive and therefore should normally only be used where a full bit for
bit Master is not required. The HD Master can also be used where it is impractical to
create a standard PUMA Master and where, therefore, this could be regarded as “best
practice”
First connect the empty backup drive to one of the USB ports on PUMA (in the top level
of the Menu). The display should show the size of the disk and 0 files. If it shows any
files or says “No file system” then the drive should be formatted using the Menu “Format
card” option. After the format, exit the Menu and check that the display is now showing
0 files.
Then press {Menu} and scroll down to “Make HD Master”. Connect the source evidential
drive and press and {Go}. The destination drive is automatically chosen as the empty
drive.
Several backups can be made to the same drive and the destination drive will be
automatically recognised after its first use.
3.6.5 Disk to Disk
Opens sub menu for all disk to disk copy functions (dual drive PUMAs only)
3.6.6 Wipe Flash Card
This function will perform a forensic wipe of the flash card. No data will be recoverable
from the card after this operation (see below).
Cypher Technology Ltd V2.8(14) March 2020 10

This function writes “0”s to the card. After the card is wiped, it is formatted as FAT32
and is ready for use.
3.6.7 Format Flash card
This function first overwrites the Master Boot ecord of the card with binary “0”s thereby
removing any boot sector viruses. It then re-partitions the card with a single primary
partition of the maximum size and then formats this with a FAT32 file system. Note this
function does not wipe the data area of the card. The Wipe card function must be used
if this is required. See Section 3.6.6.
When complete “Formatted” is displayed.
3.6.8 Adjust the Internal Time and Date
This function allows the internal real-time clock to be adjusted. This clock is used to time
and date stamp the Master.
The time and date is displayed in the top line of the display. E.g.
Adjust Time display 15:03:21 Tue Jan 9 2007
Sel <> Adj Up Dn Exit>
The hours number will flash and the [Up] and [Down] cursor keys can be used to adjust
the value. The [<] and [>] cursor keys can be used to select other fields. When the
correct time and date has been displayed, press the {Exit} soft key to exit back to the
Menu list.
3.7 Disk to Disk Sub-menu
3.7.1 Disk Copy
Copies UDF or ISO disk (CD, DVD or Blu-ray) in the external drive to a blank disk in the
internal drive. The external disk should be of the same or greater size than the source.
This can be used to make further Working Copies from an existing Working Copy.
3.7. Encrypted Disk Copy
Copies UDF or ISO disk (CD, DVD or Blu-ray) in the external drive to a blank disk in the
internal drive. The files are AES 256 encrypted. PUMA will generate a psuedo random
password or the user may enter their own. This must be noted down as it is used for
decryption. The external disk should be of the same or greater size than the source.
A decrypter application is copied to the disk and the disk is accessed on a Windows PC
by entering the password into the application.
3.7.3 Working from Master
This function allows a Working Copy to be generated from a Master disk. This is useful
where the original flash card is no longer available. The external disk should be of the
same or greater size than the source.
Cypher Technology Ltd V2.8(14) March 2020 11

3.8 Settings Sub-menu
3.8.1 Navigation and Settings
Use the Up/down cursor keys to select an item
Use Press the {Change} soft key or Up/down cursor keys to change the option.
Press the {Exit} soft key to save any changes and return to the ettings sub-menu.
3.8.2 Set Master Disk Type
This function sets the disk format for the Master. The options are Compact Master, Full
Master or Quick Master.
Normally a Compact Master is generated. This copies all data from the flash card and
includes the files, deleted files, the file system, partition information and all historical file
data. As such it provides the most secure, evidential backup and allows the most
complete evidential audit trail. It contains everything that was on the flash card and as
such can be used to generate a clone of the original card.
A Quick Master only copies the files and is not so evidentially secure as a Compact
Master but can be used where a Compact Master cannot be generated.
3.8.3 Set Working Disk Type
The Working copy is normally a file copy of the flash card. If the DVD authoring option is
installed, the Working Copy can be configured to be a Video DVD instead.
3.8.4 Enable J EG creation on Working Copies
This function will turn on the automatic creation of JPEG files on Working Copy disks.
This will slow down the creation of the Working Copy where RAW image files are
present.
3.8.5 Adjust the Internal Time and Date
This function allows the internal real-time clock to be adjusted. ee above for
explanation.
3.9 Utilities Sub-menu
3.9.1 Make Video DVD
This is an optional feature. It is used to make a standard PAL or NT C video DVD of
MPEG-2 files on the flash card. The card is automatically searched for “*.mpg” and the
selection of NT C or PAL is automatic. NOTE: the MPEG-2 files must be of a DVD
compatible type. upported formats are shown in the Appendix.
3.9.2 Verify Master Copy against Flash Card
This function will check that the contents of the inserted Master Disk are identical to the
inserted flash card.
Where a multi-disk set has been produced, any numbered disk may be checked
individually.
Cypher Technology Ltd V2.8(14) March 2020 12

3.9.3 Verify Multi-Disk Master Set
To verify a Master disk set (i.e. all the disks in a multi-disk Master), the procedure is
different for a Full and Compact Master
Full Master: Insert Disk 1 first, then 2, 3, 4 etc.
Compact Master: Insert LAST disk first and then feed disks in reverse order. So if there
are 4 disks in the set, disk 4 first then 3, 2 and 1.
3.9.4 Restore the Master Copy to a Flash Card
This function will copy the contents of the inserted Master disk to the inserted flash card.
This flash card will become a precise clone of the original card. Where the card is bigger
than the original card, the excess data on the card will be zeroed.
Use a flash card that is the same size or bigger than the original.
When completed the checksum of the flash card (and the disk) is displayed. This card
is functionally identical to the original. It may be inserted back into the camera or may
be read on a computer and the images viewed or the files accessed.
3.9.5 Restore Multi-Disk Master Set
As above, use a flash card that is the same size or bigger than the original.
To restore a Master disk set (i.e. more than one disk for a particular flash card), the
procedure is different for a Full and Compact Master
Use a flash card that is the same size or bigger than the original.
Full Master: Insert Disk 1 first, then 2 a3, 4 etc.
Compact Master: Insert LAST disk first and then feed disks in reverse order. So if there
are 4 disks in the set, disk 4 first then 3, 2, 1.
3.9.6 Calculate the Checksu of the Flash Card
This function will generate a unique number from the contents of the flash card. This is
called a checksum (see below). This number provides a useful and secure identification
for the card and the Master Copy. The checksum of the card will be the same as the
checksum of the Master image file for that card or the same as the sum of the
checksums for the individual disks for a multi-disk set (modulo 32 bit).
3.9.7 Calculate the Checksu of the Master Disk I age
This function will generate a unique number from the contents of the inserted Master
disk. This is called a checksum (see below). This number provides a useful and secure
identification for the Master and the flash card.
Place the Master disk in the DVD drive and press the {Go} soft key to execute the
function. When complete the checksum is displayed.
Where a multi-disk back up set has been produced, the checksum of the whole set can
be found by starting with disk 1 in the set and following the on screen instructions.
3.9.8 Software Installation Procedure
This function installs new versions of the operating software. It is accessed from the
Menu as function 14. The procedure from a “cold” start is as follows:
Cypher Technology Ltd V2.8(14) March 2020 13

1. Boot up PUMA.
2. Press the {Menu} soft key to enter the menu.
3. Press the [Down Arrow] key until Install Software” appears.
Either:
Press the [Disk] button to eject tray.
Place an upgrade disk on the tray and press [Disk] button once more to load the disk.
The disk will take a few seconds to be recognised. Please wait.
Or:
Plug in a USB drive to the rear panel of the PUMA. This should have the install file and
the data files copied to the root directory of the drive as described in the download
instructions.
5. Press the {Go} soft key to start the software upgrade. The installation progress will be
shown on the screen. DO NOT SWITCH OFF DURING THIS PROCESS OR THE
SYSTEM MAY BE UNUSABLE.
6. When complete the system will display Installation complete” or it will restart the new
version of the program.
7. Switch off and reboot.
8. Check the Version number (displayed at boot up) is the same as that labelled on the
Install CD or DVD.
Cypher Technology Ltd V2.8(14) March 2020 14

4 Technical Background
4.1 PUMA Master Copy (bit for bit copy)
The PUMA Master Copy stores all the all of the data on the flash card and is therefore
evidentially equivalent to the original flash card. Because the whole of the card is
copied, the Master includes hidden files, deleted files, historical file data fragments,
original time accessed and time modified data, the filing system (FAT), and the boot
sector and partition information.
As such it provides the most secure, evidential backup and allows the most complete
evidential audit trail. It contains everything that was on the flash card and is the same
size (in Kbytes) as the flash card.
There are two formats for the Master
4.1.1 Full Image Master
“Full Image”. This is the format originally used within PUMA. The Full Image Master
contains a single file called “flash.img” which is a bit for bit copy of the whole of the flash
card. It is the same size (in Kbytes) as the flash card. The flash.img file has its time
created, modified and accessed values set to the time of the start of the transfer. This
time is taken from the system time as displayed on the front panel of the machine at
start up.
When the flash card is bigger than the disk size, multiple disks are needed and each
disk will contain part of the image. The first disk will contain a file called flash1.img , the
second disk, flash2.img etc. These part images may be combined to form a single,
complete image file (see Section Error: Reference source not found ).
The Master Copy can be used in two ways. On a PC with an Image Viewer program or
by restoring the image back to a flash card or USB disk.
4.1.2 Compact Master
The “Compact” format was introduced in V2.2 and has two advantages over the Full
Image Master:
•Files may be accessed directly in the Files folder
•Blank portions of the card are compacted: a wiped card, with only a few MBs of files
creates a Master of only a few MBs.
4.1.3 Quick Master
A quick Master is used when it is not practicable to make a Compact Master. A Quick
Master is simple file copy of the data on the evidential media (Flash card etc). It is not a
bit for bit copy and does not copy forensic data such as deleted files and the file system.
A clone of the original card cannot be made from a Quick master with the Restore
function.
The guiding principal is to make the best evidential copy you can under the
circumstances.
Cypher Technology Ltd V2.8(14) March 2020 15

4.1.4 The Compact Master process
First the files are copied from the flash card into the “Files” folder on the Master disk.
Having copied all the files, PUMA then scans the unused portion of the card (i.e.the
area of the card not used y the files) and copies any meta data, deleted files or file
fragments to the Master. This data is stored in Image files named Image_data0.dat,
Image_data1.dat etc in the “AuxData” directory on the Master. An “Image_data.xml” file
is also created in the AuxData directory and this records where the data in the files was
stored on the flash card. This allows the original card to e precisely cloned during the
Restore or Checksum processes.
A checksum is produced at the end of the disk creation. This is the checksum of all the
data (files and any meta data) on that disk.
If the files and meta data are greater than the disk capacity, PUMA will prompt for
further disks. These The checksum of each intermediate disk is displayed after each
disk has een verified. When the Master set is complete, a further checksum is
displayed, which is the sum of the individual disk checksums. This checksum is the
same as the checksum of the flash card, as it is produced from the same data.
The Files folder may e accessed from a computer file rowser in the usual way. Third
party data recovery tools can e used on the Image files to, for example, recover JPEG
images. Alternatively, the Master may e restored ack to a storage device (flash card
or USB drive) which is the same size or igger than the original card. Standard data
recovery techniques can then e used on this restored drive as they would on the
original card.
4.1.5 Why archive the file system?
The file system used on remova le flash media is the FAT file system.
A file is a digital container for digital data. As an example, one digital still image is
normally stored in one file. The file has a name and this is how it is referenced and
accessed y the computer and the user (e.g. DSC_0001.JPG).
A file entry on the disk or flash card is used to link this name with a FAT entry and
hence, the position of the file data on the medium. The file entry also contains other
information a out the file such the time and date when the file was created and last
modified.
4.1.6 Partition Table
Sometimes it is useful to divide one physical disk (e.g. a hard disk) into multiple, virtual
drives (c: drive, e: drive etc.). A partition ta le descri es how the drive is divided into
different virtual disks. Flash cards and USB pen drives are normally partitioned ut with
only one partition, ut can have more when the user wishes to hide information.
Note: Windows only sees the first partition on removable drives. So data on other
partitions will not be seen or copied on a Windows PC . PUMA will copy all data
from all partitions.
The partition ta le is not normally updated after it is created, ut the way the partition
ta le is written will vary from system to system and thus can give some knowledge of
the history of the card.
Cypher Technology Ltd V2.8(14) March 2020 16

4.1.7 File allocation information
Most flash media cards use the FAT16 or FAT32 file system. When a file (e.g. a JP G
picture file in a camera) is created, two things happen. Firstly the file data is written to
the data area of the card and secondly the file system entry is created. This entry
consists of a file information (name, date etc) and the location of the file data on the
flash card stored in the File Allocation Table (FAT).
4.1.8 File un-deletion
When a file is deleted the actual file data is normally left unchanged on the storage
device. The deletion involves marking the file name in the file entry to show that the file
is no longer required and that the data space that was being used by the file can be
used for new files. Because of this, if no further data is written to the card, the original
deleted file may be retrieved or “un-deleted”. The Master allows for un-deletion of files
where it was possible on the flash card. (See “How is the Master Copy used?” above).
The Working Copy, of course, will not contain deleted files.
4.1.9 Historical file data
When a file is copied from the flash card to another storage device (as with the Working
Copy) information about its creation may be lost. Most obviously this may include the
original modification and creation times from the flash file table but also more subtle
historical information may be lost relating to the media history.
4.1.10 Media history and fragmentation
When a file is created on a blank piece of media, the storage space is generally
allocated from the beginning of the data area as continuous or contiguous space. Once
several files have been created and then a few have been deleted “holes” appear on
the file data area where the old file data resided. These holes will eventually be
overwritten with new file data as new files are created, but because these new files may
be of different sizes to the old files, one new file may have its data spread across the
card at various locations. The more a flash card or drive is used, the more fragmented it
becomes. This gives valuable information about the use of the media and the time of
creation or modification of a file.
The Master Copy preserves all this information as it provides an exact snapshot
of the state of the card when the copy is taken and because it leaves all the card
data unchanged within the backup. The Master Copy is therefore the most
complete evidential backup.
4.2 PUMA ancillary functions
4.2.1 Dis Verify Read
Most backup programs simply copy the data to the backup medium and assume it has
been written correctly and can be re-read. With optical disks this is particularly
dangerous. PUMA dramatically reduces the chance of producing unreadable disks by
performing a verify read of the disk after it has been written. The verify pass itself,
involves re-reading every data bit from the flash card and checking it against every bit
on the Master.
Cypher Technology Ltd V2.8(14) March 2020 17

4.2.2 Working Copy (file copy)
The Working Copy is a full copy of the directory tree of the flash card or USB drive. This
means all files and directories are copied. Any file types can be copied. Hidden and
system files are copied.
or the files on the flash card to be recognised by PUMA, the card must be formatted
with a AT file system.
The Working Copy disk uses an ISO9660 filing system and is recognised by most
computing platforms. The system also implements the Joliet extension to the ISO 9660
standard which allows for long file names.
Where RAW image files are detected, PUMA can automatically convert them to a JPEG
compressed image file with a compression ratio of about 7:1. The file has the same root
name as the original, so that dcn0005.nef becomes dcn0005nef.jpg. or most picture
content it will not be possible to readily observe any difference in quality between the
JPEG and RAW images. This feature is disabled by default, but can be enabled in the
Menu (see above).
A wide range of RAW file formats are supported and these are listed in the Appendix.
4.2.3 Card and Disk Checksum
PUMA produces a 32 bit checksum of the flash card and Master Copy file. The
checksum is a unique number derived from all the data on the card or from the whole
image file on the Master. As such the checksum will always change if any data changes
are made within the file or on the card. The Master and the card should always have the
same checksum.
Where multiple disks are produced, the modulo 32 bit sum of the checksums of the
individual disks are equal to checksum of the whole card. Note: this is not true for
Compact Master disks pre V 2.6.34.
The chance of two flash cards, with different image data, having the same checksum is
less than 1 in 4,000,000,000.
The checksum of a flash card or Master Copy can be found using the Menu functions
(see above).
4.2.4 Flash Card Wipe (Erasing)
As mentioned above, when a file is deleted the file data remains on the medium. This
file may be un-deleted and the file’s data recovered. The only way to render the card
safe from data recovery is to re-write the whole card with new data. PUMA “Wipe Card”
function writes binary zeros to the whole card. Also viruses may be present in the
Master Boot Record (MBR). During the wipe process the MBR is overwritten also and is
recreated during the format operation.
4.2.5 ES 256 Encryption
PUMA can make encrypted Working Copies (Option) and encrypted copies of CD, DVD
and Blu-ray disks in UD and ISO format (dual drive only). PUMA uses AES 256 as the
encryption standard.
Cypher Technology Ltd V2.8(14) March 2020 18

AES has three levels of security with 128, 192 and 256 bit keys. AES 256 is the ost
secure and the one used by PUMA. In 2003 AES 192 and above were dee ed
acceptable for docu ents classified as TOP SECRET by the NSA (US National
Security Agency).
The design and strength of all key lengths of the AES algorithm (i.e., 128, 192 and 256) are s fficient to
protect classified information p to the SECRET level. TOP SECRET information will req ire se of either
the 192 or 256 key lengths. The implementation of AES in prod cts intended to protect national
sec rity systems and/or information m st be reviewed and certified by NSA prior to their acq isition
and se.[12]
4.3 System Architecture
PUMA is based on a Linux platfor and uses proprietary software. The proprietary
nature of the software has allowed the transfer process to be tailored precisely to the
needs of law enforce ent and evidence gathering. For axi u reliability and security
it contains no hard disk and boots fro a read-only flash file syste .
4.4 Transfer Times
PUMA uses a full height, high perfor ance CD/DVD/BD(1)writer. This type of drive
provides transfer rates up to 20 Mbyte/sec co pared with 8Mbyte/sec for laptop drives.
Also, the larger size of the drive provides a higher reliability disk.
For reading, the axi u transfer rate (at the outside of the disk) is about 20
Mbytes/sec. A 4 Gbyte card can be copied in about 4 inutes.
4.5 RAW File handling
RAW to JPEG converter
The syste incorporates a RAW i age file for at converter. This auto atically detects
the type of RAW file present and converts it to a standard JPEG i age file which is
added to the Working Copy along with the original RAW for at file. The JPEG will
typically be about 1/7th the size of the RAW file, and so will not add greatly to storage
require ents. This software is aintained and new for ats are supported as they arise.
The JPEG file will have the sa e root na e as the RAW file. For exa ple, if the RAW
i age file is D94L0948.DCR the JPEG will be D94L0948DCR.JPG.
Cypher Technology Ltd V2.8(14) March 2020 19

5 Technical Support
5.1 System re-starting in the event of failure
Every effort has been made to allow PUMA cope gracefully with various fault conditions.
It is possible, however, that the system will temporally lock out. If the system does not
respond during use (please wait for 3 minutes during a transfer), then the system should
be powered down by switching off at the rear panel. Remove the flash card and re start
the system. The disk can only be ejected once the system is ready for use. In an
emergency, when the system cannot be powered, the disk can be ejected by pushing
with a blunt rod through the disk eject hole in the front panel.
5.2 Contact
In case any technical or user assistance is required please contact your distributor or
Cypher Technology Limited,
5 7 Gravel Hill,
Leatherhead,
Surrey,
KT22 7HG
Tel +(44) 1372 375500
Fax +(44) 1372 378800
Email: m[email protected]
http://www.cyphertechnology.com/
5.3 Software Updates
The system can be updated with new application software when necessary. This
software can be installed from CD or from a USB thumb drive. See section 3.9.8.
Updates can be downloaded from:
http://www.cyphertechnology.com/
Cypher Technology Ltd V2.8(14) March 2020 20
