Sony PBD-V30 User manual

3-864-642-23(1)
1998 by Sony Corporation
PBD-V30
Portable DVD
Player
Operating Instructions

2
WARNING
To prevent fire or shock hazard,
do not expose the player to rain
or moisture.
The socket outlet shall be installed near
the equipment and shall be easily
accessible.
The nameplate is located on the bottom.
This label is located on the bottom.
Directive: EMC Directive 89/336/EEC,
92/31/EEC
Low Voltage Directive 73/23/EEC,
93/68/EEC
The supplied interference Audio/Video
cable must be used with the equipment
in order to comply with the limits for a
digital device pursuant to EN 55013.
CLASS 1
LASER PRODUCT
LASER KLASSE 1
PRODUKT
Welcome!
Thank you for purchasing the Sony Portable
DVD Player. Before operating the player,
please read this manual thoroughly and
retain it for future reference.
CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET.
NICHT IN DEN STRAHL BLICKEN ORDER MIT OPTISCHEN INSTRUMENTEN DIRECT ANSEHEN.
ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE.
NE PAS REGARDER DANS LE FAISCEAU NI À L’ŒIL NU NI À L’AIDE D’INSTRUMENTS D’OPTIQUE.
Manufactured under license from Dolby
Laboratories Licensing Corporation. DOLBY,
the double-D symbol a, “PRO LOGIC,” and
AC-3 are trademarks of Dolby Laboratories
Licensing Corporation.

3
This player can play the following
discs 4
About this manual 8
Getting started
Unpacking 9
Hooking up the system 11
Necessary setup before using the
player 13
Basic operation
Playing a DVD VIDEO 14
Playing a CD/VIDEO CD 22
Additional operations
Playing repeatedly (Repeat Play) 30
Playing in random order (Shuffle
Play) 34
Creating your own programme
(Programme Play) 35
Resuming playback from the point
where you stopped a disc
(Resume Play) 38
Changing the sounds 40
Using the sub-titles 41
Changing the angles 43
Preventing accidental pressing of the
buttons 44
Using the rechargeable battery pack
45
Using the audio amplifier 49
Table of contents
Setting and adjustment
Basic settings (INITIAL SETUP) 52
Limiting playback by children
(Parental Control) 56
Additional information
Precautions 60
Notes on discs 62
Specifications 63
Troubleshooting 65
Glossary 69
Self-diagnosis function 71
Index to parts and controls 72
Language code list 77
INITIAL SETUP items list 79
Index 80

4
This player can play
the following discs
DVD VIDEOs
VIDEO CDs
AUDIO CDs (CD-DA)
About playing a CD-R
You can play a CD-R recorded with a VIDEO CD or an AUDIO CD.
However, depending on the CD-R, playback may not be possible.
You cannot play the following discs:
• DVD-ROMs
• CD-ROMs
• PHOTO CDs
• CD EXTRAs (data sections)
You can play a disc recorded in the PAL or NTSC colour system. See
page 13.
Notes on DVD VIDEO discs
Region code of DVD VIDEOs you can play
Region code indications such as
2
are labelled on some DVD VIDEOs to
indicate which type of player can play the discs.
Unless “2” is included in the indications or ALL is labelled on the DVD VIDEOs,
you cannot play the discs on this player. If you try to play these DVD VIDEOs,
the message “PLAYING THIS DISC PROHIBITED BY AREA LIMITS” will
appear on the TV screen.
Depending on the DVD VIDEO, no region code indications may be provided,
even though playing the DVD VIDEO is prohibited by the area limits.
Note on playback operations of DVD VIDEOs and VIDEO CDs
Some playback operations of DVD VIDEOs and VIDEO CDs may be
intentionally fixed by software producers. Since this player plays DVD
VIDEOs and VIDEO CDs according to the disc contents the software
producers designed, some playback features may not be available. Also refer
to the instructions supplied with the DVD VIDEOs or VIDEO CDs.

5
Meaning
The number of audio tracks
The number of sub-titles
The number of angles
The picture aspect ratio
Region code
16:9 LB
3
2
3
2

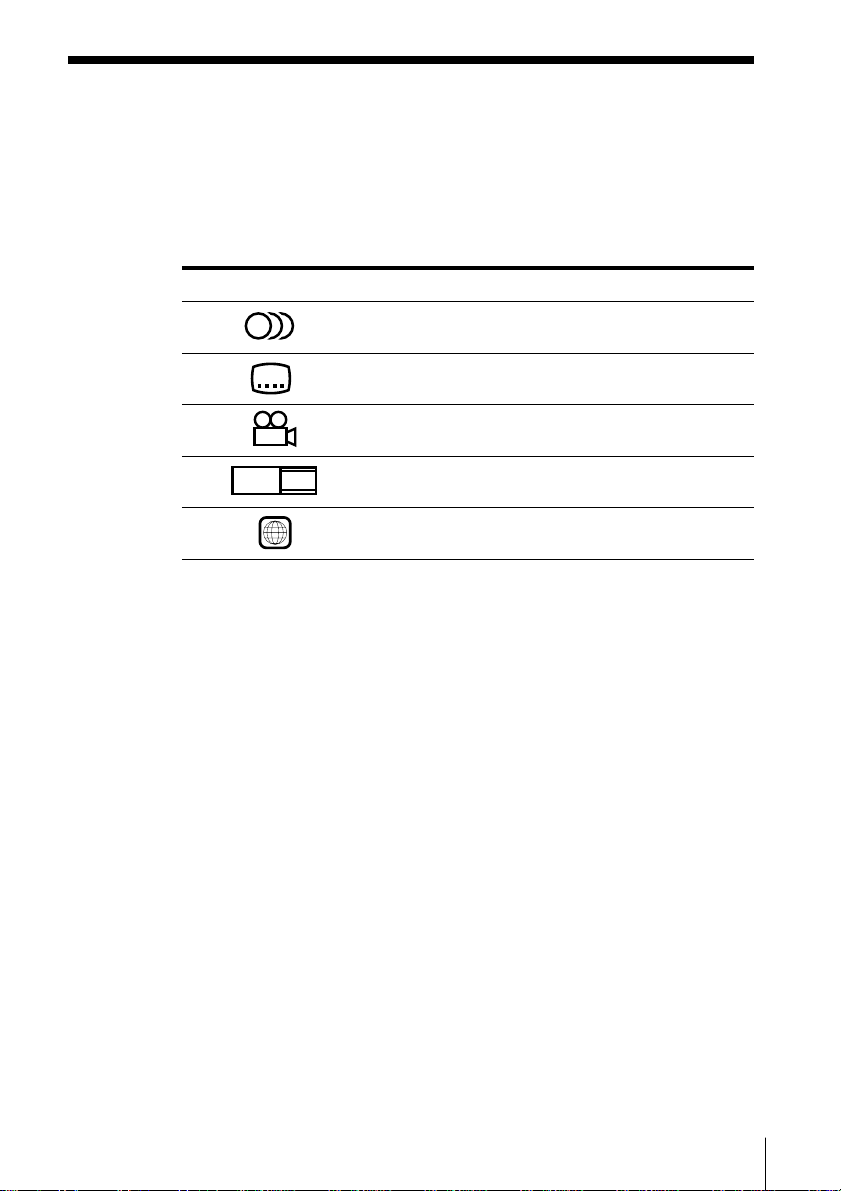

Logo marks of DVD VIDEOs
Logo marks on DVD VIDEO discs or cases are shown as below. These marks
show available contents or functions.
Some DVD VIDEOs do not have these marks even though you may be able to
use these functions.
For more details of the marks, refer to the instruction of the DVD VIDEO disc.
Logo
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse engineering
of disassembly is prohibited.

6
You can
Enjoy video playback (moving pictures) as well as
music.
Play interactive software using menu screens displayed
on the TV screen (PBC Playback), in addition to the
video playback functions of Ver 1.1 discs. Moreover,
you can play high-resolution still pictures, if they are
included on the disc.
Notes on VIDEO CDs with PBC (Playback Control)
functions
This player conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards. You can
enjoy two kinds of playback according to the disc type.
Disc type
VIDEO CDs without
PBC functions
(Ver. 1.1 discs)
VIDEO CDs with PBC
functions
(Ver. 2.0 discs)

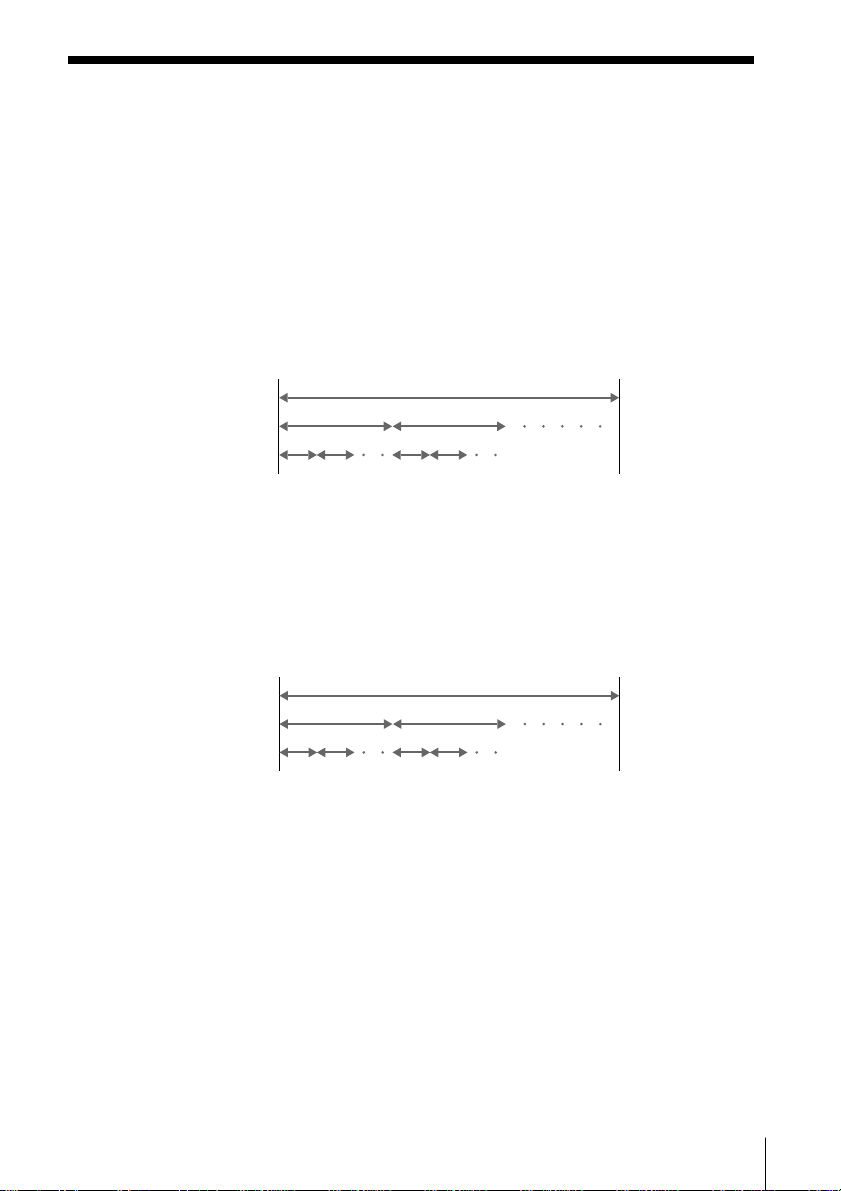

7
VIDEO
CD or CD
structure
Disc
Track
Index
Disc
Title
Chapter
Terms for discs
• Title
The longest sections of a picture or a music piece on a DVD VIDEO; a movie,
etc. for a picture piece on a video software or an album, etc. for a music piece
on an audio software. Each title is assigned a title number enabling you to
locate the title you want.
• Chapter
Sections of a picture or a music piece that are smaller than titles. A title is
composed of several chapters. Each chapter is assigned a chapter number
enabling you to locate the chapter you want. Depending on the disc, no
chapters may be recorded.
• Track
Sections of a picture or a music piece on a VIDEO CD or a CD. Each track is
assigned a track number enabling you to locate the track you want.
• Index
A number that divides a track into some sections to easily locate the point you
want on a VIDEO CD or a CD. Depending on the disc, no index may be
recorded.
• Scene
On a VIDEO CD with PBC functions, the menu screens, moving pictures, and
still pictures are divided into sections called “scenes.” Each scene is assigned
a scene number enabling you to locate the scene you want.
DVD
VIDEO
structure

8
Z
About this manual
• Complete the set up using “Getting Started” (pages 9 to
13).
• For basic operations, see “Playing a DVD VIDEO” (pages
14 to 21) and “Playing a CD/VIDEO CD” (pages 22 to 29).
• For additional features, see pages 30 to 51.
• The icons shown below are used in this manual:
Icon Meaning
Indicates that you can use only the remote
to do the task.
Indicates the functions for DVD VIDEOs.
Indicates the functions for VIDEO CDs.
Indicates the functions for AUDIO CDs.

9
Unpacking
Getting started
Check to make sure you have received the following
items.
• Audio/video cable (stereo mini plug ×1 ˜phono
plug ×3) (1)
• AC-PBD1 AC power adapter (1)
• RM-PBD1 remote commander (remote) (1)
• VMC-91 Scart adapter (1)
CAUTION
Before using this player, be sure to remove the
packing materials (1and 2) from inside the front
cover.
1Black, square shaped cushion near the lens.
2Black ring near the OPEN button.
If you turn on the player without removing these
materials, it may cause a malfunction.
1
2

10
When to replace
batteries
With normal use, the
batteries should last for
about six months. When
the remote no longer
operates the player,
replace all the batteries
with new ones.
Inserting batteries into the remote
You can control the player using the supplied remote.
Insert two R6 (size AA) batteries (not supplied) by
matching the + and – ends on the batteries to those
inside the battery compartment.
Notes
• If you do not use batteries correctly, it may cause damage
from leakage and corrosion. Please follow the directions
below:
- Make sure the polarity is correct.
- Do not use a new battery with an old one or mix different
types of batteries.
- Do not charge a dry cell battery.
- If you will not use the remote for an extended period of
time, remove the batteries.
- If you have battery leakage, replace with new batteries
after cleaning the battery case.
• Do not expose the remote sensor gto direct sunlight or
other lighting apparatuses. Doing so may cause a
malfunction.

11
Hooking up the
system
Note
Do not connect this player
to a VCR. If you view the
pictures on your TV after
making connections
shown below, picture
noise may appear.
S video
cable (not
supplied)
Audio/video cable
(supplied)
TV
DVD player
A/V OUT S VIDEO OUT
R-AUDIO-L VIDEO S VIDEO
VCR
This player
TV
This section describes how to hook up the player to a
TV (with audio/video input connectors) and/or an
amplifier. You cannot connect this player to a TV
without a video input connector. Be sure to turn off
the power of each component before making the
connections.
1Hookups
When connecting the cord, be sure to match the
colour-coded cord to the appropriate connectors on
the components: Yellow (video) to Yellow, Red (right)
to Red, and White (left) to White. Be sure to make
connections firmly to avoid hum and noise.

12
You can attach the
optional battery pack.
See “Using the
rechargeable battery
pack” (page 45).

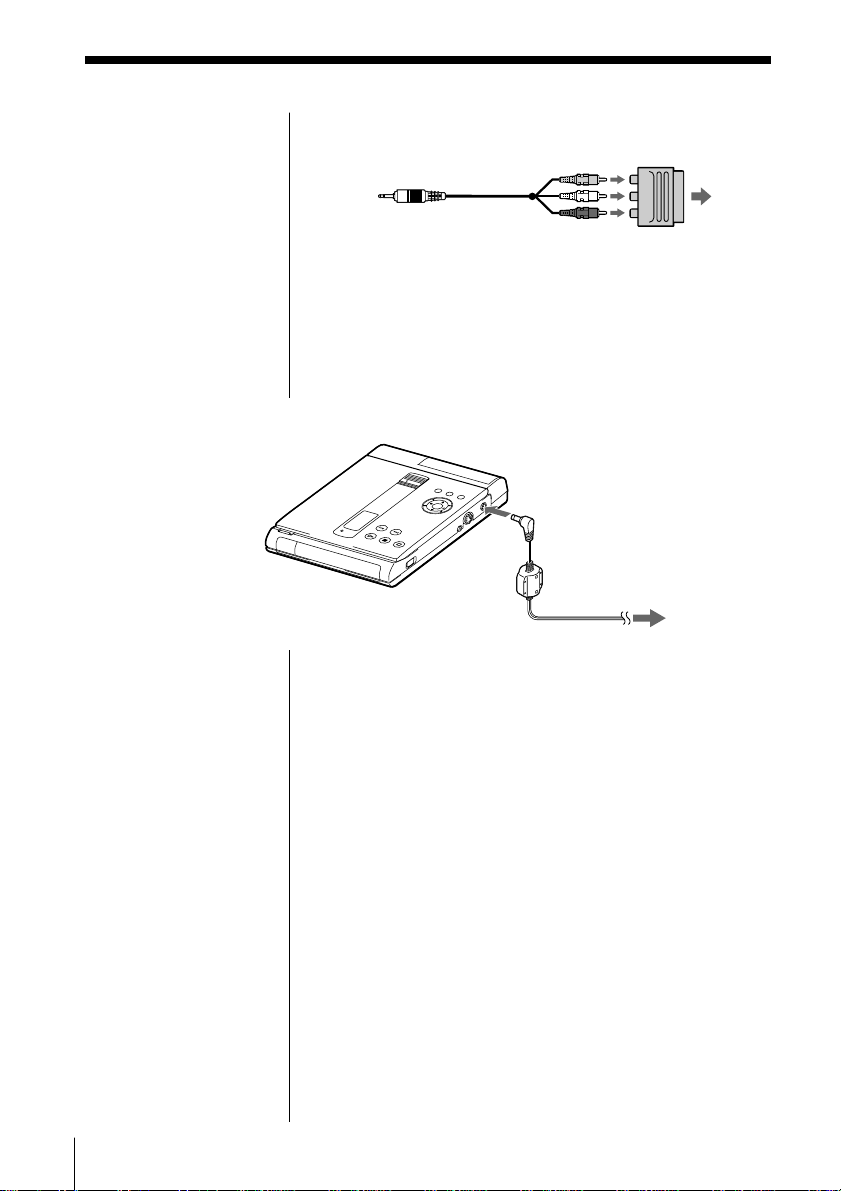

If your TV has a EURO AV (SCART) connector
Use the supplied Scart adapter.
If your TV has an S video input connector
Connect the component via the S VIDEO OUT
connector using the S video cable (not supplied)
instead of the video connecting cord. You will get a
better picture.
2Connecting the AC power adapter
1Connect the supplied AC power adapter to this
player and the mains.
2Press POWER.
The POWER indicator lights up green.
To the mains
To DC IN 10V
AC power adapter
(supplied)DVD player
TV

13
Necessary setup before
using the player
Some initial setups are necessary for the player
depending on the TV or other components to be
connected.
For details on using the menu, see page 52.
For details on each menu item, see pages 53 to 55.
pTo connect the player to a normal TV
Set “TV TYPE” in “INITIAL SETUP” to “4:3
(PANSCAN)” or “4:3 (LETTERBOX).”
pTo connect the player to a wide-screen TV
Set “TV TYPE” in “INITIAL SETUP” to “16:9 .”
pTo connect the player to a digital
component with a built-in Dolby Digital
decoder
Set “DIGITAL OUT” in “INITIAL SETUP” to
“DOLBY DIGITAL.”
pTo listen to the sound through speakers
connected to an amplifier with a digital
connector, or to output the sound to a digital
component such as a DAT or MD deck
Set “DIGITAL OUT” in “INITIAL SETUP” to “D-PCM.”
“INITIAL SETUP” also includes other items such as
“DVD MENU,” “PARENTAL CONTROL,” etc. For
details, see page 52.
For basic operations such as using the player, see
“Playing a DVD VIDEO” (page 14) and “Playing a
CD/VIDEO CD” (page 22). For additional features,
see from page 30.
Note
This player conforms to
the PAL colour system.
When you play a disc
recorded in the NTSC
colour system, the player
outputs the video signal
in the PAL colour system.

14
Playing a DVD VIDEO
POWER indicator 2
53
π
Basic operation
When using the battery
pack
Normally you cannot use
the remote to turn on the
player. However, within 5
minutes after having used
the battery pack, you can
use the remote to turn on
the player.
1Make the appropriate settings on your TV.
Turn on the TV and select the video input so that
you can view the pictures from this player.
When using an amplifier
Turn on the amplifier and select the appropriate
position so that you can listen to the sound from
this player.
2Press POWER to turn on the player.
The POWER indicator lights up green and the
front panel display lights up.
When using the battery pack, the front panel
display doesn’t light up.
3Press OPEN to open the disc cover.

Basic Operations
15
Refer to the instructions
supplied with your disc.
Notes
• If the disc is not
inserted correctly, it
may cause a
malfunction.
• The power is
automatically turned
off whenever,
– a disc is not being
played.
– you do not operate
the player or the
remote for more
than 30 minutes
when using the AC
power adapter (10
minutes when
using the optional
battery pack).

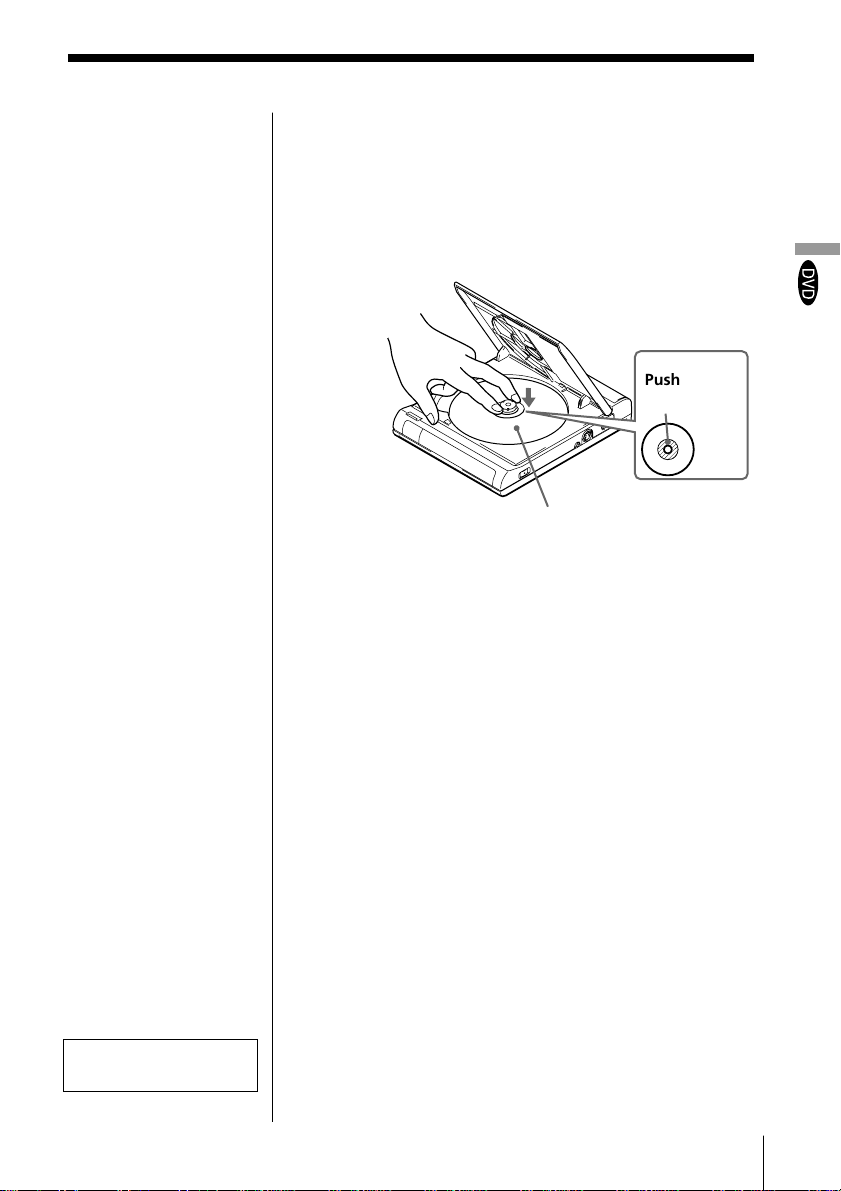

4Insert a DVD VIDEO disc.
When inserting a disc, please take note of the
following.
• Insert the disc in a horizontal position.
• Push down gently with two fingers.
• Make sure the disc clicks into the position.
5Close the disc cover, then press ·.
The player starts playback (Continuous Play).
Adjust the volume on the TV or the amplifier.
After doing Step 5
A DVD menu or title menu may appear on the TV
screen (see page 18 or 19).
To stop playback
Press π.
With the playback side
facing down
,,
,,
Push on the
disc here.

16
·PLAY
=PREV/+NEXT
Number
buttons
ENTER
SEARCH
MODE
CLEAR
∏PAUSE
/SLOW
Various modes of playback
312
645
978
0
ENTER
=/+ENTER
·∏
What are title and
chapter?
See page 7.
Each time you press
SEARCH MODE
“TITLE SEARCH,”
“CHAPTER SEARCH,”
and “TIME SEARCH”
appear on the TV screen.
Note
Depending on the DVD
VIDEO, you may not be
able to do some of the
operations described on
the right.
To
Pause
Resume playback after
pause
Play in slow motion
Go/back to the next/
preceding chapter in
Continuous Play
mode
Select the chapter
Select the title
Press
∏
∏or ·
SLOW or SLOW. To
return to Continuous Play
mode, press ·.
=/+
1SEARCH MODE repeatedly
until “CHAPTER SEARCH”
appears on the TV screen.
2The number buttons to select
the chapter number, then
ENTER.
1SEARCH MODE repeatedly
until “TITLE SEARCH”
appears on the TV screen.
2The number buttons to select
the title number, then ENTER.

Basic Operations
17
To
Locate a point using
the time code
Quickly locate a point
while monitoring
the picture (Search)
If you enter the wrong number
Press CLEAR, then the correct number button.
Press
1SEARCH MODE repeatedly
until “TIME SEARCH”
appears on the TV screen.
2The number buttons to enter a
time code, then ENTER.
=/+and hold down until
you find the point. (There is no
sound during Search mode.)

18
Notes
• Depending on the DVD
VIDEO, you may not be
able to select the title.
• Depending on the DVD
VIDEO, the instructions
supplied with the disc
may refer to “title
menu” as simply
“menu” or “title .”
Likewise, “Press
ENTER.” in Step 3 may
be expressed as “Press
SELECT.”

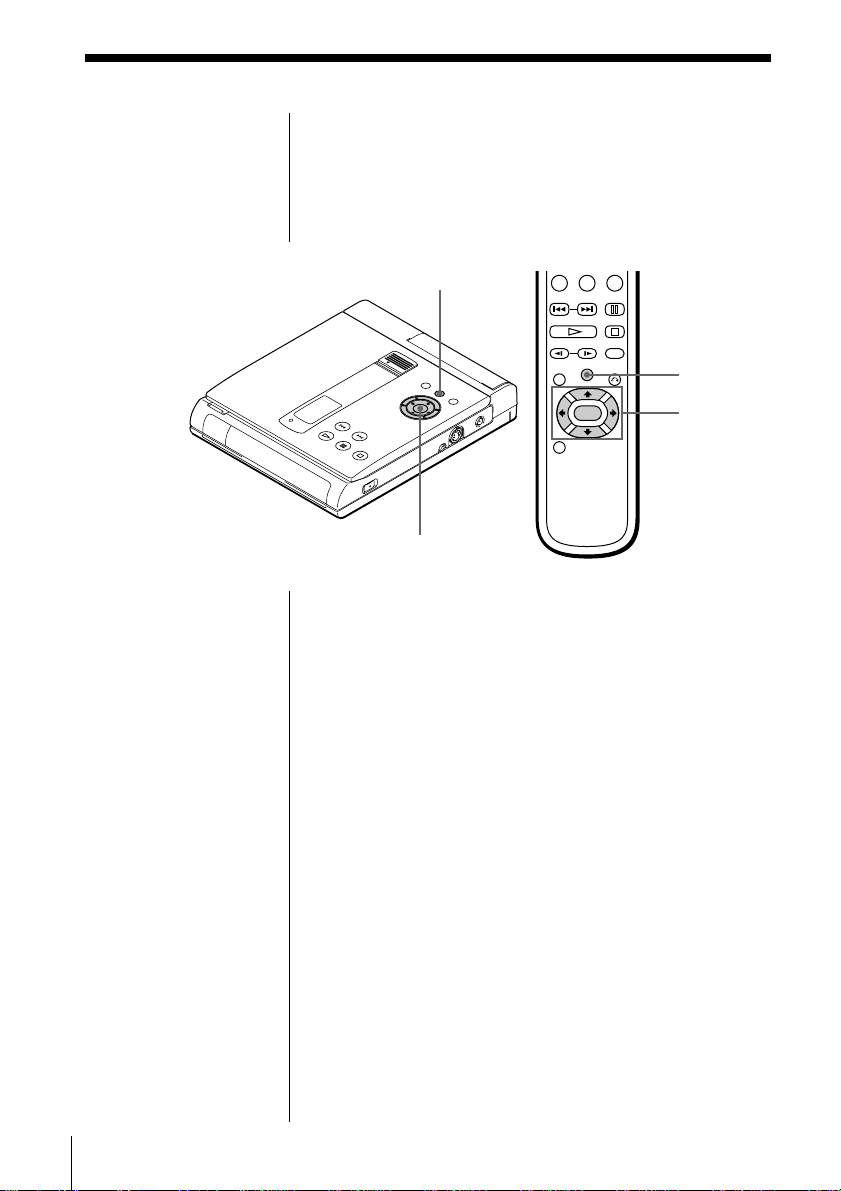

Using the title menu
On a DVD VIDEO, long sections of movies or music
pieces are divided into smaller segments. Each of
these segments is called “title.” When you play a DVD
VIDEO which contains several titles, you can select the
title you want using the title menu.
1Press TITLE.
The title menu appears on the TV screen. The
contents of the menu vary from disc to disc.
2Press ?/>/.//to select the title you want to
play.
(Depending on the DVD VIDEO, you may be able
to use the number buttons to select the title.)
3Press ENTER.
The player starts playing the selected title.
TITLE
TITLE
?/>/.///ENTER
?/>/.//
/ENTER
0

Basic Operations
19
If you want to select the
language for the DVD
menu
Change the setting using
“INITIAL SETUP” (see
page 52).
Notes
• Depending on the DVD
VIDEO, the instructions
supplied with the disc
may refer to “DVD
menu” as simply
“menu.” Likewise,
“Press ENTER.” in Step
3 may be expressed as
“Press SELECT.”
• Depending on the DVD
VIDEO, the DVD menu
may not appear on the
TV screen.
Using the DVD menu
Some DVD VIDEOs allow you to select the disc
contents using the menu. When you play these DVD
VIDEOs, you can select the item, the language for the
sub-titles, the language for the sound, etc., using the
DVD menu.
1Press DVD MENU.
The DVD menu appears on the TV screen. The
contents of the menu vary from disc to disc.
2Press ?/>/.//to select the item you want to
change.
(Depending on the DVD VIDEO, you may be able
to use the number buttons to select the item.)
3Press ENTER.
DVD MENU
DVD MENU
?/>/.///
ENTER
?/>/.///ENTER

20
DISPLAY
Using the on-screen display
You can check the operating status of the player and
information about the disc using the on-screen display
on the TV screen.
Press DISPLAY.
Each time you press the button, the on-screen display
changes as follows:
On-screen display 1
.
On-screen display 2
.
On-screen display off
pDisplay information of the on-screen display 1
(2) mode
* “PCM,” “MPEG,” or “DOLBY DIGITAL” is displayed. In
“DOLBY DIGITAL” case, the channel in the playing track
is displayed.
What is angle?
See page 43.
What is language for
the sound and sub-
titles?
See pages 53 and 54.
Note
Depending on the DVD
VIDEO, some information
may not appear on the TV
screen.
Current language
for the sub-titles/
total number of
languages for
sub-titles
Playing time of the
current chapter2)
Current language for the
sound/total number of
languages for the sound
Current chapter
number/total
number of
chapters in the
current title
Playing status
Current play mode
Selected angle/total
number of angles
Playing time of
the current title1)
Current audio format*
Current title number/
total number of titles
VDD PLAY
ITTLE/TOTAL: 1/1
ITTLEPLAY: 0:12:01
HCAPTER/TOTAL: 3/10
HCAPTERPLAY: 0:00:43
SUBTITLE/TOTAL :
UADIO/TOTAL: OTHER/1
DOLBY D I G I TAL 5 . 1
NAGLE/TOTAL: 1/6
