Sony Hi-Scan KP-51WS500 User manual

4-088-847-12
WideScreen
ProjectionTV
Operating Instructions
©2002 SonyCorporation
KP-46WT500
KP-57WS500
KP-51WS500
KP-65WS500

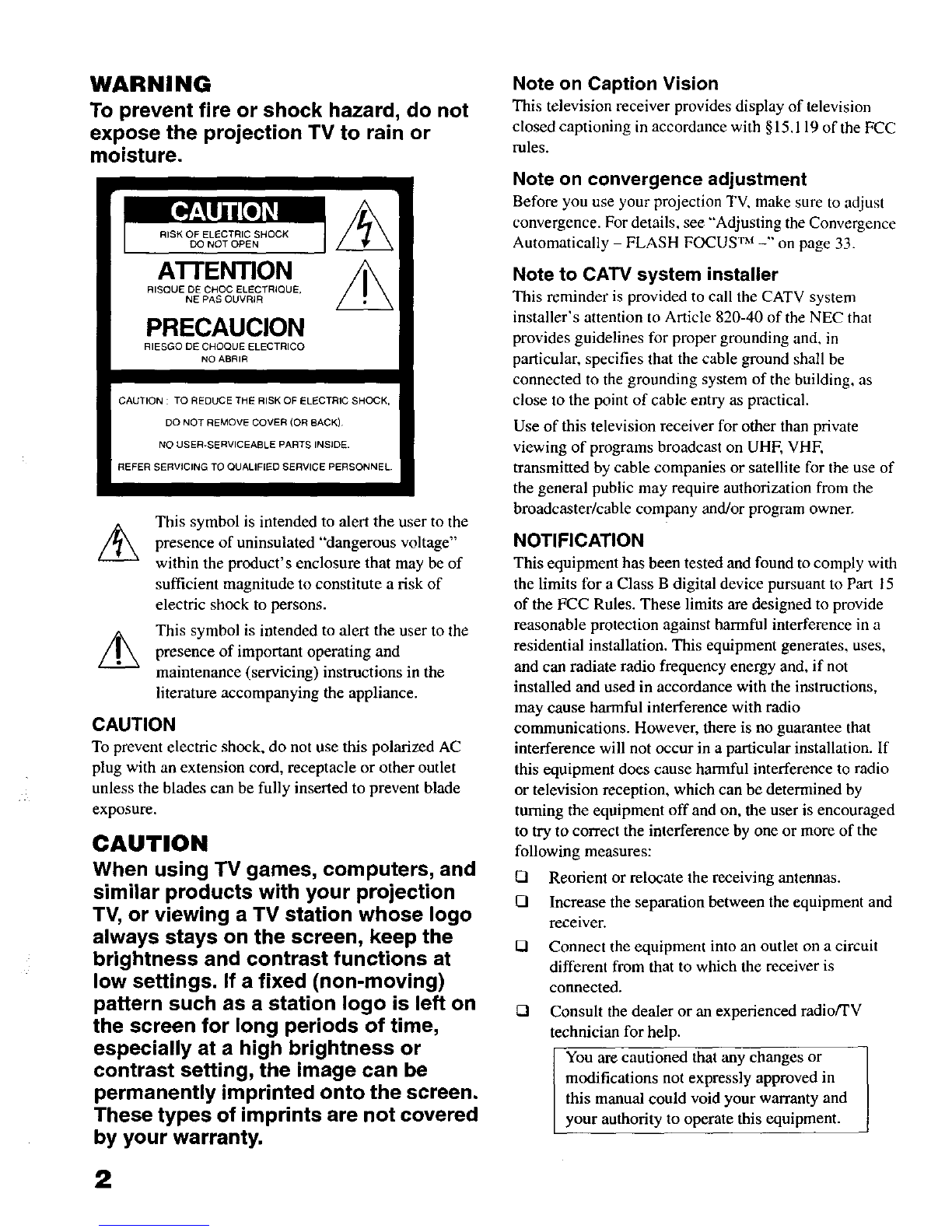

WARNING
To prevent fire or shock hazard, do not
expose the projection TV to rain or
moisture.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated "'dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
To prevent electric shock, do not use this polarized AC
plug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade
exposure.
CAUTION
When using TV games, computers, and
similar products with your projection
TV, or viewing a TV station whose logo
always stays on the screen, keep the
brightness and contrast functions at
low settings. If a fixed (non-moving)
pattern such as a station logo is left on
the screen for long periods of time,
especially at a high brightness or
contrast setting, the image can be
permanently imprinted onto the screen,
These types of imprints are not covered
by your warranty.
2
Note on Caption Vision
This television receiver provides display of television
closed captioning in accordance with §15.119 of the FCC
rules.
Note on convergence adjustment
Before you use your projection TV, make sure to adjust
convergence. For details, see "'Adjusting the Convergence
Automatically - FLASH FOCUS TM -'" on page 33,
Note to CATV system installer
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the NEC that
provides guidelines/'or proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
Use of this television receiver for other than private
viewing of programs broadcast on UHF, VHF,
transmitted by cable companies or satellite for the use of
the general public may require authorization from the
broadcaster/cable company and/or program owner,
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference with radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
n Reorient or relocate the receiving antennas.
O Increase the separation between the equipment and
receiver.
O Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
_1 Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your warranty and
your authority to operate this equipment.

CAUTION
How to reduce the risk of "Image Retention"
on your Projection TV
Bright, stationary images such as TV station logos
displayed on your TV can cause permanent damage to your
TV, resulting in retention of the image in the picture.
Please take the following steps to reduce the risk of causing
image retention:
View a variety of program sources or programming
material.
Image retention can occur when bright stationary images
such as TV station logos are viewed. Changing the
program material viewed reduces the possibility that a
single image will become imprinted on the picture tubes in
your TV.
When viewing programs with stationary images, adjust the
picture setting to reduce the "Picture" and "Brightness"
levels, lmage retention is accelerated by higher
"'Brightness" and higher "'Picture" settings.
Please refer to your instruction manual for instructions on
adjusting picture settings.
This will help you reduce the risk of causing image
retention.
IMAGE RETENTION IS NOT COVERED BY
YOUR WARRANTY
This document is for the remote control RM-Y909.
MODELS: KP-46WT500, KP-5 IWS500, KP-57WS500,
and KP-65WS500.
Please keep this notice with the instruction manual.
Safety
U] Operate the projection TV only on 120 V AC.
C) The plug is designed, for safety purposes, to fit into
the wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact your
dealer.
O If any liquid or solid object should fall inside the
cabinet, unplug the projection TV immediately and
have it checked by qualified service personnel before
operating it further.
I_ If you will not be using the projection TV for several
days, disconnect the power by pulling the plug itself.
Never pull on the cord.
For details concerning safety precautions, see
"IMPORTANT SAFEGUARDS" on page 4.
Installing
Cl To prevent internal heat buildup, do not block the
ventilation openings.
Do not install the projection TV in a hot or humid
place, or in a place subject to excessive dust or
mechanical vibration.
V_.l Avoid operating the projection TV at temperatures
below 5°C (41°F).
LI If the projection TV is transported directly from a
cold to a warm location, or if the room temperature
changes suddenly, the picture may be blurred or show
poor color due to moisture condensation. In this case,
please wait a few hours to let the moisture evaporate
before turning on the projection TV.
IJ To obtain the best picture, do not expose the screen to
direct illumination or direct sunlight. It is
recommended to use spot lighting directed down from
the ceiling or to cover the windows that face the
screen with opaque drapery. It is desirable to install
the projection TV in a room where the floor and walls
are not of a reflective material.
As an ENERGY STAR® Partner,
Sony Corporation has determined
that this product meets the
ENERGY STAR ®guidelines for
energy efficiency.
Trademark Information
TruSurround and the ( • )® symbol are trademarks of SRS
Labs, Inc. TruSurround technology is incorporated under
license from SRS Labs, Inc.
BBE and BBE Symbol are trademarks of BBE Sound, Inc.
and are licensed by BBE Sound, Inc. under U.S. Patent No.
4,638,258 and 4,482,866.
Steady Sound, Digital Reality Creation, Caption
Vision, CineMotion, Memory Stick, and Twin View
are registered trademarks of Sony Corporation.
ClearEdge VM and HD Detailer are trademarks of
Sony Corporation.
Owner's Record
The model and serial numbers are located at the rear of the
projection TV, below the Sony logo, on the sticker, and
also on the TV box (white label). Record these numbers in
the spaces provided below. Refer to them whenever you
call upon your Sony dealer regarding this product.
Model No.
Serial No.
3

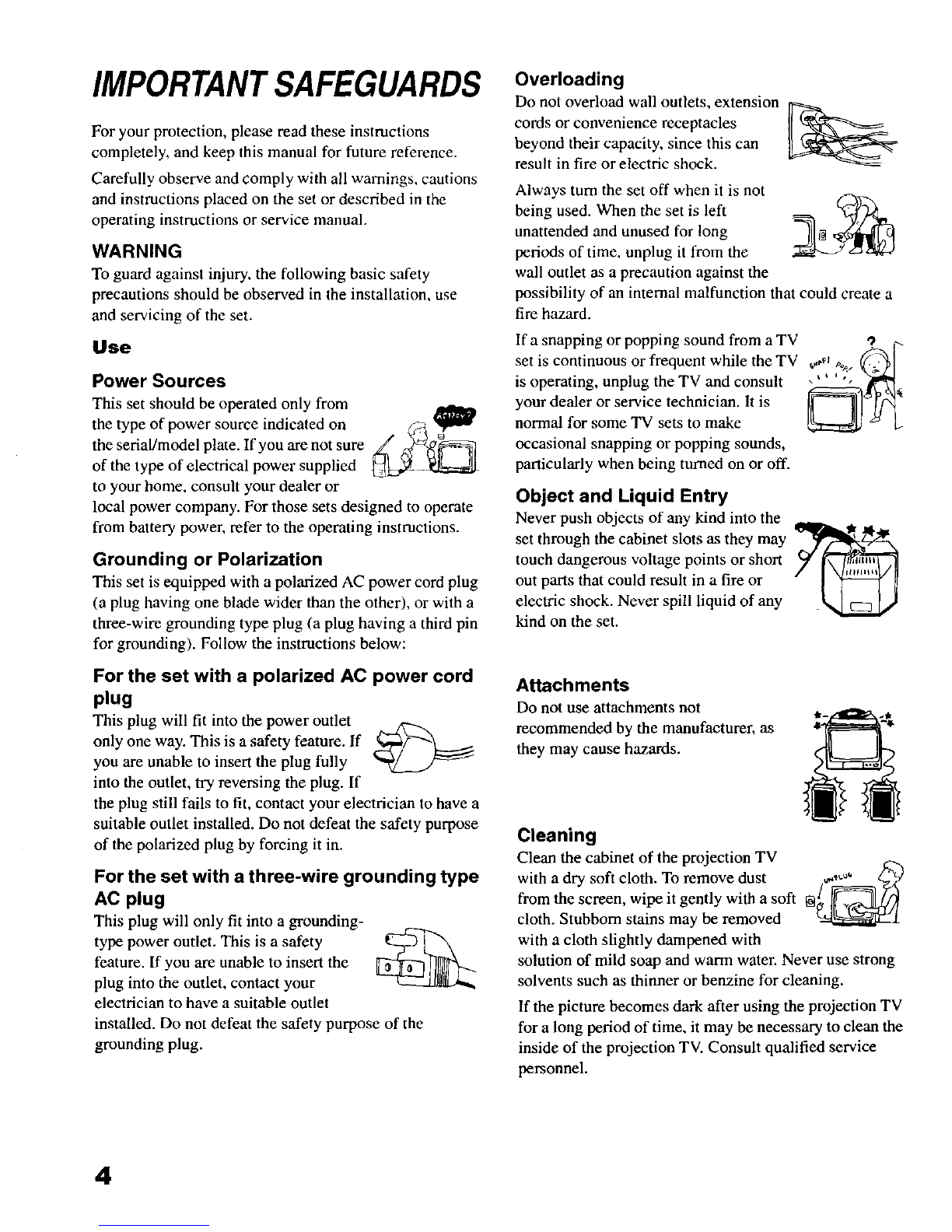

IMPORTANTSAFEGUARDS
For your protection, please read these instructions
completely, and keep this manual for future reference.
Carefully observe and comply with all warnings, cautions
and instructions placed on the set or described in the
operating instructions or service manual.
WARNING
To guard against injury, the following basic safety
precautions should be observed in the installation, use
and servicing of the set.
Use
Power Sources
This set should be operated only from
the type of power source indicated on . {_._r_ i1"
the serial/model plate. If you are not sure
of the type of electrical power supplied
to your home, consult your dealer or
local power company. For those sets designed to operate
from battery power, refer to the operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug
(a plug having one blade wider than the other), or with a
three-wire grounding type plug (a plug having a third pin
for grounding). Follow the instructions below:
For the set with a polarized AC power cord
plug
This plug will fit into the power outlet
only one way. This is a safety feature. If _"k._...---_
you are unable to insert the plug fully
into the outlet, try reversing the plug. If
the plug still fails to fit, contact your electrician to have a
suitable outlet installed. Do not defeat the safety purpose
of the polarized plug by forcing it in.
For the set with a three-wire grounding type
AC plug
This plug will only fit into a grounding-
type power outlet. This is a safety
feature. If you are unable to insert the
plug into the outlet, contact your
electrician to have a suitable outlet
installed. Do not defeat the safety purpose of the
grounding plug.
Overloading
Do not overload wall outlets, extension
cords or convenience receptacles
beyond their capacity, since this can
result in fire or electric shock.
Always turn the set off when it is not
being used. When the set is left
unattended and unused for long
periods of time, unplug it from the
wall outlet as a precaution against the
possibility of an internal malfunction that could create a
fire hazard.
If a snapping or popping sound from a TV _ _..
set is continuous or frequent while the TV _,,_ po,.
is operating, unplug the TV and consult -' ''"-
your dealer or service technician. It is
normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Object and Liquid Entry
Never push objects of any kind into the
set through the cabinet slots as they may
touch dangerous voltage points or short
out parts that could result in a fire or
electric shock. Never spill liquid of any
kind on the set.
Attachments
Do not use attachments not
recommended by the manufacturer, as
they may cause hazards.
Cleaning
Clean the cabinet of the projection TV
with a dry soft cloth. To remove dust _.,_
from the screen, wipe it gently with a soft _/_ I_,_,_'_
cloth. Stubborn stains may be removed
with a cloth slightly dampened with
solution of mild soap and warm water. Never use strong
solvents such as thinner or benzine for cleaning.
If the picture becomes dark after using the projection TV
for a long period of time, it may be necessary to clean the
inside of the projection TV. Consult qualified service
personnel.
4

Installation
Water and Moisture
Do not use power-line operated sets
near water -- for example, near a
bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or
near a swimming pool, etc.
Accessories
Do not place the set on an unstable
cart, stand, table or shelf. The set
may fall, causing serious injury to a
child or an adult and serious damage
to the set. Use only a cart or stand
recommended by Sony for the
specific model of TV. No part of the
TV set should overhang any edge of
the TV cart or stand; any
overhanging edge is a safety hazard.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
Ventilation
The slots and openings in the cabinet and in the back or
bottom are provided for necessary ventilation. To ensure
reliable operation of the set, and to protect it from
overheating, these slots and openings must never be
blocked or covered.
Q
Never cover the slots and openings _,
with a cloth or other materials. _'_:_P
Never block the slots and openings by
placing the set on a bed, sofa, rug or
other similar surface.
QNever place the set in a confined -k ._ ,_
space, such as a bookcase or built-in _a_ _cabinet, unless proper ventilation is
provided.
Power-Cord Protection
Do not allow anything to rest on or roll
over the power cord, and do not place the
set where the power cord is subject to
wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located
in the vicinity of overhead power lines or other electric
light or power circuits, or where it can come in contact
with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA
SYSTEM, EXTREME CARE SHOULD BE TAKEN TO
KEEP FROM CONTACTING SUCH POWER LINES
OR CIRCUITS AS CONTACT WITH THEM IS
ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges.
Section 810 of the National Electrical Code (NEC) in
USA and Section 54 of the Canadim_ Electrical Code in
Canada provides information with respect to proper
grounding of the mast and supporting structure,
_ounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the
National Electrical Code, ANSI/NFPA 70
___ _Antenna lead-in wire
Li_ --_--_.,/ I7 jtAntenna discharge unit
]Electdc_-_._j,-i ][_/ i (NECSection810-20)
service
I_(_ eent -. _.JGrounding conductors
......... __ (NEC section 810-21)
_._-'_'_-G round clamps
_,- - Power service grounding
NEC: National electrode system (NEC Art
Electrical Code 250 Part H)
Q Do not place the set near or over a Z---"#_:
radiator or heat register, or where it is _.-2 _'-
exposed to direct sunlight.
5

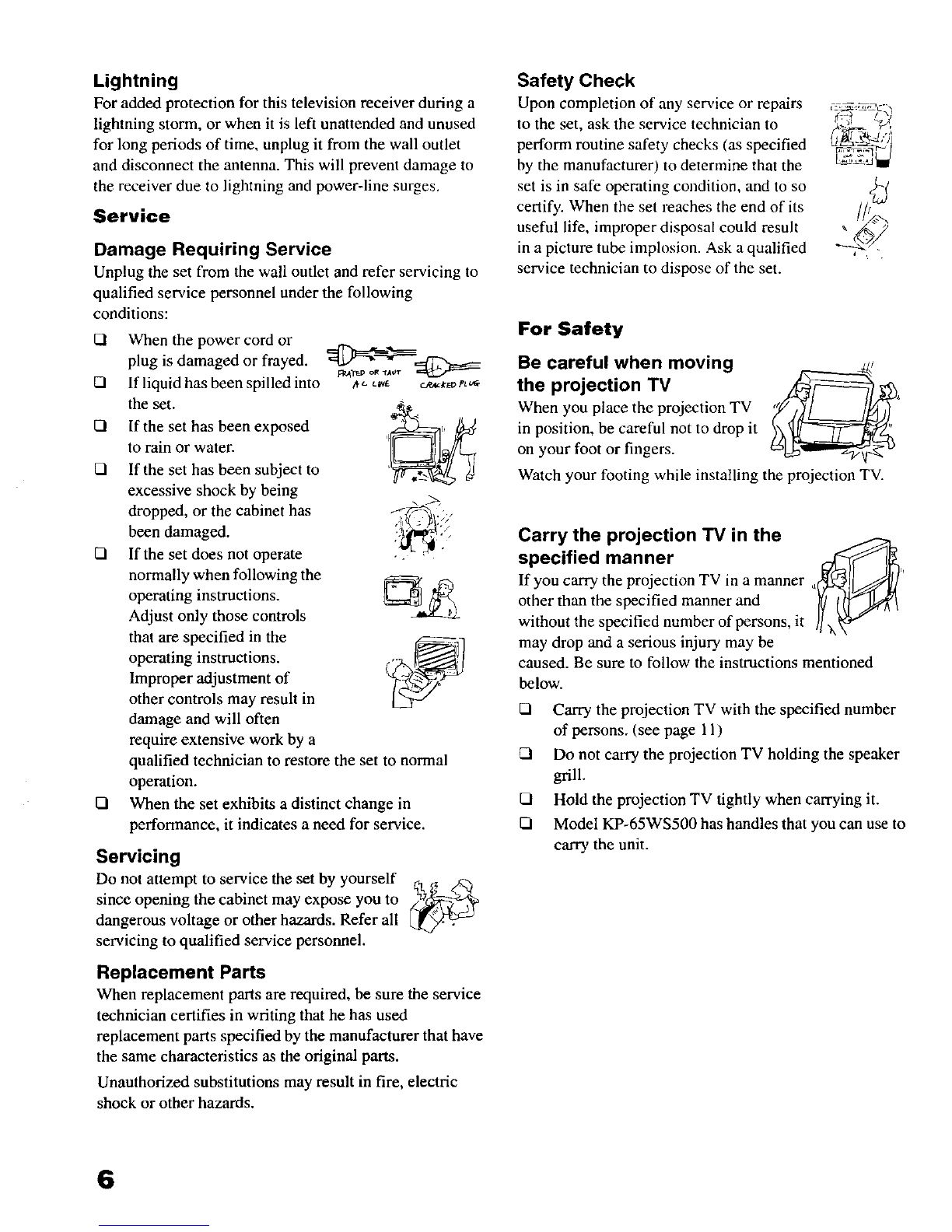

Lightning
For added protection for this television receiver during a
lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet
and disconnect the antenna. This will prevent damage to
the receiver due to lightning and power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to
qualified service personnel under the following
conditions:
[3 When the power cord or
plug is damaged or frayed.
[] If liquid has been spilled into
the set.
t3 If the set has been exposed
to rain or water.
[] If the set has been subject to
FP_'f_P oR _Ao'r
[]
O
excessive shock by being
dropped, or the cabinet has
been damaged.
If the set does not operate
normally when following the
operating instructions.
Adjust only those controls
that are specified in the
operating instructions.
Improper adjustment of
other controls may result in
damage and will often
require extensive work by a
Y
qualified technician to restore the set to normal
operation.
When the set exhibits a distinct change in
performance, it indicates a need for service.
Servicing
Do not attempt to service the set by yourself _ ,,_
since opening the cabinet may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service
technician certifies in writing that he has used
replacement parts specified by the manufacturer that have
the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
Safety Check
Upon completion of any service or repairs ,:,,_,_-_c- _
to the set, ask the service technician to ,_. _ _:
perform routine safety checks (as specified (_)J
by the manufacturer) to determine that the _]_
set is in safe operating condition, and to so _t(
certify. When the set reaches the end of its //
useful life, improper disposal could result _.///
in a picture tube implosion. Ask a qualified -,
service technician to dispose of the set.
For Safety
Be careful when moving
the projection TV
When you place the projection TV
in position, be careful not to drop it
on your foot or fingers.
Watch your footing while installing the projection TV.
Carry the projection TV in the
specified manner
If you carry the projection TV in a manner
other than the specified manner and
without the specified number of persons, it
may drop and a serious injury may be
caused. Be sure to follow the instructions mentioned
below.
[] Carry the projection TV with the specified number
of persons. (see page 11)
_q Do not carry the projection TV holding the speaker
grill.
[] Hold the projection TV tightly when carrying it.
Q Model KP-65WS500 has handles that you can use to
carry the unit.
6

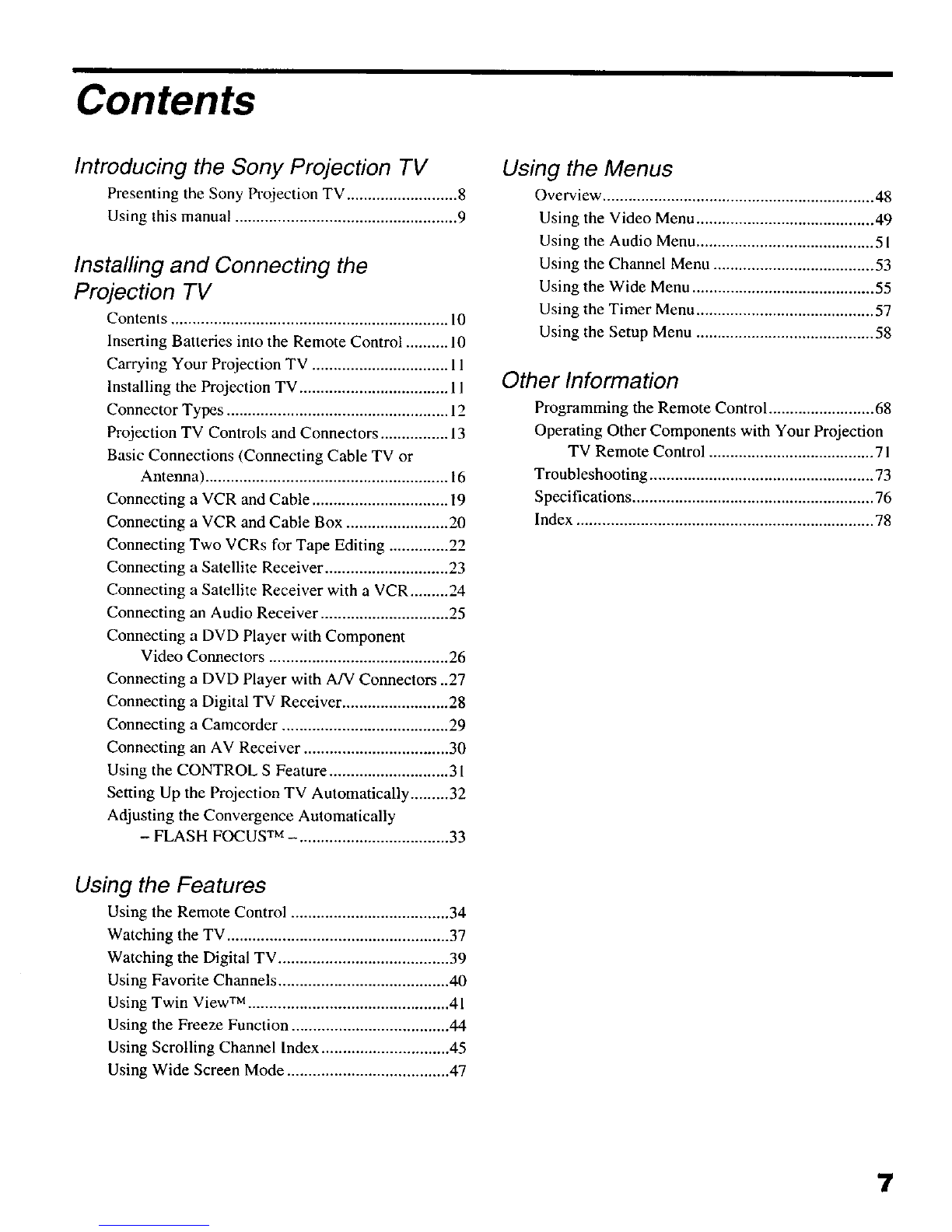

Contents
Introducing the Sony Projection TV
Presenting the Sony Projection TV .......................... 8
Using this manual .................................................... 9
Installing and Connecting the
Projection TV
Contents ................................................................. 10

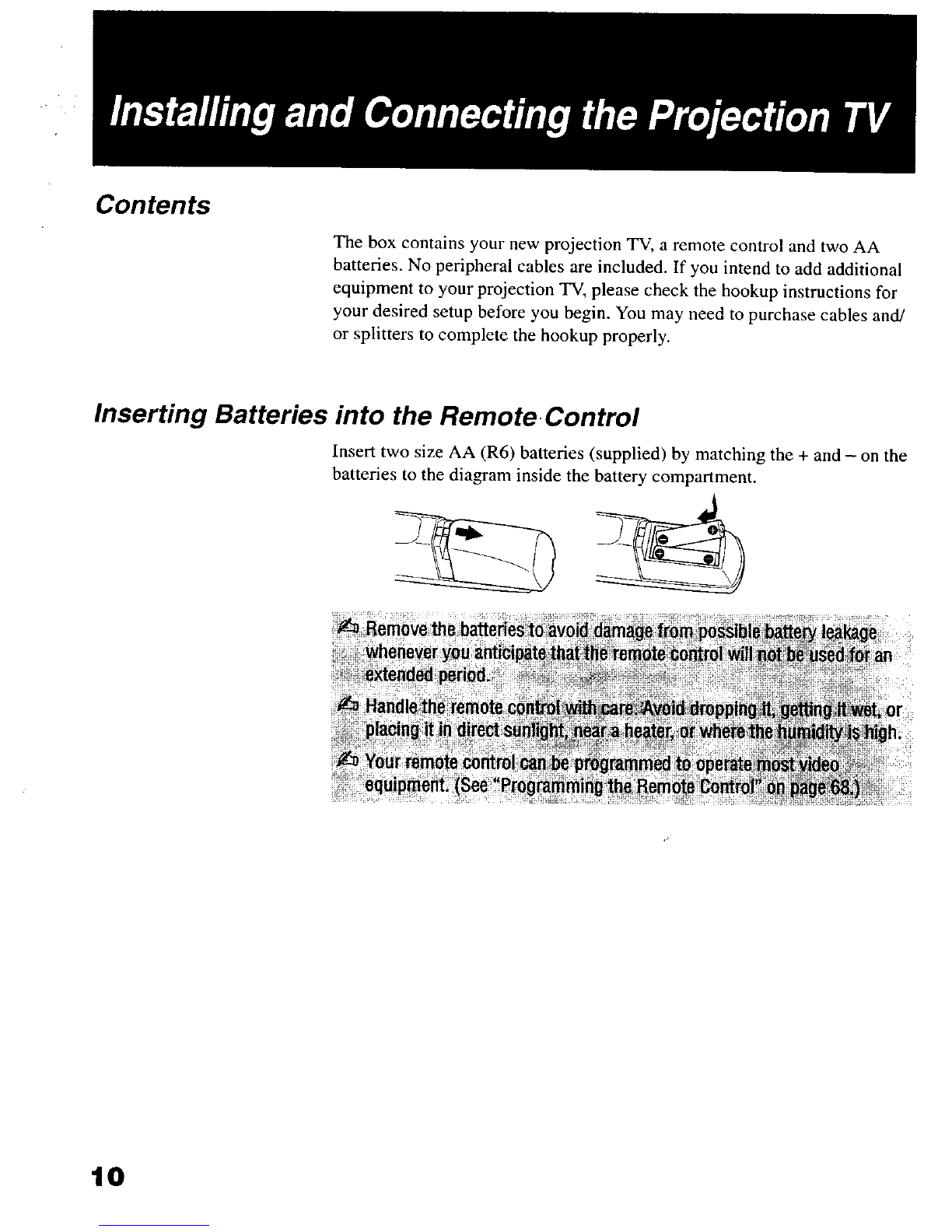

Inserting Batteries into the Remote Control .......... 10
Carrying Your Proiection TV ................................ 11
Installing the Projection TV ................................... 11

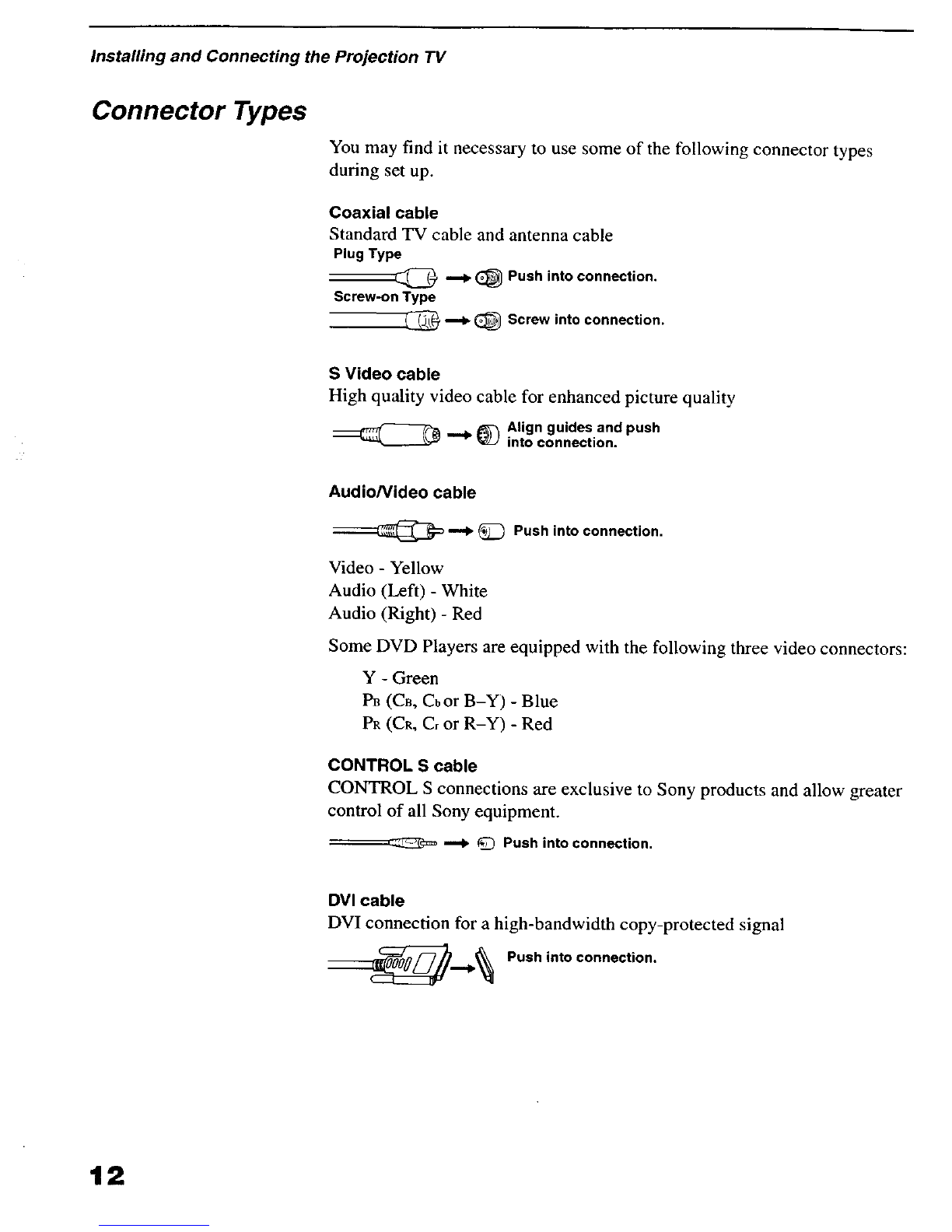

Connector Types .................................................... 12

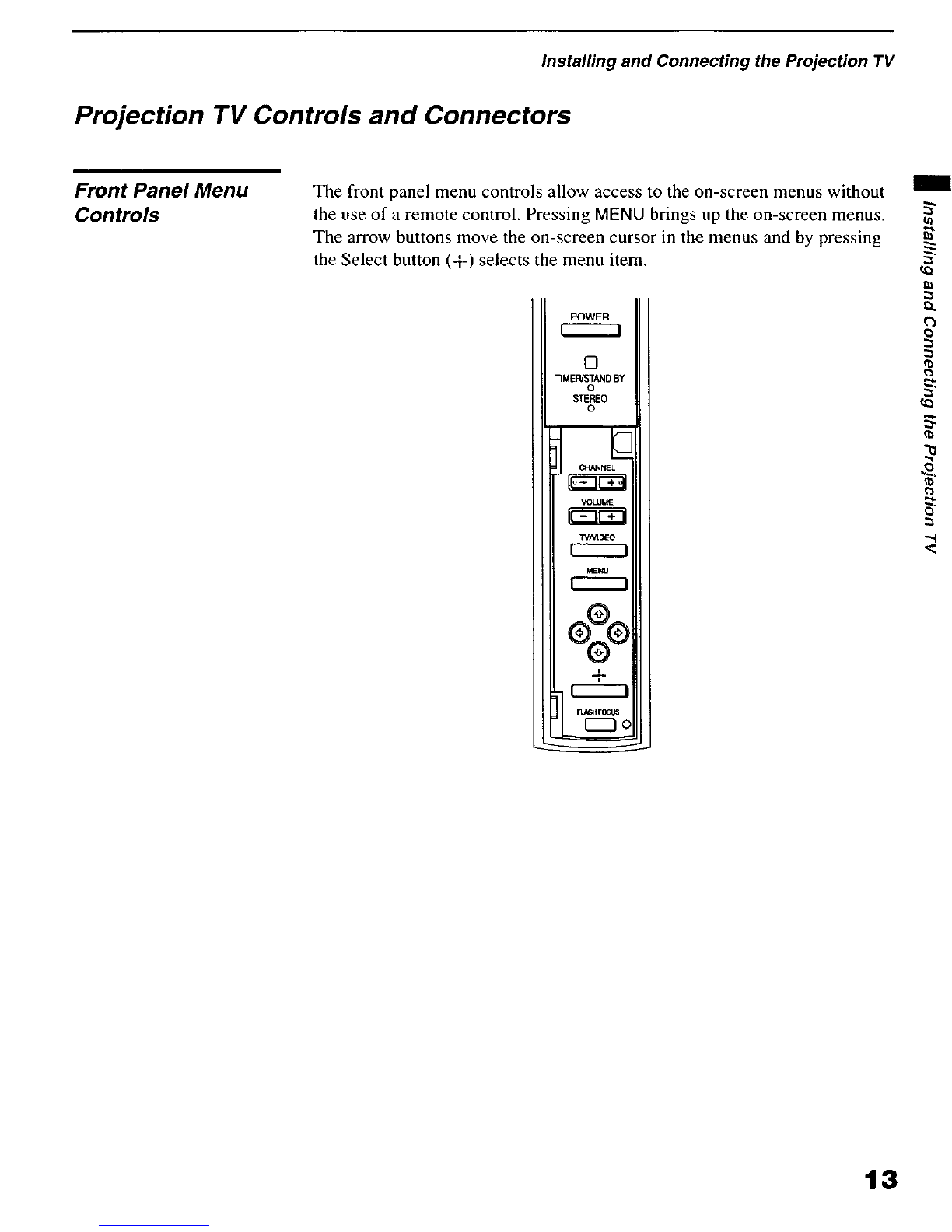

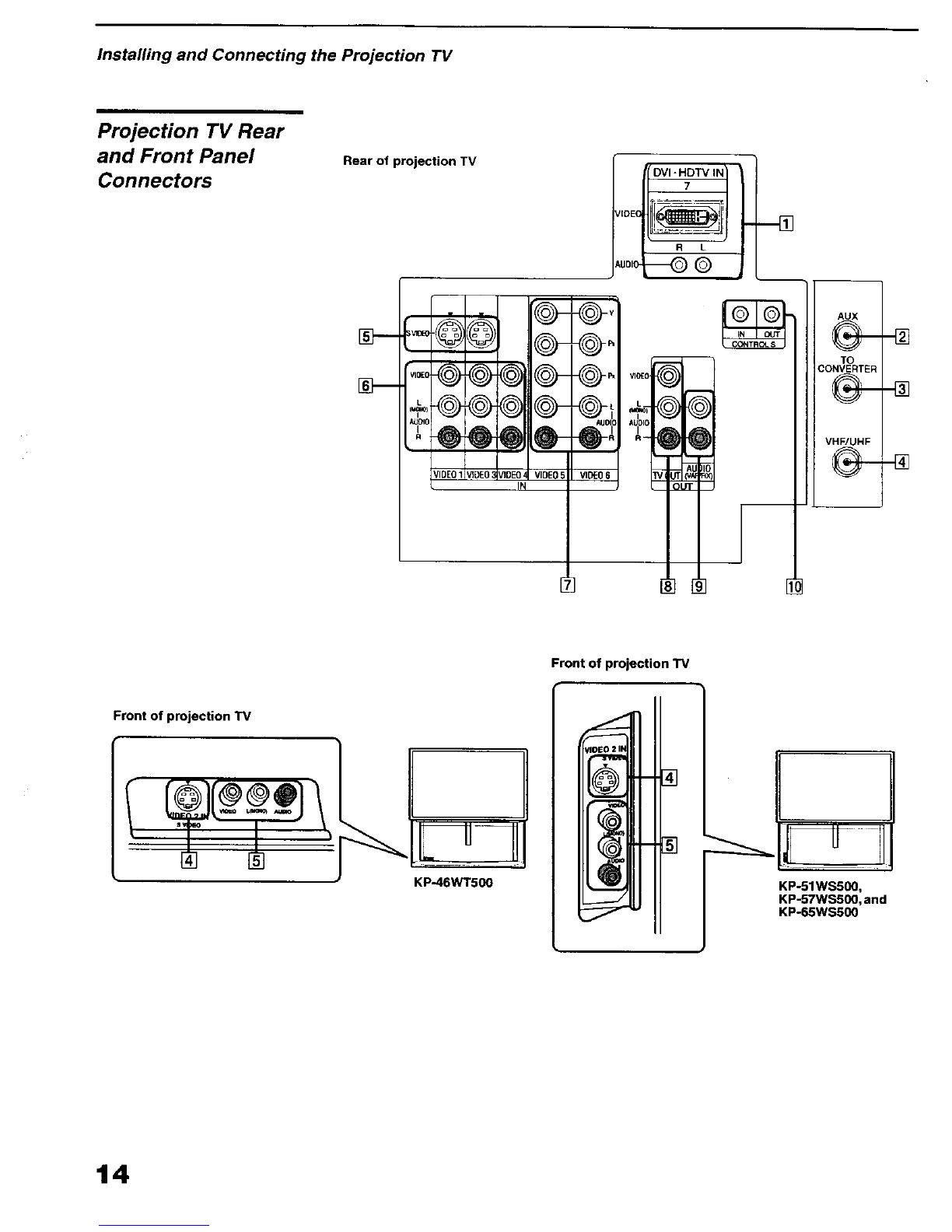

Projection TV Controls and Connectors ................ 13
Basic Connections (Connecting Cable TV or
Antenna) ......................................................... 16
Connecting a VCR and Cable ................................ 19

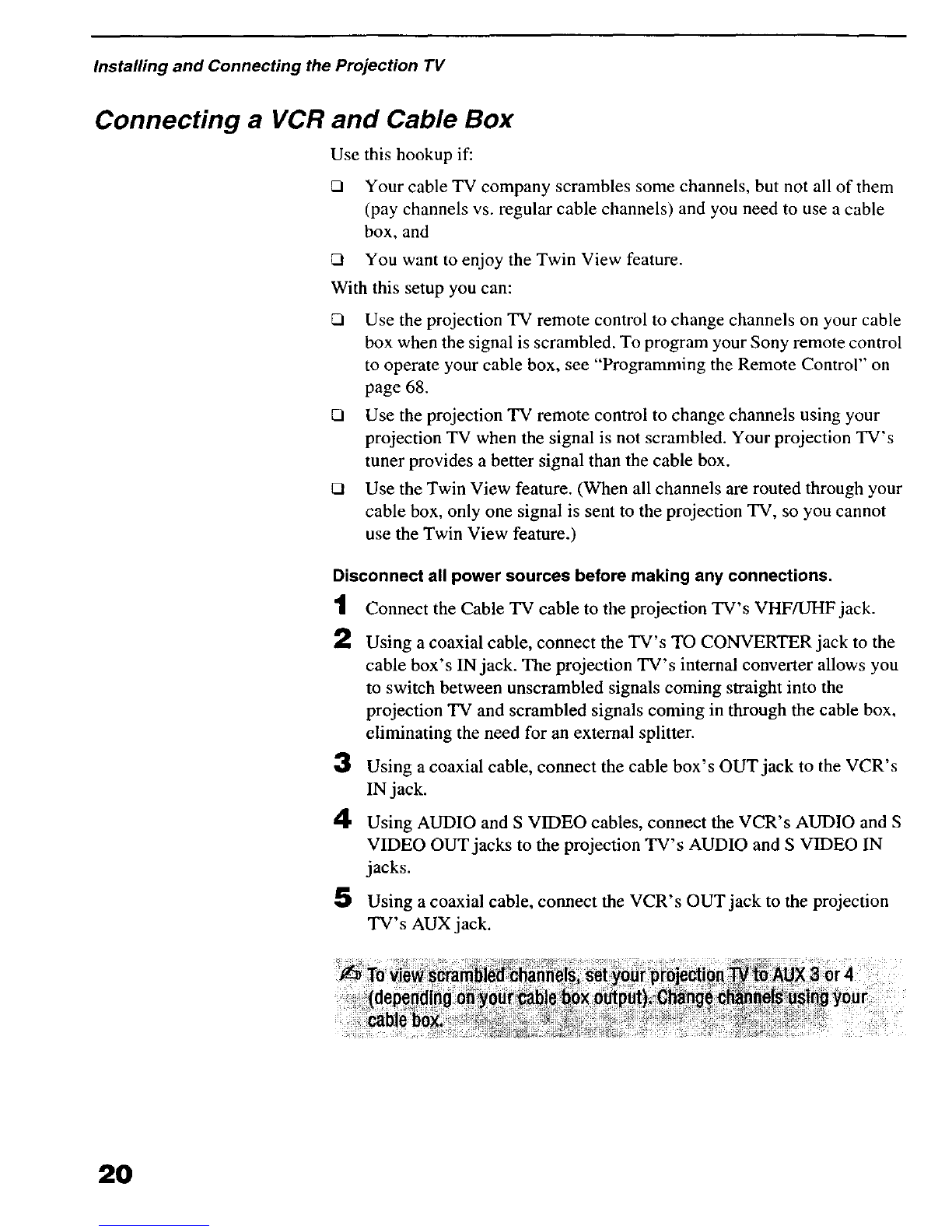

Connecting a VCR and Cable Box ........................ 20
Connecting Two VCRs for Tape Editing .............. 22
Connecting a Satellite Receiver ............................. 23
Connecting a Satellite Receiver with a VCR ......... 24
Connecting an Audio Receiver .............................. 25
Connecting a DVD Player with Component
Video Connectors .......................................... 26
Connecting a DVD Player with A/V Connectors ..27
Connecting a Digital TV Receiver ......................... 28
Connecting a Camcorder ....................................... 29
Connecting an AV Receiver .................................. 30
Using the CONTROL S Feature ............................ 31
Setting Up the Projection TV Automatically ......... 32
Adjusting the Convergence Automatically
- FLASH FOCUS TM -. .................................. 33
Using the Menus
Overview ................................................................ 48
Using the Video Menu .......................................... 49
Using the Audio Menu .......................................... 51
Using the Channel Menu ...................................... 53
Using the Wide Menu ........................................... 55
Using the Timer Menu .......................................... 57
Using the Setup Menu .......................................... 58
Other Information
Programming the Remote Control ......................... 68
Operating Other Components with Your Projection
TV Remote Control ....................................... 71
Troubleshooting ..................................................... 73
Specifications ......................................................... 76
Index ...................................................................... 78
Using the Features
Using the Remote Control ..................................... 34
Watching the TV .................................................... 37
Watching the Digital TV ........................................ 39
Using Favorite Channels ........................................ 40
Using Twin View TM ............................................... 41
Using the Freeze Function ..................................... 44
Using Scrolling Channel Index .............................. 45
Using Wide Screen Mode ...................................... 47
7

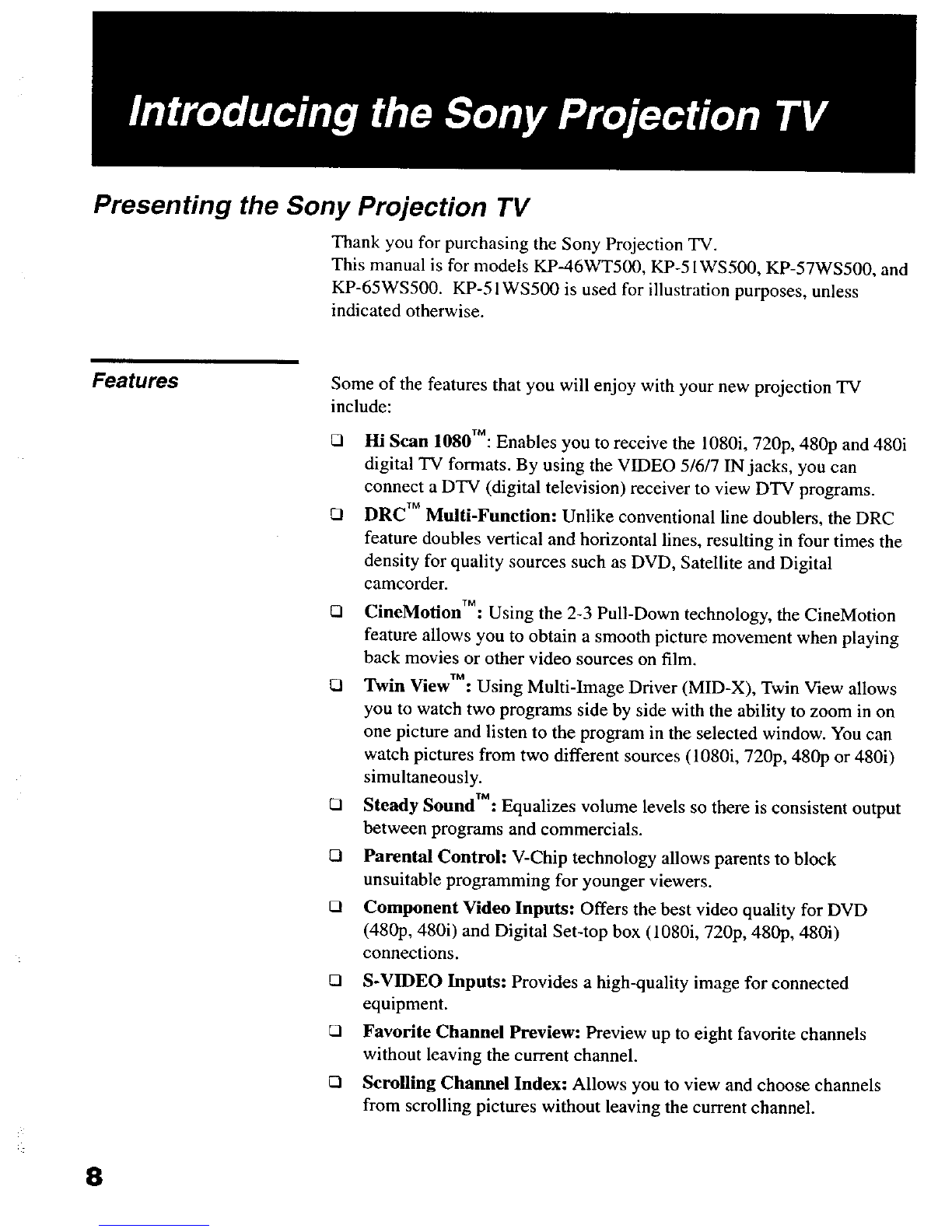

Presenting the Sony Projection TV
Thank you for purchasing the Sony Projection TV.
This manual is for models KP-46WT500, KP-5 IWS500, KP-57WS500, and
KP-65WS500. KP-51WS500 is used for illustration purposes, unless
indicated otherwise.
Features Some of the features that you will enjoy with your new projection TV
include:
OHi Scan 1080rM: Enables you to receive the 1080i, 720p, 480p and 480i
digital TV formats. By using the VIDEO 5/6/7 IN jacks, you can
connect a DTV (digital television) receiver to view DTV programs.
DRC TM Multi-Function: Unlike conventional line doublers, the DRC
feature doubles vertical and horizontal lines, resulting in four times the
density for quality sources such as DVD, Satellite and Digital
camcorder.
CineMotionrM: Using the 2-3 Pull-Down technology, the CineMotion
feature allows you to obtain a smooth picture movement when playing
back movies or other video sources on film.
• TM . . .
Twin View : Using Multi-Image Driver (MID-X), Twin View allows
you to watch two programs side by side with the ability to zoom in on
one picture and listen to the program in the selected window. You can
watch pictures from two different sources (1080i, 720p, 480p or 480i)
simultaneously.
TM
Steady Sound : Equahzes volume levels so there is consistent output
between programs and commercials.
ra Parental Control: V-Chip technology allows parents to block
unsuitable programming for younger viewers.
Component Video Inputs: Offers the best video quality for DVD
(480p, 480i) and Digital Set-top box (1080i, 720p, 480p, 480i)
connections.
t_ S-VIDEO Inputs: Provides a high-quality image for connected
equipment.
L1 Favorite Channel Preview: Preview up to eight favorite channels
without leaving the current channel.
UI Scrolling Channel Index: Allows you to view and choose channels
from scrolling pictures without leaving the current channel.
8

Introducing the Sony Projection TV
Using this manual
(3 Wide Screen Mode: Allows you to watch 4:3 normal broadcasts in
wide screen mode (16:9 aspect ratio). _-
Auto Wide: Allows you to select the wide screen mode automatically.
_1 Flash FocusT': Allows you to adjust convergence automatically. _
5"
LI Digital Visual Interface (DVI): Can accommodate a copyprotected t_
digital connection (HDCP*) to other devices (such as digital set-top _"
boxes) that have compatible interfaces. The DVI-HDTV input terminal
is compliant with the EIA-861 standard and is not intended for use with
personal computers.
We recommend that you carefully review the contents of the following three
sections in the order shown to ensure that you fully understand the operation
of your new projection TV.
1Installing and Connecting the Projection TV
This section guides you through your initial setup. It shows you how to
install your projection TV, to connect your new components and to connect
the antenna and cable.
2Using the Features
This section shows you how to begin using your new projection TV. It also
shows you how to use your remote control functions.
3Using the menus
This section teaches you how to access on-screen menus and adjust your
projection TV settings.
O
Instructions in this manual are written for the remote control. Similar
controls are also found on the projection TV console.
* High-bandwidth Digital Content Protection
9

Contents
The box contains your new projection TV, a remote control and two AA
batteries. No peripheral cables are included. If you intend to add additional
equipment to your projection TV, please check the hookup instructions for
your desired setup before you begin. You may need to purchase cables and/
or splitters to complete the hookup properly.
Inserting Batteries into the Remote. Control
Insert two size AA (R6) batteries (supplied) by matching the + and - on the
batteries to the diagram inside the battery compartment.
10

Installing and Connecting the Projection TV
Carrying Your Projection TV
Carrying the projection TV requires four (4) or more people.
The projection TV has been equipped with casters for easy movement on a
hard surface. Please move your projection TV using the casters.
(KP-5 IWS500, KP-57WS500, and KP-65WS500 only)
(one on each side)
(KP-65WS500 only)
5"
o
Installing the Projection TV
Recommended viewing area (Vertical)
JJ
65 u
57" _,
51" _.
46" _
Recommended viewing area (Horizontal)
11

Installing and Connecting the Projection TV
Connector Types
You may find it necessary to use some of the following connector types
during set up.
Coaxial cable
Standard TV cable and antenna cable
Plug Type
_ _ (_ Push into connection.
Screw-on Type
_ _ _ Screw into connection.
S Video cable
High quality video cable for enhanced picture quality
:__ --Ib _Align guides and push
into connection.
Audio/Video cable
_ _ Push into connection.
Video - Yellow
Audio (Left) - White
Audio (Right) - Red
Some DVD Players are equipped with the following three video connectors:
Y - Green
PB (CB, Cbor B-Y) - Blue
PR (CR, Cr or R-Y) -Red
CONTROL S cable
CONTROL S connectnons are exclusive to Sony products and allow greater
control of all Sony equipment.
_ 0 Push into connection.
DVI cable
DVI connection for a high-bandwidth copy-protected signal
_._ Push into connection.
12

Installing and Connecting the Projection TV
Projection TV Controls and Connectors
Front Panel Menu
Controls The front panel menu controls allow access to the on-screen menus without
the use of a remote control. Pressing MENU brings up the on-screen menus.
The arrow buttons move the on-screen cursor in the menus and by pressing
the Select button ('-) selects the menu item.
POWER
0
TIMER/STANDBY
0
S_REO
oE
OH_INEL
MENU
@
+
t'3
13

Installing and Connecting the Projection TV
Projection TV Rear
and Front Panel
Connectors Rear of projection TV
I
o_,@-@@>@
'@_-Q I
VIDEOIlV]DE03 _'IOEO VIDEOE
IN
'DVI *__TV IN
/[DEC iI_
RL
vl0_0
L_
@/'
VIDEO 6
AUX
TO
CONVERTER
VHF/UHF
--N
-N
--N
Front of projection TV
Front of projection TV
KP-46WT500
U- 1
KP-51WSS00,
KP-57WS500, and
KP-65WSS00
t4

Installing and Connecting the Projection TV

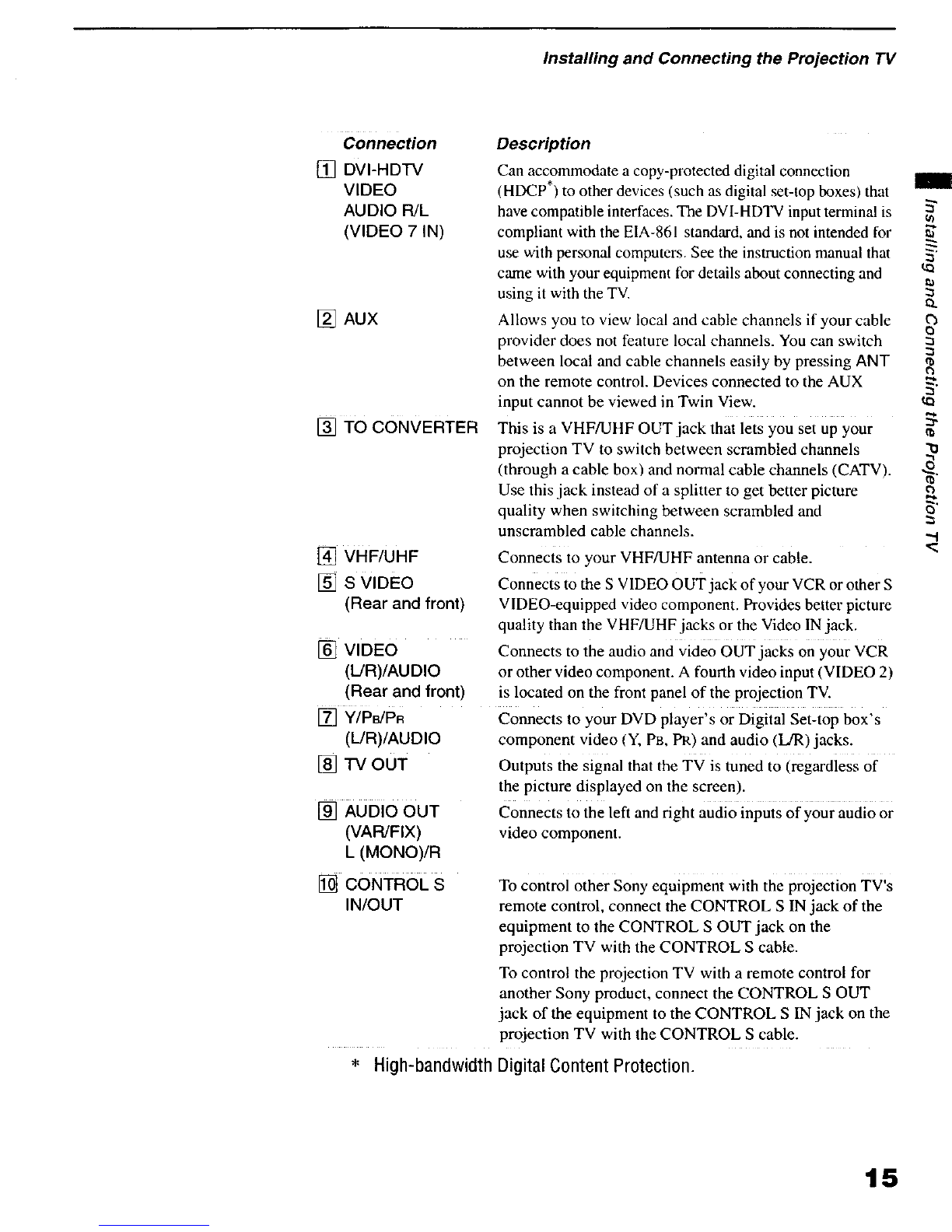

Connection
[] DVI-HDTV
VIDEO
AUDIO R/L
(VIDEO 7 IN)
[] AUX
131TocONVERTER
[] VHF/UHF
[] S VIDEO
(Rear and front)
[] VIDEO
(L/R)/AUDIO
(Rear and front)
[] Y/PB/PR
(L/R)/AUDIO
[] TV OUT
[] AUDIO OUT
(VAR/FIX)
L (MONO)/R
[] CONTROL S
IN/OUT
Description
Can accommodate a copy-protected digital connection
(HDCP*) to other devices (such as digital set-top boxes) that
have compatible interfaces. The DVI-HDTV input terminal is
compliant with the EIA-861 standard, and is not intended for
use with personal computers. See the instruction manual that
came with your equipment lot details about connecting and
using it with the TV.
Allows you to view local and cable channels if your cable
provider does not feature local channels. You can switch
between local and cable channels easily by pressing ANT
on the remote control. Devices connected to the AUX
input cannot be viewed in Twin View.
This is a VHF/UHF OUT jack that lets you set up your
projection TV to switch between scrambled channels
(through a cable box) and normal cable channels (CATV).
Use this jack instead of a splitter to get better picture
quality when switching between scrambled and
unscrambled cable channels.
Connects to your VHF/UHF antenna Orcable.
Connects to the S VIDEO ouT jack of your VCR or other S
VIDEO-equipped video component. Provides better picture
quality than the VHF/UHF jacks or the Video IN jack.
Connects to the audio and video OUT jacks on your VCR
or other video component. A fourth video input (VIDEO 2)
is located on the front panel of the projection TV.
Connects to your DVD player's or Digital Set-top box's
component video (Y, PB,PR) and audio (L/R) jacks.
Outputs the signal that the TV is tuned to (regardless of
the picture displayed on the screen).
Connects to the left and right audio inputs of your audio or
video component.
To control other Sony equipment with the projection TV's
remote control, connect the CONTROL S IN jack of the
equipment to the CONTROL S OUT jack on the
projection TV with the CONTROL S cable.
To control the projection TV with a remote control for
another Sony product, connect the CONTROL S OUT
jack of the equipment to the CONTROL S IN jack on the
projection TV with the CONTROL S cable.
High-bandwidth Digital Content Protection.
t_
t'b
r_
"o
4
,<
15

Installing and Connecting the Projection TV
Basic Connections (Connecting Cable TV or Antenna)
Connecting Directly
to Cable or an
Antenna
The connection you choose depends on the cable found in your home. Newer
homes are equipped with standard coaxial cable (see []); older homes
probably have 300-ohm twin lead cable (see 1"_1);other homes may contain
both (see 1_).
[] VHF Only or VHF/UHF or Cable
VHF/UHF
75-ohm coaxial
cable "--_-__ Rear of projection TV
[] VHF Only or UHF Only or VHF/UHF
300-ohm twin lead cable VHF/UHF
Antenna ¢_onne_
[] VHFand UHF
75-ohm coaxial cable _=_ _._ VHF/U_HF
I_1 uN Splitter
(not supplied)
300-ohm twin lead cable ¢
Rear of projection TV
Rear of projection TV
Cable and Antenna If your cable provider does not feature local channels, you may find this
setup convenient.
CATV cable AUX
TO
CONVERTER
(No connection to
TO CONVERTER) _Rear of projection TV
Antenna cable VHF_HF
Select CABLE or antenna (ANT) mode by pressing ANT on the remote
control.
16

Installing and Connecting the Projection TV
Cable Box
Connections Cable Box and Cable This is the preferred basic cable TV hookup to use if:
Your cable TV company scrambles some channels, but not all of them
(pay channels vs. regular cable channels) and you need to use a cable
box, and
121 You want to enjoy the Twin View feature.
With this setup you can:
O Use the projection TV remote control to change channels using your
cable box when the signal is scrambled.
I21 Use the projection TV remote control to change channels using your
projection TV when the signal is not scrambled. (Your projection TV's
tuner provides a better signal than the cable box.)
[] Use the Twin View feature. (When all channels are routed through your
cable box, only one channel is sent to the projection TV, so you can not
use the Twin View or Channel Index features for your cable box.)
1
2
3
Connect the Cable TV cable to the projection TV's VHF/UHF jack.
Using a coaxial cable, connect the projection TV's TO CONVERTER
jack to the cable box's IN jack. The projection TV's internal converter
allows you to switch between unscrambled signals coming straight into
the projection TV and scrambled signals coming in through the cable
box, eliminating the need for an external splitter.
Using a coaxial cable, connect the cable box's OUT jack to the
projection TV's AUX jack.
5"
t_
-n
IN
Cable box
OUT
Aux
__ Rear of
projection TV
To
CONVERTER
T
75-ohm coaxial cable (not supplied) •:Signal
VHF/UHF
CATV cable (unscrambled channels)
17

Installing and Connecting the Projection TV
BSetting the Channel
Fix feature in the Channel
menu (see "Using the
Channel Menu" on page
53), ensures that you do
not accidentally switch
the channels using your
projection "rv.
Cable Box Only
Use this hookup if:
[] You subscribe to a cable TV system that uses scrambled or encoded
signals requiring a cable box to view all channels, and
(3 You do not intend to hook up any other audio or video equipment to
your projection TV.
When all channels are routed through your cable box, only one unscrambled
channel is sent to the projection TV, so you cannot use the Twin View
feature. If some channels are scrambled, but others are not, consider using
the hookup on page 17 instead.
1Connect the coaxial connector from your cable service to the cable
box's IN jack.
_') Using a coaxial cable, connect the cable box's OUT jack to the TV's
VHF/UHF jack.
Cable VHF/UHF
! !
Cable box
Also, set Cable to ON in the Channel menu (see page 53).
18

Installing and Connecting the Projection TV
Connecting a VCR and Cable
Use this hookup if:
7..I You have cable TV that does not require a cable box.
Disconnect all power sources before making any connections.
1Connect the cable TV cable to the VCR's IN jack.
2Using a coaxial cable, connect the VCR's OUT jack to the projection
TV' s VHF/UHF jack.
3Using AUDIO and S VIDEO cables, connect the VCR's Audio and
S Video OUT jacks to the projection TV's AUDIO and S VIDEO IN
jacks.
S VIDEO -
Rear of Projection TV DVI-HDTV IN
VIDEO_
R L
"_ @-@*
@-@o
@@-@_
@@-@
/I{]EqIIIVII_O_ ItlDE04 VIDE05 VIDE06
_: !H
_,_,-vloEo(yells)
_--AUDIO-L (white)
._'--AUDIO-R (red)
VMC-810S/820S 3_ i
(not supplied) ."
L
Coaxial cable 2
I
YC-15V/30V (not supplied)
(3
t_
-q
19

Installing and Connecting the Projection TV
Connecting a VCR and Cable Box
Use this hookup if:
O Your cable TV company scrambles some channels, but not all of them
(pay channels vs. regular cable channels) and you need to use a cable
box, and
You want to enjoy the Twin View feature.
With this setup you can:
O Use the projection TV remote control to change channels on your cable
box when the signal is scrambled. To program your Sony remote control
to operate your cable box, see "Programming the Remote Control" on
page 68.
D Use the projection TV remote control to change channels using your
projection TV when the signal is not scrambled. Your projection TV's
tuner provides a better signal than the cable box.
121 Use the Twin View feature. (When all channels are routed through your
cable box, only one signal is sent to the projection TV, so you cannot
use the Twin View feature.)
Disconnect all power sources before making any connections.
1
2
3
4
5
Connect the Cable TV cable to the projection TV's VHF/UHF jack.
Using a coaxial cable, connect the TV's TO CONVERTER jack to the
cable box's IN jack. The projection TV's internal converter allows you
to switch between unscrambled signals coming straight into the
projection TV and scrambled signals coming in through the cable box,
eliminating the need for an external splitter.
Using a coaxial cable, connect the cable box's OUT jack to the VCR's
IN jack.
Using AUDIO and S VIDEO cables, connect the VCR's AUDIO and S
VIDEO OUT jacks to the projection TV's AUDIO and S VIDEO IN
jacks.
Using a coaxial cable, connect the VCR's OUT jack to the projection
TV's AUX jack.
20
