Sony Ipela SNC-CH180 User manual

High-Quality 720p HD Security Camera
with IR Illuminator and View-DR Technology
• View-DR™ technology—Sony’s innovative Wide Dynamic Range
technology— to capture objects clearly and adaptively even under
very severe backlight or highlight conditions.
• Visibility Enhancer to optimize the brightness and color
reproduction of an image dynamically on a pixel-by-pixel basis
while continuously adapting to the scene, within the given
dynamic range.
• Built-in IR (Infrared) illuminators to assist capturing objects in the dark
even under 0 lx, up to 49 feet (15 m) away.
• IP66-rated waterproof and dust-tight feature for outdoor surveillance,
or indoor where water ingress may pose an issue.
• Easy Focus/Easy Zoom functions for easy installation.
• DEPA™ Advanced Intelligent Video and Audio
Analytics to trigger an alarm, based on user-defi ned
rules.
• Equipped with CompactFlash®slot for on-board recording and
wireless operation capability with the optional SNCA-CFW5 802.11g
card.
• Optical Day/Night function to switch to Day or Night
mode depending on the light level.
• XDNR™ (eXcellent Dynamic Noise Reduction)
technology for clear images without motion blur under
low illumination.
• Powered by either AC 24V, DC 12V, or PoE (Power over
Ethernet) for easy installation.
• Equipped with a built-in heater for continued
camera operation in cold weather -22˚F to +122˚F
(–30°C to +50°C).
• Equipped with a BNC connector and a phono
jack to instantly monitor the video while installing
the camera.
• ONVIF™ (Open Network Video Interface Forum)
software that ensures greater interoperability and
more flexibility in building multiple-vendor systems.
Key Features
ON
OFF
(Actual Images)
OFF ON (Actual Images)
OFF ON (Actual Images)
SNC-CH180
Network HD Bullet Camera --- V Series
Excellent 720p HD picture quality, supporting H.264
at 30 fps
1.3 Megapixel (1280 x 1024) maximum resolution
Three codecs (H.264, MPEG-4, JPEG) and a dual
streaming capability
The Exmor™ CMOS sensor incorporated to deliver
high image quality and low noise

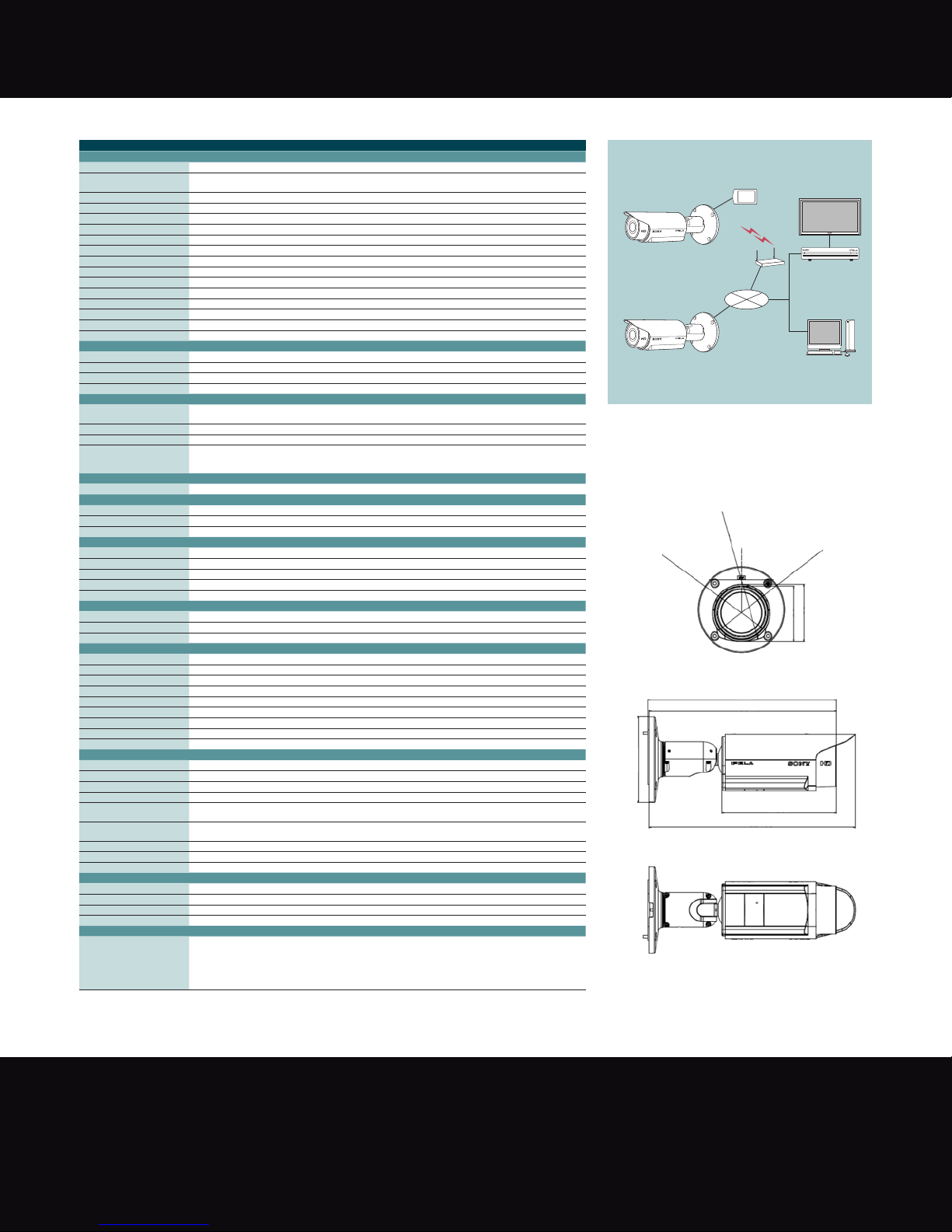

SPECIFICATIONS
DIMENSIONS
Wireless
Access Point
CF Wireless Card
SNCA-CFW5
(IEEE802.11g)
Network
Recording Software
IMZ-NS100 Series
Recording Server
NSR-1000 Series
PC
HD monitor
SNC-CH180
SNC-CH180
SYSTEM CONFIGURATION
SNC-CH180
Camera
Image device 1/3 type progressive scan Exmor CMOS sensor
Minimum illumination Color: 0.22 lx, B/W:0 lx - IR ON
(F1.2/View-DR OFF/XDNR ON-Middle/VE OFF/AGC High/50 IRE [IP])
Number of effective pixels (H x V) 1.4 Megapixel (1329 x 1049)
Electronic shutter speed 1s to 1/10000s
Gain control Auto (3 levels)
Exposure control Auto, EV Compensation *1, Auto Slow Shutter *2
White balance mode Auto (ATW, ATW-PRO),Preset, One-push WB, Manual
Lens type Built-in Vari-focal lens
Zoom ratio Optical 2.9X (x2 Digital Zoom)
Horizontal viewing angle 85.4 to 31.2 degrees
Focal length f=3.1 to 8.9mm
F-number F1.2 (Wide), F2.1 (Tele)
Minimum object distance 300 mm
Powered focus Yes (Easy Focus)
Powered zoom Yes (Easy Zoom)
IR illuminators Yes (Wave Length: 850nm [Typical],IR LED: 27pcs)
Camera Features
Day/Night *3Yes
Wide-D View-DR technology (130dB)
Image enhancement Visibility Enhancer
Noise reduction XDNR technology
Codec image size (H x V) 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576,720 x 576,
720 x 480, 704 x 576, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)
Video compression format H.264, MPEG-4, JPEG
Codec streaming capability Dual streaming
Maximum frame rate H.264: 20fps (1280 x 1024) / 30 fps (1280 x 720)
MPEG-4: 25fps (1280 x 1024) / 30 fps (1280 x 720)
JPEG: 30fps (1280 x 1024) / 30 fps (1280 x 720)
Audio
Audio compression G.711/G.726
Scene Analytics
Intelligent motion detection Yes (with built-in Post Filter)
Intelligent object detection No
Rule filter Yes
Network
Protocols
IPv4, IPv6,TCP, UDP,ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
ONVIF software Yes
Wireless network Yes (with Option *4)
Number of clients 10
Authentication IEEE802.1X
Analog Video Output
Signal system NTSC / PAL
Horizontal resolution 600 TV lines
S/N ratio More than 50dB
Interface
Ethernet 10BASE-T / 100BASE-TX (RJ-45)
Serial interface No
Card slots CF card x1
Analog video output BNC x 1
Analog monitor output Phono jack x 1
Sensor input x 1
Alarm output x 2
External microphone input Mini-jack (Monaural),MIC IN/LINE IN: 2.5VDC plug-in power
Audio line output Mini-jack (Monaural), Max output level: 1 Vrms
General
Weight 3 lb 10 oz (1650 g)
Dimensions ø 3 3/4 x 7 3/8 inches (93 x 186 mm)
Power requirements PoE *5,AC24V, DC12V
Power consumption 30 W Max.
Starting temperature AC24V/DC12V: -4 to +122°F (-20 to +50 °C)
PoE (IEEE802.3af):32 to 122°F (0 to 50 °C)
Working temperature AC24V/DC12V: -22 to +122°F (-30 to +50 °C)
PoE (IEEE802.3af):23 to 122°F (-10 to +50 °C)
Storage temperature -4 to +140°F (-20 to +60 °C)
Ingress protection IP66
Safety Regulation UL2044, FCC 15B Class A, IC Class A,IEC60950-1, EN55022(A)+EN55024+EN50130-4,VCCI Class A, C-Tick Class A
System Requirements
Operating system Windows XP®,Windows Vista®,Windows®7
Processor Intel Core2 Duo®2 GHz or higher
Memory 1 GB or more
Web browser Microsoft Internet Explorer®Ver6.0, 7.0, or 8.0
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox)
Installation manual
Wire rope
M4 screw
B&P Warranty Booklet
Template
The SNC-CH180 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter. *4 With optional SNCA-CFW5.
*5 When used with PoE, SNC-CH180 cannot be used with a heater and a CF card slot.
12 1/8 (306)
Unit: inches (mm)
3 5/8 (90)
3 3/4 (93)
ø 5 5/8 (140)
ø 3 3/8 (85)
R 4 (100)
ø 3 3/4 (93)
12 (304)
13 1/4 (334.8)
7 3/8 (186)
