Sony Ipela SNC-EP520 User manual

• Optical Day/Night function to switch to Day or
Night mode depending on the light level.
• DEPA™ Intelligent Video Analytics
system can be set up with a
DEPA-enabled recorder.
• Powered by HPoE for simple installation.
• SD memory card slot for an on-board
recording capability.*1*2
• Recording Software (RealShot™ Manager Lite)
is bundled to start recording and monitoring
instantly.
• Smart phone viewer for accessing the camera
from a smart phone.
• ONVIF™ (Open Network Video Interface
Forum)Version 1.02 software.
*1 The on-board recording function, the intelligent motion detection
function, and the tamper alarm function cannot be used
simultaneously.
*2 No guarantee or warranty is given against loss or damage to recorded
*2 data.
KEY FEATURES
SNC-EP520
Network PTZ Camera --- E Series
High-Quality PTZ Cameras
Three codecs ( H.264, MPEG-4, JPEG) and
dual-streaming capability
Powerful 36x optical zoom capability
DynaView™ - Wide-D technology
Slim and stylish
• 36x optical and total zoom ratio of 432x with
12x digital zoom.
• Three codecs ( H.264, MPEG-4, JPEG) and
dual-streaming capability.
• DynaView— Wide-D technology to handle various
lighting conditions in a scene.
With Wide-D Technology
(Simulated images)
Normal Shutter Speed
High Shutter Speed

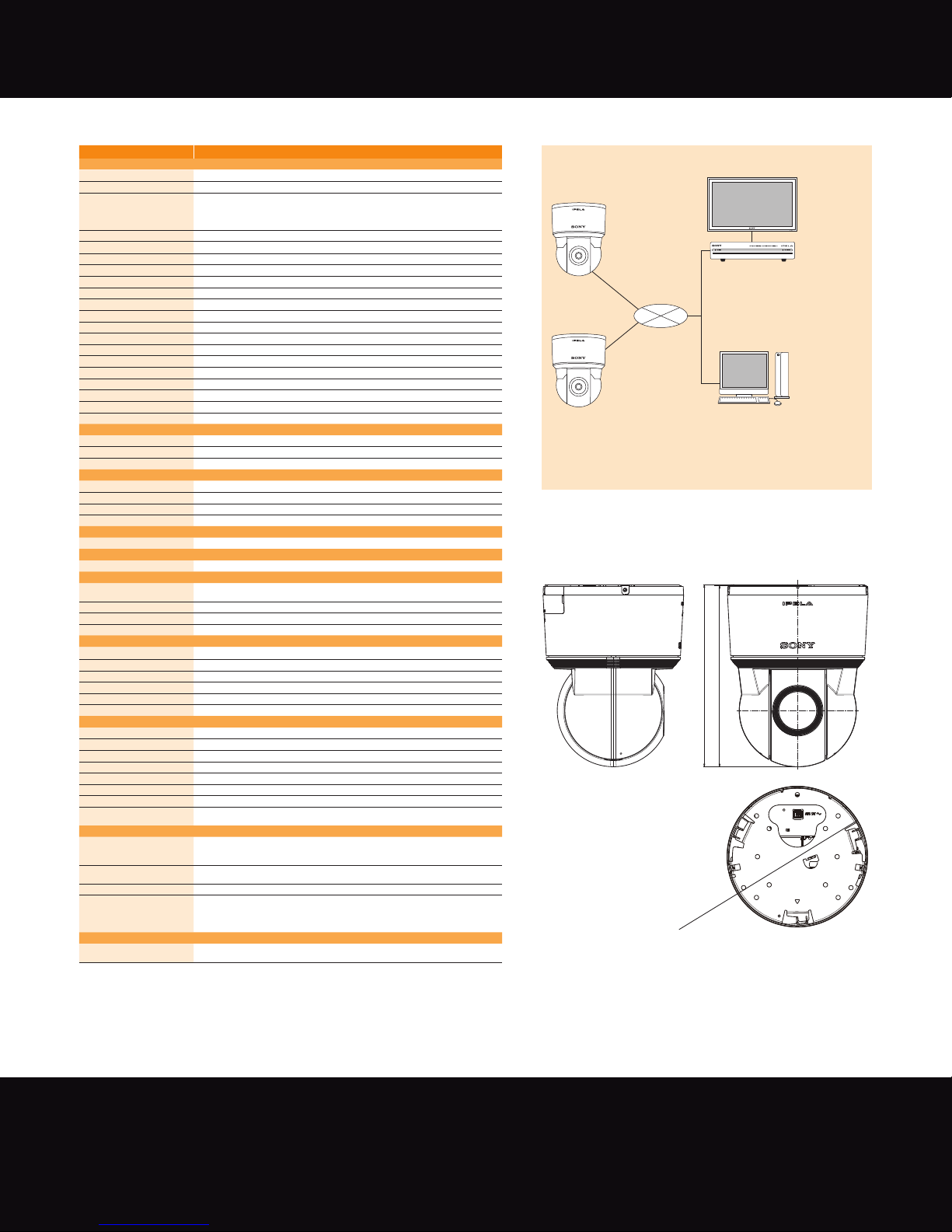

SPECIFICATIONS
DIMENSIONS
Network
Recording Software
IMZ-NS100 Series
Recording Server
NSR-500 and NSR-1000 Series
PC
HD monitor
SNC-EP520
SNC-EP520
SYSTEM CONFIGURATION
Unit: inches (mm)
7 5/8 (190.9)
ø5
7/8
(147.4)
7 1/2 (190)
SNC-EP520
Camera
Image device 1/4-type EXview™ HAD CCD
Number of effective pixels Approx.0.38 Megapixel
Minimum Illumination Color: 1.4lx (F1.6, shutter 1/60sec,AGC ON, 50IRE[IP])
B/W: 0.15lx (F1.6, shutter 1/60sec, AGC ON, Night Mode, 50IRE[IP])
Color: 0.9lx (F1.6, shutter 1/60sec, AGC ON, 30IRE[IP])
B/W: 0.1lx (F1.6, shutter 1/60sec, AGC ON, Night Mode, 30IRE[IP])
Signal system NTSC standard
Electronic shutter speed 1/1 to 1/10,000 s
Auto gain control Auto/Manual (-3 to 28 dB)
Exposure control Full auto, Shutter priority, Iris priority,Manual
White balance mode Auto,ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
Lens type Auto-focus Zoom Lens
Zoom ratio Optical zoom 36x, Digital zoom 12x,Total zoom 432x
Horizontal viewing angle 57.8 to 1.7 degrees
Focal length f=3.4 to 122.4 mm
F-number F1.6 to F4.5
Minimum object distance 10mm (wide) to 1500mm (tele)
Pan angle 340 degrees
Pan Speed 300 degrees/s (max)
Tilt angle 105 degrees
Tilt speed 300 degrees/s (max)
Preset position 256 positions
Tour 5
Camera Features
Day/Night Yes
Wide-D Yes (92 dB)
Noise Reduction Yes
Codec image size (H x V) 704×576, 720×480, 640×480, 384×288, 320×240
Video compression format H.264, MPEG-4, JPEG
Codec streaming capability Dual streaming
Maximum frame rate 30 fps (H.264/MPEG-4/JPEG)
Audio
Audio compression G.711/G.726
Scene Analytics
Intelligent motion detection Yes
Network
Protocols IPv4, IPv6,TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP,
RTP/RTCP, RTSP, SNMP(MIB-2)
ONVIF software Yes (Ver.1.02)
Number of clients 5
Authentication IEEE802.1X
Interface
Ethernet 10BASE-T / 100BASE-TX (RJ-45)
Card slots SD memory card x 1 (Compatible with the SD/SDHC standards)
Sensor input x2
Alarm output x1
External microphone input Mini-jack (monaural)
Audio line output Mini-jack (monaural), Max ouput level: 1 Vrms
General
Weight 3 lb 12 oz (1.7 kg) (including sealing bracket)
Dimensions (ø x H mm) ø 5 7/8 x 7 5/8 inches (147.4 x 190.9 mm)
Power requirements HPoE (IEEE802.3at compliant) ,AC24V
Power consumption Approx. 25W
Operating temperature 23 to 122°F (-5 to +50 °C)
Starting temperature 32 to 122°F (0 to 50 °C)
Storage temperature -4 to +140°F (-20 to +60 °C)
Safety regulation UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4,
VCCI Class A, C-Tick Class A
System Requirements
Operating system Microsoft Windows XP™ (32bit) - Professional Edition
Microsoft Windows Vista™ (32bit) - Ultimate,Business Edition
Microsoft Windows 7 (32/64bit) - Ultimate,Professional Edition
Processor Intel Core2 Duo 1.8 GHz or higher
Intel Pentium4 2.4GHz or higher
Memory 1 GB or more
Web browser Microsoft Internet Explorer®Ver. 6.0,Ver. 7.0,Ver. 8.0
Firefox®Ver.3.5 (Plug-in free viewer only)
Safari®Ver.4.0 (Plug-in free viewer only)
Google Chrome®Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s guide, supplied programs), Installation manual, Ceiling bracket, Screws(2),
Template, 24V AC Connector, I/O Connector
*The SNC-EP520 and SNC-EP521 include software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
