SERVICE MANUAL
CFS-KW300S
SUPPLEMENT-3
File this supplement with the service manual.
E Model
Subject:
1. Circuit Change
2. Correction and change
Because of change made to circuit, schematic diagram, printed
wiring board, exploded view (5-5.SPEAKER Section) and electrical
parts list are released.
TABLE OF CONTENTS
1. CIRCUIT CHANGE
• Printed Wiring Board.................................................... 6
• Schematic Diagram ...................................................... 9
2. CORRECTION AND CHANGE
• Exploded Views ............................................................ 16
• Electrical Parts List....................................................... 20
(SPM-99047)
– 2 –
• DISCRIMINATION
Former : 1-648-393-11
New : 1-648-393-22
– MAIN BOARD (Conductor Side) –
– ECHO BOARD (Component Side) –
Former : 1-648-388-11
New : 1-665-605-11
Former : 1-648-390-11
New : 1-657-120-12
Former : 1-648-391-11
New : 1-657-123-12
Former : 1-648-392-11
New : 1-657-121-12
Former : 1-648-389-11
New : 1-657-122-1
2
– POWER BOARD (Component Side) –
– CONTROL BOARD (Component Side) –
– VOL LED BOARD (Component Side) –
–TERMINAL BOARD (Component Side) –
– 3 –
Ver 1.0 1999. 12

CFS-KW300S
IC504 J-13
IC505 J-12
IC601 J-3
IC602 J-5
Q1 B-4
Q2 F-1
Q3 B-4
Q4 B-4
Q101 G-11
Q103 F-11
Q104 C-8
Q105 B-20
Q106 G-20
Q201 G-9
Q203 C-12
Q204 B-8
Q205 B-19
Q206 G-20
Q302 F-13
Q303 B-6
Q306 F-7
Q307 E-7
Q308 E-6
Q310 D-6
Q311 D-13
Q312 D-12
Q314 F-13
Q315 G-5
Q316 G-6
Q317 G-6
Q318 G-5
Q320 D-13
Q321 D-6
Q322 B-18
Q327 C-20
Q329 B-18
Q330 D-13
Q331 C-1
Q332 E-8
Q333 G-12
Q334 D-8
Q501 J-15
Q502 J-14
Q503 I-12
Q504 J-15
Q505 J-14
Q506 J-13
Q507 J-9
Q508 J-10
Q601 I-2
Q602 J-2
Q603 K-4
Q604 J-4
D1 F-4
D2 F-4
D5 B-4
D101 B-18
D102 A-18
D201 B-18
D202 A-18
D303 B-6
D304 B-6
D305 E-8
D306 E-7
D307 E-7
D308 F-8
D310 D-5
D311 F-13
D314 G-6
D315 E-6
D316 C-6
D317 C-13
D324 D-13
D325 B-14
D326 F-11
D327 C-6
D501 I-11
D502 I-11
D503 I-11
D504 I-11
D505 J-11
D506 J-11
D507 J-11
D508 J-11
D509 J-11
D510 J-11
D511 J-9
D512 J-10
D513 K-11
D515 J-13
D516 J-12
D601 J-6
D602 J-1
D901 B-16
D902 C-16
D903 C-17
D904 C-17
D905 C-17
IC1 E-2
IC301 F-10
IC302 C-10
IC303 E-6
IC304 C-12
IC306 E-20
IC501 I-13
IC502 J-13
IC503 J-13
–5 ––6 ––7 ––8 –
1. Circuit Change

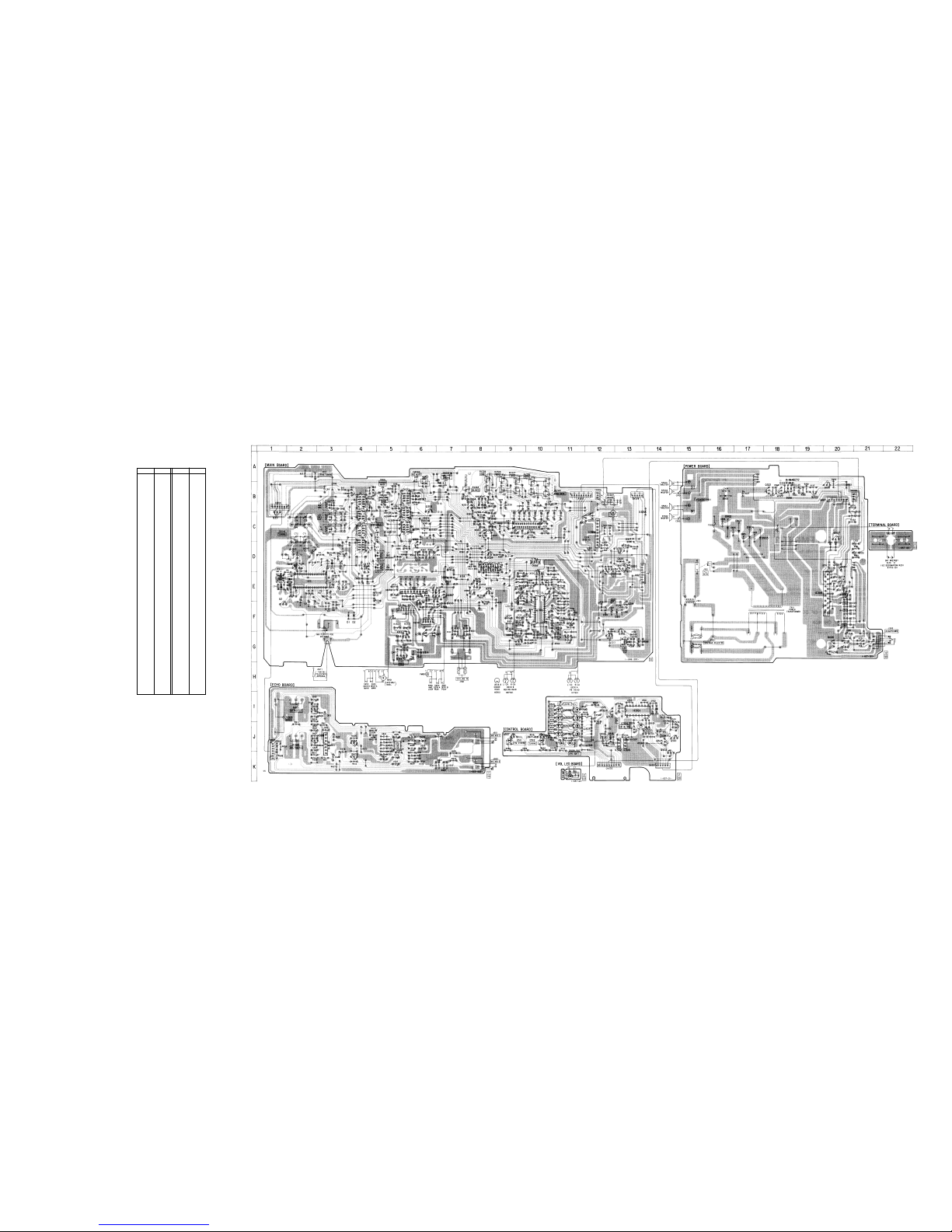

•PRINTED WIRING BOARD
Ref.No. Location
Ref. No. Location
•Semiconductor Location
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•W: indicates side identified with part number.
•f: internal component.
•b: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)

CFS-KW300S
– 9 – – 10 – – 11 – – 12 – – 13 –
• SCHEMATIC DIAGRAM • See page 15 forWaveforms.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•f: internal component.
•2: nonflammable resistor.
•5: fusible resistor.
•U: B+ Line.
•H: adjustment for repair.
• Total current is measured with no cassette installed.
• Powervoltage is dc 12 V and fed with regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : SW1/2
< > : MW
[ ] : TAPE PLAYBACK (DECK A)
{} : TAPE PLAYBACK (DECK B)
〈〈 〉〉 : TAPE RECORD (DECK B)
• Voltagesare takenwith a VOM (Input impedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: FM
f: MW
E: TAPE PLAYBACK (DECK A)
d: TAPE PLAYBACK (DECK B)
G: TAPE RECORD (DECK B)
N: MIC INPUT
• Abbreviation
EA : Saudi Arabia model
UAE : United Arab Emirates model
Note: The components identified by mark 0or dotted line
with mark 0are critical for safety.
Replace only with part number specified.
• IC Block Diagram
– ECHO Board –
IC602 BU9255FS-E2
2
14
BIAS
3
ECHO VR
GND
5
9
8
7
6
DALPF IN
DALPF OUT
MIX OUT
DAINT IN
DAINT OUT
VCC
MUTE
CR
ADLPF OUT ADLPF IN MIX IN
ADINT IN
ADINT OUT
10
11
12
15 14 13
16
A/D
D/A
STATIC
RAM
COUNTER
OSC
MIX
+
–
+
–

10
40
11
39
33 1-657-123-11 TERMINAL BOARD
38 3-389-435-02 HANDLE (FRONT)
ANT1 1-501-480-11 ANTENNA, TELESCOPIC
0T901 1-423-785-11 TRANSFORMER, POWER
26
25
#10
#1
#3
#7
#3
#3
24
20
21
22
41
42
44
43
23 19
18
17
3 3-389-430-01 HOLDER (L), CASSETTE
4 3-389-431-01 HOLDER (R), CASSETTE
5 3-389-432-01 WINDOW, DIAL (E, E23, UAE)
5 3-389-432-11 WINDOW, DIAL (EA)
*12 A-3264-466-A ECHO BOARD, COMPLETE
3 3-389-430-01 HOLDER (A), CASSETTE
4 3-389-431-01 HOLDER (B), CASSETTE
5 3-389-432-01 WINDOW, DIAL
*12 A-3306-555-A ECHO BOARD, COMPLETE
$
)
$
1 Vp-p
11.6 µ s
3.8 Vp-p
11.6 µ s
0.5 Vp-p
11.6 µ s
0.4 Vp-p
10 ms
0.2 Vp-p
11.6 µ s
4.4 Vp-p
2 µ s
– 15 – – 16 – – 17 – – 18 –
• Waveforms
– MAIN Board–
1Q302 (Base) (Record Mode)
500mV/DIV, 5µs/DIV
2Q302 (Collector) (Record Mode)
1V/DIV, 5µs/DIV
3Q302 (Emitter) (Record Mode)
200mV/DIV, 5µs/DIV
4Q334 (Collector) (Record Mode)
50mV/DIV, 5µs/DIV
– CONTROL Board –
6IC501 7
2V/DIV, 1µs/DIV
5Q334 (Base) (Record Mode)
100mV/DIV, 5ms/DIV
5-1. CABINET SECTION
2. Correction And Change
• EXPLODED VIEWS
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
EA : Saudi Arabia model
UAE : United Arab Emirates model
Page INCORRECT CORRECT
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
20
&: Indicates cancelled portion.
!: Indicates corrected portion.
*41 3-389-401-01 PLATE (COM 2) SHIELD
*42 3-389-402-01 PLATE (COM) SHIELD
*43 3-906-470-01 HOLDER (LED)
44 3-389-424-01 HOLDER (LEVEL)
Page INCORRECT CORRECT
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
20
26
25
#9
#3
#1 #7
#3
#3
24
20
21
22
23
19
18
17
@
@
@
#
!
!
$
– To Next Page –
*33 1-648-391-11 TERMINAL BOARD
38 X-3366-798-1 HANDLE ASSY
ANT1 1-501-542-11 ANTENNA, TELESCOPIC
@
Page INCORRECT CORRECT
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
20
27
#5
#4 #4
32
33 34 35
37
38
30
29
31
#3
#3
#2
#6
#6
ANT1
#2
34
27
#5
#4
T901 not supplied
#4
#4
32
33 35
37
38
30
29
31
#3
#3
#2
#
6
#6
ANT1
#15
^@
#
$
@
$
39 3-672-522-01 SCREW, + PTTWH-2.3
40 3-908-999-01 FOOT
Page INCORRECT CORRECT
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
20
@
@
#1
10 11
M901 3-378-834-01 MOTOR ASSY M901 3-378-834-01 MOTOR ASSY (CAPSTAN/REEL)
5-2. MECHANISM DECK SECTION-1
Page INCORRECT CORRECT
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
21
$
The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replace only with part number specified.
107 3-362-974-01 GEAR, CAM
117 3-363-228-01 SPRING (DECK A)
S952 1-572-538-11 SWITCH, LEAF (B-MAIN)
S953 1-572-538-11 SWITCH, LEAF (A-MAIN)
S955 1-571-745-11 SWITCH, LEAF (AMPS) (DECK A)
107 X-3363-315-1 GEAR ASSY, CAM
117 3-917-805-01 SPRING (DECK A)
S952 1-571-556-11 SWITCH, LEAF (A-MAIN)
S953 1-571-556-11 SWITCH, LEAF (B-MAIN)
S955 1-571-745-11 SWITCH, LEAF (AMS) (DECK A)
$
5-3. MECHANISM DECK SECTION-2 (MF-KW300S)
Page INCORRECT CORRECT
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
22 @
$
$
@
152 X-3363-611-1 REEL, ASSY
183 3-917-805-01 SPRING (DECK B)
HE901 1-543-558-11 HEAD, E (ERASE) (DECK B)
$
5-4. MECHANISM DECK SECTION-3 (MF-KW300S)
Page INCORRECT CORRECT
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
23
152 3-362-963-01 REEL, S
183 3-363-228-01 SPLING (DECK B)
HE901 1-543-558-11 HEAD, E (DECK B)
$
$
173 3-366-108-01 LINK, CR (DECK A)
175 3-366-107-01 ARM, CR (DECK A)
$
Page INCORRECT CORRECT
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
23
173 3-366-108-01 LINK, CR
175 3-366-107-01 ARM, CR
$
173
175
174
173
175
174
DECK A
DECK
A
^
^
Page INCORRECT CORRECT
23
189
#14
189
#14
@
$

– 19 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

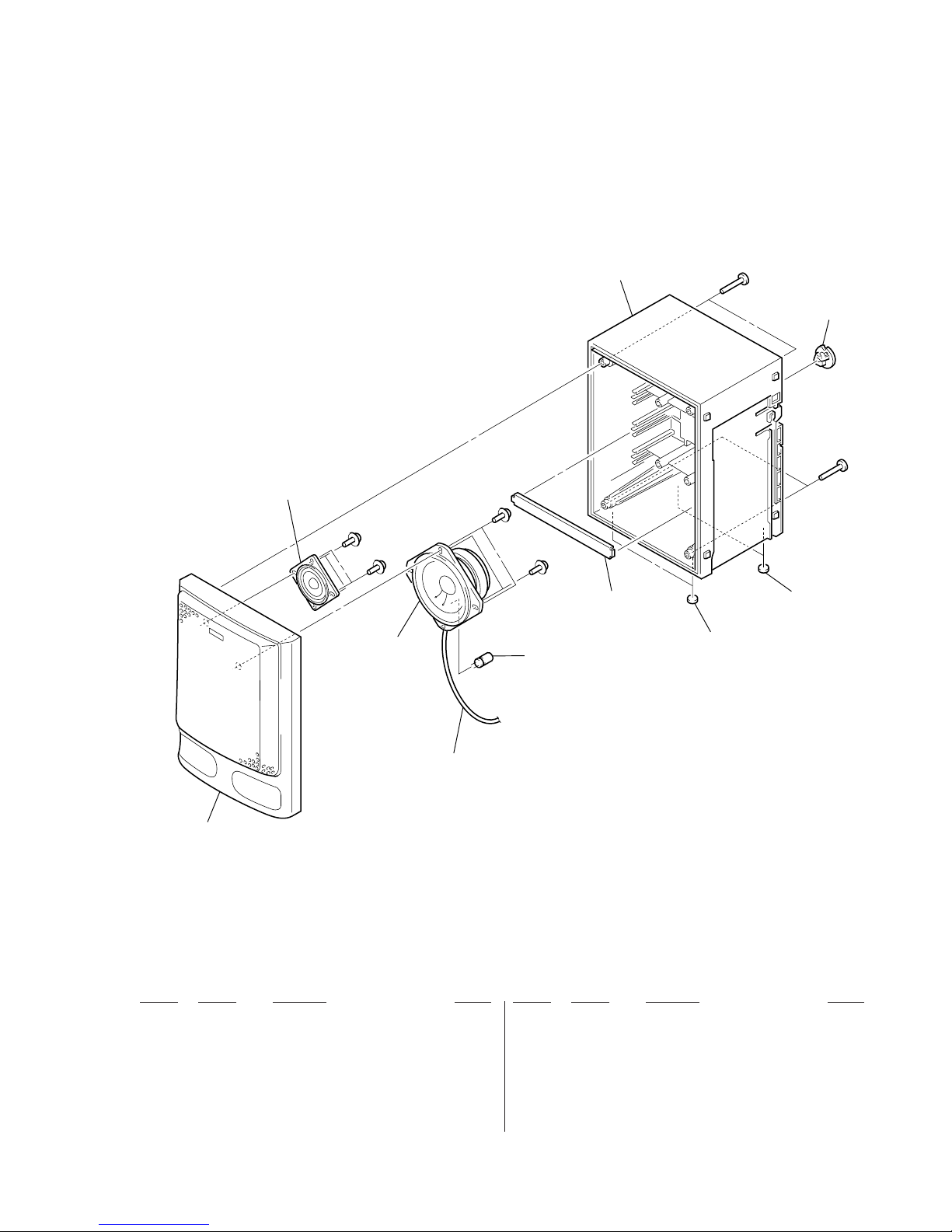

5-5. SPEAKER SECTION
201 X-3367-350-1 CABINET (FRONT) ASSY (L), SP
201 X-3367-349-1 CABINET (FRONT) ASSY (R), SP
202 1-751-483-11 CORD, SPEAKER CONNECTION
203 1-124-499-11 ELECT, NONPOLAR 1uF 20% 50V
204 3-905-378-01 FOOT (SP) (R ch)
204 3-905-378-11 FOOT (SP) (L ch)
205 3-389-425-01 BRACKET, SP
201
202
203
205
204
204
207
206
#6
#7
#7
SP602, 652
SP601, 651
#7
#7
#
6
206 3-389-443-01 BOX (REAR) (L), SP
206 3-389-444-01 BOX (REAR) (R), SP
207 3-904-982-01 STOPPER, CORD
SP601 1-505-567-11 SPEAKER (5 cm)
SP602 1-505-566-11 SPEAKER (10 cm)
SP651 1-505-567-11 SPEAKER (5 cm)
SP652 1-505-566-11 SPEAKER (10 cm)

– 20 –
• ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CONTROL
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
• Abbreviation
EA : Saudi Arabia model
UAE : United Arab Emirates model
A-3264-465-A CONTROL BOARD, COMPLETE
*************************
*3-389-401-01 PLATE (COM2), SHIELD
*3-389-402-01 PLATE (COM), SHIELD
3-389-424-01 HOLDER (LEVEL)
*3-906-470-01 HOLDER (LED)
4-353-963-01 CUSHION 78X10X0.3T
< CAPACITOR >
C501 1-162-282-31 CERAMIC 100PF 10% 50V
C502 1-162-282-31 CERAMIC 100PF 10% 50V
C505 1-126-962-11 ELECT 3.3uF 20% 50V
C506 1-126-962-11 ELECT 3.3uF 20% 50V
C507 1-162-839-11 CERAMIC 0.01uF 10% 16V
C508 1-126-233-11 ELECT 22uF 20% 50V
C509 1-124-472-11 ELECT 470uF 20% 10V
C511 1-162-839-11 CERAMIC 0.01uF 10% 16V
C512 1-162-839-11 CERAMIC 0.01uF 10% 16V
C513 1-162-839-11 CERAMIC 0.01uF 10% 16V
C514 1-162-839-11 CERAMIC 0.01uF 10% 16V
C515 1-126-233-11 ELECT 22uF 20% 50V
C516 1-162-839-11 CERAMIC 0.01uF 10% 16V
< CONNECTOR >
*CN503 1-580-154-11 PIN, CONNECTOR (PC BOARD) 2P
< DIODE >
D501 8-719-041-93 LED SLP-183B-81 (R LEVEL)
D502 8-719-041-93 LED SLP-183B-81 (L LEVEL)
D503 8-719-041-93 LED SLP-183B-81 (R LEVEL)
D504 8-719-041-93 LED SLP-183B-81 (L LEVEL)
D505 8-719-041-93 LED SLP-183B-81 (R LEVEL)
D506 8-719-041-93 LED SLP-183B-81 (L LEVEL)
D507 8-719-041-93 LED SLP-183B-81 (R LEVEL)
D508 8-719-041-93 LED SLP-183B-81 (L LEVEL)
D509 8-719-915-45 LED SLP162B (OPR/BATT)
D510 8-719-915-45 LED SLP162B (OPR/BATT)
D511 8-719-915-45 LED SLP162B (FM STEREO)
D512 8-719-918-87 LED BG5531K (TUNING)
D515 8-719-915-45 LED SLP162B (STANDBY)
D516 8-719-110-36 DIODE RD13ESB2
< IC >
IC501 8-759-188-12 IC MB88202P-1113M
IC502 8-759-479-70 IC S-81250SGY-B
IC503 8-759-344-62 IC PST600J
IC504 8-759-284-50 IC SPS-424-N
(REMOTE CONTROL RECEIVER)
IC505 8-759-202-40 IC TA7666P
< TRANSISTOR >
Q501 8-729-809-01 TRANSISTOR 2SA1654-TP
Q502 8-729-029-96 TRANSISTOR DTC143XSA
Q503 8-729-029-96 TRANSISTOR DTC143XSA
Q504 8-729-809-01 TRANSISTOR 2SA1654-TP
Q505 8-729-029-96 TRANSISTOR DTC143XSA
Q506 8-729-809-01 TRANSISTOR 2SA1654-TP
Q507 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q508 8-729-119-76 TRANSISTOR 2SA1175-HFE
< RESISTOR >
R501 1-249-426-11 CARBON 5.6K 5% 1/4W
R502 1-249-421-11 CARBON 2.2K 5% 1/4W
R503 1-249-430-11 CARBON 12K 5% 1/4W
R504 1-249-430-11 CARBON 12K 5% 1/4W
R505 1-247-893-11 CARBON 390K 5% 1/4W
R506 1-247-893-11 CARBON 390K 5% 1/4W
R507 1-249-412-11 CARBON 390 5% 1/4W
R508 1-249-412-11 CARBON 390 5% 1/4W
R509 1-249-412-11 CARBON 390 5% 1/4W
R510 1-249-412-11 CARBON 390 5% 1/4W
R511 1-249-412-11 CARBON 390 5% 1/4W
R512 1-249-412-11 CARBON 390 5% 1/4W
R513 1-249-412-11 CARBON 390 5% 1/4W
R514 1-249-412-11 CARBON 390 5% 1/4W
R515 1-247-826-00 CARBON 620 5% 1/4W
R516 1-249-416-11 CARBON 820 5% 1/4W
R518 1-249-416-11 CARBON 820 5% 1/4W
R519 1-249-429-11 CARBON 10K 5% 1/4W
R520 1-249-411-11 CARBON 330 5% 1/4W
R522 1-249-412-11 CARBON 390 5% 1/4W
R523 1-249-429-11 CARBON 10K 5% 1/4W
R524 1-249-429-11 CARBON 10K 5% 1/4W
R525 1-249-426-11 CARBON 5.6K 5% 1/4W
R526 1-249-422-11 CARBON 2.7K 5% 1/4W
R528 1-249-419-11 CARBON 1.5K 5% 1/4W

– 21 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CONTROL ECHO MAIN
R529 1-249-421-11 CARBON 2.2K 5% 1/4W
R530 1-249-421-11 CARBON 2.2K 5% 1/4W
R531 1-247-807-31 CARBON 100 5% 1/4W
< SWITCH >
S501 1-554-303-21 SWITCH, TACTILE (POWER)
< VIBRATOR >
X501 1-578-787-21 VIBRATOR, CERAMIC (500kHz)
**************************************************************
*A-3306-555-A ECHO BOARD, COMPLETE
*********************
< CAPACITOR >
C601 1-162-301-11 CERAMIC 1500PF 30% 16V
C602 1-124-902-00 ELECT 0.47uF 20% 50V
C603 1-162-282-31 CERAMIC 100PF 10% 50V
C604 1-124-902-00 ELECT 0.47uF 20% 50V
C605 1-162-301-11 CERAMIC 1500PF 30% 16V
C606 1-124-902-00 ELECT 0.47uF 20% 50V
C607 1-162-282-31 CERAMIC 100PF 10% 50V
C608 1-124-902-00 ELECT 0.47uF 20% 50V
C609 1-126-963-11 ELECT 4.7uF 20% 50V
C610 1-162-290-31 CERAMIC 470PF 10% 50V
C611 1-124-907-11 ELECT 10uF 20% 50V
C612 1-124-472-11 ELECT 470uF 20% 10V
C613 1-124-902-00 ELECT 0.47uF 20% 50V
C614 1-124-903-11 ELECT 1uF 20% 50V
C615 1-162-282-31 CERAMIC 100PF 10% 50V
C616 1-161-494-00 CERAMIC 0.022uF 25V
C617 1-130-483-11 CERAMIC 0.01uF 5% 50V
C618 1-161-494-00 CERAMIC 0.022uF 25V
C619 1-124-907-11 ELECT 10uF 20% 50V
C620 1-126-233-11 ELECT 22uF 20% 50V
C621 1-161-494-00 CERAMIC 0.022uF 25V
C622 1-137-193-11 FILM 0.39uF 5% 50V
C623 1-130-483-11 CERAMIC 0.01uF 5% 50V
C624 1-124-903-11 ELECT 1uF 20% 50V
C625 1-161-494-00 CERAMIC 0.022uF 25V
C626 1-124-472-11 ELECT 470uF 20% 10V
C628 1-161-494-00 CERAMIC 0.022uF 25V
C629 1-161-494-00 CERAMIC 0.022uF 25V
C631 1-162-294-31 CERAMIC 0.001uF 10% 50V
C632 1-124-472-11 ELECT 470uF 20% 10V
< DIODE >
D601 8-719-109-86 DIODE RD5.1ES-B3
D602 8-719-991-33 DIODE 1SS133T-77
< IC >
IC601 8-759-246-69 IC TA2011S
IC602 8-759-464-97 IC BU9255FS-E2
< JACK >
J601 1-750-694-11 JACK (MIX MIC 1)
J602 1-750-694-11 JACK (MIX MIC 2)
< TRANSISTOR >
Q601 8-729-194-57 TRANSISTOR 2SC945-P
Q602 8-729-194-57 TRANSISTOR 2SC945-P
Q603 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q604 8-729-036-89 TRANSISTOR KTC3198GR-AT
< RESISTOR >
R601 1-249-411-11 CARBON 330 5% 1/4W
R602 1-247-843-11 CARBON 3.3K 5% 1/4W
R603 1-247-891-00 CARBON 330K 5% 1/4W
R604 1-249-429-11 CARBON 10K 5% 1/4W
R605 1-247-843-11 CARBON 3.3K 5% 1/4W
R606 1-249-411-11 CARBON 330 5% 1/4W
R607 1-247-843-11 CARBON 3.3K 5% 1/4W
R608 1-247-891-00 CARBON 330K 5% 1/4W
R609 1-247-843-11 CARBON 3.3K 5% 1/4W
R610 1-249-429-11 CARBON 10K 5% 1/4W
R611 1-247-807-31 CARBON 100 5% 1/4W
R612 1-247-903-00 CARBON 1M 5% 1/4W
R613 1-249-425-11 CARBON 4.7K 5% 1/4W
R614 1-249-410-11 CARBON 270 5% 1/4W
R615 1-249-437-11 CARBON 47K 5% 1/4W
R616 1-249-436-11 CARBON 39K 5% 1/4W
R617 1-249-429-11 CARBON 10K 5% 1/4W
R618 1-249-429-11 CARBON 10K 5% 1/4W
R619 1-249-434-11 CARBON 27K 5% 1/4W
R620 1-249-428-11 CARBON 8.2K 5% 1/4W
R621 1-249-428-11 CARBON 8.2K 5% 1/4W
R622 1-249-425-11 CARBON 4.7K 5% 1/4W
R623 1-249-431-11 CARBON 15K 5% 1/4W
R624 1-249-434-11 CARBON 27K 5% 1/4W
R626 1-249-417-11 CARBON 1K 5% 1/4W
R627 1-247-817-91 CARBON 270 5% 1/4W
R628 1-249-417-11 CARBON 1K 5% 1/4W
R629 1-249-437-11 CARBON 47K 5% 1/4W
R630 1-249-422-11 CARBON 2.7K 5% 1/4W
< VARIABLE RESISTOR >
RV601 1-227-160-11 RES, VAR, CARBON 20K (MIC FADER 1)
RV602 1-227-160-11 RES, VAR, CARBON 20K (MIC FADER 2)
RV603 1-227-160-11 RES, VAR, SLIDE 20K (ECHO)
**************************************************************
A-3264-464-A MAIN BOARD, COMPLETE (EA)
A-3264-639-A MAIN BOARD, COMPLETE (E, UAE)
*********************
1-533-233-11 HOLDER, FUSE
3-389-395-01 KNOB (FINE-TUN)
3-389-397-01 DRUM, TUNING CAPACITOR
3-389-422-01 KNOB (TUN)
3-389-423-01 RACK, POINTER
3-389-428-01 HOLDER (VOL)
*3-389-434-01 CHASSIS (TUNING)
7-621-770-87 SCREW +B 2.6X5
7-685-647-79 SCREW +BVTP 3X10 TYPE2 SLIT
7-685-903-21 SCREW +PTPWH 3X8 (TYPE2)

– 22 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
< CAPACITOR >
C1 1-162-207-31 CERAMIC 22PF 5% 50V
(E, UAE)
C1 1-162-209-31 CERAMIC 27PF 5% 50V
(EA)
C2 1-102-959-00 CERAMIC 22PF 5% 50V
(E, UAE)
C2 1-102-962-00 CERAMIC 30PF 5% 50V
(EA)
C3 1-162-192-31 CERAMIC 2.7PF 10% 50V
C4 1-162-839-11 CERAMIC 0.01uF 10% 16V
C5 1-162-839-11 CERAMIC 0.01uF 10% 16V
C6 1-104-663-11 ELECT 33uF 20% 16V
C8 1-126-959-11 ELECT 0.47uF 20% 50V
C9 1-124-902-00 ELECT 4.7uF 20% 50V
C10 1-124-907-11 ELECT 10uF 20% 50V
C11 1-126-961-11 ELECT 2.2uF 20% 50V
C14 1-162-839-11 CERAMIC 0.01uF 10% 16V
C16 1-126-963-11 ELECT 4.7uF 20% 50V
C17 1-124-903-11 ELECT 1uF 20% 50V
C18 1-104-664-11 ELECT 47uF 20% 25V
C19 1-104-663-11 ELECT 33uF 20% 16V
C20 1-161-053-00 CERAMIC 0.015uF 10% 16V
C21 1-161-053-00 CERAMIC 0.015uF 10% 16V
C22 1-124-903-11 ELECT 1uF 20% 50V
C23 1-162-839-11 CERAMIC 0.01uF 10% 16V
C24 1-162-839-11 CERAMIC 0.01uF 10% 16V
C25 1-101-884-00 CERAMIC 56PF 5% 50V
C26 1-162-197-31 CERAMIC 6.8PF 10% 50V
C27 1-164-039-11 CERAMIC 3PF 5% 50V
C28 1-136-480-11 FILM 0.0015uF 5% 100V
C29 1-164-039-11 CERAMIC 3PF 5% 50V
C30 1-136-287-11 FILM 0.0047uF 5% 100V
C31 1-102-949-00 CERAMIC 12PF 5% 50V
C32 1-104-732-11 FILM 390PF 5% 100V
C33 1-162-203-31 CERAMIC 15PF 5% 50V
C34 1-162-294-31 CERAMIC 0.001uF 10% 50V
C35 1-162-839-11 CERAMIC 0.01uF 10% 16V
C36 1-124-902-00 ELECT 0.47uF 20% 50V
C37 1-124-902-00 ELECT 0.47uF 20% 50V
C38 1-124-903-11 ELECT 1uF 20% 50V
C39 1-162-286-21 CERAMIC 220PF 10% 50V
C101 1-162-282-31 CERAMIC 100PF 10% 50V
C102 1-162-282-31 CERAMIC 100PF 10% 50V
C103 1-162-282-31 CERAMIC 100PF 10% 50V
C104 1-162-294-31 CERAMIC 0.001uF 10% 50V
C105 1-162-294-31 CERAMIC 0.001uF 10% 50V
C106 1-162-282-31 CERAMIC 100PF 10% 50V
C107 1-104-664-11 ELECT 47uF 20% 10V
C108 1-162-842-11 CERAMIC 0.018uF 10% 16V
C109 1-124-903-11 ELECT 1uF 20% 50V
C110 1-162-294-31 CERAMIC 0.001uF 10% 50V
C111 1-126-961-11 ELECT 2.2uF 20% 50V
C112 1-104-664-11 ELECT 47uF 20% 10V
C113 1-162-282-31 CERAMIC 100PF 10% 50V
C114 1-124-903-11 ELECT 1uF 20% 50V
C115 1-162-290-31 CERAMIC 470PF 10% 50V
C118 1-162-847-11 CERAMIC 0.047uF 10% 16V
C119 1-124-903-11 ELECT 1uF 20% 50V
C120 1-162-306-11 CERAMIC 0.01uF 30% 16V
C121 1-124-902-00 ELECT 0.47uF 20% 50V
C122 1-162-600-11 CERAMIC 0.0047uF 30% 16V
C123 1-126-956-11 ELECT 0.1uF 20% 50V
C124 1-162-294-31 CERAMIC 0.001uF 10% 50V
C125 1-162-847-11 CERAMIC 0.047uF 10% 16V
C126 1-161-057-00 CERAMIC 0.033uF 10% 50V
C128 1-124-903-11 ELECT 1uF 20% 50V
C129 1-124-903-11 ELECT 1uF 20% 50V
C130 1-126-956-11 ELECT 0.1uF 20% 50V
C137 1-162-282-31 CERAMIC 100PF 10% 50V
C142 1-124-903-11 ELECT 1uF 20% 50V
C143 1-124-903-11 ELECT 1uF 20% 50V
C151 1-162-282-31 CERAMIC 100PF 10% 50V
C201 1-162-282-31 CERAMIC 100PF 10% 50V
C202 1-162-282-31 CERAMIC 100PF 10% 50V
C203 1-162-282-31 CERAMIC 100PF 10% 50V
C204 1-162-294-31 CERAMIC 0.001uF 10% 50V
C205 1-162-294-31 CERAMIC 0.001uF 10% 50V
C206 1-162-282-31 CERAMIC 100PF 10% 50V
C207 1-104-664-11 ELECT 47uF 20% 10V
C208 1-162-842-11 CERAMIC 0.018uF 10% 16V
C209 1-124-903-11 ELECT 1uF 20% 50V
C210 1-162-294-31 CERAMIC 0.001uF 10% 50V
C211 1-126-961-11 ELECT 2.2uF 20% 50V
C212 1-104-664-11 ELECT 47uF 20% 10V
C213 1-162-282-31 CERAMIC 100PF 10% 50V
C214 1-124-903-11 ELECT 1uF 20% 50V
C215 1-162-290-31 CERAMIC 470PF 10% 50V
C218 1-162-847-11 CERAMIC 0.047uF 10% 16V
C219 1-124-903-11 ELECT 1uF 20% 50V
C220 1-162-306-11 CERAMIC 0.01uF 30% 16V
C221 1-124-902-00 ELECT 0.47uF 20% 50V
C222 1-162-600-11 CERAMIC 0.0047uF 30% 16V
C223 1-126-956-11 ELECT 0.1uF 20% 50V
C224 1-162-294-31 CERAMIC 0.001uF 10% 50V
C225 1-162-847-11 CERAMIC 0.047uF 10% 16V
C226 1-161-057-00 CERAMIC 0.033uF 10% 50V
C228 1-124-903-11 ELECT 1uF 20% 50V
C229 1-124-903-11 ELECT 1uF 20% 50V
C230 1-126-956-11 ELECT 0.1uF 20% 50V
C237 1-162-282-31 CERAMIC 100PF 10% 50V
C242 1-124-903-11 ELECT 1uF 20% 50V
C243 1-124-903-11 ELECT 1uF 20% 50V
C251 1-162-282-31 CERAMIC 100PF 10% 50V
C301 1-104-666-11 ELECT 220uF 20% 10V
C302 1-124-472-11 ELECT 470uF 20% 10V
C303 1-126-961-11 ELECT 2.2uF 20% 50V
C304 1-104-664-11 ELECT 47uF 20% 10V
C305 1-104-663-11 ELECT 33uF 20% 16V
C308 1-104-664-11 ELECT 47uF 20% 10V
C309 1-130-478-00 MYLAR 0.0039uF 5% 50V
C310 1-136-967-11 MYLAR 0.012uF 5% 50V
C313 1-130-471-00 MYLAR 0.001uF 5% 50V
C320 1-162-847-11 CERAMIC 0.047uF 10% 16V
C321 1-124-902-00 ELECT 0.47uF 20% 50V

– 23 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
C322 1-124-902-00 ELECT 0.47uF 20% 50V
C323 1-162-600-11 CERAMIC 0.0047uF 30% 16V
C324 1-124-903-11 ELECT 1uF 20% 50V
C325 1-126-961-11 ELECT 2.2uF 20% 50V
C326 1-126-963-11 ELECT 4.7uF 20% 50V
C329 1-126-941-11 ELECT 470uF 20% 6.3V
C330 1-136-165-00 FILM 0.1uF 5% 50V
C331 1-136-165-00 FILM 0.1uF 5% 50V
C334 1-162-306-11 CERAMIC 0.01uF 30% 16V
C335 1-162-306-11 CERAMIC 0.01uF 30% 16V
C337 1-104-666-11 ELECT 220uF 20% 10V
C338 1-162-306-11 CERAMIC 0.01uF 30% 16V
C339 1-104-665-11 ELECT 100uF 20% 25V
C346 1-104-666-11 ELECT 220uF 20% 25V
C347 1-162-306-11 CERAMIC 0.01uF 30% 16V
C348 1-162-306-11 CERAMIC 0.01uF 30% 16V
C352 1-162-306-11 CERAMIC 0.01uF 30% 16V
C353 1-124-903-11 ELECT 1uF 20% 50V
C354 1-104-666-11 ELECT 220uF 20% 10V
C358 1-126-963-11 ELECT 4.7uF 20% 50V
C359 1-162-306-11 CERAMIC 0.01uF 30% 16V
C366 1-126-233-11 ELECT 22uF 20% 50V
< FILTER >
CF1 1-577-327-81 FILTER, CERAMIC
CF2 1-577-327-81 FILTER, CERAMIC
CF3 1-577-327-81 FILTER, CERAMIC
CF4 1-567-670-11 FILTER, CERAMIC
< CONNECTOR >
*CN301 1-580-155-11 PIN, CONNECTOR (PC BOARD) 3P
CN302 1-506-986-11 PIN, CONNECTOR (PC BOARD) 4P
CN303 1-506-987-11 PIN, CONNECTOR (PC BOARD) 5P
*CN304 1-580-159-11 PIN, CONNECTOR (PC BOARD) 7P
*CN307 1-580-160-11 PIN, CONNECTOR (PC BOARD) 8P
CN308 1-506-987-11 PIN, CONNECTOR (PC BOARD) 5P
*CN309 1-580-161-11 PIN, CONNECTOR (PC BOARD) 9P
*CN310 1-580-159-11 PIN, CONNECTOR (PC BOARD) 7P
< TRIMMER >
CT1 1-151-637-11 CAP, VARIABLE
CT2 1-151-637-11 CAP, VARIABLE
CT3 1-151-637-11 CAP, VARIABLE
CT4 1-151-637-11 CAP, VARIABLE
CT6 1-141-360-41 CAP, FILM TRIMMER 5PF
CT9 1-141-290-41 CAP, FILM TRIMMER 10PF
< VARIABLE CAPACITOR >
CV1 1-151-637-11 CAP, VARIABLE (TUNING)
CV2 1-151-637-11 CAP, VARIABLE (TUNING)
CV3 1-151-637-11 CAP, VARIABLE (TUNING)
CV4 1-151-637-11 CAP, VARIABLE (TUNING)
< DIODE >
D1 8-719-991-33 DIODE 1SS133T-77
D2 8-719-991-33 DIODE 1SS133T-77
D5 8-719-991-33 DIODE 1SS133T-77
D303 8-719-991-33 DIODE 1SS133T-77
D304 8-719-991-33 DIODE 1SS133T-77
D305 8-719-991-33 DIODE 1SS133T-77
D306 8-719-991-33 DIODE 1SS133T-77
D307 8-719-991-33 DIODE 1SS133T-77
D308 8-719-991-33 DIODE 1SS133T-77
D310 8-719-991-33 DIODE 1SS133T-77
D311 8-719-110-08 DIODE RD8.2ESB2
D314 8-719-110-22 DIODE RD11ESB2
D315 8-719-991-33 DIODE 1SS133T-77
D316 8-719-991-33 DIODE 1SS133T-77
D317 8-719-991-33 DIODE 1SS133T-77
D324 8-719-110-64 DIODE RD24ESB4
D325 8-719-991-33 DIODE 1SS133T-77
D326 8-719-991-33 DIODE 1SS133T-77
D327 8-719-991-33 DIODE 1SS133T-77
< BAND PASS FILTER >
FL1 1-236-022-11 FILTER, BAND PASS
< IC >
IC1 8-752-050-20 IC CXA1238S
IC301 8-759-242-58 IC TA8189N
IC302 8-759-972-97 IC BA3823LS
IC303 8-759-905-47 IC BA338
IC304 8-759-962-08 IC BA6208
< JACK >
J301 1-563-716-21 JACK, PIN 2P (CD/LINE IN)
< COIL/TRANSFORMER >
L1 1-428-776-11 COIL, AIR-CORE (EA)
L1 1-428-777-11 COIL, AIR-CORE (E, UAE)
L2 1-422-230-11 COIL, AIR-CORE (E, UAE)
L2 1-460-205-31 COIL (WITH CORE) (EA)
L3 1-402-507-11 ANTENNA, FERRITE-ROD (MW)
L4 1-406-253-11 COIL (MW OSC)
L5 1-402-390-11 COIL (SW1 ANTENNA)
L6 1-406-247-11 COIL (SW1 OSC)
L7 1-402-539-11 COIL (SW2 ANTENNA)
L9 1-406-221-11 COIL (SW2 OSC)
L11 1-414-140-11 INDUCTOR 0.68uH
L12 1-410-750-41 INDUCTOR 0.47uH
L13 1-410-501-11 INDUCTOR 2.2uH
L301 1-433-346-11 TRANSFORMER, BIAS OSCILLATOR
L302 1-410-503-11 INDUCTOR 3.3uH
L303 1-410-503-11 INDUCTOR 3.3uH
L304 1-410-521-11 INDUCTOR 100uH
L306 1-408-117-00 INDUCTOR 10uH
< TRANSISTOR >
Q1 8-729-281-53 TRANSISTOR 2SC1815-GR
Q2 8-729-900-80 TRANSISTOR DTC114ES
Q3 8-729-194-57 TRANSISTOR 2SC945-P
Q4 8-729-422-57 TRANSISTOR UN4111
Q101 8-729-194-57 TRANSISTOR 2SC945-P
Q103 8-729-900-80 TRANSISTOR DTC114ES
Q104 8-729-194-57 TRANSISTOR 2SC945-P

– 24 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
Q201 8-729-194-57 TRANSISTOR 2SC945-P
Q203 8-729-900-80 TRANSISTOR DTC114ES
Q204 8-729-194-57 TRANSISTOR 2SC945-P
Q302 8-729-194-57 TRANSISTOR 2SC945-P
Q303 8-729-194-57 TRANSISTOR 2SC945-P
Q306 8-729-194-57 TRANSISTOR 2SC945-P
Q307 8-729-194-57 TRANSISTOR 2SC945-P
Q308 8-729-142-46 TRANSISTOR 2SC2001-LK
Q310 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q311 8-729-806-30 TRANSISTOR 2SC4048
Q312 8-729-116-57 TRANSISTOR 2SB1068-K
Q314 8-729-019-01 TRANSISTOR 2SD2394-EF
Q315 8-729-019-01 TRANSISTOR 2SD2394-EF
Q316 8-729-806-30 TRANSISTOR 2SC4048
Q317 8-729-806-30 TRANSISTOR 2SC4048
Q318 8-729-115-30 FET 2SK105A-30
Q320 8-729-029-96 TRANSISTOR DTC143XSA
Q321 8-729-422-57 TRANSISTOR UN4111
Q330 8-729-029-56 TRANSISTOR DTA144ESA
Q331 8-729-029-96 TRANSISTOR DTC143XSA
Q332 8-729-029-94 TRANSISTOR DTC143TSA
Q333 8-729-029-96 TRANSISTOR DTC143XSA
Q334 8-729-194-57 TRANSISTOR 2SC945-P
< RESISTOR >
R1 1-249-421-11 CARBON 2.2K 5% 1/4W
R2 1-249-441-11 CARBON 100K 5% 1/4W
R3 1-247-887-00 CARBON 220K 5% 1/4W
R4 1-249-429-11 CARBON 10K 5% 1/4W
R5 1-247-807-31 CARBON 100 5% 1/4W
R6 1-249-421-11 CARBON 2.2K 5% 1/4W
R9 1-247-883-00 CARBON 150K 5% 1/4W
R10 1-249-404-00 CARBON 82 5% 1/4W
R11 1-249-427-11 CARBON 6.8K 5% 1/4W
R12 1-249-427-11 CARBON 6.8K 5% 1/4W
R13 1-249-429-11 CARBON 10K 5% 1/4W
R14 1-247-887-00 CARBON 220K 5% 1/4W
R15 1-249-441-11 CARBON 100K 5% 1/4W
R16 1-249-417-11 CARBON 1K 5% 1/4W
R17 1-249-417-11 CARBON 1K 5% 1/4W
R18 1-249-426-11 CARBON 5.6K 5% 1/4W
R19 1-249-429-11 CARBON 10K 5% 1/4W
R101 1-249-437-11 CARBON 47K 5% 1/4W
R102 1-249-425-11 CARBON 4.7K 5% 1/4W
R103 1-249-417-11 CARBON 1K 5% 1/4W
R104 1-249-403-11 CARBON 68 5% 1/4W
R106 1-249-424-11 CARBON 3.9K 5% 1/4W
R107 1-247-885-00 CARBON 180K 5% 1/4W
R108 1-249-427-11 CARBON 6.8K 5% 1/4W
R109 1-249-426-11 CARBON 5.6K 5% 1/4W
R110 1-249-417-11 CARBON 1K 5% 1/4W
R111 1-249-432-11 CARBON 18K 5% 1/4W
R112 1-247-885-00 CARBON 180K 5% 1/4W
R113 1-249-413-11 CARBON 470 5% 1/4W
R114 1-247-891-00 CARBON 330K 5% 1/4W
R115 1-249-430-11 CARBON 12K 5% 1/4W
R116 1-249-427-11 CARBON 6.8K 5% 1/4W
R118 1-247-881-00 CARBON 120K 5% 1/4W
R119 1-249-429-11 CARBON 10K 5% 1/4W
R123 1-249-442-11 CARBON 510 5% 1/4W
R125 1-247-807-31 CARBON 100 5% 1/4W
R133 1-247-897-11 CARBON 560K 5% 1/4W
R134 1-249-421-11 CARBON 2.2K 5% 1/4W
R135 1-247-855-11 CARBON 10K 5% 1/4W
R136 1-249-429-11 CARBON 10K 5% 1/4W
R137 1-249-437-11 CARBON 47K 5% 1/4W
R155 1-247-807-31 CARBON 100 5% 1/4W
R201 1-249-437-11 CARBON 47K 5% 1/4W
R202 1-249-425-11 CARBON 4.7K 5% 1/4W
R203 1-249-417-11 CARBON 1K 5% 1/4W
R204 1-249-403-11 CARBON 68 5% 1/4W
R206 1-249-424-11 CARBON 3.9K 5% 1/4W
R207 1-247-885-00 CARBON 180K 5% 1/4W
R208 1-249-427-11 CARBON 6.8K 5% 1/4W
R209 1-249-426-11 CARBON 5.6K 5% 1/4W
R210 1-249-417-11 CARBON 1K 5% 1/4W
R211 1-249-432-11 CARBON 18K 5% 1/4W
R212 1-247-885-00 CARBON 180K 5% 1/4W
R213 1-249-413-11 CARBON 470 5% 1/4W
R214 1-247-891-00 CARBON 330K 5% 1/4W
R215 1-249-430-11 CARBON 12K 5% 1/4W
R216 1-249-427-11 CARBON 6.8K 5% 1/4W
R218 1-247-881-00 CARBON 120K 5% 1/4W
R219 1-249-429-11 CARBON 10K 5% 1/4W
R223 1-249-442-11 CARBON 510 5% 1/4W
R225 1-247-807-31 CARBON 100 5% 1/4W
R233 1-247-897-11 CARBON 560K 5% 1/4W
R234 1-249-421-11 CARBON 2.2K 5% 1/4W
R235 1-249-429-11 CARBON 10K 5% 1/4W
R236 1-249-429-11 CARBON 10K 5% 1/4W
R237 1-249-437-11 CARBON 47K 5% 1/4W
R255 1-247-807-31 CARBON 100 5% 1/4W
R301 1-249-425-11 CARBON 4.7K 5% 1/4W
R302 1-247-807-11 CARBON 100 5% 1/4W
R303 1-247-903-00 CARBON 1M 5% 1/4W
R304 1-249-429-11 CARBON 10K 5% 1/4W
R305 1-249-432-11 CARBON 18K 5% 1/4W
R307 1-249-417-11 CARBON 1K 5% 1/4W
R308 1-247-818-11 CARBON 300 5% 1/4W
R309 1-249-436-11 CARBON 39K 5% 1/4W
R310 1-249-393-11 CARBON 10 5% 1/4W
R317 1-249-434-11 CARBON 27K 5% 1/4W
R318 1-247-847-11 CARBON 4.7K 5% 1/4W
R319 1-249-434-11 CARBON 27K 5% 1/4W
R323 1-249-426-11 CARBON 5.6K 5% 1/4W
R324 1-249-422-11 CARBON 2.7K 5% 1/4W
R325 1-247-891-00 CARBON 330K 5% 1/4W
R326 1-247-883-00 CARBON 150K 5% 1/4W
R327 1-249-417-11 CARBON 1K 5% 1/4W
R329 1-247-843-11 CARBON 3.3K 5% 1/4W
R330 1-249-432-11 CARBON 18K 5% 1/4W
R331 1-249-422-11 CARBON 2.7K 5% 1/4W
R332 1-249-441-11 CARBON 100K 5% 1/4W
R333 1-249-417-11 CARBON 1K 5% 1/4W
0R334 1-249-447-11 CARBON 1 5% 1/4W F
The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replace only with part number specified.

– 25 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN POWER
R335 1-249-415-11 CARBON 680 5% 1/4W
0R341 1-249-447-11 CARBON 1 5% 1/4W F
0R343 1-249-480-11 CARBON 3.3 5% 1/2W F
R344 1-249-406-11 CARBON 120 5% 1/4W
R345 1-249-401-11 CARBON 47 5% 1/4W
R346 1-249-437-11 CARBON 47K 5% 1/4W
R347 1-249-409-11 CARBON 220 5% 1/4W
R348 1-249-429-11 CARBON 10K 5% 1/4W
R349 1-249-437-11 CARBON 47K 5% 1/4W
R351 1-249-433-11 CARBON 22K 5% 1/4W
R352 1-249-401-11 CARBON 47 5% 1/4W
R354 1-249-414-11 CARBON 560 5% 1/4W
R355 1-249-425-11 CARBON 4.7K 5% 1/4W
R356 1-249-429-11 CARBON 10K 5% 1/4W
R357 1-249-404-00 CARBON 82 5% 1/4W
R358 1-249-413-11 CARBON 470 5% 1/4W
R359 1-249-433-11 CARBON 22K 5% 1/4W
R360 1-249-437-11 CARBON 47K 5% 1/4W
R361 1-249-420-11 CARBON 1.8K 5% 1/4W
R362 1-249-429-11 CARBON 10K 5% 1/4W
R368 1-249-417-11 CARBON 1K 5% 1/4W
R376 1-247-897-11 CARBON 560K 5% 1/4W
< VARIABLE RESISTOR >
RV1 1-223-425-11 RES, VAR, CARBON 100K (FINE TUNING)
RV301 1-223-640-11 RES, ADJ, CARBON 4.7K
RV302 1-223-639-11 RES, ADJ, CARBON 2.2K
RV303 1-241-245-11 RES, VAR, SLIDE 50K (BALANCE)
RV304 1-227-159-11 RES, VAR, CARBON 20K/20K (VOLUME)
RV305 1-223-500-11 RES, VAR, SLIDE 50K/50K (MEGA BASS)
RV306 1-241-244-11 RES, VAR, SLIDE 50K/50K (400Hz)
RV307 1-241-244-11 RES, VAR, SLIDE 50K/50K (1kHz)
RV308 1-241-244-11 RES, VAR, SLIDE 50K/50K (4kHz)
RV309 1-241-244-11 RES, VAR, SLIDE 50K/50K (10KHz)
< SWITCH >
S1 1-692-616-11 SWITCH, LEVER SLIDE (BAND SELECT)
S301 1-692-909-11 SWITCH, SLIDE (REC/PB)
S306 1-570-729-11 SWITCH, LEVER SLIDE (KARAOKE MODE)
SW302 1-692-618-11 SWITCH, LEVER SLIDE (FUNCTION)
SW303 1-692-777-11 SWITCH, PUSH (1KEY) (HIGH SPEED
DUBBING)
SW304 1-692-778-11 SWITCH, PUSH (1KEY) (REC MUTE)
< VARIABLE RESISTOR >
SVR1 1-228-995-00 RES, ADJ, METAL 22K
< TRANSFORMER >
T1 1-404-355-00 TRANSFORMER, IF
**************************************************************
A-3264-468-A POWER BOARD, COMPLETE
***********************
1-533-233-11 HOLDER, FUSE
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
C131 1-124-903-11 ELECT 1uF 20% 50V
C132 1-162-282-31 CERAMIC 100PF 10% 50V
C133 1-162-832-11 CERAMIC 0.0027uF 10% 0
C134 1-124-907-11 ELECT 10uF 20% 50V
C138 1-130-496-00 MYLAR 0.12uF 5% 50V
C139 1-130-496-00 MYLAR 0.12uF 5% 50V
C141 1-104-664-11 ELECT 47uF 20% 16V
C152 1-126-963-11 ELECT 4.7uF 20% 50V
C231 1-124-903-11 ELECT 1uF 20% 50V
C232 1-162-282-31 CERAMIC 100PF 10% 50V
C233 1-162-832-11 CERAMIC 0.0027uF 10% 0
C234 1-124-907-11 ELECT 10uF 20% 50V
C238 1-130-496-00 MYLAR 0.12uF 5% 50V
C239 1-130-496-00 MYLAR 0.12uF 5% 50V
C241 1-104-664-11 ELECT 47uF 20% 16V
C252 1-126-963-11 ELECT 4.7uF 20% 50V
C356 1-104-666-11 ELECT 220uF 20% 10V
C371 1-126-233-11 ELECT 22uF 20% 50V
C901 1-124-771-00 ELECT 6800uF 20% 25V
C903 1-101-005-00 CERAMIC 22000PF 50V
C904 1-101-005-00 CERAMIC 22000PF 50V
C905 1-101-005-00 CERAMIC 22000PF 50V
C906 1-101-005-00 CERAMIC 22000PF 50V
C907 1-124-907-11 ELECT 10uF 20% 50V
C908 1-101-005-00 CERAMIC 22000PF 50V
< CONNECTOR >
*CN906 1-580-155-11 PIN, CONNECTOR (PC BOARD) 3P
< DIODE >
D101 8-719-991-33 DIODE 1SS133T-77
D102 8-719-991-33 DIODE 1SS133T-77
D201 8-719-991-33 DIODE 1SS133T-77
D202 8-719-991-33 DIODE 1SS133T-77
D901 8-719-200-02 DIODE 10E2
D902 8-719-046-47 DIODE 1N5401-TM
D903 8-719-046-47 DIODE 1N5401-TM
D904 8-719-046-47 DIODE 1N5401-TM
D905 8-719-046-47 DIODE 1N5401-TM
< FUSE >
0F902 1-532-505-31 FUSE T5AL/250V
< IC >
IC306 8-759-039-68 IC TA8210AH
< JACK >
J302 1-568-267-11 JACK (HEADPHONES)
0J901 1-526-838-11 INLET, AC 2P (˜AC IN)
< LINE FILTER >
0L901 1-423-747-11 TRANSFORMER, LINE FILTER
< TRANSISTOR >
Q105 8-729-194-57 TRANSISTOR 2SC945-P
The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replace only with part number specified.

– 26 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q106 8-729-029-06 TRANSISTOR 2SC4361
Q205 8-729-194-57 TRANSISTOR 2SC945-P
Q206 8-729-029-06 TRANSISTOR 2SC4361
Q322 8-729-029-06 TRANSISTOR 2SC4361
Q327 8-729-029-06 TRANSISTOR 2SC4361
Q329 8-729-194-57 TRANSISTOR 2SC945-P
< RESISTOR >
R126 1-249-441-11 CARBON 100K 5% 1/4W
R127 1-249-411-11 CARBON 330 5% 1/4W
0R129 1-249-451-11 CARBON 2.2 5% 1/4W F
0R130 1-249-451-11 CARBON 2.2 5% 1/4W F
R131 1-249-408-11 CARBON 180 5% 1/4W
R132 1-247-807-31 CARBON 100 5% 1/4W
R151 1-249-417-11 CARBON 1K 5% 1/4W
R152 1-249-425-11 CARBON 4.7K 5% 1/4W
R153 1-247-820-11 CARBON 360 5% 1/4W
R226 1-249-441-11 CARBON 100K 5% 1/4W
R227 1-249-411-11 CARBON 330 5% 1/4W
0R229 1-249-451-11 CARBON 2.2 5% 1/4W F
0R230 1-249-451-11 CARBON 2.2 5% 1/4W F
R231 1-249-408-11 CARBON 180 5% 1/4W
R232 1-247-807-31 CARBON 100 5% 1/4W
R251 1-249-417-11 CARBON 1K 5% 1/4W
R252 1-249-425-11 CARBON 4.7K 5% 1/4W
R253 1-247-820-11 CARBON 360 5% 1/4W
R353 1-249-429-11 CARBON 10K 5% 1/4W
R363 1-249-417-11 CARBON 1K 5% 1/4W
R364 1-247-881-00 CARBON 120K 5% 1/4W
R365 1-247-843-11 CARBON 3.3K 5% 1/4W
R366 1-249-425-11 CARBON 4.7K 5% 1/4W
R367 1-249-413-11 CARBON 470 5% 1/4W
R375 1-249-434-11 CARBON 27K 5% 1/4W
< SWITCH >
0S901 1-692-514-11 SWITCH (VOLTAGE SELECTION)
(VOLTAGE SELECTOR)
< TERMINAL BOARD >
SP901 1-537-330-11 TERMINAL BOARD (SPEAKER)
< TRANSFORMER >
0T901 1-423-785-11 POWER TRANSFORMER
**************************************************************
1-657-123-11 TERMINAL BOARD
***************
**************************************************************
*1-648-389-11 VOL LED BOARD
**************
< LED >
D513 8-719-041-94 LED SLT-25VR (VOLUME)
**************************************************************
MISCELLANEOUS
**************
202 1-751-483-11 CORD, SPEAKER CONNECTION
203 1-124-499-11 ELECT, NONPOLAR 1uF 20% 50V
ANT1 1-501-480-11 ANTENNA, TELESCOPIC
HE901 1-543-558-11 HEAD, E (ERASE) (DECK B)
HP901 1-543-424-21 HEAD (PLAYBACK) (DECK A)
HRP901 1-543-424-21 HEAD (RECORD/PLAYBACK) (DECK B)
M901 3-378-834-01 MOTOR ASSY (CAPSTAN/REEL)
PM901 1-454-466-11 SOLENOID (DECK A)
S951 1-571-745-11 SWITCH, LEAF (B-PLAY)
S952 1-571-556-11 SWITCH, LEAF (A-MAIN)
S953 1-571-556-11 SWITCH, LEAF (B-MAIN)
S954 1-571-745-11 SWITCH, LEAF (A-PLAY)
S955 1-571-745-11 SWITCH, LEAF (AMS) (DECK A)
SP601 1-505-567-11 SPEAKER (5cm)
SP602 1-505-566-11 SPEAKER (10cm)
SP651 1-505-567-11 SPEAKER (5cm)
SP652 1-505-566-11 SPEAKER (10cm)
**************************************************************
The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replace only with part number specified.
POWER TERMINAL VOL LED

– 27 –
**************
HARDWARE LIST
**************
#1 7-685-102-14 SCREW + P 2X4 TYPE 2 SLIT
#8 7-685-781-09 SCREW + PTT 2X4 (S)
#9 7-685-862-09 SCREW + BVTT 2.6X6 (S)
#10 7-621-770-87 SCREW + B 2.6X5
#13 7-685-783-04 SCREW + PTT 2X6 (S)
#15 7-682-148-09 SCREW + P 3X8
ACCESSORIES & PACKING MATERIALS
*********************************
1-542-236-11 MICROPHONE, DYNAMIC
01-569-008-21 ADAPTER, CONVERSION 2P (EA)
01-590-961-11 CORD, POWER (E, EA, UAE)
3-756-936-21 MANUAL, INSTRUCTION
(ARABIC) (EA)
3-906-717-02 STAND
• HARDWARE LIST AND ACCESSORIES & PACKING MATERIALS
Page Before Change After Change
Ref. No. Part No. DescriptionRef. No. Part No. Description
33
**************
HARDWARE LIST
**************
#1 7-621-770-67 SCREW + BVTT 2.6X6 (S)
#8 7-621-255-25 SCREW + PTT 2X4 (S)
#9 7-621-770-87 SCREW + B 2.6X5
#13 7-621-255-45 SCREW + PTT 2X6 (S)
ACCESSORIES & PACKING MATERIALS
*********************************
1-542-211-11 MICROPHONE, DYNAMIC
01-569-008-11 ADAPTER, CONVERSION 2P (EA)
01-590-413-11 CORD, POWER (E, EA, UAE)
*3-389-611-01 CUSHION (TOP)
*3-389-612-01 CUSHION (CENTER)
*3-389-613-01 CUSHION (BOTTOM)
*3-389-614-01 INDIVIDUAL CARTON
@
$
$
$
$
$
$
The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replace only with part number specified.
Changed
Changed
Added
Changed
Changed
Added
Changed
Changed
Changed
Added
Deleted
Deleted
Deleted
Deleted
Added
Remark

– 28 –
CFS-KW300S
Sony Corporation
Personal Audio Division Company
9-957-923-83 1999L0525-1
Printed in Japan C1999. 12
Published by General Engineering Dept.
