Sony STR-D560Z User manual

MICROFILM
Manufactured under license from Dolby Laboratories Licensing
Corporation.
“Dolby”, the double-D symbol aand “Pro Logic” are trademarks
of Dolby Laboratories Licensing Corporation.
FM STEREO/FM-AM RECEIVER
Photo : STR-DE615
US Model
STR-D560Z/D660Z/DE615/DE715
Canadian Model
STR-DE615/DE715
Australian Model
STR-DE715
SERVICE MANUAL
STR-D560Z/D660Z/DE615/DE715
– Continued on page 2 –

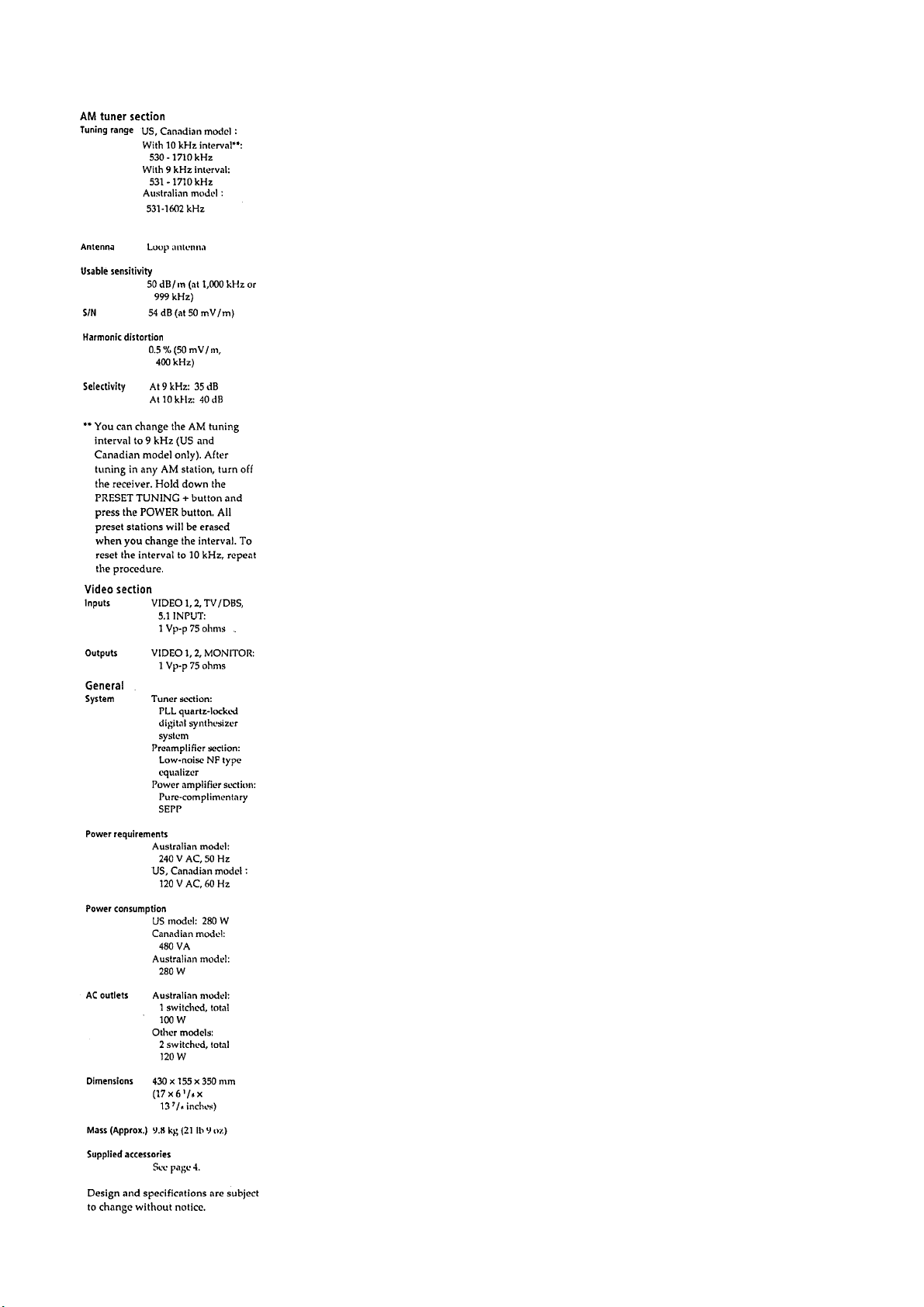

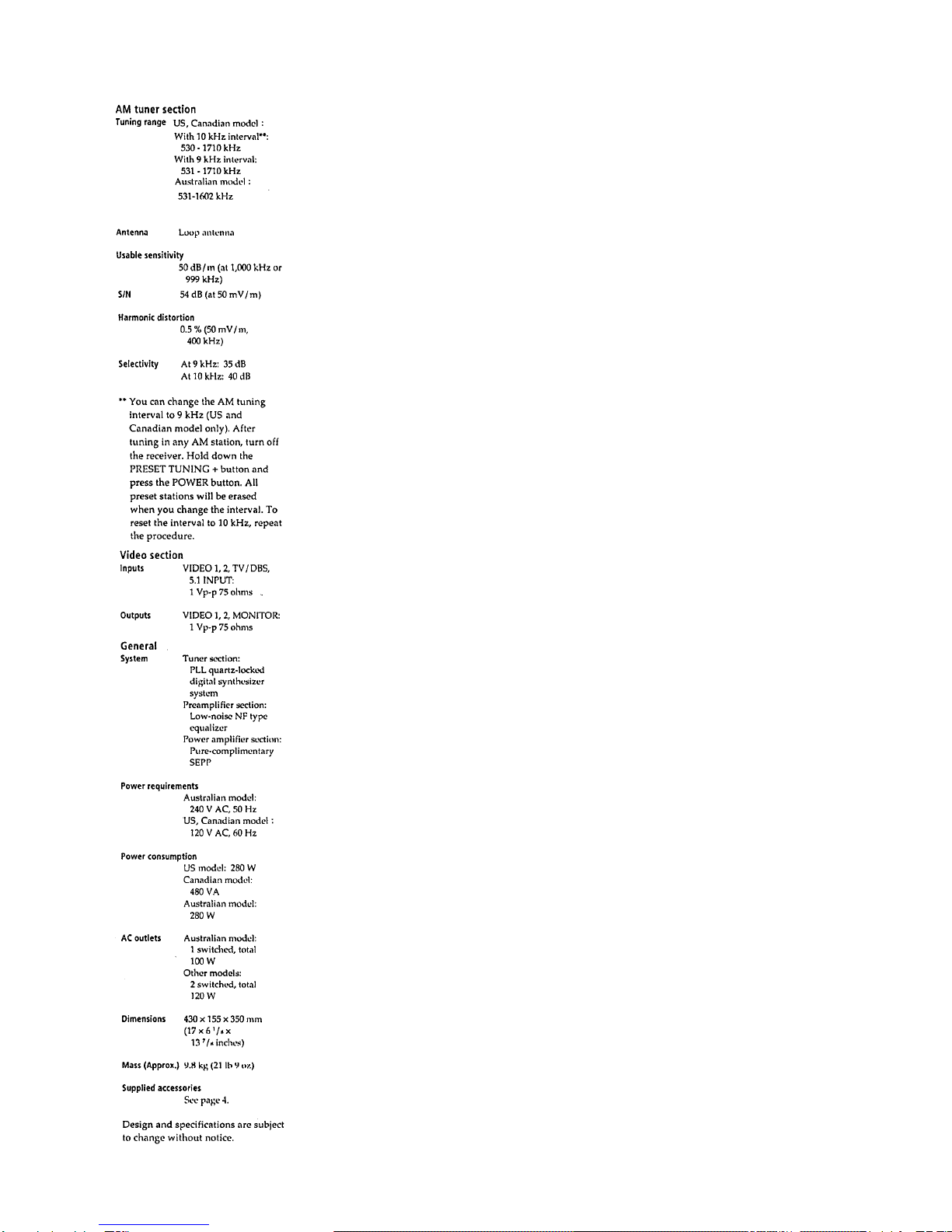

SPECIFICATIONS

– 2 –
TABLE OF CONTENTS
Specifications ........................................................................... 1
1.GENERAL
Location and Function of Controls .................................... 4
2. DIAGRAMS
2-1. IC Pin Functions ......................................................... 6
2-2. Circuit Boards Locations .......................................... 10

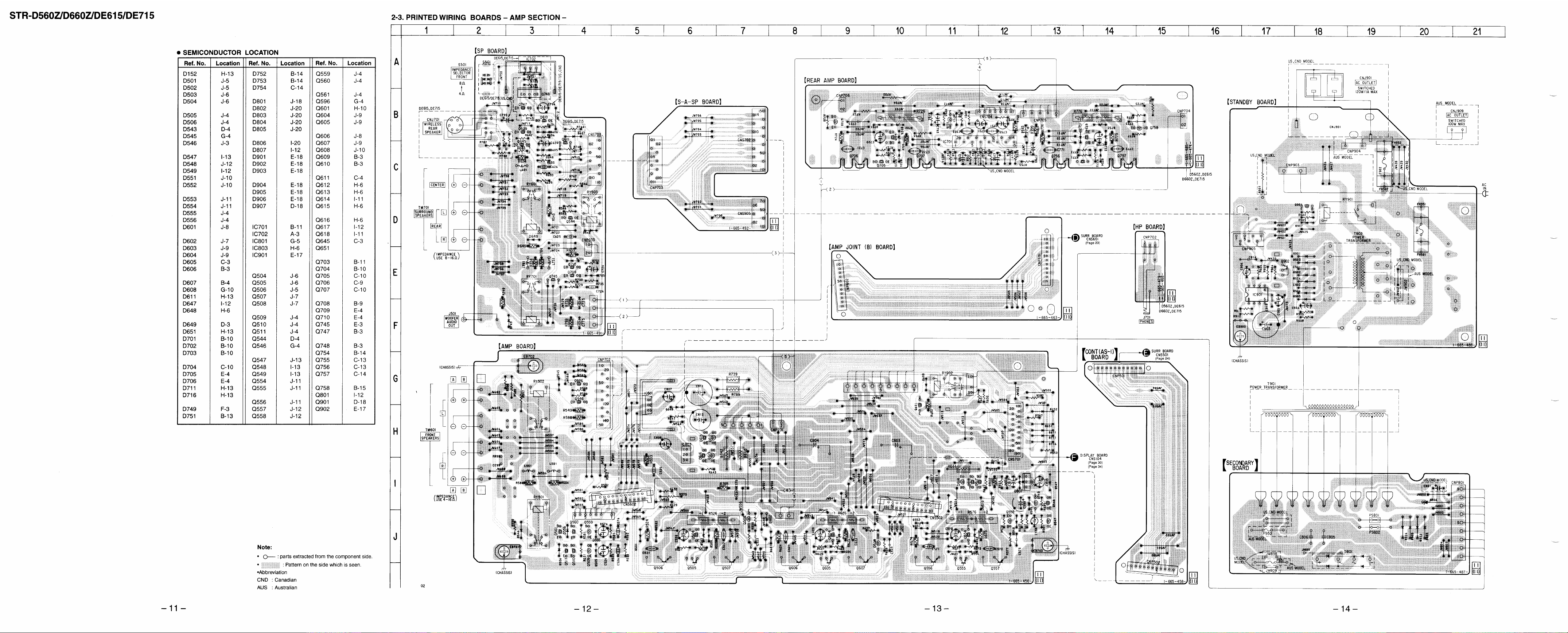

2-3. Printed Wiring Boards – AMP Section –.................. 11

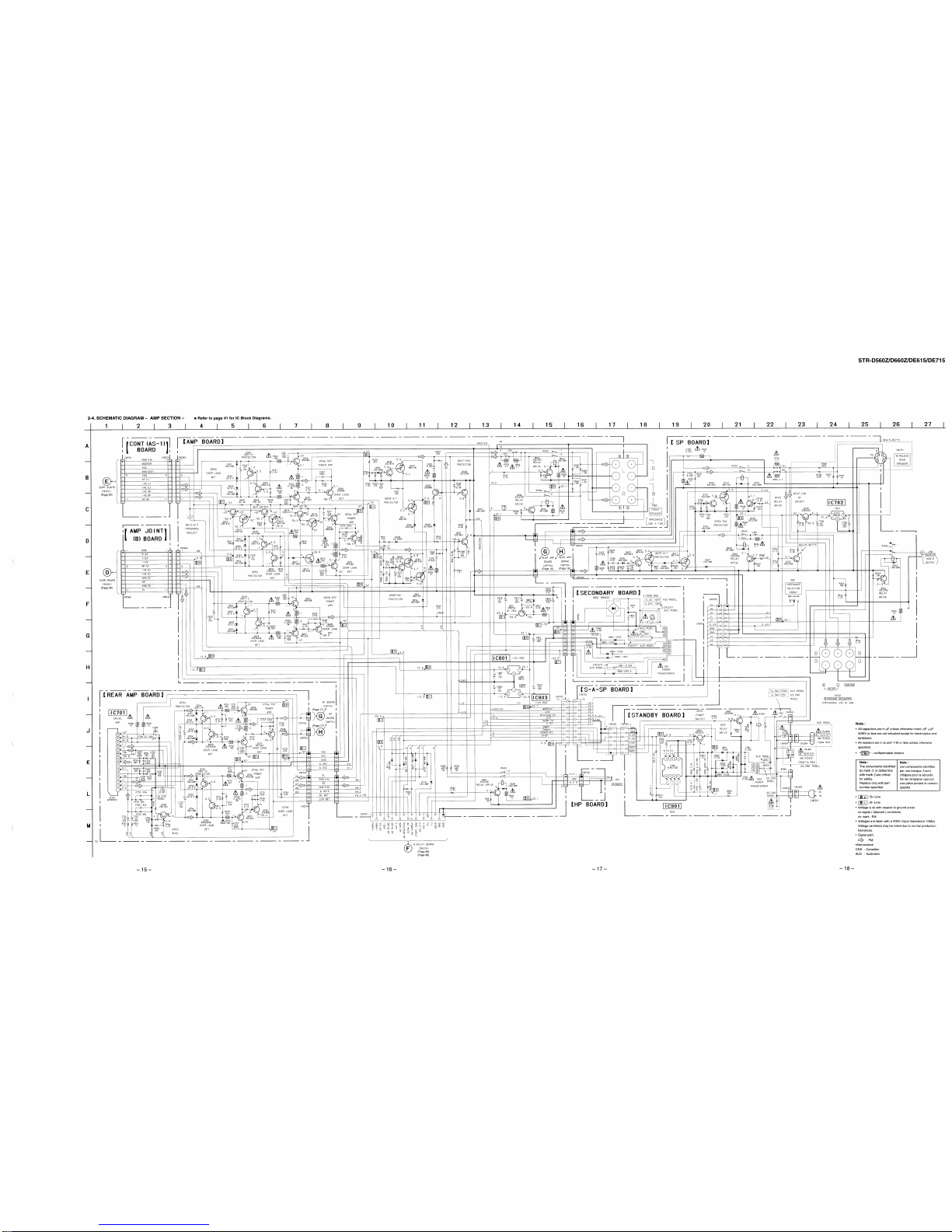

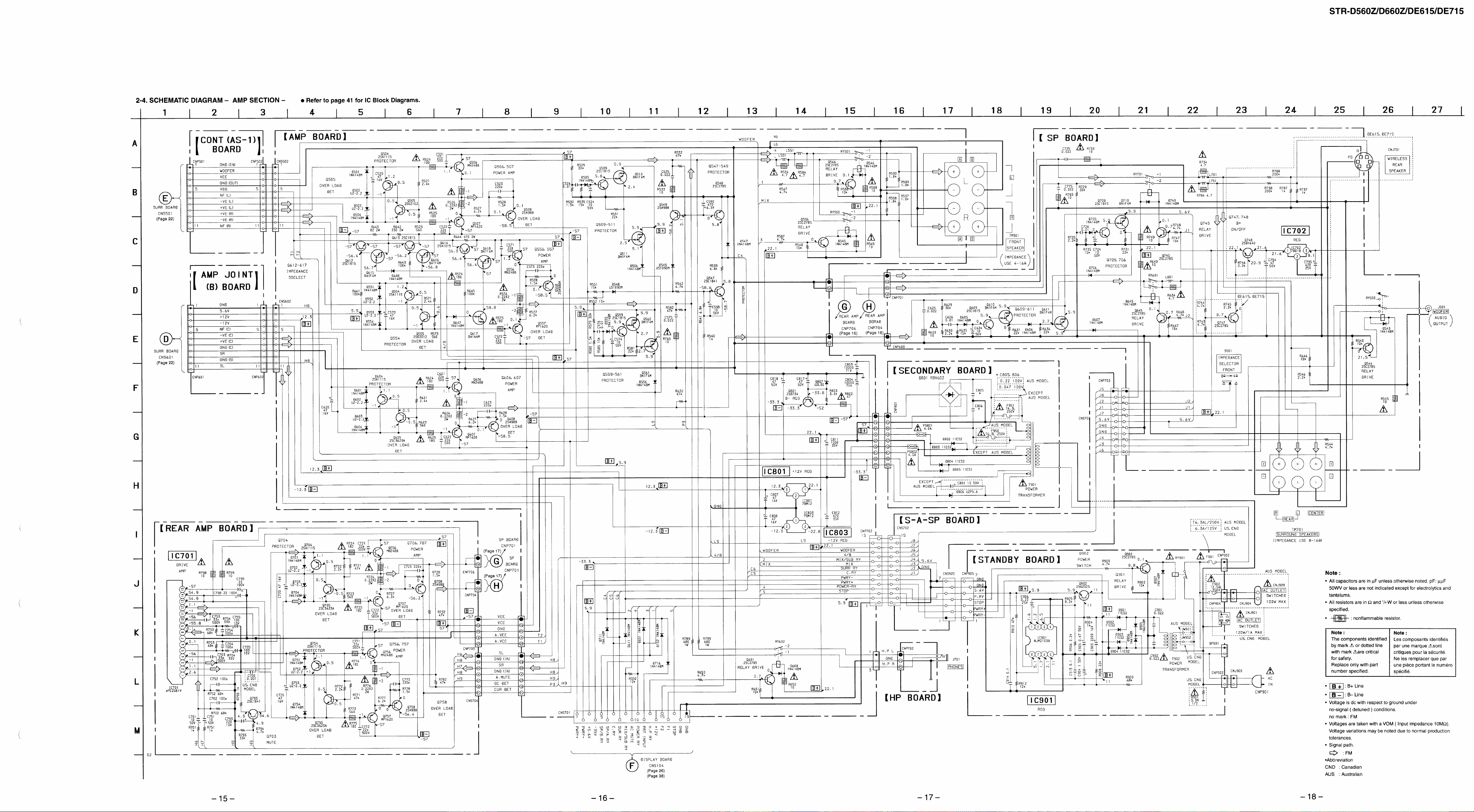

2-4. Schematic Diagram – AMP Section – ..................... 15
2-5. Schematic Diagram – Surround Section –............... 19

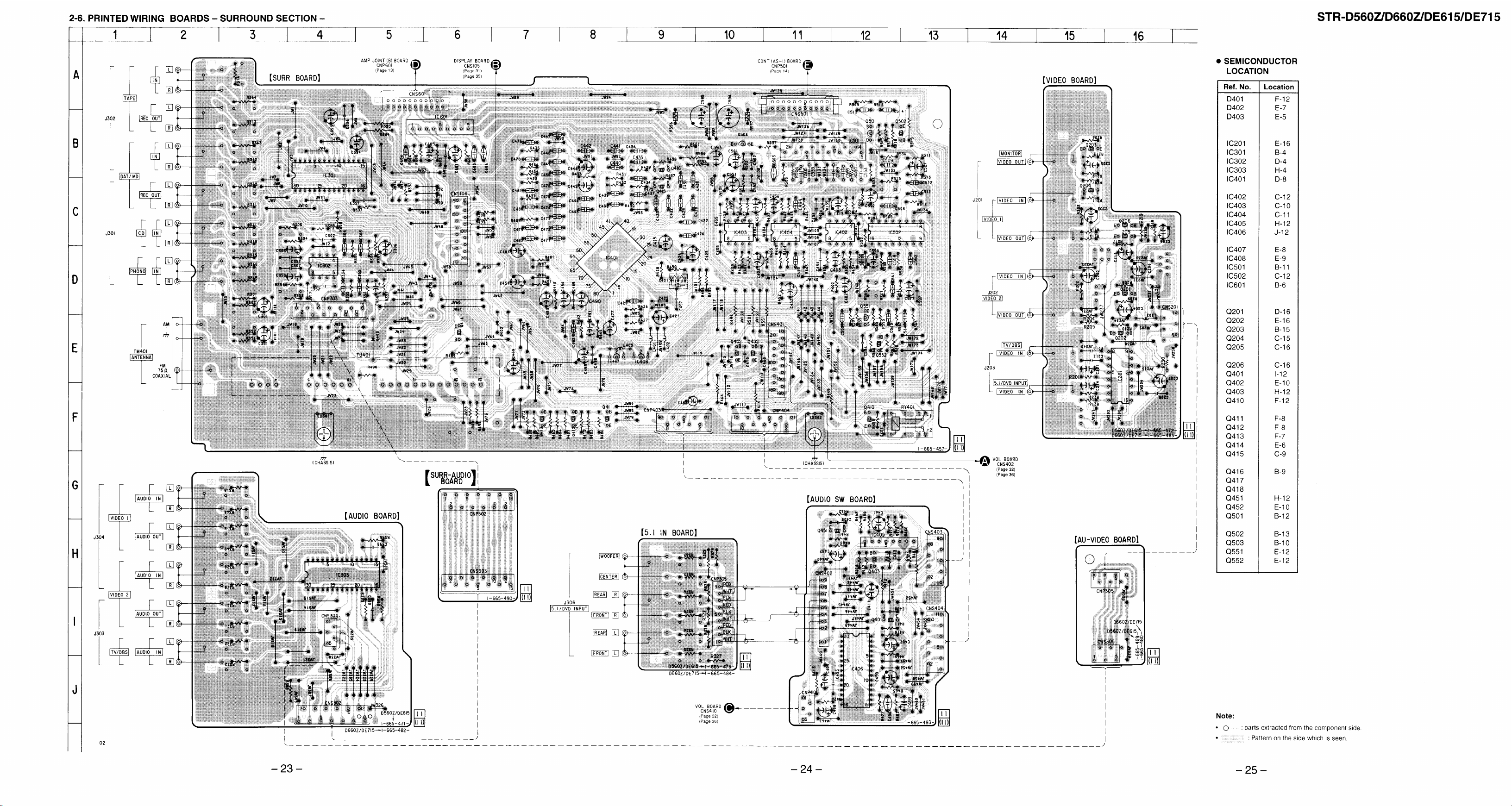

2-6. Printed Wiring Boards – Surround Section – ........... 23

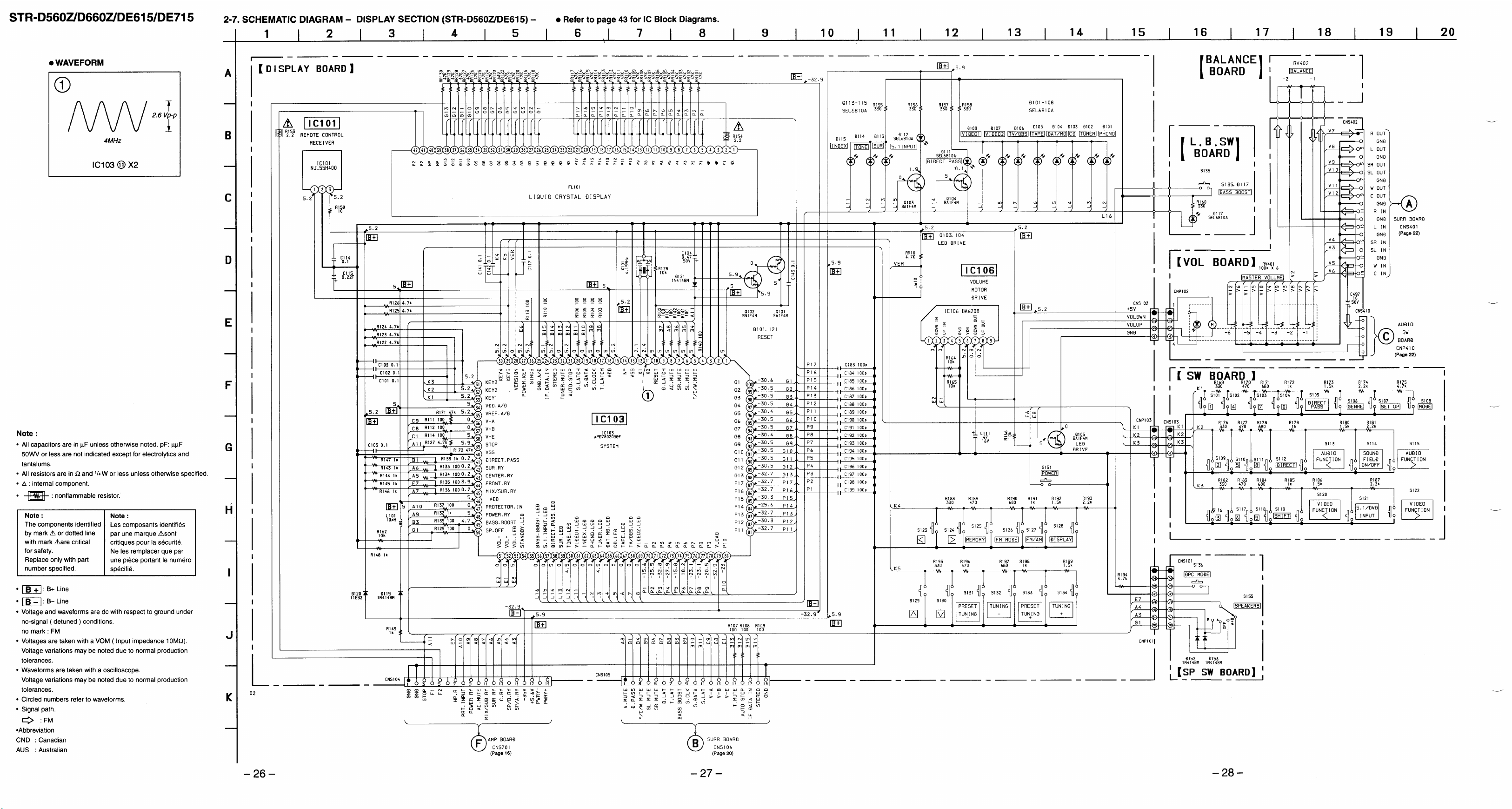

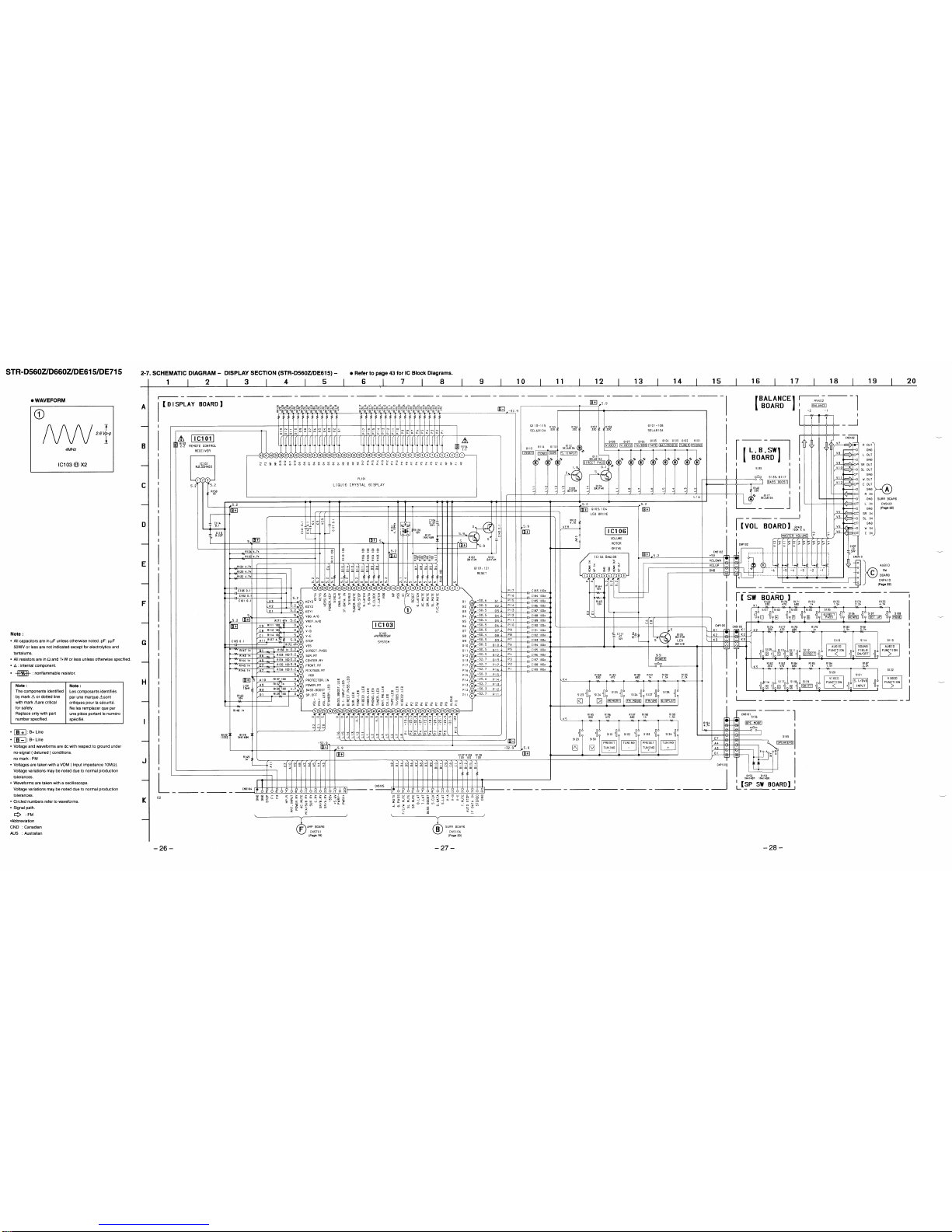

2-7. Schematic Diagram
– Display Section (STR-D560Z/DE615) – .............. 26
2-8. Printed Wiring Boards
– Display Section (STR-D560Z/DE615) – .............. 29

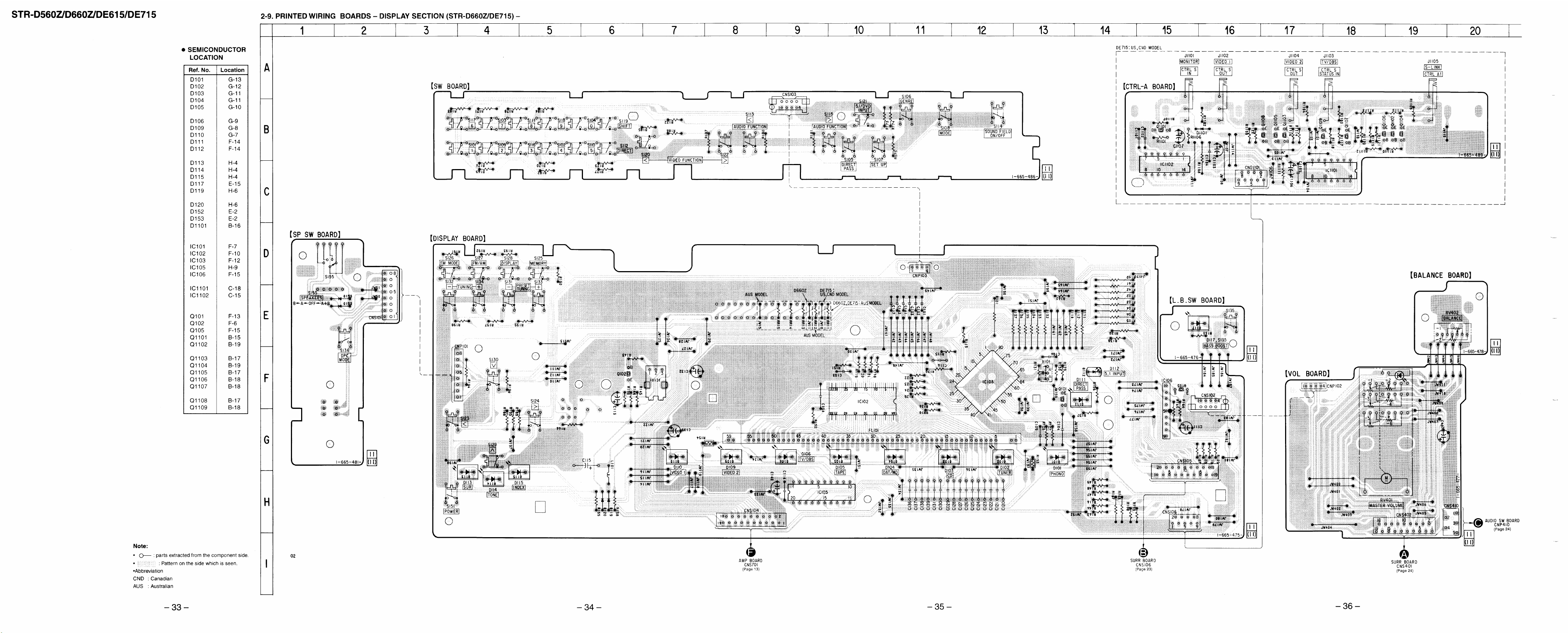

2-9. Printed Wiring Boards
– Display Section (STR-D660Z/DE715) – .............. 33

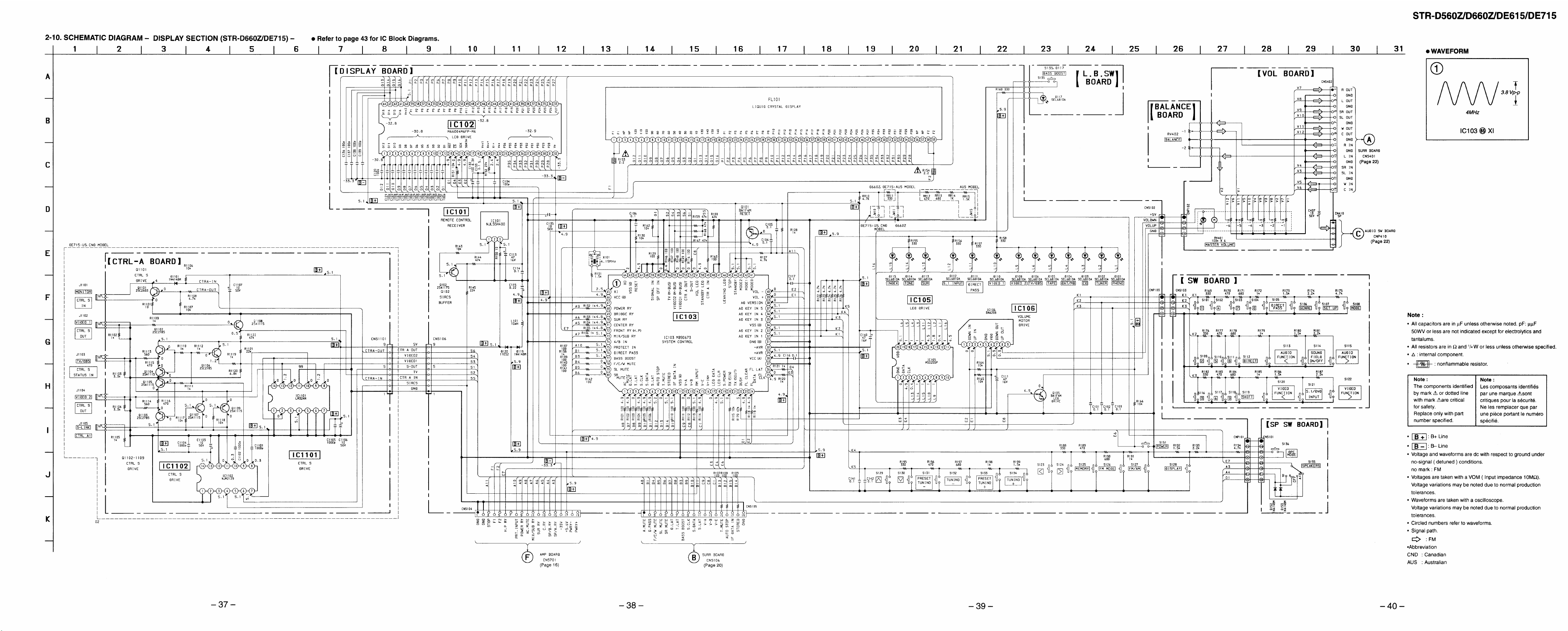

2-10. Schematic Diagram
– Display Section (STR-D660Z/DE715) – .............. 37
3. EXPLODEDVIEWS
3-1. Front Panel Section................................................... 44
3-2. Chassis Section ......................................................... 46
3-3. Back Panel Section ................................................... 47
4. ELECTRICAL PARTS LIST ........................................ 48

– 3 –
3. Measuring the voltage drop across a resistor by means of aVOM
or battery-operated AC voltmeter. The “ limit” indication is
0.75V, soanalog meters must have an accurate low-voltagescale.
The Simpson 250 and Sanwa SH-63Trd are examples of a pas-
sive VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)

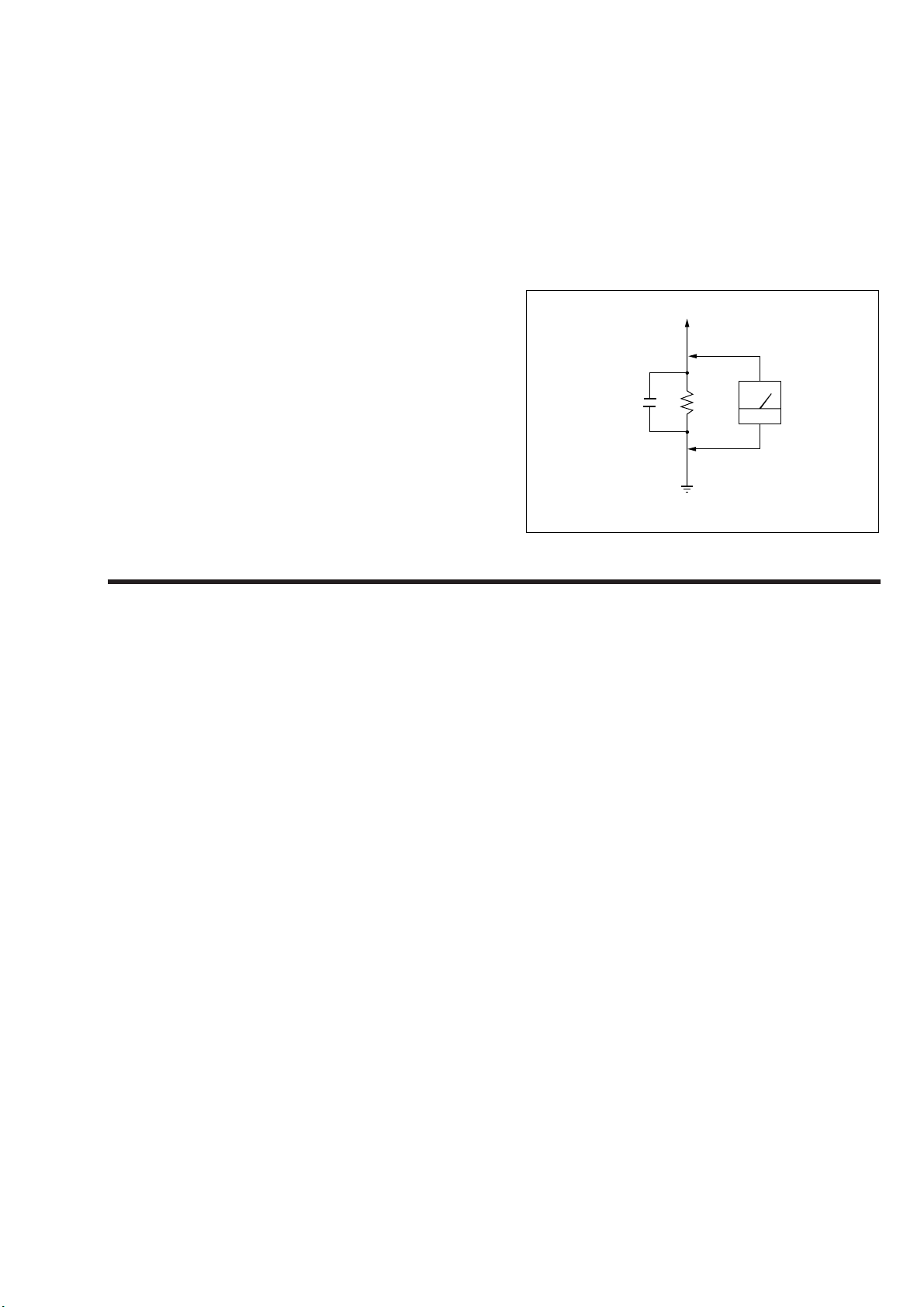

Fig. A. Using an AC voltmeter to check AC leakage.
Earth Ground
To Exposed Metal Parts on Set
1.5k
0.15µF AC
voltmeter
(0.75V)
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer :
Checkthe antenna terminals, metaltrim,“metallized”knobs,screws,
and all other exposed metal parts forAC leakage. Check leakage as
described below.
LEAKAGETEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5mA (500 microampers).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or
RCAWT-540A. Follow the manufacturers’ instructions to use
these instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINEWITH
MARK !ONTHE SCHEMATIC DIAGRAMS AND INTHE PARTS
LIST ARE CRITICALTO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE !SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

– 4 –
SECTION 1
GENERAL
LOCATION AND FUNCTION OF CONTROLS
This section is extracted from
instruction manual.
@¶@§ @∞@¢@£@™@¡@º!ª !•!¶!§ !∞ !¢!£!™!¡ 09
12345678
[FRONT PANEL]
!∞AUDIO FUNCTION buttons
!§VIDEO FUNCTION buttons
!¶DIRECT button
!•SHIFT button
!ªNumeric buttons
@ºPRESET TUNING +,– buttons
@¡MEMORY button
@™DISPLAY button
@£FM/AM button
@¢FM MODE button
@∞TUNING +,– buttons
@§PHONES jack
@¶SPEAKERS switch
1DPC MODE button
2POWER switch
3SUR, TONE, INDEX indicators
4Digital processing control buttons
5Function indicators
6DIRECT PASS indicator
75.1 INPUT indicator
8MASTER VOLUME control
9BALANCE control
!ºBASS BOOST button/indicator
!¡SOUND FIELD ON/OFF button
!™MODE button
!£GENRE button
!¢DIRECT PASS, SET UP, 5.1/DVD INPUT buttons

– 5 –
123
456
7
0
89
0 ) = +
rP
p
(9
1
2
3
4
5
6
7
8
9
0
!¡
!™
!£
!¢
!∞
!§
!¶
!•
!ª
@º
@¡
@™
@£
!£ SYSTEM CONTROL/FUNCTION buttons
!¢ 5.1/INPUT button
!∞ TV/VIDEO button
!§ Direct TUNING button
!¶ CH/PRESET button
!• TEST TONE button
!ª CENTER LEVEL +, – buttons
@º REAR LEVEL +, – buttons
@¡ MASTER VOL buttons
@™ MUTING button
@£ BASS BOOST button
1LEARN button/indicator
2SLEEP button
3TV CONTROL ON button
4Numeric, ENTER buttons
5BACKGROUND button
6VCR/CD/DVD control buttons
7SOUND FIELD buttons
8DIRECT button
9DPC MODE button
0DIGITAL PROCESSING CONTROL buttons
!¡ VISUAL POWER button
!™ SYSTEM OFF button
[REMOTE]
[REAR PANEL]

– 6 –
SECTION 2
DIAGRAMS
IC103 MB90673PF-G-196-BND (SYSTEM CONTROL) (STR-D660Z/DE715)
Pin No. Pin name I/O Description
1 AC MUTE O AC mute drive.
2 D. LAT O Data latch output.
3 T. LAT O Tuner function latch output.
4 S. CLK O Serial clock output.
5 S. DATA O Serial data output.
6 S. LAT O Serial latch output.
7 AUTO STOP O Tuner auto stop output.
8 T. MUTE O Tuner mute output.
9 STEREO I Stereo detect signal input.
10 IF DATA IN I IF data input.
11 VSS (D) – Ground.
12 V-A O Video switch control output.
13 V-B O Video switch control output.
14 RM INPUT I Remote control signal input.
15 V-E O Video switch control output.
16 V-INH – Not used (Open).
17 LED DATA O LED data output.
18 LED CLR O LED clock signal output.
19 S. POWER I Power switch input.
20 RX (SIN) – Not used (Fixed at “ L ” )
21 TX (SOUT) – Not used (Open).
22 BUSY – Not used (Open).
23 FL CLEAR O FL reset signal output.
24 FL DATA O FL data output.
25 FL CLK O FL clock output.
26 FL LAT O FL latch signal output.
27 ––––– – Not used (Ground).
28 VCC(A) – Analog power supply (+4.9V).
29 + AVR – Connect to VDD (+5.1V).
30 –AVR – Not used (Ground).
31 GND (D) – Ground.
32 AD KEY IN1 I Key input.
33 AD KEY IN2 I Key input.
34 VSS(D) – Ground.
35 AD KEY IN3 I Key input.
36 AD KEY IN4 I Key input.
37 AD KEY IN5 I Key input.
38 AD VERSION I Model select.
39 VOL + O Volume up control output.
40 VOL – O Volume down control output.
41 MODE0 – Not used (Fixed at “ H ” )
42 MODE1 – Not used (Fixed at “ H ” )
43 MODE2 – Not used (Ground).
44 STANDBY – Connect to VDD (+5.1V).
45 STOP O Power ON/OFF control output.
2-1. IC PIN FUNCTION

– 7 –
Pin No. Pin name I/O Description
46 LERNING LED – Not used (Open).
47 ––––– – Not used (Ground).
48 ––––– – Not used (Ground).
49 CTR A IN I Control S signal input (DE715 : US, Canadian model).
50 STANDBY LED – Not used (Open).
51 VOL LED O Volume LED drive.
52 S-OUT O Control S signal output (DE715 : US, Canadian model).
53 CTR A OUT O Control S signal output (DE715 : US, Canadian model).
54 VIDEO1 (M-BUS) O VIDEO1 control signal output.
55 VIDEO2 (M-BUS) O VIDEO2 control signal output.
56 TV (M-BUS) O TV control signal output.
57 –––– – Not used (Ground).
58 SP OFF IN I Speaker switch input.
59 SIGNAL IN – Not used (Ground).
60 –––– – Not used (Ground).
61 –––– – Not used (Ground).
62 RESET I Reset terminal.
63 VSS(D) – Ground.
64 XO O System clock (4.19MHZ).
65 XI I System clock (4.19MHZ).
66 VCC(D) – Digital power supply (+4.9V).
67 –––– – Not used (Ground).
68 POWER RY O Power relay drive.
69 BRIDGE RY – Power key input.
70 SUR RY O Surround relay drive.
71 CENTER RY O Center relay drive.
72 FRONT RY (H,P) O Front (Headphone) relay drive.
73 MIX/SUB RY O Woofer relay drive.
74 4/8 IN – Not used (Ground).
75 PROTECT IN I Protector operation input.
76 DIRECT PASS O Direct pass relay drive.
77 BASS BOOST O Bass boost ON/OFF control.
78 F/C/W MUTE O Front, Center, Woofer mute drive.
79 SL MUTE O Surround L-CH mute drive.
80 SR MUTE O Surround R-CH mute drive.

– 8 –
IC103 µPD780205GF-027-3BA (SYSTEM CONTROL) (STR-D560Z/DE615)
Pin No. Pin name I/O Description
1 –––– – Not used (Connect toVDD).
2 – 4 –––– – Not used (Connect to ground).
5 F/C/W. MUTE O Front, Center, Woofer mute drive.
6 SL MUTE O Surround L-CH mute drive.
7 SR MUTE O Surround R-CH mute drive.
8 AC MUTE O AC mute drive.
9 D LATCH O Data latch output.
10 RESET I Reset terminal.
11 X2 O System clock (4.19MHZ).
12 X1 I System clock (4.19MHZ).
13 VSS – Ground.
14 NP – Not used (Open).
15 –––– – Connect to reset terminal.
16 VDD – Power supply (+5V).
17 T LATCH O Tuner function latch output.
18 S CLOCK O Serial clock output.
19 S DATA O Serial data output.
20 S LATCH O Serial latch output.
21 AUDIO. STOP O Tuner auto stop output.
22 TUNER MUTE O Tuner mute output.
23 STEREO I Stereo detect signal input.
24 IF DATA IN I IF data input.
25 GND A/D – Ground.
26 SIRCS I Remote control signal input.
27 POWER KEY I Power key input.
28 VERSION I Model select input.
29 KEY 5 I Key input.
30 KEY 4 I Key input.
31 KEY 3 I Key input.
32 KEY 2 I Key input.
33 KEY 1 I Key input.
34 VDD A/D – Power supply (+5V).
35 VREF A/D I Reference voltage input.
36 V-A O Video switch control output.
37 V-B O Video switch control output.
38 V-E O Video switch control output.
39 STOP O Power ON/OFF control output.
40 VSS – Ground.
41 DIRECT PASS O Direct pass relay drive.
42 SUR RY O Surround relay drive.
43 CENTER RY O Center relay drive.
44 FRONT RY O Front relay drive.
45 MIX SUB RY O Woofer relay drive.

– 9 –
Pin No. Pin name I/O Description
46 VDD – Power supply (+5V).
47 PROTECTOR IN I Protector operation input.
48 POWER RY O Power relay drive.
49 BASS BOOST O Bass boost ON/OFF control.
50 SP OFF I Speaker switch input.
51 VOL – O Volume down control output.
52 VOL + O Volume up control output.
53 VOL LED O Volume LED drive.
54 STANDBY LED – Not used (Open).
55 ––––– – Not used (Open).
56 BASS BOOST LED O BASS BOOST LED drive.
57 5.1 INPUT LED O 5.1 INPUT LED drive.
58 DIRECT PASS LED O DIRECT PASS LED drive.
59 SUR LED O SUR LED drive.
60 TONE LED O TONE LED drive.
61 VIDEO 1 LED O VIDEO 1 LED drive.
62 INDEX LED O INDEX LED drive.
63 PHONO LED O PHONO LED drive.
64 TUNER LED O TUNER LED drive.
65 DAT MD LED O DAT/MD LED drive.
66 CD LED O CD LED drive.
67 TAPE LED O TAPE LED drive.
68 TV/DBS LED O TV/DBS LED drive.
69 VIDEO2 LED O VIDEO2 LED drive.
70 – 78 P1 – P9 O FL segment drive.
79 V LOARD – FL power supply (– 35V).
80 – 87 P10 – P17 O FL segment drive.
88 – 100 G1 – G13 O FL segment drive.

– 10 –

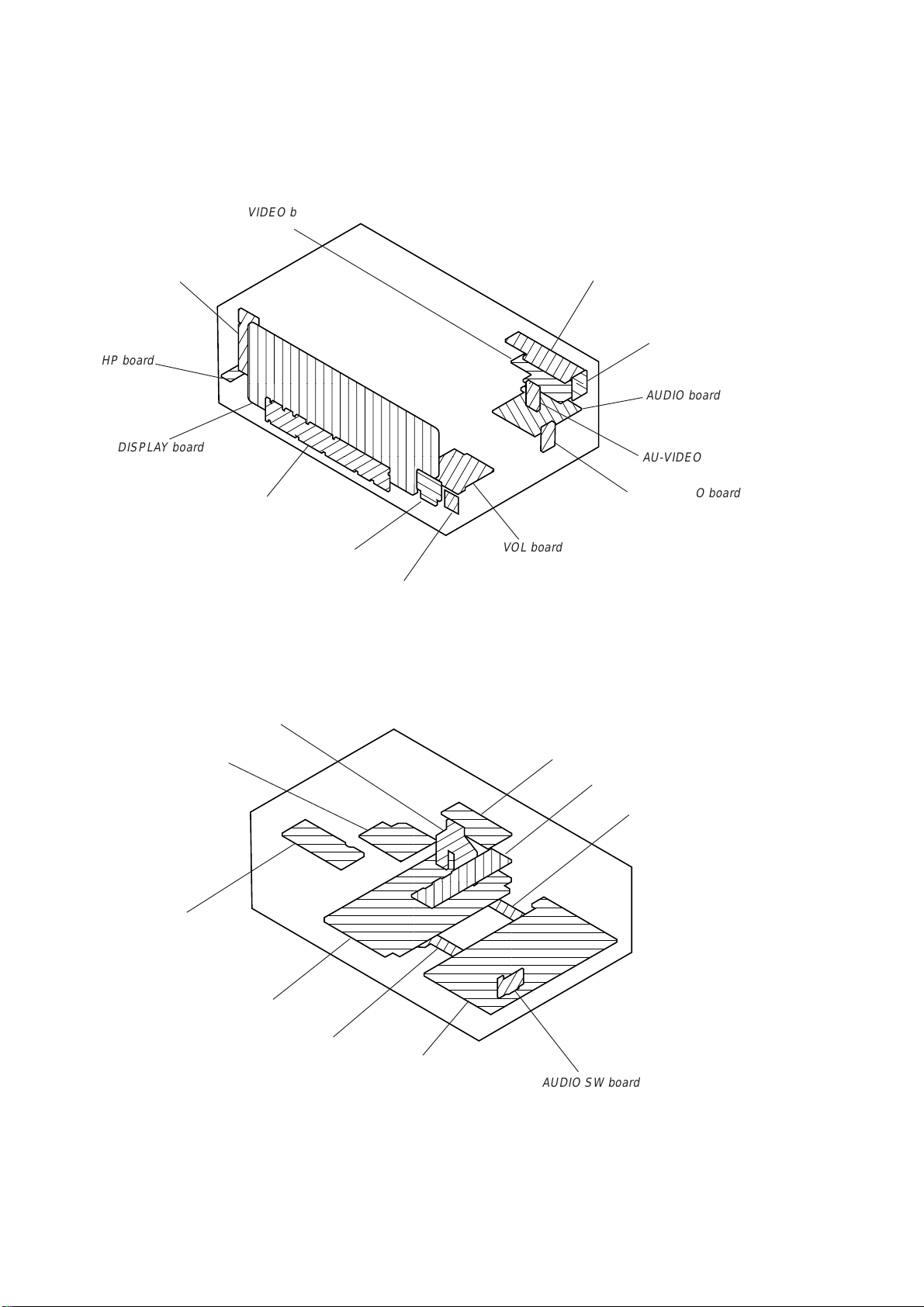

2-2. CIRCUIT BOARDS LOCATIONS
¢£
¡¢


¡¢
¢£¤


¢

¡¢


AUDIO SW board


¢£

¡¢


£¤
£
¡¢

£¤

£


£¤
"#
AUDIO board
AU-VIDEO board
SURR AUDIO board
HP board
DISPLAY board
VOL board
VIDEO board
SP SW board
SW board
BALANCEboard
L. B. SW board
5.1 IN board
SP board
REAR AMP board
AMP JOINT (B) board
SURR board
CONT (AS-1) board
AMP board
SECONDARY board
STANDBY board
S-A-SP board
CTRL-A board (DE715 : US, Canadian model)

– 41 –
rIC BLOCK DIAGRAMS (AMP) IC701 uPC2581V
1
2
3
45
6
7
8
V+
VSB/SESIN
VSA
RESET
GND
OUTC
VSC
CR
VREF
+–
–+
–
+
–
+
Q
R S
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
CONTROL
LATCH
SHIFT RESISTOR
LEVEL SHIFT
CL
DI
CE
VEE
OUT
IN
OUT
IN
OUT
IN
VSS
S
RESET
VDD
OUT
IN
IN
OUT
IN
OUT
IN
IC901 NJM2103D
235
46798
1
MUTE
+ VOUT1 – VOUT1
COMP1
MF1
IN1
GND
IN2
NF2
COMP2
– VOUT2 + VOUT2
VCC1 VCC2
VEE
PROTECTOR
BIAS CIRCUIT
REG DRIVE PRE
DRIVE
11
10 12 13 1514
DRIVE
PRE
DRIVE
1
2
3
4
5
6
7
8
9
TR3 R1
R2
TR4
TR6
TR7
R4
R9
TR5
TR1
TR2
R6
D4 D3
R7
R8
TR8
D1 D2 R5
R3
INPUT
NF
-VEOUT
+VEOUT
VSS
GND
VCC
SUB
IC301, IC303 LC7822
rIC BLOCK DIAGRAMS (SURROUND)
–
+
2 3 6 7 458
1V+
–
+
V–
IC405 M5218AL
IC502 TC9184P
16 15 14 13 12 11 10 9
12 345678
S. DATA
T. LAT +9V
–9V
GND
S. CLK
TONE
CE
BASS + BASS – COM
TREBLE – TREBLE +
BASS + BASS –
COM
TREBLE – TREBLE +
IC601 STK350-230

– 42 –
1
2
3
4
5
6
7
89
15
10
11
12
13
14
16
DECODER
DECODER
MONITOR OUT
GND
IN5
GND
IN4
CTL E
IN3
CTL D
6dB
6dB
IN1
CTL A
V OUT1
VCC
IN2
CTL B
V OUT2
CTL C
IC201 SN761200
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
CONTROL
LATCH
SHIFT RESISTOR
LEVEL SHIFT
CL
D1
CE
VEE
L1
L2
L COM1
L3
L4
L COM2
L5
L6
L COM3
L7
R1
R2
R COM1
R3
R4
R COM2
R5
R6
R COM3
R7
L COM4
VSS
S
RES
VDD
R COM4
IC406 LC7823
235
46798
1
MUTE
+ VOUT1 – VOUT1
COMP1
MF1
IN1
GND
IN2
NF2
COMP2
– VOUT2 + VOUT2
VCC1 VCC2
VEE
PROTECTOR
BIAS CIRCUIT
REG DRIVE PRE
DRIVE
11
10 12 13 1514
DRIVE
PRE
DRIVE
IC501 uPC2581V
