Sony CMT-CP11 User manual

SERVICE MANUAL
Sony Corporation
Home Audio Division Company
MICRO HiFi COMPONENT SYSTEM
2000C001685-1
Printed in Japan ©2000.3
Published by Quality Assurance Dept.
9-929-094-11
Argentine Model
• CMT-CP11/CP11K are composed of following models.
Asfortheservicemanual,itisissuedforeachcomponentmodel,
then, please refer to them.
PARTS LIST
Part No. Description Remark
ACCESSORIES & PACKING MATERIALS
********************************
1-418-299-11 COMMANDER, STANDARD (RM-SCP1)
1-501-374-11 ANTENNA, LOOP
1-501-659-61 ANTENNA (FM)(E, AR, TW, KR, US, CND, SP, MY, EA, HK, TH)
1-754-060-11 ANTENNA (FM)(AED, AEP, UK, CIS)
1-569-008-21 ADAPTOR, CONVERSION 2P (TW, SP, MY, AUS, KR, TH)
4-227-681-11 MANUAL, INSTRUCTION (ENGLISH)(EXCEPT AED, KR, TH)
4-227-681-21 MANUAL, INSTRUCTION (FRENCH)(US, CND, EA)
4-227-681-31 MANUAL, INSTRUCTION (SPANISH)(AR, MX)
4-227-681-41 MANUAL, INSTRUCTION (FRENCH, SPANISH)(AEP, E, SP, MY)
4-227-681-51 MANUAL, INSTRUCTION (GERMAN)(AEP)
4-227-681-61 MANUAL, INSTRUCTION (DUTCH, ITALIAN, PORTUGUESE)(AEP)
4-227-681-71 MANUAL, INSTRUCTION (DANISH, FINNISH, SWEDISH)(AED)
4-227-681-81 MANUAL, INSTRUCTION (RUSSIAN, POLISH)(CIS)
4-227-681-91 MANUAL, INSTRUCTION (ARABIC)(EA)
4-227-734-11 MANUAL, INSTRUCTION (CHINESE)(SP, MY, HK, TW)
4-227-735-31 MANUAL, INSTRUCTION (TURKISH)(CIS)
4-227-735-41 MANUAL, INSTRUCTION (GREEK)(CIS)
4-991-151-01 COVER, BATTERY (RM-SCP1)
CMT-CP11/CP11K
• Abbreviation
AED : North European model SP : Singapore model
CND : Canadian model TH : Thai model
TW : Taiwan model KR : Korea model
EA : Saudi Arabia model MY : Malaysia model
AR : Argentine model AUS : Australian model
MX : Mexican model HK : Hong Kong model
SPEAKER SYSTEM
CMT-CP11/CP11K
COMPACT DISC DECK
RECEIVER SYSTEM HCD-CP11
SS-CCP11
COMPONENT MODEL NAME
SPECIFICATIONS
General
Power requirements
North American model: 120 V AC, 60 Hz
European model: 230 VAC, 50/60 Hz
Australian model: 220-240 V AC, 50/60 Hz
Mexican model: 120 V AC, 60 Hz
Other models: 110-120 V or 220-240V AC,
50/60 Hz
Adjustable with voltageselector.
Power consumption 70 W
Dimensions (w/h/d) Approx. 190 x 252 x 310 mm incl.
projecting parts and controls.
Mass: Approx. 5.6 kg
Supplied accessories: Remote Commander (1)
AM loop antenna (1)
FM lead antenna (1)
Batteries (2)
Design and specifications are subject to change without notice.

HCD-CP11
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
SERVICE MANUAL
MICRO Hi-Fi COMPONENT SYSTEM
— Continued on next page —
SPECIFICATIONS
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol aare trade-
marks of Dolby Laboratories Licensing Corporation.
HCD-CP11 is the Amplifier, CD
player, Tape Deck and Tuner section
in CMT-CP11/CP11K.
Note
CD block, tape deck block and
tuner pack are supplied with
the assembled block.
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM55-K5BD41
Model Name Using Similar Mechanism NEW
Tape Transport Mechanism Type TCB-020
CD
Section
Tape deck
Section

2

3
1. SERVICING NOTES ······················································ 3
2. GENERAL ·········································································· 5
3. DISASSEMBLY ································································ 7
4. SERVICE MODE··························································· 11
5. ELECTRICAL CONFIRMATIONS AND
ADJUSTMENTS ···························································· 12
6. DIAGRAMS
6-1. Circuit Boards Locations ··················································· 14
6-2. Block Diagram – TAPE Section – ····································· 15
6-3. Block Diagram – MAIN Section – ···································· 16
6-4. Block Diagram
– DISPLAY/POWER SUPPLY Section – ························· 17
6-5. Printed Wiring Board – MAIN Section – ·························· 18
6-6. Schematic Diagram – MAIN Section (1/2) – ···················· 19
6-7. Schematic Diagram – MAIN Section (2/2) – ···················· 20
6-8. Printed Wiring Boards
– LCD/HEADPHONE/LOADING/SPEAKER Section –· 21
6-9. Schematic Diagrams
– HEADPHONE/SPEAKER Section – ····························· 21
6-10.Printed Wiring Boards – CONTROL Section –················· 22
6-11.Schematic Diagram – CONTROL Section – ····················· 23
6-12.Printed Wiring Board – POWER Section – ······················· 24
6-13.Schematic Diagram – POWER Section – ·························· 25
6-14.IC Block Diagrams ···························································· 26
6-15.IC Pin Function Description ·············································· 28
7. EXPLODED VIEWS····················································· 30
8. ELECTRICAL PARTS LIST····································· 34
TABLE OF CONTENTS
SECTION 1
SERVICING NOTES
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 ˚C dur-
ing repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the rear exterior.
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
The following caution label is located inside the unit.
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL : USYNLIG LASERSTRÅLING VED ÅBNING NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE
FOR STRÅLING.
VORSICHT : UNSICHTBARE LASERSTRAHLUNG, WENN
ABDECKUNG GEÖFFNET UND SICHERUEITSVERRIEGELUNG
ÜBERBRÜCKT. NICHT DEM STRAHL AUSSETZEN.
VARO ! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALT-
TIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING : OSYNLING LASERSTRÅLING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRREN ÄR URKOPPLAD.BETRAKTA EJ STRÅLEN.
ADVERSEL : USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG
SIKKERHEDSLÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
VIGYAZAT ! : A BURKOLAT NYITÁSAKOR LÁTHATATLAN LÉZERSU-
GÁRVESZÉLY
! KERÜLJE A BESUGÁRZÁST !

4
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Checkthe antennaterminals, metal trim, “metallized” knobs,screws,
and all other exposed metal parts forAC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part having
a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operatedAC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
To Exposed Metal
Parts on Set
0.15
µ F1.5 k
Ω
AC
Voltmeter
(0.75 V)
Earth Ground
Fig.A. Using anAC voltmeter to check AC leakage.
MODEL IDENTIFICATION
– Back Panel –
Power Voltage
Indication
VOLTAGE SELECTOR
Switch
Power Voltage
Incdication
AC: 120 V 60 Hz 55 W
AC: 230 V ⁄50 Hz 55 W
AC: 110 – 120/
220 – 240 V / 50/60 Hz 55 W
Model
US, CND, MX, KR models
AEP, UK, AED, CIS, models
E, EA, AR, HK, MY, SP,
TW, AUS models
• Abbreviation
EA : Saudi Arabia model.
AUS : Australian model.
SP : Singapore model.
MY : Malaysia model.
TW :Taiwan model.
HK : Hong Kong model.
AR : Argentine model.
CND : Canadian model.
AED : North European model.
MX : Mexican model.
KR : Korean model.

5
SECTION 2
GENERAL
LOCATION OF CONTROLS
• Front View
126543
7
8
9
0
qa
qs
qd
qf
qg
qh
qj
qk
eseae;wkwj
wh
wg
ws
wa
w;
ql
wd
wf
wl

1TAPE deck
2Liquid crystal display
3TAPE Pbutton
4TAPE 0button
5TAPE œbutton
6TAPE 6button
7TAPE pbutton
8TAPE )button
9TAPE REC rbutton
0CD SYNC button and indicator
!¡ BAND button
!™ TUNING + button
!£ TUNING – button
!¢ TUNING MODE button
!∞ CD EJECT 6button
!§ CD pbutton
!¶ CD +)button
!• CD REPEAT button
!ª DSG button and indicator
@º STANDBY 1/ubutton and indicator
@¡ MD/VIDEO button and indicator
@™ TAPE button and indicator
@£ CD button and indicator
@¢ TUNER button and indicator
@∞ Remote sensor
1
3
2
5
4
6
7
1AM ANTENNA terminals
2FM ANTENNA jack or terminals
3SPEAKER terminals
4LINE OUT jacks
5MD IN jacks
6VIDEO IN jacks
7CD DIGITAL OUT OPTICAL connector
@§ jack
@¶ PHONES jack
@• CD disc tray
@ª VOLUME knob
#º CD ^button
#¡ CD =0button
#™ CD PLAY MODE button
• Rear View

6
This section is extracted from
instruction manual.

7
3-1. COVER (UPPER)
3-2.TAPE MECHANISM DECK
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1 Two screws
(case3 TP2)
4 Cover (upper)
2 Four screws
(BTP3
× 8)
3 Two screws
(case3 TP2
)
2 Connector
5 Tape
mechanism deck
1 Flat wire (12 core)
3 Two screws
(BTP3
× 8)
4 Two screw
s
(BTP3 × 8)

8
3-3. FRONT PAENL SECTION
1 Connector
(CN303)
3 Connector
2 Flat wire
Two claws
6 Screw
(KTP3
× 6)
7 Front panel section
(There is a claw.)
5 Two screws
(BTP3
× 8)
4 Screw
(TP3
× 6)

9

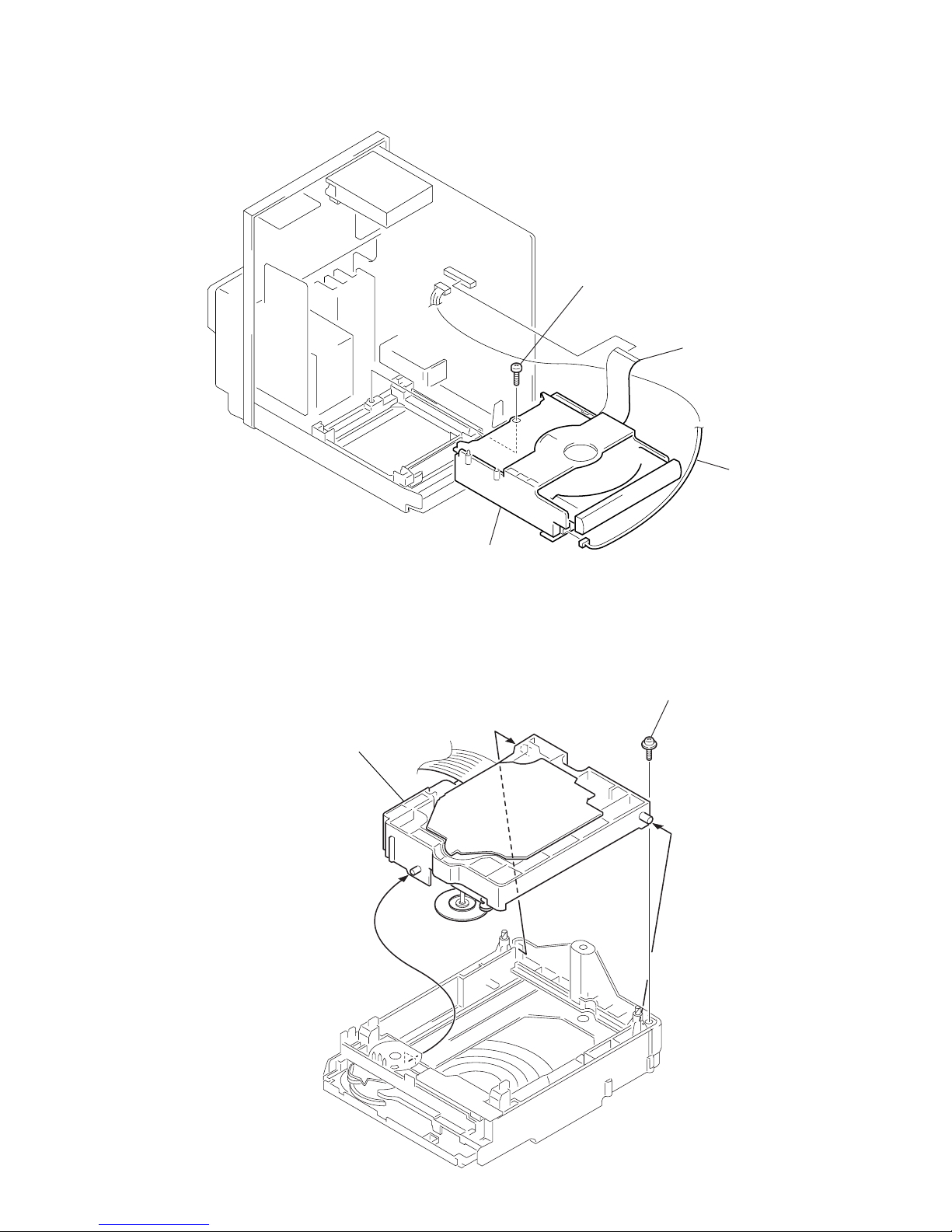

3-4. CD MECHANISM DECK
3 Screw
(BTP3
× 8)
2 flat wire (19 core)
(CN805)
1 connecto
r
4 CD mechanism deck
3-5. UPPER CHASSIS
1 Scre
w
2 Upper chassis

10

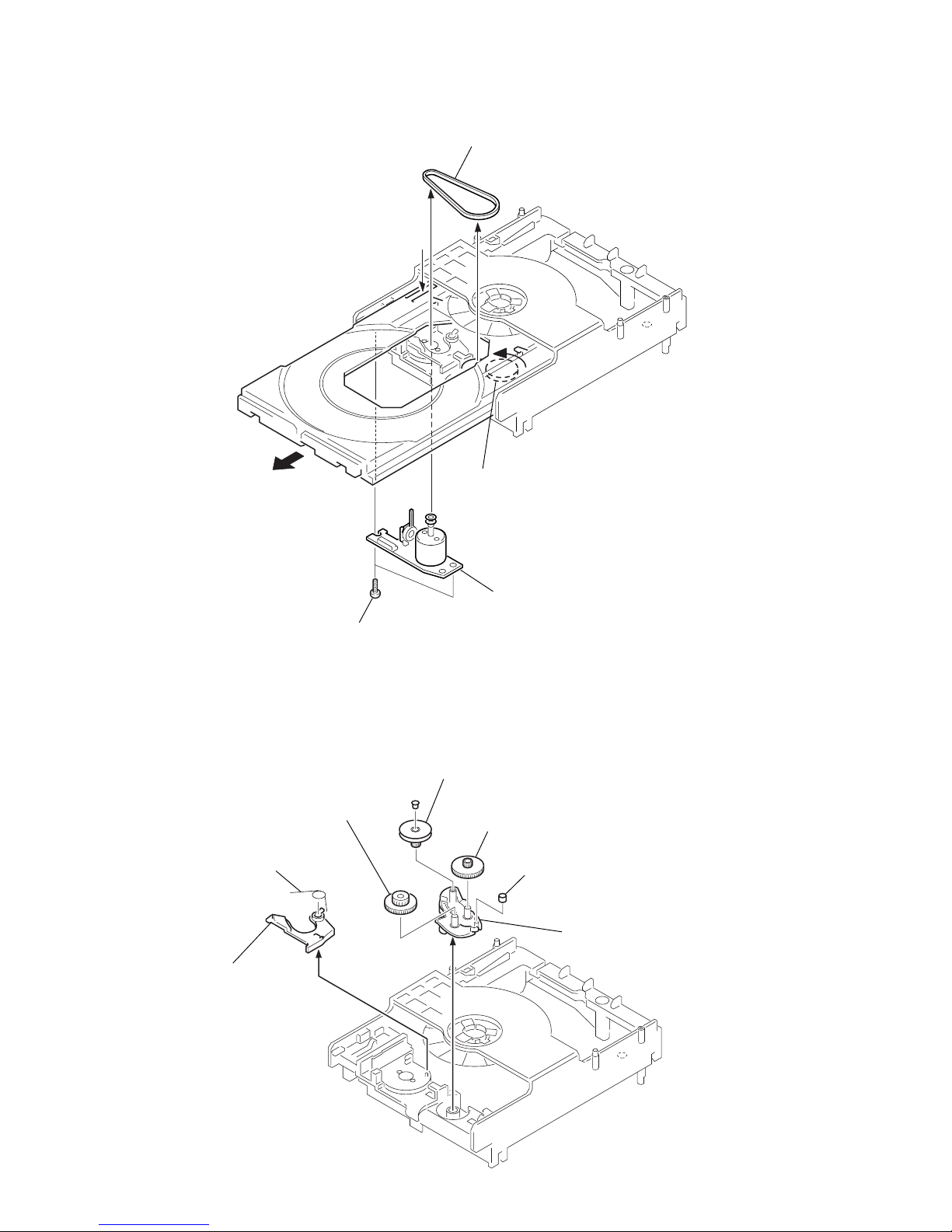

3-6.TRAY
4 Motor board
3 Two screws
2 Belt
1 Rotate the control cam in
the direction of arrow
A
5
Pull the tray
A
3-7. CAM
1 Torsion spring
2 SW lever
3 Pulley
4 Gear
5 Gear
6 Roller
7 Cam

11
SECTION 4
SERVICE MODE
Start
REC pause for 3 seconds
FWD REC
Fast forward
REV Play
REC pause for 3 seconds
REV REC
Rewind
FWD Play Shut off
Shut off
Shut off
Shut off
1 minute
3 minutes
1 minute
3 minutes
Start
Open the disc tray
Close the disc tray
Play the last track
[Liquid Crystal Display All Lit Check Mode]
Procedure:
1. Set to standby state.
2. Pressthree buttonsof x(TAPE), x(CD),and MD/VIDEO
simultaneously.
3. Liquid crystal display are all turned on.
4. To exit fromthis mode, press the ?/1 buttonto turnthe power
OFF.
[Tape Deck Aging Mode]
This mode can be used for operation check of tape deck section.
Procedure:
1. Set a tape in the tape deck.
2. Set to standby state.
3. Press three buttons of x(TAPE), x(CD), and TAPE
simultaneously.
4. The aging is executed in bellow sequence.
5. To exit from the aging mode, press the ?/1 button to turn the
power OFF.
Aging mode sequence:
[CD Aging Mode]
This mode can be used for operation check of CD section.
Procedure:
1. Load a CD disc.
2. Set to standby state.
3. Press three buttons of x(TAPE), x(CD), and TUNER
simultaneously.
4. The aging is executed in bellow sequence.
5. To exit from the aging mode, press the ?/1 button to turn the
power OFF.
Aging mode sequence:

12
SECTION 5
ELECTRICAL CONFIRMATIONS AND ADJUSTMENTS
0 dB=0.775 V
DECK SECTION
Tape Signal Used for
P-4-A100 10 kHz, –10 dB Azimuth Adjustment
WS-48B 3 kHz, 0 dB Tape Speed Adjustment
P-4-L300 315 Hz, 0 dB Level Adjustment
Note: Confirm each contents of this section first of all. If the results are
not satisfied, do the adjustment.
1. Demagnetize the record/playback head with a head
demagnetizer.
2. Do not use a magnetized screwdriver for the adjustments.
3. After the adjustments, apply suitable locking compound to the
parts adjust.
4. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.
5. The adjustments should be performed in the order given in this
service manual. (As a general rule, playback circuit adjustment
should be completed before performing recording circuit
adjustment.)
6. The adjustments should be performed for both L-CH and R-
CH.
7. Switches and controls should be set as follows unless otherwise
specified.
• Test Tape

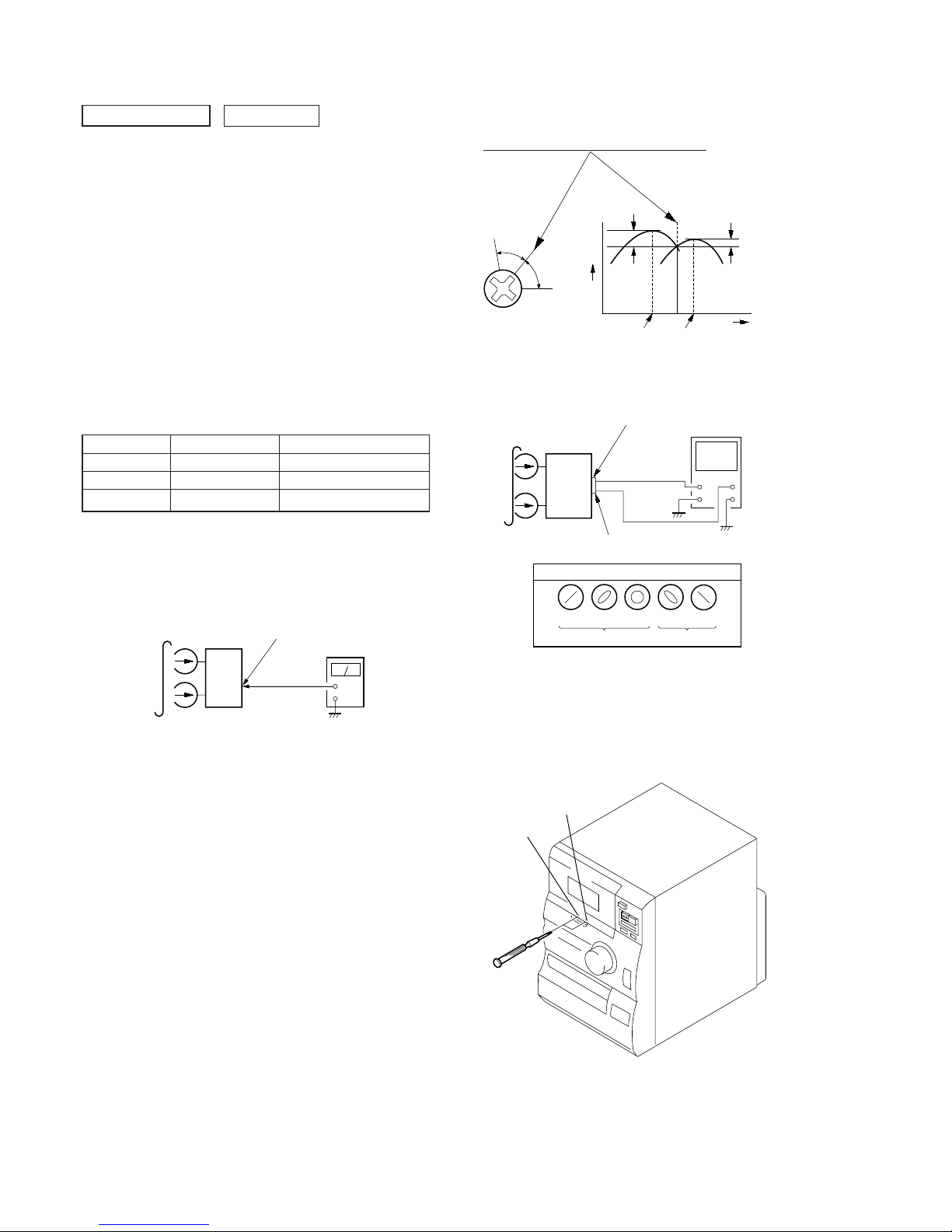

Record/Playback Head Azimuth Adjustment
Procedure:
1. Mode: Playback
set
MAIN board
LINE OUT jack (PJ301)
L-CH, R-CH
+
–
level mete
r
test tape
P-4-A100
(10 kHz, –10 dB)
Screw
position
L-CH
peak
within
1dB
Output
level
L-CH
peak R-CH
peak
within
1dB
Screw
position
R-CH
peak
2. Turn the adjustment screw and check output peaks. If the peaks
do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1dB of peak.
3. Mode: Playback
4. Repeat step 1 to 3 in playback (REV) mode.
5. After the adjustments, apply suitable locking compound to the
pats adjusted.
Adjustment Location:
MAIN
board
CN301
set
test tape
P-4-A100
(10 kHz, –10 dB)
R-CH
oscilloscope
L-CH
R-CH
VH
waveform of oscilloscope
in phase 45 ° 90 ° 135 ° 180 °
good wrong
MAIN board
LINE OUT jack (PJ301)
L-CH
forward
reverse

13
Playback level Confirmation and Adjustment
Procedure:
Mode: Playback
Confirm playback level is within specification values as follows.
If these levels are out of specification values, adjust the RV151 (L-
CH) and RV251 (R-CH) on the MAIN board so that the level meter
reading become within specification values.
Specification values:
PJ301PB level: 301.5 to 338.3mV (–8.2to –7.2 dB) level difference
between the channels: within ±0.5 dB
Adjustment Location: MAIN board
REC Bias Confirmation and Adjustment
Procedure:
1. Mode: Record
2. Mode: Playback
3. Confirm playback the signal recorded in step 1 become
specification values as follows.
If these values are out of specification values, adjust the RV153
(L-CH) and RV253 (R-CH) on the MAIN board to repeat steps
1and 2.
Specification values: Playback output of 315 Hz to playback
output of 10 kHz: ± 0.5 dB
Adjustment Location: MAIN board
+
–
set
test tape
WS-48B
(3 kHz, 0 dB)
MAIN board
LINE OUT jack (PJ301)
L-CH, R-CH
frequency counter

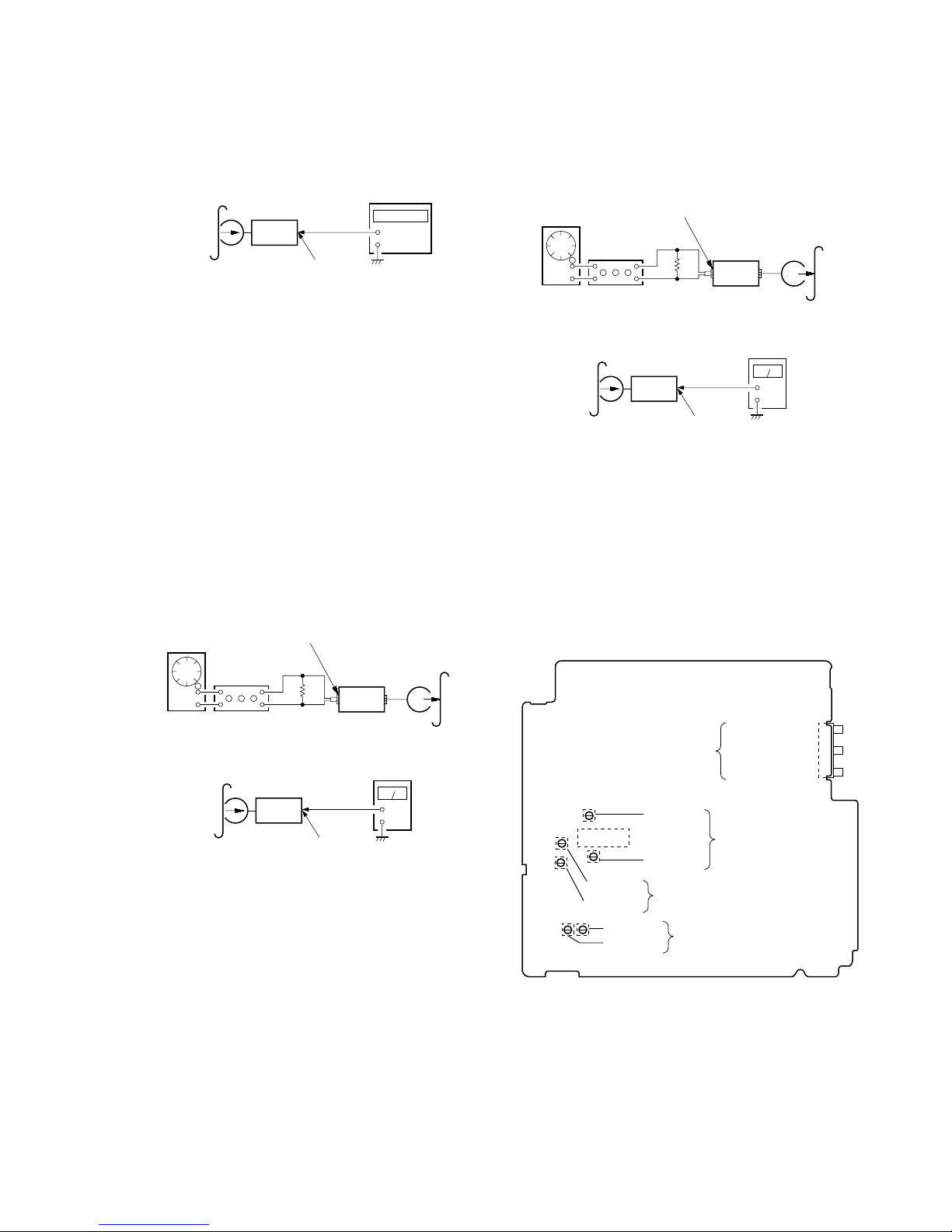

REC Level Confirmation and Adjustment
Procedure:
1. Mode: Record
2. Mode: Playback
3. Confirm playback the signal recorded in step 1 become
specification values as follows.
If these values are out of specification values, adjust the RV252
(R-CH) and RV152 (L-CH) on the MAIN board to repeat steps
1 and 2.
Specification values:
PJ301 PB level: 47.2 to 53.0 mV (– 24.3 to – 23.3 dB)
Adjustment Location: MAIN board
– MAIN BOARD (Conductor Side) –
attenuator
set
MAIN board
MD IN jack (PJ301)
L-CH, R-CH
1) 315 Hz
2) 10 kHz 50 mV (–23.8 dB)



600 Ω
blank tape
CN-123
AF OSC
+
–
set
recorded
portion
MAIN board
LINE OUT jack (PJ301)
L-CH, R-CH
level mete
r
set
MAIN board
MD IN jack (PJ301)
L-CH, R-CH
315 Hz, 50 mV (–23.8 dB) blank tape
CS-123
600
Ω
attenuator
AF OSC
+
–
set
recorded
portion
MAIN board
LINE OUT jack (PJ301)
L-CH, R-CH
level meter
PJ301
Playback Level
REC Bias
REC Level
RV252 (R)
IC352
LINE OUT (L/R)
MD IN (L/R)
VIDEO IN (L/R)
RV152 (L)
RV251 (R)
RV151 (L)
RV253 (R)
RV153 (L)

14
NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGARAMS
Note on PrintedWiring Board:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•b: Pattern from the side which enables seeing.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•C: panel designation.
•U: B+ Line.
•V: B– Line.
•H: adjustment for repair.
• Voltages aretakenwith aVOM (Inputimpedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F:TUNER
E:TAPE PLAY
a:TAPE RECORD
J: CD PLAY (ANALOG OUT)
c: CD PLAY (OPTICAL OUT)
• Abbreviation
EA : Saudi Arabia model.
AUS : Australian model.
SP : Singapore model.
MY : Malaysia model.
TW :Taiwan model.
HK : Hong Kong model.
AR : Argentine model.
CND : Canadian model.
AED : North European model.
MX : Mexican model.
KR : Korean model.
Note:
The components identi-
fied by mark !or dotted
linewith mark !are criti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposants identifiéspar
une marque !sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
6-1. CIRCUIT BOARDS LOCATION
SECTION 6
DIAGRAMS
POWER board
MAIN boar
d
HEADPHONE board
LCD board
LOADING board CONTROL board
SPEAKER board
1 IC801 el
2 IC801 os
3 IC804 qf
4.6Vp-p
238ns
5.0Vp-p
30.5µs
4.3Vp-p
230ns

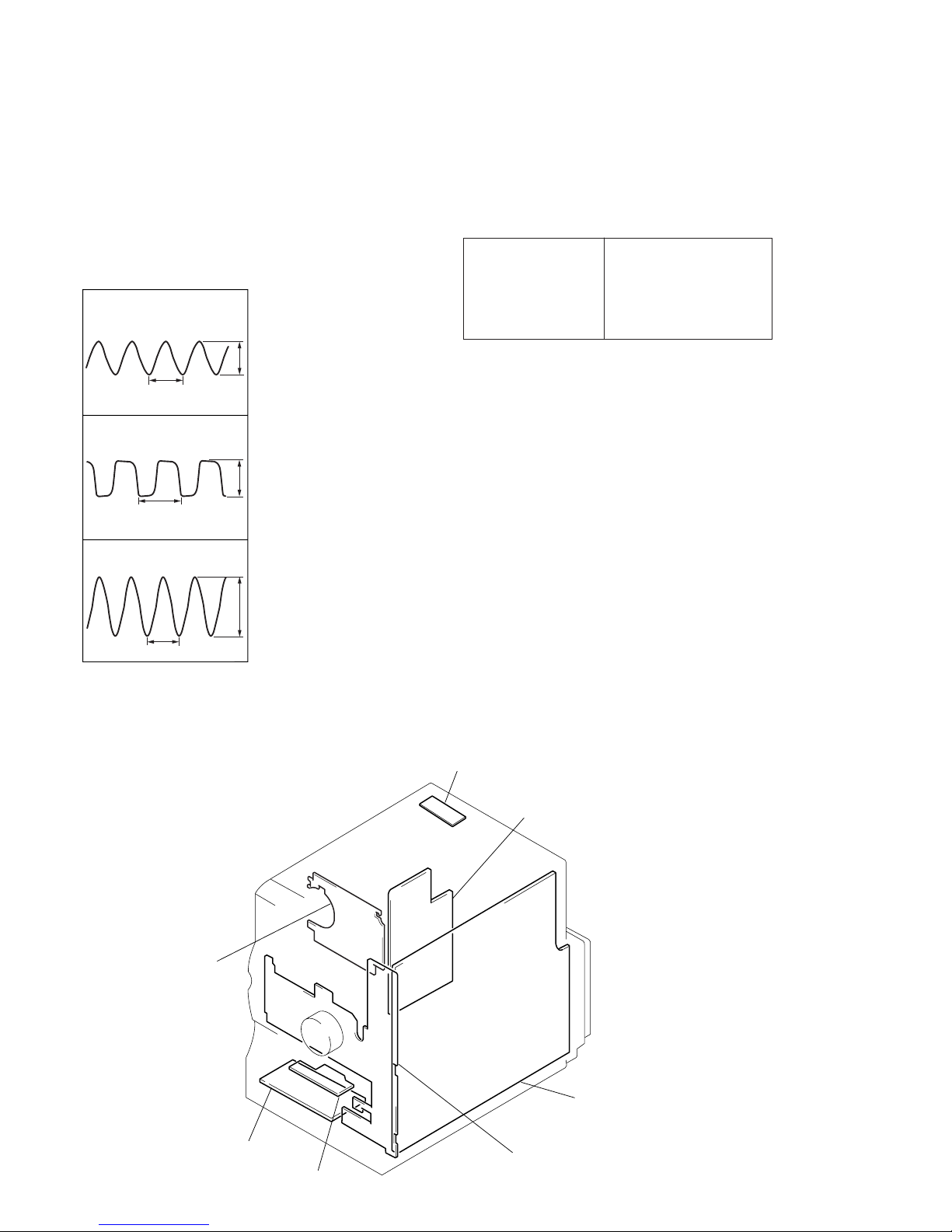

•Waveforms
– MAIN Board –

HCD-CP11
1515

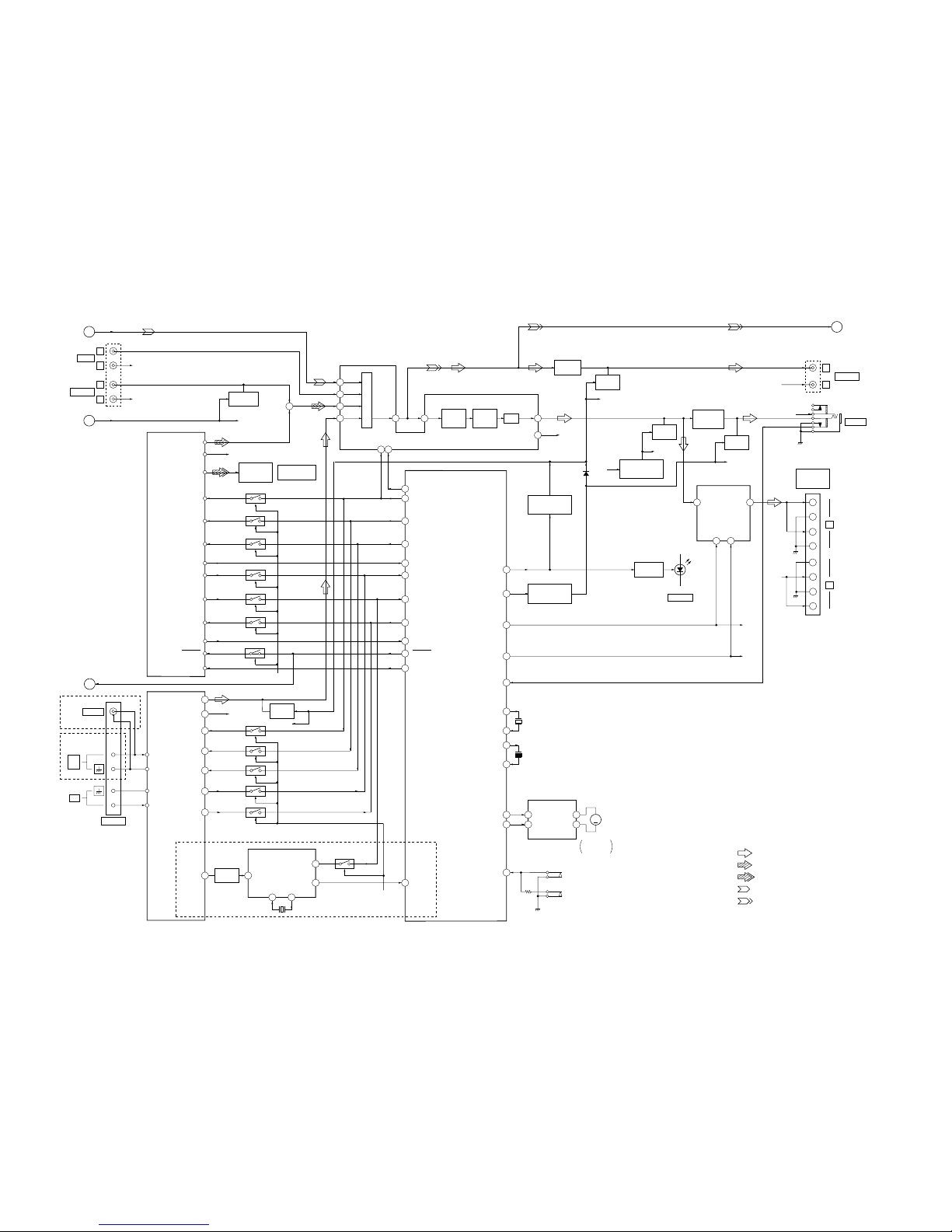

6-2. BLOCK DIAGRAM – TAPE Section –
16
C
(Page 17)
B
(Page 16)
A
(Page 16)
•SIGNAL PATH
: TAPE RECORD
: TAPE PLAY
REC-BIAS
REC-MUTE
DOLBY
L-MUTE
REC/PB
MOT-CON
BIAS
R/MUTE
NR-ON
L/M
R/P
(CrO2DET)
DECK A/B
SELECT
REC/PB
Q351
REC/PB SWITCHING
IC350
DECK PROCESS,
DOLBY NR AMP
IC352
R-CH
R-CH
L-CH
(RECORD/PLAYBACK)
R-CH R-CH
N N/C/M C M
4
86
87
88
96
95
19
20
18
25 24 23
17
16
15
35
32
37
41
39
4
8
7 9
(ERASE)
(HALF DET (SIDE-A))
(HALF DET (SIDE-B))
(CASSETTE IN DET)
(HEAD POSITION DET)
Q352
REC/PB
PB-L
REC-L
Q353
Q354
Q356
Q355
PLAYBACK
EQ AMP
IC351
DOLBY NR
AMP
CIRCUIT
BIAS SWITCH
CIRCUIT
RV151
PLAYBACK
LEVEL (L)
RV152
RECORD
LEVEL (L)
33, 34
BIAS
TRAP
CAPSTAN/REEL
MOTOR DRIVE
Q657, 659
TAPE-END
1
T-MODE
6
TC-SW
32
TAPE END DETECT
SENSOR
T150
BIAS OSC
T351
+8V
RECORD
BIAS (L)
BIAS OSC
Q357, 358
REC BIAS
SWITCH
Q359, 360
RV153
RECORD
BIAS (R)
RV253
M
(CAPSTAN/REEL)
SOL-CON
10
TRIGGER
PLUNGER DRIVE
Q656, 658
(TRIGGER PLUNGER)
SYSTEM CONTROLLER
IC801 (1/3)

HCD-CP11
1616

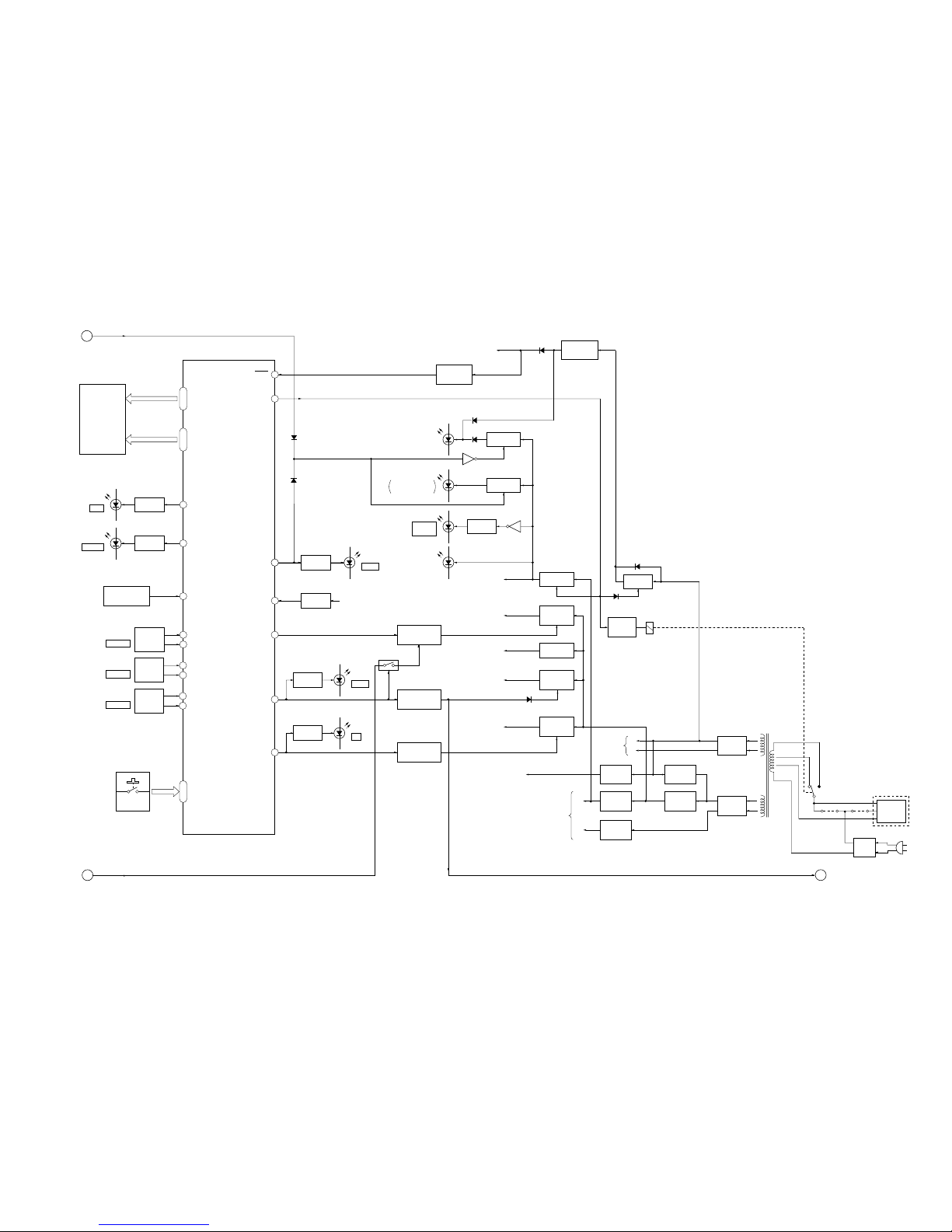

6-3. BLOCK DIAGRAM –MAIN Section –
16
A
(Page 15)
•SIGNAL PATH
: TAPE RECORD
: TAPE PLAY
: CD PLAY (ANALOG OUT)
: CD PLAY (OPTICAL OUT)
: TUNER
S901
(DISC TRAY CLOSE DET)
S902
(DISC TRAY OPEN DET)
IN2TRAY-OPEN OUT2
TX
TEX
MD/VIDEO-ON
D313
SYSTEM CONTROLLER
IC801 (2/3)
DISC TRAY OPEN/CLOSE
MOTOR DRIVE
IC309
X803
4.332MHz
X802
32.768kHz
RDS DECODER
IC804
CD-DATA/TU-DATA/
SCK
CD-CLK/TU-CLK
CD-LATCH/TU-CE
CD-SENSE1
CD-SENSE2/TU-COUNT
CD-SQSO/RDS-DATA
CD +5V
LIN3
LIN1
INL
R-CH
PJ301 (1/2)
REC-L
B
(Page 15) PB-L
SCL SDA
92
93
XTAL1
EXTAL1
X801
4.19MHz
40
13
TRAY-SW 33
6 10
IN1TRAY-CLOSE OUT1
15 5 2
39
24
VIDEO/MD-MUTE 97
HP-CHK 31
AMP-STBY 23
AMP-MUTE 22
30 1
STBY MUTE
9 10
15
2
5
8
SDA
28
19
CD-SQCK/TUNED
11
17
HOLD
14
RDS-CLK
2
16
18
12
CD-SCOR
100
13
LIN4
14
11
LIN2
MOL 16
12
D
(Page 17) CD ON
L
MD IN
R
L
R
L
L
R
R-CH
R-CH 6
LOUT
5
ROUT R-CH
R-CH
R-CH
R-CH
R-CH
R-CH
R-CH
R-CH
Q803, 805, 809, 813
Q823,825,827
CD ON SWITCH
Q806, 808, 812,824,826
TUNER ON SWITCH
CD-L-OUT
CD-R-OUT
CD BLOCK
INPUT SELECT SWITCH,
TONE CONTROL,
ELECTRICAL VOLUME
IC301
IN+
3OUT 14
POWER AMP
IC101
L-CH
3
10
R-CH
TUNER PACK
Q803
R-CH
R-CH
VIDEO IN MUTING
Q102, 103
LINE AMP
IC307
HEADPHONE
AMP
IC303
MUTING
CONTROL SWITCH
Q317, 318
LED DRIVE
Q853
MUTING
CONTROL SWITCH
Q303, 304
MUTING
Q106
MUTING
Q101
VOLUME
CONTROL
CIRCUIT
TONE
CONTROL
CIRCUIT
ATT
MUTING
Q111
OPTICAL
TRANSCEIVER
IC308
CD DIGITAL OUT
OPTICAL
R-CH
PJ301 (2/2)
LINE OUT
J301
PHONES
SJ301
SPEAKER
IMPEDANCE
USE 6Ω
D853
MD/VIDEO
+
D-OUT
CD-DATA
CD-CLK
CD-SENSE1
CD-SQCK
HOLD
Q805
CD-LATCH
Q808
DI
9
CK
11 Q806
CE
RDS ON SWITCH
Q816
AEP MODEL
8Q812
DO
4
2
16
13 14
4
FM-DET
RDATA
RCLK
XI XO
MUX
5
TUNED
CD-SCOR
Q813
CD-SENSE2
Q809
CD-SQSO
CD-XRST CD-XRST/RDS ON
ANTENNA
FM ANT
ANT GND
ANT GND
AM ANT
FM
75Ω
FM 75Ω
AM
(US, Canadian)
(AEP, UK, E)
+
+
–
–
M
M901
DISC TRAY
OPEN/CLOSE
INPUT SELECT SWITCH
DET AMP
Q810
Q823
Q825
Q827
E
(Page 17) RDS ON
Q824
TU 9V
R-CH
MUTING
Q132
MUTING
CONTROL SWITCH
Q325,326
12V
R
+
+
–
–
Q826

HCD-CP11
1717
6-4. BLOCK DIAGRAM –DISPLAY/POWER SUPPLY Section –
TC-ON 98 LED DRIVE
Q854
16
SYSTEM CONTROLLER,
LCD DRIVER
IC801 (3/3)
C
(Page 15)
REC/PB
D
(Page 16)
CD ON
REGULATOR
CONTROL SWITCH
Q311, 312
+5V
REGULATOR
Q310
+8V
REGULATOR
IC304
–8V
REGULATOR
IC305
RECT
D911 –914
RECT
D907 –910
POWER TRANSFORMER
T901
VOLTAGE
SELECTOR
S901
LINE
FILTER
LF901
+9V
REGULATOR
Q313
SWITCHING
Q390-392
AC IN
RY901
B+
B–
+8V
+8V
REGULATOR
IC311
+8V
CD BLOCK, DISC TRAY OPEN/
CLOSE MOTOR DRIVER (IC309) B+
+5V
CD BLOCK B+
+12V
TDA7439 (IC301) B+
+9V
TUNER PACK B+
–8V
AUDIO
CIRCUIT
POWER AMP
(IC101, 201)
D307
REGULATOR
CONTROL SWITCH
Q321, 322
LED DRIVE
Q852
D814
D815
D813
D812
D801, 802
Q655
CD
D852
CD-ON 94
TU-ON 25
TC-ON 98
26
RESET 38
REG-CON 7
+7.5V
REGULATOR
Q314
RESET SIGNAL
GENERATOR
IC803
FM 7.5V
FM CIRCUIT B+
B+ SWITCH
Q661, 662
B+ SWITCH
Q653, 654
B+ SWITCH
Q651, 652
LED B+
REGULATOR
CONTROL SWITCH
Q315, 316
RDS-ON 30
LED DRIVE
Q855 TUNER
D855
LED DRIVE
Q854
LED DRIVE
Q856
LED DRIVE
Q858
TAPE
D854
DSG
D856
D858
(DISC TRAY ILLUMINATION)
STANDBY
I/u
D851
D657 –660
(LCD BACK LIGHT)
BACK UP +5V
SYSTEM CONTROLLER (IC801) B+
Q859
REMOTE CONTROL
RECEIVER
IC802
3REMOCON
D.S.G.
27
LED DRIVE
Q857
CD SYNC
D857 CD-SYNC
ROTARY
ENCODER
RV801
JOG-A
21
JOG-B
20
36 –34
SEG0 –SEG31
KEY1 –KEY3
54 –85
COM0 –COM3
50 –53
S801 –824
RV801
VOLUME
LIQUID CRYSTAL
DISPLAY
LCD801
CASSETTE HOLDER
BACK LIGHT
ROTARY
ENCODER
RV802
JOG-E
29
JOG-F
30
RV802
TREBLE
ROTARY
ENCODER
RV803
JOG-C
9
JOG-D
16
RV803
BASE
WP 99 SWITCH
Q829,830 +5V
E
(Page 16)
RDS ON
Q828
B+ SWITCH
Q325,326
+12V
REGULATOR
Q350-351
+12V
REGULATOR
Q301-303
SUB 230V
230V
115V
COM
RELAY
DRIVE
Q323,324
D392
D390
+5.6V
GENERATOR
IC310
E MODEL

HCD-CP11
1818
6-5. PRINTED WIRING BOARD – MAIN Section – • See page 14 for Circuit Boards Location.
12
A
B
C
D
E
F
G
H
345678
(Page 21)
(Page 21)
(Page 22)
(Page 21)
(Page 21)
(Page 24)
(Page 21)
1-677-142-
11
, KR
, KR
Ref. No. Location
D301 G-6
D303 B-5
D304 B-5
D305 G-5
D306 C-5
D307 B-5
D308 G-5
D309 C-5
D311 E-5
D313 F-4
D350 G-5
D390 E-5
D391 E-5
D392 F-5
D651 A-3
D652 B-4
D801 E-3
D802 E-3
D812 G-3
D813 G-4
D814 C-1
D815 A-3
IC101 G-7
IC201 E-7
IC301 C-6
IC303 D-7
IC304 F-5
IC305 G-6
IC307 B-6
IC308 D-7
IC309 F-5
IC310 E-5
IC311 F-5
IC801 F-2
IC803 F-3
IC804 B-2
Q101 B-7
Q102 C-7
Q103 C-7
Q106 A-6
Q111 C-7
Q202 C-7
Q203 C-7
Q206 A-6
Q211 C-7
Q301 G-6
Q302 G-6
Q303 G-6
Q307 F-4
• Semiconductor
Location
Ref. No. Location
Q308 F-4
Q310 G-5
Q311 G-5
Q312 G-5
Q313 A-6
Q314 B-5
Q315 B-5
Q316 B-5
Q317 F-4
Q318 F-4
Q321 B-6
Q322 A-4
Q323 D-5
Q324 D-5
Q325 C-5
Q326 C-5
Q350 G-5
Q351 G-6
Q352 G-6
Q390 E-5
Q391 E-5
Q392 E-5
Q651 G-4
Q652 G-4
Q653 G-4
Q654 G-4
Q655 G-4
Q656 B-4
Q657 B-3
Q658 B-4
Q659 B-4
Q661 G-4
Q662 G-4
Q803 D-4
Q805 D-4
Q806 A-4
Q808 A-4
Q809 D-3
Q810 A-3
Q812 A-4
Q813 D-3
Q816 B-2
Q823 D-4
Q824 A-4
Q825 D-3
Q826 A-5
Q827 D-4
Q828 A-4
Q829 G-2
Q830 G-2

HCD-CP11
1919
6-6. SCHEMATIC DIAGRAM – MAIN Section (1/2) – • See page 35 for IC Block Diagram.
