Sony Trinitron KV-21V4D User manual

© 1996 by Sony Corporation Printed in Spain
3-858-033-11 (1)
GB
Mode d’emploi F
D
Bedienungsanleitung
Operating Instructions
KV-21V4D
Bruksanvisning
Gebruiksaanwijzing NL
S
Trinitron Colour Video TV
PAL NTSC 4.43

Getting Started 2
GB
For safe installation:
•Do not block the ventilation openings.
•Do not install the unit in hot, humid, or
excessively dusty places.
•Do not install the unit where it may be exposed to
mechanical vibrations.
•Position the unit so that there is a clear space of
10 cm from a wall, allowing you to press the U
(MAIN POWER) switch to turn it on and off
completely.
For your protection, refer all servicing to qualified
personnel.
About Moisture
Condensation
If the unit is brought directly from a cold place to a
warm place, moisture may condense on the video
head drum. If this happens, the tape may stick to
the head drum and it may be damaged or the unit
may not operate correctly. To avoid possible
damage caused by moisture condensation, be sure
not to leave a cassette inside the compartment
when the unit is not in use. When bringing the unit
from a cold place to a warm place, wait for about
10 minutes before operating it.
If the tape operation buttons do not work due to
moisture condensation, leave the unit for more
than one hour with the power on.
WARNING
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
Dangerously high voltages are present inside the
set. Do not open the cabinet. Refer servicing to
qualified personnel only.
Caution
Television programmes, films, video tapes and
other materials may be copyrighted.
Unauthorized recording of such materials may be
contrary to the provisions of the copyright laws.
Colour System of Your
Set
This video TV is designed to receive TV
programmes based on PAL (B/G) colour system
and to record and play on PAL colour system.
Also, the video TV can play tapes on NTSC colour
system.
Precautions
Safety Information
For general safety:
•Do not expose the unit to rain or moisture.
•Do not open the rear cover.
For safe operations:
•Do not operate the unit on anything but 230 V
AC.
•Do not operate the unit if any liquid or solid
object falls in it—have it checked immediately.
•Unplug the unit from the wall outlet if you do not
intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never
by the cord.
10cm

Getting Started 3
GB
Contents
Getting Started
Step 1—Preparation ................................................... 4
Checking the supplied accessories ....................... 4
Inserting batteries into the Remote
Commander .......................................................... 4
Step 2—Connecting the aerial................................... 5
Connecting an outdoor aerial................................ 5
Step 3—Tuning in to TV stations ............................. 6
Selecting the language on the menu.....................6
Presetting channels automatically ........................ 7
Presetting channels manually ............................... 8
Skipping programme positions ............................9
Captioning a TV station name ............................ 10
Manual fine-tuning ............................................... 11
Setting a Pay-TV channel ..................................... 12
Step 4—Setting up ShowView* manually............. 13
Setting the guide channels ................................... 13
Step 5—Setting the clock ......................................... 15
Basic Operations
Watching the TV ....................................................... 16
Switching the video TV on and off.....................16
Selecting TV programmes.................................... 16
Adjusting the volume ........................................... 16
Muting the sound.................................................. 17
Displaying the on-screen information ............... 17
Adjusting the picture............................................17
Watching line input ..............................................19
Listening with headphones ................................. 19
Viewing Teletext ....................................................... 20
Switching Teletext on and off.............................. 20
Using Fasttext ........................................................ 20
Playing a Tape........................................................... 22
Inserting a video cassette ..................................... 22
Ejecting a video cassette ....................................... 22
Protecting your cassette against accidental
erasure ................................................................ 22
Playing a tape ........................................................ 23
Playing a tape repeatedly (Auto Repeat)........... 24
Displaying the on-screen indications ................. 24
Resetting the tape counter ................................... 24
Recording TV programmes ..................................... 25
Recording TV programmes ................................. 25
Recording with the TV off ................................... 25
Watching a TV programme while recording
another................................................................. 25
Recording TV programmes using the timer ......... 26
Setting the timer .................................................... 26
Using the video TV before timer recording
starts..................................................................... 28
Checking the timer settings ................................. 29
Changing or canceling the timer settings .......... 29
Recording using the quick-timer ........................30
Timer recording with VPS/PDC signals ........... 31
Recording TV programmes using ShowView...... 32
Additional Operations
Switching off automatically—Sleep timer ............ 34
Switching on at your desired time—On timer ..... 35
Enhancing video picture quality ............................ 36
Adjusting the tracking.......................................... 36
Adjusting with the optimum picture control
(OPC) ................................................................... 37
About the auto head cleaner ............................... 37
Connecting optional equipment............................. 38
Watching the picture input from optional
equipment ........................................................... 38
Editing with another VCR ................................... 39
Watching the Pay-TV channel............................. 39
Additional Information
Troubleshooting........................................................ 40
Taking care of your video TV .................................42
Video head cleaning ............................................. 42
Worn video heads ................................................. 42
Check the video heads after 1,000 hours
of use.................................................................... 42
Specifications............................................................. 43
Receivable channels .............................................. 43
Index to parts and controls......................................44
Video TV set—front .............................................. 44
Remote Commander............................................. 45
* ShowView is a trademark applied for by Gemstar
Development Corp. ShowView system is manufactured under
license from Gemstar Development Corporation.

Getting Started 4
GB
Getting Started
Step 1 — Preparation
Checking the Supplied Accessories
When you have taken everything out of the carton, check that you have
these items:
•Remote Commander
•Two R6 (size AA) batteries

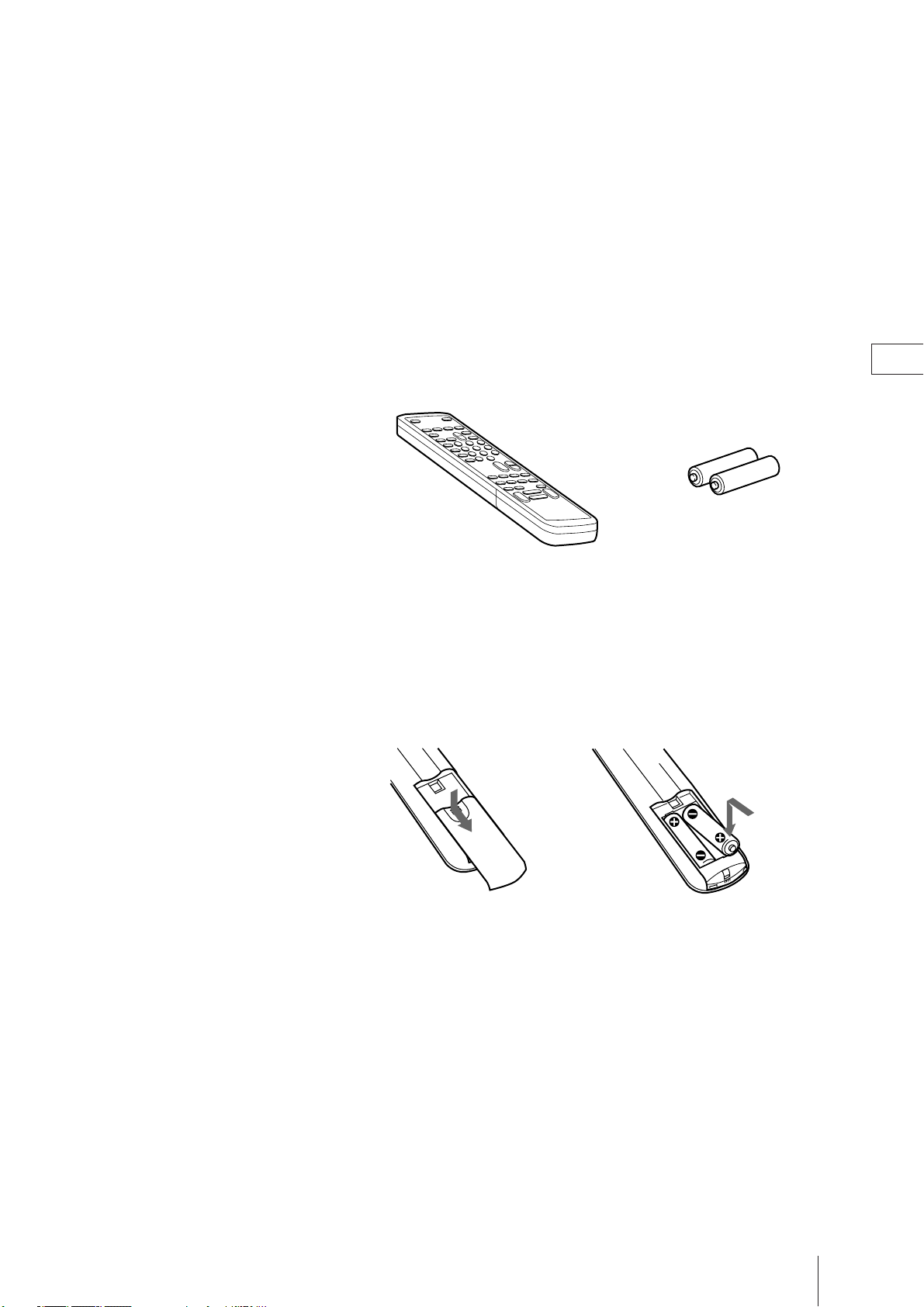

Inserting Batteries into the Remote
Commander
Turn the Commander over,
and remove the cover. Check the polarities and
position two R6 batteries
correctly.
Close the cover.

Getting Started 5
GB
Connecting an Outdoor Aerial
For better TV reception and recording with clear video picture, connect an
outdoor aerial to your video TV.
To connect a VHF aerial or a combination
VHF/UHF aerial—75-ohm coaxial cable (round)
Attach an IEC aerial connector to 75-ohm coaxial cable.
Plug the connector into the (aerial) socket of the video TV.
To connect both VHF and UHF aerials
Attach the aerial cable ends to the VHF/UHF mixer (not supplied).
Plug the mixer into the (aerial) socket of the video TV.
After connecting the aerial, connect the mains lead to a wall outlet.
Rear
or
On a wall
VHF/UHF aerial
Rear 300-ohm twin-lead cable
VHF/UHF mixer
75-ohm coaxial cable
UHF aerial VHF aerial
Step 2 — Connecting the Aerial

Getting Started 6
GB
ON TIMER
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
REW FF
STOP
PLAY
123
456
789
0
MENU
OK
PROGR
MENU
OK
MENU
OK
You should preset the channels (up to 60 channels) by choosing either the
automatic or manual method.
The automatic method is easier if you want to preset all receivable
channels at once. Use the manual method if you want to allocate
programme numbers to the channels one by one.
Before you begin
•Depress the U(MAIN POWER) switch on the right side of the video TV
to switch it on.
If the ulamp on the video TV is lit in red, press ;, PROGR +/– or a
number button on the Remote Commander.

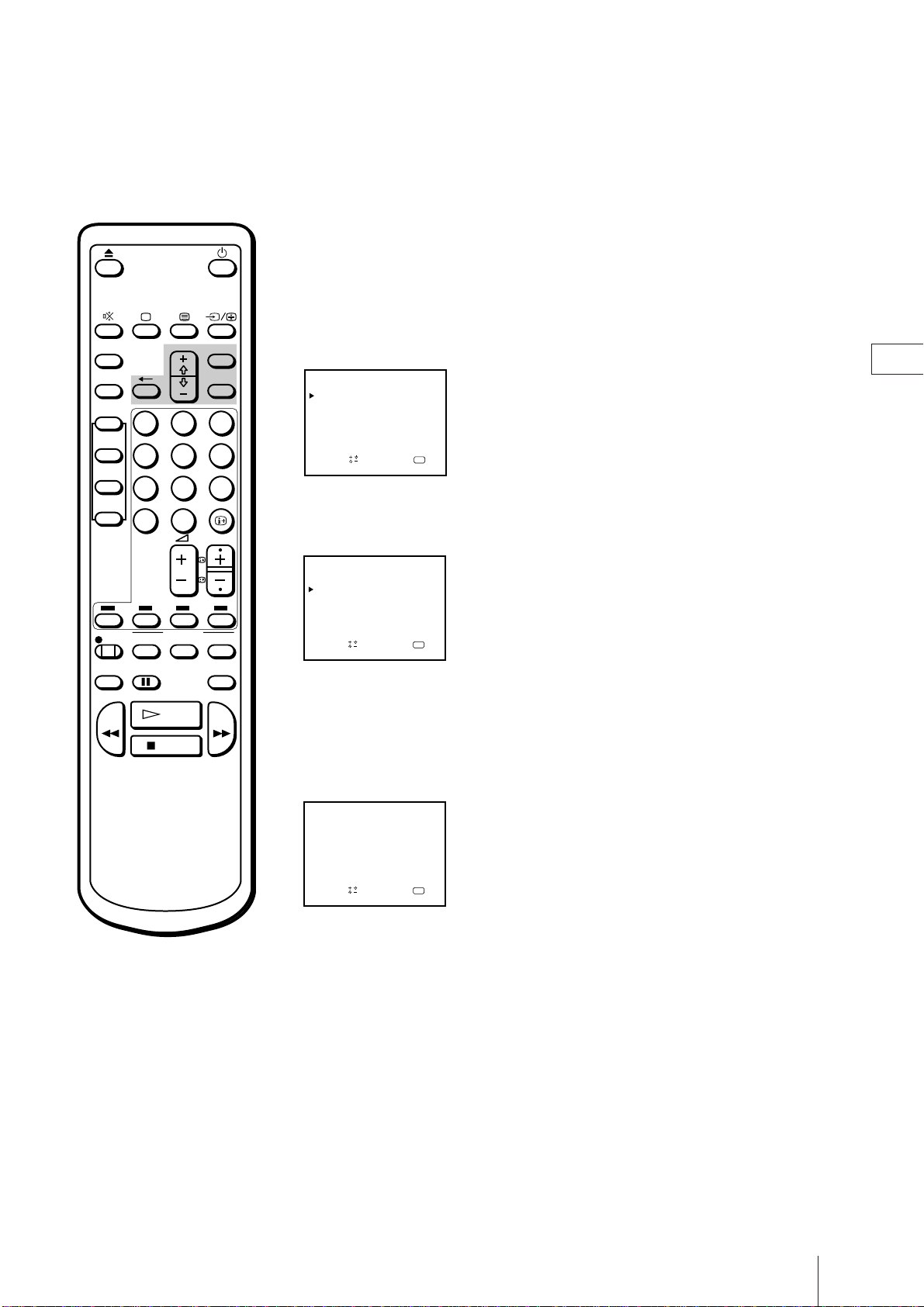

Selecting the Language on the
Menu
You can select one of several languages for the menu and on-screen
information.
The initial setting is English.
1Press MENU.
The main menu appears.
2Move the cursor (z) to “LANGUAGE” with + or – and press OK.
The LANGUAGE menu appears.
3Select the language you want with + or – and press OK.
The selected language is coloured green, and the menu appears in the
selected language.
4Press MENU to go back to the original screen.
Step 3 — Tuning in to TV Stations
Note on the DEMONSTRATION
function
If you choose “DEMONSTRATION”
on the main menu and press OK,
you can see a sequential
demonstration on the menu
functions on the screen. Press any
button (e.g. MENU) to stop this
function.
OK
MENU
VISUAL MODE
ON TIMER SET
CLOCK SET
TRACKING CONTROL
LANGUAGE
PROGRAMME PRESET
DEMONSTRATION
Sapelect nd ress
OK
LANGUAGE
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
NEDERLANDS
PORTUGUÊS
Sap
elect nd ress

Getting Started 7
GB

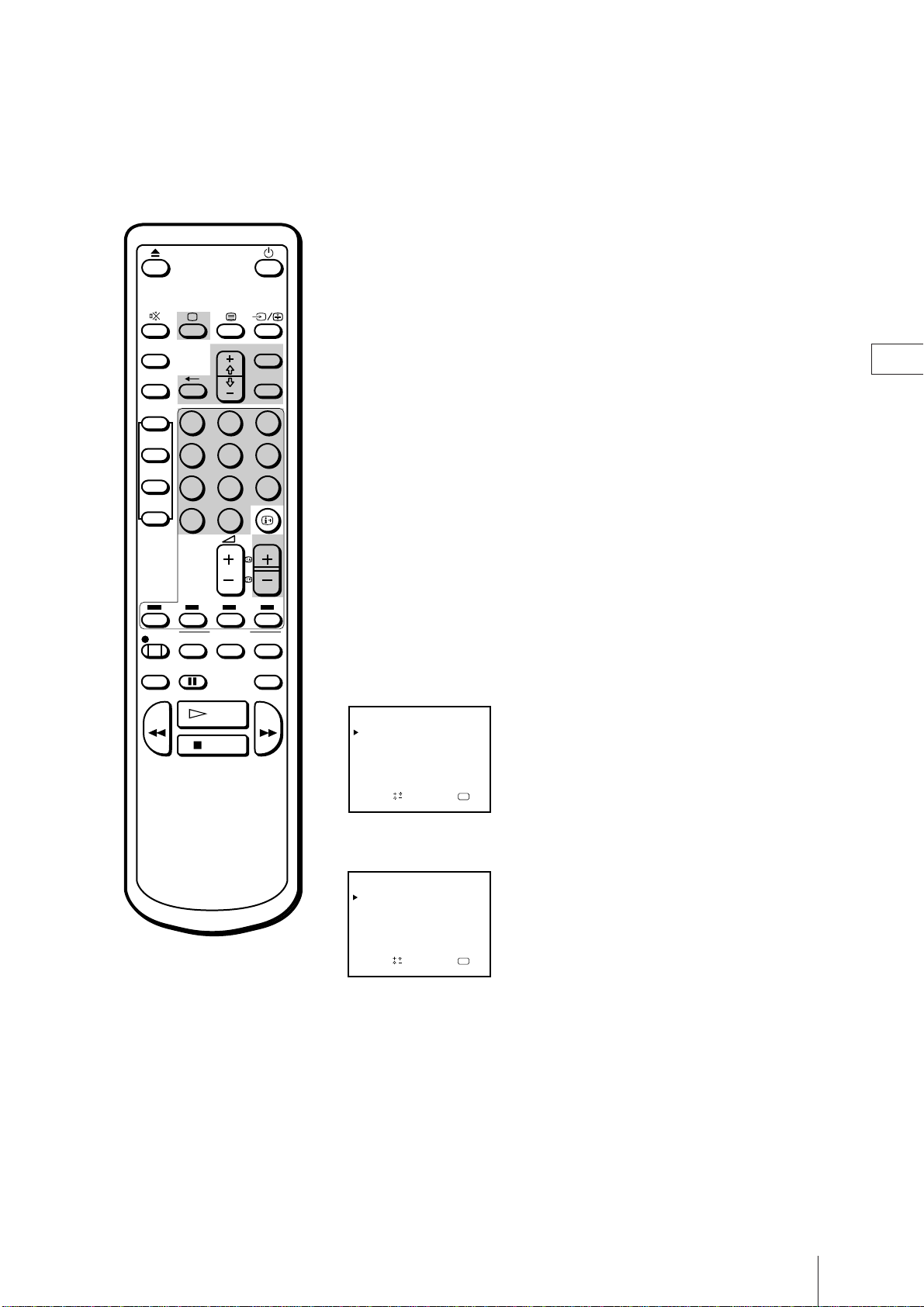

Presetting Channels Automatically
1Press MENU to display the main menu.
2Move the cursor (z) to “PROGRAMME PRESET” with + or – and
press OK.
The PROGRAMME PRESET menu appears.
3Move the cursor (z) to “AUTO PROGRAMME” with + or – and press
OK.
The AUTO PROGRAMME menu appears.
4Press OK.
The programme number you previously watched appears in red in the
“PROG” position.
Using + or – , select the programme number from which you want to
start presetting except the programme number 00 and press OK.
The CH position turns red.
5Select the channel with + or – and press OK.
The video TV starts scanning and presetting a receivable channel from the
programme number selected in step 4.
The preset programme and channel numbers are displayed on the screen
in sequence. When presetting is finished, the original screen appears. All
available channels are now stored on successive number buttons.
The preset programme and channel numbers are displayed on the screen
in sequence. When presetting is finished, the original screen appears. All
available channels are now stored on successive number buttons.
ON TIMER MENU
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
123
456
789
0
REW FF
STOP
PLAY
MENU
OK
OK
PROGRAMME PRESET
AUTO PROGRAMME
MANUAL PROGRAMME
SET UP GUIDE CH
Sapelect nd ress
To stop automatic channel
presetting
Press ?on the Remote
Commander.
OK
AUTO PROGRAMME
SYSTEM
B
Sap
elect nd ress
PROG CH
/G –– –––
OK
AUTO PROGRAMME
SYSTEM
B
Sap
elect nd ress
PROG CH
/G 01 C02

Getting Started 8
GB
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G
Presetting Channels Manually
1Press MENU to display the main menu.
2Move the cursor (z) to “PROGRAMME PRESET” with + or – and
press OK.
The PROGRAMME PRESET menu appears.
3Move the cursor (z) to “MANUAL PROGRAMME” with + or – and
press OK.
The MANUAL PROGRAMME menu appears.
4Using + or – , move the cursor (z) to the programme position (number
button) to which you want to preset the channel, and press OK.
The SYS position turns red.
5Select the system with + or – and press OK.
The CH position turns red.
6Select the channel you want to preset with + or – and press OK.
7The video TV starts scanning receivable channels. When the channel is
found, it stops. If you want to preset this channel, press OK. If not, press
+ or – to search for another channel.
8Repeat steps 4 and 5 to preset other channels.
9After you finish presetting, press MENU to go back to the original screen.
ON TIMER MENU
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
123
456
789
0
REW FF
STOP
PLAY
MENU
OK
OK
PROGRAMME PRESET
AUTO PROGRAMME
MANUAL PROGRAMME
SET UP GUIDE CH
Sapelect nd ress
For programme positions
beyond 6
The display scrolls by pressing –
repeatedly.
If you have made a mistake
Press ?to go back to the previous
position.
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G

Getting Started 9
GB
ON TIMER
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
REW FF
STOP
PLAY
123
456
789
0
MENU
OK
PROGR
Skipping Programme Positions
You can skip unused programme positions when selecting programme
with PROGR +/– buttons. However, the skipped programmes may still
be called up when you select them with the number buttons.
1Press MENU to display the main menu.
2Move the cursor (z) to “PROGRAMME PRESET” with + or – and
press OK.
The PROGRAMME PRESET menu appears.
3Move the cursor (z) to “MANUAL PROGRAMME” with + or – and
press OK.
The MANUAL PROGRAMME menu appears.
4Using + or – , move the cursor (z) to the programme position which
you want to skip and press OK.
The “SYS” position turns red.
5Press + or – until “---” appears in the “SYS” position and press OK.
When you select programmes using the PROGR +/– buttons, the
programme position is skipped.
6Repeat steps 4 and 5 to skip other programme positions.
7Press MENU to go back to the original screen.
For programme positions
beyond 6
The display scrolls by pressing –
repeatedly.
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G
–––

Getting Started 10
GB
ON TIMER MENU
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
123
456
789
0
REW FF
STOP
PLAY
MENU
OK
Captioning a TV Station Name
You can name a channel using up to five characters (letters or numbers) to
be displayed on the TV screen (e.g. MTV). Using this function, you can
easily identify which channel you are watching.
1Press MENU to display the main menu.
2Move the cursor (z) to “PROGRAMME PRESET” with + or – and
press OK.
The PROGRAMME PRESET menu appears.
3Move the cursor (z) to “MANUAL PROGRAMME” with + or – and
press OK.
The MANUAL PROGRAMME menu appears.
4Using + or – , move the cursor (z) to the programme position you want
to caption and press OK repeatedly until the first element of the “LABEL”
position turns red.
5Select a letter or number with + or – and press OK.
The next element turns red. Select other characters in the same way. For
the element you want to leave blank, select “-” and press OK.
6After selecting all the characters, press OK repeatedly until the cursor
appears. Now the caption you chose is stored.
7Repeat steps 4 to 6 to caption other channels.
8Press MENU to go back to the original screen.
If you have made a mistake
Press ?to go back to the previous
position.
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– MTV
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G

Getting Started 11
GB
ON TIMER
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
REW FF
STOP
PLAY
123
456
789
0
MENU
OK
PROGR
Manual Fine-Tuning
Normally, the automatic fine-tuning (AFT) is already working. However, if
the picture of a programme is distorted, you can use the manual fine-
tuning function to obtain better picture reception.
1Press MENU to display the main menu.
2Move the cursor (z) to “PROGRAMME PRESET” with + or – and press
OK.
The PROGRAMME PRESET menu appears.
3Move the cursor (z) to “MANUAL PROGRAMME” with + or – and
press OK.
The MANUAL PROGRAMME menu appears.
4Using + or – , move the cursor (z) to the programme position which
you want to manually fine-tune, and press OK repeatedly until the AFT
position turns red.
5Fine-tune the channel while holding down + or – so that you get the
best TV reception. As you press these buttons, the frequency changes from
–15 to +15.
6After fine-tuning, press OK.
The cursor (z) appears. The fine-tuned level is now stored.
7Repeat steps 4 to 6 to fine-tune other channels.
8Press MENU to go back to the original screen.
To reactivate automatic fine-
tuning (AFT)
Repeat from the beginning and
select “ON” in step 5.
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– – 3
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G

Getting Started 12
GB
Setting a Pay-TV channel
You can watch the Pay-TV channel by connecting a Pay-TV decoder to the
Wconnector on the rear of the video TV.
1Press MENU to display the main menu.
2Move the cursor (z) to “PROGRAMME PRESET“ with + or – and
press OK.
The PROGRAMME PRESET menu appears.
3Move the cursor (z) to “MANUAL PROGRAMME“ with + or – and
press OK.
The MANUAL PROGRAMME menu appears.
4Move the cursor (z) to the programme position to which you want to set a
pay-TV decoder, and press OK until the D position turns red.
5Press + or – until rappears in the D position and press OK.
6Press MENU to go back to the original screen.
ON TIMER MENU
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
123
456
789
0
REW FF
STOP
PLAY
MENU
OK
Note
During recording the signal of a
programme to which the Pay-TV
decoder is set, the signal of other
programme positions cannot be
decoded.
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
–
B/G
MANUAL PROGRAMME
PRG SYS CH
1 C02 –––
LABEL AFT
2
3B/G
B/G
–– ON
a
OK
ndSelect Press
B/G
B/G4
5
6
C04 ––––– ON
C06 ––––– ON
C12 ––––– ON
S06 ––––– ON
S24 –––––
B/G ON
D
–
–
–
–
–
B/G

Getting Started 13
GB
The ShowView function allows you to simplify the task to programming
your video TV to make timer recordings. You should coordinate the
programme position of each channel with the guide channel (the number
that’s assigned to each TV station in advance). To get the guide channel
numbers, look in the programme guide for your area that features
ShowView numbers.
Before you begin
•If the ulamp on the video TV is lit in red, press ;, PROGR +/– or a
number button on the Remote Commander.
Setting the Guide Channels
1Press MENU to display the main menu.
The main menu appears.
2Move the cursor (z) to “PROGRAMME PRESET” with + or – and
press OK.
The PROGRAMME PRESET menu appears.
3Move the cursor (z) to “SET UP GUIDE CH” with + or – and press
OK.
The SET UP GUIDE CH menu appears.
Step 4 — Setting up ShowView Manually
OK
MENU
VISUAL MODE
ON TIMER SET
CLOCK SET
TRACKING CONTROL
LANGUAGE
PROGRAMME PRESET
DEMONSTRATION
Sapelect nd ress
ON TIMER MENU
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
123
456
789
0
REW FF
STOP
PLAY
MENU
OK
If you have made a mistake
Press ?to go back to the previous
position.
OK
PROGRAMME PRESET
AUTO PROGRAMME
MANUAL PROGRAMME
SET UP GUIDE CH
Sap
elect nd ress
SET UP GUIDE CH
PROG CH
1 C02 GUIDE CH
2
3
aOK
ndSelect Press
4
5
6
C04
C06
C12 –– –
S06 –– –
S24
–––
–––
–––
–––

Getting Started 14
GB
4Using + or – , move the cursor (z) to the programme position (number
button) to which you want to preset the guide channel, and press OK.
The GUIDE CH position turns red.
5Select the guide channel you want to preset with + or – , and press OK.
6Repeat steps 4 and 5 to preset other channels.
7After you finish presetting, press MENU to go back to the original screen.
SET UP GUIDE CH
PROG CH
1 C02 GUIDE CH
2
3
a
OK
ndSelect Press
4
5
6
C04
C06
C12 –– –
S06 –– –
S24
–––
–––
–––
–––
SET UP GUIDE CH
PROG CH
1 C02 GUIDE CH
2
3
aOK
ndSelect Press
4
5
6
C04 99C06
C12 –– –
S06 –– –
S24
–––
–––
–––

Getting Started 15
GB
ON TIMER MENU
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
123
456
789
0
REW FF
STOP
PLAY
MENU
OK
You need to set the clock for using timer recording and quick-timer
recording functions.
1Press MENU to display the main menu.
2Move the cursor (z) to “CLOCK SET” with + or – and press OK.
The CLOCK SET menu appears.
3Press OK to start setting the clock.
The day section turns red.
4Set the day with + or – and press OK.
The month section turns red.
5Using + or – and OK, set the month, year, hour and minute in the
same way as in step 4.
6After setting the minute, press OK.
The clock starts working.
7Press MENU to go back to the original screen.
Step 5 — Setting the Clock
OK
MENU
VISUAL MODE
ON TIMER SET
CLOCK SET
TRACKING CONTROL
LANGUAGE
PROGRAMME PRESET
DEMONSTRATION
Sapelect nd ress
CLOCK SET
––. ––. –––– ––– –– :––
OK
press
CLOCK SET
1. 1. 1996 MON 0:00
OK
press
CLOCK SET
4. 1. 1996 THU 0:00
OK
Sapelect nd ress
CLOCK SET
4. 2. 1996 WED 5:30
OK
Sapelect nd ress
11
If you have made a mistake
Press ?to go back to the previous
position.
If the clock has stopped and
“--/--” is displayed
You have to re-set the clock.

Basic Operations 16
GB
This section explains the basic functions you use while watching the TV.
Most of the operations can be done using the Remote Commander.
Switching the video TV On and Off
Switching on
Depress the U(MAIN POWER) switch on the right side of the video TV.
Press ;, PROGR +/– or number buttons on the Remote Commander, or
PROGR +/– on the video TV when the ulamp is lit in red.
Switching off temporarily
Press u.
The video TV enters standby mode and the ulamp on the front of the
video TV lights up in red.
To switch on again
Press ;, PROGR +/– or number buttons on the Remote Commander, or
PROGR +/– on the video TV.
To switch off the main power
Press the Uswitch on the video TV.
Selecting TV Programmes
Press PROGR +/– or number buttons on the Remote Commander, or
PROGR +/– on the video TV.
To select a double-digit number using the
number buttons
Press ÷, then the numbers.
For example, if you want to choose 14, press ÷, 1 and 4.
Adjusting the Volume
Press Á+/–.
Basic Operations
Watching the TV
ON TIMER
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
REW FF
STOP
PLAY
123
456
789
0
MENU
OK
PROGR
Note
When the Uswitch is turned off, all
the video operations also do not
work.

Basic Operations 17
GB
ABC
12
4.12WED
20:00
C02
Muting the Sound
Press ¤.
The ¤indicator appears and stays on the screen.
To resume normal sound, press ¤again or Á+.
Displaying the On-screen
Information
Press to display the following on-screen information.
To have the programme number, channel number and caption stay on the
screen, press again.
To make the indications disappear, press until no indications are
displayed on the screen.
Adjusting the Picture
You can select one of four settings for picture effect in the menu. You can
also adjust the picture to suit your own taste.
Selecting the picture effect
1Press MENU to display the main menu.
2Move the cursor (z) to VISUAL MODE with + or – and press OK.
The VISUAL MODE menu appears.
ON TIMER
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
123
456
789
0
REW FF
STOP
PLAY
MENU
OK
Current date and time
Caption
Programme position
Channel number
OK
VISUAL MODE
PICTURE CONTROL
STANDARD
Sap
elect nd ress
MILD
MOVIE
OPC: ON
OK
MENU
VISUAL MODE
ON TIMER SET
CLOCK SET
TRACKING CONTROL
LANGUAGE
PROGRAMME PRESET
DEMONSTRATION
Sap
elect nd ress

Basic Operations 18
GB
ON TIMER MENU
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
123
456
789
0
REW FF
STOP
PLAY
MENU
OK
4Press MENU to go back to the original screen.
Adjusting the picture displayed on the screen
1Press MENU to display the main menu.
2Move the cursor (z) to VISUAL MODE with + or – and press OK.
The VISUAL MODE menu appears.
3Move the cursor (z) to PICTURE CONTROL with + or – and press OK.
The PICTURE CONTROL menu appears.
4Using + or – , select the item you want to adjust and press OK.
5Adjust the picture with + or – and press OK.
With each press the vertical bars increase or decrease and the figure at the
right margin changes to show the control level. (See the table on the next
page.)
6Repeat steps 4 and 5 to adjust other items.
3Using + or – , select the setting you want and press OK. For the effect
of each setting, see the table below.
The selected setting is stored.

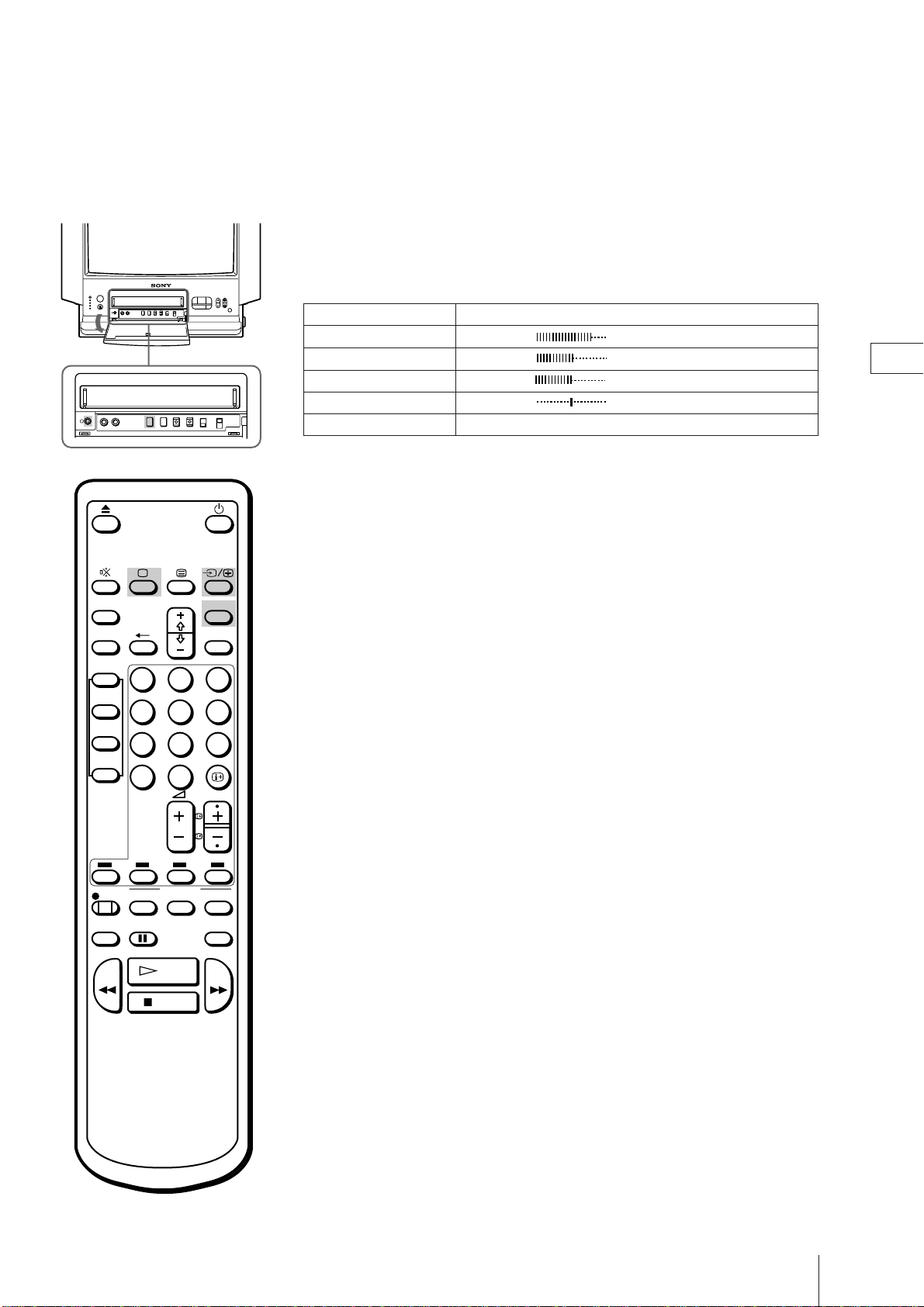

Effect of each setting
Setting
PICTURE CONTROL
STANDARD
MILD
MOVIE
Picture effect
The adjusted picture control levels are stored. (See “Adjusting
the picture displayed on the screen.”)
More contrast
Less contrast
Darker
e.g. when watching a movie
Note
The HUE adjustment is available
only for the NTSC colour system.
OK
VISUAL MODE
PICTURE CONTROL
STANDARD
Sapelect nd ress
MILD
MOVIE
OPC: ON
OK
PICTURE CONTROL
CONTRAST
Sapelec t nd ress
COLOUR
BRIGHTNESS
HUE
RESET
80
50
50
00

Basic Operations 19
GB
7Press MENU to go back to the original screen.
The adjusted control levels are stored.
Effect of each control
Effect
Less More
Less More
Darker Brighter
Greenish Reddish
Resets all the items to the factory preset levels.
PICTURE CONTROL
CONTRAST
COLOUR
BRIGHTNESS
HUE
RESET
ON TIMER
SLEEP
SHOW VIEW
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
123
456
789
0
REW FF
STOP
PLAY
MENU
Watching Line Input
Press …repeatedly until the desired input indicator appears.
To go back to the normal TV picture, press …until the programme
position appears, or press ;on the Remote Commander once. For details
of the video input picture, see page 38.
Listening with Headphones
Plug the headphones (not supplied) to the 2(headphones) jack inside the
front panel on the video TV.
The sound from the speaker is shut off.

Basic Operations 20
GB
ON TIMER
SLEEP
ONCE
DAILY
WEEKLY
PROGR
REC
PAUSE
CLEAR
TIMER ON
SCREEN
QUICK
TIMER COUNTER RESET
TIMER REC
ON/OFF
OK
REW FF
STOP
PLAY
MENU
SHOW VIEW
123
456
789
0
TV stations broadcast an information service called Teletext via the TV
channels. The teletext service allows you to receive various information
such as weather forecasts or news at any time.
Switching Teletext on and off
1Select the TV channel which carries the Teletext service you want to watch.
2Press Vto display Teletext.
A Teletext page (normally the index page) is displayed. If there is no
Teletext broadcast, the indication P100 is displayed on a black screen.
3Press the number buttons to enter the three-digit of the Teletext number
you want.
The numbers are displayed on the screen and the requested page appears
in a few seconds.
If you have made a mistake, type in any three digits, then re-enter the
correct page number.
4Press ;to return to the TV mode.
Using Fasttext
This feature allows you to access a Teletext page with one button press.
When a Fasttext page is broadcast, a colour-coded menu appears at the
bottom of the screen. The colours of the menu correspond to the red,
green, yellow and blue buttons on the Remote Commander. These
coloured buttons functions as the fasttext buttons in Teletext mode.
Press the coloured button which corresponds to the colour-coded menu.
The page is displayed after a few seconds.
Viewing Teletext
To change the teletext channel
• First press ;to return to the TV
mode, then repeat steps 1 to 3.
• If the signal of a TV channel is
weak, teletext errors may occur.
