SERVICE
MANUAL
FE-2
cuassis
K V-29F. X30B RM-887 FR —- SCC-Q54J-A
K V-29F. X30E RM-887_ ESP — SCC-Q53K-A
K V-29F. X30K RM-887 OIRT SCC-Q5IL-A
K V-25F, X30B RM-887 FR SCC-Q54H-A
K V-25F. X30E RM-887 ESP — SCC-Q53J-A
K V-25F. X30K RM-887. OIRT ~~ SCC-Q51K-A
FD Trinitron
TRINITRON @ COLOR TV
SONY.

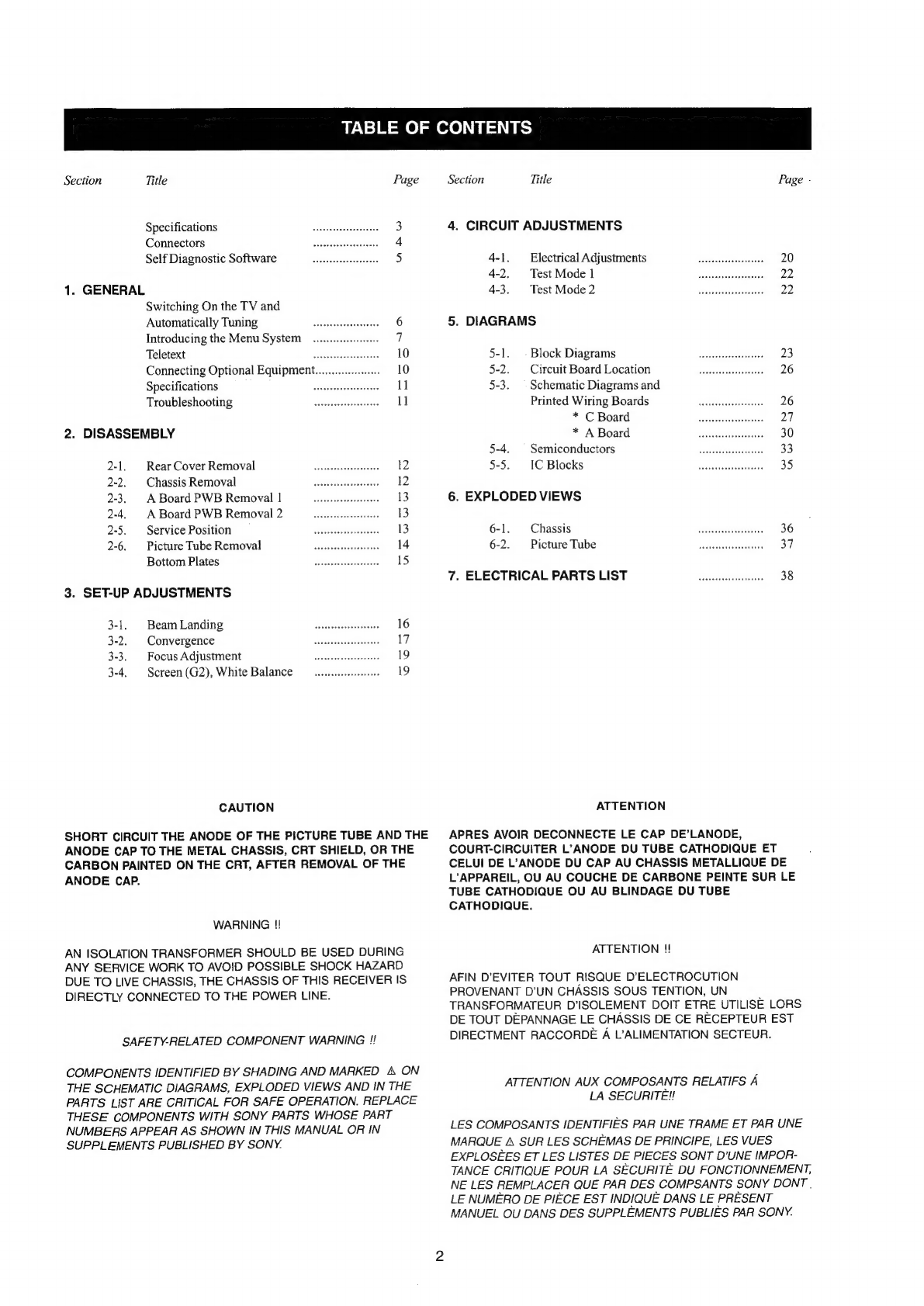

TABLE OF CONTENTS
Section Title Page
Specifications — —saasasessesessereees 3
Connectors 4
Self Diagnostic Software 5
1. GENERAL
Switching On the TV and
Automatically Tuning aaeesceeeeees 6
Introducing the Menu System 7
Teletext ie 10
Connecting Optional Equipment... 10
Specifications «= catseeseseeeesreees 11
Troubleshooting (———ceeseaceesessseeeees 11
2. DISASSEMBLY
2-1. Rear Cover Removal 12
2-2. Chassis Removal 12
2-3. A Board PWB Removal | 13
2-4. ABoardPWBRemoval2 — oceeceeeseeee 13
2-5. Service Position (— saaeeaseaneeeseees 13

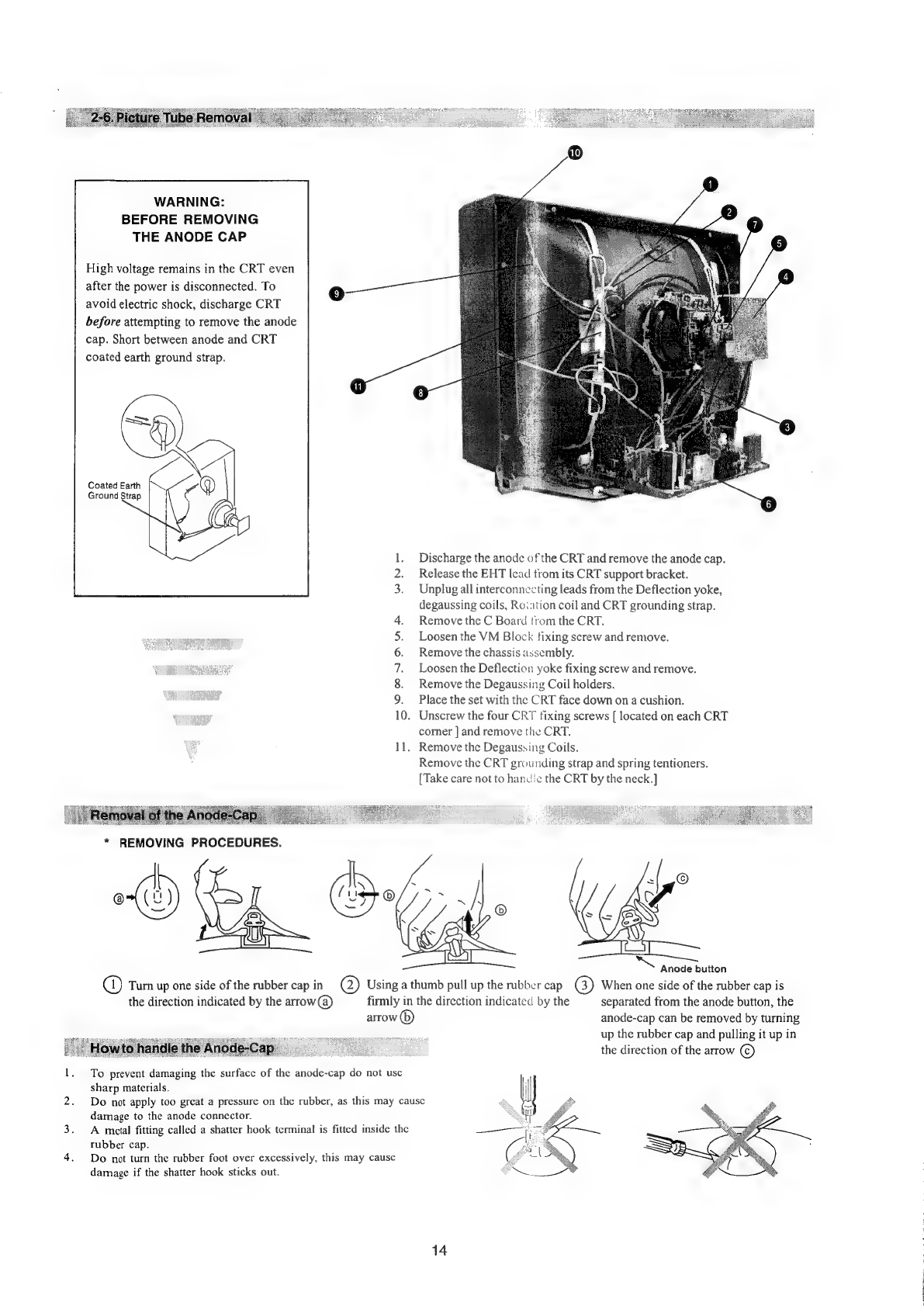

2-6. PictureTubeRemoval cessseeseseeerrees 14
Bottom Plates saseaseesensseeneens {5
3. SET-UP ADJUSTMENTS

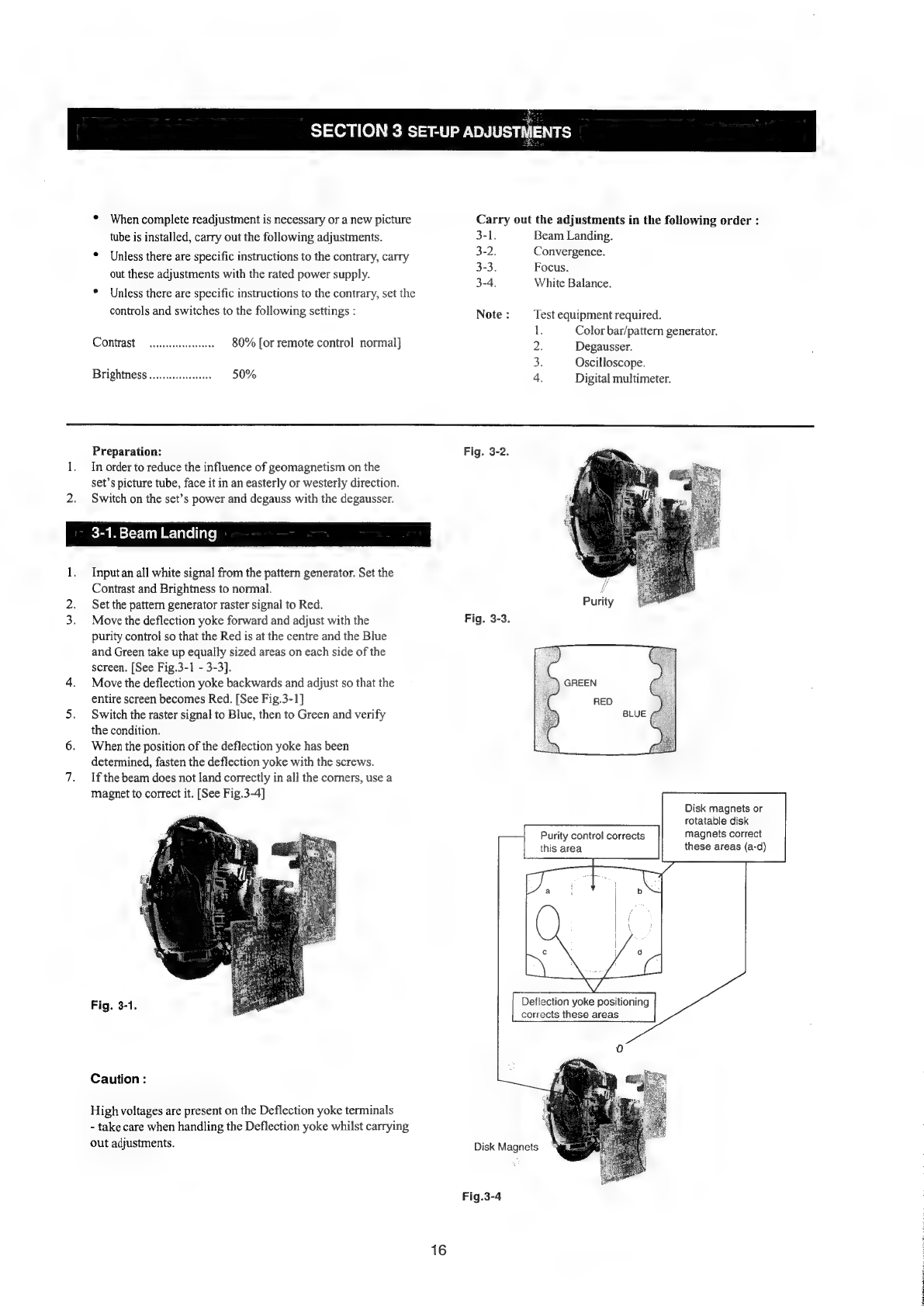

3-1. Beam Landing 16

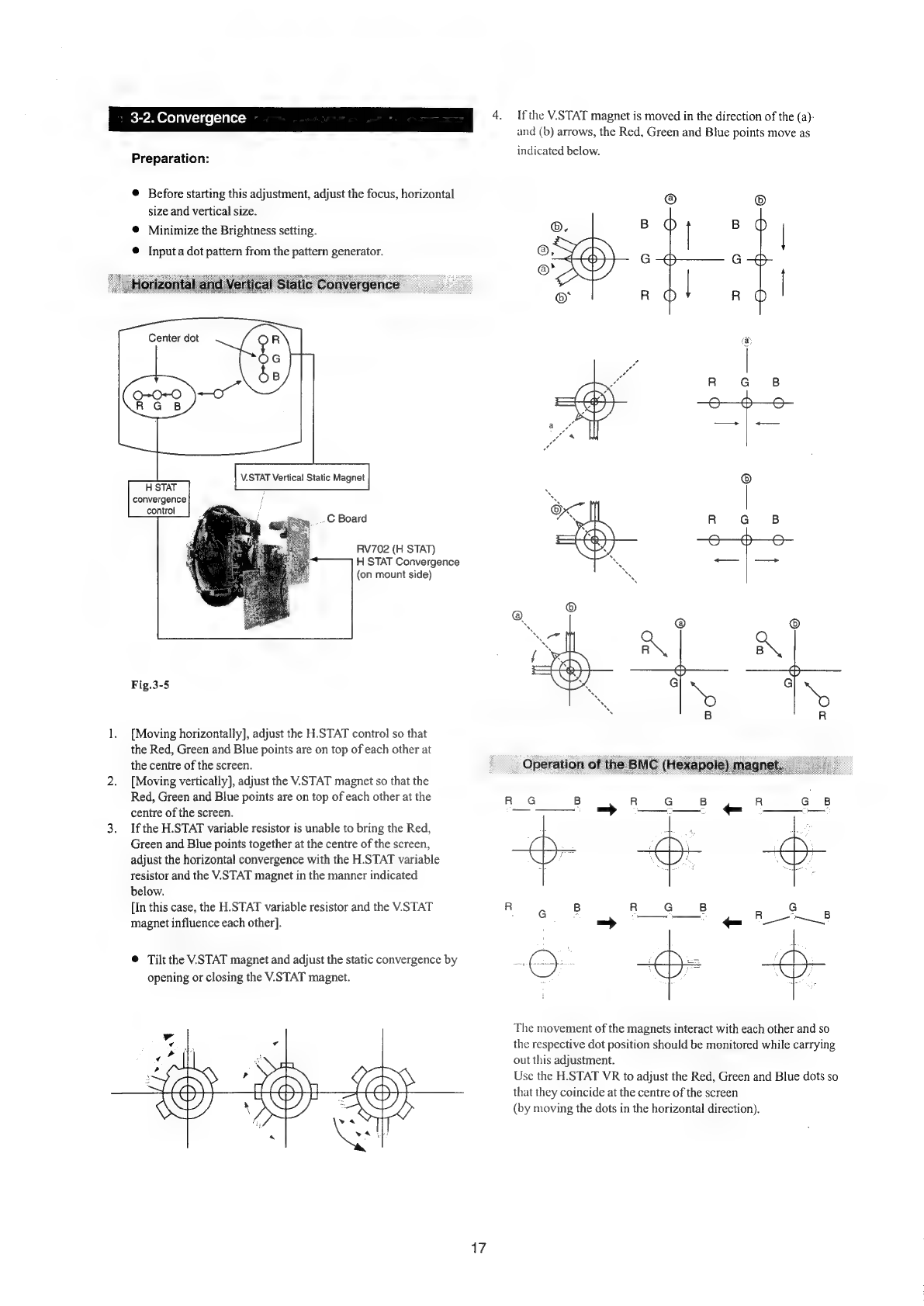

3-2. Convergence 17

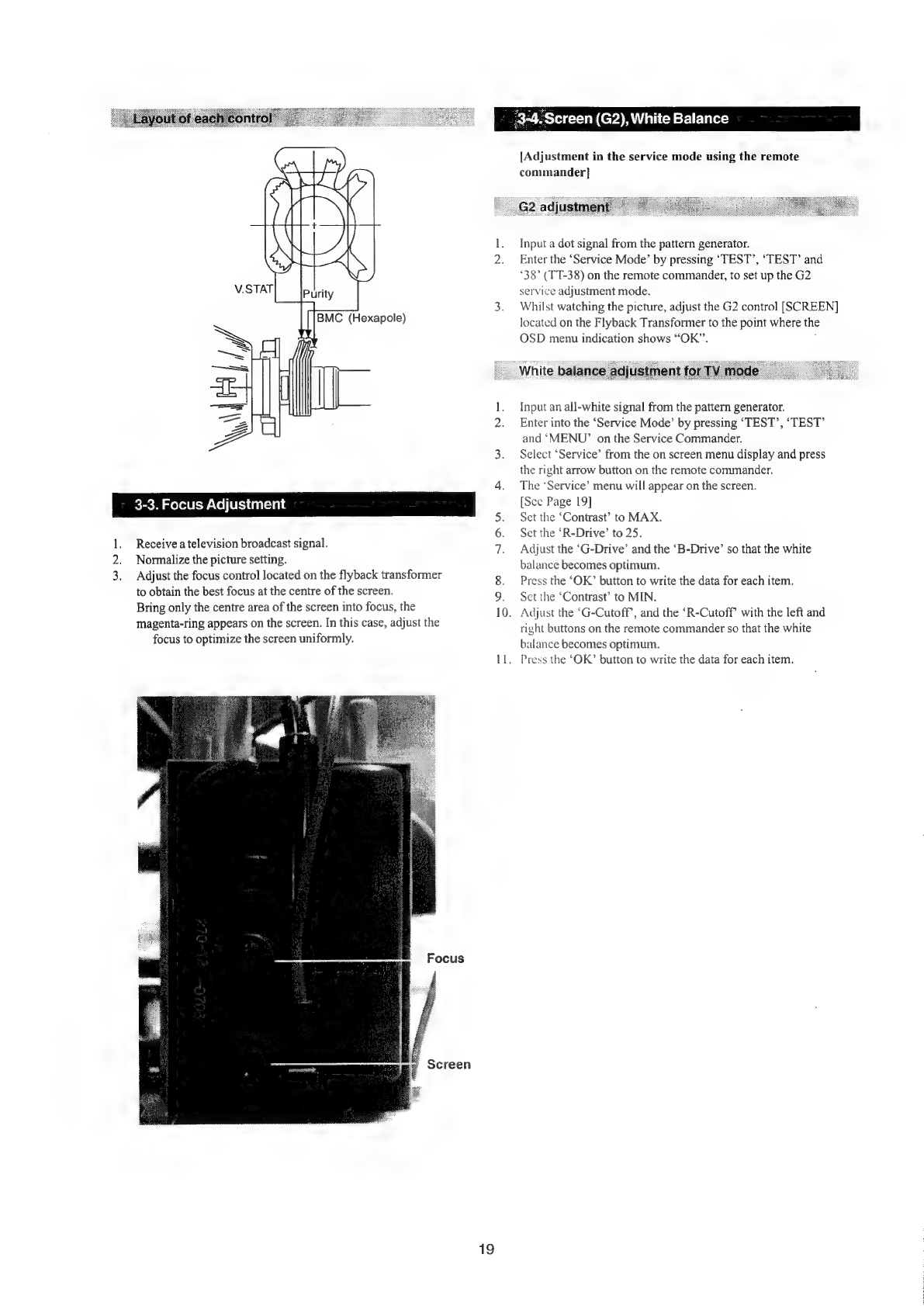

3-3. Focus Adjustment 19
3-4. Screen (G2), White Balance 19
CAUTION
SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE
ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR THE
CARBON PAINTED ON THE CRT, AFTER REMOVAL OF THE
ANODE CAP.
WARNING !!
AN ISOLATION TRANSFORMER SHOULD BE USED DURING
ANY SERVICE WORK TO AVOID POSSIBLE SHOCK HAZARD
DUE TO LIVE CHASSIS, THE CHASSIS OF THIS RECEIVER IS
DIRECTLY CONNECTED TO THE POWER LINE.
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY SHADING AND MARKED A ON
THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE
PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
Section Title Page -
4. CIRCUIT ADJUSTMENTS
4-1. ElectricalAdjustments oeeeeseeeeee 20
4-2. TestModel ( — haaeectcecetsteeeees 22
4-3. TestMode2 ——aeeeaeeseeeeeeee 22
5. DIAGRAMS
5-1. | Block Diagrams 23
5-2. Circuit Board Location 26
5-3. | Schematic Diagrams and
Printed Wiring Boards casecccsseeeesenee 26
“"GBoard.° -abbwessseeshanenis 27
* A Board eicseeeesseeeteeees 30
5-4. | Semiconductors 33
S-5. IC Blocks 35
6. EXPLODED VIEWS
6-1. Chassis 36
6-2. Picture Tube 37
7. ELECTRICAL PARTS LIST — heen 38
ATTENTION
APRES AVOIR DECONNECTE LE CAP DE’LANODE,
COURT-CIRCUITER L’ANODE DU TUBE CATHODIQUE ET
CELUI DE L’ANODE DU CAP AU CHASSIS METALLIQUE DE
L’APPAREIL, OU AU COUCHE DE CARBONE PEINTE SUR LE
TUBE CATHODIQUE OU AU BLINDAGE DU TUBE
CATHODIQUE.
ATTENTION !!
AFIN D'EVITER TOUT RISQUE D’ELECTROCUTION
PROVENANT D’UN CHASSIS SOUS TENTION, UN
TRANSFORMATEUR D’ISOLEMENT DOIT ETRE UTILISE LORS
DE TOUT DEPANNAGE LE CHASSIS DE CE RECEPTEUR EST
DIRECTMENT RACCORDE A L’ALIMENTATION SECTEUR.
ATTENTION AUX COMPOSANTS RELATIFS A
LA SECURITE!!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET PAR UNE
MARQUE A SUR LES SCHEMAS DE PRINCIPE, LES VUES
EXPLOSEES ET LES LISTES DE PIECES SONT D'UNE IMPOR-
TANCE CRITIQUE POUR LA SECURITE DU FONCTIONNEMENT,
NE LES REMPLACER QUE PAR DES COMPSANTS SONY DONT |
LE NUMERO DE PIECE EST INDIQUE DANS LE PRESENT
MANUEL OU DANS DES SUPPLEMENTS PUBLIES PAR SONY.

Color System
PAL, SECAM
NTSC4.43, NTSC3.58
(VIDEO IN)
: = Channel Coverage
VHF : E2-E12, F2-F10
UHF : E21-E69, F21-F69, B21-B69
CABLE TV : S01-S03, $1-S20, B-Q
HYPER : S21-S41
VHF : E2-E12
UHF : E21-E69
CABLE TV : S01-S03, S1-S20
HYPER : $21-S41
VHF : E2-E12, RO1-R12
UHF : E21-E69, R21-R69
CABLE TV : S01-S03, S1-S20
HYPER : S21-S41
Sound output
Right and Left speaker 2x14W (Music Power) 2x7W (RMS)
General Specifications
. 220 - 240V
: "| KV-25FX30 : 87 W
Power
Consumption
|
KV-29FX30
:
94
W
: ee KV-25FX30 Approx 655x509x476 mm
‘
KV-29FX30
Approx
746x569x516
mm
| Outputs of TV Video and Audio signals. Weidht | KV-25FX30 Approx 36kg
7. | (selectable) elg KV-29FX30 Approx 46.5kg
: or a : _ | RM-887 Remote Commander (1)
oe HeGtors oS Variable Output for audio signals Supplied Accessories ~ | IEC designated R6 battery (2)
input/Output Terminals [FRONT] Dison Autodetection, Teletext
dphone ee stereo mini jack Remote Control System : Infrared Control
| ATEM MODEL Television System |
GERMAN/NICAM
B/G/H, D/K, 1, L Siorée
| Flat Display FD Trinitron
_| Approx 63 cm (25 inches)
Approx 59 cm picture measured
_ | diagonally)
_ | Approx 73 cm (29 inches)
. (Approx 67 cm picture measured
oe oe _ | diagonally)
_ a. Inputs for Audio and Video signals.
1:24 connec Inputs for RGB.
L Outputs of TV Video and Audio
signals.
Inputs for Audio and Video signals.
Inputs for S Video.
PAL, SECAM
NTSC4.43, NTSC3.58
(VIDEO IN)
GERMAN/NICAM
Stereo
PAL, SECAM
NTSC4.43, NTSC3.58
(VIDEO IN)
GERMAN/NICAM
Stereo
=
Power Requirements ©
phono
jacks
;
:
3V
de
| phono
jacks
2
batteries
IEC
designation
| RG (size AA)
4 pin DIN
Design and specifications are subject to change without notice.
KV-25FX30K
KV-25FX30B KV-25FX30E
lodel Name 5
KV-29FX30B KV-29FX30E KV-29FX30K ©
RGB Priority SS
Woofer Box OFF OFF OFF
Scart 1 ON ON
Scart 2 ON ON
Front in (3)
Projector OFF OFF OFF
Norm B/G
Norm ON OFF
Norm D/K
Norm SAT OFF OFF OFF
Norm M OFF OFF
Teletext

21 pin connector
Audio output B Standard level : 0.5V rms
Output impedence : Less than ikohm*
Audio output B Standard level : 0.5V rms
Output impedence : More than 10kohm*
Audio output A
(left)
Standard level : 0.5V rms
Output impedence : Less than 1kohm*
Ground (audio)
Ground (blue)
Audio input A Standard level : 0.5V rms
Output impedence : More than 10kohm*
Blue input 0.7 +/- 3dB, 75 ohms positive
High state (9.5-12V) : Part mode
Low state (0-2V) : TV mode
Input impedence : More than 10K ohms
Input capacitance : Less than 2nF
Green Green signal : 0.7 +/- 3dB, 75 ohms,
positive
round (| oo
Function select
(AV control)
@| @
Red input 0.7 +/- 3dB, 75 ohms, positive
(S signal Chroma | 0.3 +/- 3dB, 75 ohms, positive
input)
Blanking input High state (1-3V) Low state (0-0.4V)
(Ys signal) Input Tee: 75 ohms
Ground (video
output)
Ground (video
input)
Video output 1V +/- 3dB, 75ohms, positive sync 0.3V
(-3+10dB)
Video input 1V +/- 3dB, 750hms, positive sync 0.3V
(-3+10dB)
vi input 1V +/- 3dB, 75o0hms, positive sync 0.3V
Y (S signal) (-3+10dB)
Common ground
(plug, shield)
© Connected @ NotConnected (open) * at 20Hz - 20kHz
Front Connection Panel —
S-Video
socket
Ss Video socket pin configuration
: : Signal Level oe
1V +/- 3dB 75ohm, positive Sync. 0.3V -3 +10dB
0.3V +/- 3dB 750hm, positive Sync.

FE-2 SELF DIAGNOSTIC SOFTWARE
The
identification
of
errors
within
the
FE-2
chassis
is
triggered
in
one
of
two
ways
:-
1:
Busy
or
2:
Device
failure
to
respond
to
IIC.
In
the
event
of
one
of
these
situations
arising
the
software
will
first
try
to
release
the
bus
if
busy
(Failure
to
do
so
will
report
with
a
continuous
flashing
LED)
and
then
communicate
with
each
device
in
turn
to
establish
if
a
device
is
faulty.
If
a
device
is
found
to
be
faulty
the
relevant
device
number
will
be
displayed
through
the
LED
(Series
of
flashes
which
must
be
counted)
See
table
1.,
non
fatal
errors
are
reported
using
this
method.
Each time the software detects an error it is stored within the NVM. See Table 2.
Table 1
. ee eLeo
— : ee Code
ee ee
OCP
(
Over
Current
Protection
)
|}
02
|
Error Message —
01
02
ee
aT
ee
i
bus
clock
andlor
dala
ies
ow
atpoweron
|
08
Nees
ner ne acknowledge aipoweren _——«dY|
Flash Timing Example : e.g. error number 3
StBy LED
ON ON ON
AN=NN=
Sinn.
How to enter into Table 2
1. Turn on the main power switch of the TV set and enter into
the
‘Stanby Mode’.
2. Press the following sequence of buttons on the Remote
Commander.
=» 5 se
(ON SCREEN {DIGIT 5) (VOLUME -) (TV)
DISPLAY)
3. The following table will be displayed indicating the error
count.
Table 2
ERROR MENU
E02
E03
E04
E05
E06
E07
E08
£09
E10
E11
nN
ol
a
NNM
aan or ol Or
oooocooo°o°0o9d
ooooooo°ce°o
(
(
(
(
(
(
(
(
(
(
WORKING TIME
HOURS
MINUTES
Note: To clear the error count data press *80’ on the Remote
commander.

The operating instructions mentioned here are partial abstracts from the ‘Operating
Instruction Manual’. The page numbers of the ‘Operating Instruction Manual’ remain
as in the manual.
Switching On the TV and Automatically Tuning
@ The first time you switch on your TV, a sequence of menu screen appear on the TV enabling
you to: 1) choose the language of the menu screen, 2) choose the country in which you wish
to operate the TV, 3) adjust the picture slant 4) search and store all available channels (TV
Broadcast) and 5) change the order in which the channels (TV Broadcast) appear on the
screen.
However, if you need to change any of these settings, you can do that by selecting the
appropriate option in the &43 (Set Up menu) or by pressing the Auto Start Up Button Bl
on the TV set.
1 Connect the TV plug to the mains socket (220-240V AC,
50Hz)
Press the © on/off button on the TV set to turn on the TV.
The first time you press this button, a Language menu
displays automatically on the TV screen.
2 Press the W or 4 button on the remote control to select
the language, then press the OK button to confirm your Srenska
selection. From now on all the menus will appear in the els
selected language. {ao}
Qs»
3 The Country menu appears automatically on the TV
screen. Press the @ or 4 button to select the country in
which you will operate the TV set, then press the OK
button to confirm your selection.
does not appear in the list, select “-” instead of a
country.
* If the country in which you want to use the TV set
4 Because of the earth’s magnetism, the picture might slant.
lf picture slants, please
The Picture Rotation menu allows you to correct the adjust picture rotation
icture slants if it is necessary. Stes a
P J just now
a) If it is not necessary, press W or # to select Not
necessary and press OK.
b) If it is necessary, press W or # to select Adjust now,
then press OK and correct any slant of the picture
between -5 and +5 by pressing W or # . Finally press
OK to store.
continued...
5 The Auto Tuning menu appears on the screen. Press the
Do you want to start
OK button to select Yes. automatic tuning?
No
6 The TV starts to automatically search and store all
available channels (TV Broadcast) for you. Rrogranme: _
Channel: C21
This procedure could take some minutes. Please be
patient and do not press any button. Otherwise the
automatic tuning will not be completed.
In the case that any channel have been found after iN
: lo channel found
the auto tuning process is completed, a new menu Please connect aerial
appears automatically on the screen asking you to Eesti S
connect the aerial. Please connect the aerial (see
page 6) and press OK. The auto tuning process will
start again.
7 After all available channels are captioned and stored,
the Programme Sorting menu appears automatically Prograname
or
on the screen enabling you to change the order in
which the channels appear on the screen.
a) If you do not wish to change the channel order, go to eee
step 8. Exit:
b) If you wish to change the channel order:
1 Press the W or 4 button to select the programme
number with the channel (TV Broadcast) you wish eoareae
to rearrange, then press the button.
2 Press the W or # button to select the new
programme number position for your selected
channel (TV Broadcast), then press @ .
3 Repeat steps b)] and b)2 if you wish to change
the order of the other channels.
8 Press the MENU button to remove the menu from the MENU
screen.
: C
x Your TV is now ready for use
n
m™
?)
4
‘e)
=
ok
G)
m
=
m
B
>
m

introducing and Using the Menu System
@ Your TV uses an on-screen menu system to guide you through the operations. Use the
@ following buttons on the Remote Control to operate the menu system:
1 Press the MENU button to switch the first level menu on. MENU
2 + To highlight the desired menu or o tion, press W or #.
Bhlg P' P
* To enter to the selected menu or option, press >.
* To return to the last menu or option, press ¢.
* To alter settings of your selected option, press W / # / € or >.
* To confirm and store your selection, press OK.
3 Press the MENU button to remove the menu from the screen. MENU
Menu Guide
Level 1 Level 2 Level 3 / Function
PICTURE ADJUSTMENT
Med. The “Picture Adjustment” menu allows you to
Cekure alter the picture adjustments.
Sharpness
Hk
= To do that: after selecting the item you want to
alter press , then press repeatedly W / 4 /
€ or } to adjust it and finally press OK to
store the new adjustment.
This menu also allows you to customise the
picture mode based on the programme you are
watching:
® Personal (for individual settings).
© Live (for live broadcast programmes).
Ww Movie (for films).
* Brightness, Colour and Sharpness can only be alterated if ‘Personal” mode is selected.
© Hue is only available for NTSC colour signal (e.g: USA video tapes).
* Select Reset and press OK fo reset the picture to the factory preset levels.
a eee
continued...
Level 2 Level 3 / Function
SOUND ADJUSTMENT
The “Sound Adjustment” menu allows you to
alter the sound adjustments.
To do that: after selecting the item you want to
alter, press. then press repeatedly Ww /
4 / €or >to adjust it and finally press OK
to store the new adjustment.
= | Personal
Treoke
Base
Balance
Hr
eset
Dusl Sound: Mono
Detail Adjustment
This menu also contains two submenus as following:
Mode > = Personal (for individual settings)
w Rock
wv Pop
w Jazz
Detail Adjustment ® WW Sound Effect: wW Off: Normal.
Spatial: Acoustic sound effect.
W Auto volume: wW Off: Volume channel changes according
to the broadcast signal.
vy On: Volume level of the channels will
stay the same, independent of the
broadcast signal (e.g. in the case of
advertisements).
w TV Speakers: W Off: Sound from external amplifier
connected to the audio outputs on
the rear of the TV set.
v On: Sound from the TV set.
© Treble and Bass can only be altered if “Personal” mode is selected.
* Select Reset and press OK to reset the sound to the factory preset levels.
* Incase of a bilingual broadcast select Dual Sound and set A for sound channel 1, B for sound channel
2 or Mono for mono channel if available. For a stereo broadcast you can choose Stereo or Mono.
OO
continued...
10 | Menu System

Level 1 Level 2 Level 3 / Function
SLEEP TIMER
The “Sleep Timer” option in the “Timer” menu
allows you to select a time period for the TV to
switch itself automatically into the standby
mode.
To do that: after selecting the option press »,
then press W or @ toset the time period delay
(max. of 4 hours) and finally press OK to store.
© While watching the TV, you can press the
button on the remote control to display the
time remaining.
© One minute before the TV switches itself into
standby mode, the time remaining is displayed on
the TV screen automatically.
LANGUAGE / COUNTRY
The “Language/Country” option in the “Set
Up” menu allows you to select the language
that the menus are displayed in. It also allows
you to select the country in which you wish to
operate the TV set.
To do that: after selecting the option, press >
and then proceed in the same way as in the
steps 2 and 3 of the section “Switching On the
TV and Automatically Tuning”.
Language/Gountry
‘Auto Tuning
+] Programme Sorting
i jamme Labots.
‘Autc Turing
Progeamme Sorting
Progamme Labels
AV Provot
Manual Progeamme Pease!
Sol Up
AY Preset
Manual Programme Preset
Detail Sot Uj
AUTO TUNING
The “Auto Tuning” option in the “Set Up”
menu allows you to automatically search for
and store all available TV channels.
Mode: Personal
Sharpness
Hue
Reset
To do that: after selecting the option, press >
and then proceed in the same way as in TV
steps 5 and 6 of the section “Switching On the
TV and Automatically Tuning”.
fogramine Soring
Progamme Labels
AY Presat
Manund Programme Preset
F{_Dotail Set Up
continued...
Level 1 Level 2 Level 3 / Function
PROGRAMME SORTING
The “Programme Sorting” option in the “Set
Up” menu allows you to change the order in
which the channels (TV Broadcast) appear on
the screen.
To do that: after selecting the option, press >
and then proceed in the same way as instep 7 b)
of the section “Switching On the TV and
Automatically Tuning”.
1
our Languege/C:
Auto Tang
se
|] Progamme Labels
AY Preset
Manual Programme Preset
PROGRAMME LABELS
The “Programme Labels” option in the “Set
Up” menu allows you to name a channel using
up to five characters (letters or numbers).
To do that:
1 After selecting the option, press », then
Lanoumaes i] Langusoe/Couery press W or # to select the programme
ogee tan 1] Spee ei number with the channel you wish to name.
2 Manual Programme Preset 2 Press . With the first element of the Label
Detail Sel Up
column highlighted, press ® or 4 to select
a letter or number (select “-” fora blank), then
press » to confirm this character. Select the
other four characters in the same way. Finally
press OK to store.
AV PRESET
The “AV Preset” option in the “Set Up” menu
allows you to designate a name to the external
equipment you have connected to the sockets of
this TV.
To do that:
1 After selecting the option, press », then
press ® or # toselect the input source you
wish to name (AVI and AV2 are for the rear
Scarts and AV3 for front connectors). Then
press >.
2 In the label column automatically appears a
label:
E
Language/country Lanquage/Counry
Keeton Progra
Programme Sorting Roperers Sing
‘Lace "| Propamame Lapel
eA
AY Preset _ s
Manual Programme Preset Manual Programme Preset
Dotail Set Up Ootail Set Up
a) If you want to use one of the 6 predefined
label (CABLE, GAME, CAM, DVD,
VIDEO or SAT), press W or 4p to select
the desired label and finally press OK to
store.
b) If you want to set a different label, select
Edit and press ». Then with the first
element highlighted, press W or 4 to
select a letter, number or “-” for a blank,
then press » to confirm this character.
Select the other four characters in the same
way and finally press OK to store.
continued...

Level 2 Level 3 / Function
MANUAL PROGRAMME PRESET
The “Manual Programme Preset” option in the
“Set Up” menu allows you to:
a) Preset channels or a video input source one
by one to the programme order of your
choice. To do that:
1 After selecting the “Manual Programme
Preset” option, press then with
Programme option highlighted press ».
Press W or 4 to select on which
programme number you want to preset the
channel (for VCR, select programme number
“0”). Then press @.
2 The following option is only available
depending on the country you have
selected in the “Language/Country”
menu.
After selecting the System option, press >.
Then press W or @ to select the TV
Broadcast system (B/G for western European
countries or D/K for eastern European
countries). Then press ©.
3 After selecting the Channel option, press ».
Then press W or # to select the channel
tuning (“C” for terrestrial channels or “S” for
cable channels). Next press ». After that,
press the number buttons to enter directly the
channel number of the TV Broadcast or the
channel of the VCR signal. If you do not
know the channel number, press W or 4 to
search for it. When you tune the desired
channel, press OK twice to store.
Repeat all the above steps to tune and store more
channels.
continued...
Level 1 Level 2 Level 3 / Function
RGB CENTRING
When connecting an RGB source, such as a
“PlayStation”, you may need to readjust the
horizontal position of the picture. In that case,
you can readjust it through the “RGB Centring”
option in the “Detail Set Up”.
To do that: while watching an RGB source select
the “RGB Centring” option and press }. Then
press W or # to adjust the centre of the
picture between -10 and +10. Finally press OK
to confirm and store.
Aoi Precio
ive uur
Ropers Sotha
Propane teh
PICTURE ROTATION
Because of the earth’s magnetism, the picture
might slant. In this case, you can correct the
pictures slant by using the option “Picture
Rotation” in the “Detail Set Up” menu.
To do that: after selecting the option, press ».
Then press W or # to correct any slant of the
picture between -5 and +5 and finally press OK
to store.

OL
Teletext
Teletext is an information service transmitted by most TV stations. The index page of the
teletext service (usually page 100) gives you information on how to use the service. To
operate teletext, use the remote control buttons as indicated below.
iN Make sure to use a channel (TV Broadcast) with a strong signal, otherwise teletext errors
may occur.
To Switch On Teletext :
After select the channel (TV Broadcast) which carries the teletext you wish
to view, press ©).
To Select a Teletext page:
Input 3 digits for the page number, using the numbered buttons.
© If you have made a mistake, retype the correct page number.
© If the counter on the screen continues searching, it is because this page is not available. In that case,
input another page mumber
To access the next or preceding page:
Press PROGR + ( Ga)) or PROGR - (€)).
To superimpose teletext on to the TV:
Whilst you are viewing teletext, press ©). Press it again to cancel teletext mode.
To freeze a teletext page:
Some teletext pages have sub-pages which follow on automatically. To stop them, press
©) /@). Press it again to cancel the freeze.
To reveal concealed information (e.g: answer to a quiz):
Press ()/() . Press it again to conceal the information.
To Switch Off Teletext:
Press ().
Fastext
Fastext service lets you access pages with one button push.
While you are in Teletext mode and Fastext is broadcast, a colour coded menu appears at
the bottom of the teletext page. Press the colour button (red, green, yellow or blue) to access
the corresponding page.
Connecting Optional Equipment
Using the following instructions, you can connect a wide range of optional equipment to
your TV set. (Connecting cables are not supplied).
S VHS/Hi8/
DVC
camcorder
VCR LZ
Decoder
8mm/Hi8/DVC
camcorder
** “PlayStation” is a product of Sony Computer
Entertainment, Inc.
»* “PlayStation” is a trademark of Sony
Computer Entertainment, Inc.
thee
“PlayStation” *
Decoder
Connecting a VCR:
To connect a VCR, please refer to the section “Connecting the aerial and VCR” of this instruction
manual. We recommend you connect your VCR using a scart lead. If you do not have a scart
lead, tune in the VCR test signal to TV programme number “0” by using “Manual Programme
Preset” option. (for details how to manual programme, see page 13, step a).
Also refer to your VCR instruction manual to find out how to find the output channel of your
VCR.
Connecting a VCR that supports Smartlink:
@ Smartlink is a direct link between the TV set and the VCR. For more information on
Smartlink, please refer to the instruction manual of your VCR.
lf you use a VCR that supports Smartlink, please connect the VCR by using a Scart lead to
the Scart @2/-3 J.
If you have connected a decoder to a VCR which supports Smartlink
feature:
Select the “Manual Programme Preset” option in the “Set Up” menu and after entering in the
“Decoder” option, select “On” (by using W or 4). Repeat this option for each scrambling
signal.
*This option is only available depending on the country you have selected in the “Country”
menu. :
continued...

LL
Specifications
TV system:
B/G/H, D/K
Colour system:
PAL, SECAM
NTSC 3.58, 4.43 (only Video In)
Channel Coverage:
VHF: E2-E12
UHF: E21-E69
CATV: — $1-S20
HYPER: $21-S41
D/K: R1-R12, R21-R69
Picture Tube:
Flat Display FD Trinitron
KF-25FX30K: 25” (approx. 63 cm.
measured diagonally)
KF-29FX30K; 29” (approx. 73 cm.
measured diagonally)
Rear Terminals
(1/3 21-pin scart connector
(CENELEC standard)
including audio/video
input, RGB input, TV
audio/video output.
G2/-89 21-pin Scart connector
(SMARTLINK) | (CENELEC standard)
including audio / video
input, S video input,
selectable audio / video
output and Smartlink
interface.
oe audio outputs (Left/
Right) - phono jacks
Front Terminals
~€33 S Video input - 4 pin DIN
-233 video input ~ phono jack
© 3 audio input — phono jacks
headphones jack
Sound Output:
2x 14 W (music power)
2x 7 W (RMS)
Power Consumption:
KF-25FX30K: 87 W
KF-29FX30K: 94 W
Standby Power Consumption:
0.5 W
Dimensions (w x h x d):
KF-25FX30K: Approx. 655 x 509 x 476 mm.
KF-29FX30K: Approx. 746 x 589 x 516 mm.
Weight:
KF-25FX30K: Approx. 36 Kg.
KF-29FX30K: Approx. 46.5 Kg.
Accessories supplied:
1 Remote Control (RM-887)
2 Batteries (IEC designated)
Other features:
* Teletext, Fastext, TOPtext
* Sleep Timer
* Smartlink (direct link between your TV set
and a compatible VCR. For more
information on Smartlink, please refer to
the Instruction Manual of your VCR).
* TV system Autodetection.
Design and specifications are subject to change without notice.
Ecological Paper- Totally Chlorine Free &
Troubleshooting
Here are some simple solutions to the problems which may affect the picture and sound.
Problem Solution
No picture (screen is dark) and no ¢ Check the aerial connection.
sound. * Plug the TV in and press the @ button on the front of
TV,
* If the standby indicator © is on, press I button on
the remote control.
Poor or no picture (screen is dark), ¢ Using the menu system, select the “Picture
but good sound. Adjustment” menu and select “Reset” to return to the
factory settings.
No picture or no menu information — * Check that the optional equipment is on and press the
from equipment connected to the -) button repeatedly on the remote control until the
Scart connector. correct input symbol is displayed on the screen.
¢ Press the <4 +/- button on the remote control.
* Check that “TV Speakers” is “On” on the “Sound
Adjustment” menu.
Good picture, no sound.
No colour on colour programmes. * Using the menu system, select the “Picture
Adjustment” menu and select “Reset” to return to
factory settings.
Distorted picture when changing * Turn off any equipment connected to the Scart
programmes or selecting teletext. connector on the rear of the TV.
Wrong characters appear when * Using the menu system, enter to the “Language/
viewing teletext. Country” menu and select the country in which you
operate the TV set.
Picture slanted ¢ Using the menu system, select the “Picture Rotation”
option in the “Detail Set Up” menu to correct the
picture slant.
Noisy picture when viewing a TV * Using the menu system, select the “Manual
channel. Programme Preset” menu and adjust Fine Tuning
(AFT) to obtain better picture reception.
« Using the menu system, select the “Noise Reduction”
option in the “Detail Set Up” menu and select
“On” to reduce the noise in the picture.
No unscrambling whilst viewing a * Using the menu system, select the “Set Up” menu.
scrambling channel with a decoder Then enter to “Detail Set Up” option and set “AV2
connected through the Scart Output” to “TV”.
connector (>2/-€9.
Remote control does not function. * Replace the batteries.
The standby indicator © on the TV * Contact to your nearest Sony service centre.
flashes.
In case of problems, have your TV serviced by qualified personnel. Never open the
casing yourself.

SECTION 2 DISASSEMBLY
i Release the mains power cable from its securing posts. Remove the rear cover fixing screws indicated. Pull the rear cover away from
: the front beznet.
When refitting the chassis ensure that the main bracket is i
located in the beznet guide slots before sliding the chassis
forwards. Refit the interconnecting leads in their respective
purse locks.
To remove lift the main bracket rear slightly and slide the
chassis away from the beznet. Ensure that the
interconnecting leads are released from their purse locks to
prevent damage being caused.
12

Screw. Clip.
Remove the screw securing the PWB to the main bracket. Release the 3 securing clips located at the side of the
chassis and slide the PWB clear of the bracket.
Place
the
chassis
in
the
position
indicated
to
carry
out
servicing.
To
gain
access
to
the
high
voltage
areas
of
the
A
Board
the
bootom
plates
need
to
be
removed
(see
page
15).
13

WARNING:
BEFORE REMOVING
THE ANODE CAP
High voltage remains in the CRT even
after the power is disconnected. To
avoid electric shock, discharge CRT
before attempting to remove the anode
cap. Short between anode and CRT
coated earth ground strap.
ot
* REMOVING PROCEDURES.
we
Se SS oy aS
Discharge the anode of the CRT and remove the anode cap.
Release the EHT lead trom its CRT support bracket.
Unplug all interconnecting leads from the Deflection yoke,
degaussing coils, Roiation coil and CRT grounding strap.
Remove the C Board trom the CRT.
Loosen the VM Block fixing screw and remove.
Remove the chassis assembly.
Loosen the Deflection yoke fixing screw and remove.
Remove the Degaussing Coil holders.
Place the set with the CRT face down on a cushion.
Unscrew the four CRT fixing screws [ located on each CRT
corner ] and remove the CRT.
. Remove the Degaussing Coils.
Remove the CRT grounding strap and spring tentioners.
[Take care not to handic the CRT by the neck.]
Anode button
qd) Turn up one side of the rubber cap in Q) Using a thumb pull up the rubber cap GB) When one side of the rubber cap is
the direction indicated by the arrow (@)
firmly in the direction indicated by the
arrow (b)
To prevent damaging the surface of the anode-cap do not use
sharp materials.
Do not apply too great a pressure on the rubber, as this may cause
damage to the anode connector.
A metal fitting called a shatter hook terminal is fitted inside the
rubber cap.
Do not turn the rubber foot over excessively, this may causc
damage if the shatter hook sticks out.
separated from the anode button, the
anode-cap can be removed by turning
up the rubber cap and pulling it up in
the direction of the arrow ©
14

gel
“suorisod
yoyes
Nay)
OMT
pay
aq
0}
sqei
dq}
MOTE
0}
UOISOd
ynd
JTOYY
WI
Saa1Zp
OB]
P1301
9q
0}
podU
sayeid
ayy
yey}
JOU
ase]
q
“UOTILIO|
[eULZL0
Tay}
ul
panyyal
are
saqerd
490.1109
oy]
yey
JURLOdUHT
SI
}1
9ZIS
Ul
JayyIp
Sayed
ayy
asneseg
SHLV1d
SHL
ONILLISSY
(2)
“prvog
BULIIM
pajutid
ay}
0)
ssoo0e
UTES
0}
a}e]d
Aressadou
oY}
2AOULAL
A]UQ
“sayed
¢Aq
pamnoas
pure
JayxoeIg
UTeUT
oy)
0}
pay
sayeyd
¢
ae
DIOY],
:
9J0N
“"SMOLIP
au)
Aq
payesipul
suoIBO0]
OY)
3B
19}9ND
ouLM
duvys
B
YIM
Sayed
ay}
SuyND
Aq
pautiojsod
st
sy
L
“pIAOUIdl
9q
0}
oAINbal
oYOUIG
SISSYS
ULEUL
dy}
0}
pany
soyerd
woyog
ay}
‘preog
Su
payutid
preog
(J
aU}
Jo
apis
Japjos
oy}
0}
pauinbas
Bulag
SUIOIALAS
JO
JUDAA
BU}
U]
SALW
1d
SHLONIAOWAY
(4)
*S3LV
1d
WOLLOG
LAMOVYHSESNIVI
SHL
SO
LNAINS9V1d44
ONY
TWAOINAY
15

SECTION 3 SET-UP ADJUSTMENTS
° When complete readjustment is necessary or a new picture Carry out the adjustments in the following order :
tube is installed, carry out the following adjustments. 3-1. Beam Landing.
* Unless there are specific instructions to the contrary, carry eee
out these adjustments with the rated power supply. _ Peace
J fin ee PPIy 3-4, White Balance.
* Unless there are specific instructions to the contrary, set the
controls and switches to the following settings : Note: Test equipment required.
I; Color bar/pattern generator.
Contrast oes 80% [or remote control normal] 2. Degausser.
; 3. Oscilloscope.
Brightness ............005 50% 4. Digital multimeter.
Preparation: Fig. 3-2.
1. In order to reduce the influence of geomagnetism on the
set’s picture tube, face it in an easterly or westerly direction.
2. Switch on the set’s power and degauss with the degausser.
3-1. Beam Landing
1. Inputan all white signal from the pattern generator. Set the
Contrast and Brightness to normal.
2. Set the pattern generator raster signal to Red.
3. Move the deflection yoke forward and adjust with the Fig. 3-3.
purity control so that the Red is at the centre and the Blue
and Green take up equally sized areas on each side of the
screen. [See Fig.3-1 - 3-3].
4. Move the deflection yoke backwards and adjust so that the
entire screen becomes Red. [See Fig.3-1]
5. Switch the raster signal to Blue, then to Green and verify
the condition.
6. When the position of the deflection yoke has been
determined, fasten the deflection yoke with the screws.
If the beam does not land correctly in all the corners, use a
magnet to correct it. [See Fig.3-4]
=
Disk magnets or
rotatable disk
magnets correct
these areas (a-d)
Purity control corrects
this area
Fig. 3-1.
Caution:
High voltages are present on the Deflection yoke terminals
- take care when handling the Deflection yoke whilst carrying
out adjustments. Disk Magnets
Fig.3-4
16

3-2.
Convergence
4.
Ifthe
V.STAT
magnet
is
moved
in
the
direction
of
the
(a)-
and
(b)
arrows,
the
Red,
Green
and
Blue
points
move
as
Preparation:
indicated
below.
© Before starting this adjustment, adjust the focus, horizontal ® ©
size and vertical size.
© Minimize the Brightness setting.
© Input a dot pattern from the pattern generator.
Center dot
H STAT ®
convergence
control
C Board R G B
RV702 (H STAT)
H STAT Convergence
(on mount side)
Fig.3-5
1. {Moving horizontally], adjust the H.STAT control so that
the Red, Green and Blue points are on top of each other at
the centre of the screen.
2. [Moving vertically], adjust the VSTAT magnet so that the
Red, Green and Blue points are on top of each other at the
centre of the screen.
3. Ifthe H.STAT variable resistor is unable to bring the Red,
Green and Blue points together at the centre of the screen,
adjust the horizontal convergence with the H.STAT variable
resistor and the V.STAT magnet in the manner indicated
below.
[In this case, the H.STAT variable resistor and the V.STAT
magnet influence each other].
@ Tilt the VSTAT magnet and adjust the static convergence by
opening or closing the V.STAT magnet.
The movement of the magnets interact with each other and so
the respective dot position should be monitored while carrying
out this adjustment.
Use the H.STAT VR to adjust the Red, Green and Blue dots so
that they coincide at the centre of the screen
(by moving the dots in the horizontal direction).
17

—
Preparation:
Before starting this adjustment, adjust the horizontal and
vertical static convergence.
Remove the deflection yoke spacer.
Tilt the deflection yoke as indicated in the figure below and
optimise the geometry.
Tilting the DY Up and Down will balance the upper and
lower pin adjustment.
Tilting the DY Left and Right will balance the H-Trap
adjustment.
Re-install the deflection yoke spacer.
= Tilt Direction
Deflection Yoke
TLH pieces
HTIL correction can be performed by adding a TLH correction
assembly to the Deflection yoke.
TLV VR
__ Install the permalloy assembly
ON
Deflection Yoke
/ \
If you are unable to adjust the corner convergence properly,
this can be corrected with the use of permalloy magnets.
for the area that needs correcting.
. X-4387-214-1
Permalloy Assy
° |
|
|
|
Q
Convergence adjustment with permalloy

3-3. Focus Adjustment
1. Receive a television broadcast signal.
2. Normalize the picture setting.
3. Adjust the focus control located on the flyback transformer
to obtain the best focus at the centre of the screen.
Bring only the centre area of the screen into focus, the
magenta-ring appears on the screen. In this case, adjust the
focus to optimize the screen uniformly.
19
3-4.Screen (G2), White Balance
G2 adjustmen
Il.
[Adjustment in the service mode using the remote
commander}
Input a dot signal from the pattern generator.
Enter the ‘Service Mode’ by pressing ‘TEST’, ‘TEST’ and
‘38° (TT-38) on the remote commander, to set up the G2
service adjustment mode.
Whilst watching the picture, adjust the G2 control [SCREEN]
located on the Flyback Transformer to the point where the
OSD menu indication shows “OK”. :
White balance adjustment
Input an all-white signal from the pattern generator.
Enter into the ‘Service Mode’ by pressing ‘TEST’, ‘TEST’
and ‘MENU’ on the Service Commander.
Select ‘Service’ from the on screen menu display and press
the right arrow button on the remote commander.
The ‘Service’ menu will appear on the screen.
[Sce Page 19]
Set the ‘Contrast’ to MAX.
Set the ‘R-Drive’ to 25.
Adjust the ‘G-Drive’ and the ‘B-Drive’ so that the white
balance becomes optimum.
Press the ‘OK’ button to write the data for each item.
Set the ‘Contrast’ to MIN.
. Adjust the ‘G-Cutoff’, and the ‘R-Cutoff? with the left and
right buttons on the remote commander so that the white
balance becomes optimum.
Press the ‘OK’ button to write the data for each item.

4-1. Electrical Adjustments
Service adjustments to this model can be performed using the
suppliedemote Commander RM-887.
1.
2.
Turn on the main power switch and enter into the stand-by mode.
Press the following sequence of buttons on the Remote
Commander.
|
+3
———ane|
a
itil
[=e] i
(ON SCREEN
DISPLAY)
5s >
(DIGIT 5)
(VOLUME +} ™
‘TT— will appear in the upper right corner of the screen.
Other status information will also be displayed.
3. Press ‘MENU’ on the remote commander to obtain the following
menu on the screen.
Geometry
Service
Design
Status
Sound
IF adjust
Error Menu
FE-2 Stereo v1.30
Factory data FFh FFh
MSP Device : MSP3411G
Move to the corresponding adjustment item using the
up or down arrow buttons on the Remote Commander.
Press the right arrow button to enter into the required menu item.
Press the ‘Menu’ button on the Remote Commander to quit the
Service Mode when all adjustments have been completed.
Note:
¢ Before performing any adjustments ensure that the correct model
has been selected in the ‘Model Setting’ menu.
After carrying out the service adjustments, to prevent the
customer
accessing the ‘Service Menu’ switch the TV set OFF and then
ON.
ERROR MENU
E02
E03
E04
E05
E06
E07
E08
E09
E10
E11
ooocooooo°ceo°o
WORKING TIME
HOURS
MINUTES
20
SERVICE
Offset-R
Offset-G
R-Drive
G-Drive
B-Drive
Peak-Freq
Luma-Delay
SCO
White-Peak
Subcont
Subright
Subcol
Subsharp
Cutoff Br.
Br OSD
Br TXT
GEOMETRY
V-Linearity
V-Scroll
Left-HBIk
Right-HBIk
V-Angle
V-Bow
H-Centre
H-Size
Pin-Amp
U-Corner-Pin
L-Corner-Pin
Pin Phase
V-Slope
V-Size
S-Correction
V-Centre
V-Zoom
Magenta
DOMDAMWAAANAANAAMAAMD HAHAHA
SSSSSSSSSSSSSSSSSS
BDAHDADODNDDONHDODONDHODNATADA
LLL VOSS SeEVSeIgg Qo
IF ADJUST
AGC Adjust (-16, +15) +0
Automute 1
Audio Gain 0
L Gating 0
Sub B:ightness Adjustment |
Input a Monoscope pattern.
2. Press ‘TEST’ ‘TEST’ 13 on the Remote Commander.
3. Adjust the ‘Sub-Brightness’ data so that there is barely a
difference between the 0 IRE and 10 IRE signal levels.
Sub Contrast Adjustment a
I. Inputa video signal that contains a small 100% white area ona
black buckyvreund.
2. Connect an digital voltmeter to Pin 10 of J701 [C Board].
3. Adjust the Sub-Contrast [‘TT11’] to obtain a voltage of
105 +/- 5V (KV-29FX30) or 96 +/-SV (KV-25FX30).
