Sony U-Ceiver ICB-U655 User manual

MICROFILM
SERVICE MANUAL
FRS TWO-WAY RADIO
US Model
SPECIFICATIONS
ICB-U655
Photo:Yellow model
Ver 1.1 1999.05

– 2 –
TABLE OF CONTENTS
1. SERVICING NOTES............................................... 3
2. GENERAL
Before You Begin ............................................................ 4
Features ........................................................................... 4
Precautions ...................................................................... 4
Power Sources ................................................................. 5
Operation ......................................................................... 5
Other features .................................................................. 5
3. DISASSEMBLY ......................................................... 6
4. ELECTRICAL ADJUSTMENTS......................... 7
5. DIAGRAMS
5-1. Block Diagram ................................................................ 9
5-2. Printed Wiring Boards .................................................... 12
5-3. Schematic Diagram ......................................................... 15
5-4. IC Pin Function Description ........................................... 22
6. EXPLODED VIEWS................................................ 24
7. ELECTRICAL PARTS LIST ............................... 26
Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 ˚C dur-
ing repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

– 3 –
SECTION 1
SERVICING NOTES
About special screws
Special screws are used for this machine not to be remodeled the
inside by any users.Therefore, repair should be done with the driver
described below.
7-721-052-08 special driver
Drip-proof treatment
Always perform the following treatment when the Cabinet was
removed, or the Contact Board (ANT) Assembly was removed
during repair.
1. Apply SONY Grease SGL-505 (7-662-010-04) to entire sur-
face of Cabinet RearAssembly marked with using a swab.
(See Fig. A)
2. Apply Sealant TSE-392W (7-432-950-03) to entire surface of
Cabinet Rear Assembly marked with using a swab. (See
Fig. A)
3. Apply SONY Grease SGL-505 (7-662-010-04) to entire sur-
face of Cabinet RearAssembly marked with using a swab.
(See Fig. B)
cabinet (front) assy cabinet (rear) assy
Apply grease
(SGL-505).
Apply grease
(SGL-505).
contact plate
(ANT) assy
cabinet (rear)
assy
Apply sealant
(TSE-392W).
(FIg. A)
(FIg. B)

– 4 –
SECTION 2

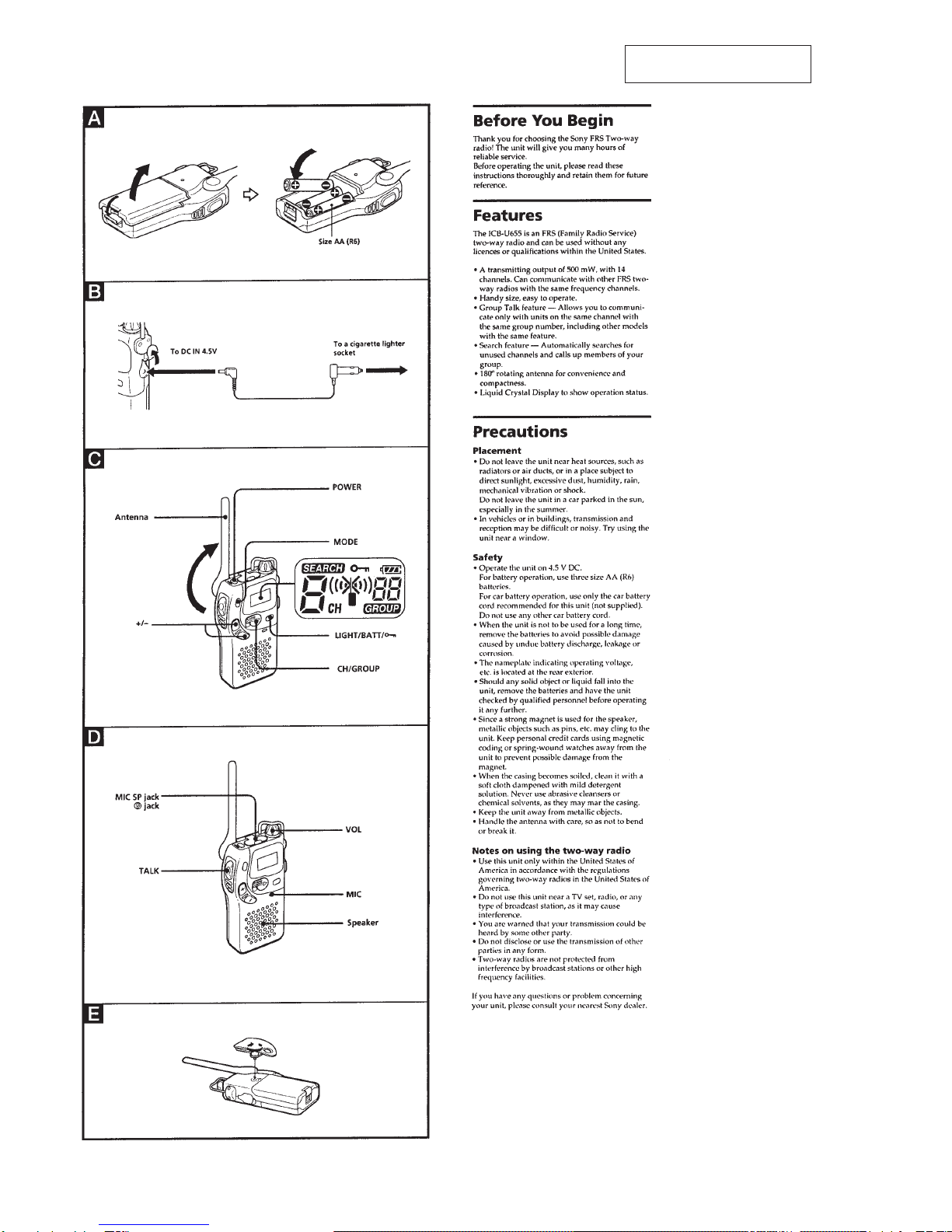

GENERAL This section is extracted from
instruction manual.

– 5 –

– 6 –

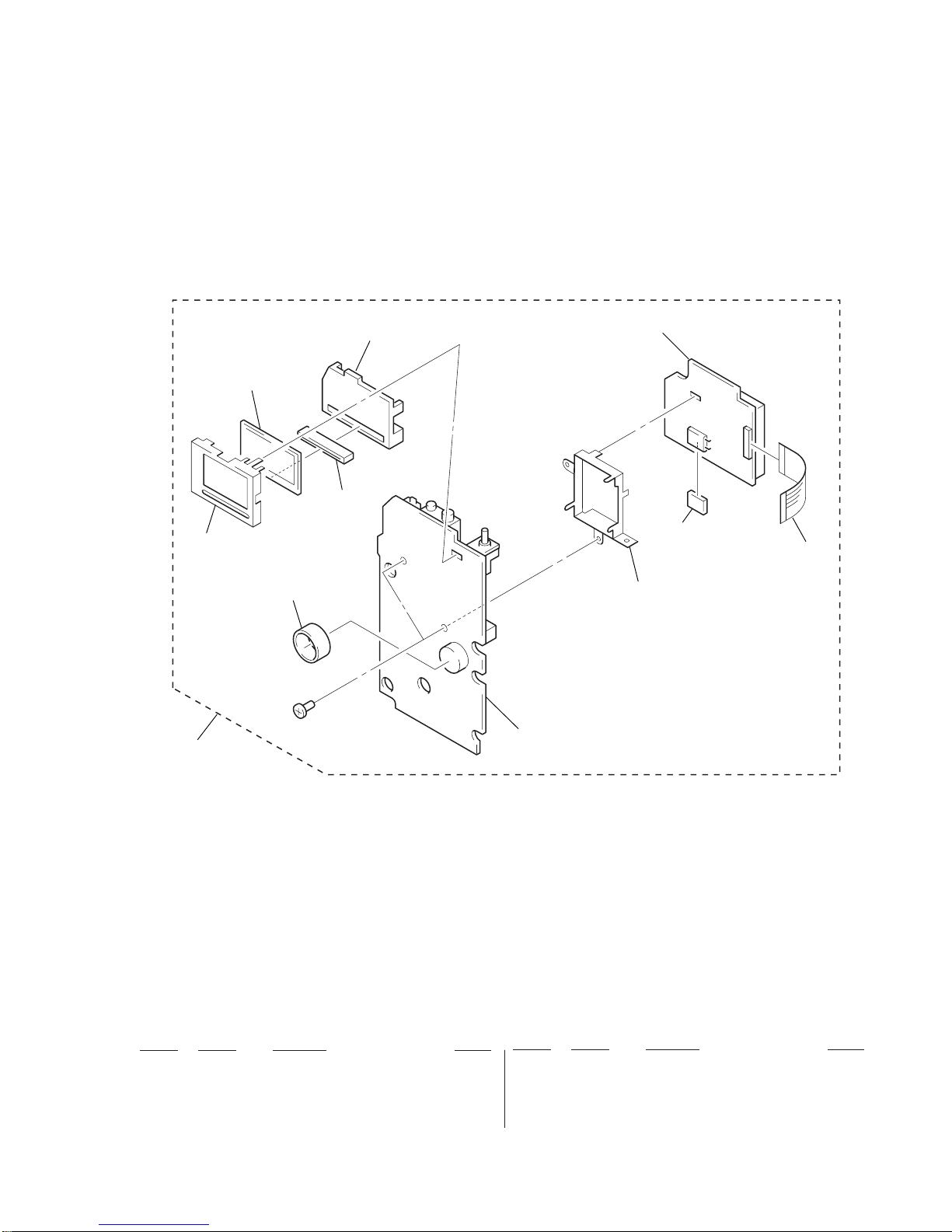

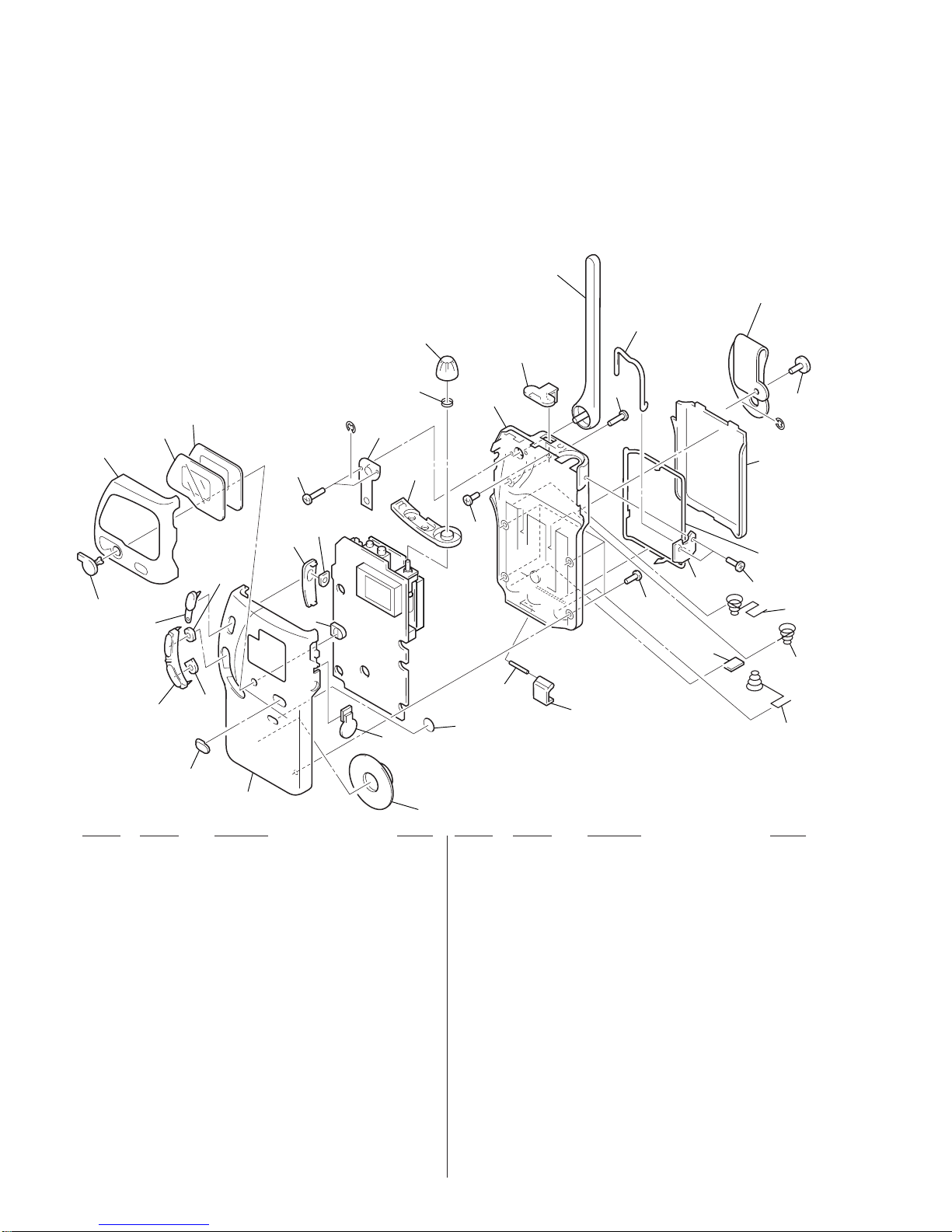

CABINET (FRONT) ASSY
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
8 cabinet (front) assy
2 Open the lock
(battery).
5 four special screws
(2
× 6)
4 special screw
(2
× 8)
1 clip
3 lid battery case
7 cover (guard)
6 two screws
(1.7 × 5)
3 Open the
packing (MIC/SP).
2 Remove the solder
of two battery leads.
1 Remove the solder
of two speaker leads.
3 flexible
board
5 RF board
1 knob (VOL)
2 packing (jack)
micro computer board
4 two screws
(P1.7
× 2.5)
MICRO COMPUTER BOARD
RF BOARD

– 7 –
0 dBm=0.775 V
Carrier Frequency of each channel
(Frequency intervals are 25 kHz at each channel, but the interval
between 7ch and 8ch is 4.85 MHz)
1ch : 462.5625 MHz 8ch : 467.5625 MHz
2ch : 462.5875 MHz 9ch : 467.5875 MHz
3ch : 462.6125 MHz 10ch : 467.6125 MHz
4ch : 462.6375 MHz 11ch : 467.6375 MHz
5ch : 462.6625 MHz 12ch : 467.6625 MHz
6ch : 462.6875 MHz 13ch : 467.6875 MHz
7ch : 462.7125 MHz 14ch : 467.7125 MHz
PLL Reference Frequency Adjustment
Setting:
Procedure:
1. Turn the power ON, and set to 8ch.
2. Set to receive state.
3. Adjust C53 on the RF board so that the frequency counter read-
ing become 467.5625 MHz
Specification Values: 467.56235 to 467.56265 MHz
Adjustment Location: RF board (See page 8)
TX Power Adjustment
Setting:
Procedure:
1. Turn the power ON, and set to 8ch.
2. Press the [TALK] button (S107) on the MICRO COMPUTER
board continuously and set to transmit state.
3. Adjust RV107 on the MICRO COMPUTER board so that the
power meter reading become 475 mW.
Specification Values: 450 to 500 mW
Adjustment Location: MICRO COMPUTER board (See page 8)
SECTION 4
ELECTRICAL ADJUSTMENTS
+
–

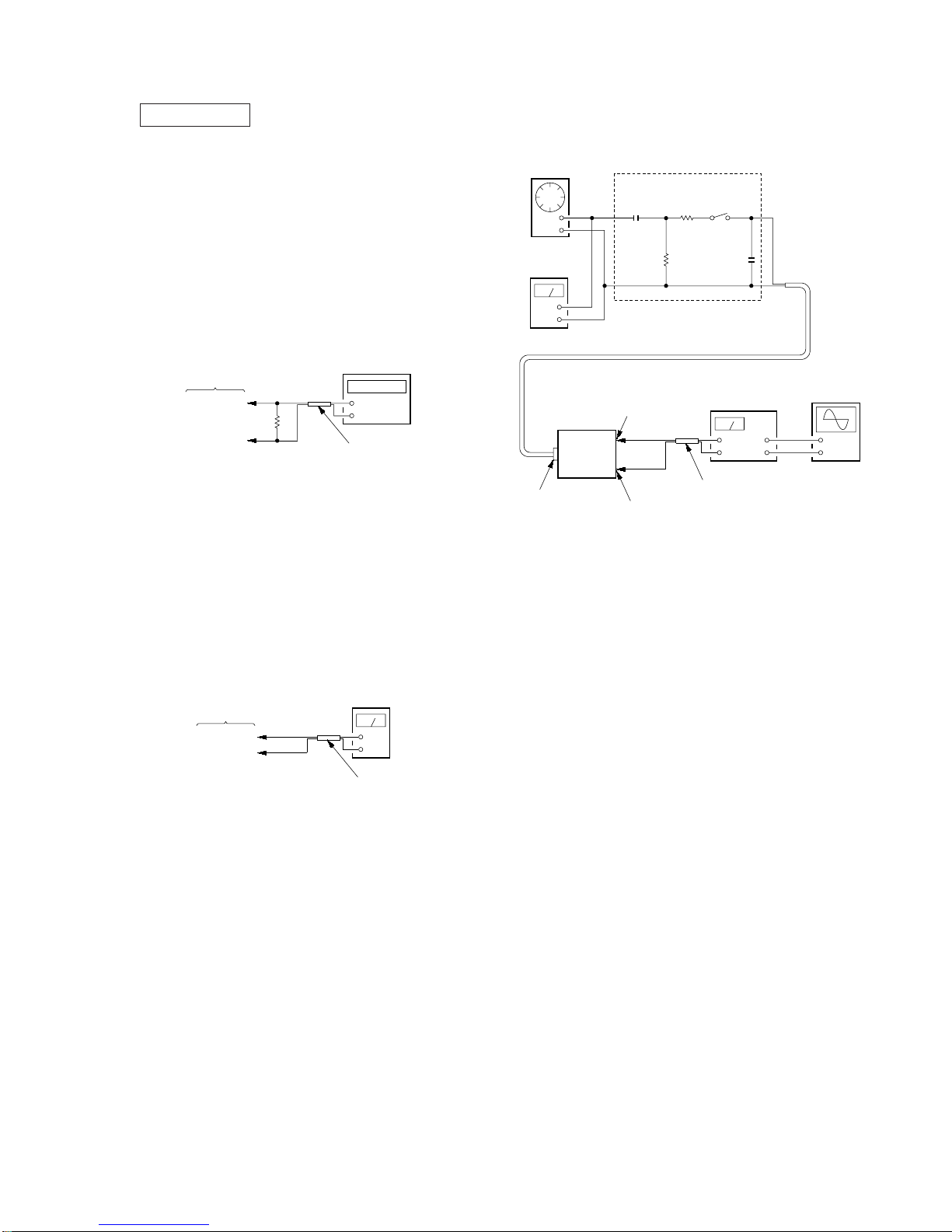

frequency counte
r
50 Ω
RF board
coaxial cable
TP (ANT2)
TP (GND)
RF board
coaxial cabl
e
TP (ANT2)
TP (GND)
power meter
(impedance: 50 Ω )
+
–
Tone Modulation and Modulation Sensitivity
Adjustments
Setting:
Procedure:
–Tone Modulation Adjustment –
1. Turn the power ON.
2. Press the [MODE] button (S105) to set the GROUP talk mode.
3. Press the [+/–] button to set GROUP1.
4. Turn the PTT switch ON to set transmit state in no modulate
condition. (AF oscillator: OFF)
5. Adjust RV104 on the MICRO COMPUTER board so that the
modulation meter reading become 0.3 kHz deviation.
Specification Values: 0.27 to 0.33 kHz deviation
– Modulation Sensitivity Adjustment –
6. Turn the AF oscillator and PTT switch ON to apply 1 kHz/0
dBm signal.
7. Adjust RV103 on the MICRO COMPUTER board so that the
modulation meter reading become 2.4 kHz deviation.
Specification Values: 2.3 to 2.5 kHz deviation
8. Turn the AF oscillator OFF.
9. Repeat step 5 to 8 several times.
10. Set the AF oscillator level to –33 dBm, and confirm that the
modulation meter reading is 1.75 kHz deviation.
Specification Values: 1.6 to 1.9 kHz deviation
Note: • Any channel is available.
• Set the L. P. F, H. P. F and etc. on the modulation meter OFF.
Adjustment Location: MICRO COMPUTER board (See page 8)
10 µ F
1000 pF
level meter
+
–
AF oscillator resistor network
PTT switch
+
–1.6 k
Ω
600 Ω
coaxial cable
RF board
TP (GND)
MIC jack
(J102)
RF board
TP (ANT2)
Set
modulation meter
(impedance: 50
Ω )
+
–+
–
+
–
oscilloscope
ON: Transmit
OFF: Receive

– 8 –
Squelch Adjustment
Setting:
Carrier frequency: 467.5625 MHz (8ch)
Procedure:
1. Turn the power ON, and set to 8ch.
2. Press the [MODE] button (S105) on the MICRO COMPUTER
board to set the basic mode. (Goes off “GROUP” and
“SEARCH” indication)
3. Set to the modulation is 1.5 kHz and set to the modulation
frequency is 1 kHz of the FM RF SSG.
4. Set to the output level is –15 dBµV of the FM RF SSG, and
turn the RV102 on the MICRO COMPUTER board in the
clockwise to open the squelch. (Recognized by sound)
5. Turn the RV102 on the MICRO COMPUTER board in the
counterclockwise until the squelch closes. (Recognized by
sound stopped)
6. Set to the output level is –12 dBµV of the FM RF SSG, and
confirm that the squelch opens.
7. Set to the output level is –15 dBµV of the FM RF SSG, and
confirm that the squelch closes.
Adjustment Location: MICRO COMPUTER board
RF board
FM RF SSG
TP (ANT2)
TP (GND)

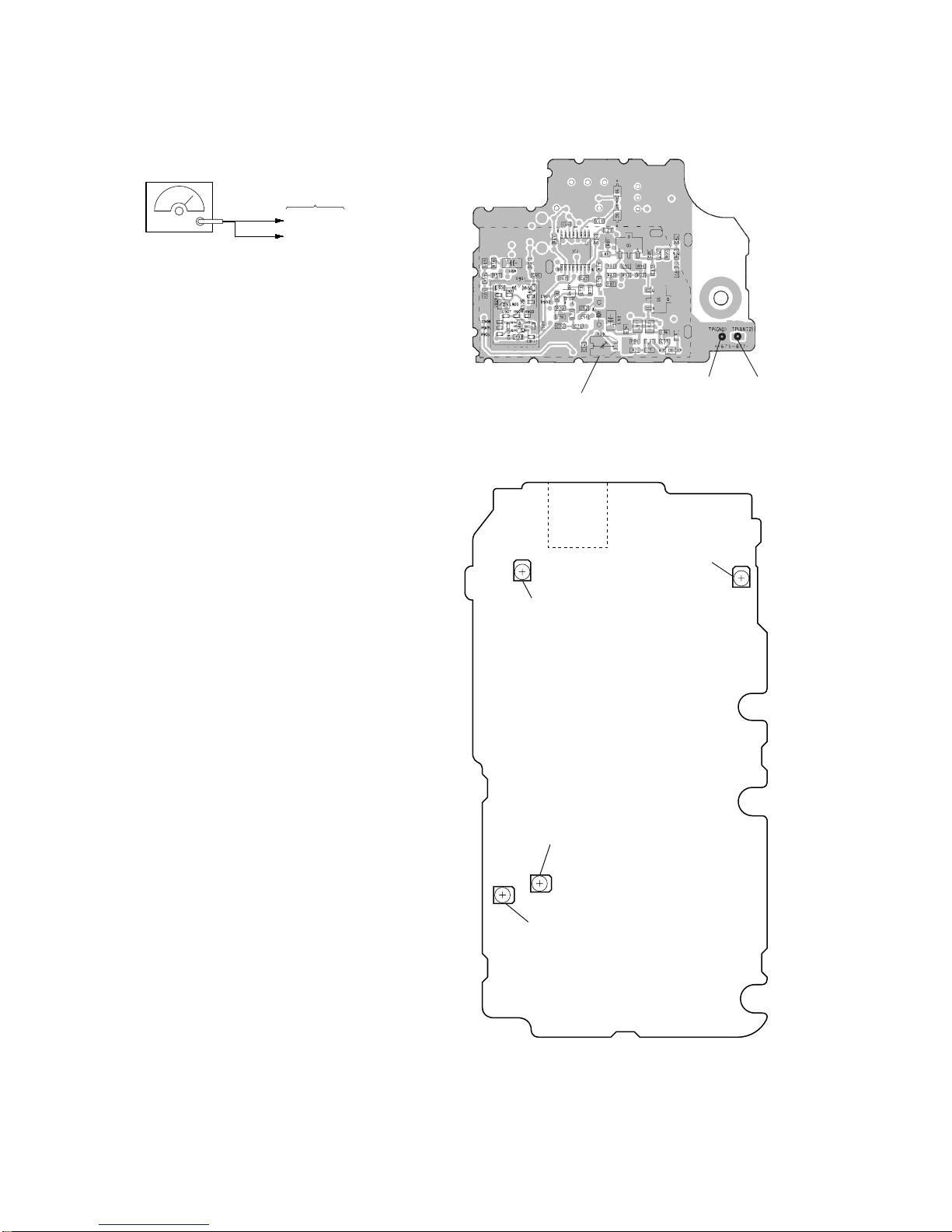

Adjustment Location:
– RF BOARD (Side A) –
J102
RV102
Squelch Adjustment
RV107
TX Power Adjustment
RV104
Tone Modulation Adjustment
RV103
Modulation Sensitivity
Adjustment
– MICRO COMPUTER BOARD (Side A) –
TP (GND) TP (ANT2)
C53 PLL Reference
Frequency Adjustment

ICB-U655
– 9 – – 10 – – 11 –

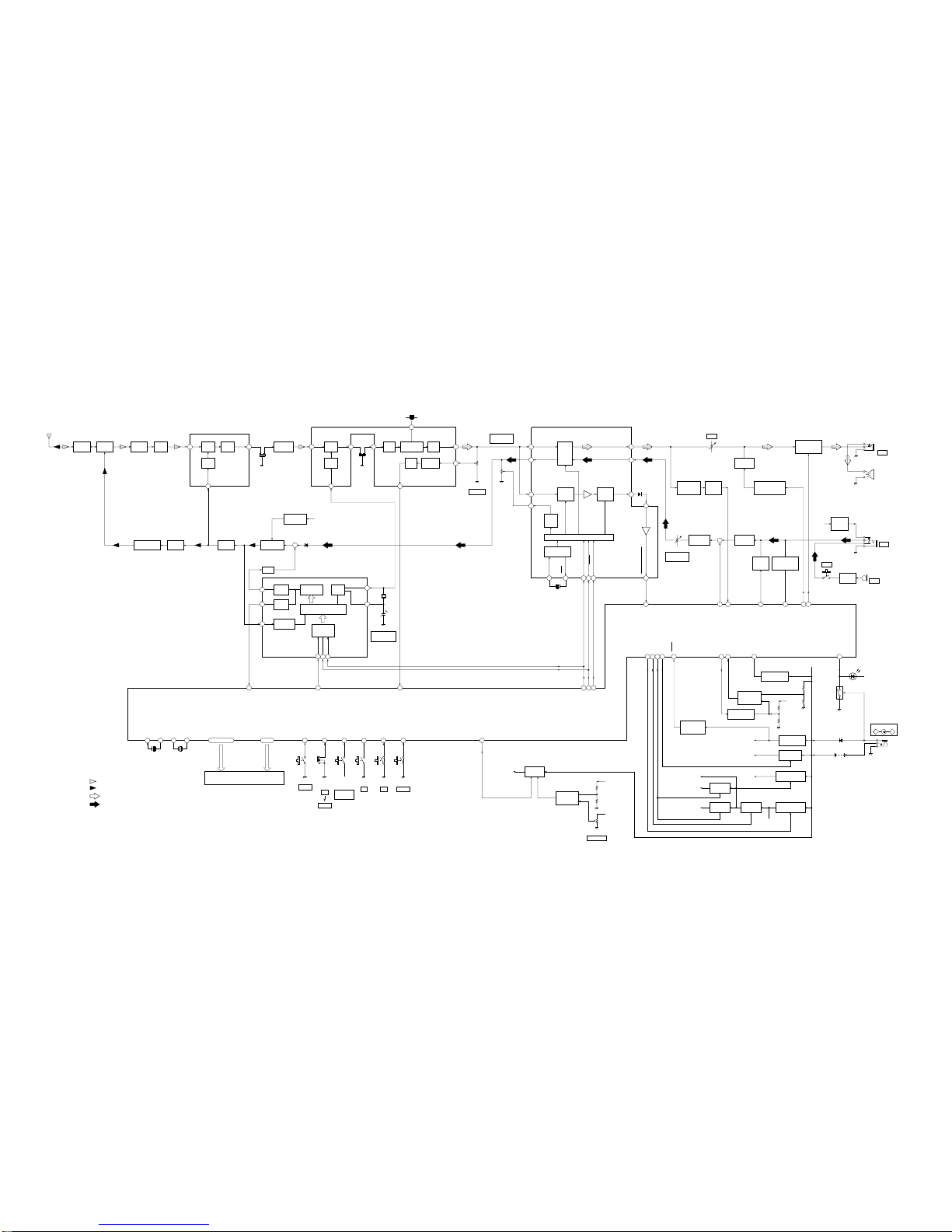

5-1. BLOCK DIAGRAM
SECTION 5
DIAGRAMS
1st MIX,
1st IF AMP
IC1
05
•SIGNAL PATH
: RF (RX)
: RF (TX)
: AF (RX)
: AF (TX)
BATT B+
76
5
13
2
CPU B+
SYSTEM CONTROLLER (IC101) B+
POWER AMP (IC102) B+
PLL B+
CTCSS ENCODER/
DECODER (IC109) B+
TX SYSTEM B+
TX
SYSTEM B+
AUDIO
CIRCUIT B+
RX SYSTEM B+
AUDIO CIRCUIT B+
BATT B+
Q120
LED DRIVE
D106
(LCD BACK LIGHT)
D104
2.9V
B+
(2.9V)
CPU B+
LCD1 – LCD17 LCD18, LCD19
SP101
(SPEAKER)
PLL B+
X103
1MHz
D102
RX AUDIO OUT
TX AUDIO IN
TONE
DECODE
OUT
RX
AUDIO IN
TX
AUDIO OUT
TONE
IN
TX TONE
OUT
RV104
RF
IN
LO IN
IF
OUT
LOW PASS
FILTER SWITCH
D1 – 3 RF AMP
Q1
TX POWER AMP
Q6 RF AMP
Q4, 5 BUFFER
Q3 VCO BUFFER Q901
LIQUID CRYSTAL DISPLAY
LCD101
BUFFER
IC106 (1/2) AF AMP
IC106 (2/2)
TX MUTE
SWITCH
Q117
VOLTAGE DETECT
IC105
COMPARATOR
IC103 (2/2)
COMPARATOR
IC103 (1/2)
BATTERY CHECK
Q114
+3V REGULATOR
IC110
+2.9V REGULATOR
IC111
+2.9V REGULATOR
IC107
B+ SWITCH
Q113
B+ SWITCH
Q121
B+ SWITCH
Q122
B+ SWITCH
Q123 – 125
B+ SWITCH
Q126
RESET SIGNAL
GENERATOR
IC104
B+
SWITCH
Q119
MIC AMP
Q118
MUTING CONTROL
SWITCH
Q112
MUTING
Q108, 110
AF POWER AMP
IC102
WAVE
SHAPER
Q102, 103
TONE DETECT
AMP
Q101
TONE OUT
DETECT SWITCH
Q115, 116
L.P.F.
RIPPLE FILTER
Q7
B.P.F.
BPF1 2nd IF AMP Q2
RV102
SQUELCH
RV104
TONE
MODULATION
RV103
MODULATION
SENSITIVITY
RV107
TX POWER
1st
MIX
LOCAL
OSC
1st IF
AMP
ANT1
(ANTENNA)
462.5625MHz to 467.7125MHz
462MHz to 468MHz XF1
21.7MHz
LED V2-DET
SEGMENT
COMMON
X1 X2 XT1 XT2
POWER
TONE DET
D3/SERIAL DATA D2/SERIAL CLK
DECODE
COM IN
QUAD
67
V1-IN
66
V1-OUT
37
RESET
68
AF POWER
34
TX/RX
32
POWER SAVE
31
MAIN +B
53
CARIA
63
29
38
64
P10
42
PTT
39
1kHz OUT
52
TX MUTE
36
MUTE
35
BEEP
51
7
XTAL/CLK
2
XTAL
3
X101
4.194304MHz
58 59
X102
32.768kHz
55 56
8 4 13
15
14
19
22
23
20
24
16
10
1
3 1 13
6
2nd MIX, 3rd IF AMP, DET
IC2 CTCSS ENCODER/DECODER
IC109
SYSTEM CONTROLLER
IC101
MIX
IN
OSC IN N-DET
MIX
OUT IF
IN
2nd
MIX
LOCAL
OSC
3rd IF
AMP L.P.F. AUDIO
FILTER
TONE IN/
DECODE
FILTER
TONE
DECODE
LOGIC
TONE
OUT
FILTER
CLOCK
GENERATOR
DIGITAL INTERFACE
FILTER/
NOISE AMP
NOISE
DET
QUADRATURE
DET
16 3
AF
OUT 9
FIL IN 8
5
CF1
450kHz
CF2
450kHz
RX TONE DET OUT LOAD/LATCH
PLL FREQUENCY
SYNTHESIZER
IC3
XIN
DO
LD
FIN
LE
11
CLK
9
DATA
LE
LD
SQL
STRB
CLOCK
DATA
10
6043 45 61 62 13
2
XOUT 1
5
14
8
CHARGE
PUMP
LOCK
DET
PHASE
COMPARATOR OSC
CIRCUIT
PROGRAMMABLE
DIVIDER/COUNTER
SHIFT
REGISTER &
LATCH C53
PLL REFERENCE
FREQUENCY
X1
21.25MHz
D901
RV106
VOL
MIC101
MIC
S107
TALK
S101
POWER S102
(CH/GROUP)
J102
MIC
J101
SP @
+
PRESCALER
76 – 80, 1 – 12 21, 22
LBL
44
S103
LIGHT/BATT
H
CH (+)
46
S104
+
CH (–)
50
S106
–
T/C
40
MODE
47
S105
MODE
CH
GROUP
DRY BATTERY
SIZE “AA”
(IEC DESIGNATION R6)
3PCS. 4.5V
J103
DC IN 4.5V
–+
+

ICB-U655
– 15 – – 16 – – 17 – – 18 –
5-3. SCHEMATIC DIAGRAM • See page 19 forWaveforms. •See page 20 for IC Block Diagrams.

– 19 – – 20 – – 21 – – 22 –

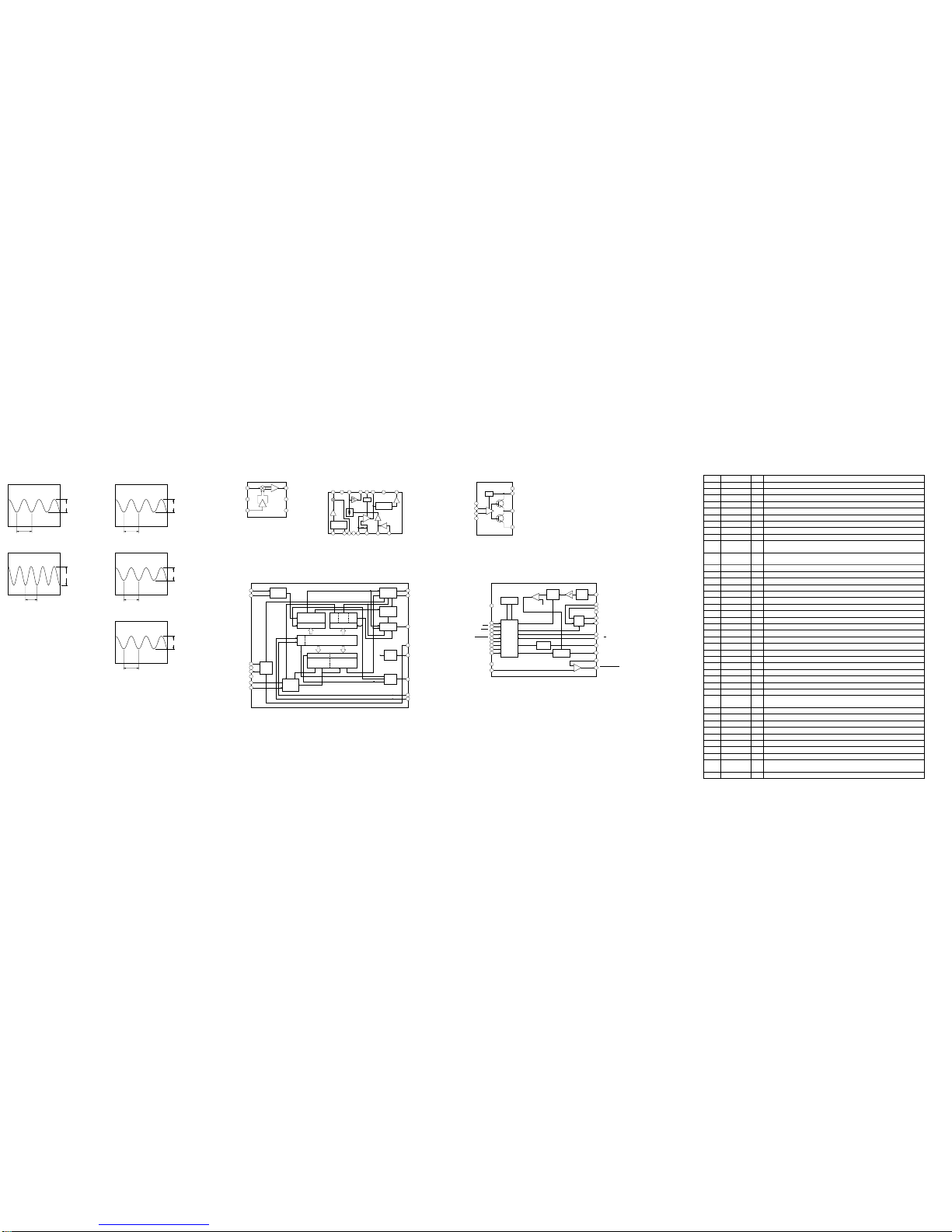

• Waveforms
– RF Board –
1IC2 1(OSC IN) (TX mode)
500 mV/DIV, 20 ns/DIV
2IC3 1(OSC IN) (TX mode)
500 mV/DIV, 20 ns/DIV 4IC101 %∞ (XT1) (RX/TX mode)
1 V/DIV, 10 µs/DIV
5IC101 %• (X1) (RX/TX mode)
1 V/DIV, 100 ns/DIV
– MICRO COMPUTER Board –
3IC109 2(XTAL) (TX mode)
1 V/DIV, 500 ns/DIV
940 mVp-p
47.1 ns
1.6 Vp-p
47.1 ns
2.7 Vp-p
1
µ s
2.5 Vp-p
30.5
µ s
2.3 Vp-p
238 ns
• IC Block Diagrams
– RF Board –
IC1 µPC2757T-E3
IF OUT
VCC
POWER
SAVE
RF IN
GND
LO IN
6
5
4
1
2
3
IC3 MB15E03LPFV1-G-BND-ER
LOCAL
OSCILLATION
RSSI
QUADRATURE
DETECTION
12 3 45 6 7 8
9
10
16 15 14 13 12 11
NOISE
AMP
FILTER
AMP
IF AMP
BUFFER
MIXER
DETECTOR
NOISE
COMPARATOR
MIX IN GND N-REC N-DET RSSI IF OUT QUAD AF OUT
OSC IN
OSC OUT
MIX OUT
VCC
IF IN
DEC
FIL OUT
FIL IN
L.P.F
fr
fp
VP
VCC
DO
φR
φP
SUPER
CHARGER
CONTROL
1 BIT
POWER
SAVE
CIRCUIT
PHASE
COMPARATOR
DIGITAL LOCK
DETECT
CIRCUIT
SELECT
CIRCUIT
PRESCALER
64/65
128/129
CRYSTAL
OSCILLATOR
CIRCUIT
5
OSC OUT 2
4
3
OSC IN 1
XFIN 7
GND 6
FIN 8
16
15
LD/FOUT
14
LE
11
DATA
10 CLOCK
9
PS
12
ZC
13
14 BIT LATCH
BINARY 14 BIT
REFERENCE COUNTER
3 BIT LATCH
SW FC LDS
11 BIT LATCH7 BIT LATCH
BINARY 7 BIT
SWALLOW
COUNTER
BINARY 11 BIT
PROGRAMMABLE
COUNTER
19 BIT
SHIFT REGISTER
CNT
IC2 TA31136FN
– MICRO COMPUTER Board –
IC102 NJM2070M
NC
+IN
–IN
GND
NC
VCC
OUTPUT
POWER GND
2
3
4
1
6
5
7
8
BIAS
+
–
IC109 MX165CDW-TR
CLK/XTAL
CLK/XTAL
CLK
CLK
TONE IN
VREF
D0 – D10
A0 – A5
VDD
XTAL/CLK
XTAL
D5/SERIAL EN 1
D4/SERIAL EN 2
D3/SERIAL DATA
D1/DATAIN 1
D0/DATAIN 0
D2/SERIAL CLK
VSS
DECODE
COMPARATOR REF.
DIGITAL
INTERFACE &
CLOCK
GENERATOR
TONE
ROM
TONE
DECODE
FILTER
TONE IN
PULSE
AUDIO
FILTER
TONE OUT
FILTER TONE DECODE
LOGIC
24
RX AUDIO IN
23 TX AUDIO IN
22 BIAS
21
TX AUDIO OUT
20
RX AUDIO OUT
19
PTL
18
TX TONE OUT
16
RX TONE OUT
15
17
1
2
4
5
6
7
8
9
10
11
12
3
+
–
+
–
LOAD/LATCH
RX/TX
13 RX TONE DET OUT
14 DECODE
COMPARATOR IN
•MICRO COMPUTER BOARD IC101 µPD753012AGC-F00-3B9 (SYSTEM CONTROLLER)
Pin No. Pin Name I/O Description
1 to 12 LCD6 to LCD17 OSegment drive signal output to the liquid crystal display (LCD101)
13 STRB OSerial data latch pulse output to the CTCSS encoder/decoder (IC109)
14 to 20 ——Not used (open)
21, 22 LCD18, LCD19 OCommon drive signal output to the liquid crystal display (LCD101)
23, 24 ——Not used (open)
25 BIAS OLiquid crystal display drive bias control output terminal
26 to 28 VLC0 to VLC2 —Terminal for doubler circuit capacitor connection to develop liquid crystal display drive voltage
29 LED OLED drive signal output for the LCD back light on/off control “L”: LED on
30 ——Not used (open)
31 POWER SAVE OPower save control signal output terminal
“L”: power on, “H”: power off (when receive, squelch on mode)
32 TX/RX OPower supply control signal output for the transmit/receive selection
“L”: receive, “H”: transmit
33 VSS —Ground terminal
34 AF POWER OPower supply on/off control signal output of the power amplifier (IC102) “L”: power on
35 MUTE O Muting on/off control signal output for the receiver system “L”: muting on
36 TX MUTE OMuting on/off control signal output for the transmit system “H”: muting on
37 V1-OUT OControl signal output for the battery detection circuit
38 POWER IPOWER switch (S101) input terminal “L” is input when key pushing
39 PTT I Transmit detection signal input terminal
40 T/C ICH/GROUP switch (S102) input terminal “L”: CH, “H”: GROUP
41 ——Not used (open)
42 P10 ITone detection signal input terminal
43 LD ISynthesizer unlock detection signal input from the PLL frequency synthesizer (IC3)
44 LBL ILIGHT/BATT Hswitch (S103) input terminal “H” is input when key pushing
45 SQL ISquelch detection signal input from the TA31136FN (IC2) AF signal mute when “L” input
46 CH (+) ICH (+) switch (S104) input terminal “L” is input when key pushing
47 MODE IMODE switch (S105) input terminal “L” is input when key pushing
48 MONITOR INot used (open)
49 ——Not used (open)
50 CH (–) ICH (–) switch (S106) input terminal “L” is input when key pushing
51 BEEP O Beep sound signal output to the power amplifier (IC102)
52 1kHz OUT O1 kHz signal output for the search mode
53 MAIN +B OMain system power supply (+2.9V) on/off control signal output terminal
“L”: power off, “H”: power on
54 VDD —Power supply terminal (+3V)
55 XT1 ISub system clock input terminal (32.768 kHz)
56 XT2 OSub system clock output terminal (32.768 kHz)
57 IC —Internal connection terminal (connected to power supply (+3V))
58 X1 IMain system clock input terminal (4.194304 MHz)
59 X2 OMain system clock output terminal (4.194304 MHz)
60 LE OSerial data latch pulse output to the PLL frequency synthesizer (IC3)
61 DATA OSerial data output to the CTCSS encoder/decoder (IC109) and PLL frequency synthesizer (IC3)
62 CLOCK OSerial data transfer clock signal output to the CTCSS encoder/decoder (IC109) and PLL
frequency synthesizer (IC3)
63 CARIA OTransmit system power supply on/off control signal output terminal “H” active
5-4. IC PIN FUNCTION DESCRIPTION

– 23 –
Pin No. Pin Name I/O Description
64 TONE DET ITone detection signal input from the CTCSS encoder/decoder (IC109)
65 TEST INot used (open)
66 V1-IN IBattery detection signal input terminal
67 V2-DET IVoltage detection signal input terminal
68 RESET I System reset signal input from the reset signal generator (IC104) “L”: reset
“L” is input for several 100 msec after power on, then it changes to “H”
69 to 75 — — Not used (open)
76 to 80 LCD1 to LCD5 OSegment drive signal output to the liquid crystal display (LCD101)

– 24 –
(1) CABINET SECTION
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
r A
SP101
1
2
4
789
10 11
12
13
14
15
16
17
#1
r B
ANT1
#2
5
6
3
18
19
20
22
24
25
26
12
21
(includeing r D)
23
(includeing
r A, r B,
r C)
27
28
29
30
r C
r D
31
32
33
1 X-3372-841-1 CABINET (FRONT) ASSY
2 3-939-933-01 BUTTON (LIGHT)
3 3-014-647-01 RING (+. – B)
4 3-939-934-01 BUTTON (+. –)
5 3-007-309-01 BUTTON (MODE)
6 3-010-670-01 RING (+. –)
7 3-939-925-01 PANEL (YELLOW)
7 3-939-925-11 PANEL (GRAY)
8 3-939-926-11 PLATE, TRANSPARENT
9 3-939-927-01 SHEET (TRANSPARENT), ADHESIVE
10 3-939-932-01 BUTTON (PTT)
11 3-010-671-01 RING (PTT)
12 3-374-079-01 SCREW (1.7X5), TAPPING
13 X-3367-452-2 PLATE (ANT) ASSY, CONTACT
14 3-939-935-01 PACKING (JACK)
15 3-907-103-01 SPRING, RING
16 3-385-706-01 RIVET
17 X-3372-835-1 CABINET (REAR) ASSY
18 3-929-675-01 PACKING (MIC/SP)
19 3-910-807-01 SCREW (2X8), SPECIAL
20 3-939-942-01 GUARD
21 3-007-314-01 CLIP (COMBIND)
(including rD: LOCK (BATTERY))
22 3-372-849-01 SCREW (M3), ORNAMENTAL
23 3-007-313-01 LID (COMBINED), BATTERY CASE (including
rA: KNOB (CH), rB: KNOB (VOL),
rC: COVER (GUARD))
24 3-939-936-01 PACKING (BATTERY)
25 3-907-746-01 SPRING (+/–. A), BATTERY
26 3-907-745-01 SPRING (–), BATTERY
27 3-907-747-01 SPRING (+/–. B), BATTERY
28 3-919-944-01 TERMINAL (+), BATTERY
29 3-383-954-01 SCREW
30 3-669-481-05 PIN (DIA. 1X15), PARALLEL
31 3-918-962-01 SHEET (WATERPROOF)
32 3-907-737-01 PACKING (DC)
33 3-378-310-01 ADAPTOR (SELECTION)
ANT1 X-3377-309-1 ANTENNA ASSY (ALL)
SP101 1-504-946-11 SPEAKER (3.6cm)

– 25 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(2) CHASSIS SECTION
not supplied
not supplied
(MICRO COMPUTER board)
59
not supplied
(RF board)
LCD101
53
52
54
55
57
58
#3
52 3-907-107-01 PACKING (MIC)
53 3-939-940-01 CASE
54 1-694-160-11 CONDUCTIVE BOARD, CONNECTION
55 3-939-939-01 PLATE, LIGHT GUIDE
57 1-650-569-11 FLEXIBLE BOARD
58 3-037-796-01 CUSHION (CR T1)
*59 A-3638-725-A CHASSIS ASSY (Including MICRO COMPUTER
BOARD and RF BOARD)
LCD101 1-803-573-11 PANEL, LIQUID CRYSTAL DISPLAY
Ver 1.1 1999. 05

– 26 –
SECTION 7
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MICRO COMPUTER
*A-3638-725-A CHASSIS ASSY (Including MICRO COMPUTER
BOARD and RF BOARD)
1-694-160-11 CONDUCTIVE BOARD, CONNECTION
3-907-107-01 PACKING (MIC/SP)
3-939-939-01 PLATE, LIGHT GUIDE
3-939-940-01 CASE
< CAPACITOR >
C102 1-104-908-11 TANTALUM CHIP 47uF 20% 4V
C103 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C104 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C105 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C106 1-135-334-11 TANTALUM CHIP 100uF 20% 6.3V
C107 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C108 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C109 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C110 1-115-156-11 CERAMIC CHIP 1uF 10V
C111 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C112 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C114 1-135-334-11 TANTALUM CHIP 100uF 20% 6.3V
C115 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C117 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C118 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C119 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C120 1-113-619-11 CERAMIC CHIP 0.47uF 10V
C121 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C122 1-113-619-11 CERAMIC CHIP 0.47uF 10V
C123 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C124 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C125 1-135-334-11 TANTALUM CHIP 100uF 20% 6.3V
C126 1-115-156-11 CERAMIC CHIP 1uF 10V
C127 1-104-847-11 TANTALUM CHIP 22uF 20% 4V
C128 1-162-921-11 CERAMIC CHIP 33PF 5% 50V
C129 1-162-921-11 CERAMIC CHIP 33PF 5% 50V
C130 1-162-916-11 CERAMIC CHIP 12PF 5% 50V
C131 1-162-916-11 CERAMIC CHIP 12PF 5% 50V
C132 1-115-156-11 CERAMIC CHIP 1uF 10V
C133 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C134 1-115-156-11 CERAMIC CHIP 1uF 10V
C135 1-115-156-11 CERAMIC CHIP 1uF 10V
C136 1-115-156-11 CERAMIC CHIP 1uF 10V
C137 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C138 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C139 1-110-967-11 TANTALUM CHIP 100uF 20% 4V
C140 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V
C141 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C142 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C143 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C145 1-165-176-11 CERAMIC CHIP 0.047 10% 16V
C147 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C148 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C149 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C151 1-115-156-11 CERAMIC CHIP 1uF 10V
C201 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C202 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C206 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V
C207 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V
C208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C209 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V
C210 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V
C211 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C212 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C213 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C214 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C215 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C216 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C217 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C220 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C221 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C222 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C223 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C224 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C225 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
CN101 1-764-370-11 HOUSING, FPC CONNECTOR (ZIF) 16P
< DIODE >
D102 8-719-988-61 DIODE 1SS355TE-17
D104 8-719-048-98 DIODE RB160L-40TE25
D105 8-719-988-61 DIODE 1SS355TE-17
D106 8-719-027-34 LED LN1361C (LCD BACK LIGHT)
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
When indicating parts by reference
number, please include the board.
Ver 1.1 1999. 05

– 27 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< IC >
IC101 8-759-589-60 IC uPD753012AGC-F00-3B9
IC102 8-759-046-84 IC NJM2070M
IC103 8-759-701-01 IC NJM2904M
IC104 8-759-586-14 IC RN5VT19AA-TL
IC105 8-759-586-16 IC RN5VL30AA-TL
IC106 8-759-701-01 IC NJM2904M
*IC107 8-759-525-40 IC TK11229BMCL
IC109 8-759-442-82 IC MX165CDW-TR
IC110 8-759-448-39 IC RH5RL30AA-T1
*IC111 8-759-525-40 IC TK11229BMCL
< JACK >
J101 1-569-215-11 JACK (SP @)
J102 1-573-996-21 JACK, SMALL (WATERPROOF) (MIC)
J103 1-691-099-11 JACK, DC (POLARITY UNIFIED TYPE)
(DC IN 4.5V)
< COIL/RESISTOR >
L101 1-412-967-31 INDUCTOR 0.1uH
L102 1-412-967-31 INDUCTOR 0.1uH
L103 1-412-967-31 INDUCTOR 0.1uH
L104 1-216-864-11 METAL CHIP 0 5% 1/16W
L105 1-216-864-11 METAL CHIP 0 5% 1/16W
< LIQUID CRYSTAL DISPLAY >
LCD101 1-803-573-11 PANEL, LIQUID CRYSTAL DISPLAY
< MIC >
MIC101 1-542-168-11 MICROPHONE, ELECTRET CONDENSER (MIC)
< TRANSISTOR >
Q101 8-729-230-63 TRANSISTOR 2SC4116-YG
Q102 8-729-230-63 TRANSISTOR 2SC4116-YG
Q103 8-729-230-63 TRANSISTOR 2SC4116-YG
Q108 8-729-141-75 TRANSISTOR 2SD596DV345
Q110 8-729-141-75 TRANSISTOR 2SD596DV345
Q112 8-729-230-60 TRANSISTOR 2SA1586-YG
Q113 8-729-820-86 TRANSISTOR 2SB1121-ST
Q114 8-729-230-63 TRANSISTOR 2SC4116-YG
Q115 8-729-402-45 TRANSISTOR UN5212
Q116 8-729-924-25 TRANSISTOR DTA113ZU
Q117 8-729-230-63 TRANSISTOR 2SC4116-YG
Q118 8-729-230-63 TRANSISTOR 2SC4116-YG
Q119 8-729-230-60 TRANSISTOR 2SA1586-YG
Q120 8-729-402-45 TRANSISTOR UN5212
Q121 8-729-928-64 TRANSISTOR DTA123YE-TL
Q122 8-729-928-64 TRANSISTOR DTA123YE-TL
Q123 8-729-402-45 TRANSISTOR UN5212
Q124 8-729-230-63 TRANSISTOR 2SC4116-YG
Q125 8-729-820-86 TRANSISTOR 2SB1121-ST
*Q126 8-729-044-67 TRANSISTOR UMC5N-TR
< RESISTOR >
R101 1-216-833-11 METAL CHIP 10K 5% 1/16W
R102 1-220-397-11 RES, CHIP 4.7M 5% 1/16W
R103 1-216-841-11 METAL CHIP 47K 5% 1/16W
R104 1-216-856-11 METAL CHIP 820K 5% 1/16W
R105 1-216-841-11 METAL CHIP 47K 5% 1/16W
R106 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R107 1-216-833-11 METAL CHIP 10K 5% 1/16W
R108 1-216-845-11 METAL CHIP 100K 5% 1/16W
R109 1-216-841-11 METAL CHIP 47K 5% 1/16W
R111 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R112 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R113 1-216-833-11 METAL CHIP 10K 5% 1/16W
R115 1-216-817-11 METAL CHIP 470 5% 1/16W
R118 1-216-821-11 METAL CHIP 1K 5% 1/16W
R122 1-216-821-11 METAL CHIP 1K 5% 1/16W
R124 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R126 1-216-797-11 METAL CHIP 10 5% 1/16W
R127 1-216-841-11 METAL CHIP 47K 5% 1/16W
R128 1-216-789-11 RES, CHIP 2.2 5% 1/16W
R129 1-216-845-11 METAL CHIP 100K 5% 1/16W
R130 1-216-845-11 METAL CHIP 100K 5% 1/16W
R131 1-216-809-11 METAL CHIP 100 5% 1/16W
R132 1-216-797-11 METAL CHIP 10 5% 1/16W
R134 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R135 1-216-857-11 METAL CHIP 1M 5% 1/16W
R138 1-216-864-11 METAL CHIP 0 5% 1/16W
R139 1-216-857-11 METAL CHIP 1M 5% 1/16W
R140 1-216-845-11 METAL CHIP 100K 5% 1/16W
R143 1-216-857-11 METAL CHIP 1M 5% 1/16W
R144 1-216-845-11 METAL CHIP 100K 5% 1/16W
R146 1-216-857-11 METAL CHIP 1M 5% 1/16W
R147 1-216-845-11 METAL CHIP 100K 5% 1/16W
R148 1-216-817-11 METAL CHIP 470 5% 1/16W
R150 1-216-809-11 METAL CHIP 100 5% 1/16W
R152 1-216-849-11 METAL CHIP 220K 5% 1/16W
R153 1-216-845-11 METAL CHIP 100K 5% 1/16W
R154 1-216-853-11 METAL CHIP 470K 5% 1/16W
R156 1-216-833-11 METAL CHIP 10K 5% 1/16W
R157 1-216-857-11 METAL CHIP 1M 5% 1/16W
R158 1-216-845-11 METAL CHIP 100K 5% 1/16W
R160 1-216-845-11 METAL CHIP 100K 5% 1/16W
R163 1-216-841-11 METAL CHIP 47K 5% 1/16W
R164 1-216-835-11 METAL CHIP 15K 5% 1/16W
R165 1-216-857-11 METAL CHIP 1M 5% 1/16W
R168 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R169 1-216-859-11 RES, CHIP 1.5M 5% 1/16W
R172 1-216-833-91 METAL CHIP 10K 5% 1/16W
R173 1-216-845-11 METAL CHIP 100K 5% 1/16W
R174 1-216-833-11 METAL CHIP 10K 5% 1/16W
R176 1-216-833-11 METAL CHIP 10K 5% 1/16W
R177 1-216-809-11 METAL CHIP 100 5% 1/16W
R178 1-216-841-11 METAL CHIP 47K 5% 1/16W
R179 1-216-841-11 METAL CHIP 47K 5% 1/16W
R180 1-216-841-11 METAL CHIP 47K 5% 1/16W
R181 1-216-841-11 METAL CHIP 47K 5% 1/16W
R182 1-216-817-11 METAL CHIP 470 5% 1/16W
R183 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R184 1-216-851-11 METAL CHIP 330K 5% 1/16W
R185 1-216-845-11 METAL CHIP 100K 5% 1/16W
R186 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R187 1-216-845-11 METAL CHIP 100K 5% 1/16W
MICRO COMPUTER

– 28 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R188 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R189 1-216-817-11 METAL CHIP 470 5% 1/16W
R190 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R193 1-216-805-11 METAL CHIP 47 5% 1/16W
R194 1-216-831-11 METAL CHIP 6.8K 5% 1/16W
R195 1-216-817-11 METAL CHIP 470 5% 1/16W
R198 1-216-833-11 METAL CHIP 10K 5% 1/16W
R199 1-216-833-11 METAL CHIP 10K 5% 1/16W
R200 1-216-853-11 METAL CHIP 470K 5% 1/16W
R201 1-216-837-11 METAL CHIP 22K 5% 1/16W
R202 1-216-857-11 METAL CHIP 1M 5% 1/16W
R203 1-216-817-11 METAL CHIP 470 5% 1/16W
R251 1-216-819-11 METAL CHIP 680 5% 1/16W
R252 1-216-833-11 METAL CHIP 10K 5% 1/16W
R253 1-216-817-11 METAL CHIP 470 5% 1/16W
R254 1-216-864-11 METAL CHIP 0 5% 1/16W
R255 1-216-809-11 METAL CHIP 100 5% 1/16W
R256 1-216-797-11 METAL CHIP 10 5% 1/16W
R257 1-216-797-11 METAL CHIP 10 5% 1/16W
R258 1-216-797-11 METAL CHIP 10 5% 1/16W
R259 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R260 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R261 1-216-821-11 METAL CHIP 1K 5% 1/16W
R262 1-216-839-11 METAL CHIP 33K 5% 1/16W
R263 1-216-833-11 METAL CHIP 10K 5% 1/16W
R264 1-216-833-11 METAL CHIP 10K 5% 1/16W
R265 1-216-845-11 METAL CHIP 100K 5% 1/16W
R266 1-216-833-11 METAL CHIP 10K 5% 1/16W
R267 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R270 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R271 1-216-835-11 METAL CHIP 15K 5% 1/16W
R272 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R274 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R277 1-216-833-11 RES, CHIP 10K 5% 1/16W
R278 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R279 1-216-833-11 RES, CHIP 10K 5% 1/16W
R280 1-216-864-11 METAL CHIP 0 5% 1/16W
< VARIABLE RESISTOR >
RV102 1-225-206-11 RES, ADJ, CERMET 22K
RV103 1-225-205-11 RES, ADJ, CERMET 10K
RV104 1-225-206-11 RES, ADJ, CERMET 22K
RV106 1-223-505-11 RES, VAR, CARBON 20K (VOL)
RV107 1-223-584-11 RES, ADJ, CERMET 2.2K
RV108 1-225-207-11 RES, ADJ, CERMET 47K
< SWITCH >
S101 1-572-499-11 SWITCH, TACTIL (POWER)
S102 1-572-272-11 SWITCH, SLIDE (CH, GROUP)
S103 1-572-473-11 SWITCH, TACTIL (LIGHT/BATT, H)
S104 1-572-473-11 SWITCH, TACTIL (+)
S105 1-572-473-11 SWITCH, TACTIL (MODE)
S106 1-572-473-11 SWITCH, TACTIL (–)
S107 1-572-499-11 SWITCH, TACTIL (TALK)
< VIBRATOR >
X101 1-767-192-11 VIBRATOR, CERAMIC (4.194304MHz)
X102 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz)
X103 1-760-158-11 VIBRATOR, CERAMIC (1MHz)
************************************************************
*A-3638-725-A CHASSIS ASSY (Including MICRO COMPUTER
BOARD and RF BOARD)
< BAND PASS FILTER >
BPF1 1-234-333-11 BAND PASS FILTER
< CAPACITOR >
C1 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V
C3 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V
C4 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C5 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C6 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C7 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C8 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C11 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C12 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V
C13 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V
C14 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C16 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C21 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C22 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C23 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C25 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C31 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C32 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C33 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C34 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C35 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C41 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C42 1-164-382-11 CERAMIC CHIP 91PF 5% 50V
C43 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C44 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C45 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C46 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C47 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C48 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C49 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C50 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C51 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V
C52 1-164-401-91 CERAMIC CHIP 12PF 5% 50V
C53 1-141-325-11 CAP, CHIP TYPE TRIMMER 5PF
C54 1-164-401-91 CERAMIC CHIP 12PF 5% 50V
C55 1-110-967-11 TANTALUM CHIP 100uF 20% 4V
C56 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C57 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C61 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C62 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C63 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C64 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C65 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C66 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C67 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V
C68 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C69 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
MICRO COMPUTER RF
Ver 1.1 1999. 05

– 29 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C71 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C72 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V
C73 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C74 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C75 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C78 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C79 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C81 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C82 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C84 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C85 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V
C87 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C92 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C93 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C94 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C96 1-164-237-11 CERAMIC CHIP 16PF 5% 50V
C97 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C98 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C901 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C902 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C903 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V
C906 1-162-939-11 CERAMIC CHIP 8PF 0.5PF 50V
C907 1-164-185-11 CERAMIC CHIP 13PF 5% 50V
C908 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C909 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C910 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V
C911 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
< CERAMIC FILTER >
CF1 1-767-311-11 FILTER, CERAMIC (450kHz)
CF2 1-760-894-11 FILTER, CERAMIC (DISCRIMINATOR) (450kHz)
< CONNECTOR >
CN1 1-764-370-11 HOUSING, FPC CONNECTOR (ZIF)16P
< DIODE >
D1 8-719-421-40 DIODE MA77
D2 8-719-055-23 DIODE HVU132TRF
D3 8-719-055-23 DIODE HVU132TRF
D4 8-719-421-40 DIODE MA77
D5 8-719-421-40 DIODE MA77
D6 8-719-421-40 DIODE MA77
D7 8-719-421-40 DIODE MA77
D901 8-719-064-32 DIODE HVC358BTRF
< FERRITE BEAD >
FB1 1-414-864-11 FERRITE 0uH
< IC >
IC1 8-759-586-15 IC uPC2757T-E3
IC2 8-759-249-18 IC TA31136FN
IC3 8-759-571-36 IC MB15E03LPFV1-G-BND-ER
< COIL/RESISTOR >
L2 1-414-733-21 INDUCTOR 100nH
L3 1-414-681-21 INDUCTOR 15nH
L4 1-414-681-21 INDUCTOR 15nH
L5 1-414-733-21 INDUCTOR 100nH
L6 1-414-733-21 INDUCTOR 100nH
L7 1-414-733-21 INDUCTOR 100nH
L8 1-414-733-21 INDUCTOR 100nH
L11 1-414-722-11 INDUCTOR 12nH
L12 1-414-725-11 INDUCTOR 22nH
L13 1-414-721-11 INDUCTOR 10nH
L21 1-412-983-31 INDUCTOR 2.2uH
L31 1-412-983-31 INDUCTOR 2.2uH
L32 1-412-983-31 INDUCTOR 2.2uH
L33 1-412-985-31 INDUCTOR 3.3uH
L71 1-414-725-11 INDUCTOR 22nH
L72 1-216-864-11 METAL CHIP 0 5% 1/16W
L73 1-414-725-11 INDUCTOR 22nH
L81 1-414-717-21 INDUCTOR 2.2nH
L82 1-414-722-11 INDUCTOR 12nH
L91 1-414-679-21 INDUCTOR 10nH
L92 1-414-676-21 INDUCTOR 3.3nH
L901 1-414-733-21 INDUCTOR 100nH
L902 1-414-727-11 INDUCTOR 33nH
L903 1-419-146-11 INDUCTOR
< TRANSISTOR >
Q1 8-729-016-85 TRANSISTOR 2SC4226 (R24)
Q2 8-729-423-52 TRANSISTOR 2SC3931-C
Q3 8-729-016-85 TRANSISTOR 2SC4226 (R24)
Q4 8-729-016-85 TRANSISTOR 2SC4226 (R24)
Q5 8-729-048-54 FET 2SK2795DXTL
Q6 8-729-048-83 FET 2SK3078 (TE12L)
Q7 8-729-230-63 TRANSISTOR 2SC4116-YG
Q901 8-729-041-82 TRANSISTOR UPA801T-T1/FB
< RESISTOR >
R1 1-216-817-11 METAL CHIP 470 5% 1/16W
R2 1-216-819-11 METAL CHIP 680 5% 1/16W
R11 1-216-841-11 METAL CHIP 47K 5% 1/16W
R12 1-216-819-11 METAL CHIP 680 5% 1/16W
R13 1-216-801-11 METAL CHIP 22 5% 1/16W
R21 1-216-801-11 METAL CHIP 22 5% 1/16W
R22 1-216-805-11 METAL CHIP 47 5% 1/16W
R31 1-216-843-11 METAL CHIP 68K 5% 1/16W
R32 1-216-819-11 METAL CHIP 680 5% 1/16W
R33 1-216-801-11 METAL CHIP 22 5% 1/16W
R41 1-216-801-11 METAL CHIP 22 5% 1/16W
R42 1-216-807-11 METAL CHIP 68 5% 1/16W
R43 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R44 1-216-847-11 METAL CHIP 150K 5% 1/16W
R45 1-216-833-11 RES, CHIP 10K 5% 1/16W
R46 1-216-845-11 METAL CHIP 100K 5% 1/16W
R51 1-216-801-11 METAL CHIP 22 5% 1/16W
R52 1-216-801-11 METAL CHIP 22 5% 1/16W
R56 1-216-833-11 METAL CHIP 10K 5% 1/16W
R57 1-216-821-11 METAL CHIP 1K 5% 1/16W
R58 1-216-813-11 METAL CHIP 220 5% 1/16W
R59 1-216-821-11 METAL CHIP 1K 5% 1/16W
R61 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R62 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
RF

– 30 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R63 1-216-799-11 METAL CHIP 15 5% 1/16W
R64 1-216-813-11 METAL CHIP 220 5% 1/16W
R71 1-216-843-11 METAL CHIP 68K 5% 1/16W
R72 1-216-801-11 METAL CHIP 22 5% 1/16W
R73 1-216-805-11 METAL CHIP 47 5% 1/16W
R74 1-216-805-11 METAL CHIP 47 5% 1/16W
R75 1-216-801-11 METAL CHIP 22 5% 1/16W
R76 1-216-839-11 METAL CHIP 33K 5% 1/16W
R77 1-216-815-11 METAL CHIP 330 5% 1/16W
R78 1-216-801-11 METAL CHIP 22 5% 1/16W
R79 1-216-864-11 METAL CHIP 0 5% 1/16W
R81 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R82 1-216-813-11 METAL CHIP 220 5% 1/16W
R83 1-216-833-11 METAL CHIP 10K 5% 1/16W
R84 1-216-797-11 METAL CHIP 10 5% 1/16W
R85 1-216-813-11 METAL CHIP 220 5% 1/16W
R91 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R92 1-216-813-11 METAL CHIP 220 5% 1/16W
R93 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R901 1-218-971-11 RES,CHIP 33K 5% 1/16W
R902 1-218-933-11 RES,CHIP 22 5% 1/16W
R903 1-218-961-11 RES,CHIP 4.7K 5% 1/16W
R904 1-218-961-11 RES,CHIP 4.7K 5% 1/16W
R905 1-218-943-11 RES,CHIP 150 5% 1/16W
R906 1-218-975-11 RES,CHIP 68K 5% 1/16W
< VIBRATOR >
X1 1-760-893-11 VIBRATOR, CRYSTAL (21.25MHz)
< CRYSTAL FILTER >
XF1 1-579-819-11 FILTER, CRYSTAL (21.7MHz)
************************************************************
MISCELLANEOUS
**************
57 1-650-569-11 FLEXIBLE BOARD
ANT1 X-3377-309-1 ANTENNA ASSY (ALL)
SP101 1-504-946-11 SPEAKER (3.6cm)
************************************************************
**************
HARDWARE LIST
**************
#1 7-624-118-01 RING, RETAINING E-2.5
#2 7-624-104-04 STOP RING 2.0, TYPE-E
#3 7-627-552-07 SCREW,PRECISION +P 1.7X2.5
************************************************************
ACCESSORIES & PACKING MATERIALS
**********************************
3-866-276-11 MANUAL, INSTRUCTION (ENGLISH)
RF
ICB-U655
Sony Corporation
Personal A&V Products Company
9-926-965-11
99C057020-1
Printed in Singapore © 1999. 3
Published by Quality Engineering Dept.
(Shinagawa)
