2
Precautions
Safety
• Operate the unit only on 120 V AC, 60 Hz.
• If anything falls into the cabinet, unplug the
unit and have it checked by qualified
personnel before operating it any further.
• This unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• Unplug the unit from the wall outlet if you
do not intend to use it for an extended
period of time. To disconnect the cord, pull
it out by the plug, never by the cord.
• One blade of the plug is wider than the
other for the purpose of safety and will fit
into the power outlet only one way. If you
are unable to insert the plug fully into the
outlet, contact your Sony dealer.
Installing
• Allow adequate air circulation to prevent
internal heat buildup.
• Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation
slots.
• Do not install the unit near heat sources
such as radiators or air ducts, or in a place
subject to direct sunlight, excessive dust,
mechanical vibration or shock.
• Do not install the unit in an inclined
position. It is designed to be operated in a
horizontal position only.
• Keep the unit and cassettes away from
equipment with strong magnets, such as
microwave ovens or large loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to
a warm location, moisture may condense
inside the VCR and cause damage to the
video head and tape. When you first install
the unit, or when you move it from a cold to
a warm location, wait for about three hours
before operating the unit.

3
* VCR Plus+, C3, ALLSET and PlusCode are trademarks of Gemstar Development Corporation. The
VCR Plus+ system is manufactured under license from Gemstar Development Corporation.
Table of contents
4Step 1: Unpacking
5Step 2: Setting up the remote commander
8Step 3: Hookups
9Audio/video (A/V) hookup
11 Hookup 1: Using cable box control
15 Hookup 2: No cable box, or incompatible cable box with only
a few scrambled channels
19 Hookup 3: Antenna hookup
23 Hookup 4: Incompatible cable box with many scrambled
channels
27 Hookup 5: DIRECTV digital satellite receiver
30 Hookup 6: Incompatible cable box with only a few scrambled
channels, using an A/B switch
35 Selecting a language
36 Setting the clock
42 Setting up the cable box control
47 Presetting channels
53 Setting up the VCR Plus+* GOLD system
59 General setup information
61 Index to parts and controls
back cover
Index

4
• Remote commander
• Size AA (R6) batteries
• Audio/video cable (3-phono, 1-mini
to 3-phono, 1-mini)
• Monaural cable (1-mini to 1-mini)
Step 1
Unpacking
Check that you have received the following items with the VCR:
• Cable Mouse (cable box controller)
• 75-ohm coaxial cable with F-type
connectors
• SmartFile labels

5
Step 2
Setting up the remote commander
Inserting the batteries
Insert two size AA (R6) batteries by
matching the + and – on the batteries
to the diagram inside the battery
compartment.
Insert the negative (–) end first, then
push in and down until the positive (+)
end clicks into position.
Using the remote commander
You can use this remote
commander to operate this VCR
and a Sony TV or AV receiver.
Buttons on the remote
commander marked with a dot
(•) can be used to operate your
Sony TV.
The RECEIVER VOL +/– and
MUTING buttons can be used to
operate your Sony AV receiver.
Remote sensor
MUTING
RECEIVER
VOL +/–
123
456
789
0
Set TV RECEIVER / VIDEO to
VIDEO and point at the remote sensor on the VCR
TV RECEIVER and point at the remote sensor on the TV or
AV receiver
To operate
the VCR
a Sony TV or
AV receiver
TV RECEIVER /
VIDEO
continued

6
Notes
• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove
the batteries to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
• Some Sony AV receivers may not be operated with the remote commander.
Controlling other TVs with the remote commander
The remote commander is preprogrammed to control non-Sony TVs. If your TV
is listed in the table below, set the appropriate manufacturer’s code number.
1Set TV RECEIVER / VIDEO at the top of the remote commander to
␣TV␣␣RECEIVER .
2Hold down `/1, and enter your TV’s code number(s) using the number
buttons. Then release `/1.
Now you can use the `/1 , VOL +/–, CH +/–, and TV/VIDEO buttons to
control your TV. You can also use the buttons marked with a dot (•) to control
a Sony TV. To control the VCR, reset TV RECEIVER / VIDEO to VIDEO .
Step 2: Setting up the remote commander (continued)

7
Notes
• If the TV uses a different remote control system from the one programmed to work
with the VCR, you cannot control your TV with the remote commander.
• If you enter a new code number, the code number previously entered will be erased.
• When you replace the batteries of the remote commander, the code number may
change. Set the appropriate code number every time you replace the batteries.
• When you press the AUDIO MONITOR button, your TV’s menu may appear on the
TV screen. To exit the TV menu, press the MENU button on the TV remote
commander or wait until the menu disappears automatically.
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until
you find the one that works with your TV.
Manufacturer Code
number
Sony 01
Akai 04
AOC 04
Centurion 12
Coronado 03
Curis-Mathes 12
Daytron 12
Emerson 03, 04, 14
Fisher 11
General Electric 06, 10
Gold Star 03, 04, 17
Hitachi 02, 03
J.C.Penny 04, 12
Manufacturer Code
number
JVC 09
KMC 03
Magnavox 03, 08, 12
Marantz 04, 13
MGA/Mitsubishi 04, 12, 13, 17
NEC 04, 12
Panasonic 06, 19
Philco 03, 04
Philips 08
Pioneer 16
Portland 03
Quasar 06, 18
Radio Shack 05, 14
Manufacturer Code
number
RCA 04, 10
Sampo 12
Sanyo 11
Scott 12
Sears 07, 10, 11
Sharp 03, 05, 18
Sylvania 08, 12
Teknika 03, 08, 14
Toshiba 07
Wards 03, 04, 12
Yorx 12
Zenith 15

8
Hookups
Selecting the best hookup option
There are many ways in which your VCR can be hooked up. To hook up
your VCR so that it works best for you, first scan through the table below.
Then use the accompanying diagrams and procedures on the following
pages to set up your VCR.
If you have Use Refer to
TV that has audio/video inputs Audio/video (A/V) hookup, then Pages 9 and 10
follow one of the hookups below.
Cable box that is compatible with the Hookup 1 Pages 11 to 14
VCR’s cable box control feature
No cable box or incompatible cable box Hookup 2 Pages 15 to 18
with only a few scrambled channels
Antenna only, no cable TV Hookup 3 Pages 19 to 22
Incompatible cable box with many Hookup 4 Pages 23 to 26
scrambled channels
DIRECTV* digital satellite receiver Hookup 5 Pages 27 to 29
Incompatible cable box with only a few Hookup 6 Pages 30 to 34
scrambled channels, using an A/B
switch
After you’ve completed the connections, follow the instructions for setup.
During setup, if you need more details on the procedure described, page
numbers are provided where you can find complete, step-by-step
instructions.
After you’ve completed the setup, you’re ready to use your VCR.
Procedures differ depending on the hookup you used. For an overview,
refer to “Quick reference to using the VCR” on the back cover of the
supplied operating instructions.
Before you get started
• Turn off the power to all equipment.
• Do not connect the AC power cords until all of the connections are
completed.
• Be sure you make connections firmly. Loose connections may cause
picture distortion.
• If your TV doesn’t match any of the examples provided, see your nearest
Sony dealer or qualified technician.
* DIRECTV is a trademark of DIRECTV, Inc., a unit of Hughes Electronics Corporation.
Step 3

9
Audio/video (A/V) hookup
If your TV has audio/video (A/V) input jacks, you will get a better picture
and sound if you hook up your VCR using these connections. In addition,
for a true “home theater” experience, you should connect the audio outputs
of your VCR or TV to your stereo system. If your TV doesn’t have A/V
inputs, see the following pages for antenna or cable hookups.
If your TV has the S-Link* (A/V bus control) function, hook up your VCR
using the connection shown on page 10. Your TV will automatically switch
to the A/V inputs for your VCR when you play back or operate menu on the
VCR.
If you’re not planning to use your VCR to record programs, you’re finished
setting up the VCR after you’ve made the connections shown on pages 9 and
10. If you want to record off-air or off your cable TV system, complete these
connections first, and then go to the following pages for antenna or cable
hookups.
* S-Linkis a trademark of Sony Corporation.
AUse this hookup if your TV has stereo jacks
Pages 9 and 10
Audio/video cable (supplied)
TV
VCR Stereo receiver
* Do not connect the miniplugs for this hookup.
TV
VCR Stereo receiver
BUse this hookup if your TV doesn’t have stereo jacks
continued
Audio cable (not supplied)
Video cable (not supplied)
Audio cable (not supplied)
LINE-1
IN
LINE
OUT
AUDIO VIDEO
IN
VIDEO
AUDIO
AUDIO OUT
AUX IN
*
*
VIDEO
AUDIO
IN
AUX IN
LINE-1
IN
LINE
OUT
AUDIO VIDEO

10
Note
• To play a tape in stereo, you must use the A/V connection.
CUse this hookup if your TV has the S-Linkfunction
A/V hookup: VCR setup
VCR
After you’ve connected your TV and completed antenna or cable hookup,
use the following procedure to set up the VCR.
Caution
Connections between the VCR’s VHF/UHF connector and the antenna terminals of
the TV receiver should be made only as shown in the following instructions. Failure
to do so may result in operation that violates the regulations of the Federal
Communications Commission regarding the use and operation of RF devices. Never
connect the output of the VCR to an antenna or make simultaneous (parallel) antenna
and VCR connections at the antenna terminals of your receiver.
Note to CATV system installer (in USA)
This reminder is provided to call the CATV system installer’s attention to Article 820-
40 of the NEC that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.

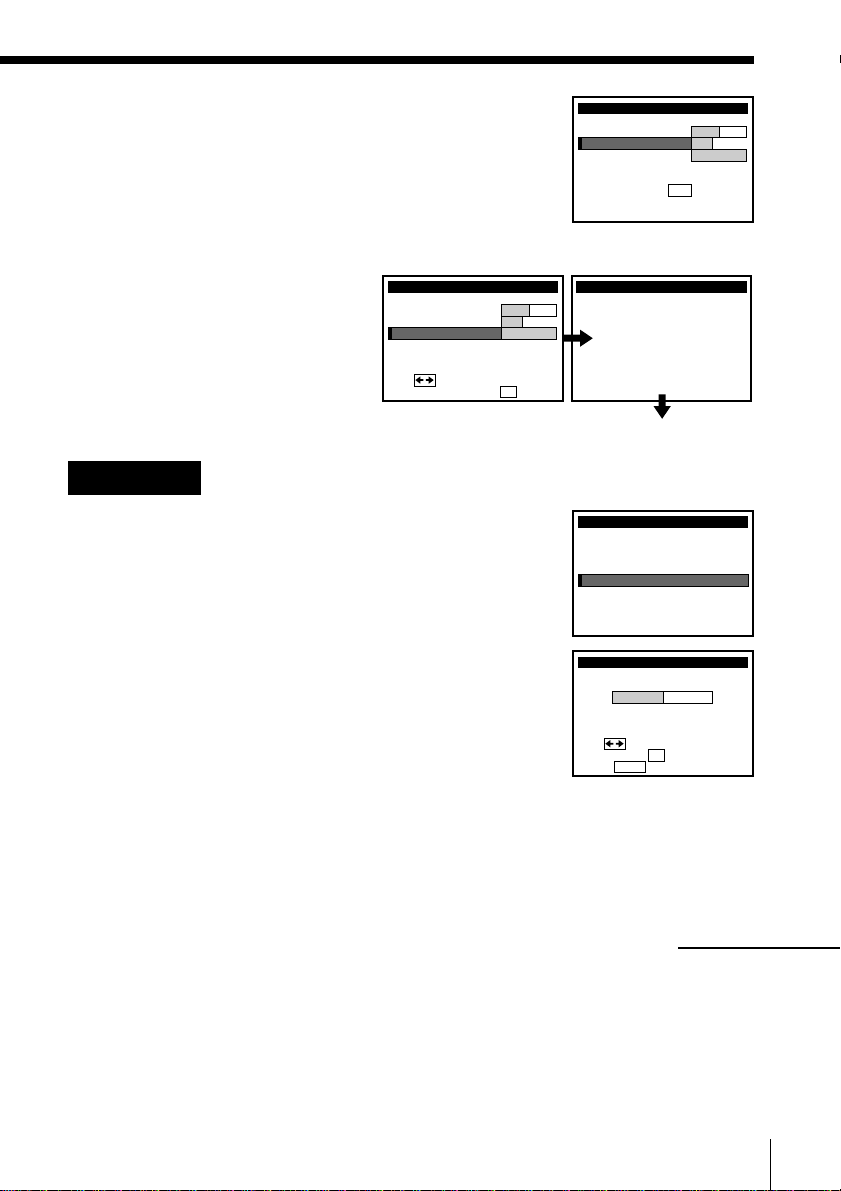

Press MENU and select
ADVANCED OPTIONS. Set AUTO ANT SEL to OFF and
press OK.
For details, see page 34 of the
supplied operating instructions.
Stereo receiver
Audio/video cable (supplied)
TV
Step 3: Hookups (continued)
Audio cable (not supplied)
MENU
ADVANCED OPTIONS
CLOCK SET
TUNER PRESET
TIMER SET / CHECK
LANGUAGE
CABLE BOX CONTROL
SMARTFILE EDIT
SET VCR Plus+ CHANNELS
ADVANCED OPTIONS
SHARPNESS
TUNER AUDIO
AUDIO MIX
AUTO STEREO ON OFF
ON OFF
ON OFF
MAIN SAP
page1
AUTO ANT SEL

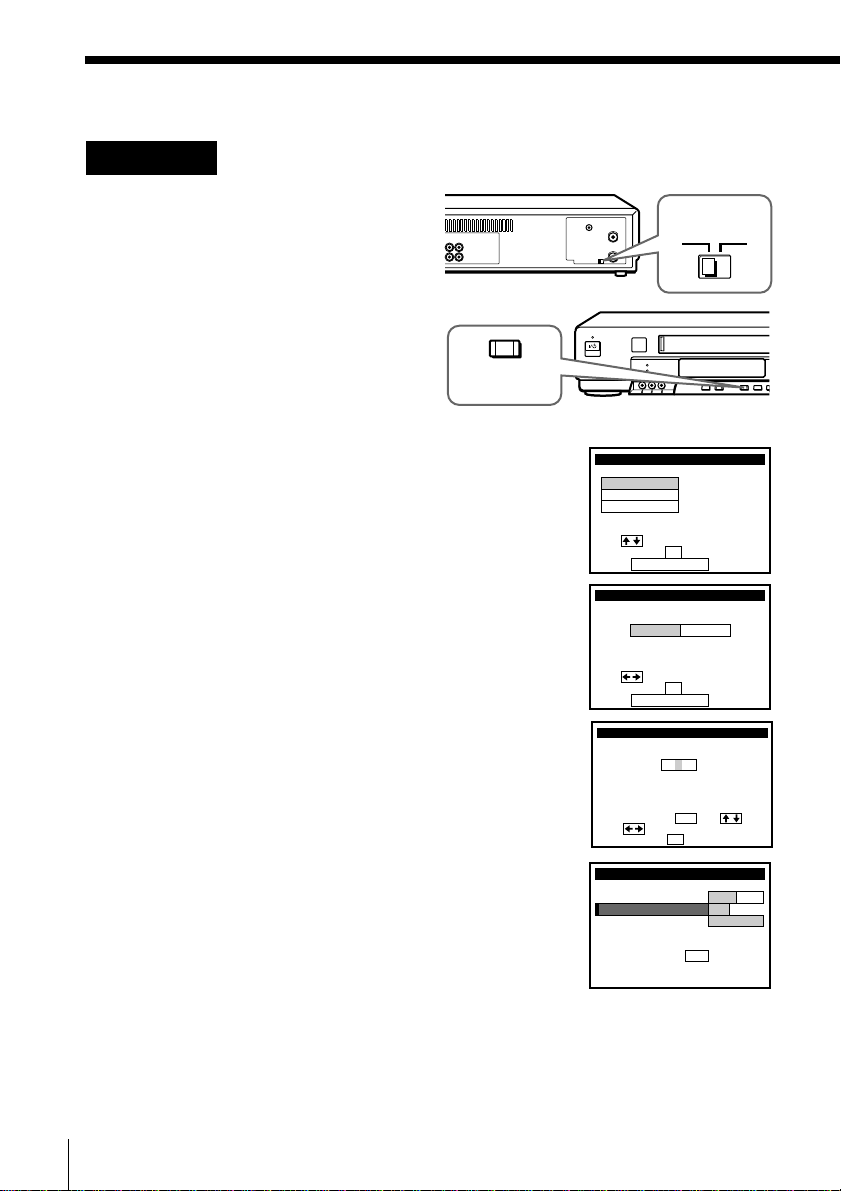

i
Use to se l ec t an
tem, then push
LH––
,
S-LINK
AUDIO VIDEO
IN
VIDEO
AUDIO AUDIO OUT
AUX IN
S-LINK
LINE-1
IN
LINE
OUT
