INTRODUCTION
The Soundcraft® Multi Digital card offers digital audio connection between an Si Series
console* and Apple® Mac® enabled with Firewire (1394), or PC enabled with a USB or
Firewire port. Audio capability across the Firewire or USB link is 32 channels in and 32
channels out at 48KHz. In addition to the Firewire/USB ports, the Multi Digital card provides
8 further channels of ADAT in and out at 48KHz.
Connection and setup of the card to a PC is made simple with the use of the Soundcraft
digital audio driver and associated control panel. Firewire connection to a Mac requires
no software or drivers.
The additional ADAT channels in and out expand the connectivity further for functions such
as expanding the input or output capacity with any ADAT-compatible I/O device.
NOTE: The Firewire and USB ports may not be used at the same time, these ports
are ‘either/or’, however the ADAT functionality can be used in conjunction with the
Firewire or USB.
* Not Si1, 2, 3 or ‘plus’ variants
Apple and Mac are trademarks of Apple Corp Inc.
NOTE: The packaging, in which your card arrived, forms part of the product and must
be retained for future use.

7
Soundcraft Si Multi Digital Card User Guide 1013
INSTALLING THE DRIVERS (PC ONLY)
On PC systems, you will be required to install audio
drivers.These can be found on the Soundcraft website.
The drivers install software which is needed to enable
communication between console and PC. The driver
package also installs the control panel tool for adjusting
various settings such as buffer size, input/output
patching and synchronisation of the Firewire and USB
mediums.
Once drivers are installed shortcuts for the control panel are normally available on the desktop
or in program les under Soundcraft digital audio driver 1394 (USB).
When the card is connected to the computer taskbar, icons will
indicate a device has been detected. Clicking the icon will open
the appropriate control panel.
When the drivers are installed onto your PC, you will need to
power it down, connect the Multi Digital card and then reboot
for the process to be complete.
NOTE: There is no need to install drivers on a Mac as the Multi Digital Card uses Apple’s
Core Audio drivers.
Some DAWs detect the Multi Digital card and automatically prompt you to use the
Soundcraft Digital (0000) audio driver; if your DAW does not present a similar dialogue
you may have to detect the card manually.
Please refer to the documentation for your DAW, Mac or PC for details of how to adjust
audio settings.
Taskbar icon indicating drivers
are loaded and console is
connected.

8
Soundcraft Si Multi Digital Card User Guide 1013
FIREWIRE AND USB CONNECTORS

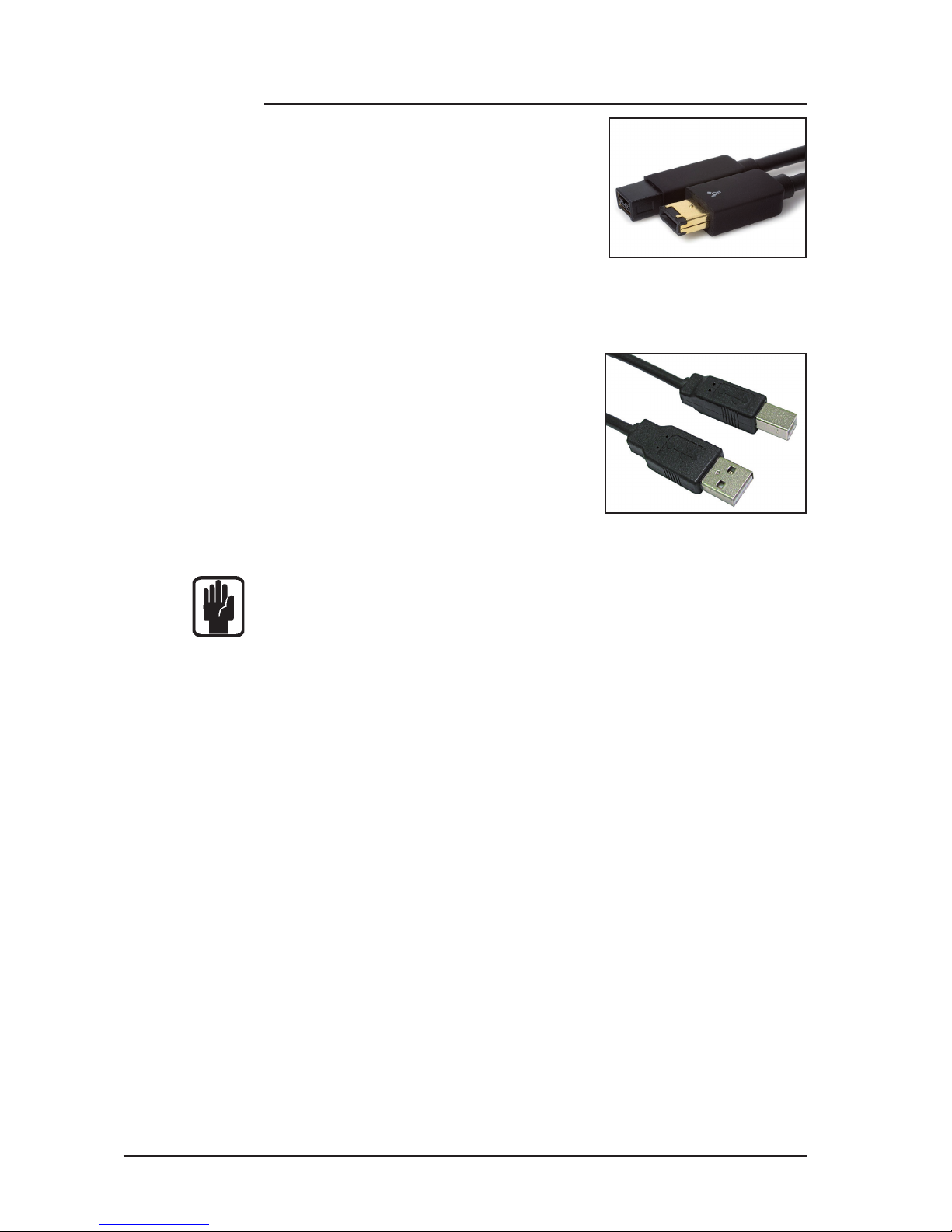

The Soundcraft Multi Digital card features a Firewire 400
port and requires the corresponding 6 pin male plug. An
Apple™ MacBook Pro™ (from 2009) uses the Firewire 800
plug so a Firewire 400 – 800 (6pin-9pin) cable must be
used to connect these devices. If your device has a 4 pin
rewire port most commonly found on a PC laptop, a 4pin
to 6pin cable is required.
The Soundcraft Multi Digital USB port is the square ‘B
type’ connector (a standard for all peripheral devices).
Most USB host devices use the rectangular ‘A type’
connector so typically a ‘Type A to B’ cable is required.
NOTE: Firewire and USB cables come in many different forms, ensure you use the
correct cables for your system.
NOTE: It is advised to install the latest drivers in the host computer before connecting
the Multi Digital card. Drivers may be found on the Soundcraft website; there is a
1394 driver for rewire devices and USB drivers for USB devices.
9 pin Firewire 800 (top) to 6 pin
Firewire 400 (bottom)
USB Type A to B

9
Soundcraft Si Multi Digital Card User Guide 1013

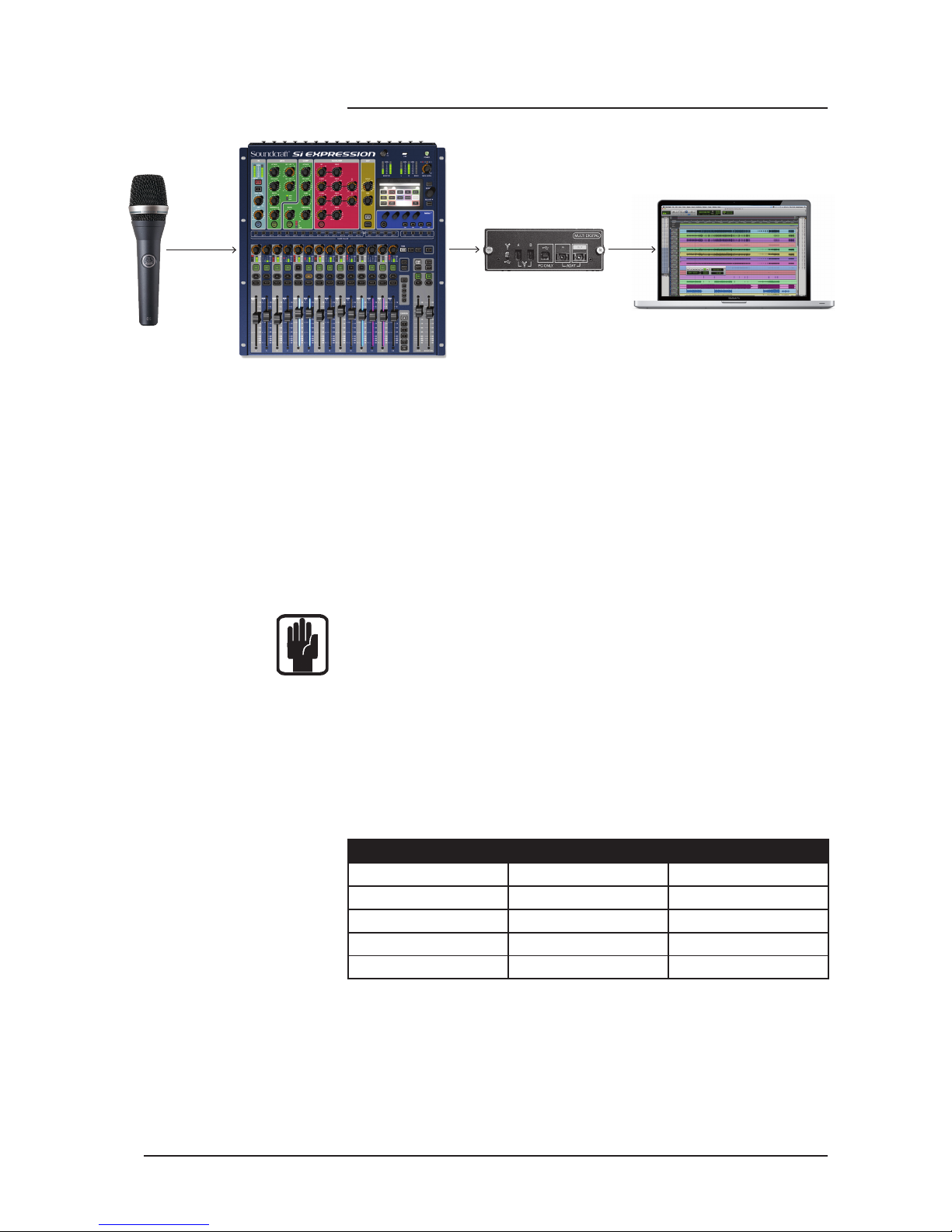

LIVE RECORDING WITH THE MULTI DIGITAL CARD
With the Multi Digital card installed in a console, live recording couldn’t be
simpler! Standard mic/line input sources can be recorded through the Si Series
console via the multi-digital card to a DAW or similar. This simple yet powerful
solution is suitable for recording live gigs; but is equally at home in the studio.
To record audio into the Mac or PC you will require a Digital Audio Workstation
(DAW).Any DAWs that allow use of third-party audio drivers like Pro Tools, Logic,
Cubase, Nuendo can be used. These full-featured tools will handle all the
demands of live multi-track recording, becoming the hub for all of the recording
activities.
NOTE: The PC or Mac hosting the DAW requires adequate hard disk space,
RAM and processing power to ensure reliable operation; see the specication
requirements for your chosen DAW package.
The audio to be recorded is typically sent via the ‘direct outputs’ on the source
channels, for example:
Channel 1-32 on the console to... Direct out ‘digital output 1-32’ to... DAW
channels 1-32 as illustrated in the table below.
Example of Patching Console to DAW
Console:Console Direct Output: DAW Channel Inputs:
Input 1: Kick Multi Digital Out 1 Channel 1: Input 1
Input 2: Snare Multi Digital Out 2 Channel 2: Input 2
Input 3: Hi Hat Multi Digital Out 3 Channel 3: Input 3
Input 4: Tom Multi Digital Out 4 Channel 4: Input 4
etc. etc. etc.

10
Soundcraft Si Multi Digital Card User Guide 1013
For playback from the DAW a ‘1:1 reversal’ of the above will return the DAW signals
to the console such that the mic recorded from channel 1 is played back on
channel 1. This conguration allows a ‘virtual sound check’ to be conducted by
just changing the console input patches from Mic to Multi Digital
Example of Patching DAW to Console
Daw Channel Outputs: Console Digital In Console Channel Inputs:
Channel 1: Output 1 Multi Digital In 1 Channel 1: Kick
Channel 2: Output 2 Multi Digital In 2 Channel 2: Snare
Channel 3: Output 3 Multi Digital In 3 Channel 3: Hi Hat 3
Channel 4: Output 4 Multi Digital In 4 Channel 4: Tom 4
etc. etc. etc.

11
Soundcraft Si Multi Digital Card User Guide 1013
APPLICATION – SECOND FIREWIRE PORT

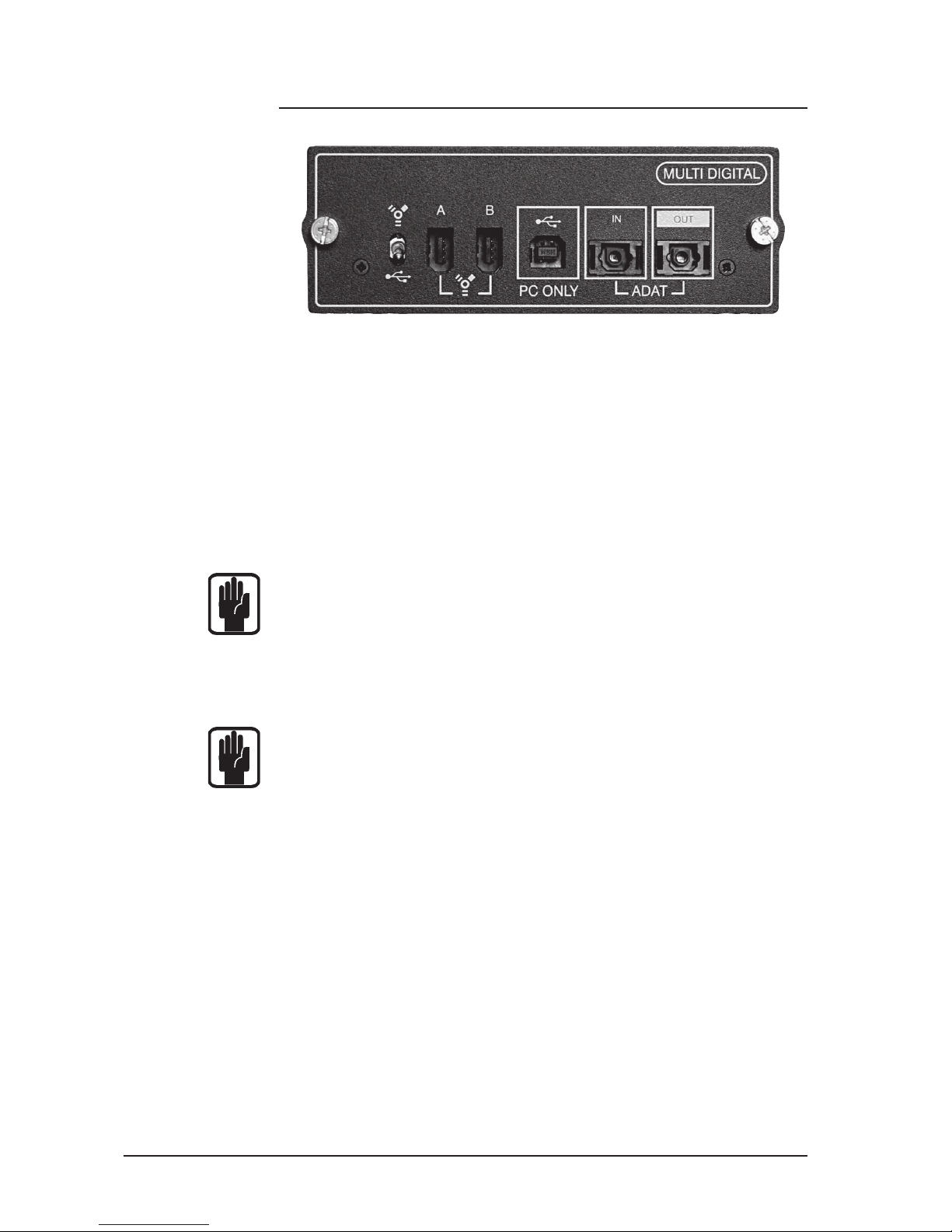

On the Multi Digital card there are two Firewire sockets that facilitate many uses. Firewire
is a peer to peer network that allows for multiple devices to be connected to each other in
a ‘daisy chain’ format. This allows the use of chaining an external hard drive and console
from the PC or Mac.
APPLICATION – ADAT I/O
ADAT is a long accepted method of digital transfer. Devices such as the Alesis ADAT XT-8 were
used to record live audio long before Firewire or USB was an audio connectivity standard.The
reliability and resilience of ADAT makes the setup of a system straightforward. By patching
direct outs, sub mix or mixes to the ADAT outputs of the Multi Digital card, signals can be
sent to devices such as the Tascam HS-8 or similar hard disk recorders — ideal for recordings
in small venues where carrying a laptop is not ideal.
ADAT device

by HARMAN
®
Soundcraft
Harman International Industries Ltd
Cranborne House
Cranborne Road
Potters Bar
Herts. EN6 3JN
United Kingdom
[phone]
www.soundcraft.com
