Soundigital 2000.4 EVO5 User manual

USER'S MANUAL
2000.4

TABLE OF CONTENTS
Introduction.....................................................................................................................
Package Contents......................................................................................................
Safety instructions.......................................................................................................
Assembling and disassembling the plastic cover...................................
Description of the panels
Audio inputs and controls.............................................................
Power and audio outputs...............................................................
Electrical sizing..............................................................................................................
Audio input.......................................................................................................................
Installation sequence.................................................................................................
Connection diagram
Four-channel setup...........................................................................
Three-channel setup........................................................................
Two-channel configuration...........................................................
Gain Adjustment Procedure..................................................................................
Crossover Adjustment..............................................................................................
Technical Specification
Parameters............................................................................................
Dimensional Data...............................................................................
3
3
4
5
6
7
8
8
9
10
10
11
11
12
13
13
2

INTRODUCTION
Dear Costumers,
Congratulations for purchasing a product of the highest quality and technology!
SounDigital's products are developed to ensure maximum efficiency and reliability
in your audio system.
Class D Amplifiers:
Class D amplifiers have audio quality, efficiency, application versatility, and
compact design as their main features. Here are the advantages of these
characteristics:
Audio Quality – In the past, Class D products had limited response and for higher
frequencies, Class AB products performed better, but their efficiency was very low.
The new technologies introduced by SounDigital resulted in a Class D amplifier
with high efficiency and performance superior to Class AB.
Efficiency – SounDigital Class D amplifiers have a total efficiency (Output +
Source) higher than 70%, which ensures lower battery consumption and less
heating.
Versatility of Application – The flat response in all frequencies of the SounDigital
amplifiers allows them to be used in all automotive sound systems. They meet the
demands with extreme quality.
Compact Design – The high efficiency and high technology applied allows
SounDigital amplifiers to be very compact, facilitating installation in vehicles where
space is limited.
IMPORTANT INFORMATION
Read this manual carefully and follow precisely all the information contained herein,
which are very important and allow your amplifier to work optimally. If you think it
necessary, do not hesitate to contact our technical support by e-mail
[e-mail] or by SAC [phone].
PACKAGE CONTENT
- 1 EVO5 Amplifier
- 1 Quick installation guide with warranty certificate
- 1 Promotional sticker
3

SAFETY INSTRUCTIONS
To prevent injury to the user or damage to the amplifier, read all the safety
instructions contained in this manual;
If you feel insecure about installing the equipment, contact SounDigital technical
support or a qualified professional in automotive sound installation;
Before proceeding with the installation of any electrical equipment in the vehicle,
disconnect the negative (-) terminal of the battery to avoid fire, injury or damage to
the amplifier;
Use your sound system safely, continuous exposure to sound pressures above 85
decibels may cause irreversible hearing damage;
This equipment is for use with automotive batteries of DC voltage between 12.6 and
14.4 volts. Before installing the equipment, check the voltage of the batteries;
Do not install the amplifier in the engine compartment or in places exposed to
water, humidity, dust or dirt;
Install the amplifier in a ventilated place and prevent the side ventilation windows
from being obstructed;
Fix the amplifier in a proper and firm manner. Avoid the fixation on metallic parts, as
this procedure may cause ground "Looping" (noise);
Use rubber "O-rings" when passing the wires in metallic walls in order to prevent
them from being cut and causing short-circuit;
Make sure that the place chosen for installation of the amplifier does not hinder the
operation of the vehicle;
During the use of this product, the aluminum housing/dissipator may reach
temperatures higher than 60°C. Before touching the amplifier, be sure that it is cold;
To maintain the efficient thermal dissipation, periodically clean the dissipator,
removing dust and impurities with the help of a brush and/or dry cloth;
Be very careful when drilling holes in the vehicle, make sure not to pierce the fuel
tank, brake lines, electrical cables, etc;
Make sure that all cables are properly secured throughout the entire installation;
Wear gloves, safety goggles, and all necessary safety equipment during the
installation of the SounDigital amplifiers.
This symbol alerts the user to the presence of important instructions.
Failure to comply with these instructions may result in damage to the
amplifier or the user.
Cuidado!
4

ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER
The plastic covers have the function of giving finishing and hiding the amplifier's
fixation screws. To remove and replace them, follow the instructions below.
1 2
1. Carefully pull the top flap outward, releasing the upper latches, as illustrated in the image.
2. With one continuous movement, slide the plastic cover upward, removing it.
21
1. Fit the plastic cover flush against the side of the amplifier, matching the attachment points A and B, and push it down.
2. Lightly press the sides of the upper part of the plastic cover against the amplifier until you hear the "click" of the latches.
A
B
DISASSEMBLING THE COVER
COVER ASSEMBLY
5

DESCRIPTION OF THE PANELS
Crossover Selector Switch
High Pass - Full - Low Pass
Variable gain control
Power On" Indicator LED (Blue)
RCA audio input
2
4
6
8
9
1
3
5
7
CH1/CH2
CH1/CH2
CH1
CH3
CH3/CH4
CH3/CH4
-
CH2
CH4
8
6
23
1
49
7 5
6

Negative power connector (GND)
Remote power connector (REM)
Positive power connector (+12VDC)
Positive audio output connector (+)
Conector de saída de áudio positivo (+)
Negative (-) audio output connector
Positive (+) audio output connector
Negative (-) audio output connector
Positive audio output connector (+)
Positive (+) audio output connector
Negative (-) audio output connector
Minimum impedance for BRIDGE connection
CH2
CH1
CH4
CH3
-
-
-
CH1
-
CH4
CH3
CH2
DESCRIPTION OF THE PANELS
10
11
12
14
16
18
20
21
13
15
17
19
12 11 10 20 17 16 13
19 18 15 14
21
7

ELECTRICAL SIZING AND AUDIO INPUTS
ELECTRICAL SIZING
For a correct operation of your SounDigital amplifier, it is necessary to properly size
the electrical system and the cables used.
In the table below you can determine the minimum proper section of the
grounding, positive + 12VDC, and audio output cables according to the amplifier
power.
For the connections from the battery to the amplifier and to ground, use good
quality copper cables.
CCA cables should not be used.
AUDIO INPUT
RCA Entry
All RCA inputs must be connected
for all 4 channels to work.
POSITIVE CABLE (+12VDC)
NEGATIVE CABLE (GND)
AUDIO OUTPUT CABLE
2000
WRMS
21mm² - 4 AWG
2 x 2mm² - 12 AWG
8

INSTALLATION SEQUENCE
BEFORE INSTALLING ANY ELECTRICAL EQUIPMENT IN THE VEHICLE,
DISCONNECT THE NEGATIVE (-) TERMINAL OF THE BATTERY TO AVOID FIRE,
DAMAGE TO THE AMPLIFIER AND TO THE USER HIMSELF.
CUIDADO!
ØFix the amplifier so that there is access to the connectors.
ØInstall the power cables in the vehicle in a proper way, starting from the battery up to the fuse
holder or circuit breaker, use the cable with the proper section. Make all connections, install
fuse holders or circuit breakers, but without placing the fuses or with the circuit breakers in the
"off" position.
ØConnect the power supply to the amplifier with the correct polarity. Connect all positive
terminals (+) coming from the fuse holders or circuit breakers to the amplifier positive
connectors, and all negative cables (GND) coming from the grounding point to the amplifier
negative.
ØThe grounding should be as short as possible and should be connected to the vehicle chassis
and the battery negative;
ØInstall the input signal cables properly, the input signal cables should be installed away from
the power cables.
ØConnect the RCA cables to the main unit and the amplifiers.
ØInstall the audio output cables, with the appropriate cross-section, in a proper manner and
away from the power and audio input cables.
ØConnect the audio output cables to the amplifier and speakers respecting the positive (+) and
negative (-) polarities;
ØInstall next to the power cables the remote power cable with section of 1.5mm² or larger.
ØConnect the remote power cable to the "REM" terminal of the amplifier to the remote power
output of the main unit (when not using the high-level signal inputs);
ØAfter the cable connections, before powering up the system, check that all connections are
correct and that there are no shorts between cables and ground cables;
ØReconnect the battery ground;
ØMake sure the main unit is off and then set the fuses or turn on the circuit breakers;
ØPower up the main unit and the amplifier will turn on the "On" indicator LED indicating that it is
operating.
9
THE FUSE/PROTECTIVE CIRCUIT BREAKER MUST BE INSTALLED NO MORE
THAN 30CM FROM THE BATTERY.
Remove the paint between
the terminal and the body.
CUIDADO!

CONNECTION DIAGRAM
4-CHANNEL CONFIGURATION
3-CHANNEL CONFIGURATION
GND
See "Audio Input" on page 8
See "Audio Input" on
page 8
GND
10

CONNECTION DIAGRAM / GAIN ADJUSTMENT
2-CHANNEL CONFIGURATION
GND
See "Audio Input" on
page 8
GAIN ADJUSTMENT
Equipment required
ØVoltmeter capable of measuring AC
voltage;
ØMedia with 60Hz sinusoidal signal
recorded at 0Db
Adjustment Procedure
Ø
This procedure is the same for both gain
controls;
Ø
Set the gain control to minimum;
Ø
Disconnect the speakers from the
amplifier output;
Ø
Turn off or set to "0" all audio processing
(bass, treble, loudness, EQ, etc.);
Set the volume of the main unit to
approximately 3/4 of the total.total.
Ø
Set the audio positioning controls in the
center (fader and left and right controls);
Ø
Set the crossover to "F";
Ø
Play 60Hz media on the main unit
Ø
Measure, with the aid of a voltmeter, the
output voltage of the amplifier at the
terminals where the speakers were
connected;
Ø
Turn the gain control clockwise until the
voltage observed in the table below is
reached;
Ø
After adjustment, turn off the main unit
and reconnect the speakers.
Download the media for regulation at
https://soundigital.com/downloads/
MODEL BRIDGE / POWER
STEREO / POWER
STEREO OUTPUT VOLTAGE BRIDGE OUTPUT VOLTAGE
2Ω/ 2000W
4Ω/ 2000W
1 / 1000WΩ
2 / 1000WΩ
31.6 V
44.7 V
63.2 V
89.4 V
2000.4
2000.4
2Ω
4Ω
11

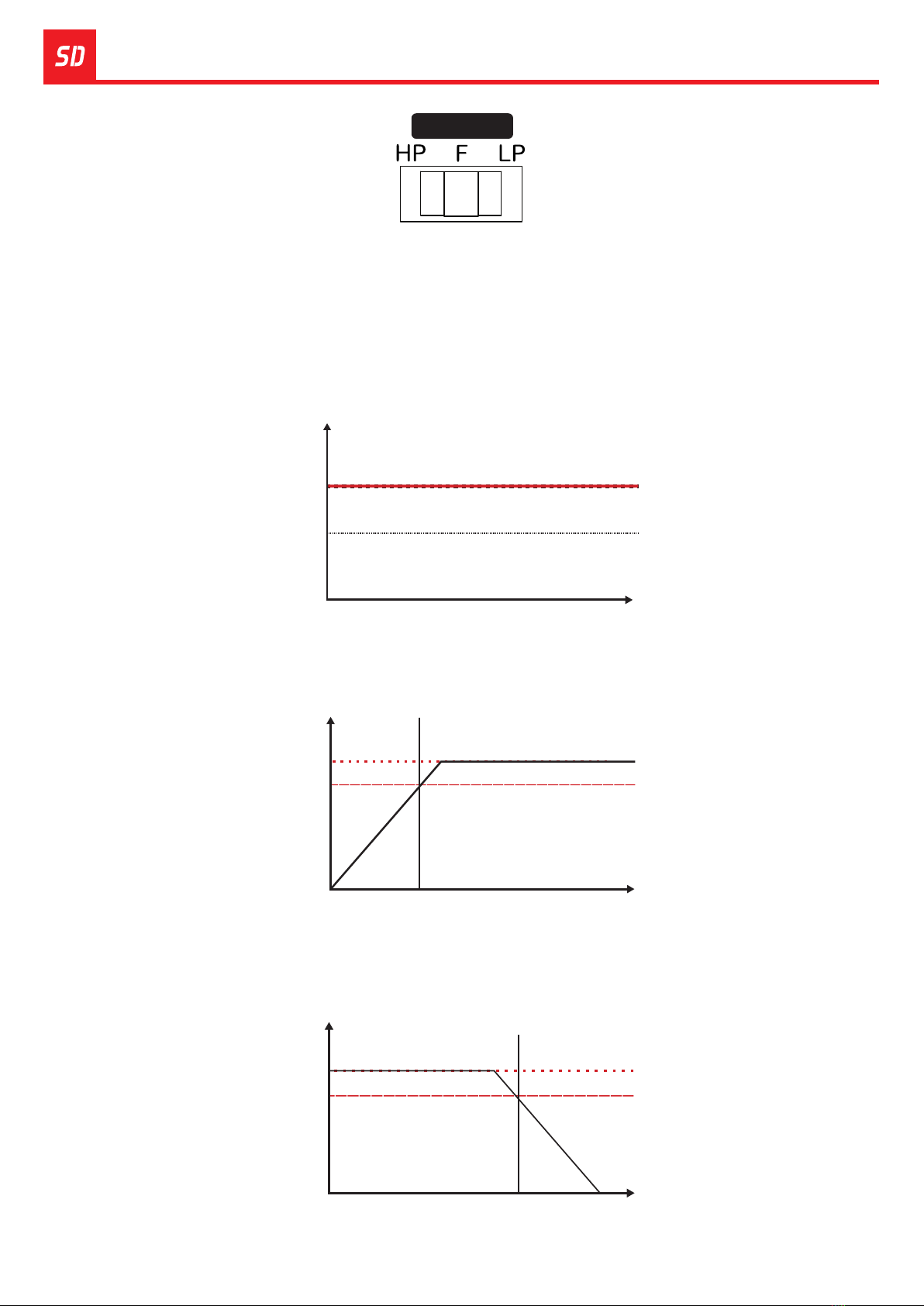

X-OVER
CROSSOVER ADJUSTMENT
Ø Select the key in position "F" - All frequencies will be played as in "Figure 1";
0dB
-12dB
dB
Hz
Ø Select the switch in the "HP" position - All frequencies above 80Hz will be played
as in "Figure 2";
Ø Select the key in the "LP" position - All frequencies below 80Hz will be played as in
“Figure 3";
-3dB
c
ƒ
80Hz
0dB
dB
Hz
-3dB
0dB
-15dB
80 Hz
c
ƒ
dB
Hz
"F" All frequencies will be played back
"LP" Frequencies below 80Hz will be played
"HP" Frequencies above 80Hz will be played
Figure 1
Figure 2
Figure 3
12

TECHNICAL SPECIFICATIONS
Bridge RMS power @ 2Ω*
Bridge RMS power @ 4Ω*
RMS power @ 1Ω*
RMS power @ 2Ω*
Frequency response (-3dB)
Low Pass Filter (LP -12dB/8)
Supply voltage
SNR
Input sensitivity
Consumption with musical signal
Total Efficiency
Damping Factor (@100Hz impedância nominal)
Minimum Impedance per stereo channel
Minimum Impedance per Bridge
Fuse (music use)**
Recommended Battery (minimum)
Consumption with resistive load (1kHz @ 12.6V)
High Pass Filter (HP -12dB/8)
N/A2 X 1000W
2 X 1000W
2 X 660W
N/A4 X 500W
4 X 500W4 X 330W
10Hz ~ 22kHz10Hz ~ 22kHz
8V ~ 16V8V ~ 16V
90dB90dB
0.2 ~ 4V0.2 ~ 4V
91A91A
182A
182A
87%87%
200200
2Ω
1Ω
4Ω 2Ω 
100A100A
100Ah100Ah
80Hz80Hz
80Hz80Hz
*Power at 12.6V @ 60Hz with maximum THD of 1%.
PARAMETERS
DIMENSIONAL DATA
Product weight 1.54 kg (3.39 lb)
Packed weight: 1.62 kg (3.57 lb)
2000.4 2Ω 2000.4 4Ω
**It is mandatory to install the fuse at a maximum distance of 30cm from the battery.
208mm(8.2")
227mm(8.9")
121mm(4.8") 136mm(5.4")
55mm(2.2")
13

WWW.SOUNDIGITAL.COM SOUNDIGITALBRASIL SOUNDIGITAL
