DEAR CUSTOMER,
C O N G R AT U L AT I O N S O N AC Q U I R I N G A P R O D U C T W I T H T H E
HIGHEST QUALITY AND TECHNOLOGY!
You have just purchased a SounDigital product of the highest technology and quality, so
we thank you for your confidence.
SounDigital products are made with raw materials of the highest quality standards, and
the most modern processes, equipment and technology are used in their production.
On this manual you will learn about the product, its features and characteristics, in order to
obtain the best result and to be able to enjoy your music with SounDigital quality and
power.
To better understand and take advantage of all the functions of the product and use it safely,
read this manual carefully and if you have any questions, consult our support by email
[e-mail].
FEATURES
▪ Resistant to moisture, water splash and dust;
▪ Compact design;
▪ Conformal coated PCB;
▪ Variable crossover with LP, FULL and HP selector switch;
▪ High efficiency Class D;
▪ Robust construction, resistant to vibrations and bumps;
▪ IP64 Rating.
PACKAGE CONTENTS
▪ 01 2400.1 EVOPS Amplifier
▪ 01 Installation quick guide with warranty card
▪ 01 Allen wrench 2.0mm
▪ 01 Allen wrench 2.5mm
▪ 01 Allen wrench 3.0mm
▪ 01 Promotional sticker
INTRODUCTION
3

SAFETY INSTRUCTIONS
THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT
FOLLOWING THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR
DAMAGE TO THE EQUIPMENT.
Warning!
To prevent injuries to the user or damage to the amplifier, read all safety instructions written
on this manual;
If you are insecure about the installation of this equipment, get in touch with our tech
support or with a professional specialized in car audio/vessel audio installation;
Before proceeding with the installation of any electric equipment on your vehicle/vessel,
unplug the negative (-) terminal of the battery to avoid fires, injuries or damages;
Use your sound system safely. The continuous exposure to sound pressures over 85dB
may cause irreversible hearing damage;
This equipment is for use in DC voltage batteries between 12.6 and 14.4 volts. Before
installing the equipment, check voltage of the batteries;
Choose a ventilated place to install the amplifier;
Mount the amplifier in a secure way. Avoid mounting it on metallic parts of the
vehicle/vessel, because it may cause ground looping (noise);
Make sure that the location chosen for the amplifier installation does not effect the
operation of the vehicle/vessel;
Please select a dry location to mount your amplifier. The products are designed to
operate in humid environments but the direct contact with water can damage the amplifier;
When passing cables through metallic walls, use rubber O-rings to avoid cable cutting and
short-circuits;
Clean the amplifier periodically with brush or dry cloth to assure the thermal efficiency of
the heatsink;
This product may reach temperatures over 60°C/140°F. Make sure it is cold before touching
it;
Be careful when making holes in the vehicle/vessel. Make sure you are not making holes in
the fuel tank, brake lines, boat hull or electrical cables of the vehicle/vessel;
Make sure the cables are properly secured throughout the installation;
Wear gloves, safety glasses and and all necessary PPE during the installation of
SounDigital amplifiers.
4

The DTM* is a dynamic thermal recovery system which always maintains a high efficiency of
the amplifier by accelerating the thermal exchange of electronic components with the heatsink.
TECHNOLOGIES
* Patent. Required
ALUMINIUM
HEATSINK
CONDUCTIVE
COPPER LAYER
ELECTRONIC
COMPONENT
®

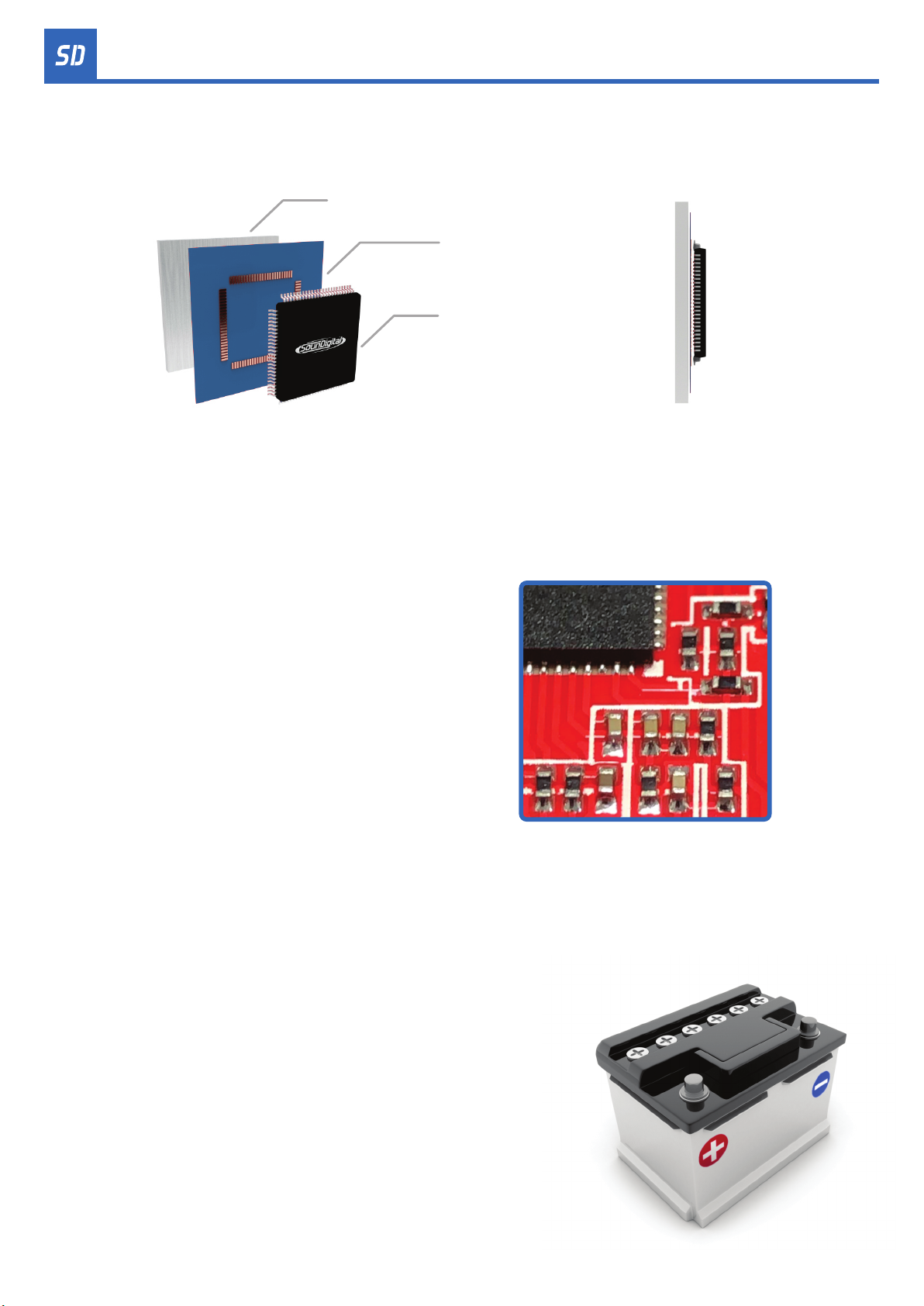

DYNAMIC THERMAL MENAGEMENT - DTM
An intelligent layout, with great use of the PCB
area components and the use of modern with
reduced structure guarantee SounDigital
products a compact design, at the same time
robust and with excellent thermal efficiency.
ULTRA COMPACT PCB
ROBUST CONSTRUCTION
Thinking about the application of power sports, the product has an extremely robust assembly,
both the fixing points and the layout of the PCB were designed to withstand high vibrations,
bumps and impacts.
*Efficiency measured at power supply only
SounDigital amplifiers are known for their low
consumption of battery, and this feature was
improved on the . The new EVOPS Line I-POWER
SUPPLY is even more modern, which replaces the
old toroidal transformers by a new generation of
“E-E" core transformers delivers efficiency above
90% *,ensuring more hours of sound without battery
recharge.
I - POWER SUPPLY
5

TECHNOLOGIES
M A R I N I Z AT I O N W I T H
PROTECTION INDEX IP64
FULL RANGE
REDUCED SIZE
Versatile products that cover the entire
audible frequency range, any type of
loudspeaker or music program.
The technology used in our amplifiers
bring both high performance and power
a compact chassis, providing flexible
installation solutions for vehicles with
limited space.
VIBRATION ABSORPTION
®
DEVICE - VAD
Our VAD Technology reduces all impact
caused by vibration on the electronic
circuit board. This can include road
vibration and even vibration caused by
sound waves, increasing the reliability of
our amplifiers.
®
The product is protected against ingress of
dust particles and water droplets from all
sides, beyound that, the PCB receives a
conformal coating treatment to protect the
components from moisture.
8.4"
5.9"
6

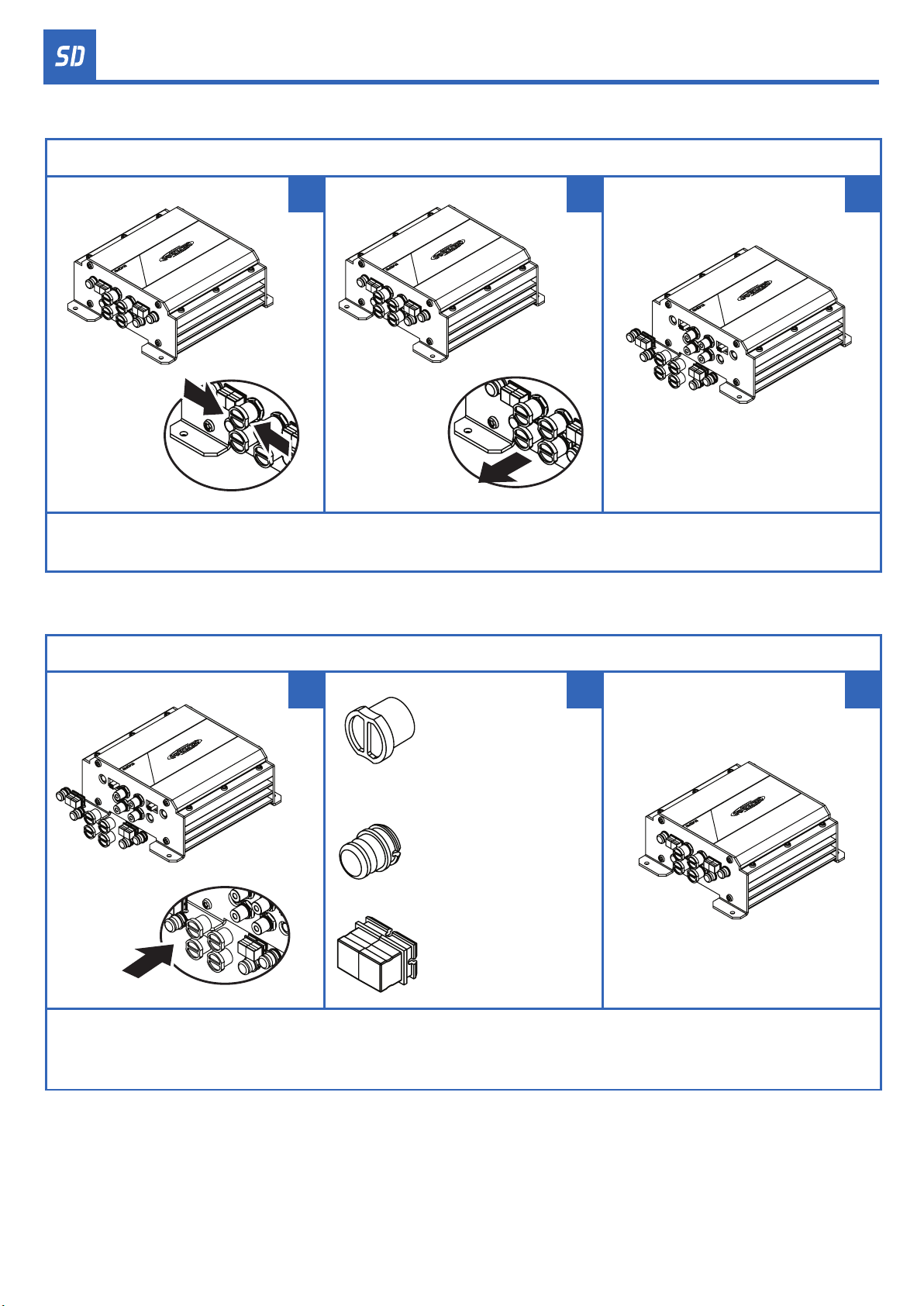

ASSEMBLING AND DISASSEMBLING THE PLASTIC SEALS
1. Squeeze the assembled Flexible Plastics Seals
2. Pull out the Plastics Seals
DISASSEMBLING THE PLASTICS SEALS
132
1. Hold the disassebled Flexible Plastics Seals and fit them in their specific housing;
2. Each connector has its specific Plastic Seal;
3. Make sure the Flexible Plastics Seals are perfectly fitted.
ASSEMBLING THE PLASTICS SEALS
132
Potentiometer
Plastic Seal
RCA
Plastic Seal
Slide switch
Plastic Seal
*Merely illustrative images.
*Merely illustrative images.
7

PANELS DESCRIPTION
8
"Power ON" LED indicator
"Clip" LED indicator
"Protection" LED indicator

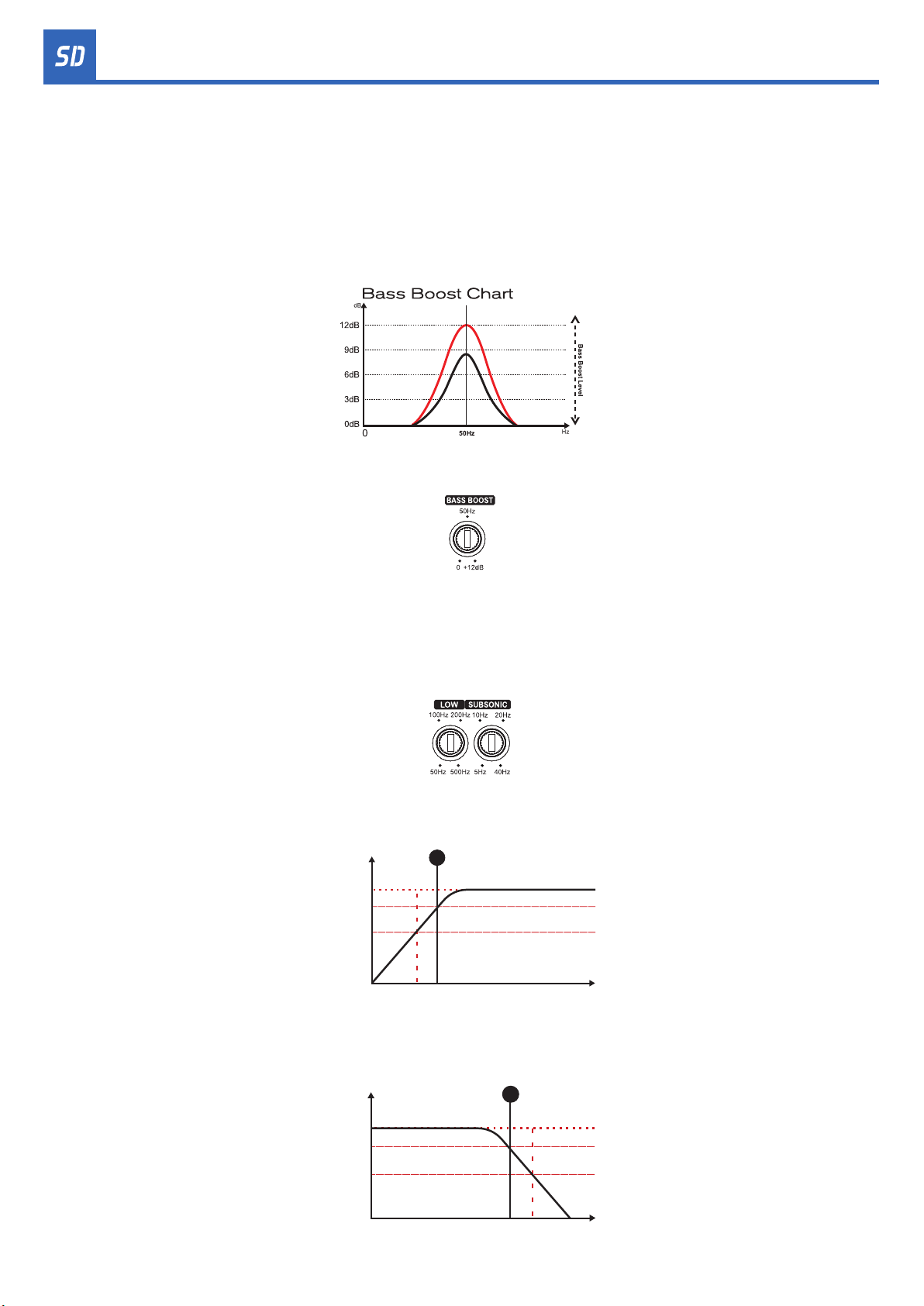

Variable Bass Boost Control 50Hz (0dB ~ +12dB)
Variable Low Pass filter control (50Hz ~ 500Hz)
Variable Subsonic filter control (5Hz ~ 40Hz)
Variable Gain control
Low Pass filter ON/OFF switch key
4
6
8
10
2
1
3
5
7
9
Red
Blue
-
-
Audio inputs - RCA connectors
Right Channel
Left Channel
Yellow
-
5
7
4
9
10
8
65
31
2
-
-

PANELS DESCRIPTION
-
Negative power supply connector (GND)
Remote power supply connector (REM)
Positive power supply connector (+12VDC)
Negative speaker connector
14
15
16
13
12
-
-
-
Positive speaker connector
14 15 16
Minimum speaker load allowed (impedance) 2 or 4Ω Ω
11 -
11
-
-
ELECTRICAL DIMENSIONING AND AUDIO INPUTS
ELECTRICAL DIMENSIONING
For proper operation of your SounDigital amplifier, you need the proper dimensioning of the
electrical system and the cables used.
The table below shows the minimum section of GND cables, +12VDC cables and speaker
output cables according to the power generated by the amplifier.
We recommend the use of ONLY OFC (Oxygen Free Copper) Cables on the installation of our
products.
POWER CABLE
GROUND CABLE
SPEAKER CABLE
2400
WRMS
21mm² - 4 AWG
12 13
9
2 x 2,5mm² - 13 AWG
2400.1
4 Ω
2400.1 2 Ω
2 x 4,0mm² - 11 AWG

INSTALLATION SEQUENCE
ØMount the amplifier in such a way you have access to the connectors;
ØInstall the power cables in the vehicle/vessel properly, starting from the battery to the
fuse holder or circuit breaker, use the cable with the appropriate size. Make all
connections, install fuse holders or circuit breakers, but without placing the fuses or
with the circuit breakers in the "OFF" position;
ØConnect the power cables in to the amplifier, observing the polarity. Connect all the
positive cables from the fuse holder or circuit breaker to the positive conector of the
amplifier and all the negative power cables from the batteries to the negative connector
of the amplifier;
ØThe ground cable must be as short as possible and must be connected to the negative
connector of battery or vehicle chassis in case of metallic chassis;
ØInstall the signal input cables in a proper way, distant from the power cables;
ØConnect the RCA or the High level signal input cables to the head unit and amplifiers;
ØInstall the audio output cables with the appropriate section, distant from the power and
audio input cables;
ØConnect the audio output cables to the amplifier and speakers respecting the positive
(+) and negative (-) polarities;
ØInstall the remote cable with the power cables, using 1.5mm² (15 AWG) cable or thicker;
ØConnect the remote power cable to the amplifier's "REM" terminal at the main unit's
remote power output (when not using the high level signal inputs);
ØBefore powering the system, verify all the connections and make sure there are no
mistakes or short-circuits on the power and ground cables;
Ø;Reconnect the ground of the batteries
ØCheck if the head unit is turned off and then place the fuses in the fuse holders or
switch the circuit breakers on;
ØTurn on the main unit and the amplifier will turn on the "ON" LED indicating that it is in
operation.
Warning!
Warning!
Remove the paint between
the terminal and chassis
ØTHE MAX: DISTANCE FOR THE INSTALLATION OF THE FUSE/CIRCUIT BREAKER
IS 12 INCHES (30 CM) AWAY FROM THE BATTERY.
10

11
FUSE
REMOTE
FUSE

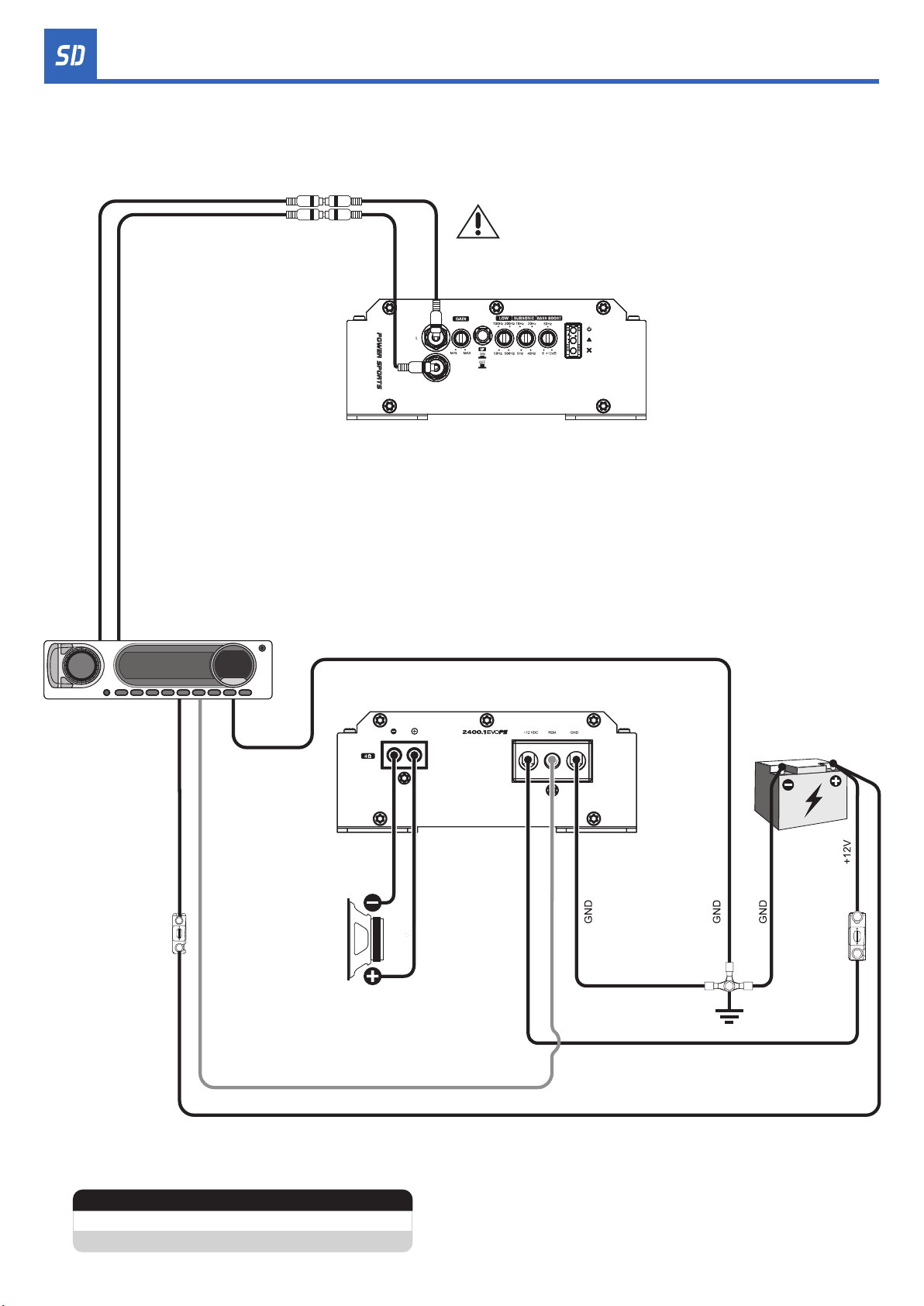

WIRING DIAGRAM
All RCA inputs must be connected for
the properly work of the amplifier.
2400.1 EVOPS 2Ω2Ω
Minimum Impedance
Model
2400.1 EVOPS 4Ω4Ω

12
GAIN SETTING
GAIN SETTING
Necessary equipament:
ØMedia with sine wave test tone 60Hz
recorded at 0db;
Set up procedure
ØThis procedure is the same for both
gain controls;
MODEL BRIDGE / POWER
BRIDGE OUTPUT VOLTAGE
2Ω/ 2400W 69.3 V
4Ω/ 2400W 97.8 V
2400.1 2Ω
2400.1
4Ω
ØTurn the gain control all the way down.
ØDisconnect the output cables from the
amplifier outputs;
ØTurn off all processing (bass, treble,
loudness, EQ, etc.);
ØSet the source unit volume to 3/4 of full
volume.
ØOn the CD player, adjust the audio
positioning controls in the center (left
and right fader controls);
ØDigital AC voltmeter;
ØScrewdriver 1/8" ( for gain set).
ØOnce you have adjusted the amplifier to
its correct voltage output, turn off the
source unit and reconnect the
speaker(s)
ØIncrease the gain control until the target
voltage is observed with the voltmeter
(see the chart below);
ØConnect the AC voltmeter to the speaker
output connectors of the amplifier. Make
sure you test the voltage at the correct
connectors (+ and –);
Download the tracks for set up in https://soundigitalusa.com/tracks-for-set-up/
ØSet the Low Pass switch to "OFF";
ØUse a 60 Hz sine wave;

CROSSOVER SET UP
13
Using Bass Boost
The Amplifier Bass Boost setting enables the user to boost the sound intensity at
low frequencies of the sound system, where boost intensity can be adjusted.
This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter, with
an intensity boost adjustment from 0 to +12dB (16 times), and a central frequency
adjustment of the filter in 50Hz, making it versatile for several types of sound
systems.
Set in the "SUBSONIC" variable control between 5Hz and 40Hz ("A") where you
want to perform the subsonic cut filter;
Set in the "LOW" variable control between 50Hz and 500Hz ("B") where you want to
perform the low pass cut filter;
How to Adjust Bass Boost
How to Adjust the Crossovers
Reproduce your favorite song and set the boost intensity between 0dB and +12dB
at the variable control level according your preference.
-3dB
c/2
ƒ
High
Pass
c
ƒ
High
Pass
A
0dB
-12dB
dB
Hz
-3dB
0dB
-12dB
Low
Pass
B
c
ƒc*2 ƒ
Low
Pass
dB
Hz

TECHNICAL SPECS

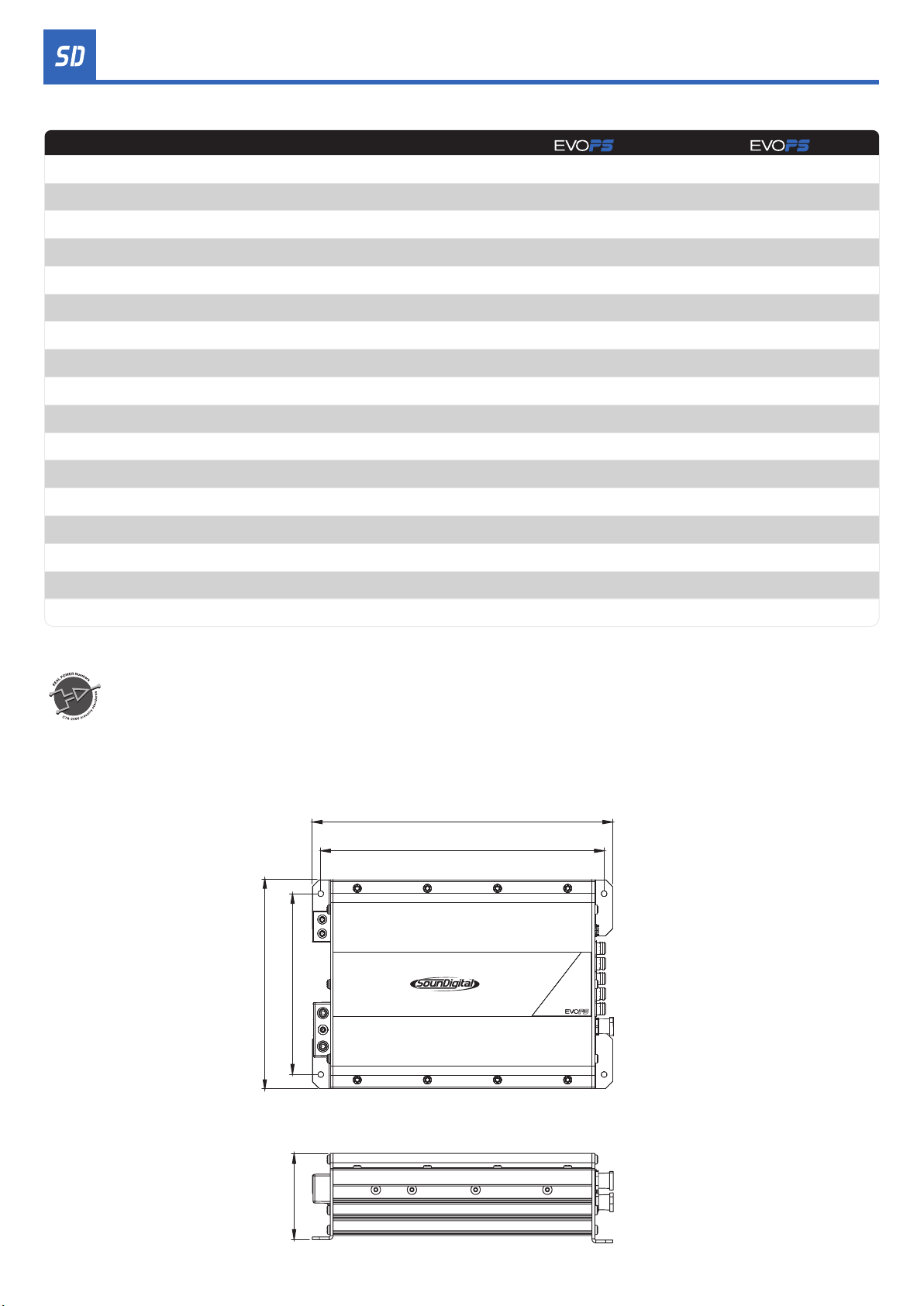

DIMENSIONAL DATA
202,0mm (8.0")
214,0mm (8.4")
129,0mm (5.1") 149,0mm (5.9")
60,0mm (2.4")
14
**REAL POWER NUMBERS
CTA-2006 INDUSTRY STANDARDS
PARAMETERS
2400W1584W
N/A
2400W
RMS Power @ 4Ω**
RMS Power @ 2Ω**
*It is mandatory to install the fuse at a maximum distance of 12 inches from the battery.
2Ω
2400.1
4Ω
2400.1
5Hz ~ 25kHz5Hz ~ 25kHz
0dB ~ 12dB @ 50Hz 0dB ~ 12dB @ 50Hz
5Hz ~ 40Hz5Hz ~ 40Hz
8V ~ 16V8V ~ 16V
90dB90dB
0.2V ~ 2V0.2V ~ 2V
93A93A
185A185A
89%89%
>2000>2000
100A100A
100Ah100Ah
50Hz ~ 500Hz50Hz ~ 500Hz
Operating voltage
SNR
Input sensitivity
Current draw (music)
Current draw (max.)
Total efficiency
Damping factor
Fuse* (music)
Recommended battery (minimum)
Low pass filter
Bass boost
Frequency response
Subsonic
**Power at 14.4V DC @ 60Hz THD < 1%.
Power Cable
2 x 2.5 mm² (13 AWG)
21mm² (4 AWG)
Audio Output Cable
2 x 4.0 mm² (11 AWG)
21mm² (4 AWG)

CODE.: 1000750309-002/JUN2022
