Soundmask SM-EQ-2000 User manual
www.soundmask.com.au
MODEL SM-EQ-2000
OPERATING MANUAL

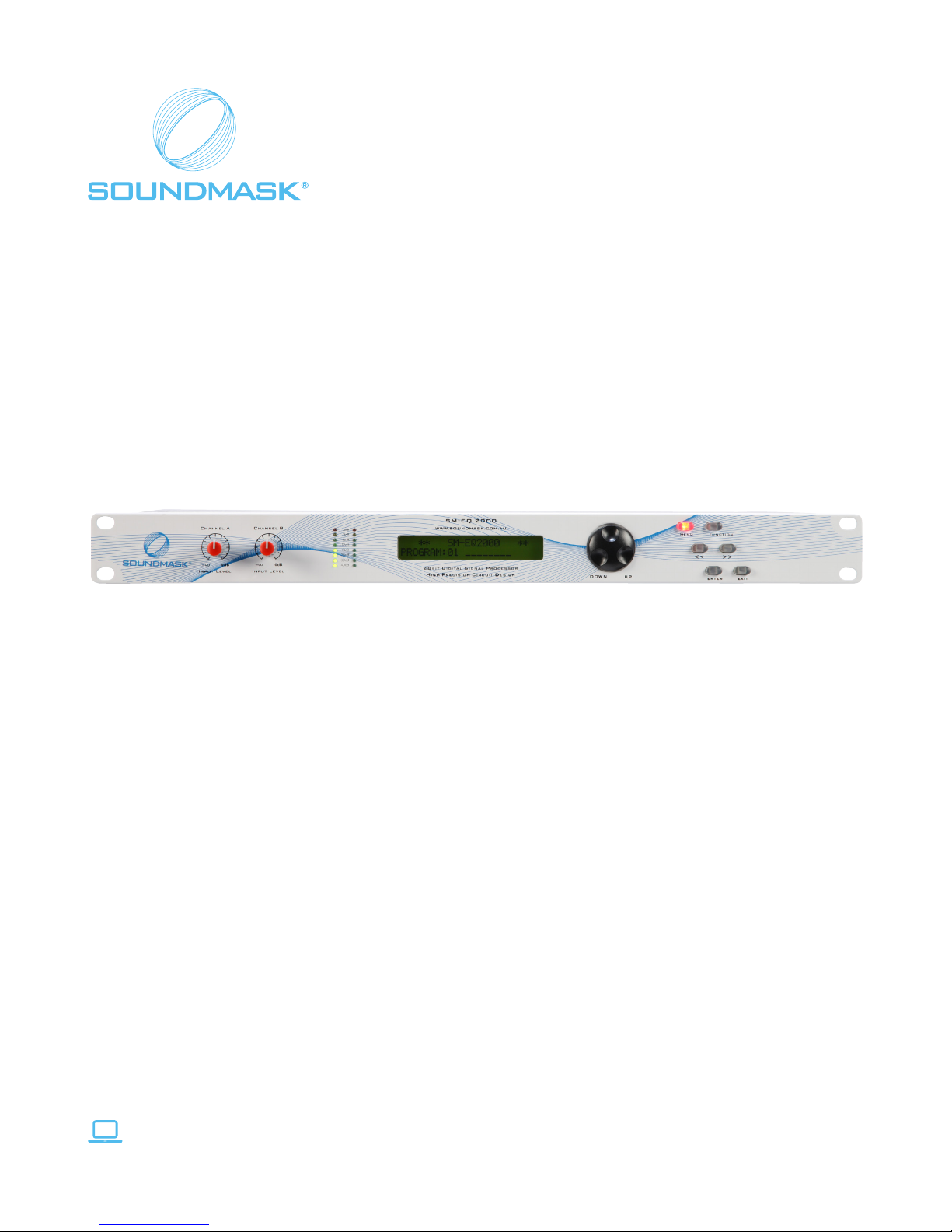

DIGITAL EQUALIZER
01 www.soundmask.com.au
Safety Instructions
1. Read, follow and retain these instructions.
2. Read all warnings.
3. The apparatus must not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, may be placed on the apparatus.
The information furnished in this manual does not
include all of the details of design and engineering
of this particular product; nor does it cover every
possible application or situation concerning its usage,
which may occur during the installation, operation or
maintenance of the product.
IMPORTANT - THE PRODUCT REQUIRES
CLASS 2 OUTPUT WIRING
TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE TOP
OR BOTTOM COVERS. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
DISCONNECT POWER CORD BEFORE REMOVING REAR
PANEL COVER TO ACCESS GAIN SWITCH.
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE!
CAUTION Do not locate sensitive high-gain
equipment such as preamplifiers or tape decks
directly above or below this unit. Because this
amplifier has a high power density, it has a
strong magnetic field which can induce hum into
unshielded devices that are located nearby. This
field is strongest just above and below the unit.
If an equipment rack is used, we recommend
locating the amplifier(s) at the bottom of the
rack and the preamplifier or other sensitive
equipment at the top.
Do not use this apparatus near water. Clean only with
a damp cloth.
4. The apparatus must be connected to a mains socket
outlet with a protective earthing connection.
5. The appliance coupler must remain readily operable
for disconnection from the mains.
6. Do not block any of the ventilation openings. Install
in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
that produce heat.
8. Do not install the safety purpose of a polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and third grounding plug. The wide
blade or the third prong is provided for your safety.
When the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
9. Protect the power cord from being walked on or
pinched, particularly at plugs, convenience at plugs,
convenience receptacles, and the point where they exit
from the apparatus.
10. Only use power cord from attachments/accessories
specified by the manufacturer.
11. Use only with a cart, stand, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from flip-over.
13. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, or does not operate
normally.
Please follow the instructions in this manual to
obtain the optimum results from this unit. We also
recommend that you keep this manual handy for
future reference.
IMPORTANT SAFETY INFORMATION
02
Copyright © 2015 Soundmask Australia Pty Ltd. All Rights Reserved.
GENERAL DESCRIPTION DESIGN FEATURES
The Digital Equalizer is a stereo equalizer processor
for easy audio spectrum control. All parameters can
be easily adjusted and controlled via the user friendly
menu function. The 24-bit A/D and D/A converters
provide superb sound quality and a wide frequency
response due to the 48kHz- sampling rate. A total of 30
factory presets are provided. The user programs can
be recalled or stored from/to the device, allowing them
to be changed rapidly.
› 2-inputs and 2-outputs allow the device to be
configured as a true stereo processor.
› 2 modes of operation: L-R Linked and L-R Separate.
› 2 x 20 EQ action filters. Selectable frequency
and band width.
› High Performance 24-Bit A/D & D/A converters.
› EQ ranges from -15dB to +15dB in 0.25dB/step.
› 30 user-defined programs.
SPECIFICATIONS
Model SM-EQ-2000
Input 2 channels, 10kOhm impedance
Output channels 2 channels, 50 Ohm impedance
Action lters 2 x 20 EQ lters with selectable frequency and band width.
Nominal level (input/output) +4dBm
DAC (input/output) 24-Bit
Programs 100 pre-dened and 100 user-dened programs
Signal to noise ratio 105dB (unweighted)
Power input Power input: 110/220-230V AC 50/60Hz 20VA
Via external power supply
Frequency response 20Hz ~ 20kHz
Dimensions & Weight 483 x 155 x 45 mm, 2.45 kg
Compliance
Safety information Mount unit in locations that provide unobstructed air movement to minimise the risk of overheating.
03 www.soundmask.com.au
USER INTERFACE
FRONT PANEL
1. Volume (Left) – Left input level.
2. Volume (Right) – Right input level.
3. Input Level (L/R) – Indicators indicates the current peak level
of the input signal in dB units.
4. LCD Display – Shows unit status and all the necessary
information to control the unit.
5. Rotary Dial – This rotary control is used to change
parameter values.
6. Menu Key – Allows user to access all menus of the selected
program.
7. Function Key – Selects sub-menu functions.
8. Up/Down Keys – Navigates between all changeable
sub-menus.
9. Enter Key – Conrms parameter changes for special events,
like storing a new user dened setup.
10. Exit Key – Brings the user one menu level up each time.
REAR PANEL
1. Main Power – Connects via included external power supply.
A compatible power cord is supplied with the unit.
2. RS232 Serial port – Connects to a lap top for ease of
programming.
3. XLR input connectors – 3 pin XLR connectors are fully
balanced where pin 2 is hot, pin 3 is cold and pin 1 is ground
(shield).
4. XLR output connectors – 3 pin XLR connectors are fully
balanced where pin 2 is hot, pin 3 is cold and pin 1 is ground
(shield).
5. 6.35mm input connector – 3 conductor connectors with
connections paralleled to the XLR.
6. 6.35mm output connector – 3 conductor connectors with
connections paralleled to the XLR.
1 2 3 4 5 6 7
8
9
1
10
2 6 54 3
04
Copyright © 2015 Soundmask Australia Pty Ltd. All Rights Reserved.
The device has a well-structured menu for the user
to select appropriate parameters.
BYPASS
1 On – Bypass the device (No EQ filters applied)
2 Off – Normal operation (EQ filters applied)
RESET FILTERS
1 Normal – Normal operation
2 Reset – Reset filters
PROGRAM RECALL
Select Program number then press <Enter> to recall
the program. 30 programs are available.
PROGRAM STORE
Select Program number and program name then
press <Enter> to store the program. 30 programs
are available.
SYSTEM MODE
1 L-R Link – This mode is the same as the Manual
(Separate) mode except the Left and Right channels
are linked together.
2 L-R Separate – This mode is equivalent to stereo
Equalizer. All EQ filters can be modified by the user.
EQUALIZER
20 Equalizers for each channel are available. In Manual
(Separate) mode, Level, Frequency and Bandwidth can
be adjusted individually. In Manual (L-R Link) mode,
left and right are linked together.
LOCK/UNLOCK UNIT
The unit can be locked to eliminate undesired changes
in the setup. To lock/unlock the unit, a 4 digit password
should be entered and then press the ENTER key.
The password is constant and can not be edited.
The password is: “DQ2X”.
RS 232 PORT FOR PROGRAMMING
The unit can be connected to a lap top via this port
for programming. (See subsequent pages)
DIMENSIONAL DIAGRAM
483 mm
433 mm
155 mm
45 mm
45 mm
MENU OPERATIONS
05 www.soundmask.com.au
FIG 1

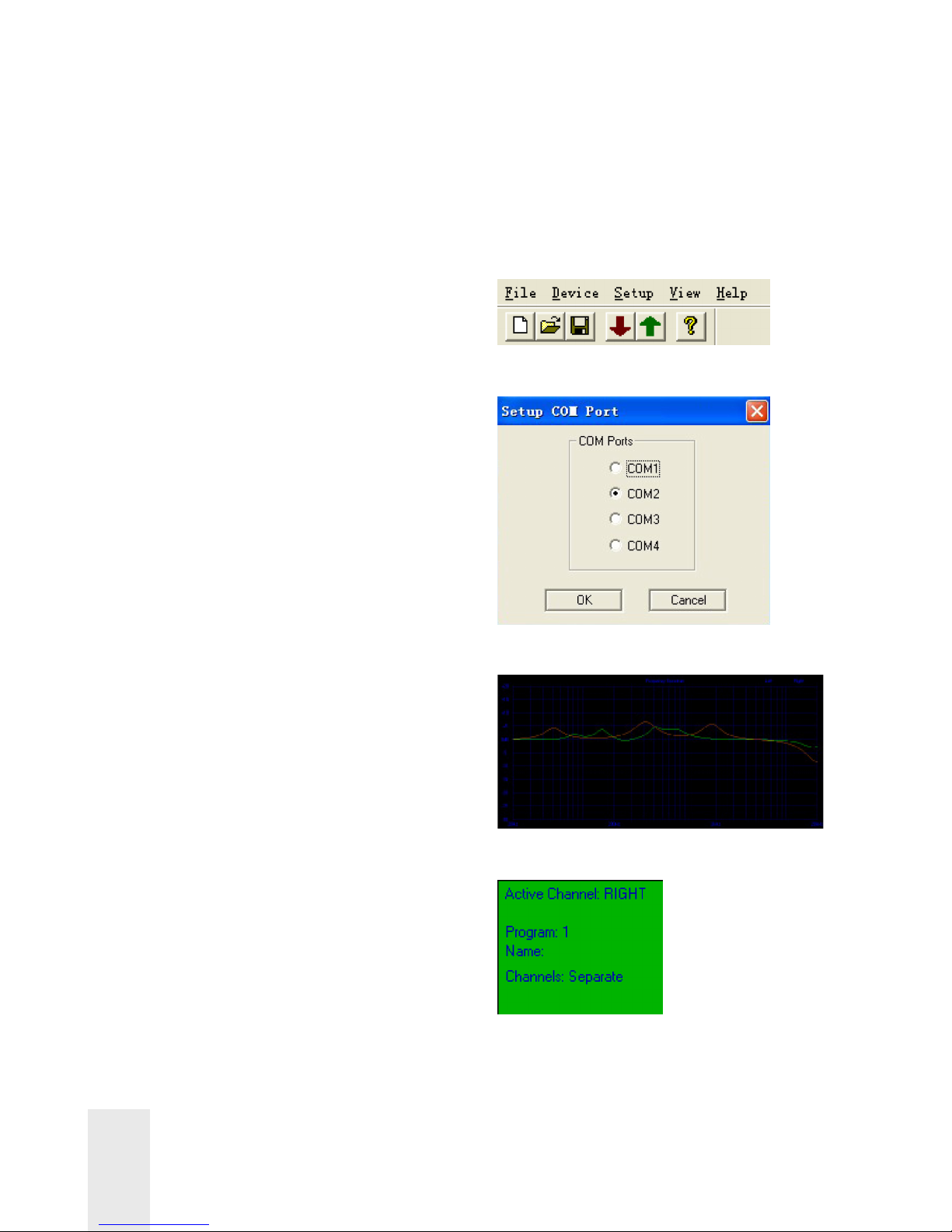

File: Select “Program” to store the program.
Device: Up or down the program you have set
to the SM-EQ-2000.
Setup: First you must select the COM port which the
device is plugged into, then the SM-EQ-2000 can link
with the computer (FIG 1A).
View: Open the quick controller channel.
FIG 2
The green line is the EQ curve of the left channel.
The red line is the EQ curve of the right channel.
FIG 3
Active channel: The channel which you control
(left/right).
Program name: The program number and name.
SM-EQ-2000 can store 30 programs.
Channels: The left and right channels can be linked
or separate.
L-R link: This mode is the same as the Manual
(Separate) mode except the Left and Right channels
are linked together.
FIG 1
FIG 2
FIG 3
FIG 1A
SOFTWARE INSTRUCTIONS
SETTING UP THE SOFTWARE

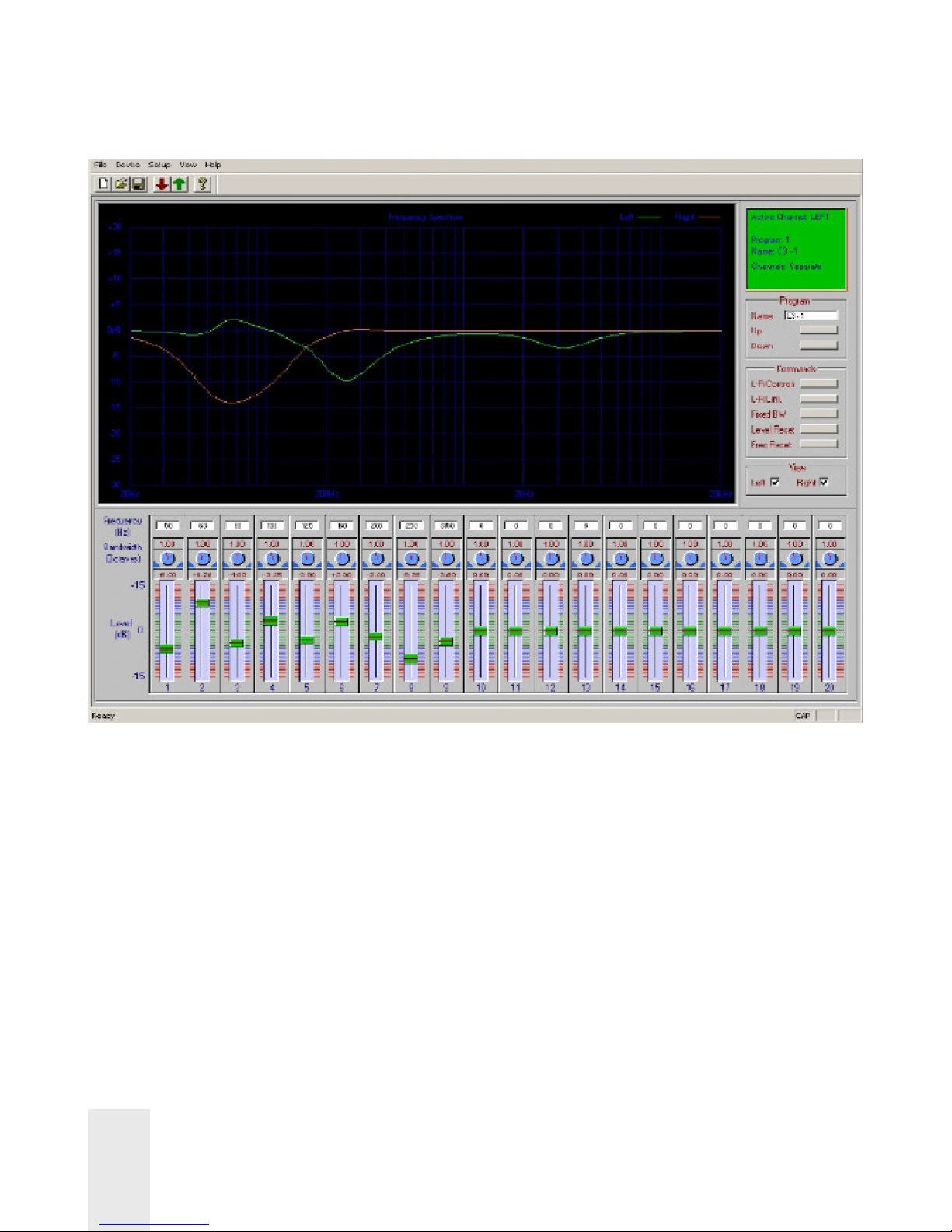

The SM-EQ-2000 can be supplied with a USB serial cable and software disc (Windows based).
06
Copyright © 2015 Soundmask Australia Pty Ltd. All Rights Reserved.
FIG 4
Name: Create the program name.
Up/Down: Create the program number from 1 to 30.
FIG 5
L-R Controls: Choose the channel (left or right)
that you want to control.
L-R Link: Choose the left and right link or separate.
Fixed BW: Reset the BW with 0.1.
Level Reset: Reset the level with 0dB.
Freq Reset: Reset the frequency with 0Hz.
View: Left/Right choose the EQ line you want to view.
FIG 6
Frequency: Set the frequency you want to increase
or decrease.
Bandwidth (Octaves): Adjust this knob to choose
the appropriate Q or pitch.
Level: Set the electronic level plus or minus.
FIG 4
FIG 5
FIG 6
SETTING UP THE SOFTWARE
07 www.soundmask.com.au
EXAMPLE OF FULL SETUP
Copyright © 2015 Soundmask Australia Pty Ltd. All Rights Reserved. 08
EXAMPLE LAYOUT
› Each SM-T-1200 pictured represents 100 transducers.
› The SM-DA-8000 is capable of servicing up to 800 transducers.
› Diagram not to scale.
NOTES
RANDOM DIGITAL NOISE GENERATOR SM-GR-3100
DIGITAL EQUALIZER SM-EQ-2000
DIGITAL DISTRIBUTOR SM-DX-4800
DIGITAL AMPLIFIER SM-DA-8000
CEILING TRANSDUCER SM-T-1200
Copyright © 2015 Soundmask Australia Pty Ltd. All Rights Reserved.
To the best of our knowledge, the material contained within this document was accurate at the time of printing.
No liability or otherwise is assumed for the accuracy of this document.
No warranty is given or implied as to the accuracy of any part of the document.
TROUBLESHOOTING
If the unit is running slowly or “freezes up”, reset the unit by turning it off using the power switch.
Leave the unit to reset for 15 minutes before turning the power switch on again.
For any further problems, contact us via the detail below.
NOTES
CONTACT
1300 734 168 (within Australia)
+61 3 9879 5355
Soundmask Australia Pty Ltd
Soundmask Australia Pty Ltd
PO Box 4068
Balwyn VIC 3103
AUSTRALIA
www.soundmask.com.au
