Soundmask GQ Series User manual

www.soundmask.com.au
MODELS SM-GQ-2
SM-GQ-4
SM-GQ-8
OPERATING MANUAL
SOUNDMASK GQ SERIES

01 www.soundmask.com.au
The information furnished in this manual does not
include all of the details of design and engineering
of this particular product; nor does it cover every
possible application or situation concerning its
usage, which may occur during the installation,
operation or maintenance of the product.
The lightning flash and arrowhead
within the triangle is a warning sign
alerting you of “dangerous voltage”
inside the product.
The exclamation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
This label indicates that this product
should not be disposed of with
household waste. It should be
deposited at an appropriate facility to
enable recovery and recycling.
CAUTION
1. To reduce the risk of electric shock, do not remove
cover.
2. To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
3. To reduce the risk of electric shock, grounding of
the center pin of this plug must be maintained.
4. Risk of Explosion if battery is replaced by an
incorrect type. Dispose of used Batteries according
to the instructions.
WARNING
1. This product is intended to be operated ONLY
from the voltages listed on the back panel or the
recommended, or included, power supply of the
product.
2. Operation from other voltages other than those
indicated may cause irreversible damage to the
product and void the products warranty.
3. If you are unsure of the correct operational
voltage, please contact your local distributor and/or
retailer.
4. Class I Equipment. This equipment must be
earthed. The power plug must be connected
to a properly wired earth ground socket outlet.
An improperly wired socket outlet could place
hazardous voltages on accessible metal parts.
Safety Instructions
1. Read, follow and retain these instructions.
2. Read all warnings.
3. The apparatus must not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, may be placed on the apparatus. Do not use
this apparatus near water. Clean only with a damp
cloth.
4. The apparatus must be connected to a mains
socket outlet with a protective earthing connection.
5. The appliance coupler must remain readily
operable for disconnection from the mains.
6. Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s
instructions.
7. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
that produce heat.
8. Do not install the safety purpose of a polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type
plug has two blades and third grounding plug. The
wide blade or the third prong is provided for your
safety. When the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.
IMPORTANT SAFETY INFORMATION

02
Copyright © 2022 Soundmask Global Pty Ltd. All Rights Reserved.
9. Protect the power cord from being walked on or
pinched, particularly at plugs, convenience at plugs,
convenience receptacles, and the point where they
exit from the apparatus.
10. Only use power cord from attachments/
accessories specified by the manufacturer.
11. Use only with a cart, stand, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from flip-over.
12. Unplug this apparatus during lightning storms or
when unused for long periods of time unless there is
a surge diverter on that circuit or that protects that
circuit.
13. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, or does not
operate normally.
Please follow the instructions in this manual
to obtain the optimum results from this unit.
We also recommend that you keep this manual
handy for future reference.
FCC STATEMENT
15.105
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment
and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV
technician for help.
KDB447498 D01 v05r02 (P5)
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure
limits set forth for an uncontrolled environment and
it also complies with Part 15 of the FCC RF Rules.
This equipment must be installed and operated
in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed
to provide a separation distance of at least 20 cm
from all persons and must not be co-located or
operating in conjunction with any other antenna
or transmitter. End-users and installers must be
provided with antenna installation instructions and
consider removing the no-collocation statement.
15.19
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
15.21 / KDB784748 D01 v08 (P4)
Caution!
Any changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.

03 www.soundmask.com.au
This device complies with Industry Canada’s licence-
exempt RSSs. Operation is subject to the following
two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le
fonctionnement.
This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
This equipment should be installed and operated
with a minimum distance of 20 centimeters between
the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne
fonctionnant en même temps qu’aucune autre
antenne ou émetteur. Cet équipement devrait être
installé et actionné avec une distance minimum de
20 centimètres entre le radiateur et votre corps.
Exposure:
This device meets the exemption from the routine
evaluation limits in section 2.5 of RSS102 and users
can obtain Canadian information on RF exposure and
compliance.
Le dispositif rencontre l’exemption des limites
courantes d’évaluation dans la section 2.5 de RSS
102 et la conformité à l’exposition de RSS-102 rf,
utilisateurs peut obtenir l’information canadienne sur
l’exposition et la conformité de rf.
Antenna:
(Ref RSS-Gen, clause 7.1.2, a device with detachable
antennas must include additional text regarding
antenna gain; this text should be in both English and
in French)
This radio transmitter with model: V0104-5A1BBT3
has been approved by Industry Canada to operate
with the antenna types listed below with the
maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna
types not included in this list, having a gain greater
than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
Le présent émetteur radio with model: V0104-
5A1BBT3 a été approuvé par Industrie Canada pour
fonctionner avec les types d’antenne énumérés
ci-dessous et ayant un gain admissible maximal et
l’impédance requise pour chaque type d’antenne.
Les types d’antenne non inclus dans cette liste, ou
dont le gain est supérieur au gain maximal indiqué,
sont strictement interdits pour l’exploitation de
l’émetteur.
INDUSTRY CANADA STATEMENT — RADIO
Antenna List
Antenna Manufacturer Model Name Type Connector Gain(dBi) Note
1F TIME Technology Industrial Co., Ltd V0104-5A1BBT3 Dipole SMA Male 22.4G

04
Copyright © 2022 Soundmask Global Pty Ltd. All Rights Reserved.

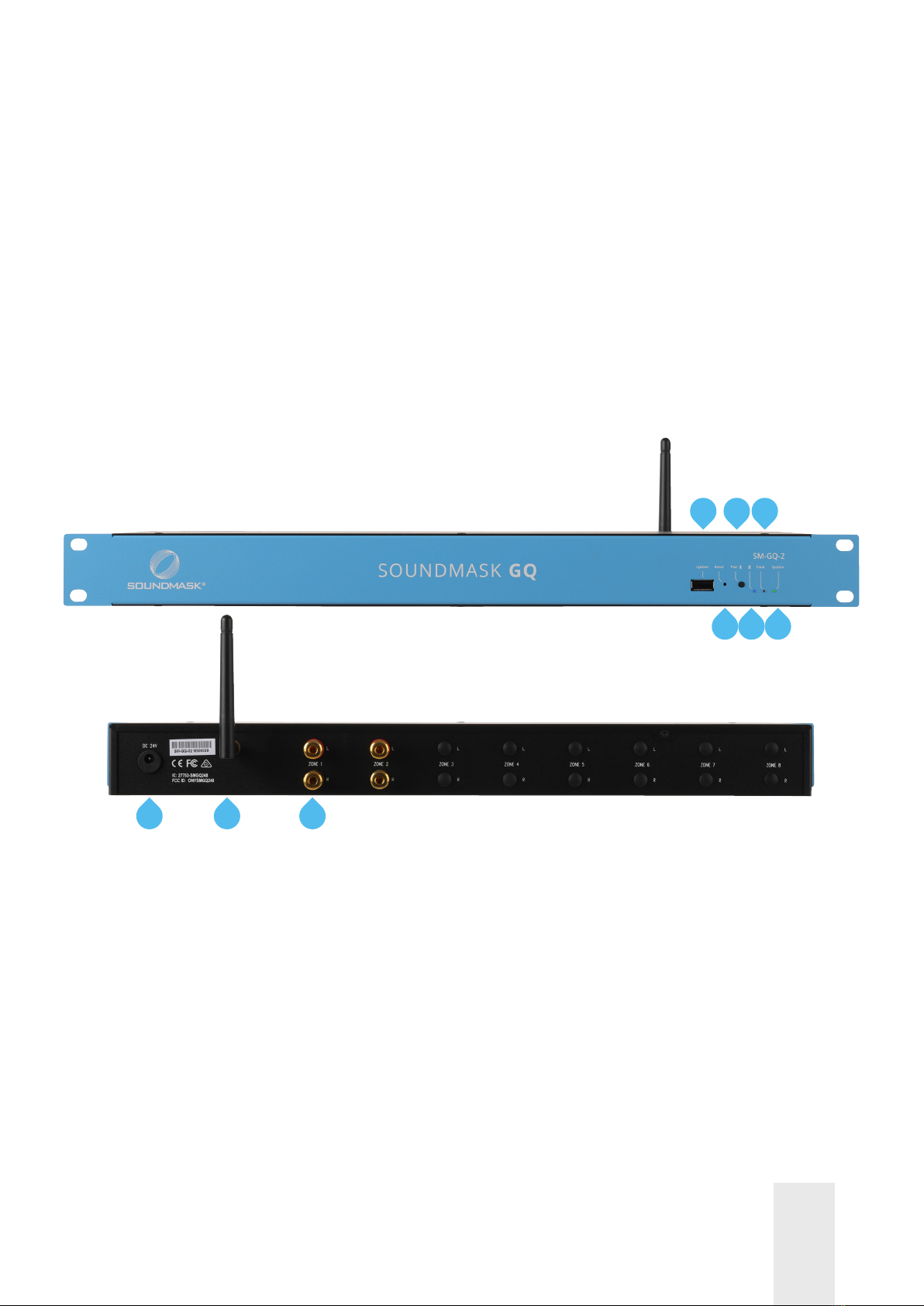

GENERAL DESCRIPTION
DIMENSIONAL DIAGRAM
The Soundmask GQ is an App-controlled single rack
mounted 2, 4 or 8 channel digital sound generator,
equalizer, zone distributor and amplifier, with an
output of 50 watts RMS per channel @ 8 ohms.
It features individual channel level control for each
channel via the Android App and stereo banana jack
outputs to connect the Soundmask transducers
(SM-T-1200 & SM-TC-1265 series) which daisy chain
in rows of up to 100 transducers per channel. The
Soundmask GQ delivers uncoloured signal direct to
the transducer.
The SM-GQ-2 is capable of servicing up to 200
transducers (100 per channel), and each channel
is its own zone, allowing 2 individual zones per unit
(controlled via App). The SM-GQ-4 and SM-GQ-8 are
capable of servicing up to 400 and 800 transducers
respectively via their 4 and 8 zones, respectively.
The unit connects to mains power via an external power
supply. A compatible power cord is supplied with the
unit. The voltage input is 100-240VAC, 50-60Hz.
483 mm
430 mm
200 mm
44 mm
113 mm*
* 113mm with aerial at 90° angle. 44mm when
aerial is moved behind Soundmask GQ device.

05 www.soundmask.com.au
Models SM-GQ-2, SM-GQ-4, SM-GQ-8
Inclusions › Bluetooth® audio conguration & control via App
› Volume control
› Multiple audio pre-sets
› Onboard 32 band Equaliser
› Firmware updates from pen driver
› Zone control using the App
› LED status indication with integrated (eg, push-
button) pairing on front of unit
› USB for pen driver
› Extra-low voltage
Amplier (per channel) › PWM oscillator is up to 2.88MHz
› 50W RMS into 6ohms with Vcc 24V
› 50W RMS into 8ohms with Vcc 28V
› 24-28V Vcc Supply Voltage Operation
› Full Bridge (BTL) output Amplier
› Integrated Short Circuit Protection
› Integrated Thermal shutdown
› Start Up De-pop Circuit
› Eciency up to 90%
› Frequency response 20Hz-20kHz
LED status indications › System Operating
› Bluetooth pairing progress
› Bluetooth paired connection
› Fault indication
App features › Android operation (iOS capability in future)
› Bluetooth pairing
› ID protected
› Zone conguration
› Equaliser adjustment (including presets)
› Scheduling (ramp and timer) functionality
› Volume control
› Send log of input via email
Size 483 x 200 x 44 mm (without antenna), 1960g
Compliance
Power supply External power supply with standard IEC socket and compatible plug for each country.
Safety information Mount unit in locations that provide unobstructed air movement to minimise the risk of overheating.
SPECIFICATIONS

06
Copyright © 2022 Soundmask Global Pty Ltd. All Rights Reserved.
FRONT PANEL REAR PANEL
7. Main Power - Connects to a standard IEC socket.
A compatible power cord is supplied with the unit.
8. Bluetooth antenna - Allows pairing to the App. Diculty
pairing may indicate that the antenna is not correctly
connected.
9. Audio outputs - Each black and red pair connects to one
daisy chain of up to 100 Soundmask transducers. Always
connect black to black and red to red.
1
2
7 8 9
USER INTERFACE
The user interface is controlled via the mobile
Application (App), which can be downloaded here:
www.soundmask.com.au/app.htm
Authorised Installers are provided with a unique
Installer ID, which is used to operate the App and the
Soundmask GQ (SM-GQ).
For additional information and tips, including
installation, please contact us to request the official
Soundmask video tutorials.
QUICK SET-UP
1. Connect SM-GQ to 24V DC Power (7). Check that
the System Power LED is green (6).
2. Open the App on phone or tablet. Pair the App
via the Bluetooth connection by pressing the pair
Bluetooth button (3) until the Bluetooth indicator
LED flashes blue (4). Release the button. When
correctly paired, the blue LED (4) will cease flashing.
3. Follow the steps on the App to set up the SM-GQ.
1. USB input - Update rmware via USB drive.
2. Reset - Reset unit to factory settings.
3. Pair Bluetooth button - Press and hold for 20 sec to pair
Bluetooth.
4. Bluetooth indicator - Blue LED light ashes while pairing;
constant blue light when paired.
5. Fault - Red LED light indicates fault.
6. System Power - Green LED light indicates unit is operating.
6
5
4
3

Copyright © 2022 Soundmask Global Pty Ltd. All Rights Reserved.
To the best of our knowledge, the material contained within this document was accurate at the time of printing.
No liability or otherwise is assumed for the accuracy of this document.
No warranty is given or implied as to the accuracy of any part of the document.
The Bluetooth®word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of
such marks by Soundmask Global is under license. Android is a trademark of Google LLC. iOS®is a registered
trademark of Cisco in the US and is used by Apple under license. Other trade marks and trade names are
those of their respective owners.
TROUBLESHOOTING
If the unit is running slowly or “freezes up”, reset the unit by turning it off at the power outlet. Leave the unit to
reset for one minute before turning the power outlet on again. Relaunch the App before re-pairing with the unit.
For any further problems, contact us via the detail below.
CONTACT
NOTES
1300 734 168 (within Australia)
[email protected]
Soundmask Global Pty Ltd
Soundmask Global Pty Ltd
PO Box 4068
Balwyn VIC 3103
AUSTRALIA
www.soundmask.com.au
