SoundMax SM-DVD5111 User manual

1

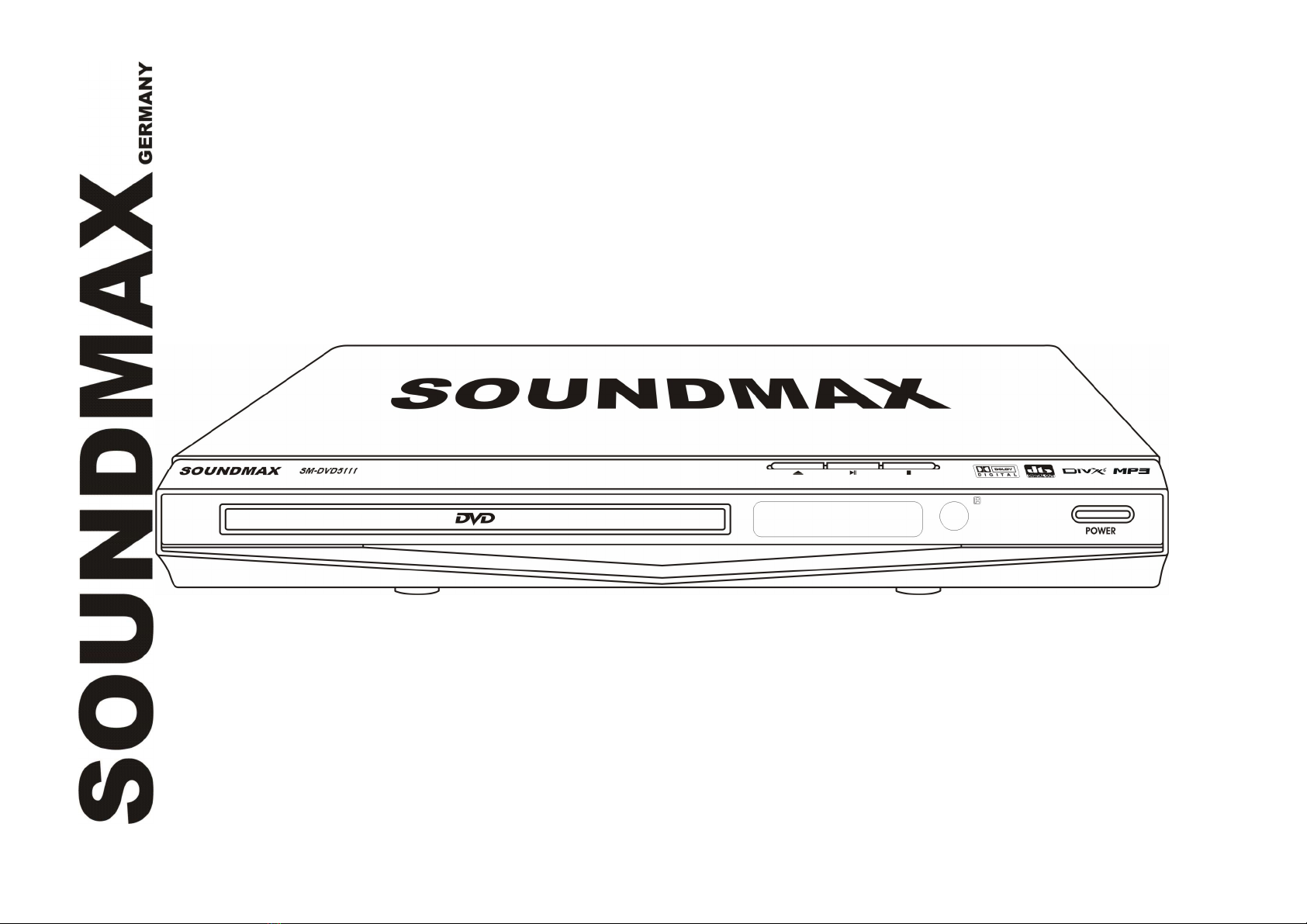

SM-DVD5111
DVD PLAYER DVD ПЛЕЕР
Instruction manual Руководство по эксплуатации

2
Contents
Contents ..................................................................................................................................... 2
Important safeguards ................................................................................................................... 3
Important notes ........................................................................................................................... 3
Features...................................................................................................................................... 4
Accessories.................................................................................................................................. 6
Disk features ............................................................................................................................... 6

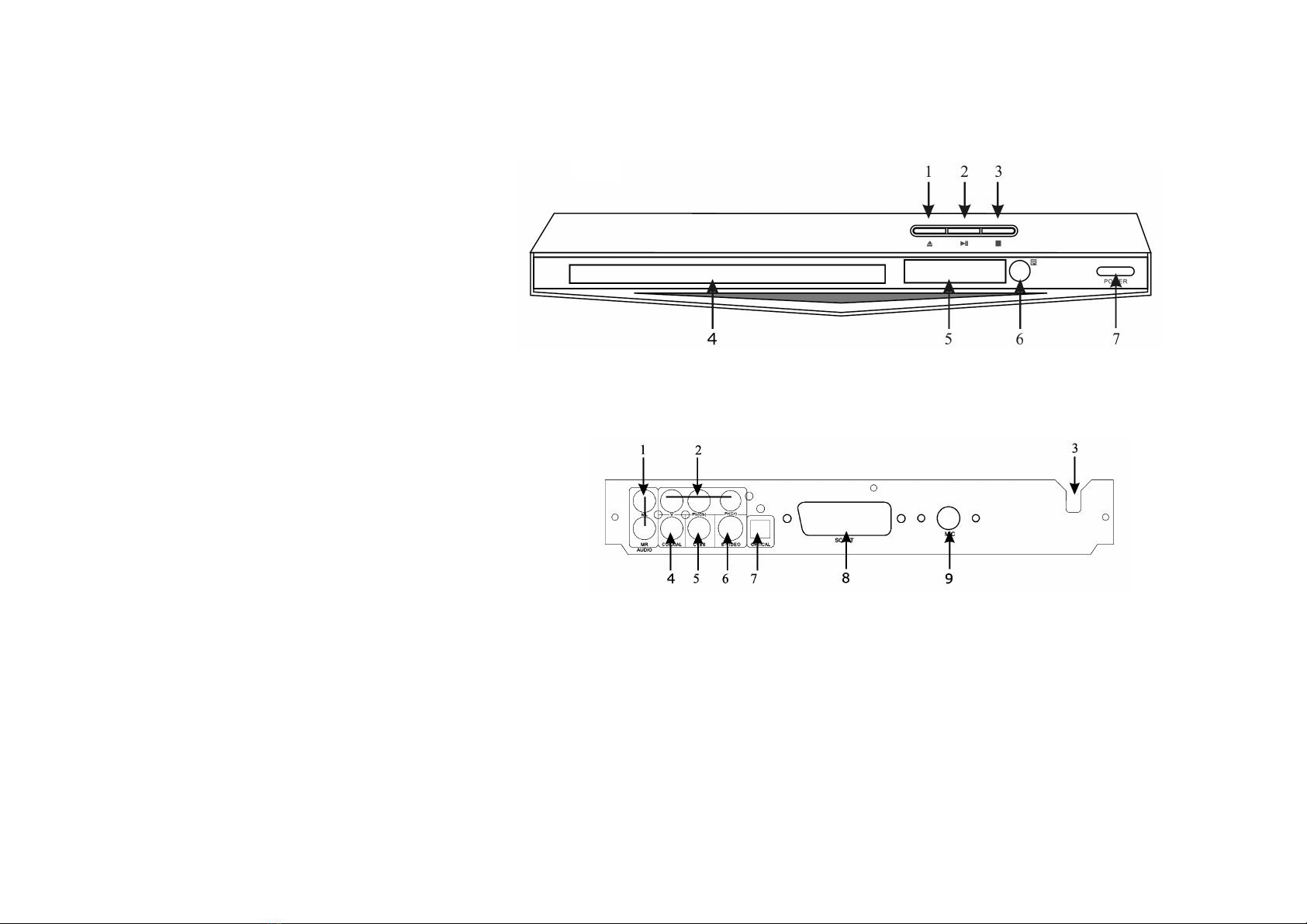

Panel ........................................................................................................................................ 11
Connection ................................................................................................................................ 15
System setup............................................................................................................................. 18
Troubleshooting guide................................................................................................................. 30
Specification .............................................................................................................................. 31

3
Important safeguards
The lightning flash is intended to alert the user to the presence of dangerous voltage within
the product's enclosure, and touching the inner parts may result in a risk of electric shock to
persons.
The exclamatory mark is intended to alert the user to the presence of important operating
instructions.
To reduce the risk of electric shock or fire, do not open the cover. Refer servicing to qualified
service personnel.
This mark indicates this unit belongs to class 1 laser product. The laser beam may produce
radiation harm to the directly touching human body.
Important notes
·Please read through the manual carefully before connection and operation.
·Do not open the cover or touch any internal components for non-professional.
·Turn off the power when the unit is not being used. (Unplug the power cord if the unit is not used for a
long time).
·Don't expose this unit to direct sunlight. Keep away the heating sources or equipments.
·Don't expose this unit to the rain or moisture.
·Place the unit on a horizontal level. Keep the unit ventilated. Don't block the heat hole. Overheat may
cause malfunction.
·Clean the cabinet with soft cloth. Detergent or alcohol is forbidden.
·This book is only a guide for user’s operation, not a criterion for configuration.

4
Features
Thank you for purchasing our product. Please go through this manual carefully before connection and
operation. Please keep this manual for future reference.
DVD player SOUNDMAX is a new generation home player, which can produce high quality video and audio.
Its performance is much better than that of any previous home video playing equipment. As the best signal
source of home theatre system, it will give you the uppermost enjoyment!
·Slim loader
·Supports: DVD-R/-RW, DVD+R/+RW, CD-R/-RW
·Support of MPEG4 (DivX)
·Compatible with: DVD, DVCD, Super VCD, VCD, HDCD, CDDA, MP3, WMA, Kodak Picture CD, JPEG
·Progressive scan
·Video connections: composite, S-video, component (YUV), SCART
·Audio connections: coaxial, optical
·Russian and English OSD
·Power supply: 110-240 V, 50/60 Hz

5

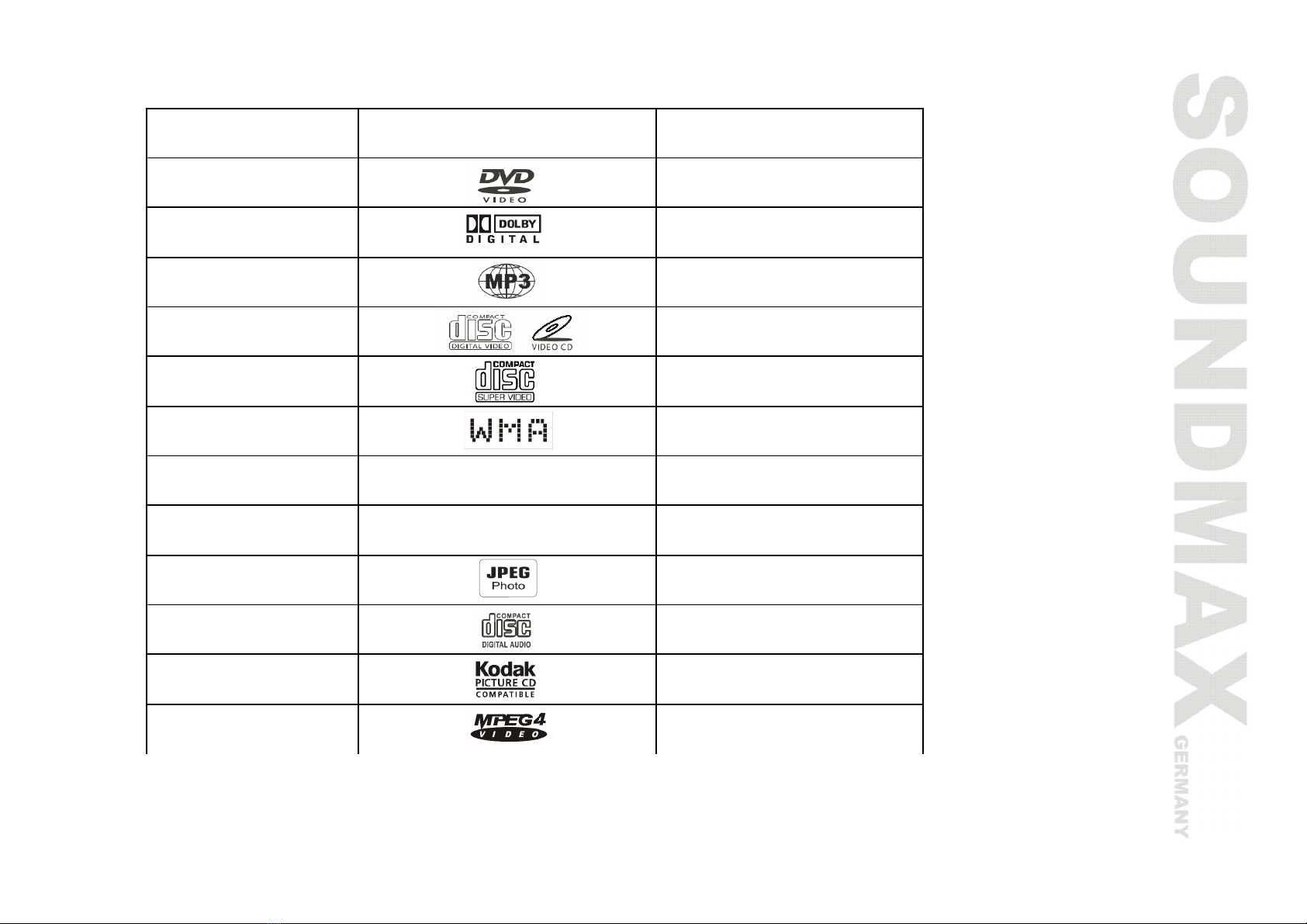

This unit can play the following types of discs
Disc types Symbol Contents
DVD Audio + Video
AC-3 Dolby Digital Audio
MP3 Audio
Video-CD
(VCD) Audio + Video
SVCD Audio + Video
WMA Audio
DVCD Audio + Video
HDCD Audio
JPEG Digital Photo
CDDA Audio
Kodak Picture
CD Digital Photo
MPEG4 Audio + Video

6
Accessories

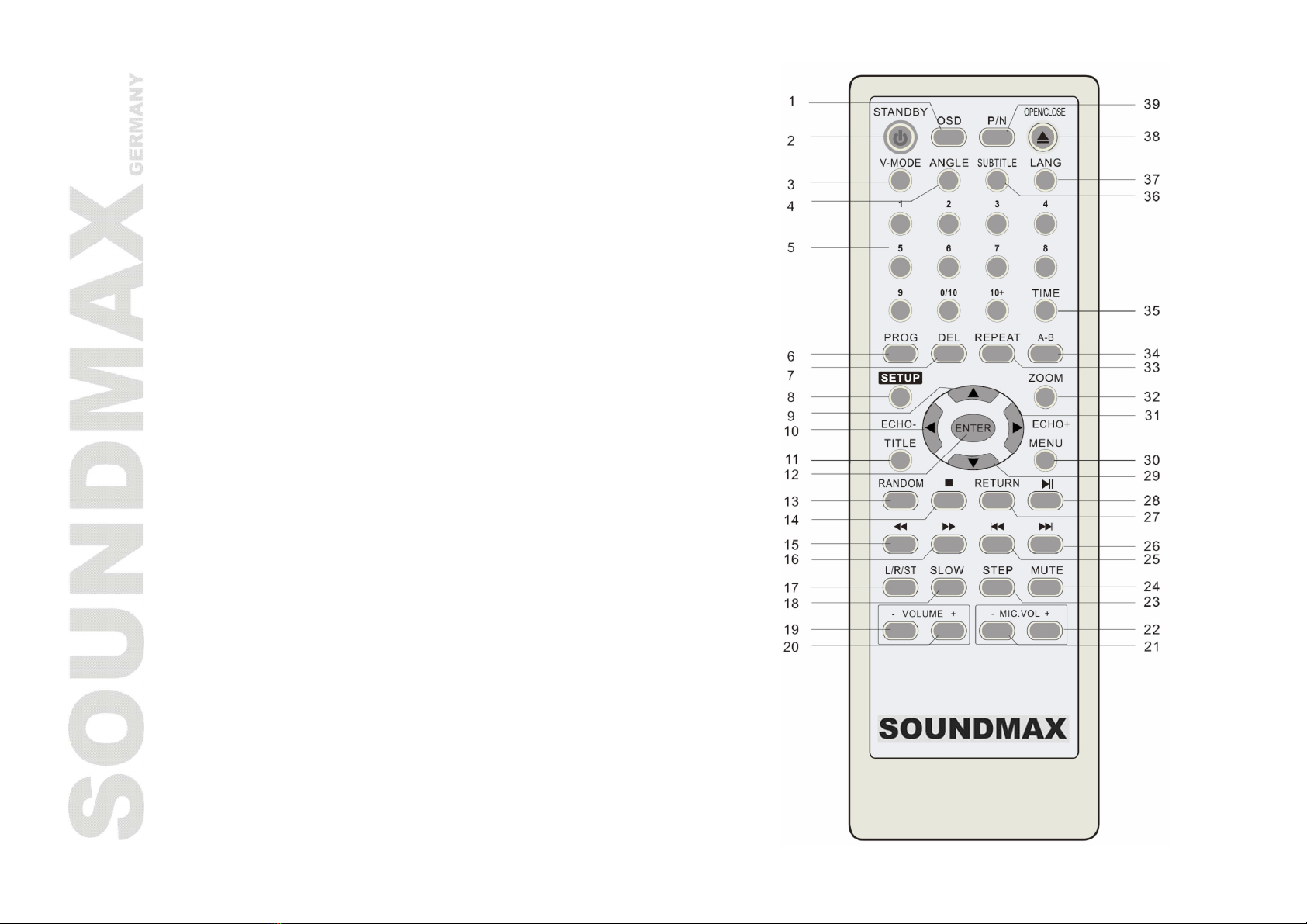

User manual Remote control A/V Cable
Disk features
·DVD 5 (single side, single layer)
·DVD 9 (single side, double layer)
·DVD 10 (double side, single layer)
·DVD 18 (double side, double layer)
·VCD 1.0/1.1/2.0
·Picture CD
·MPEG4
·DVCD
·HDCD
·CDDA
·MP3
·CD-R
·CD-RW

7

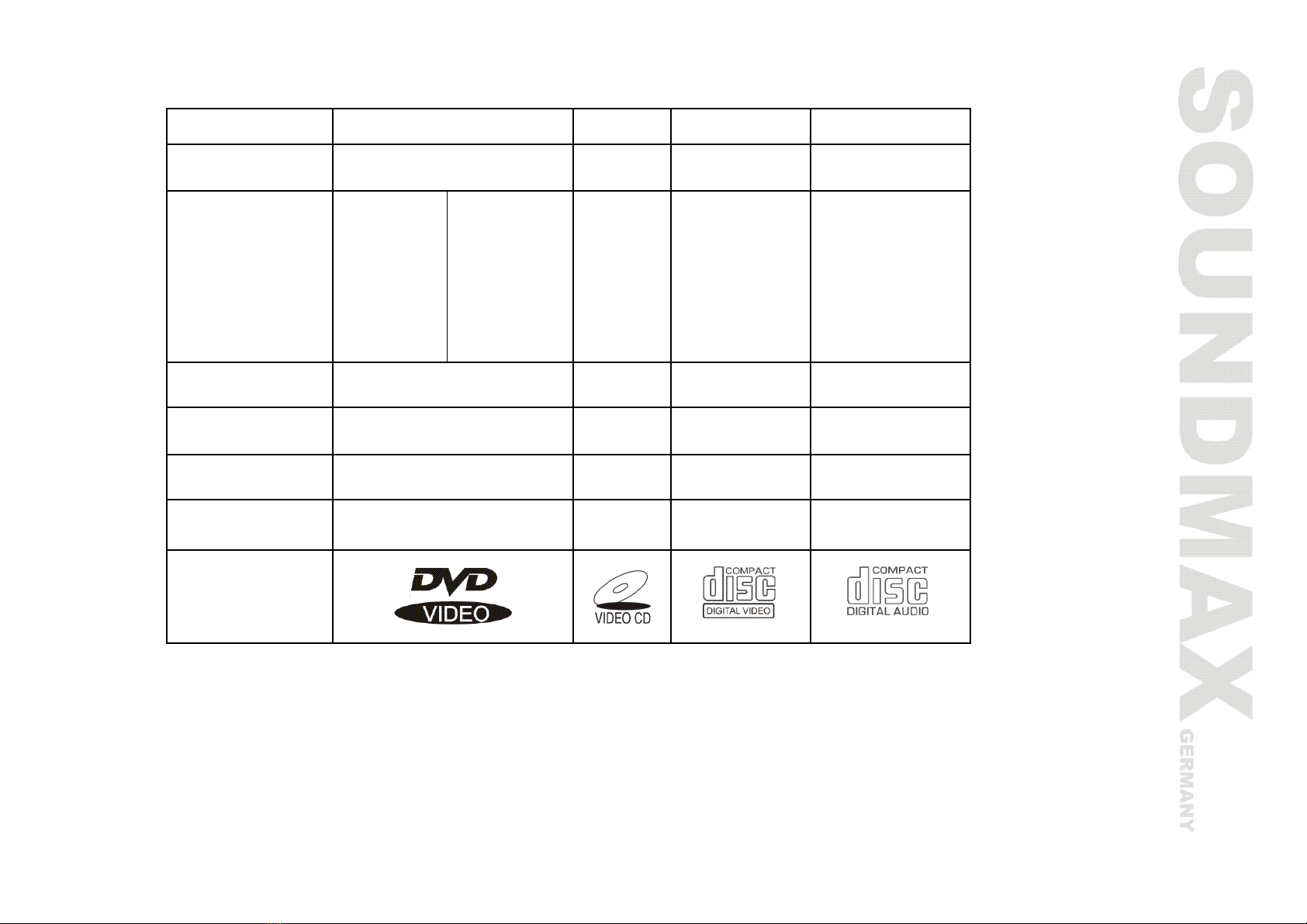

Disc information
TYPE DVD VCD SVCD CD
RECORD
FORMAT MPEG 2 MPEG I MPEG II DIGIT
CAPACITY
Single side
Single layer
4.7 GB = 2
Hr
single sides
Double
layer
8.5 GB = 4
Hr
double side
Single layer
9.4 GB = 4.5
Hr
Double sides
Double layers
17 GB = 9 Hr
650 M
74 min.
650 M
45 min.
650 M
74 min.
DISC SIZE 12 cm / 8 cm 12 cm 12 cm 12 cm / 8 cm
HORIZONTAL
RESOLUTION ≥500 lines ≥240
lines ≥350 lines ―
SUBTITLE Up to 32 kinds ―8―
LANGUAGE Up to 8 kinds 2 4 ―
SYMBOL

8
Different DVD discs have different combination of features, this is because of the different design created
by the order and manufacturer, the following symbols indicate some features of the DVD disc.
Regional code and the video output system Hiding subtitle
Dolby digital surround Two-channel stereo
DTS digital cinema surround Restriction
Subtitle
Audio track
Video aspect ratio
Parental lock
Angle

9
Handling discs
·When holding a disc, please hold it by its rim.
·When holding a disc, be sure the label side should be upwards
·Do not grasp the non-label side of the disc.
Disc storage
·Never store discs in the place with high temperature, strong light or humidity.
·Put the disc back to the case after playback.
Cleaning
·Wipe the discs from time using a soft cloth. Always wipe from the center towards the edge.
·Do not use daily used detergent to clean the disc.
·Protect discs against any fingerprint, do not stick or white anything on the surface of the disc.

10
Disc Terms
Title
Generally, pictures or music compressed on a DVD are divided into several sections that is “TITLE”.
Chapter
The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of one or
more chapters and each of them is numbered for easy searching. But some discs may not have a recording
chapter.
Track
A segment of picture or music on a SVCD, VCD or CD. Each track is numbered for searching.
Scene
VCD with playback control function, on which active and stillness picture divided into certain portions is
called scene, and every scene will be showed on screen menu with a scene number that can be easily
found while on playing. A scene usually is formed with one or several tracks.
PBC function (SVCD, VCD)
If a SVCD or a VCD is played a content menu may be showed on screen, this is what we Called “Playback
control” viz. PBC function.
Disc sort Functions
VCD without PBC function (1.1
version) Supports both music and images.
SVCD/VCD with PBC function
(2.0 version)
In order to play pictures from VCD the menu indicated on the screen
can be used.
